Home Zone Security LK48498V User manual

4PK Outdoor Low Voltage
LED Spot Light
Model No. LK48498V (IWH2301LL)
[phone]
1. Please read all warning and instruction labels which are included in the box and fixture to avoid personal injury, property damage
caused by fire, cuts, bruises, death and other dangers.
2. Please follow these general precautions before installing, maintaining, or fixing.
1. The packing contains small parts that could be swallowed by children.
2. Keep the packaging material away from children and pets.
3. The spot light is not a toy.
4. We do not take responsibility if the instruction manual is not followed correctly or if the product is handled
improperly resulting in damage to person or property.
1. Dimension: 7 inch x 3 inch x 11.8 inch
2. Light Source: 7.5W LED
3. Brightness: 410 lumen
4. Color Temperature: 3000K
REF. PARTS
HOW TO OPERATE AND INSTALL
PARAMETERS:
4pcs x spotlight

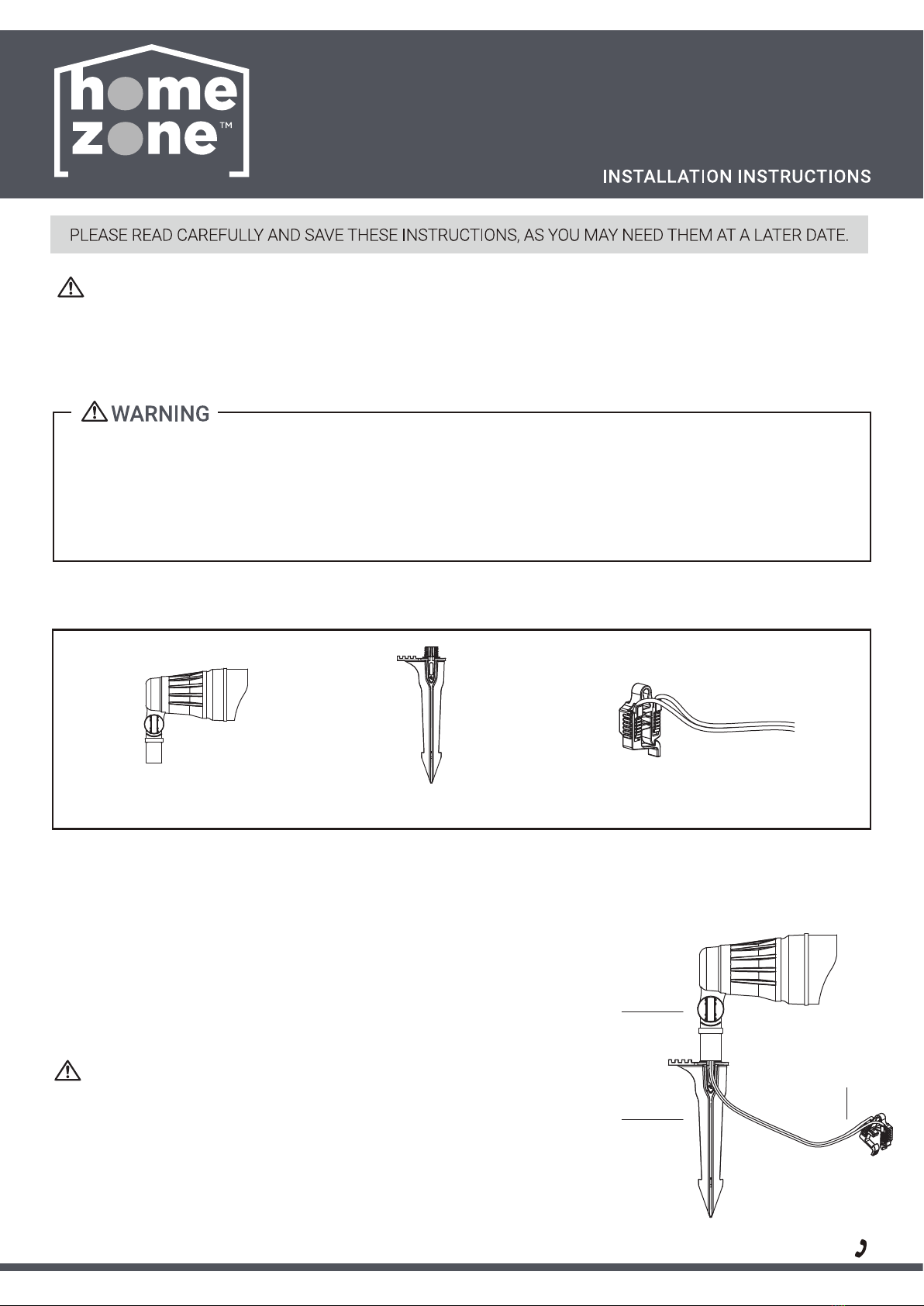

Figure 1 Attaching and installing the light
securit y
www.homezonesecurity.com
4pcs x stake 4pcs x low voltage connector
1. Insert the fixture wire of the wire connector (C) into the groove
located on the top of the ground stake (B).
2. Prepare a hole in the installation location. Use a tool (not included)
to dig an installation hole (the hole should not be larger than the
stake (B)).
3. Install the fixture in the ground.
WARNING: Never use a hammer to insert the stake into the ground.
A
B
C
IMPORTANT SAFETY OPERATING INSTRUCTIONS

Model No. LK48498V (IWH2301LL)
4PK Outdoor Low Voltage
LED Spot Light
[phone]
CLEANING AND MAINTENANCE

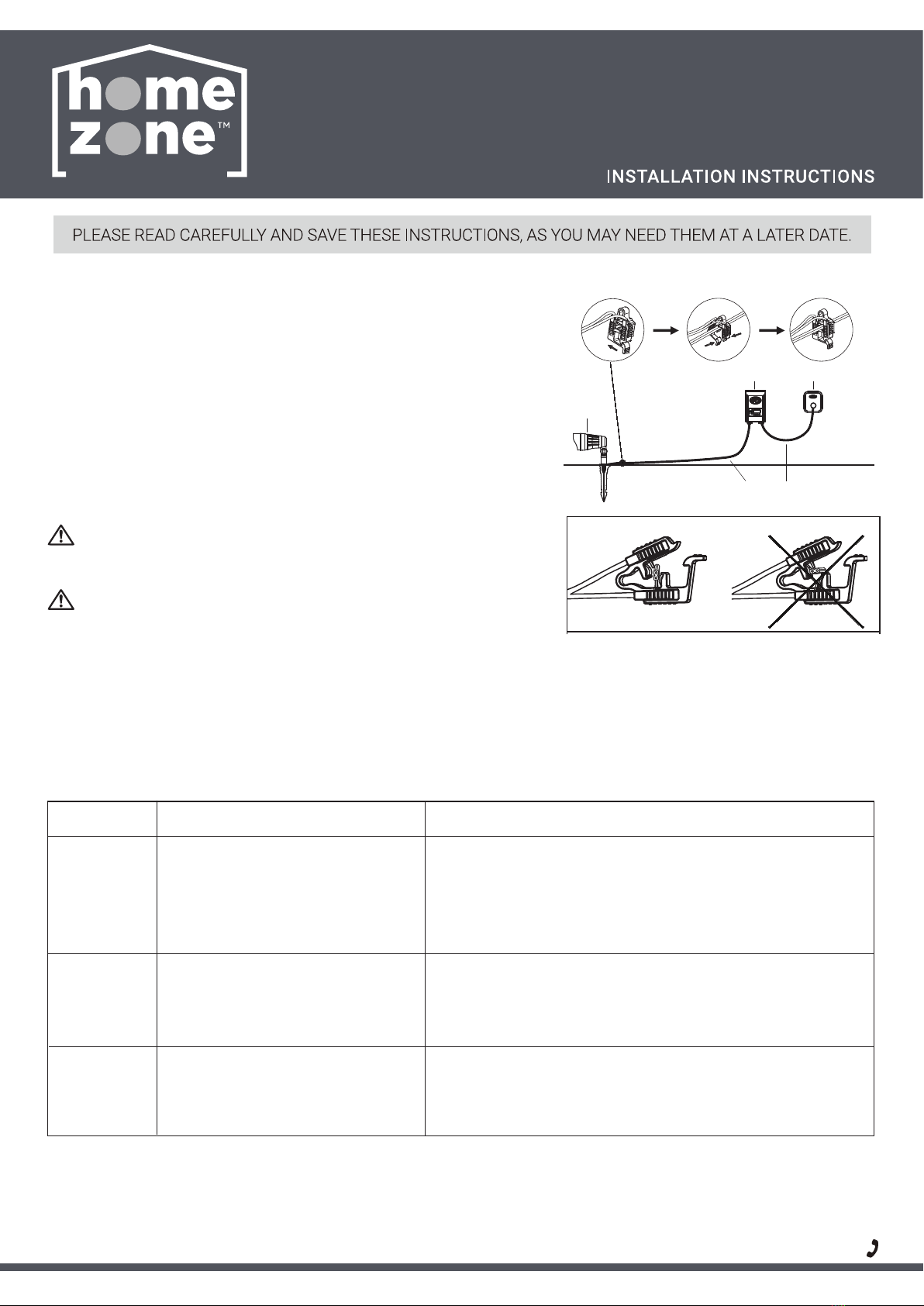

Figure 2 Connecting the wires
securit y
www.homezonesecurity.com
WARNING: The wire connector (C) contacts have sharp edges for
piercing the main low voltage cable. To avoid injury, do not touch the
metal contacts.
1. Open the wire connector.
2. Align and fit the low voltage power cord（not included）from
transformer (not included) to the slot of the wire connector.
3. Press the wire connector until it is locked.
4. Once the wire connector is in place, it is recommended to wrap
whole wire connector with electrical tape (not included) to avoid any
water exposure during use.
5. After all fixtures are installed, turn on the transformer (not included).
CAUTION: The wire from low voltage power unit should be
12-16 AWG type underground low Energy Circuit Cable.
1. Clean the fixture with a soft dry cloth.
2. Do not use any cleaners with chemicals, solvents or harsh abrasives.
TROUBLESHOOTING
The fixture
will not
light.
□There is no power.
□There is a disconnection or
break in the wire.
□The transformer setting is
incorrect.
□Check the outlet and ensure that a breaker or GFCI circuit
has not been tripped.
□Follow the wires from the fixture and ensure a continuous
connected path back to the transformer.
□Check the settings on the transformer.
The light
flickers (one
fixture).
□There is a loose wire
connector to the fixture.
□Tighten the wire connector and ensure the metal
contacts pierce the insulation on the low voltage cable
from the transformer.
The lights
flicker (all
fixtures).
□There is a loose
connection at the
transformer.
□Unplug the transformer from the outlet and visually
inspect the positive and negative connecting points. Each
wire should be securely screwed in and not in contact with
each other.
Problem Possible Cause Solution
Low Voltage LED
Spot Light
Transformer
(sold separately)
Outlet
(sold separately)
Low Voltage Main Cord
(sold separately)

Model No. LK48498V (IWH2301LL)
4PK Outdoor Low Voltage
LED Spot Light
[phone]
securit y
www.homezonesecurity.com
CABLE SELECTION
12 VOLT TAP Cable Length
Total Fixture Wattage 0-50 feet 51-100 feet 101-150 feetLength
0-60 Watts 16 AWG 16 AWG 14 AWG
61-120 Watts 16 AWG 14 AWG 12 AWG
121-180 Watts 14 AWG 12 AWG Not Recommended
181-240 Watts 14 AWG 12 AWG Not Recommended
241-300 Watts 12 AWG Not Recommended Not Recommended
12 AWG Not Recommended Not Recommended
12 AWG Not Recommended Not Recommended
600W Transformer
= (2x300) Watts
900W Transformer
= (3x300) Watts
15 VOLT TAP Cable Length
Total Fixture Wattage 0-50 feet 51-100 feet 101-150 feetLength
0-60 Watts 16 AWG 16 AWG 16 AWG
61-120 Watts 16 AWG* 14 AWG 12 AWG
121-180 Watts 14 AWG* 14 AWG 12 AWG
181-240 Watts 14 AWG* 14 AWG 12 AWG
241-300 Watts 12 AWG* 12 AWG Not Recommended
12 AWG* 12 AWG Not Recommended
12 AW*G 12 AWG Not Recommended
600W Transformer
= (2x300) Watts
900W Transformer
= (3x300) Watts

Model No. LK48498V (IWH2301LL)
4PK Outdoor Low Voltage
LED Spot Light
[phone]
WARNING – Risk of Electric Shock. Install power unit 5 feet (1.5 m) or more from a pool, spa, or fountain.
Where the power unit is installed (a) indoors within 10 feet (3.0 m) of a pool, spa, or fountain or (b) outdoors, connect
power unit to a receptacle protected by a GFCI.
Main low voltage cable is intended for shallow burial – less than 6 inches (152 mm).
Low voltage cable must：
a) be protected by routing in close proximity to the luminaire or fitting, or next to a building structure such as a house
or deck;
b) not be buried except for a maximum 6 inches (15.2 cm) in order to connect to the main low voltage cable.
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) This device must accept any interference received, including
interference that may cause undesired operation. Warning: Changes or modification to this unit not expressly
approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limited for Class B digital device, pursuant
to Part 15 of the FCC Rules. Their limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If the equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Only for use with low voltage landscape lighting power units with a maximum output rating of 12 Volts,
300 Watts Uniquement pour une utilisation avec une faible tension des unités de puissance d'éclairage de
paysage avec une puissance de sortie maximale de 12 Volts, 300 Watts.
securit y
www.homezonesecurity.com
WARNING: This product can expose you to chemicals including lead and lead
compounds, Di (2-ethylhexyl) phthalate (DEHP), which are known to the State of
California to cause cancer and birth defects or other reproductive harm. For more
information go to www.P65Warnings.ca.gov.
