Before using your 14,000 BTU QUIET PORTABLE AIR CONDITIONER, please read this manual.
14,000 BTU
QUIET PORTABLE
AIR CONDITIONER
HME020235N

BEFORE FIRST USE:
To prevent any internal damage, it is very important to
keep refrigeration units (like this one) upright throughout
their journey. Please leave it standing upright and outside
the box for 24 HOURS before plugging it in.

Important Safety Instructions 6-7
Parts Description 8
Operation 9-14
Maintenance 15
Troubleshooting 16
Warranty 17
Manufacturing Info 18
Warning 18
Contact Us 18
Additional Info 18
TABLE OF CONTENTS

on bringing home your new appliance!
Congratulations
Don’t forget to register your product at homelabs.com/reg
for updates, coupons, and other relevant information.
Although greatly appreciated, product registration is not
required to activate any warranty.

6
When using your hOme™14,000 BTU Portable Air Conditioner, basic safety precautions should always be followed to reduce the risk
of re, electrical shock, and/or injury to persons. Incorrect operation due to ignoring instructions may cause harm or damage.
THIS SYMBOL INDICATES THAT IGNORING INSTRUCTIONS MAY CAUSE DEATH OR SERIOUS INJURY.
• Use this appliance only for its intended purpose as described in this manual.
• Installation must be performed according to the installation instructions. Improper installation can cause water leakage,
electrical shock, or re.
• Use only the included accessories, parts, and specied tools for installation. Otherwise, it may cause water leakage, electrical shock,
re, injury, or property damage.
• Make sure that the outlet you are using is grounded and has the appropriate voltage. The power cord is equipped with a three-prong
grounding plug to protect against shock. Voltage information can be found on the side of the unit, behind the grille.
• Install and always keep the unit on a at, sturdy surface. Failure to do so could result in damage or excessive noise and vibration.
• The appliance must be kept free from obstruction to ensure proper function and to mitigate safety hazards.
• DO NOT modify the length of the power cord or use an extension cord to power the unit. DO NOT share a single outlet with other
electrical appliances. An improper power supply can cause re or electrical shock.
• Turn off the appliance when not in use.
• DO NOT install the air conditioner in a wet room, such as a bathroom or laundry room. Too much exposure to water can cause
electrical components to short circuit.
• DO NOT install the air conditioner in a place that may be exposed to combustible gas, as this could cause re.
• The air conditioner has wheels to facilitate moving. Do not use the wheels on thick carpet or to roll over objects,
as these could cause tipping.
• DO NOT operate the air conditioner if it has been dropped or damaged.
• Do not touch the air conditioner with wet hands.
• DO NOT allow children to play with the air conditioner. Children must be supervised around the air conditioner at all times.
• If the air conditioner is knocked over during use, turn it off and unplug it from the main power supply immediately.
Visually inspect it to ensure there is no damage. If you suspect the appliance has been damaged, contact a technician
or our customer service team for assistance.
• In a thunderstorm, power off the air conditioner to avoid damage due to lightning.
CAUTION
WARNING
IMPORTANT SAFETY INSTRUCTIONS
• This appliance is not intended for use or maintenance by children or persons with reduced physical, sensory, or mental
capabilities or lack of experience and knowledge, unless they have been given supervision or instruction about the use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, a service agent, or a similarly qualied person in order
to avoid a hazard.
• Prior to cleaning or other maintenance, the appliance must be disconnected from the main power plug.
WARNING: To prevent death or injury to the user or other people and property damage, the following instructions
must be followed. Incorrect operation due to the ignoring of instructions may cause death, bodily harm, or
property damage.

7
• Do not remove any fastened covers.
• Never use this appliance if it is not working properly, or if it has been dropped or damaged.
• Do not run the cord under carpeting. Do not cover the cord with throw rugs, runners, or similar coverings. Do not route the
cord under furniture or appliances. Arrange the cord away from any trafc area or where it might be tripped over.
• Do not operate the unit with a damaged cord, plug, power fuse, or circuit breaker. Discard the unit or return it to an authorized
service facility for examination and/or repair.
• To reduce the risk of re or electric shock, do not plug the unit into a power cord. Connect the device to a wall outlet only.
• The appliance should be installed in accordance with national wiring regulations.
• Contact an authorized service technician for repair or maintenance of this unit.
• Contact an authorized installer for installation of this unit.
• Do not cover or obstruct the inlet or outlet grilles.
• Do not use this product for functions other than those described in this instruction manual.
• Before cleaning, turn off the power and unplug the unit.
• Disconnect the power if a strange sound, smell, or if smoke comes from the appliance.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
For Indoor Use Only

8
ACCESSORIES DESCRIPTION QUANTITY
Unit Adapter 1 pc
Exhaust Hose 1 pc
Window Slider Adapter 1 pc
Bolt 1 pc
Window Slider A 1 pc
Window Slider B 1 pc
Foam Seal A (Adhesive) 2 pc
Foam Seal B (Adhesive) 2 pc
Foam Seal C 1 pc
Security Bracket and 2 Screws 1 set
Drain Hose 1 pc
Power Cord Wrap (must attach to back of unit) 1 pc
Remote Control and Battery 1 set
ACCESSORIES
PARTS DESCRIPTION
Upper Air Filter
Air Outlet
Power Plug SocketPower Plug Socket
Upper Air
Intake
Lower Air Filter
Power Cord Wrap
Lower Air Intake
Power Cord Outlet
Bottom Tray Drain Outlet
BACK
Drain Outlet
Control Panel
Air Outlet Door
Panel
Wheels
Handle
(Both Sides)
FRONT
NOTE: All the illustrations in the manual are for the purpose of explanation only. Your appliance may be slightly different.

9
Your installation location should meet the following requirements:
• Make sure that you install your unit on an even surface for minimal noise and vibration.
• The unit must be installed near a grounded plug and the Bottom Tray Drain Outlet (on the back of the unit) must be accessible.
• The unit should be located at least 30cm (12 inches) from the nearest wall to ensure the proper air conditioning effect.
• DO NOT cover the Intakes, Outlets, or Remote Signal Receptor of the unit, as this could cause damage to the appliance.
OPERATION
INSTALLATION
WINDOW INSTALLATION KIT
Window Slider
Adapter
Exhaust Hose Assembled Exhaust Hose
Hook
Adapter
Hole Seat
Lower Groove
30cm
(12 inches)
30cm
(12 inches)
50cm
(19.7 inches)
TOOLS NEEDED:• Medium Philips screwdriver
• Tape measure or ruler
• Knife or scissors
• Saw (optional, to shorten Window Slider Adapter for narrow windows)
Step One: Preparing the Exhaust Hose Assembly
Keep the gray, foam tabs on each corner of the Window Slider Adapter in place as assembled. Press the Exhaust Hose into the Window
Slider Adapter and Unit Adapter. They will clamp together automatically by the elastic buckles of the adapters. You will hear all 4 corners
click once the unit is properly assembled.
Step Two: Installing the Exhaust Hose Assembly to the Unit
Insert the Unit Adapter (the Unit Adapter hook should remain right-side up) of the Exhaust Hose assembly into the lower groove of the air
outlet while the hook of the adapter is aligned with the air outlet. Slide down the Unit Adapter. The hose will slide in and lock in place.
Unit Adapter
Make sure the adapter is inserted into
the lower groove of the air outlet.

10

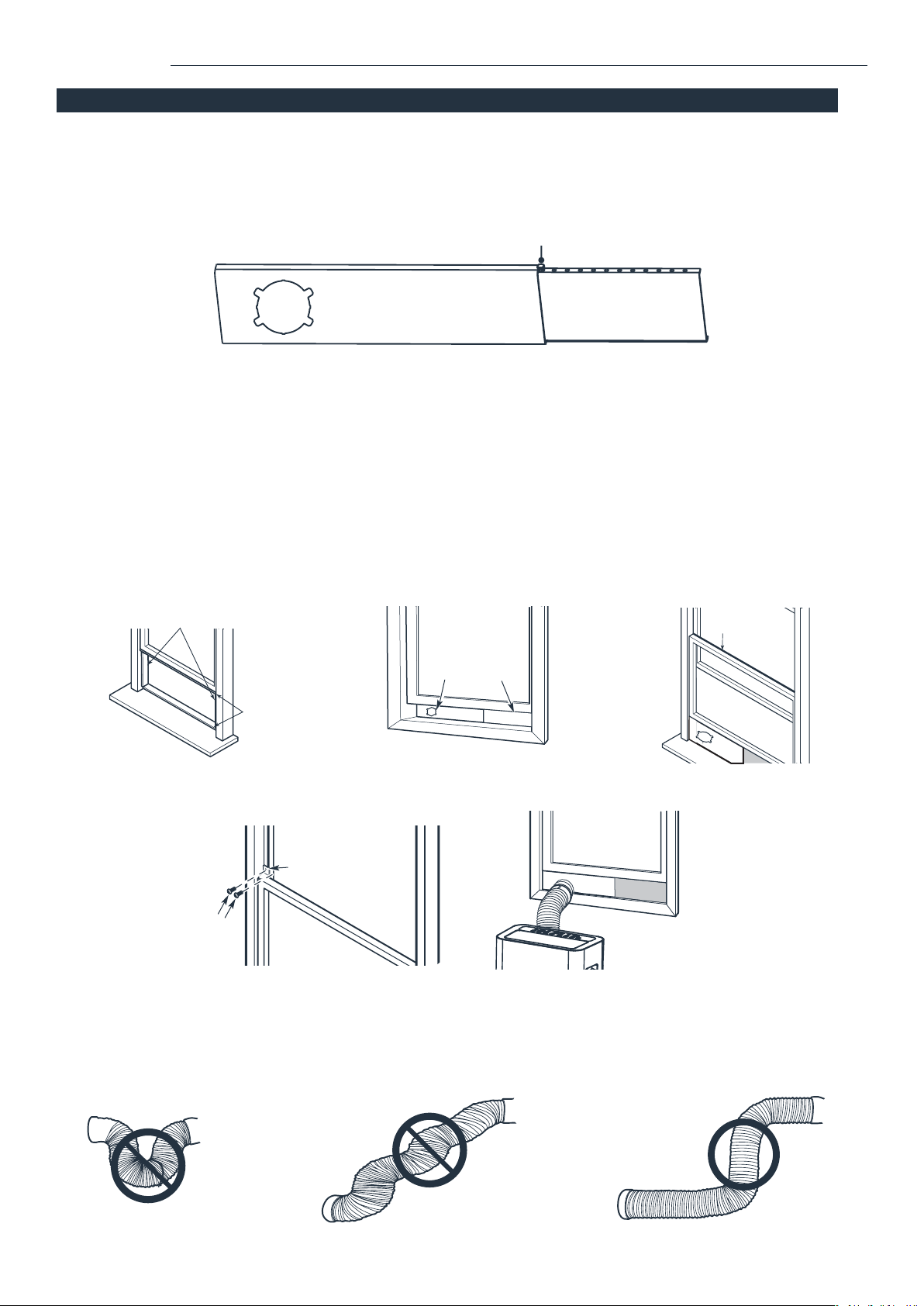

Step Three: Preparing the Adjustable Window Slider
1. Based on the size of your window, adjust the size of the Window Slider.
2. If the length of the window requires two window sliders, use the bolt to fasten the window sliders once they are
adjusted to the proper length.
NOTE: Your Window Installation Kit ts windows 67.5-123cm (26.5-48”) and can be shortened for smaller windows.
NOTE: Once the Exhaust Hose assembly and Adjustable Window Slider are prepared, choose from one of the following
two installation methods.
INSTALLATION
OPERATION
Window Slider A
Bolt
Window Slider B
NOTE: To ensure proper functioning, DO NOT over-extend or bend the hose. To ensure the exhaust system works properly,
make sure that there is no obstacle around the air outlet of the Exhaust Hose (in the range of 500mm).

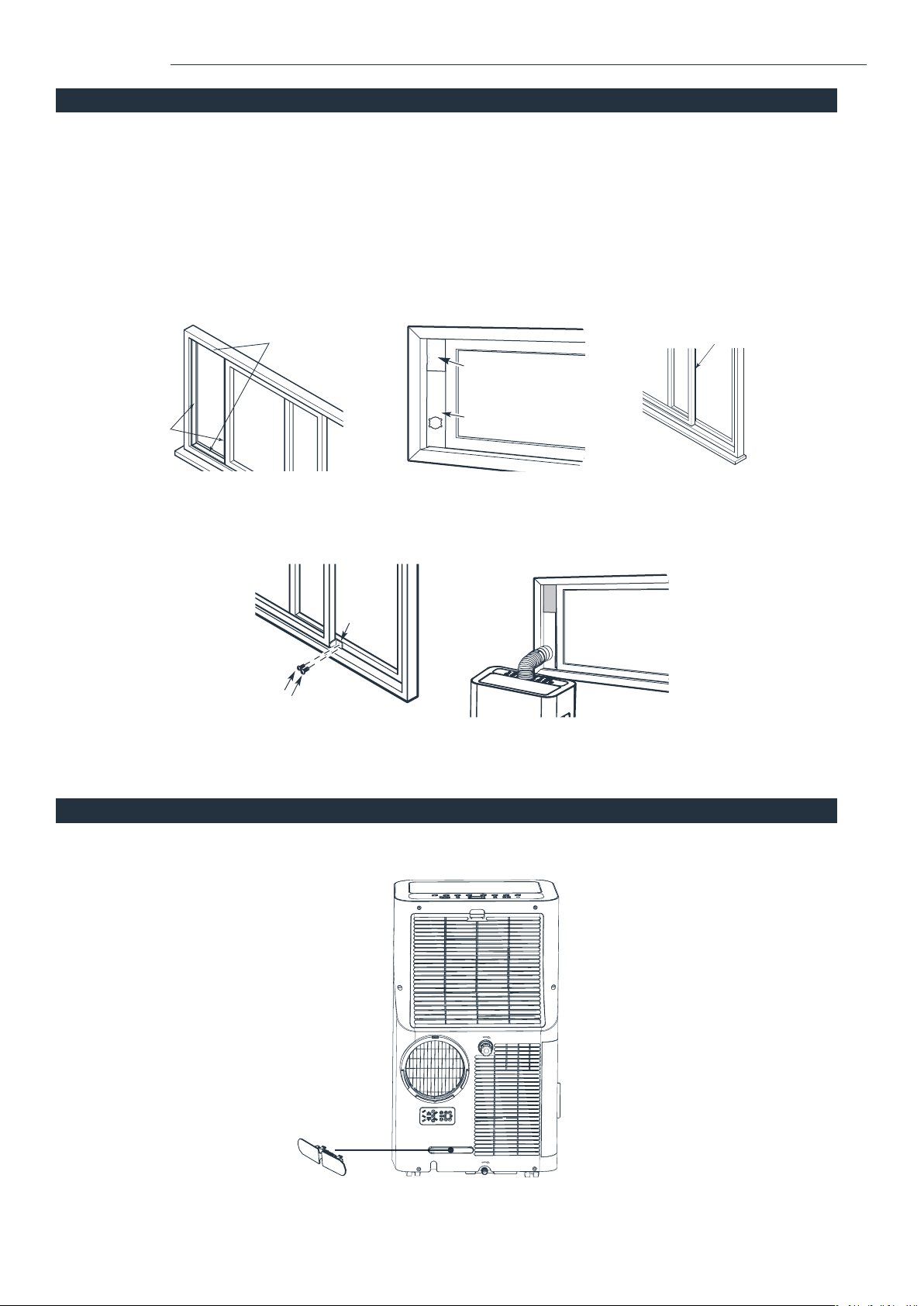

Type 1: Hung Window Installation
1. Cut Foam Seal A and B strips to the proper lengths and remove the adhesive backing. Attach them to the window sash and frame as shown.
2. Insert the window slider assembly into the window opening.
3. Cut the non-adhesive Foam Seal C strip to match the width of the window. Insert the seal between the glass and the window frame to
prevent air and insects from getting into the room.
4. If desired, install the security bracket with 2 screws as shown.
5. Insert the Window Slider Adapter into the hole of the Window Slider.
Foam Seal B
(Adhesive type-shorter)
Foam Seal A
(Adhesive Type)
A
B
(if required)
Foam seal C
(Non-adhesive type)
2 Screws
Security Bracket

11
INSTALLATION
POWER CORD WRAP
OPERATION
Type 2: Sliding Window Installation
1. Cut Foam Seal A and B strips to the proper lengths and remove the adhesive backing. Attach them to the window sash and frame as shown.
2. Insert the Window Slider assembly into the window opening.
3. Cut the non-adhesive Foam Seal C strip to match the width of the window. Insert the seal between the glass and the
window frame to prevent air and insects from getting into the room.
4. If desired, install the security bracket with 2 screws as shown.
5. Insert the Window Slider Adapter into the hole of the Window Slider.
Foam seal C
(Non-adhesive type)
Foam seal A
(Adhesive type) Window slider A
Window slider B
(if required)
2 Screws
Security
Bracket
Power Cord Wrap
Attach Power Cord Wrap to back of unit.

12

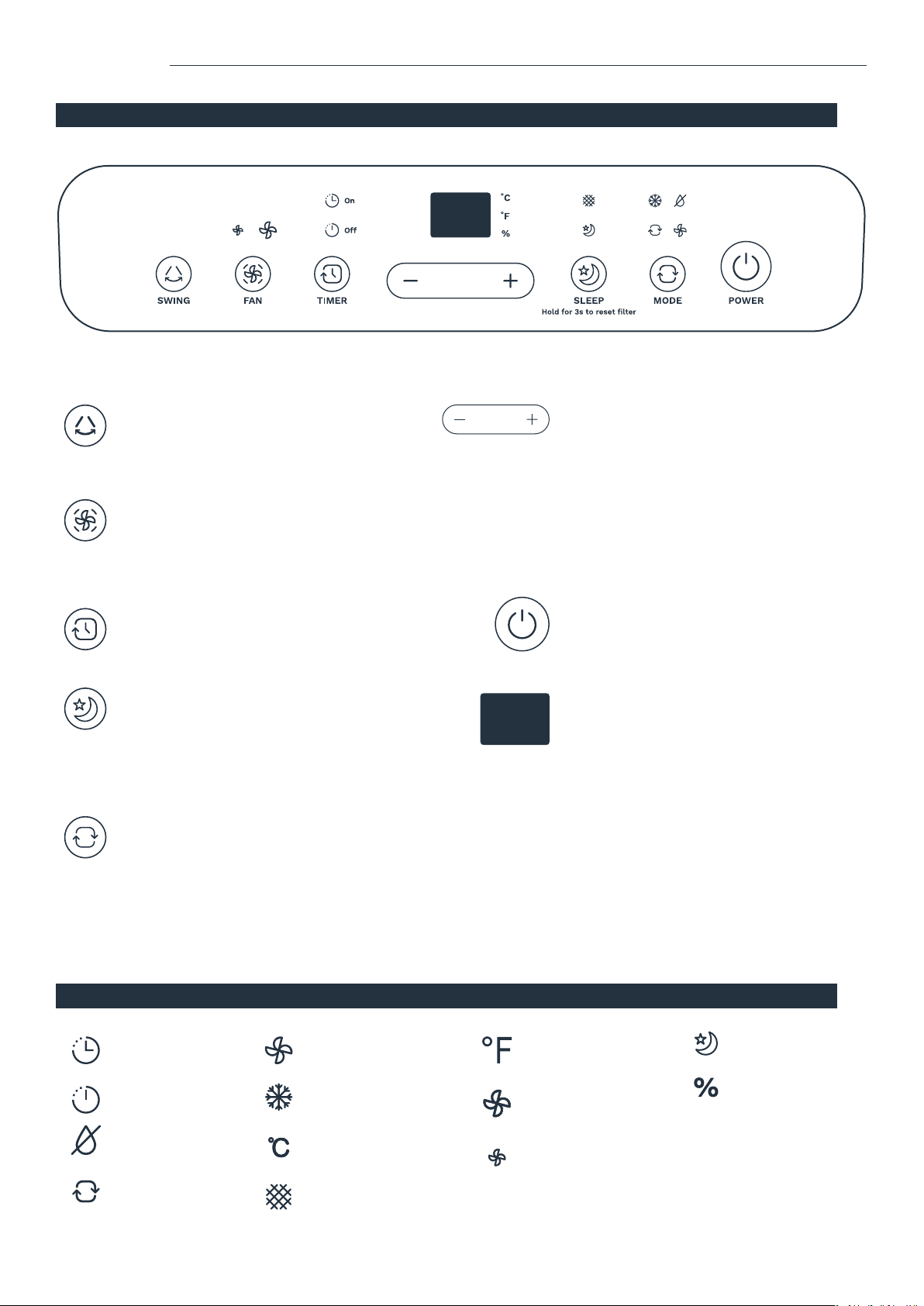

CONTROL PANEL
OPERATION
SWING BUTTON: Press to initiate the Auto swing
feature. When the operation is ON, you can choose to
press it to stop the Air Outlet Door at the desired angle.
A complete swing takes about 30 seconds for the Air
Outlet Door to move from the bottom to the top.
FAN BUTTON: Press to control the fan speed. Press to
select the fan speed; LOW, HIGH and AUTO. The fan
speed indicator light illuminates under different fan
settings except for AUTO speed. When you select AUTO
fan speed, all the fan indicator lights will turn dark.
TIMER BUTTON: Press it to initiate the AUTO ON start
time and AUTO OFF stop time program, in conjunction
with the + & - buttons. The timer on/off indicator light
will illuminate under the timer on/off settings.
SLEEP(ECO)/FILTER BUTTON: Press it to initiate the
SLEEP/ECO operation.
NOTE: After 250 hours of operation, the lter indicator
light will illuminate to remind you to clean the Air Filter
for more efcient operation. Press and hold this button
for 3 seconds to cancel the reminder.
MODE BUTTON: This button allows you to select the
appropriate operating mode. Each time you press the
button, a mode is selected in a sequence that goes
from AUTO, COOL, DRY and FAN. The mode indicator
light will illuminate under the different mode settings.
NOTE: On the DRY mode, you can adjust the humidity
for models with the humidity sensor.
UP (+) AND DOWN (-) BUTTONS: This button allows
you to adjust (increasing/decreasing) temperature
settings in 1°C/1°F increments in a range of 17°C/62°F
to 30°C/86°F, or the TIMER settings in a range of
0–24hrs. You can also adjust the humidity level in a
range of 35%RH (Relative Humidity) to 85%RH
(Relative Humidity) in 5% increments.
NOTE: To convert the displaying temperature between
Fahrenheit and Celsius, press and hold the Up and
Down buttons at the same time for 3 seconds.
POWER BUTTON: Press to power on/off.
LED DISPLAY: Shows the set temperature in °C or °F,
the Auto-timer settings, and the humidity settings.
When using DRY and FAN modes, it shows the room
temperature.
INDICATOR LIGHTS
Degrees Fahrenheit
High fan
Low fan
Sleep mode
Humidity
Timer on
Timer off
Dry mode
Auto mode
Fan mode
Cool mode
Degrees Celsius
Filter light
SWING
FAN
TIMER
SLEEP
MODE
POWER

13
COOL OPERATION
-Press the MODE button until the "COOL" indicator light illuminates.
-Press the ADJUST button "+" or "-" to select your desired room temperature. The temperature can be set within
a range of 17°C~30°C / 62°F~86°F.
-Press the "FAN SPEED" button to choose the fan speed.
DRY OPERATION
-Press the MODE button until the "DRY" indicator light illuminates.
-Under this mode, you cannot select fan speed or adjust the temperature. The fan motor operates at LOW speed.
-Keep windows and doors closed for the best dehumidifying effect.
-You can set the humidity level as the unit has a humidity sensor. Put the Drain Hose in the Drain Outlet for the best dehumidifying effect.
You don't have to connect the duct to the window.
AUTO OPERATION
-When you set the air conditioner in AUTO mode, it will automatically select cooling or fan only operation, depending on what temperature
you have selected and the room's specic temperature.
-The air conditioner will adjust the room temperature automatically to your set temperature.
-Under AUTO mode, you are not able to select the fan speed.
FAN OPERATION
-Press the MODE button until the "FAN" indicator light illuminates.
-Press the FAN SPEED button to choose the fan speed. The temperature cannot be adjusted.
-Do not put the duct to the window.
TIMER OPERATION
-When the unit is on, press the Timer button to initiate the Auto-off program, and the TIMER OFF indicator light will illuminate. Press the
UP or DOWN button to select the desired Auto-off time. Press the TIMER button again within 5 seconds, and the Auto-on program will be
initiated and the TIMER ON indicator light will illuminate. Press the UP or Down button to select the desired Auto-on time.
-When the unit is off, press the Timer button to initiate the Auto-on program. Press it again within ve seconds to initiate the Auto-off program.
-Press and hold the UP or DOWN button to change the Auto time by 0.5-hour increments for up to 10 hours, then at 1-hour increments
for up to 24 hours.
-If there is no operation in 5 seconds, the system will automatically revert back to display the previous temperature setting.
-Turning the unit ON or OFF at any time or adjusting the Timer setting to 0.0 will cancel the Timer program.
-When a malfunction occurs, the Timer program will be canceled.
SLEEP/ECO OPERATION
- By pressing this button, the selected temperature will increase (cooling) or decrease (heating) by 1°C/2°F in 30 minutes. The temperature will
then increase (cooling) or decrease (heating) by another 1°C/2°F after an additional 30 minutes. This will be maintained for 7 hours before it
returns to the original temperature. The unit will continue to operate as originally programmed.
NOTE: This feature is unavailable under FAN or DRY mode.
OPERATION INSTRUCTIONS
OPERATION
OTHER FEATURES
AUTO-RESTART
If the unit shuts off unexpectedly due to a power outage, it will restart with the previous function setting automatically
when the power resumes.
WAIT FOR 3 MINUTES BEFORE RESUMING OPERATION
After the unit stops working, do not restart operation for the next 3 minutes to protect the unit.
Operation will automatically start again after 3 minutes.
AIR FLOW DIRECTION ADJUSTMENT
The Air Outlet Door can be adjusted automatically. Adjust the air ow direction automatically:
-When the Power is ON, the Air Outlet Door opens fully.
-Press the SWING button on the panel or Remote Control to initiate the Auto swing feature.
The Air Outlet Door will swing up and down automatically.
-Please do not adjust the Air Outlet Door manually.
NOTE: The unit can be operated by use of the control panel or the Remote Control.
Expect a 1-second delay when using the Remote Control to operate.

14
OPERATION
WATER DRAINAGE
During the dehumidifying process, remove the upper drain plug from the back of the unit, install the Drain Hose (5/8" universal female
mender) with ¾" hose (locally purchased). For the models without the drain connector, just attach the Drain Hose to the hole. Place
the open end of the hose directly over the drain area in your basement oor or a water reservoir.
-When you set the humidity level, put the Drain Hose in the water outlet for the best dehumidifying effect. You don't have to connect
the duct to the window.
NOTE: Make sure the hose is secure so there are no leaks. Place the hose directly toward the drain, making sure that there are no
kinks that will stop the water from owing. Place the end of the hose into the drain and make sure the end of the hose is pointed
downward to let the water ow smoothly. The moisture capacity of the unit measures 1.96L/hour. When the Drain Hose is not used,
ensure that the drain plug and the knob are installed rmly to prevent leakage.
-When the water level of the bottom tray reaches a predetermined level, the unit beeps 8 times and the digital display shows "P1".
At this time, the air conditioning/dehumidifying process will immediately stop, however, the fan motor will continue to operate (this
is normal). Carefully move the unit to the drain location, remove the bottom drain plug, and let the water drain away. Reinstall the
bottom drain plug and restart the machine until the "P1" symbol disappears. If the error repeats, call a service agent or a professional
to repair the unit.
NOTE: Be sure to reinstall the bottom drain plug rmly to prevent leakage before using the unit.
Remove the
upper drain plug
Continuous
drain hose

15
MAINTENANCE
WARNING:
-Always unplug the unit before cleaning or any repairs.
-DO NOT use ammable liquids or chemicals to clean the unit.
-DO NOT wash the unit under running water.
-DO NOT operate the unit if the power supply was damaged during cleaning. A damaged power cord must be replaced with a
new cord from the manufacturer.
Clean the Air Filter
CAUTION: DO NOT operate the unit without the lter. Dirt and lint will clog the unit and reduce performance.
Maintenance Tips
-Be sure to clean the air lter every 2 weeks for optimal performance.
-The Water Collection Tray should be drained immediately after P1 error occurs, and before storage to prevent mold.
-In households with animals, you will have to periodically wipe down the grill to prevent blocked airow caused by animal hair.
Clean the Unit
Clean the unit with a damp cloth and mild detergent. Dry the unit with a dry cloth.
Store the Unit When Not in Use
-Drain the water collection tray by following the instructions in the previous sections.
-Run the appliance on FAN mode for 12 hours in a warm room to dry and prevent mold.
-Turn off the unit and unplug it.
-Clean the air lter according to the instructions in the previous sections. Reinstall the clean, dry lter before storing.
-Remove the batteries from the Remote Control.
-Be sure to store the unit in a cool and dark place. Exposure to direct sunlight or extreme heat can shorten the lifespan
of the unit.
DESIGN AND COMPLIANCE NOTES
Design Notice
In order to ensure the optimal performance of our products, the design specications of the unit and its Remote Control are
subject to change without prior notice.
Energy Rating Information
The Energy Rating for this unit is based on installation using an unextended Exhaust Hose without a Window Slider Adapter (as
shown in the Installation section of this manual).
Exhaust Hose Installation
The Exhaust Hose and adapter must be installed or removed in accordance with the usage mode.
For COOL or AUTO mode, the Exhaust Hose must be installed.
For FAN or DEHUMIDIFY mode, the Exhaust Hose must be removed.
Disposal
Do not dispose of this product as unsorted municipal waste. Collection of such waste separately for
special treatment is necessary.
It is prohibited to dispose of this appliance in domestic household waste.
For disposal, there are several possibilities:
• The municipality has established collection systems where electronic waste can be disposed free of charge.
• As old products contain valuable resources, they can be sold to scrap metal dealers.
Wild disposal of waste in forests and landscapes endangers your health. Hazardous substances leak into the
groundwater and nd their way into the food chain.

16
The unit does not turn on when
pressing the ON/OFF button.
The unit does not cool well.
The unit is noisy and
vibrates often.
The unit makes a gurgling sound.
P1 Error Code
In COOL mode: the room temperature is lower
than the set temperature.
The air lter is blocked with dust or animal hair.
The Exhaust Hose is not connected or is blocked.
The unit is low on refrigerant.
Temperature setting is too high.
The windows and doors in the room are open.
The room area is too large.
There are heat sources inside the room.
The ground is not level.
The air lter is blocked with dust or animal hair.
This sound is caused by the ow of refrigerant
inside the unit.
The Water Collection Tray is full.
Turn off the unit, drain the water from the
Water Collection Tray and restart the unit.
Reset the temperature to a lower degree.
Turn off the unit and clean the lter according
to the instructions.
Turn off the unit, disconnect the hose, check for
blockage, and reconnect the hose.
Call a service technician to inspect the unit and
add refrigerant.
Decrease the set temperature.
Make sure all windows and doors are closed.
Double-check the cooling area.
Remove the heat sources if possible.
Place the unit on a at, level surface.
Turn off the unit and clean the lter according
to instructions.
This is normal.
TROUBLESHOOTING
POSSIBLE CAUSES SOLUTION
PROBLEM
Error codes and protection code:
E1-Room temperature sensor error.
E2-Evaporator temperature sensor error.
E3-Condenser temperature sensor error.
E4-Display panel communication error.
E7-Zero-crossing malfunction.
P1-Bottom tray is full-Connect the drain hose and
drain the collected water.
NOTE: When one of the above malfunctions occurs, turn off the unit and check for any obstructions.
Restart the unit if the malfunction is still present. Contact the manufacturer, its service agent, or a similarly
qualied person for repair.

17
WARRANTY
hOme™ offers a limited two-year warranty (“warranty period”) on all of our products purchased new and unused from
hOme Technologies, LLC or an authorized reseller, with original proof of purchase and where a defect has arisen, wholly
or substantially, as a result of faulty manufacturing, parts, or workmanship during the warranty period. The warranty does
not apply where damage is caused by other factors, including but without limitation: (a) normal wear and tear; (b) abuse,
mishandling, accident, or failure to follow operating instructions; (c) exposure to liquid or inltration of foreign particles; (d)
servicing or modications of the product other than by hOme™; (e) commercial or non indoor use.
The hOme™warranty covers all costs related to restoring the proven defective product through repair or replacement of any
defective part and necessary labor so that it conforms to its original specications. A replacement product may be provided
instead of repairing a defective product. HOme™’s exclusive obligation under this warranty is limited to such
repair or replacement.
A receipt indicating the purchase date is required for any claim, so please keep all receipts in a safe place. We recommend
that you register your product on our website, homelabs.com/reg. Although greatly appreciated, the product registration is
not required to activate any warranty and product registration does not eliminate the need for the original proof of purchase.
The warranty becomes void if attempts at repair are made by non-authorized third parties and/or if spare parts, other than
those provided by hOme™, are used.
You may also arrange for service after the warranty expires at an additional cost.
These are our general terms for warranty service, but we always urge our customers to reach out to us with any issue,
regardless of warranty terms. If you have an issue with a hOme™product, please contact us at 1-(800)-898-3002, and
we will do our best to resolve it for you.
This warranty gives you specic legal rights and you may have other legal rights, which vary from state to state, country
to country, or province to province. The customer may assert any such rights at their sole discretion.

18
WARNING
Keep all plastic bags away from children.
This manual is to be used with all items with the model number
HME020235N
MANUFACTURING INFO
ADDITIONAL INFO
SKU# : HME020235N
PART#: HME020235MNL
Rating: 115V, 1Ph, 60Hz, 1370W
1-(800)-898-3002
CONTACT US
homelabs.com/chat
CHAT W ITH U S CALL U S
[email protected]
EMAIL U S
Because of a new federal test procedure for portable air conditioners, you may notice that the cooling capacity
claims on portable air conditioner packaging are signicantly lower than that of models produced prior to 2017.
This is due to changes in the test procedure, not to the portable air conditioners themselves.
What should I look for rst when purchasing a portable air conditioner?
The right air conditioner helps you cool a room efciently. An undersized unit won't adequately cool, while one
that's too large will not remove enough humidity and leave the air feeling damp. To nd the proper air conditioner,
determine the square footage of the room you want to cool by multiplying the room length by its width. You also
need to know the air conditioner's BTU (British Thermal Unit) rating, which indicates the amount of heat it can
remove from a room. A higher number means more cooling power for a larger room. (Be sure you are comparing
only newer models to each other—older models may appear to have a higher capacity, but are actually the same).
Be sure to “size up” if your portable air conditioner will be placed in a very sunny room, in a kitchen, or in a room
with high ceilings. After you have found the right cooling capacity for your room, you can look at other features.
Why is the cooling capacity lower on newer models than on older units?
Federal regulations require manufacturers to calculate cooling capacity based on a specic test procedure,
which was changed just this year. Models manufactured before 2017 were tested under a different procedure
and cooling capacity is measured differently than in prior years’ models. So, while the BTUs may be lower,
the actual cooling capacity of the air conditioners has not changed.
What is SACC ?
SACC is the representative value of Seasonally Adjusted Cooling Capacity, in BTU/hour, as determined in
accordance with the DOE test procedure at title 10 Code of Federal Regulations (CFR) 430, subpart B,
appendix CC, and applicable sampling plans.
HOW TO STAY COOL WITH A NEW PORTABLE AIR CONDITIONER

© 2018 hOme Technologies, LLC
37 East 18 Street, 7th Floor
New York, NY 10003
For Indoor
Use Only
All rights reserved, hOme™. Printed in China.
1-800-898-3002
[email protected]
homelabs.com/help
