HOMEDEPOT BioBidet HD-7000 User manual

ver.1903
HD-7000
BBC Innovation Corp.
7900 S Illinois Route 31 T) 847.458.2334
Crystal Lake IL 60014
T) 877.339.5214
www.biobidet.com F) 847.854.1296
Water Does It Better
Home Depot Exclusive
Water Does It Better

at
Safety Precautions
Parts & Configuration
Installation
Operation
Maintenance & Cleaning
Troubleshooting

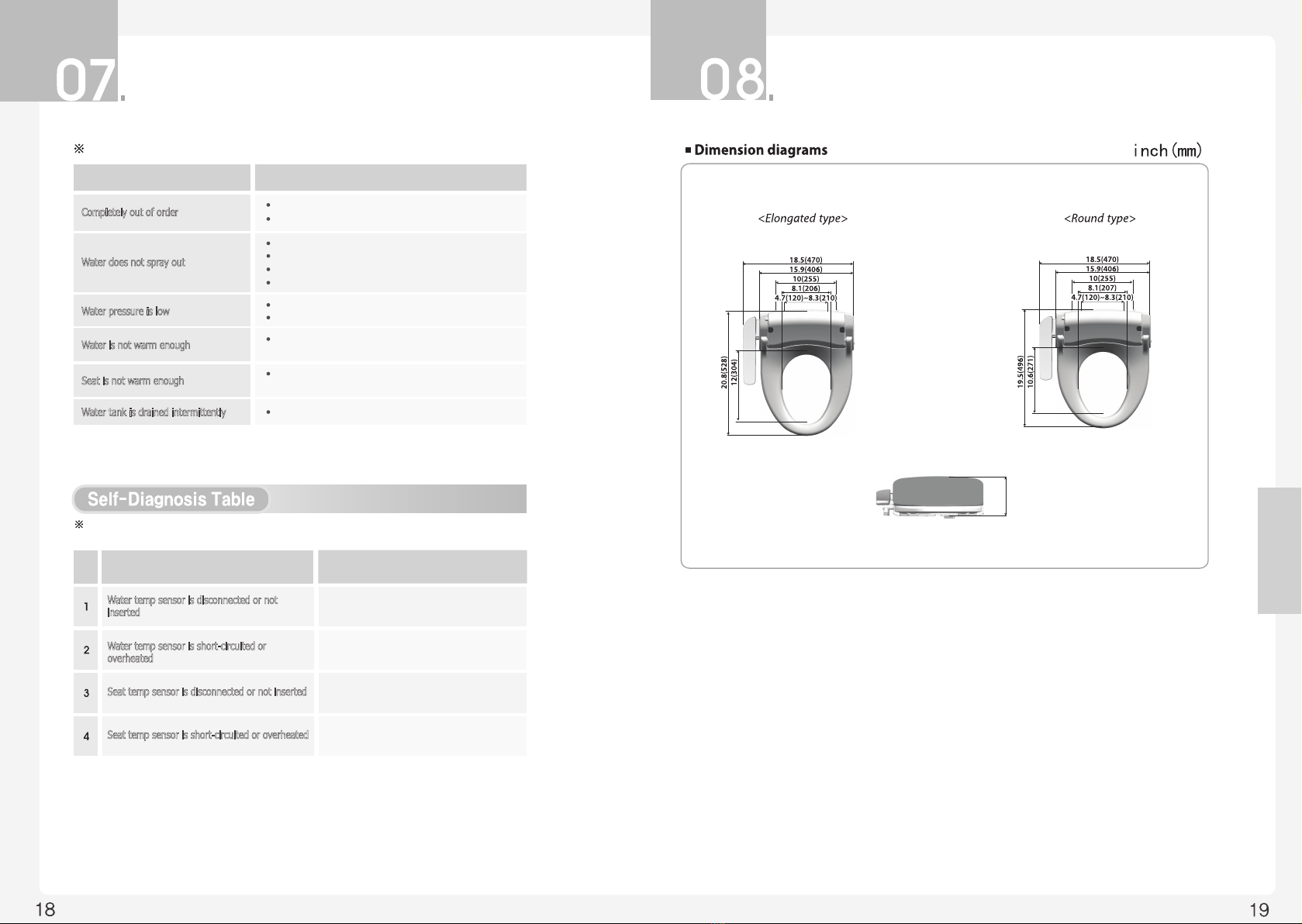

Dimensions
Settings
Memo

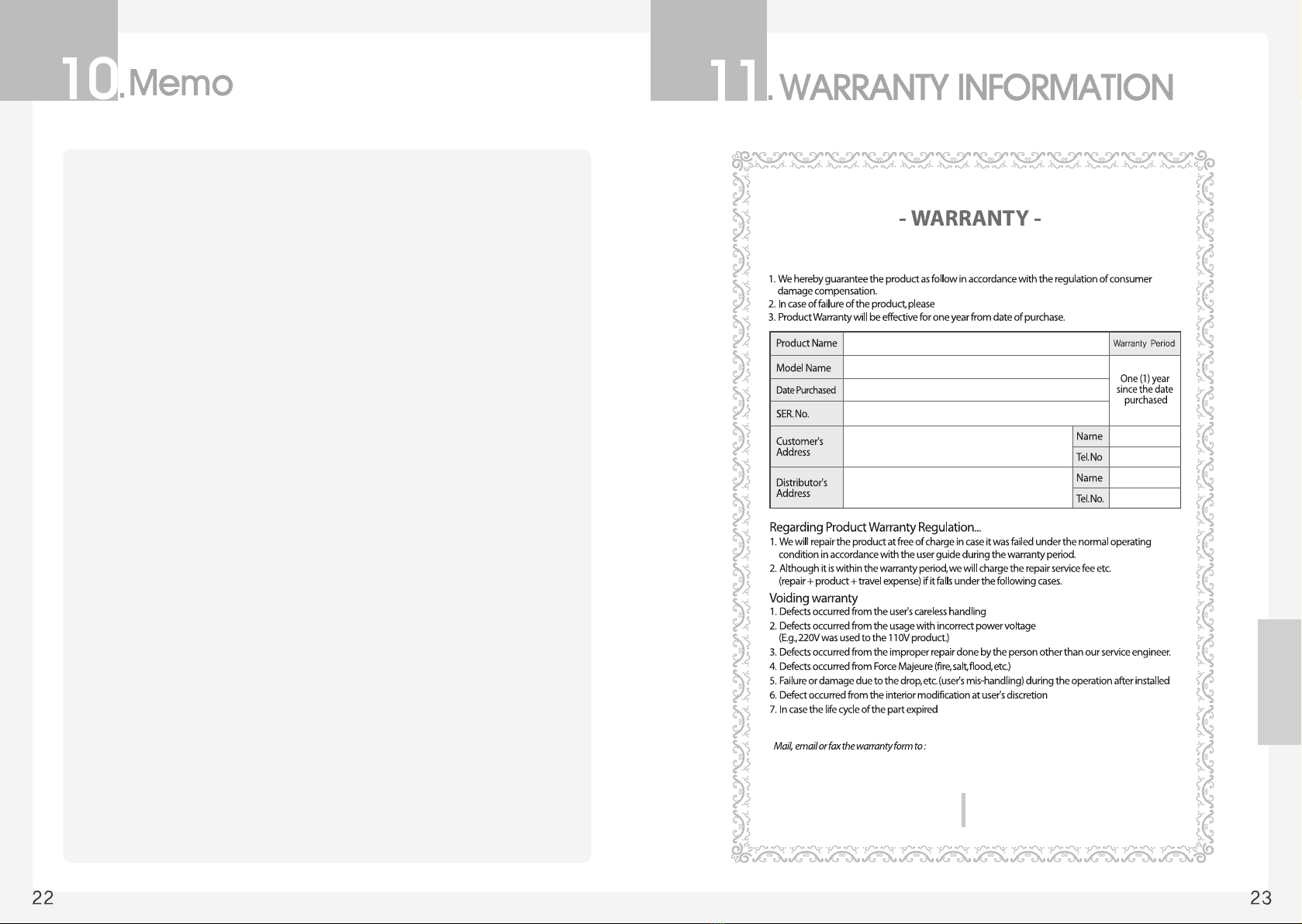

Warranty Information
Specifications
4
8
10
12
16
17
18
19
1
20
2
23

IMPORTANT SAFEGUARDS
 ●When using electrical products, especially when children are present,
basic safety precautions should always be followed.
READ ALL INSTRUCTIONS BEFORE USING
 ● In the case 120V 60Hz : Power supply must be a 15 Amp GFCI outlet.
 ● The electrical cord must be connected to a GFCI outlet.
 ● The GFCI outlet should be 1ft. above the oor.
 ● Install only in well-ventilated areas to avoid excess humidity.
 ● Do not install in narrow toilet stalls or in shower stalls.
 ● Install only where direct contact with water is minimized.
 ● Do not install near any heat source
 ● Avoid using extension cords if possible. Consult with a certied
electrician where extension cords are necessary.
DANGER – To reduce the risk of electrocution:
 ● Do not use while bathing.
 ● Do not place or store product where it can fall or be pulled into a tub or sink.
 ● Do not place in or drop into water or other liquid.
 ● Do not reach for a product that has fallen into water. Unplug immediately.
WARNING – To reduce the risk of burns, electrocution, re or
injury to persons:

● Close supervision is necessary when this product is used by, on,
or near children.

● Use this product only for its intended use as described in this manual.
 Only use attachments recommended by the manufacturer.

● Never operate this product if it has a damaged cord or plug, if it is not
working properly, has been dropped or damaged, or dipped into water.
Return the product to a service center for examination and repair.

● Keep the cord away from heated surfaces.

● Never drop or insert any object into any opening or hose.

● Do not use outdoors or operate where aerosol (spray) products are
being used or where oxygen is being administered.

● Connect this product to a properly grounded outlet only. See
grounding instructions.

● Unplug this product before lling. Fill (reservoir) with water only.
SAVE THESE INSTRUCTIONS
Safety Precautions

GROUNDING INSTRUCTION
DANGER - Improper use of the grounding plug can result in a
risk of electric shock.
This product has a three-prong grounding plug, which must be plugged into an
outlet that is properly installed and grounded. In the event of an electrical short
circuit, grounding reduces the risk of electric shock by providing an escape wire
for the electric current. If repair or replacement of the cord or plug is necessary
do not connect the grounding wire to either at blade terminal. The wire with
insulation having an outer surface that is green with or without yellow stripes is
the grounding wire. Check with a qualied electrician or service person if the
grounding instructions are not completely understood, or if in doubt as to
whether the product is properly grounded.

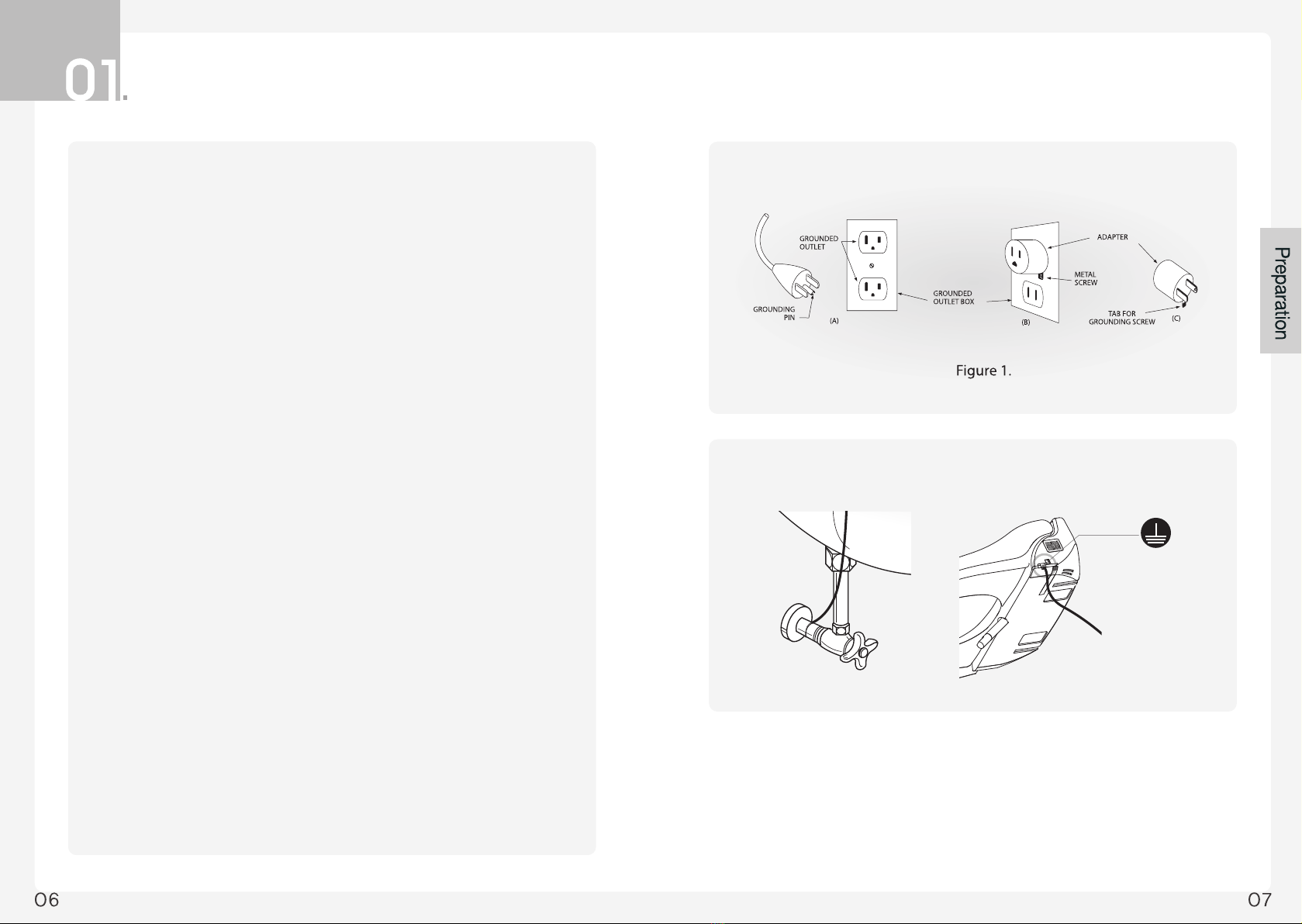

This product is for use on a nominal 120V circuit, and has a grounding plug that
looks like the plug illustrated in sketch A in Figure 1. A temporary adapter, which
looks like the adapter illustrated in sketches B and C, may be used to connect
this plug to a 2-pole receptacle as shown in sketch B if a properly grounded
outlet is not available.
The temporary adapter should be used only until a properly grounded outlet
(sketch A) can be installed by a qualied electrician. The green colored rigid ear,
plug, or the like extending from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover. Whenever the adapter is
used, it must be held in place by the screw.
Optional Grounding Instructions
GROUNDING
Safety Precautions

Parts & Conguration
Main Body Operation panel
Installation Parts
Top Mount Metal Bolt (x2) Top Nount Rubber Nut (x2)
Bracket Holder (x2)
Washer (x2) T-Valve 7/8”
Bidet Water Supply Hose Catch Plate
Stop Wash Bidet Turbo Dry
Seat
Temp
Water
Temp
Energy
saving
Nozzle
Cleaning
Pulse
Child
HD-7000
move move move
Side Control Panel
Heated Seat
Bidet
Occupied Sensor
Wash & Turbo
Lid
Power Plug
Dryer
Night Light
SEAT TEMP
NOZZLE CLEANING
ENERGY SAVING
WATER TEMPCHILD
+/-
WASH
STOP
BIDET
To run the bidet
function. (1 minute)
TURBO
To run the turbo
function. (1 minute)
DRY
Start Dry function.
(3 minutes)
To control the
nozzle position.
PULSE
To run the pulse function
during wash/bidet/
turbo operation.
To control seat
temperature.
(off/low/mid/high)
Selecting nozzle cleaning while
not seated, the nozzle cleans
itself 3 times.
Then nozzle extends and stop
for manual cleaning process.
Yellow / ECO 1
Green / ECO 2
Off / OFF
To control water
temperature.
(off/low/mid/high)
Children safety and
automatic mode.
NIGHT LIGHT
Press “+” for longer than
3 seconds while not seated.
- To control water pressure.
- To control dry temperature
To run the wash function.
(1 minute)
To stop any
operations.

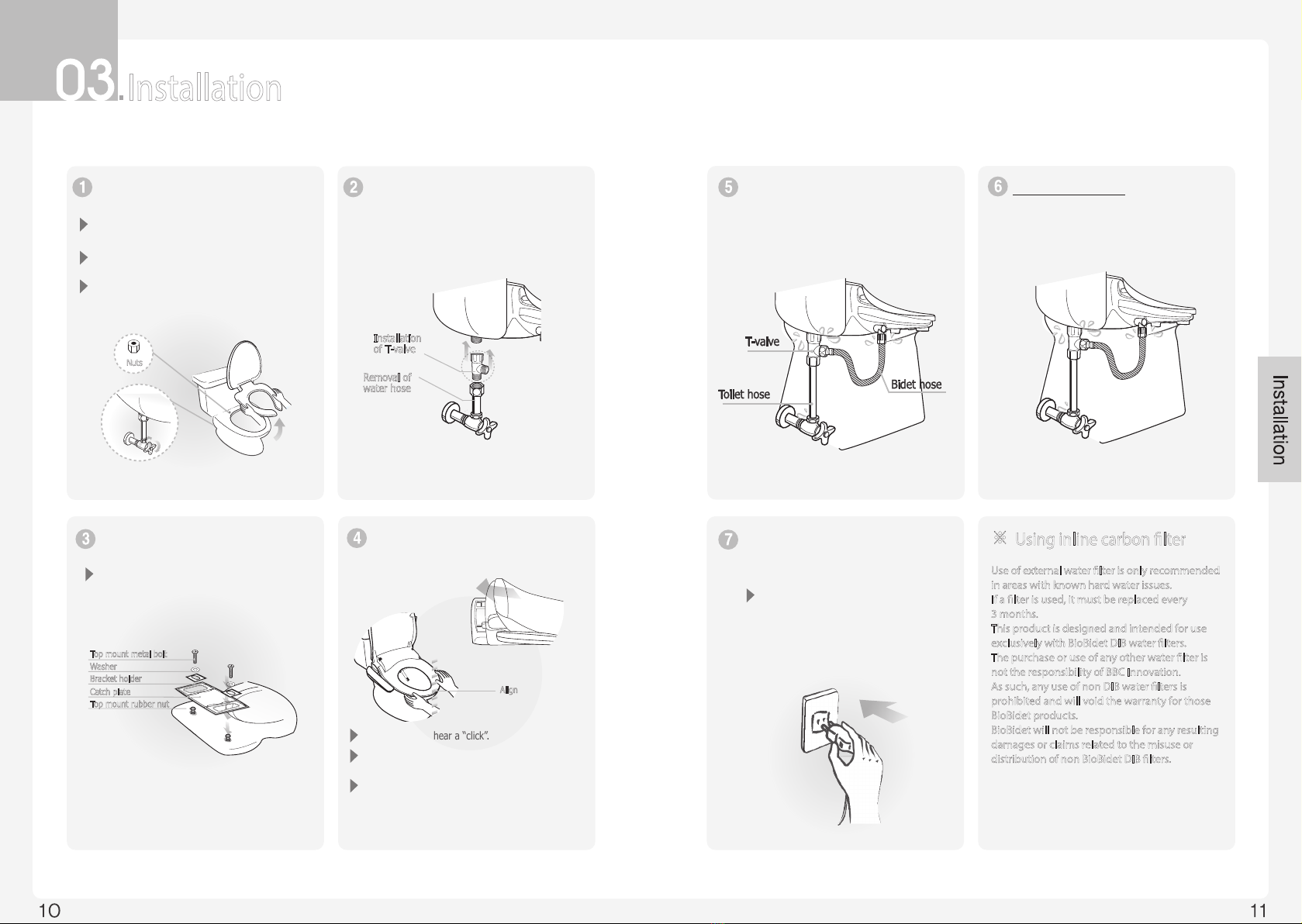

Installation
Fix the catch plate onto the toilet.
Top mount metal bolt
Top mount rubber nut
Catch plate
Bracket holder
Washer
Plug in and be sure that the nozzle
comes out and retracts when
powered on.
Don’t plug the power cord with wet hands.
Risk of electric shock.
Nuts
Remove the seat from the existing
toilet body.
Remove the existing water hose
and then install T-valve to the
bottom of the toilet tank. Ensure
the rubber washer is properly
seated and attach the original
water hose to the T-valve.
Release the nuts, and then remove the seat and cover
from it.
Store the seat in a proper place for future use.
Turn off the water.
Push the main body toward the
catch plate completely.
Adjust as needed before tightening bolts.*
Push it until you hear a “click”.
When the product is not installed well, it may cause
leakage.
After installing the T-valve,
connect the supplied bidet hose
from the center of the T-valve to
the bidet.
Turn on the water and check
for leaks.
Removal of
water hose
Installation
of T-valve
Align
※ Using inline carbon lter
Use of external water lter is only recommended
in areas with known hard water issues.
If a lter is used, it must be replaced every
3 months.
This product is designed and intended for use
exclusively with BioBidet DIB water lters.
The purchase or use of any other water lter is
not the responsibility of BBC Innovation.
As such, any use of non DIB water lters is
prohibited and will void the warranty for those
BioBidet products.
BioBidet will not be responsible for any resulting
damages or claims related to the misuse or
distribution of non BioBidet DIB lters.
*Do not overtighten bolts.
Point the arrow on the catch plate towards the
toilet tank.
*Do not overtighten connections.

Dry Temperature Control
Dryer operates for 3 minutes.
Dryer temperature is adjustable by pressing
“+” or “–” buttons. (5 levels)
Dryer effect will be improved if you wipe the
moisture lightly before operating the drying
function.
Sit On The Toilet Seat
Make skin contact with the seat sensor.
Stop
Water Pressure Control
Nozzle Position Control
Nozzle position is adjustable. (5 positions)
Stop
Child
Wash Bidet Turbo
move move move
Dry
Pulse
Wash, Bidet, Turbo
Select one ot the functions listed above.
When pressing the selected function again, nozzle
will oscillate back and forth to wash a wider range.
Press the button once again to stop oscillate
function.
The specialized water spray in Turbo function
helps relieve constipation.
Pulse
When pressing the Pulse button during the
operation of Wash, Bidet, and Turbo, water
pressure will repeat high and low for smooth
pulsating wash.
Pulse function will not operate during the operation
of Sitz bath*.
*See how to use on page 15, step 14.
Child Function
When selecting Child function, settings adjust to
low pressure.
1 min Bidet - 30 sec Bidet Oscillating - 30 sec Bidet
Pulse.
* What it does :
Extra extended nozzle position
Lower water pressure
Lower seat temperature
Lower water temperature
Water pressure is adjustable. (5 levels)

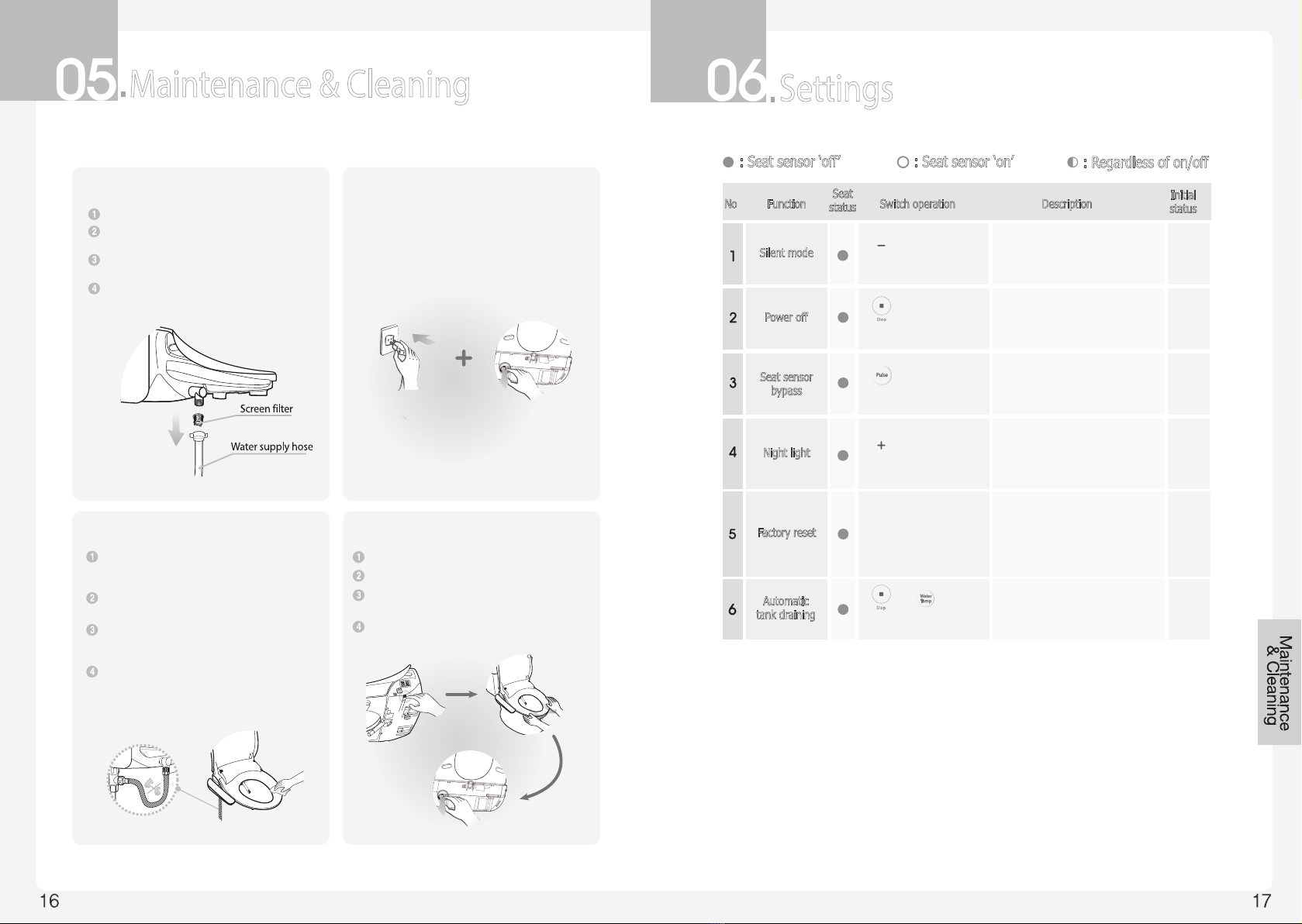

If the water or screen filters become blocked,
it may cause low water pressure.
Regularly check the water and screen filters.
See section 5 for instructions.
Stop
All operations will stop.
When pressing the Stop button for 3 seconds,
unit will turn off.
Press Stop, Wash, Bidet or Turbo to turn on.
Operation

Seat
Temp
Water
Temp
3 Seconds
Nozzle
Cleaning
Nozzle
Cleaning
Seat/Water Temperature Control
Seat/Water temperature is adjustable. (4 levels)
(Off - Low - Middle - High)
To reduce the chance of low temperature burns,
the seat has a safety feature that turns to low
temperature (35 C, 95 F) when seat is occupied
for more than 15 minutes consecutively.
3 Seconds
Water
Temp
Stop
Stop
Pulse
Energy Saving Fuction
ECO 1
- This mode is activated by pressing the Energy
Saving button until the yellow LED lamp lights up.
(Seat and water temperature will be kept at 32 C)
ECO 2
- This mode is activated by pressing the Energy
Saving button until the green LED lamp lights up.
(Seat and water heater will be kept off until seated)
ECO OFF
- Press the Energy Saving button until LED lamp
turns off.
When the unit is occupied, it adjusts to the preset
temperature and it returns to the saving mode when
seat is unoccupied.
If the seat and water temperature are off, they will
remain off.
Nozzle Cleaning
When selecting Nozzle Cleaning while not seated,
the nozzle cleans itself 3 times. Then nozzle extends
and stops for manual cleaning process.
Clean the nozzle with a brush and press the STOP
button after completion of manual cleaning.
NOZZLE CLEANING will not operate if the seat sensor
is activated.
Night Light
Blue LED night light provides enough brightness to
see the toilet without turning on the bathroom light.
Night light can be turned on and off by pressing
‘+’ for 3 seconds while not seated.
Night light setting cannot be adjusted if seat
sensor bypass feature is activated.
Automatic tank draining
To protect from water contamination, the water tank
will be drained(replaced) for 2 minutes if the seat is
not used for 48 consecutive hours.
This feature is deactivated from the factory.
To activate this feature, press Stop and Water Temp.
buttons for 3 seconds.
Sitz Bath
Wash or Bidet is switched to Wash Sitz Bath or
Bidet Sitz Bath if Nozzle Cleaning button is pressed
during use.
Water pressure is switched to 1st level regardless
of preset water pressure settings and Sitz Bath
operates for 5 minutes.
LED of Nozzle Cleaning turns on during the
operation of Sitz Bath.
Select the Nozzle Cleaning again to switch to
normal Wash or Bidet.
Seat Sensor Bypass
The seat sensor can be activated and deactivated by
pressing Pulse button for 3 seconds.
If the seat sensor is deactivated, the unit works
without occupying the seat and select features*
cannot be controlled.
Night light, Silent mode, Nozzle cleaning.
* Features
Reset
Press and hold the Stop button for 5 seconds.
After 3 seconds, the seat will power off.
Keep holding another 2 seconds and the seat will
power back on. This completes the factory reset
process.
Operation
3 Seconds 3 Seconds

Maintenance & Cleaning Settings
Screen Filter Cleaning
Close the water valve.
Disconnect the water supply hose. Take the
screen filter out and clean it with a soft brush.
Return the filter after cleaning and reconnect
the water supply hose.
Open the water valve.
When bidet seat is not used for an extended period
of time, unplug and drain the unit.
Extended Non-Use
Exterior surface of unit is made of plastic
material, which may be damaged by scrubber,
chemicals, etc.
Wipe the surface with a soft damp cloth.
Do not spray water directly onto the surface.
Be careful of not dropping any chemical detergents
or toilet cleaner the main body or supply hose to
avoid damage.
Clean the body after removing the power plug
from the outlet. Be sure no water splashes into
the power plug or outlet.
Seat Cleaning
Remove the power plug from the outlet.
Close the water feed valve.
Press the release button and gently pull to remove
the unit from the catch plate.
Use a screwdriver or coin to open the drain plug.
Draining of Tank Water
Silent mode “ ” for longer than
3 seconds.
Power off
To turn on/off the operating
chime sound. ON
ON
OFF
Press one of Stop, Wash, Bidet,
Intensive or Dry to power on.
Seat sensor feature will be
deactivated.
To turn on/off the night light.
* The unit will work without sitting on the seat if the occupied seat sensor is deactivated. (turned off)
* If the seat sensor is deactivated, some features cannot be controlled.
(Night light on/off, silent mode on/off, and nozzle cleaning)
“ ” for longer than
3 seconds.
“ ” for longer than
3 seconds.
“ ” for longer than
3 seconds.
Seat sensor
bypass
Night light
: Seat sensor ‘on’: Seat sensor ‘off’ : Regardless of on/off
No Function Switch operation Description Initial
status
Seat
status
ON
After 3 seconds, the seat will
power off. Keep holding another
2 seconds and the seat will power
back on. This completes the factory
reset process.
Press and hold the Stop
button for 5 seconds.
Factory reset
Automatic tank draining feature
will be activated
Automatic
tank draining
“ ” + “ ”
for longer than 3 seconds
Stop
OFF
Stop
Water
Temp
Pulse

Troubleshooting Dimensions
Please check the following points before requesting repair service.
Please refer to the following table and inform the exact status when
requesting repair service.
Check listProblem
Seat is not warm enough
Water is not warm enough
Water pressure is low
Water does not spray out
Water temp sensor is disconnected or not
inserted
Water temp sensor is short-circuited or
overheated
Seat temp sensor is disconnected or not inserted
Seat temp sensor is short-circuited or overheated
Completely out of order Check if the power plug is not connected.
Check if the power supply or outlet has failed.
Check if screen filter is blocked by foreign material.
Check if the water pressure is set at too low level.
Check if its temperature is set at off or low level,
or economy mode.
Check if its temperature is set at off or low level,
or economy mode.
LEDs of water low + middle level blinking
LEDs of water high + middle level blinking
LED of water low level blinking
LED of water high level blinking
Check if the water supply is turned on.
Check if water valve is open.
Check if nozzle is blocked by foreign material.
Check if connection hose is bent.
No Self Diagnosis Indication
Water tank is drained intermittently Check if the automatic water draining feature activates.
7.0(178)
Check before requesting repair service.
Troubleshooting

HD-7000
Specications
Item
Rated voltage
Max. Power consumption
Power cord length
Water feed method
Recommended inlet water pressure
Feed
Volume
Wash
Wash
Bidet
Turbo
Child
Pressure control
Temperature control
Heater capacity
Safety device
Heated
seat
Dry
Temperature control
Temperature control
Heater capacity
Safety device
Heater capacity
Safety device
Feed water temp. tolerance range
Usage room temp. tolerance range
Thermal fuse, Bi-metal
Water level sensor, Thermal fuse, Bi-metal, Temperature sensor
Thermal fuse
4 levels (off-low-middle-high)
4 levels (off-low-middle-high)
5 levels
55W
250W
800W
Directly connects to water pipe
Dimension Elongated
Round
Elongated
Round
Weight
Net weight
(Gross weight)
17.4 lb (17.4)
17.1 lb (17.2)
18.6”(470) x 20.8”(528) x 7.0”(178)
18.6”(470) x 19.5”(496) x 7.0”(178)
37 ~ 95 F (recommened 54 ~ 95 F)
37 ~ 104 F (recommened 50 ~ 95 F)
Room temp. ~ 122 F
870W
1.2m
AC 120V, 60Hz
99~106.6psi
0.13~0.21gal/min
0.13~0.18gal/min
0.13~0.18gal/min
0.13~0.16gal/min
Specs

BBC Innovation Corp. 7900 S Illinois Route 31
T) 847.458.2334
Crystal Lake IL 60014
T) 877.339.5214
www.biobidet.com F) 847.854.1296
Warranty

