HOMELITE
HEDGE TRIMMER
MODEL NOS. UT44121A AND UT44110B
REPAIR SHEET

2
HOMELITE HEDGE TRIMMER – UT44121A / UT44110B
Note: The assembly shown represents an important part of the double insulated system. To avoid the possibility of alteration or damage to the
system, service should be performed by your nearest Homelite authorized service dealer.
PARTS LIST
KEY PART
NO. NUMBER DESCRIPTION QTY
KEY PART
NO. NUMBER DESCRIPTION QTY
KEY PART
NO. NUMBER DESCRIPTION QTY
1 099930002901 Data Label (UT44121A) ........ 1
099941001901 Data Label (UT44110B)........ 1
2 941769001 Warning Label (UT44121A) .. 1
3 34201162G Deflector Retainer ................ 1
4 34101162-2G Deflector............................... 1
5 34103162G Scabbard (UT44121A).......... 1
34109161G Scabbard (UT44110B) ......... 1
6 31302162G Auxiliary Handle ................... 1
7 32201162G Screw (M4 x 23 mm) ............ 2
8 3290186G Washer (M3) ......................... 2
9 32911301AG Washer (M4) ......................... 2
10 3220302G Screw (M3 x 15 mm) ............ 2
11 34102659G Guard ................................... 1
NOT SHOWN

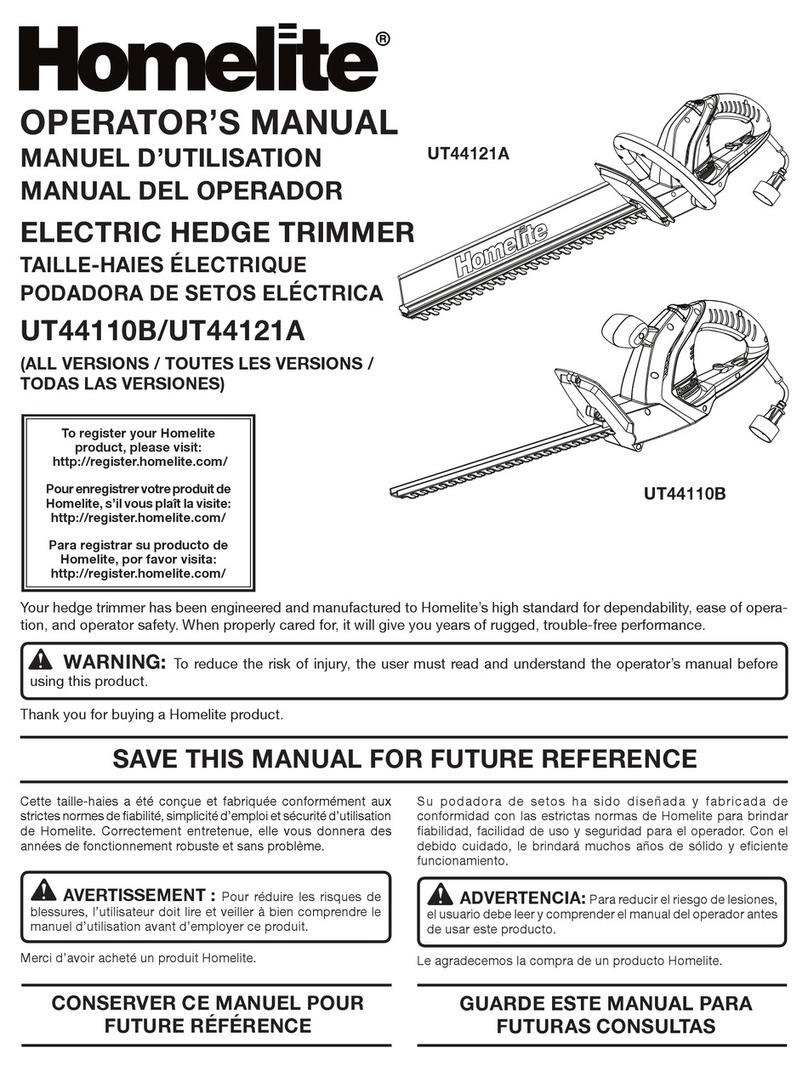

990000217 Operator’s Manual
5-9-13
(REV:01)
UT44121A
79
610 8
810
1
5
7
9
1
11
4
UT44110B
2
3
