HomeTek PW816 Series User manual

HomeTek Technology Inc.
EB4A025 Page : 1of 47
TABLE OF CONTENTS................................................................................................................................................1
GENERAL INFORMATION..................................................................................................................................................4
MODIFICATION LIST............................................................................................................................................................6
CONDUCTED POWER LINE TEST....................................................................................................................................7
1TEST INSTRUMENTS & FACILITIES................................................................................................................7
2TEST PROCEDURE..............................................................................................................................................7
3TEST SETUP ..........................................................................................................................................................8
4CONFIGURATION OF THE EUT......................................................................................................................10
5EUT OPERATING CONDITION........................................................................................................................13
6LIMIT OF CONDUCTED POWER LINE EMISSION CLASS B.....................................................................13
7RESULT OF CONDUCTED POWER LINE TEST...........................................................................................13

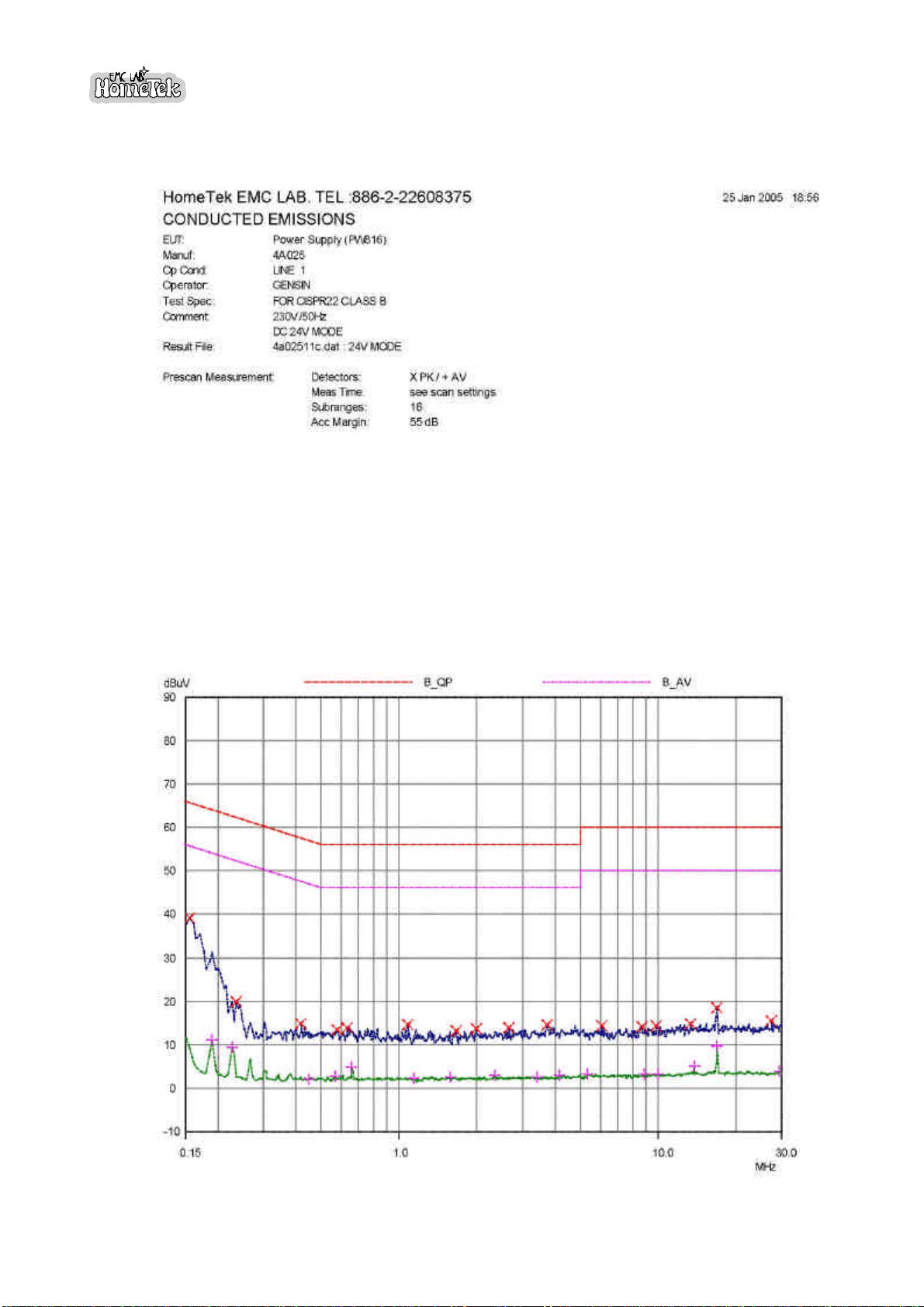

8CONDUCTED POWER LINE TEST DATA (PAGE 1)....................................................................................14

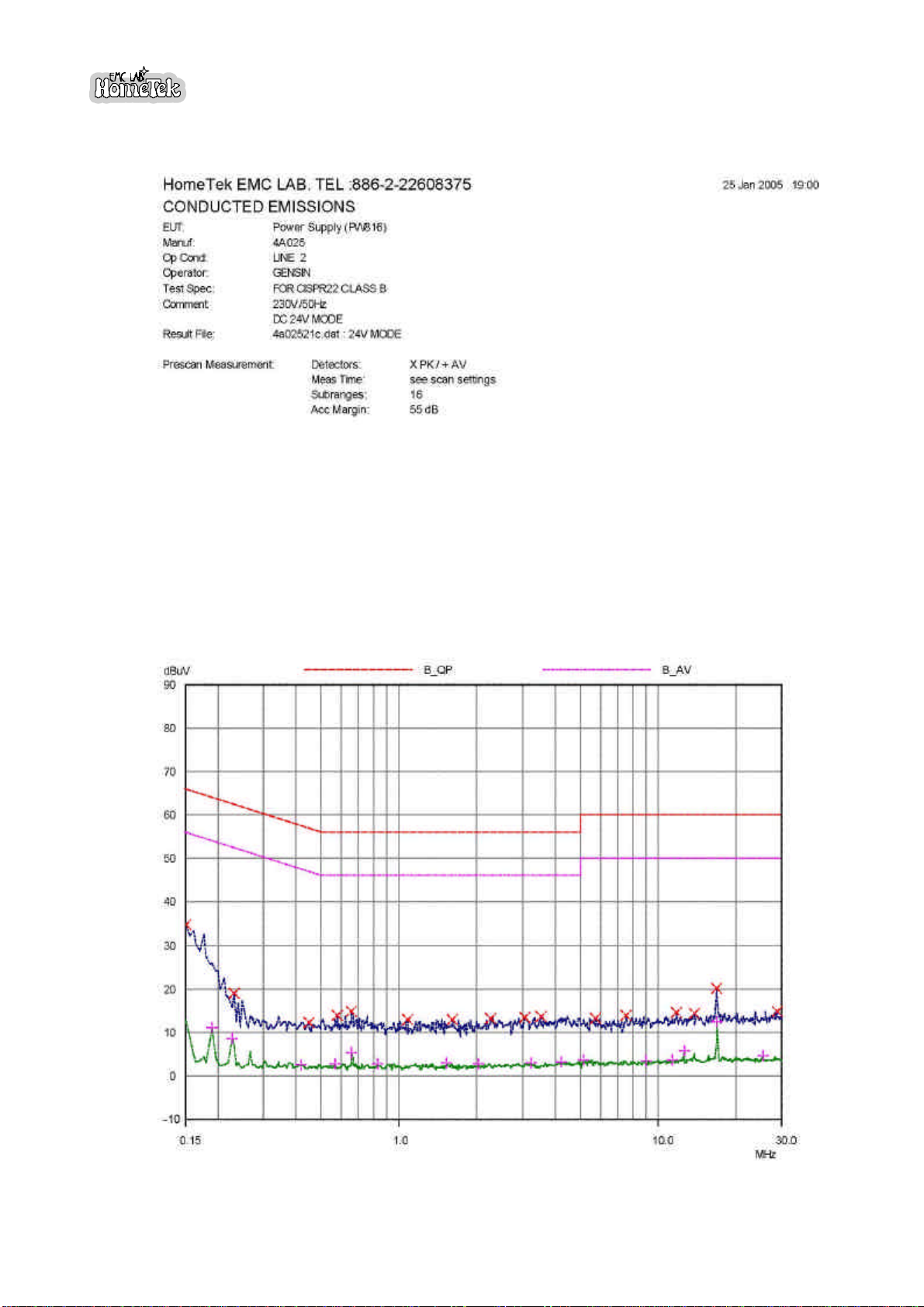

9CONDUCTED POWER LINE TEST DATA (PAGE 2)....................................................................................15

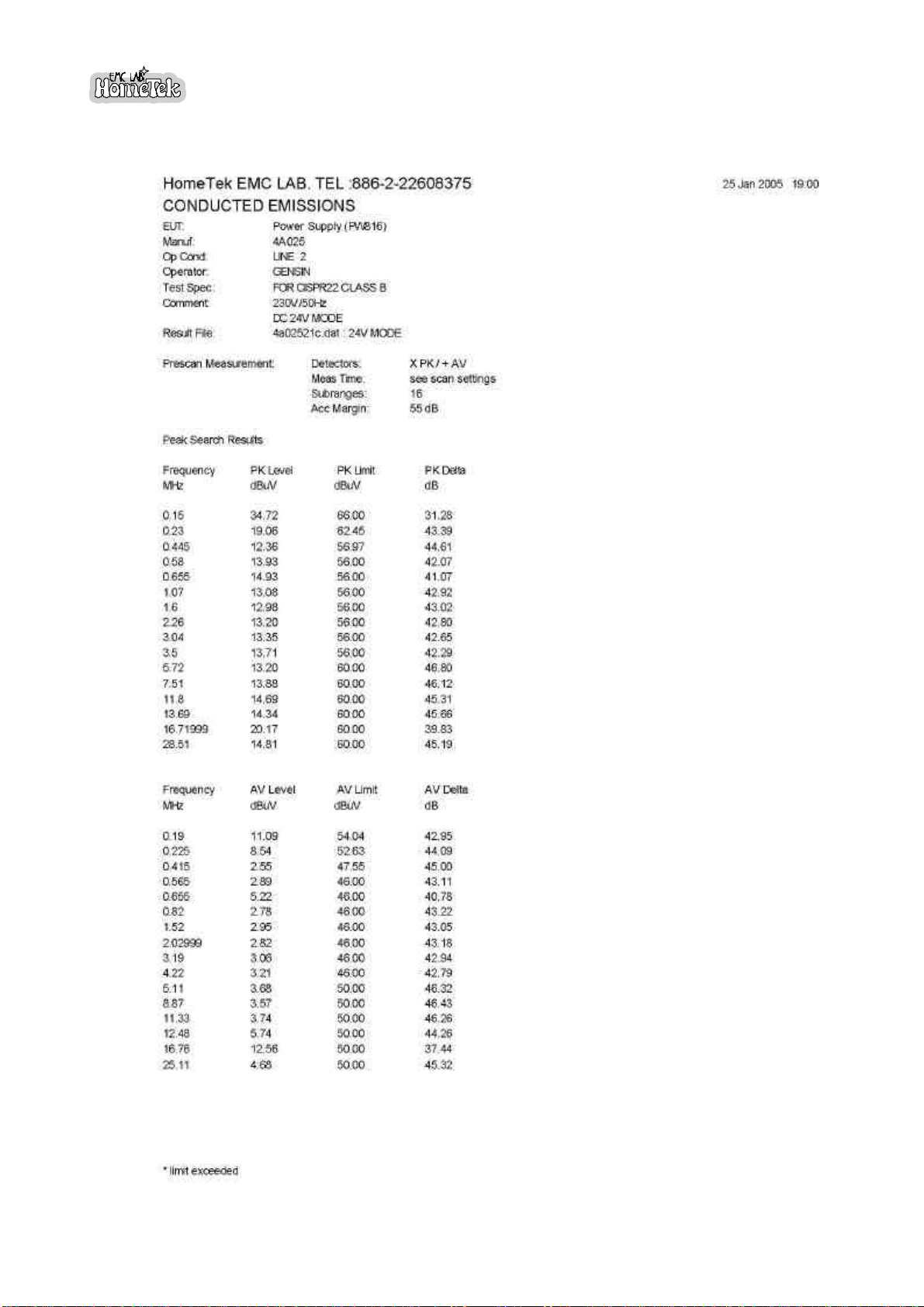

10 CONDUCTED POWER LINE TEST DATA (PAGE 3)....................................................................................16
11 CONDUCTED POWER LINE TEST DATA (PAGE 4)....................................................................................17
RADIATED EMISSION TEST.............................................................................................................................................18
1TEST INSTRUMENTS & FACILITIES..............................................................................................................18
2TEST PROCEDURE............................................................................................................................................19
3TEST SETUP ........................................................................................................................................................19
4CONFIGURATION OF THE EUT......................................................................................................................20
5EUT OPERATING CONDITION........................................................................................................................20
6LIMIT OF RADIATED EMISSION CLASS B....................................................................................................20
7RESULT OF RADIATED EMISSION TEST......................................................................................................20
8RADIATED EMISSION TEST DATA (PAGE 1)...............................................................................................21
9RADIATED EMISSION TEST DATA (PAGE 2)...............................................................................................22
HARMONICS TEST..............................................................................................................................................................23
1TEST INSTRUMENTS & FACILITIES..............................................................................................................23
2TEST PROCEDURE............................................................................................................................................23
3TEST SETUP ........................................................................................................................................................23
4CONFIGURATION OF THE EUT......................................................................................................................23
5OPERATION CONDITION OF EUT.................................................................................................................23
6TEST DATA & LIMIT..........................................................................................................................................23
7PHOTOS OF TEST CONFIGURATION PLEASE REFER TO APPENDIX A............................................................................23
8HARMONICS TEST DATA (PAGE 1~2) ..........................................................................................................24
VOLTAGE FLUCTUATIONS TEST..................................................................................................................................26
1TEST INSTRUMENTS & FACILITIES..............................................................................................................26
2TEST PROCEDURE............................................................................................................................................26
3TEST SETUP ........................................................................................................................................................26

HomeTek Technology Inc.
EB4A025 Page : 2of 47
4CONFIGURATION OF THE EUT......................................................................................................................26
5OPERATION CONDITION OF EUT.................................................................................................................26
6TEST DATA & LIMIT..........................................................................................................................................26
7PHOTOS OF TEST CONFIGURATION PLEASE REFER TO APPENDIX A............................................................................26
8VOLTAGE FLUCTUATIONS TEST DATA (PAGE 1) ....................................................................................27
ELECTROSTATIC DISCHARGE IMMUNITY TEST (ESD)........................................................................................28
1TEST INSTRUMENTS & FACILITIES..............................................................................................................28
2TEST PROCEDURE............................................................................................................................................28
3TEST SETUP ........................................................................................................................................................28
4CONFIGURATION OF THE EUT......................................................................................................................29
5EUT OPERATION CONDITION........................................................................................................................29
6TEST CONDITION ..............................................................................................................................................29
7PERFORMANCE CRITERIA.............................................................................................................................29
8TEST RESULT......................................................................................................................................................30
RADIO FREQUENCY ELECTROMAGNETIC FILE IMMUNITY TEST (RS)........................................................31
1TEST INSTRUMENTS & FACILITIES..............................................................................................................31
2TEST PROCEDURE............................................................................................................................................31
3TEST SETUP ........................................................................................................................................................32
4TEST LEVELS......................................................................................................................................................33
5CONFIGURATION OF THE EUT......................................................................................................................33
6OPERATION CONDITION OF EUT.................................................................................................................33
7TEST CONDITION ..............................................................................................................................................33
8PERFORMANCE CRITERIA.............................................................................................................................34
9TEST RESULT......................................................................................................................................................34
ELECTRICAL FAST TRANSIENT/BURST IMMUNITY TEST (EFT)......................................................................35
1TEST INSTRUMENTS & FACILITIES..............................................................................................................35
2TEST PROCEDURE............................................................................................................................................35
3TEST SETUP ........................................................................................................................................................35
4CONFIGURATION OF THE EUT......................................................................................................................36
5OPERATION CONDITION OF EUT.................................................................................................................36
6TEST CONDITION ..............................................................................................................................................36
7PERFORMANCE CRITERIA.............................................................................................................................36
8TEST RESULT......................................................................................................................................................37
SURGE IMMUNITY TEST...................................................................................................................................................38
1TEST INSTRUMENTS & FACILITIES..............................................................................................................38
2TEST PROCEDURE............................................................................................................................................38
3TEST SETUP ........................................................................................................................................................38
4TEST LEVELS......................................................................................................................................................39
5CONFIGURATION OF THE EUT......................................................................................................................39

HomeTek Technology Inc.
EB4A025 Page : 3of 47
6EUT OPERATION CONDITION........................................................................................................................39
7CONDITIONS DURING TESTING....................................................................................................................39
8PERFORMANCE CRITERIA.............................................................................................................................40
9TEST RESULT......................................................................................................................................................40
IMMUNITY TEST TO CS CONDUCTED DISTURBANCE..........................................................................................41
1TEST INSTRUMENTS & FACILITIES..............................................................................................................41
2TEST PROCEDURE............................................................................................................................................41
3TEST SETUP ........................................................................................................................................................42
4TEST LEVELS......................................................................................................................................................43
5CONFIGURATION OF THE EUT......................................................................................................................43
6EUT OPERATION CONDITION........................................................................................................................43
7CONDITIONS DURING TESTING....................................................................................................................43
8PERFORMANCE CRITERIA.............................................................................................................................44
9TEST RESULT......................................................................................................................................................44
VOLTAGE DIPS, SHORT INTERRUPTIONS IMMUNITY TEST..............................................................................45
1TEST INSTRUMENTS & FACILITIES..............................................................................................................45
2TEST PROCEDURE............................................................................................................................................45
3TEST SETUP ........................................................................................................................................................45
4TEST LEVELS......................................................................................................................................................46
5CONFIGURATION OF THE EUT......................................................................................................................46
6EUT OPERATION CONDITION........................................................................................................................46
7CONDITIONS DURING TESTING....................................................................................................................46
8PERFORMANCE CRITERIA.............................................................................................................................47
9TEST RESULT......................................................................................................................................................47
APPENDIX A
PHOTOS OF TEST CONFIGURATION
APPENDIX B
PHOTOS OF EUT

HomeTek Technology Inc.
EB4A025 Page : 4of 47
GENERAL INFORMATION
1APPLICANT :SMART CABLING & TRANSMISSION CORP.
2ADDRESS :7F-1, No. 168, Lien Cheng Rd.,
Chung-Ho City, Taipei Hsien, Taiwan, R. O. C.
3MANUFACTURER :SMART CABLING & TRANSMISSION CORP.
4ADDRESS :7F-1, No. 168, Lien Cheng Rd.,
Chung-Ho City, Taipei Hsien, Taiwan, R. O. C.
5DESCRIPTION OF EUT :
EUT :Power Supply
Model :PW816X-XXX
Serial # :N/A
5.1 The difference between series of models PW816X-XXX is shown as below:
PW816X-XXX
The worst case of EMC test model is PW816 and the final test data were shown in this
test report.
Represent different operation system.
Represent different accessory.
Represent different color of case.

HomeTek Technology Inc.
EB4A025 Page : 5of 47
6FEATURES OF EUT :
Please refer to user manual or product specification.
7TEST MODE :
The EUT were investigated with two power source modes shown as below:
(1) DC 12V output mode;
(2) DC 24V output mode
The worst case of EMC test mode is (2) DC 24V output mode and the final test data were
shown in this test report.

HomeTek Technology Inc.
EB4A025 Page : 6of 47
MODIFICATION LIST
THE FOLLOWING ACCESSORIES WERE ADDED TO THE EUT DURING
TESTING :
NO MODIFICATION BY HOMETEK TECHNOLOGY INC.

HomeTek Technology Inc.
EB4A025 Page : 7of 47
CONDUCTED POWER LINE TEST
1TEST INSTRUMENTS & FACILITIES
The following test Instruments was used during the conducted test :
Item Instruments/
Facilities Specification Manufacturer Model # Date Of Cal.
1EMI Receiver 9KHz ~ 30MHz ROHDE &
SCHWARZ ESHS 30 844827/007 MAR/2004
2LISN
(for EUT) 50Ω/50uH/100A
150KHz ~ 30MHz SCHWARZ
BECK NNLK 8121 8121370 OCT/2004
3LISN
(for Support Unit) 50Ω/50uH/10A
9KHz ~ 30MHz ROHDE &
SCHWARZ ESH3-Z5 846128/007 FEB/2004
4Terminator 50ΩN/A N/A NOV/2004
5Attenuation 50Ω/10dB Mini-Circuit NAT-10
AT-002 JUL/2004
6Cable 5.4m SUHNER RG-223
CON2-002 AUG/2004
7ESXS-K1
(software)
Version 2.03b
9KHz ~ 30MHz
ROHDE &
SCHWARZ
1082.9678.02
840.913/246 N/A
Note : Items 1 ~ 6 were calibrated within period of 1 year.
2TEST PROCEDURE
2.1 The EUT was tested according to EN 61204-3.
2.2 The EUT was placed 0.4 meter from the conducting wall of shielding room and kept at
least 0.8 meter from any other grounded conducting surface.
2.3 The frequency range form 0.15 MHz to 30 MHz was investigated.
2.4 The LISN used was 50 Ohm / 50 uHenry as specified by CISPR 22 Class B.
2.5 All the support peripherals are connect to the other LISN.
2.6 Cables and peripherals were moved to find the maximum emission levels for each
frequency.

HomeTek Technology Inc.
EB4A025 Page : 8of 47
3TEST SETUP
3.1 Typical : Setup Of Conducted Test
(Details for setup configuration, please refer to appendix A.)
LISN
ISN
LISN
80 cm To
GROUND PLANE
10cm
NONCONOUCTIVE
TABLE 1.5 X 1 METER
Support
Peripherals

HomeTek Technology Inc.
EB4A025 Page : 9of 47
3.2 Block Diagram Of Conducted Test
ISOLATION
TRANSFORMER
RECEIVER
LISN
EUT
LOAD
(ACTIVE)
FILTER
TO AC SOURCE
þLoad
þPower Distributor BOX

HomeTek Technology Inc.
EB4A025 Page : 10 of 47

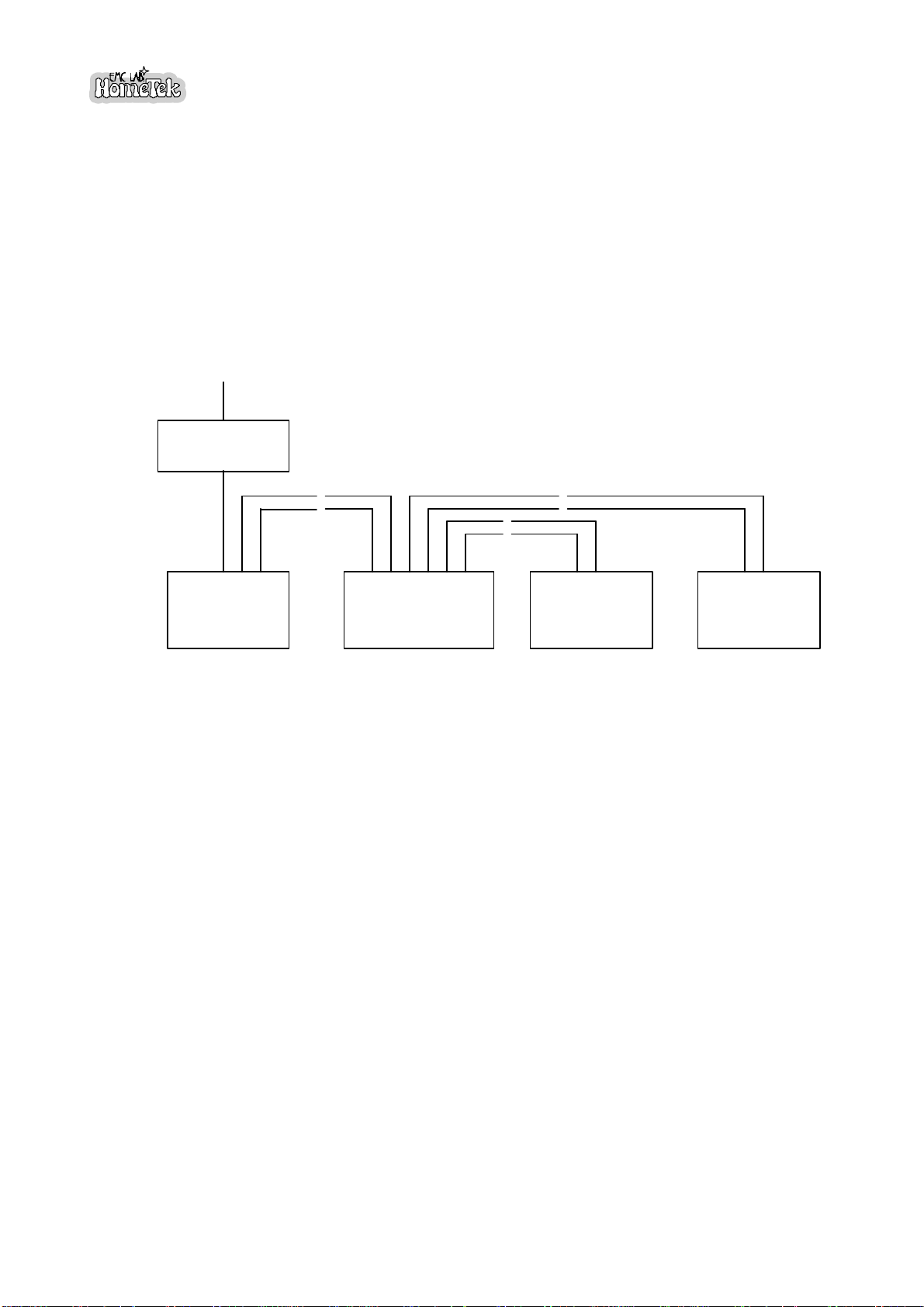

4CONFIGURATION OF THE EUT
The EUT was configured according to EN 61204-3. All I/O ports were connected to the
appropriate peripherals. All peripherals and cables are listed below (including internal device) :
LISN
AC SOURCE
Figure 1
Power Distributor
BOX
EUT Load 2Load 1
•
‚
ƒ
„
…
†
•DC+ Power Cable x 16
‚DC- Power Cable x 16
ƒDC+ Power Cable x 5
„DC- Power Cable x 5
…DC+ Power Cable x 4
†DC- Power Cable x 4

HomeTek Technology Inc.
EB4A025 Page : 11 of 47
4.1 EUT
EUT Type :oProto Type þEngineer Type oMass Production
Condition when received :þGood oDamage :
Device :Power Supply
Applicant :SMART CABLING & TRANSMISSION CORP.
Manufacturer :SMART CABLING & TRANSMISSION CORP.
Model Number :PW816X-XXX
Serial Number :N/A
FCC ID :N/A
Data Cable :N/A
Power Cord (AC) :Un-Shielded, 1.8 m, 2 pin
Power Cord (DC) :Un-Shielded, 1.0 m, 2 pin
Power Supply Type :Linear
4.2 PERIPHERALS
þPower Distributor BOX
Manufacturer :SMART CABLING & TRANSMISSION CORP.
Model Number :PD009
Serial Number :N/A
FCC ID :N/A
Data Cable :N/A
Power Cord :Un-Shielded, 1.0 m

HomeTek Technology Inc.
EB4A025 Page : 12 of 47
þLoad 1 x 2
Manufacturer :HomeTek
Specification :DC 24V / 6R / 120W
Power Cord :Un-Shielded, 1.0 m
þLoad 2
Manufacturer :HomeTek
Specification :DC 12V / 1.5R / 120W
Power Cord :Un-Shielded, 1.0 m
4.3 REMARK : N/A

HomeTek Technology Inc.
EB4A025 Page : 13 of 47
5EUT OPERATING CONDITION
5.1 The operation frequency of the EUT is none.
5.2 Configure the EUT according to the EN 61204-3.
5.3 Connect AC source 230V to input port of EUT.
5.4 DC 24V output mode:
lEUT’s DC 24V output port connect to input port of Support Unit (Power Distributor
BOX).
lDC 24V output port of Support Unit (Power Distributor BOX) connect to dummy Load
(6R/120W Resistor x 2 in parallel).
lMonitor the status of output port of EUT during the test (For EMS Testing).
5.5 DC 12V output mode:
lEUT’s DC 12V output port connect to input port of Support Unit (Power Distributor
BOX).
lDC 12V output port of Support Unit (Power Distributor BOX) connect to dummy Load
(1.5R/120W Resistor).
lMonitor the status of output port of EUT during the test (For EMS Testing).
5.6 The photos of conducted test configuration, please refer to appendix A.
6LIMIT OF CONDUCTED POWER LINE EMISSION CLASS B
Frequency Range Quasi Peak Average
0.15 ~ 0.5 MHz 66 - 56 dBuV 56 - 46 dBuV
0.5 ~ 5 MHz 56 dBuV 46 dBuV
5 ~ 30 MHz 60 dBuV 50 dBuV
7RESULT OF CONDUCTED POWER LINE TEST
7.1 The frequency range from 0.15 MHz to 30 MHz was investigated. All readings are
quasi-peak values and average.
7.2 IF bandwidth : 9kHz, Meas Time : 1sec.
7.3 Temperature : 27 ℃, Humidity : 60 % RH.
7.4 Deviations from the test standards and rules : None.
7.5 The conducted test result were gained by following procedures :
Level = Reading Level + Insertion Loss of LISN + Cable Loss
(All calculation were done by ESHS30 EMI test receiver.)
7.6 Result : PASSED

HomeTek Technology Inc.
EB4A025 Page : 14 of 47
8CONDUCTED POWER LINE TEST DATA (PAGE 1)

HomeTek Technology Inc.
EB4A025 Page : 15 of 47
9CONDUCTED POWER LINE TEST DATA (PAGE 2)

HomeTek Technology Inc.
EB4A025 Page : 16 of 47
10 CONDUCTED POWER LINE TEST DATA (PAGE 3)

HomeTek Technology Inc.
EB4A025 Page : 17 of 47
11 CONDUCTED POWER LINE TEST DATA (PAGE 4)

HomeTek Technology Inc.
EB4A025 Page : 18 of 47
RADIATED EMISSION TEST
1TEST INSTRUMENTS & FACILITIES
The following test Instruments was used during the radiated emission test :
Item Instruments
/facilities Specification Manufacturer Model # / S/N#
Date of
Cal.
1OPEN AREA
TEST SITE þOATS 3 JUL/2004
2EMI TEST
RECEIVER 30MHz ~ 1GHz ROHDE & SCHWARZ ESVS10 845165/017 SEP/2004
3RF SPECTRUM
ANALYZER N/A HEWLETT PACKARD 8591E 3710A06158 MAY/2004
4PRE-
AMPLIFIER 9KHz ~ 3000MHz ADVANTEST BB525C 90081001 SEP/2004
5ANTENNA
(BI-LOG) 25MHz ~ 2GHz SCHAFFNER CBL6112B S/N : 2614 MAY/2004
6Attenuation 50Ω/6dB JYE BAO FAT-N (M-F)
001 JUL/2004
7Cable 10m SUHNER RG214/U
OS3-003 DEC/2004
8Cable 14m BELDEN 9913
OS3-001 DEC/2004
9EMI 32
(software) N/A AUDIX 19991013-0923 N/A
Note : Items 1 ~ 8 were calibrated within period of 1 year.

HomeTek Technology Inc.
EB4A025 Page : 19 of 47
2TEST PROCEDURE
2.1 The EUT was test according to CISPR 22 Class B.
2.2 The radiated test was performed at HomeTek Lab’s Open Site III.
2.3 The frequency range from 30 MHz to 1GHz, the measurement were made at 10
meters, with a BI-log antenna.
3TEST SETUP
(Details for setup configuration, please refer to appendix A.)
1 M to 4 M
EUT
Receiver
3 or 10 M GROUND
PLANE
