OWNER’S MANUAL
Table of Contents
Important Safeguards ...........................................................Page 2

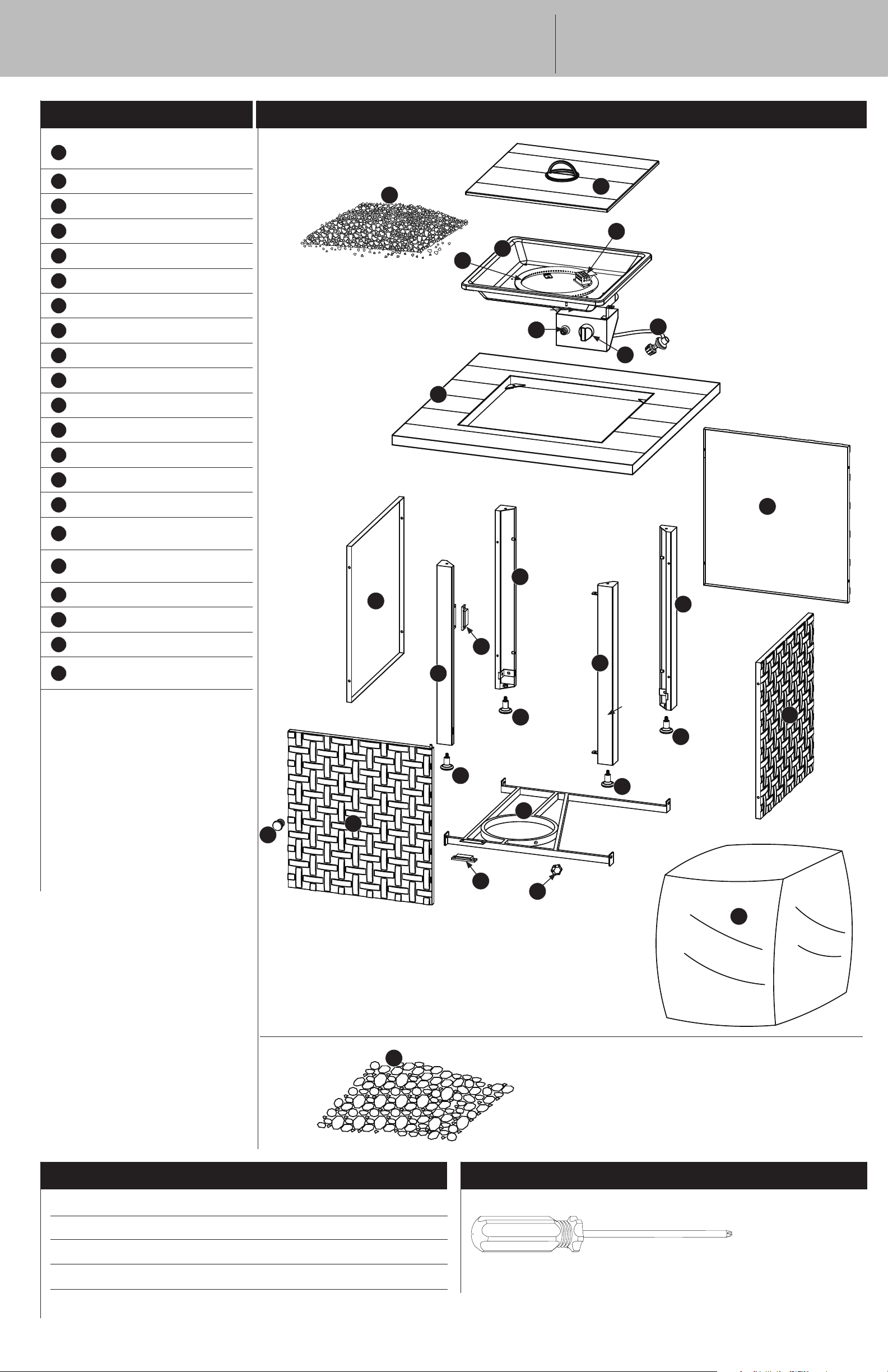

Expanded View and Hardware......................................................... 4

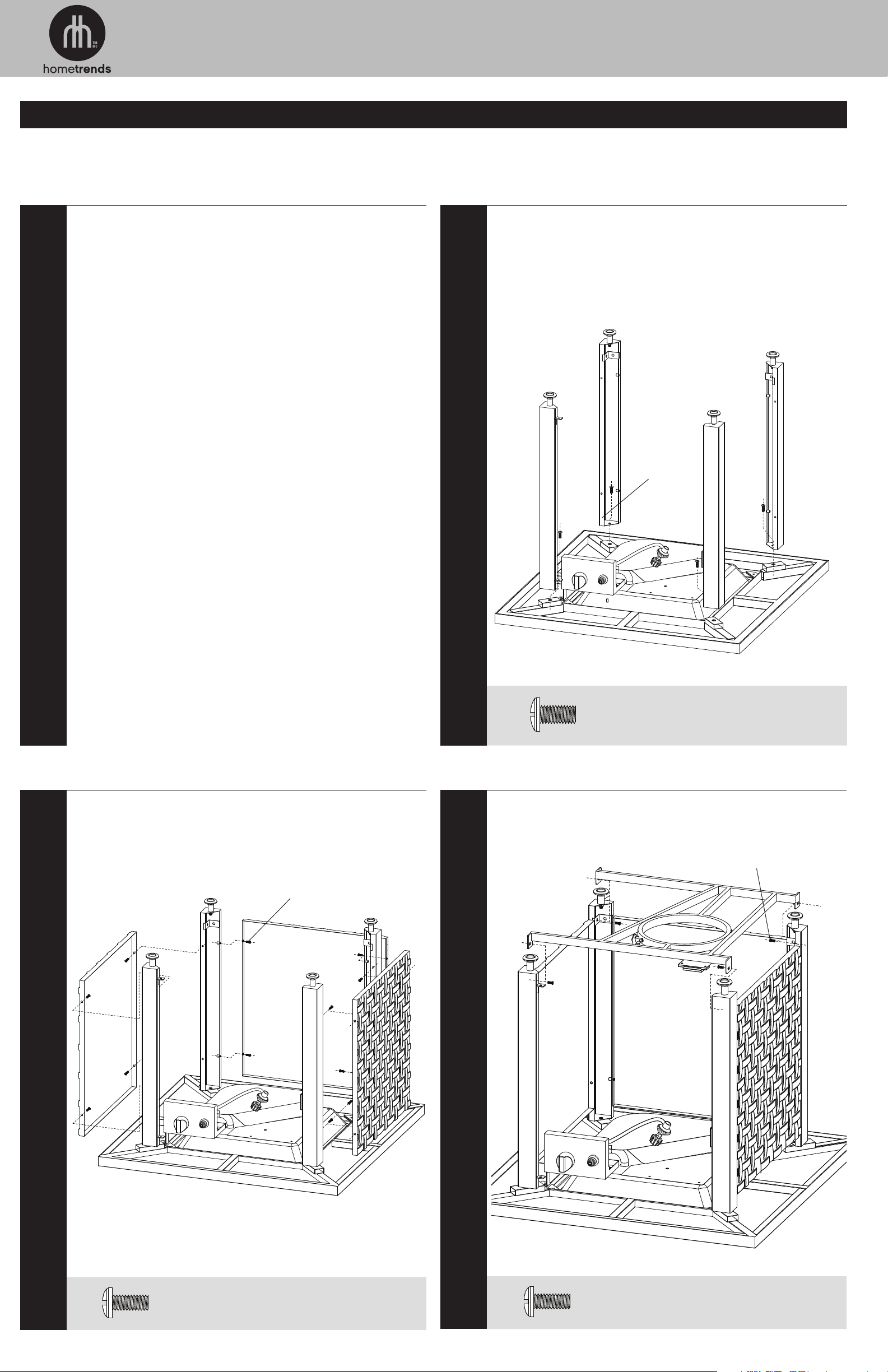

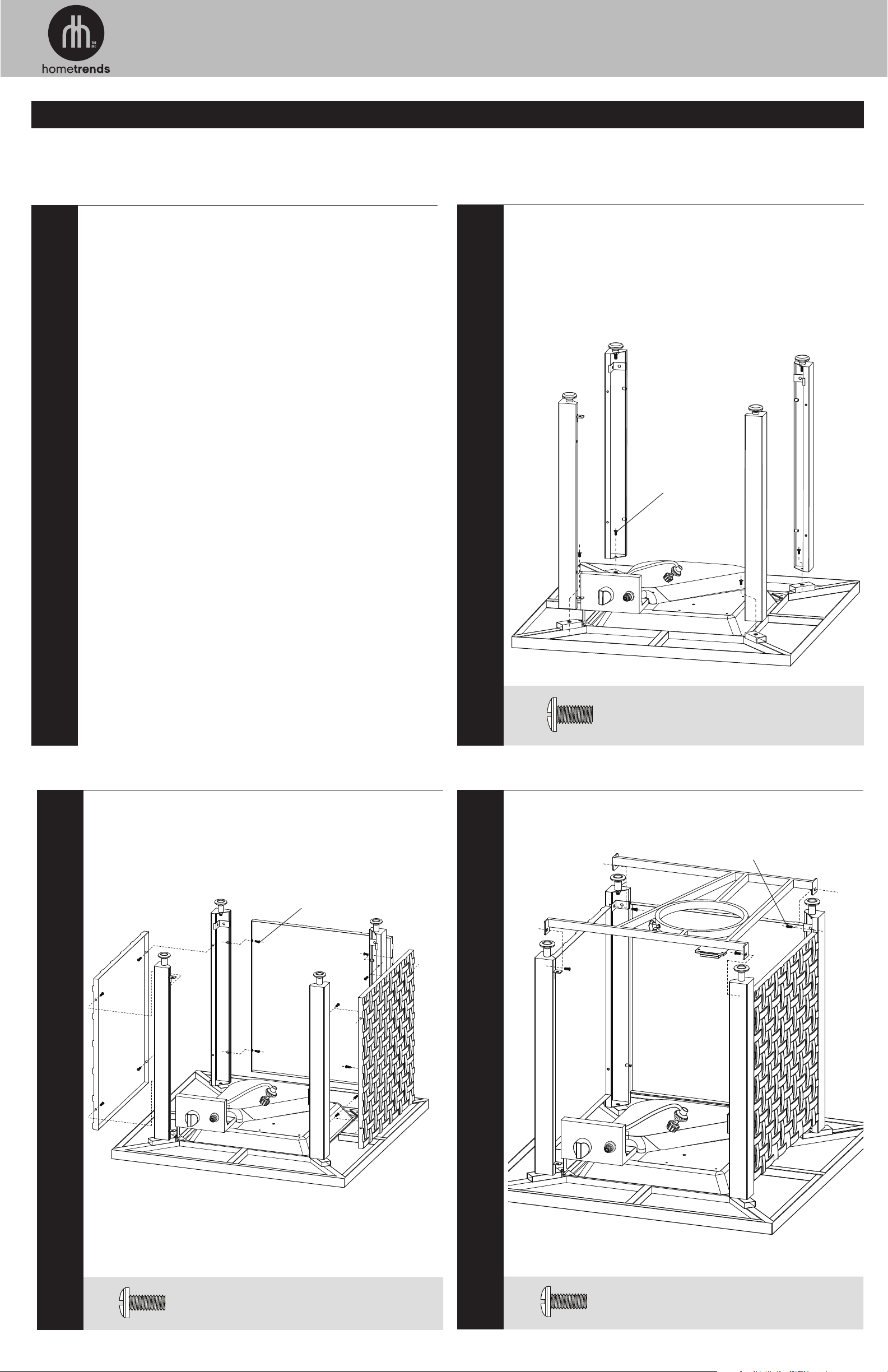

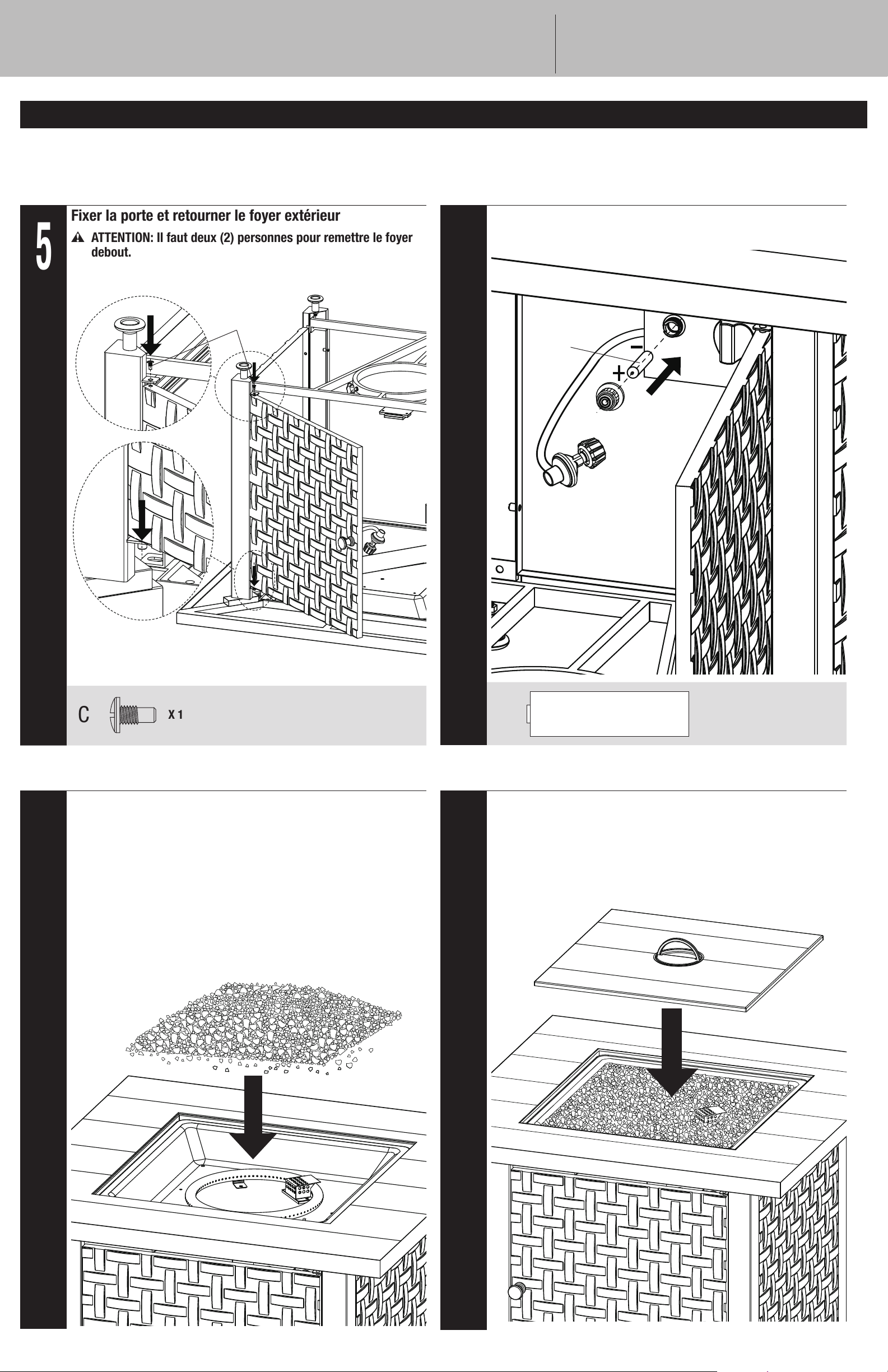

Assembly Instructions............................................................... 5

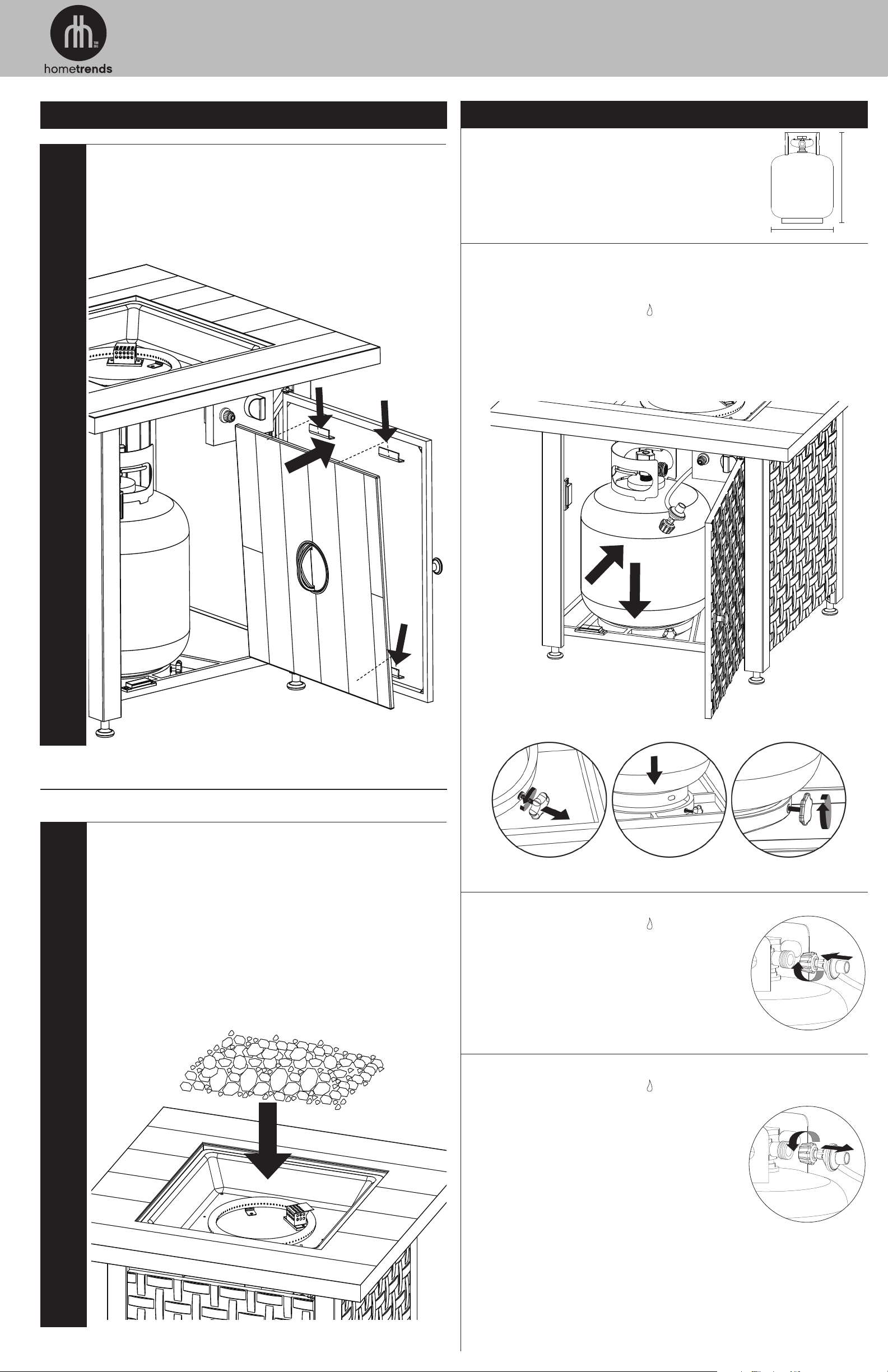

Installing LP Gas Tank............................................................... 7
Operating Instructions............................................................... 8
Cleaning and Care ................................................................. 8
Product Registration ................................................................ 9
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Limited Warranty .................................................................. 9
Troubleshooting .................................................................. 10
The use and installation of this product must conform to local codes. In absence of local codes, use the
latest edition of the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or International Fuel Gas Code. This
appliance, when installed, must be electrically grounded in accordance with local codes, or in the absence
of local codes with the National Electrical Code, ANSI/NFPA 70, if applicable.
For installation in Canada - these instructions, while generally acceptable, do not necessarily comply with
the Canadian installation codes, particularly with piping above and below ground. In Canada the installation
of this appliance must comply with local codes and/or standard CAN/CGA B149.1 (installation code for
propane burning appliances and equipment).
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP
FOR FUTURE REFERENCE.
If you are assembling this unit for someone else, give this manual to them to read and save for future reference.
Made from 75% Bagasse
(environmentally friendly sugar
cane pulp by-product)
Patents Pending
Manufactured in China for: Mr. Bar-B-Q Products LLC
10 Hub Dr., Ste 101, Melville, NY 11747 • 1.888.398.8643 • MrBarBQProducts.com
© Mr. Bar-B-Q Products LLC
Hometrends™ is a Trademark of Walmart Apollo, LLC. Used with permission. GAD15288WM-C-EF-OM-F100
CARBON MONOXIDE HAZARD
• This appliance can produce carbon monoxide which has
no odor.
• Using it in an enclosed space can kill you.
• Never use this appliance in an enclosed space such as a
camper, tent, car or home.
·DANGER
WARNING
FOR OUTDOOR USE ONLY.
WInstallation and service must be performed
by a qualified installer, service agency or
gas supplier.
WARNING
FOR YOUR SAFETY:
WIf the information in this manual is not
followed exactly, a fire or explosion may
result causing property damage, personal
injury or loss of life.
WWHAT TO DO IF YOU SMELL GAS:
• Do NOT try lighting any appliance.
• Do NOT touch any electrical switch; do
NOT use any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone.
• Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call
the fire department.
WDo Not Use For Cooking.
WARNING
FOR YOUR SAFETY:
WINSTALLER: Leave this manual with the
appliance.
WCONSUMER: Retain this manual for future
reference.
WARNING
FOR YOUR SAFETY:
Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage.
Read the installation, operation and
maintenance instructions thoroughly before
installing or servicing this equipment.
DANGER
FIRE OR EXPLOSION HAZARD
If you smell gas:
• Shut off gas to appliance.
• Extinguish any open flame.
• If odor continues, leave the area
immediately.
• After leaving the area, call your gas
supplier or fire department.
Failure to follow these instructions could
result in fire or explosion, which could cause
property damage, personal injury, or death.
WARNING
FOR YOUR SAFETY:
1. Do not store or use gasoline, or other
flammable vapors and liquids, in the vicinity
of this or any other appliance.
2. An LP-cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
DANGER
Do NOT leave this appliance unattended while
it is in operation.
“Harrington”
LP Gas Outdoor Fire Pit
Model No. GAD15288WM-C

Important Safeguards
DANGER • FLAMMABLE GAS UNDER PRESSURE.
LEAKING LP-GAS MAY CAUSE A FIRE OR EXPLOSION IF IGNITED CAUSING
SERIOUS BODILY INJURY OR DEATH.
CONTACT LP GAS SUPPLIER FOR REPAIRS, OR DISPOSAL OF THIS
CYLINDER OR UNUSED LP-GAS.
WARNING • FOR OUTDOOR USE ONLY.*
DO NOT USE OR STORE CYLINDER IN A BUILDING,
GARAGE OR ENCLOSED AREA.
• Know the odor of LP-gas. If you hear, see or smell
leaking LP-gas, immediately get everyone away from
the cylinder and call the Fire Department. Do not attempt
repairs.
• Caution your LP-gas supplier to:
Be certain cylinder is purged of trapped air prior to
first filling.
Be certain not to over fill the cylinder.
Be certain cylinder requalification date is checked.
• LP-gas is heavier than air and may settle in low places
while dissipating.
• Contact with the liquid contents of cylinder will cause
freeze burns to the skin.
• Do not allow children to tamper or play with cylinder.
• When not connected for use, keep cylinder valve turned
off. Self contained appliances shall be limited to a
cylinder of 30 lb capacity or less.
• Do not use, store or transport cylinder where it would
be exposed to high temperatures. Relief valve may open
allowing a large amount of flammable gas to escape.
• When transporting, keep cylinder secured in
an upright position with cylinder valve turned off.
WHEN CONNECTING FOR USE:
• Use only in compliance with applicable codes.
• Read and follow manufacturer’s instructions.
• Consult manufacturer’s instructions concerning the
cylinder connection provided with your appliance.
• Be sure regulator vent is not pointing up.
• Turn off all valves on the appliance.
• Do not check for gas leaks with a match or open flame.

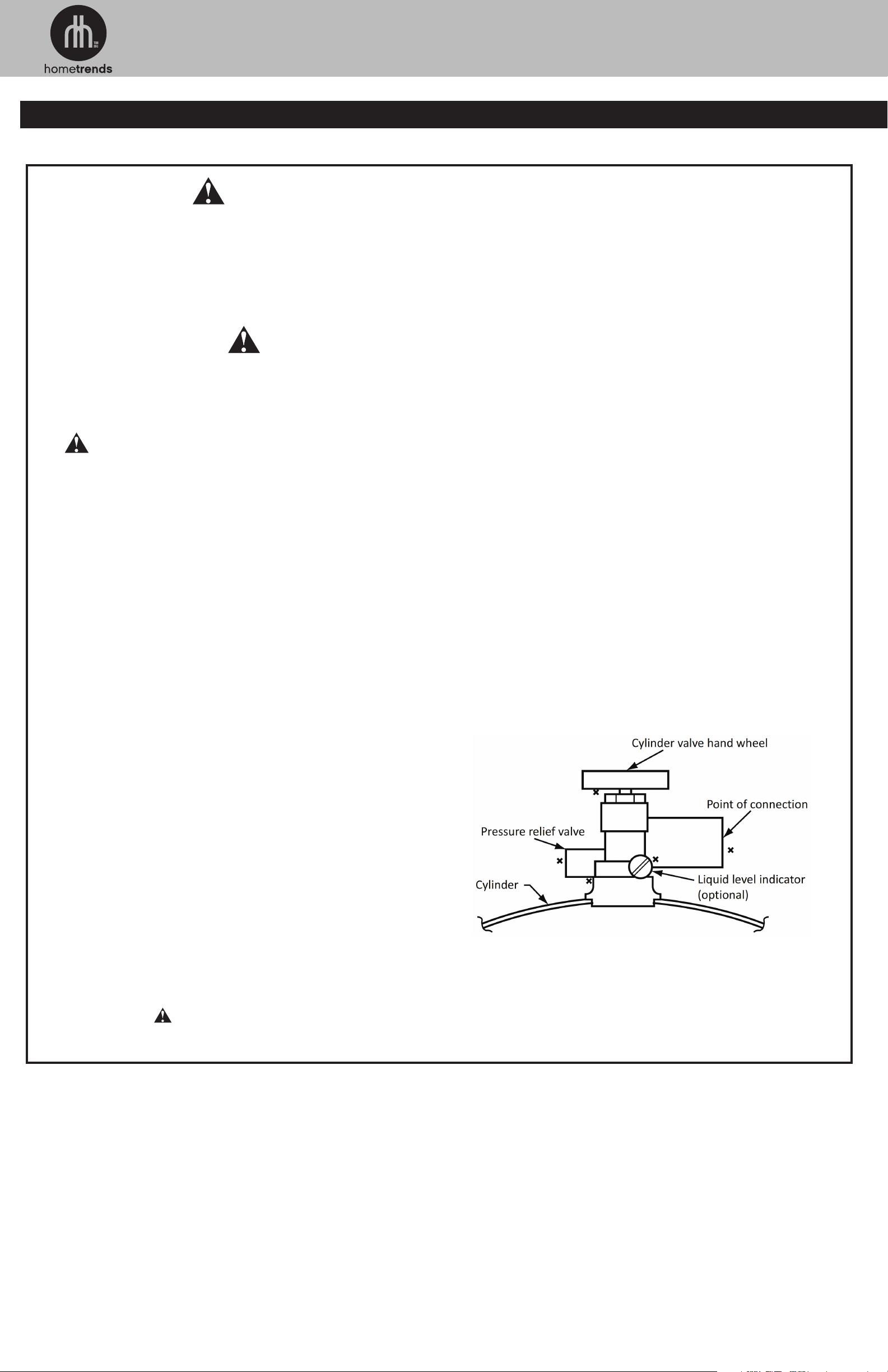

Apply soapy water at areas marked “X”. Open cylinder
valve. If bubble appears, close valve and have LP-gas
service person make needed repairs. Also, check
appliance valves and connections to make sure they do
not leak before lighting appliance.
• Light appliance(s) following manufacturer’s instructions.
• When appliance is not in use, keep the cylinder valve
closed.
WARNING:
DO NOT REMOVE, DEFACE, OR OBLITERATE THIS LABEL
*EXCEPT AS AUTHORIZED BY ANSI/NFPA 58.
DANGER. Do not store a spare LP cylinder under or near a barbecue grill, or other heat sources.
NEVER fill an LP cylinder beyond 80% full: a fire causing death or serious injury may occur.
2 LP Gas Outdoor Fire Pit
Model No. GAD15288WM-C

Important Safeguards
WDo NOT use this outdoor fire pit without reading the entire owner’s
manual.
WThis appliance is for outdoor use only, and should NOT be used in a
building, garage or any other enclosed area.
WDo NOT operate, light or use this appliance within ten feet (3.05 m) of
walls, structures or buildings.
WFor residential use only. This outdoor fire pit is NOT for commercial use.
WDo NOT use this outdoor fire pit for indoor heating. TOXIC carbon
monoxide fumes can accumulate and cause asphyxiation.
WThis outdoor fire pit is safety certified for use in the United States
and/or Canada only. Do NOT modify for use in any other location.
Modification will result in a safety hazard and will void your warranty.
WApartment dwellers: Check with management to learn the requirements
and fire codes for using a liquid propane (LP) gas outdoor fire pit in your
apartment complex. If allowed, use outside on the ground floor with a
ten foot (3.05 m) clearance from any structure. Do NOT use on or under
balconies.
WThis outdoor fire pit, from the factory, is for use with LP gas only. The
conversion to or attempted use of natural gas in this outdoor fire pit is
dangerous, may cause bodily harm and will void your warranty.
WLP gas characteristics:
a. LP gas is flammable and hazardous if handled improperly. Become
aware of the characteristics before using any LP gas product.
b. LP gas is explosive under pressure, heavier than air, and settles/
pools in low areas.
c. LP gas in its natural state has no odor. For your safety, an odorant is
added that smells like rotten cabbage.
d. Contact with LP gas can cause freeze burns to skin.
WLP gas tank needed to operate. Only tanks marked “propane” may be
used.
a. The LP gas cylinder must be constructed and marked in accordance
with the U.S. Department of Transportation (D.O.T.) Specifications for
LP-Gas Cylinders, or the Standard for Cylinders, Spheres and Tubes
for the Transportation of Dangerous Goods and Commission, CAN/
CSA-B339 as applicable.
b. LP gas tank must be arranged for vapor withdrawal.
c. The LP gas tank must have a listed overfilling prevention device
(OPD) and a QCCI or Type I (CGA810) LP gas tank connection.
d. The LP gas tank must have a tank collar to protect the tank valve.
e. Never use an LP gas tank with a damaged body, valve, collar or
footing.
f. Dented or rusted LP gas tanks may be hazardous and should be
checked by your LP gas supplier prior to use.
g. The LP gas tank should not be dropped or handled roughly.
h. Tanks must be stored outdoors, out of the reach of children and
must not be stored in a building, garage or any other enclosed area.
Your LP gas tank must never be stored where temperatures can
reach over 125°F.
i. Do NOT insert any tool or foreign object into the valve outlet or
safety relief valve. You may damage the valve and cause a leak.
Leaking propane may result in explosion, fire, severe personal injury
or death.
j. Never keep an LP gas tank in a hot car or trunk. Heat will cause the
gas pressure to increase, which may open the relief valve and allow
gas to escape.
k. Place dust cap on cylinder valve outlet whenever the cylinder is not
in use. Only install the type of dust cap on the cylinder valve outlet
that is provided with the cylinder valve. Other types of caps or plugs
may result in leakage of propane.
l. Do NOT store a spare LP gas tank under or near this appliance.
m. Never fill the cylinder beyond 80 percent full.
n. A fire causing serious injury or damage to property may occur if the
above is not followed exactly.
WYour outdoor fire pit has been checked at all factory connections
for leaks. Recheck all connections as described in the “Operating
Instructions” section, as shipping can loosen connections.
WCheck for leaks even if your unit was assembled for you by someone
else.
WDo NOT operate if a gas leak is present. Gas leaks may cause a fire or
explosion.
WYou must follow all instructions in the “Checking for Leaks” section
before operating. To prevent a fire or explosion when testing for a leak:
a. Always perform a leak test before lighting this outdoor fire pit and
each time the tank is connected for use.
b. No smoking. Do NOT use or permit sources of ignition in the area
while conducting a leak test.
c. Conduct the leak test outdoors in a well-ventilated area.
d. Do NOT use matches, lighters or a flame to check for leaks.
e. The use of alcohol, prescription or non-prescription drugs may
impair the consumer’s ability to properly assemble or safely operate
the appliance.
f. Strong odors, colds, sinus congestion, etc. may prevent the
detection of propane. Use caution and common sense when testing
for leaks.
g. Do NOT use this outdoor fire pit until any and all leaks are corrected.
If you are unable to stop a leak, disconnect the LP gas supply. Call a
gas appliance serviceman or your local LP gas supplier.
WDo NOT store or use gasoline or other flammable liquids or vapors
within 25 feet (7.62 m) of this appliance.
WDo NOT use in an explosive atmosphere. Keep outdoor fire pit area clear
and free from combustible materials, gasoline and other flammable
vapors and liquids.
WThis outdoor fire pit is NOT to be operated by children.
WThis outdoor fire pit is NOT to be used in or on boats or recreational
vehicles.
WDo NOT connect to a remote gas supply.
WNever attempt to attach this outdoor fire pit to the self-contained LP gas
system of a camper trailer, motor home or house.
WAlways use in accordance with all applicable local, state and national
codes. Contact your local fire department for details on outdoor burning.
WWhen using this outdoor fire pit, exercise the same precautions you
would with any open fire.
WDo NOT burn solid fuels such as: wood, charcoal briquettes, lump
charcoal, manufactured logs, driftwood, trash, leaves, paper, cardboard,
plywood, painted/stained/pressure treated wood in this outdoor fire pit.
WIt is essential to keep the outdoor fire pit’s valve compartment, burners,
and circulating air passages clean. Inspect outdoor fire pit before each
use.
WDo NOT use this outdoor fire pit until it is COMPLETELY assembled and
all parts are securely fastened and tightened.
WDo NOT use this outdoor fire pit near automobiles, trucks, vans or
recreational vehicles.
WDo NOT use this outdoor fire pit under any overhang or near any
unprotected combustible constructions. Avoid using near or under
overhanging trees and shrubs.
WAlways use this outdoor fire pit on a hard, level, non-combustible
surface such as concrete, rock or stone. An asphalt or blacktop surface
may not be acceppit for this purpose.
WDo NOT use this outdoor fire pit for cooking.
WDANGER: Failure to follow the dangers, warnings and cautions in this manual may result in serious bodily injury or death, or in a fire or an explosion
causing damage to property.
WWARNINGS:
Need help? 1.888.398.8643
Do not return to place of purchase.
Replacement Parts
1.888.398.8643 3

4 LP Gas Outdoor Fire Pit
Model No. GAD15288WM-C
Important Safeguards
WDo NOT use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the appliance
and to replace any part or control system and any gas control which
has been under water.
WDo NOT wear flammable or loose clothing when operating this outdoor
fire pit.
WDo NOT use in windy conditions.
WNever lean over this outdoor fire pit when lighting or when in use.
WDo NOT use this outdoor fire pit unless burner is securely in place.
WKeep all electrical cords away from this outdoor fire pit during use.
WCertain areas of this outdoor fire pit when in use will become too
hot to touch. To avoid burns, do NOT touch hot surfaces until the unit
has completely cooled (about 45 minutes), unless you are wearing
protective gear (such as insulated pot holders or heat-resistant gloves/
mittens).
WDo NOT leave a lit outdoor fire pit unattended, especially around children
and pets.
WChildren and adults should be alerted to the hazards of high surface
temperatures and should stay away to avoid burns or clothing ignition.
WYoung children should be carefully supervised when they are in the area
of the appliance.
WDo NOT hang or place clothing or other flammable material on or near
this appliance.
WAny guard or other protective device removed for servicing the
appliance must be replaced prior to operating the appliance.
WIf applicable, protective cover must be removed when burner is in
operation.
WDo NOT attempt to move outdoor fire pit when in use. Allow the outdoor
fire pit to cool before moving or storing.
WThis outdoor fire pit should be thoroughly cleaned and inspected on
a regular basis. Clean and inspect the hose before each use of the
appliance. If there is evidence of abrasion, wear, cuts, or leaks, the hose
must be replaced prior to the appliance being operated.
WThis outdoor fire pit should be inspected at least annually by a qualified
service person. Depending on amount of use, more frequent cleaning
may be required. Do NOT operate until all parts have been repaired or
replaced.
WUse only the regulator and hose assembly provided. Use only the
replacement regulator and hose assembly specified by Mr. Bar-B-Q
Products LLC.
WUse only Mr. Bar-B-Q Products LLC factory-authorized parts. The use of
any part that is not factory-authorized can be dangerous and will void
your warranty.
WUse only Mr. Bar-B-Q Products LLC factory-authorized fire glass /lava
rock. The use of any fire glass/lava rock that is not factory-authorized
can be dangerous and will void your warranty.
WDo NOT operate this appliance without reading “Operating Instructions”
in this manual.
WStorage of this outdoor fire pit indoors is permissible only if the tank
is disconnected, removed from the outdoor fire pit and properly stored
outdoors.
WDo NOT attempt to disconnect the gas regulator from the tank or any
gas fitting while the outdoor fire pit is in use.
WIf the outdoor fire pit is not in use, the gas must be turned off at the
supply tank.
WCAUTION: The gas pressure regulator provided with this appliance must
be used. This regulator is set for an outlet pressure of 11 inches water
column.
WThe minimum inlet gas pressure for this outdoor fire pit is 11 inches of
water column, for the purpose of input adjustment.
WThe maximum inlet gas pressure for this outdoor fire pit is 11 inches of
water column.
WBefore pressure testing, close LP gas tank valve and disconnect gas
regulator. The gas supply piping system must test at pressures equal to
or less than ½ psi (3.5 kPa).
WDo NOT sit or stand on the mantle or any part of this appliance.
WDo NOT throw anything onto the fire when the unit is in operation.
WFire glass/lava rock are very hot. Keep children or pets at a safe
distance from this appliance.
WThe opening of the tank collar should face toward the door side for easy
access.
WDo NOT store any combustible materials in the base enclosure.
WUse protective gloves when assembling this product.
WDo NOT force parts together as this can result in personal injury or
damage to the product.
WDeath, serious injury or damage to property may occur if the above is
not followed exactly.

5
Expanded View
Need help? 1.888.398.8643
Do not return to place of purchase.
Replacement Parts
1.888.398.8643 5
Tools Required for Assembly (Not Included)
#2 Phillips Head Screwdriver 1 pc
Hardware
AScrew M5x12 Black Nickel Plated Truss Head 16 pcs
BScrew M6x12 Black Nickel Plated Truss Head 4 pcs
CScrew M6X12 Black Nickel Plated Step Head 1 pc
DAA Battery 1 pc
10
10
10
Parts List
1Bronze Fire Glass GLS-BRN
2Table Insert 58-23-854
3Bowl Assembly* 58-23-895
4Igniter Cover* 58-23-896
5Burner* 58-23-138
6Control Knob* 58-23-139
7Battery Cap 58-23-897
8Regulator/Hose
Assembly* 58-23-922
9Mantel 58-23-855
10 Side Panel (3) 58-23-856
11 Leg A (2) 58-23-857
12 Leg B 58-23-858
13 Magnet (2)*58-23-145
14 Leg C 58-23-859
15 Foot (4)* 58-23-147
16 Base* 58-23-148
17 LP Gas Tank Retainer
Bolt* 58-23-149
18 Door 58-23-860
19 Door Handle* 58-23-861
20 Cover 55-24-366
21 Lava Rock (not required
and sold separately)**
* Pre-assembled
W**CAUTION: Use only Mr. Bar-B-Q
Products LLC factory-authorized
fire glass/lava rock. The use of
any fire glass/lava rock that is
not factory-authorized can be
dangerous and will void your
warranty. 18
17
12
3
9
2
8
6
14
11
11
4
19
16
Sold Separately
20
15
15
13
5
7
1
15 15
21
13
