OWNER’S MANUAL
3 US GALLONS (11.3 LITERS)
OUTPUT PER DAY
COOL MOISTURE HUMIDIFIERS
MODELS:
HCM-630
HCM-635
The Honeywell trademark is used by Kaz, Inc. under license from Honeywell Intellectual Properties, Inc.
4 US GALLONS (15.1 LITERS)
OUTPUT PER DAY
COOL MOISTURE HUMIDIFIERS
MODELS:
HCM-645
HCM-646
HCM-650
035-04034-000_R0 QuietCare OM 6/24/04 4:04 PM Page 1

2
When using electrical appliances, basic precautions should always be
followed to reduce the risk of fire, electric shock, and injury to persons,
including the following:
1. Always place this humidifier on a firm, flat and level surface. This humidifier may not work properly
on an uneven surface.
2. Place this humidifier in an area where it is not accessible to children.
3. Do not place the humidifier near any heat sources such as stoves, radiators, and heaters.
4. Do not use the humidifier outdoors.
5. Before using the humidifier, check the power cord for any signs of damage. If the cord is found to be
damaged, DO NOT USE and return the humidifier to the manufacturer under the warranty agreement
for repair.
6. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of shock,
this plug is intended to fit only one way in a polarized outlet. If the plug does not fit securely in the
outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat
this safety feature.
7. To disconnect the humidifier,first turn controls to the OFF position, then grip the plug and pull it from
the wall outlet. Never pull by the cord.
8. A loose fit between the AC outlet (receptacle) and plug may cause overheating and a distortion of the
plug. Contact a qualified electrician to replace loose or worn outlet.
9. The humidifier should always be unplugged and emptied when not in operation or while being
serviced or cleaned.
10. Never tilt or attempt to move the humidifier while it is operating or filled with water. UNPLUG the
humidifier before moving.
11. This humidifier requires regular cleaning. Refer to the CLEANING instructions provided. Never clean
the humidifier in any manner other than as instructed in this manual.
12. Do not direct moisture flow directly at individuals, walls or furniture.
13. When a humidifier is used in a closed room or small rooms, check periodically for proper ventilation,
as excessive humidity can cause condensation stains on walls.
14. Turn the humidifier OFF if you notice moisture on the inside of your windows. For proper humidity
reading use a hygrometer,which is available in many hardware and department stores, or by
ordering one from the manufacturer.
IMPORTANT SAFETY
INSTRUCTIONS
READ AND SAVE THESE SAFETY INSTRUCTIONS
BEFORE USING THIS HUMIDIFIER
035-04034-000_R0 QuietCare OM 6/24/04 4:04 PM Page 2

3
Introduction
HOW DOES IT WORK?
COOL MOISTURE SYSTEM:
Dry air is pulled through the humidifier and the QuietCare™fan blows out invisible, moisture-balanced air.
Unwanted minerals and bacteria from the water are trapped inside the filter. When the unit is running you
will not see or feel a “mist”. You will know your humidifier is putting moisture into the air as you watch the
water level in your tank decrease throughout the day.
COMPLETE PROTECTION
Your new QuietCare™humidifier has double Protec™Product Protection with the exclusive Protec™
Cleaning Cartridge and Protec™treated filter.
Protec™Cleaning Cartridge: Your humidifier has been designed with the Protec™Cleaning Cartridge which
helps your unit to stay cleaner longer. This unique cartridge features an advanced patented media which
continually inhibits the growth of odor-causing bacteria and mold in the cartridge as well as prevents the
buildup of slime in your humidifier. In addition, the Protec™cartridge provides peace of mind that the mist
is fresh and clean.
Protec™Antimicrobial Treated Filter: Your filter has been treated with Protec™antimicrobial which helps
prevent surface growth and migration of mold, fungus and bacteria in the filter for it’s life – approximately
one season. Keep in mind, depending on your water quality, mineral deposits can still clog or discolor the
filter, affecting its life and that of the humidifier.
Your humidifier is made up of these parts:
Water Tank
Motor Housing
Filter
Base
Fill Cap
Protec™Cleaning
Cartridge Holder
035-04034-000_R0 QuietCare OM 6/24/04 4:04 PM Page 3

4
Set-Up
NOTE: We recommend that the humidifier be disinfected prior to first use.
Please see CLEANING INSTRUCTIONS.
Select a firm, level, flat location - at least six inches (15 cm) from any wall for proper air flow (Fig. 1). Place
the humidifier on a water-resistant surface, as water can damage furniture and some flooring.
Kaz will not accept responsibility for property damage caused by water spillage.
Filling
• Remove the water tank by grasping handle and pulling straight up. Set
aside (Fig. 1).
• Lift up on the motor housing to remove and set aside (Fig. 2). Remove the
filter from the base before filling the unit with water. Soak filter in a sink
full of cool water to help reduce mineral buildup and place back in the
humidifier while wet. DO NOT SQUEEZE OR WRING OUT THE FILTER. To
help extend the life of your filter, repeat this step each time you fill your
humidifier.
• Turn the Water Tank upside down so that the Fill Cap is facing up;
unscrew the Fill Cap by turning it counter-clockwise and set aside.
• Fill the Water Tank with COOL tap water (Fig. 3). Distilled water is not
necessary as the water is filtered by the filter.DO NOT USE HOT WATER.
Doing so may damage the humidifier.
•Replace the fill cap by turning it clockwise .
DO NOT OVER-TIGHTEN. Turn the Water Tank right-side up.
NOTE: When carrying the filled Water Tank please use the handle and
place your other hand under the tank for additional support.
• Place the Motor Housing back into the base.
• Position the Water Tank in the humidifier and push into place. Some water
will empty into the base.
• Once the filled tank has been positioned, do not attempt to move the
humidifier. If it has to be moved, unplug the humidifier and remove the
water tank first.
CAUTION: DO NOT POUR WATER INTO THE GRILLE IN THE
FRONT OF THE HUMIDIFIER. DOING SO MAY DAMAGE THE
HUMIDIFIER OR CAUSE PERSONAL INJURY.
Fig. 1
Fig. 2
Fig. 3
WALL
6"
035-04034-000_R0 QuietCare OM 6/24/04 4:04 PM Page 4

5

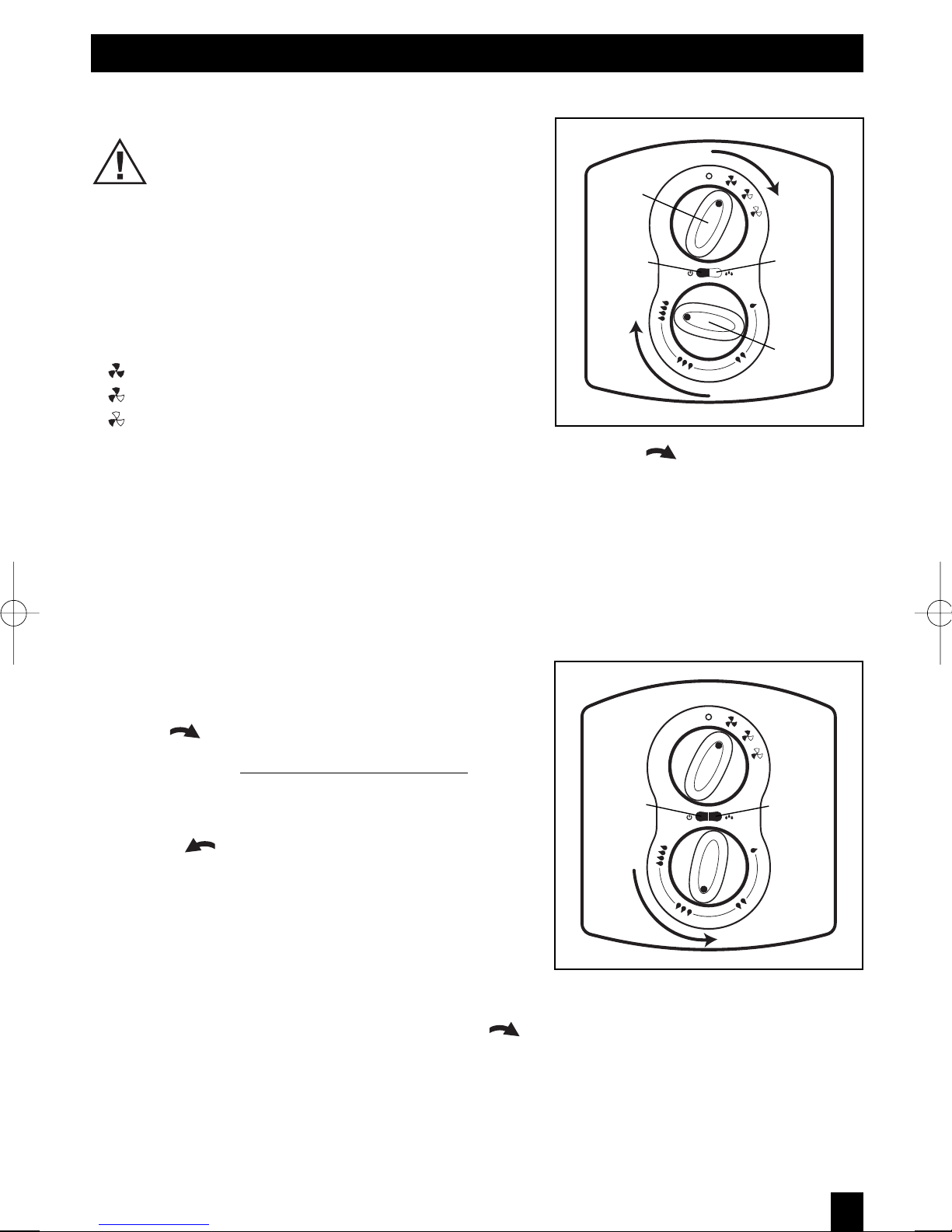

Manual Control Operation (Model HCM-630)
POWER
CAUTION: DO NOT PLUG IN THE HUMIDIFIER WITH
WET HANDS AS AN ELECTRICAL SHOCK COULD
OCCUR.
• With the power switch in the OFF position, plug the filled
humidifier into a polarized 120V outlet. DO NOT FORCE THE
POLARIZED PLUG INTO THE OUTLET; it will only fit one way.
OUTPUT / FAN SPEED CONTROL
1. Set the fan speed to the desired position (Fig. 4).
HIGH: For fast humidifying
MED: For everyday moisture control
LOW: For minimum operation (ideal for nighttime use)
2. Set the Advanced Mist™Humidistat on HIGH, by turning the dial clockwise to the end (Fig. 4).
Turn the humidifier OFF if the humidity level feels too moist or you notice condensation forming on the
walls and/or windows.
ADVANCED MIST™HUMIDISTAT
The Advanced Mist™Humidistat allows you to adjust and select the humidity level to your personal
preference. Your humidifier will turn on and off throughout the day and night to maintain the desired
humidity level you have selected.
HOW TO SET THE HUMIDISTAT
First, run the humidifier per the operation instruction with the
Humidistat knob set to its highest setting, turning the knob
clockwise to the end (Fig. 4).
•Let the humidifier run on high for a least one hour or until
your room has reached a comfortable humidity level.
• At this point, slowly turn your Humidistat knob counter-
clockwise until the humidifier shuts off and the Desired
Humidity light illuminates (Fig. 5).
• Now that your Humidistat knob is set, the humidifier will
automatically turn back on when your room drops below
your comfort setting and will automatically turn off again
when the setting is reached.
NOTE: If the humidifier fan will not start or restart when you select a fan speed, the Advanced Mist™
Humidistat may be set too low.Turn the dial clockwise to the end (Fig. 4). The Desired Humidity light
will turn Off when the unit is producing moisture. When the Desired Humidity light turns ON, you have
reached optimal humidity.
Desired
Humidity
Light
Fig. 4
Fig. 5
Fan
Speed
Knob
Power
Light
(Illuminated)
Desired
Humidity
Light
(Illuminated)
Humidistat
Knob
Power
Light
(Illuminated)
035-04034-000_R0 QuietCare OM 6/24/04 4:04 PM Page 5

6

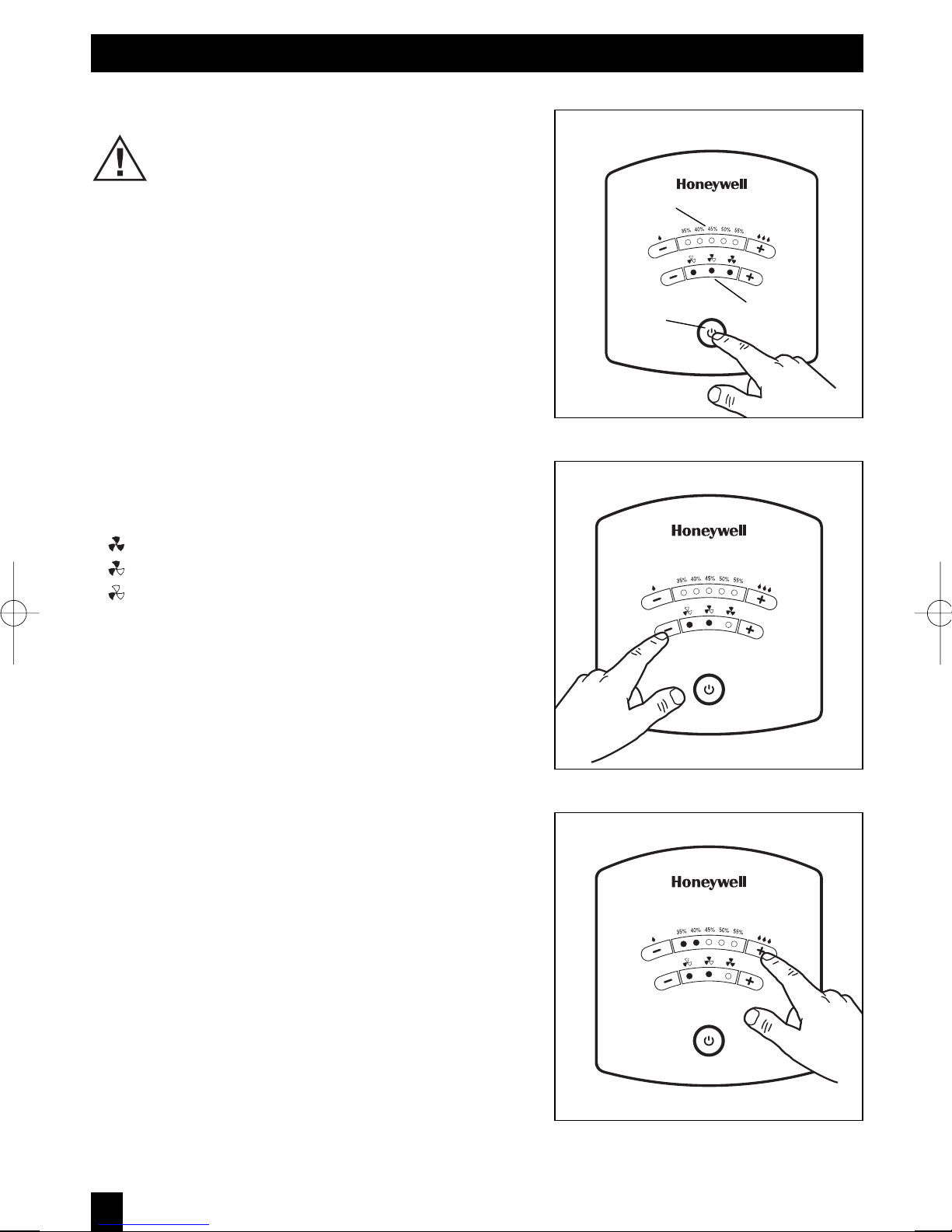

EasySet™Control Operation (Models HCM-635, HCM-645, HCM-646)
POWER
CAUTION: DO NOT PLUG IN THE HUMIDIFIER WITH
WET HANDS AS AN ELECTRICAL SHOCK COULD
OCCUR.
• With the power OFF, plug the filled humidifier into a
polarized 120V outlet. DO NOT FORCE THE POLARIZED PLUG
INTO THE OUTLET; it will only fit one way.
STEP 1: POWER
• Press the Power button to start the humidifier. Your
humidifier will automatically start on High power, continuous
run (Fig. 6).
• To turn your humidifier OFF simply press the Power button
again.
STEP 2: OUTPUT / FAN SPEED CONTROL
Your unit has three output levels/fan speeds:
HIGH: For fast humidifying
MED: For everyday moisture control
LOW: For minimum operation (ideal for nighttime use)
• Push the up button (+) to increase output level and push the
down button (-) to decrease output level. The LED's will
illuminate to reflect which speed you have selected (Fig. 7).
STEP 3: SET HUMIDITY
• Set your desired humidity anywhere between 35% and
55%.
• Push the up button (+) to increase desired humidity and
push the down button (-) to decrease desired humidity. The
LED's will illuminate to reflect which desired humidity level
you have selected (Fig. 8).
For example: If you set your humidity at 40%, the 35% and
40% LED’s will be illuminated.
• Once you have set your desired humidity, the unit will
operate under this desired setting until the unit is turned off.
• When the desired room humidity has been reached the unit
will automatically shut off. (The humidity LED's will remain
illuminated)
• Your unit will turn back on when your desired humidity
decreases beyond your set level.
Fig. 6
Fan Speed
Control
Humidistat
Control
Power
Button
Fig. 7
Fig. 8
035-04034-000_R0 QuietCare OM 6/24/04 4:04 PM Page 6

POWER
CAUTION: DO NOT PLUG IN THE HUMIDIFIER WITH
WET HANDS AS AN ELECTRICAL SHOCK COULD
OCCUR.
• With the power OFF, plug the filled humidifier into a
polarized 120V outlet. DO NOT FORCE THE POLARIZED PLUG
INTO THE OUTLET; it will only fit one way.
STEP 1: POWER
• Press the Power button to start the humidifier. Your
humidifier will automatically start on High power, continuous
run. The display will be illuminated and will reflect the
current room humidity (Fig. 9).
• To turn your humidifier OFF simply press the Power button
again.
STEP 2: OUTPUT / FAN SPEED CONTROL
Your unit has three output levels/fan speeds:
HIGH: For fast humidifying
MED: For everyday moisture control
LOW: For minimum operation (ideal for nighttime use)
• To change your fan speed press the fan button up or down
(Fig. 10).
• Once you have selected your desired speed the display will
go back to showing the current room humidity after 3
seconds.

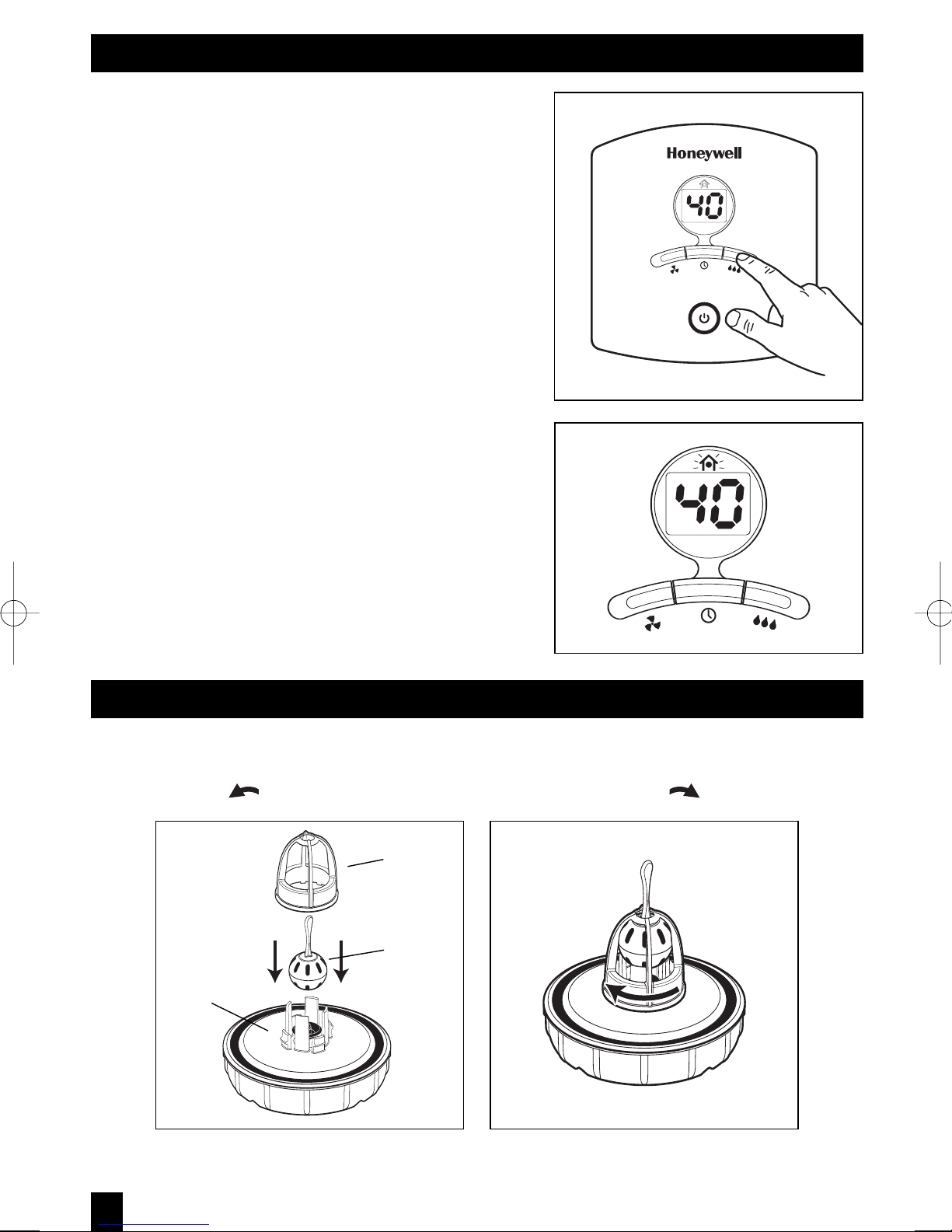

STEP 3: TIMER CONTROL
• You can set your timer for up to 18 hours. This function
should only be used if you desire that the humidifier be
automatically shut off after a certain period of time.
• Press the timer button up or down to set your desired time
(Fig. 11).
• When the display indicates your desired time, it will begin
counting down after 3 seconds. The display will then switch
back to showing the current room humidity.
NOTE: If you wish to change your timer setting or check to
see how much time is left simply press the timer button
once and it will show you the time left. If you want to
change the time remaining, continue to push the button up
or down until you have reached your desired time. Again,
after 3 seconds the display will revert to showing the current room humidity.
7
Digital EasySet™Control Operation (Model HCM-650)
Fig. 9
Fig. 10
Fig. 11
Humidistat
Control
Fan Speed
Control
Timer
Control
Desired
Humidity
Light
035-04034-000_R0 QuietCare OM 6/24/04 4:04 PM Page 7

8
STEP 4: SET HUMIDITY
• You can set your desired humidity in 1% increments
anywhere from 30% to 60%.
• To set your desired humidity, press the humidity button up
or down (Fig. 12).
• When the display indicates your desired humidity setting
wait 3 seconds.
• After 3 seconds your desired humidity is set and the display
will revert back to showing the current room humidity.
NOTE: If you wish to change your humidity setting or check
to see what you set, simply press the humidity button once
and it will show you the set humidity. If you want to change
it, continue to push the button up or down until you have
reached your new desired humidity. Again, after 3 seconds
the display will revert to showing the current room humidity.
• Once you have set your humidity the unit will operate under
this desired setting until the unit is turned off.
• When your desired room humidity has been reached your
unit will shut off and the house icon on the top of your
display will illuminate (Fig. 13). It will stay illuminated until
your desired humidity decreases at which time your unit will
turn back on.
Digital EasySet™Control Operation (Model HCM-650)
Fig. 12
The Protec™Cleaning Cartridge will last 30 days or longer, depending on your usage. To install or replace
your cartridge, simply remove the holder on the inside of your tank cap by turning it
counter-clockwise . Replace the cartridge holder by by turning it clockwise (Fig. 14 & Fig. 15).
Protec™Cleaning Cartridge
Fig. 14 Cartridge
Holder
Protec™
Cleaning
Cartridge
Tank Cap
Fig. 15
Fig. 13
035-04034-000_R0 QuietCare OM 6/24/04 4:04 PM Page 8

9
Cleaning
STEP ONE:
SCALE REMOVAL
BASE
1. Fill the Base with:
• 1 cup (8 ozs.) of undiluted white vinegar
or
• Honeywell®Humidifier Cleaner,part no.
HAC-101, following bottle instructions.
2. Let solution stand for 20 minutes.
3. With the vinegar or Honeywell®Humidifier
Cleaner in the Base, clean all interior
surfaces with a soft cloth or brush to help
remove scales.
4. Rinse the Base thoroughly with water to
remove scale and cleaning solution.
STEP TWO:
DISINFECTING
WATER TANK/BASE
1. Fill the Water Tank with:
•1 teaspoon of household bleach
and
•1 gallon of water
Pour some of this solution into the Base.
2. Let solution stand for 20 minutes.
3. Rinse with water until the smell of bleach is
gone.
NOTES:
• The use of other water treatment products and chemicals may cause deterioration of the filter or
damage the humidifier, thereby hindering the humidifier's effectiveness.
• If you are experiencing more buildup than when you first purchased your humidifier, you may need to
replace your Protec™Cleaning Cartridge. Changing your cartridge every 30 days will provide continuous
protection.
Your Protec™Cleaning Cartridge helps your humidifier stay cleaner longer and will help extend the life of
your filter. However, you should still continue to clean your humidifier regularly as needed.
Cleaning involves two steps, SCALE REMOVAL and DISINFECTING. Be sure to perform these in the
proper order to avoid harmful chemical interactions.
• First, turn off and unplug the humidifier.
• Remove the Water Tank and Motor Housing.
•Remove the filter from the Base.
• Empty any water from the Base.
NOTE: REMOVE FILTER AND PROTEC™CLEANING CARTRIDGE BEFORE CLEANING.
Failure to remove filter during cleaning will destroy the filter.
035-04034-000_R0 QuietCare OM 6/24/04 4:04 PM Page 9

10
End-of-Season Care and Storage
• Follow the CLEANING instructions when the humidifier will not be used for at least one week or more,
or at the end of the season.
• At the end of the season, remove and throw away the filter and Protec™Cleaning Cartridge; do not store
with a used filter.
• Dry the humidifier completely before storing. DO NOT store with water inside the Base or Water Tank.
• Pack the unit in its original carton and store in a cool, dry location.
• Before next use, remember to clean your humidifier, install a new filter and new Protec™Cleaning
Cartridge.
Consumer Relations
Mail questions or comments to:
Kaz, Inc.
Consumer Relations Dept.
250 Turnpike Road
Southborough, MA 01772
Please be sure to specify model number.
Call us toll-free at: 1-800-332-1110
E-mail: [email protected]
Or visit our website at: www.kaz.com
Purchase replacement filter part number HAC-504 and Protec™Cleaning Cartridge part number
PC-1 (1 pack) or PC-2 (2 pack)
Electrical Ratings
The Honeywell QuietCare™Series models are rated at 120V,60 Hz.
NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE RETURN THE HUMIDIFIER TO THE ORIGINAL PLACE
OF PURCHASE OR SEE YOUR WARRANTY. DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING
YOURSELF. DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE HUMIDIFIER OR
PERSONAL INJURY.
035-04034-000_R0 QuietCare OM 6/24/04 4:04 PM Page 10

11
Troubleshooting
Q: I hear the fan turning, but I don’t see any mist. Is my humidifier operating
properly?
A: Dry air is pulled through the system and a fan disperses invisible, moisture balanced air. There is no
“mist” emitted. When operating normally you will feel only cool air coming from the unit. Monitor the
water level in your Tank/ Base. If you notice a decrease in the Water Tank over 24 hours then the unit
is operating normally.
Q: My unit has been running for several hours. I hear the fan spinning, but I do not notice the
water level in the tank decreasing.
A: First, check the filter to ensure it is wet. If the pad appears dry, remove it from the Base and gently
rinse under cool water. Reposition wet filter in the Base. You may also want to note the current
moisture level in your home. If the humidity level is over 60% the unit will not put out much moisture
as your air is already saturated.
Q: The humidifier is not running (the fan is not even spinning), but all (or some) of the lights are
on.
A: If the Desired Humidity light is ON: The Advanced Mist™Humidistat knob may be set too low. Moving
the knob clockwise to the end should restart the unit.
Q: The Advanced Mist™Humidistat knob was set according to the manual, but the humidifier
never seems to turn back on. Is something wrong?
A: The Humidistat knob may be set too low. Moving the Humidistat knob to the end clockwise
should restart the unit.
Q: The Advanced Mist™Humidistat knob was set according to the manual, but the humidifier
never seems to turn off. Is something wrong?
A: The Humidistat knob may be set too high. Reset the Advanced Mist™Humidistat knob following the
instructions under FEATURES.
Q: My filter has turned light brown and rust colored. Do I need a new filter?
A: Probably not. Since your filter has been made with Protec™antimicrobial the change in color indicates
only a mineral deposit. Soak filter in a sink full of cool water to help break up deposits. The
discoloration may remain but will not affect the humidifier’s performance.
Q: My humidifier doesn’t appear to be as clean as when I first purchased and/or I’m smelling an
unpleasant odor. What should I do?
A: You probably need to replace your Protec™Cleaning Cartridge. This cartridge helps your humidifier
stay cleaner, longer and helps freshen the mist. If you have been using your humidifier regularly for
over 30 days replace the Protec™cartridge and follow the cleaning instructions.
035-04034-000_R0 QuietCare OM 6/24/04 4:04 PM Page 11

©2004 Kaz, Inc. All Rights Reserved.
P/N: 035-04034-000, Rev. 0
A/W: 043-01500-000
You should first read all instructions before
attempting to use this product.
A. This 5 year limited warranty applies to repair
or replacement of product found to be
defective in material or workmanship. This
warranty does not apply to damage resulting
from commercial, abusive, unreasonable use
or supplemental damage. Defects that are the
result of normal wear and tear will not be
considered manufacturing defects under this
warranty.
KAZ IS NOT LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF ANY NATURE.
ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE ON THIS PRODUCT IS
LIMITED IN DURATION TO THE DURATION OF
THIS WARRANTY.
Some jurisdictions do not allow the exclusion
or limitation of incidental or consequential
damages or limitations on how long an implied
warranty lasts, so the above limitations or
exclusions may not apply to you. This warranty
gives you specific legal rights, and you also
may have other rights which vary from
jurisdiction to jurisdiction. This warranty
applies only to the original purchaser of this
product from the original date of purchase.
B. At its option, Kaz will repair or replace this
product if it is found to be defective in material
or workmanship. Defective product should be
returned to the place of purchase in
accordance with store policy. Thereafter, while
within the warranty period defective product
may be returned to Kaz.
C. This warranty does not cover damage resulting
from any unauthorized attempts to repair or
from any use not in accordance with the
instruction manual.
D. Return defective product to Kaz, Inc. with a
brief description of the problem. Include proof
of purchase and a $10 US/$15.50 CAN check
or money order for handling, return packing
and shipping charges. Please include your
name, address and a daytime phone number.
You must prepay shipping charges. Send to:
In U.S.A.:
Kaz, Inc.
Attn: Returns Department
4755 Southpoint Drive
Memphis, TN 38118
USA
In Canada:
Kaz, Inc.
Attn: Returns Department
510 Bronte Street South
Milton, ON L9T 2X6
Canada
5 Year Limited Warranty
035-04034-000_R0 QuietCare OM 6/24/04 4:04 PM Page 12
