HOMEOWNER’S OPERATING MANUAL
Humidier
69-2414EF-03

Humidier
NEED HELP? For assistance with this product please visit http://yourhome.honeywell.com
or call Honeywell Customer Care toll-free at 1-800-468-1502.
Read and save these instructions.
® U.S. Registered Trademark. Patents pending. Copyright © 2011 Honeywell International Inc. All rights reserved.
?
Humidier 69-2414EF—03
EVERYDAY
OPERATION
INTRODUCTION SERVICE WARRANTY
CLEANING AND
MAINTENANCE
1
YOUR NEW
HUMIDIFIER
INTRODUCTION
Safety Denitions and Precautions .............. 2
Welcome .................................. 3
How is the humidier different from other
ow-through humidiers? ................... 3
How should I get started? ................... 3
How does the humidier work? ................. 4
YOUR NEW HUMIDIFIER
Which humidier model do I have? .............. 5
How is my humidier installed? ................. 6
What humidier parts do I need to know? ......... 7
What should I expect from my humidier? ........ 8
EVERYDAY OPERATION
How do I operate the humidier?. . . . . . . . . . . . . . . . 9
How do I use the humidity control? ........... 9
What should my humidity setpoint be?. . . . . . . . . 9
What is a frost setting? ..................... 9
Humidier lights and button ................... 10
CLEANING AND MAINTENANCE
Replace the humidier pad ....................11
What should I do at the end of the season? ...... 12
Troubleshooting ............................ 13
WARRANTY
5-Year Limited Warranty ..................... 14

Must be installed by a trained, experienced technician.
Read these instructions carefully. Failure to follow these instructions can damage the product or cause a
hazardous condition.
Please read this manual completely. It is important that you understand how the humidier works, and how to
safely perform the require-d maintenance procedures. Read and understand all safety-related labels found on
and posted near the humidier. These labels provide additional instructions and important safety information.
Safety Denitions
These safety terms identify information you must read.
CAUTION: Indicates a hazardous situation which, if not avoided, could cause bodily injury or
property damage.
WARNING: Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
Safety Precautions
WARNING: Electrocution Hazard.
The humidier uses 120 volts AC, which can cause death or serious injury. Take precautions when servicing
the humidier or when removing the cover. If in doubt, unplug the humidier or disconnect HVAC equipment
power before servicing.
CAUTION: Heavy Equipment and Water Hazard.
Improper installation or misuse can cause death, blindness, and damage to home and HVAC equipment.
Be sure you know how to turn the humidier off.
CAUTION: Condensation, Fire, and Freezing Water Hazard.
Can cause failure of fan or limit control, or result in water damage to home.
Safety Denitions and Precautions
Humidier 69-2414EF—03
2

INTRODUCTION
Congratulations on your new humidier.
The Honeywell Humidier provides the comfort of humidied air, with easier maintenance than traditional
humidiers. We are sure the humidier will be a welcome addition to your home.
• How is the humidier different from other ow-through humidiers?
All Models:
- The humidier operates automatically, just like a thermostat, to keep your home’s humidity at the desired
level.
- The humidier is easier to maintain: just change the pad once a year. The pad is easily accessible and does
not require tools to change it.
- The humidier can deliver humidity when it’s needed, not just when the heat is on. This allows you to achieve
ideal humidity levels in your home year-round.
Advanced Models:
- The humidier wastes less water than other ow-through humidiers.
• How should I get started? Your humidier must be installed by an HVAC professional. If the humidier has
just been installed, it should either be running and humidifying your home, or waiting for a humidity call from
the humidity control.
Once the humidier is running, all you have to do is use the humidity control to change the humidity to your
desired comfort.
Welcome!
Please read this manual completely for tips on getting the most out of your humidier.
Read your humidity control manual and make sure you know how to operate your system.
If you have questions, now or later, please refer to this manual or ask your installer.
Humidier 69-2414EF—03 3

INTRODUCTION
1. A call for humidity comes from the humidity control
provided with the humidier. The humidity control
is connected to the humidier with wires.
2. The solenoid turns on, allowing water to run
through the humidier pad.
3. Air from your HVAC system ows through the pad,
picking up moisture from the humidier pad.
4. Your HVAC system fan delivers the humidied air
throughout your home.
5. When humidity in your home reaches the setpoint,
the humidity call ends and the solenoid turns off
the water owing across the pad.
H8908
10
OFFON
20
30 40
50
60
DRY AIR
HUMIDIFIED
AIR
MCR29923
How does the humidier work?
1
2
3
4
5
Humidier 69-2414EF—03
4

YOUR NEW
HUMIDIFIER
The humidier is available in ve models with different sizes and/or features:
Some activities in your home may create longer operating times for the humidier. Vented replaces, high
exhaust from fans, or driers can reduce humidity in your home and make the humidier work harder.
Your professional installer or salesperson will have considered these and other factors when choosing the best
humidier model for your unique situation.
MCR29924
This label displays the model number and date code
of your humidier.
HE100 Delivers up to 12 gallons of humidity into your home. Suitable for homes up to 16,000 cubic feet
in size.
HE150 Delivers up to 12 gallons of humidity into your home. Suitable for homes up to 16,000 cubic feet
in size. Includes automatic damper, status, maintenance, service LEDs, and advanced
operation.
HE200 Delivers up to 17 gallons of humidity into your home. Suitable for homes up to 20,000 cubic feet
in size.
HE250 Delivers up to 17 gallons of humidity into your home. Suitable for homes up to 20,000 cubic feet
in size. Includes automatic damper, status, maintenance, service LEDs, and advanced
operation.
HE300 Delivers up to 18 gallons of humidity into your home. Suitable for homes up to 24,000 cubic feet
in size. Includes automatic damper, status, maintenance, service LEDs, and advanced
operation.
Which humidier model do I have?
Humidier 69-2414EF—03 5

YOUR NEW
HUMIDIFIER
Your HVAC professional installer will install the humidier in a proper location in your home, on either the Return
or Supply duct of your HVAC system.
The humidier bypass model is installed directly onto
the Supply (hot) or Return (cool) air duct of your HVAC
system. Air ows through the humidier pad in the
humidier into the duct for distribution throughout your
home.
The humidier fan model is installed directly onto
the Supply (hot) air duct of your HVAC system. The
humidier’s fan draws air through the humidier pad
in the humidier and back into the duct for distribution
throughout your home.
MCR29869
RETURN
SUPPLY
How is my humidier installed?
RETURN
SUPPLY
MCR29947
Humidier 69-2414EF—03
6

YOUR NEW
HUMIDIFIER
MCR29925
COVER OFF
Your humidier installation includes the following parts and components that you should be familiar with:
A. Water Connection with Shutoff Valve
Provides the connection from your home water
supply to the humidier. Your installer may
have used the saddle valve that came with the
humidier, or may have chosen a different type
of connection. This connection must include a
shutoff valve for you to turn off water supply to the
humidier, if necessary.
B. Water Supply Line
This 1/4-inch line brings water to the humidier
from the water connection. Your installer may have
used plastic or copper supply line.
C. Water Drain Line
This 1/2-inch hose drains water from the humidier
to a drain in your home.
D. LEDs (HE150/HE250/HE300 only)
The three lights indicate the humidier’s
operational status and when service is required.
See “Humidier lights and button” on page 10.
E. RESET Button (HE150/HE250/HE300 only)
The RESET button is the only user button located
on the humidier. Use the RESET button to
manually reset the humidier when the Change
Pad or Service LEDs are on. See “Humidier lights
and button” on page 10.
Power
The Fan model is plugged into a 120 volt AC
household electrical outlet. Unplug the power cord
to turn off power.
The Bypass models are wired to a 15VA
transformer. To turn off power to these models, trip
the circuit to the junction box the transformer is
connected to.
MCR29880
A
B
C
D
E
What humidier parts do I need to know?
Humidier 69-2414EF—03 7

YOUR NEW
HUMIDIFIER
Honeywell wants to make sure you know what to expect from your humidier. Feel free to discuss these items
with your installer:
• Achieving Humidity Setpoint. It may take up to a week of continuous operation to achieve the humidity
setpoint, especially if the home is dry when the humidier is installed. This also depends on such factors as
weather, size of home, furnishings in the home, and insulation.
• Ideal Humidity. Home building industry experts cite 35% relative humidity as ideal for comfort and
safeguarding the home during the typical dry season. Adjust your humidity control to your comfort or until
there is condensation on the windows. Lower the setpoint if condensation appears.
• Unit Not Humidifying. If the humidier is not running but the humidity is below the setpoint, the humidity
control may have a frost protection setting to prevent window condensation from appearing. See “What is a
frost setting?” on the next page.
• Home Ventilation. Excessive ventilation sends moist air outside and replaces it with dry air. If the home is
drafty or has mechanical ventilators installed, it may be hard to maintain the humidity setpoint. If installing a
ventilator, use a solution that retains moisture. An Energy Recovery Ventilator (ERV) is recommended.
• Cleaning Requirements. At least once per year it is recommended to change the humidier pad and clean
the water trays of the humidier. See Cleaning and Maintenance section for details.
• Energy Consumption. You may notice a slight increase in overall energy consumption when operating any
humidier. However, humidied air feels warmer than dry air. This allows you to lower the temperature setting
on the thermostat. Every degree lower on the thermostat can save up to 3% on heating costs.
What should I expect from my humidier?
Humidier 69-2414EF—03
8

EVERYDAY
OPERATION
Once the humidier is installed and running, operation is automatic. Use the humidity control provided to make
any changes to the setpoint.
If you have questions about how to operate the humidier, ask your installer.
How do I operate the humidier?

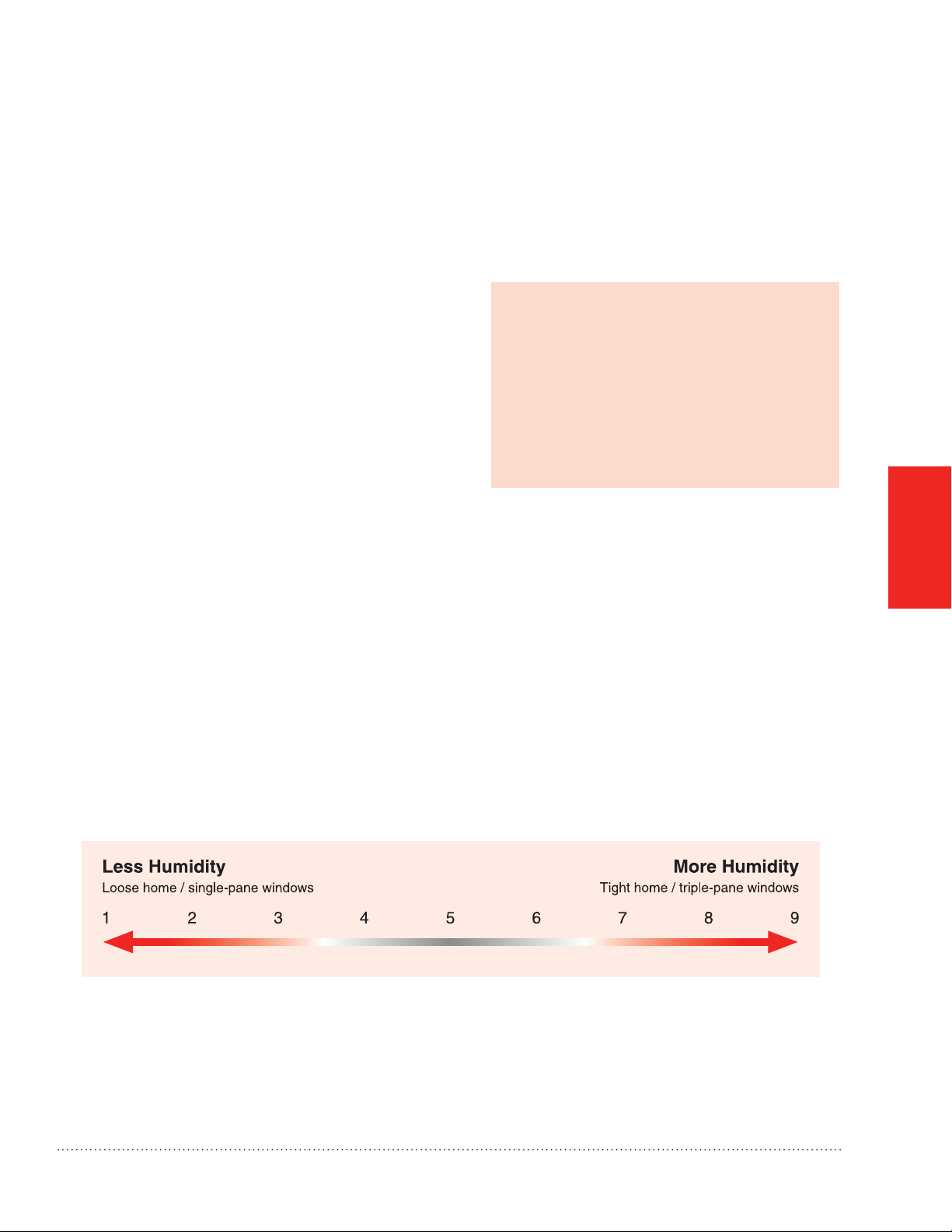

• What is a frost setting? Some humidity controls (such as Prestige, VisionPRO IAQ, and TrueIAQ) contain
a Window Frost Protection feature that limits humidity output based on outdoor conditions. For example,
on colder days, the air in your home can hold less humidity. The humidity control automatically lowers the
humidity setpoint accordingly, to prevent frost from appearing on the inside of your windows.
Lower the frost setting by one value each morning that you see frost or condensation on windows. Allow 24
hours for the new setting to take effect before re-adjusting. Once you have this set to a comfortable level
without condensation, you will not need to adjust further. You can adjust your humidity setpoint without
worrying about condensation.
Manual humidity controls (such as the H8908) do not have built-in frost settings. They require you to adjust
the humidity setpoint when the outdoor temperature changes. Use higher humidity setpoints when the
temperature is warmer, and lower setpoints when the temperature is cooler.
M27982
• How do I use the humidity control? When humidity in
the home is lower than the humidity control’s setpoint,
the control will call for humidity. Some controls will also
monitor outdoor conditions to ensure indoor humidity
does not condense on windows and walls.
• What should my humidity setpoint be? The outdoor
air temperature affects how much humidity can be
retained by the air in your home. Use this table as a
starting point. Then adjust the humidity control to your
own comfort or until condensation appears on the
windows, at which point you should lower the setpoint.
Outdoor Recommended Relative
Temperature Humidity Setting
-20°F (-29°C) 15%
-10°F (-2-3°C) 20%
0°F (-18°C) 25%
10°F (-12°C) 30%
20°F (-7°C) 35%
>20°F (-1°C) 35%
Humidier 69-2414EF—03 9

EVERYDAY
OPERATION

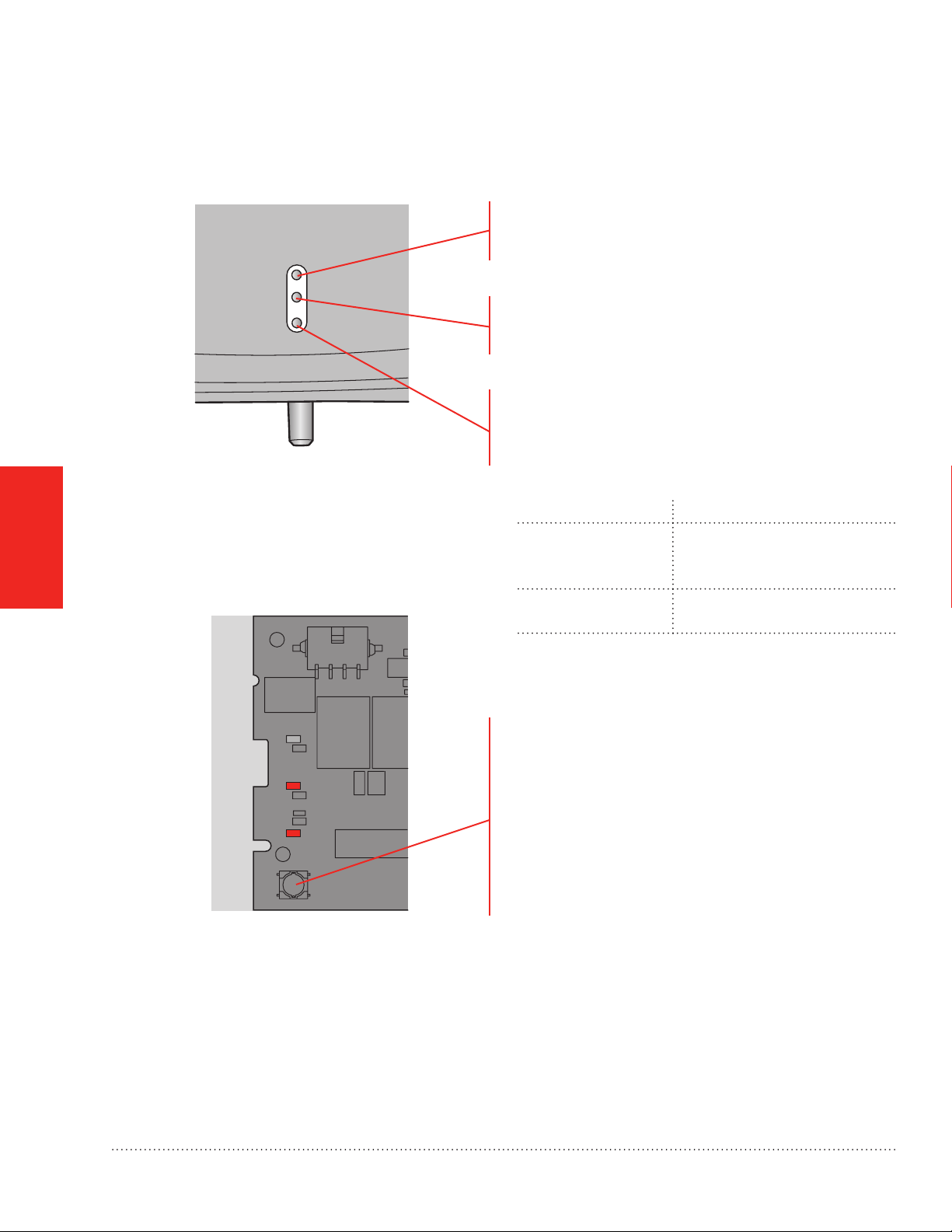

The three lights provide feedback on humidier operation.
Humidifying
When this light is on, it indicates the humidier is
running.
Service
When this light is on, it indicates an operational fault
has occurred. Call an HVAC professional for repair.
Change Pad
When this light is on, it indicates that it is time
to change the humidier pad. See “Replace the
humidier pad” on the next page.
M29926
RESET
The RESET button is under the cover. This button
resets the timer that tracks when the humidier pad
needs changing. When you change the pad, press
the RESET button.
The RESET button also clears a Service light. If the
Service light comes back on after you press the
RESET button, call an HVAC professional for repair.
MCR29927
Humidier lights and button (HE150/HE250/HE300 only)
Humidier Model Replacement Pad Part Number
HE300
HE250
HE200
HC26E1004
HE150
HE100
HC22E1003
Humidier 69-2414EF—03
10

CLEANING AND
MAINTENANCE
It is recommended that the humidier pad be replaced once per year. This can be done at the beginning or the
end of the dry season. The humidier design makes this annual replacement quick and easy, providing one-step
access to the pad.
Replace the humidier pad
2. Remove tray on top of the pad, and wipe free any sediment present within the tray.
3. Replace the old pad with the new, making sure pad is oriented correctly (see pad box). Wipe free any
sediment present inside the pad frame.
Humidier Model Replacement Pad Part Number
HE300
HE250
HE200
HC26E1004
HE150
HE100
HC22E1003
4. Reseat the tray on top of the pad with the arrows inside the tray pointing into the duct. Then reinsert the frame
into the humidier.
Bypass:
1a. Pad can be replaced from the side by gripping
the black handle and pulling out, or from the
front by removing the humidier’s top cover
and rocking the pad forward and out.
Humidier pad might remove from other side
of the humidier, depending on installation.
Fan:
1b. Pad can be replaced from the front by gripping
the black handle and pulling out.
MCR29886
MCR29885
25%
1
2
Humidier 69-2414EF—03 11

CLEANING AND
MAINTENANCE
What should I do at the end of the season?
At the end of the humidifying season:
1. Turn the humidistat to Off.
2. Shut off the water valve on the water supply line to the humidier.
On Basic models HE100 and HE200:
3. Turn the Damper Position knob on the bypass outlet so that it is perpendicular to the bypass outlet.
4. Remember to turn the Damper Position knob on the bypass outlet back to its original (open) position at the
beginning of the next dry season.
Humidier 69-2414EF—03
12

CLEANING AND
MAINTENANCE
Troubleshooting
What if I am having a problem with the humidier?
If you have difculty with the humidier, please try the following suggestions. Most problems can be corrected
quickly and easily.
Problem What To Look For What To Do
Low humidity Furnace blower not
operating
1. Reset circuit breaker or check for blown fuse.
2. Check that the furnace power is on.
3. Check the humidity control setting.
4. Call a professional heating contractor
Rapid air changes or
drafts
1. Keep doors and windows closed.
2. Close replace damper when not in use.
3. Keep exhaust fan running time to a minimum.
4. Seal around doors and windows.
High humidity Condensation on walls 1. Turn off humidity control and water until condensation is completely
evaporated.
Heavy condensation on
windows
1. Turn humidity control down low enough to eliminate condensation
caused by moisture. If moisture persists, more ventilation is needed.
Replace Pad
light is blinking
(HE150/HE250/
HE300)
This is the yearly
maintenance reminder to
replace the pad inside the
humidier
1. Replace the pad for your humidier model.
2. See “Replace the humidier pad” section for details.
3. Once pad is replaced, press the RESET button under the wire cover.
Service light is on
(HE150/HE250)
The damper inside the
bypass has failed to open
completely or the air
proving switch sensed a
lack of air movement
1. Press the RESET button under the wire cover.
2. If fault persists, call an HVAC professional.
Service light is on
(HE300)
The fan motor has failed
or the air proving switch
sensed a lack of air
movement
1. Press the RESET button under the wire cover.
2. If fault persists, call an HVAC professional.
Humidier 69-2414EF—03 13

Honeywell warrants this product to be free from defects in the workmanship or materials, under normal use and service, for
a period of ve (5) years from the date of purchase by the consumer. If at any time during the warranty period the product is
determined to be defective or malfunctions, Honeywell shall repair or replace it (at Honeywell’s option).
If the product is defective,
(i) return it, with a bill of sale or other dated proof of purchase, to the place from which you purchased it; or
(ii) call Honeywell Customer Care at 1-800-468-1502. Customer Care will make the determination whether the product should
be returned to the following address: Honeywell Return Goods, Dock 4 MN10-3860, 1985 Douglas Dr. N., Golden Valley, MN
55422, or whether a replacement product can be sent to you.
This warranty does not cover removal or reinstallation costs. This warranty shall not apply if it is shown by Honeywell that the
defect or malfunction was caused by damage which occurred while the product was in the possession of a consumer.
Honeywell’s sole responsibility shall be to repair or replace the product within the terms stated above. HONEYWELL SHALL
NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING, DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR IMPLIED, OR
ANY OTHER FAILURE OF THIS PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential
damages, so this limitation may not apply to you.
THIS WARRANTY IS THE ONLY EXPRESS WARRANTY HONEYWELL MAKES ON THIS PRODUCT. THE DURATION OF
ANY IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, IS HEREBY LIMITED TO THE FIVE-YEAR DURATION OF THIS WARRANTY. Some states do not allow limitations on
how long an implied warranty lasts, so the above limitation may not apply to you.
This warranty gives you specic legal rights, and you may have other rights which vary from state to state.
If you have any questions concerning this warranty, please write Honeywell Customer Relations, 1985 Douglas Dr. Golden
Valley, MN 55422 or call 1-800-468-1502. In Canada, write Retail Products ON15-02H, Honeywell Limited/Honeywell Limitée, 35
Dynamic Drive, Toronto, Ontario M1V 4Z9.
5-Year Limited Warranty
Automation and Control Solutions
Honeywell International Inc.
1985 Douglas Drive North
Golden Valley, MN 55422
Honeywell Limited–Honeywell Limitée
35 Dynamic Drive
Toronto, Ontario M1V 4Z9
http://yourhome.honeywell.com
® U.S. Registered Trademark
© 2011 Honeywell International Inc.
69-2414EF—03 M.S. Rev. 02-11
Printed in U.S.A.

GUIDE DE FONCTIONNEMENT POUR LE PROPRIÉTAIRE
Humidicateur
69-2414EF-03

Humidicateur
Lire et conserver ces instructions.
® Marque de commerce déposée aux États-Unis. Brevets en instance. Copyright © 2011 Honeywell International Inc. Tous droits réservés.
?
Humidicateur 69-2414EF—03
FONCTIONNEMENT
QUOTIDIEN
INTRODUCTION SERVICE GARANTIE
NETTOYAGE ET
ENTRETIEN
1
VOTRE NOUVEAU
HUMIDIFICATEUR
BESOIN D’AIDE? Pour de l’assistance au sujet de ce produit, veuillez consulter le site
http://yourhome.honeywell.com ou téléphoner sans frais aux Services à la clientèle de Honeywell
au 1-800-468-1502.
INTRODUCTION
Dénitions et précautions relatives à la sécurité .... 2
Bienvenue ................................. 3
En quoi l’humidicateur est-il différent des
autres humidicateurs à circulation directe? .... 3
Par quoi dois-je commencer? ................ 3
Comment fonctionne l’humidicateur? ........... 4
VOTRE NOUVEAU HUMIDIFICATEUR
Quel modèle d’humidicateur
ai-je en ma possession? .................... 5
Comment mon humidicateur
est-il installé? ............................ 6
Quelles sont les pièces de l’humidicateur
qu’il importe de connaître? .................. 7
Que dois-je attendre de l’humidicateur? ......... 8
FONCTIONNEMENT QUOTIDIEN
Comment fonctionne l’humidicateur? ........... 9
Comment utiliser le régulateur d’humidité? ..... 9
Comment établir le point de
consigne d’humidité? ................... 9
Qu’est-ce que le réglage de protection
contre le gel? .......................... 9
Voyants et bouton de l’humidicateur ........... 10
NETTOYAGE ET ENTRETIEN
Remplacement du tampon de l’humidicateur .....11
Que dois-je faire à la n de la saison? .......... 12
Dépannage ............................... 13
GARANTIE
Garantie limitée de 5 ans. . . . . . . . . . . . . . . . . . . . . 14

INTRODUCTION
L’installation doit être faite par un technicien d’expérience ayant
reçu la formation pertinente.
Lire attentivement ces instructions. Le fait de ne pas les suivre risque d’endommager le produit ou de constituer
un danger.
Veuillez lire ce manuel dans son intégralité. Il est important de comprendre le fonctionnement de
l’humidicateur et de savoir exécuter les procédures d’entretien requises en toute sécurité. Assurez-vous de
lire et de comprendre toutes les étiquettes faisant mention de consignes de sécurité qui sont apposées sur
l’humidicateur ou à proximité de ce dernier. Ces étiquettes fournissent des instructions supplémentaires et des
consignes de sécurité importantes.
Dénitions relatives à la sécurité
L’information portant sur l’identication des termes de sécurité doit être lue.
MISE EN GARDE : Indique une situation dangereuse qui, si elle n’est pas évitée, risque d’endommager le
produit ou de causer des blessures corporelles.
AVERTISSEMENT : Indique une situation dangereuse qui, si elle n’est pas évitée, risque de causer des
blessures graves, voire mortelles.
Précautions relatives à la sécurité
AVERTISSEMENT : Risque d’électrocution.
L’humidicateur utilise une tension de 120 V c.a. qui peut causer des blessures graves, voire mortelles.
Prenez des précautions lors de l’entretien de l’humidicateur ou pour retirer son couvercle. En cas de
doute, débranchez l’humidicateur de même que l’équipement CVCA avant d’effectuer les travaux de
réparation.
MISE EN GARDE : Matériel lourd et risque de dégâts d’eau.
Une installation incorrecte ou une mauvaise utilisation peuvent causer la mort, la cécité, des dégâts
matériels et des défaillances de l’équipement de CVCA. Assurez-vous de bien savoir éteindre
l’humidicateur.
MISE EN GARDE : Risque de condensation, d’incendie et de gel de l’eau.
Peut causer la défaillance du ventilateur ou du limiteur, de même que des dégâts d’eau domestiques.
Dénitions et précautions relatives à la sécurité
Humidicateur 69-2414EF—03
2
