INSTALLATION GUIDE/OWNER’S MANUAL
69-1176_A.fm Page 1 Monday, December 7, 2009 9:11 AM

HE360A,B POWERED FLOW-THROUGH HUMIDIFIER
69-1176—04 2
69-1176_A.fm Page 2 Monday, December 7, 2009 9:11 AM

HE360A,B POWERED FLOW-THROUGH HUMIDIFIER
3 69-1176—04
WELCOME
To the comfortable world of humidified air. When you use your Honeywell humidifier,
notice that your skin is not as dry, and that your scratchy throat and irritated nasal
passages that aggravate allergies and asthma are steadily improving.
You have also taken the first step in reducing the zapping you create when you walk on
your carpet and then touch your TV, computer, metal door knob or your pet. Your
furniture and woodwork are also benefitting from the difference that humidified air
makes.
Congratulations! You have just made a great investment in improving the comfort of
your home.
APPLICATION
This kit contains your new Honeywell HE360 Humidifier, H8908 Humidistat and all the
accessories required for installation.
How Your Humidifier Works
Your Honeywell humidifier uses the principle that vapor (evaporated water) is created
when warm air blows over a water-soaked area. As the vapor circulates, the relative
humidity rises.
Your humidity control monitors the relative humidity and activates the humidifier
accordingly. The humidifier has a water supply that dispenses water evenly over a
humidifier pad. The warm dry air, from the furnace, passes over the humidifier pad and
picks up the moist air to circulate it throughout your home.
Humidified air feels warmer and more comfortable so you may be able to lower your
thermostat heating setpoint, which saves money on your heating fuel bills. The end
result is that your humidifier gives you a comfortable environment that is also energy
efficient.
69-1176_A.fm Page 3 Monday, December 7, 2009 9:11 AM

HE360A,B POWERED FLOW-THROUGH HUMIDIFIER
69-1176—04 4

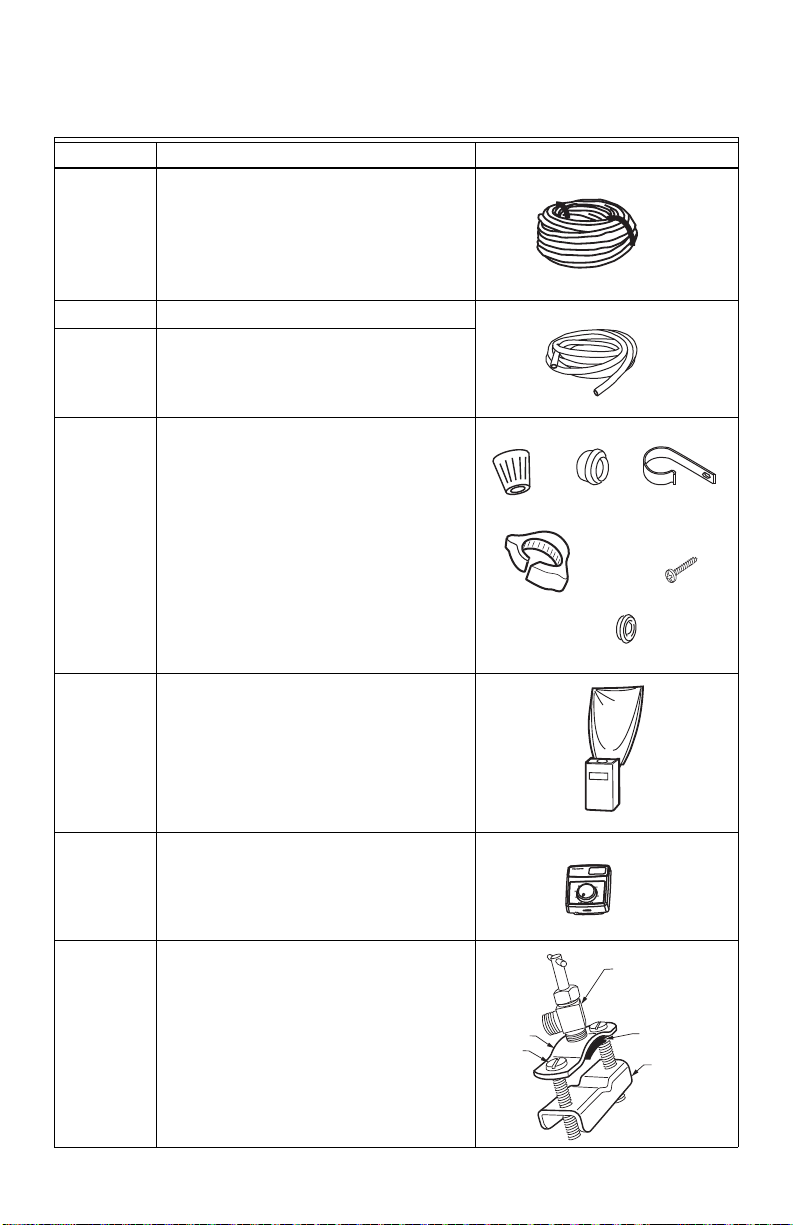

Installation Accessories (Available in Installation Kit 32005847-00)
Table 1. Required Accessories
Quantity Accessory Illustration
20 ft (6.2m) 18 gauge, two-strand thermostat wire
20 ft (6.2m) 1/4 in. (6.35 mm) OD feed water tubing
10 ft (3.1m) 1/2 in (12.7 mm) ID drain tubing
1 bag Connecting and mounting hardware:
Wire nuts (4)
No. 8 sheet metal screws (18)
Drain tube clamp
Feed tube mounting clamps (6)
Brass inserts (2)
Plastic compression rings (2)
1 Sail switch
1 H8908 Humidistat
1 bag Saddle Valve Assembly:
Saddle valve and top clamp (1)
Threaded bottom clamp (1)
Bolts (2)
Rubber gasket (1)
Eyelet (1) not shown
Plastic bushing (1) not shown
THERMOSTAT WIRE
M31006
M31007
PLASTIC TUBING
M31015
#8 SHEET
METAL
SCREW
M31009
WIRENUT
M31014
DRAIN TUBE CLAMP
M31011
BRASS INSERT
M31012
PLASTIC RING
M31020
CLAMP
M31008
SAIL
SWITCH
HumidityControl
Régulateurd'humidité
-20¡F
-10¡F
0¡F
+10¡F
+20¡F
Over20¡F
15%
20%
25%
30%
35%
40%
HUMIDITY
SETTING
OUTDOOR
TEMPERATURE
-30¡C
-25¡C
-20¡C
-10¡C
-5¡C
Over0¡C
H8909 HUMIDISTAT
M31010
M31000
SADDLE VALVE
ASSEMBLY
SADDLE VALVE
BOLTS
BOTTOM
CLAMP
RUBBER
GASKET
TOP CLAMP
69-1176_A.fm Page 4 Monday, December 7, 2009 9:11 AM

HE360A,B POWERED FLOW-THROUGH HUMIDIFIER
5 69-1176—04
Required Tools
Tools required for installation include:
• Tin snips.
• Screwdriver.
• Adjustable or open-end wrench.
• Battery-powered Drill, punch or awl.
• Level.
• Work Gloves (preferably cut-resistant).
• Safety Glasses.
69-1176_A.fm Page 5 Monday, December 7, 2009 9:11 AM

HE360A,B POWERED FLOW-THROUGH HUMIDIFIER
69-1176—04 6
INSTALLATION
Preparing for the Installation
Be sure to identify all the required (Table 1) accessories (included) and make sure the
appropriate tools are available before beginning the installation.
Installing the Humidifier
WARNING
Hazardous Voltage
Can cause personal injury or equipment damage.
Do not cut or drill into any air conditioning or electrical accessory.
CAUTION
Sharp Edges Installation Hazard.
Can cause personal injury.
Wear gloves and safety glasses.
1. Turn off power to the air handing system at the circuit breaker.
2. Draw a level line on the plenum in the location
chosen for the humidifier. (Leveling assures optimal humidifier performance.)
3. Locate the template (form number 69-1651 included in the box).
4. Tape the template in position and trace around the template.
5. Remove the template and carefully cut the rectangular opening.
6. Disassemble the humidifier; remove the cover and take out the humidifier pad
assembly. See Fig. 1.
Fig. 1. Disassembling humidifier.
M12809
COVER
ASSEMBLY
HUMIDIFIER
PAD ASSEMBLY
FEED TUBE NOZZLE
WATER
DISTRIBUTION TRAY
HUMIDIFIER
HOUSING
THUMB
SCREW
69-1176_A.fm Page 6 Monday, December 7, 2009 9:11 AM

HE360A,B POWERED FLOW-THROUGH HUMIDIFIER
7 69-1176—04
• Select a location that cannot damage the air conditioner A-coil during installation.
• Do not locate the humidifier on the furnace body.
• Allow adequate clearance in front of and above the humidifier so you can easily
remove the cover to perform routine maintenance.
— Mount the humidifier at least 3 in. (78 mm) above the furnace body to allow
adequate space for the solenoid valve and drain line.
— Mount the humidifier in a conditioned space to prevent freezing.
Selecting Water Supply Location
• Use either hard or soft water in the humidifier and either hot or cold water. The
water flow rate, with the humidifier running, is 3.5 gal/hr (13 liters/hr) to flush the
pad and provide moisture for evaporation.
• Make sure that the 20 ft (6.2m) of feed water tubing provided is adequate to
connect the water supply (saddle valve) with the humidifier solenoid valve.
Locating Closest Floor Drain
• Select location with access to a floor drain to provide drainage for air conditioner
condensation and humidifier drainage.
• If you do not have a drain available, we recommend that you install the Honeywell
Whole House Drum or Disk Humidifier. Make sure that the 10 ft (3.1m) of drain
tubing is adequate to reach from the humidifier drain connection to the floor drain.
Selecting Location for Sail Switch
• Select a location for the sail switch in the cold air return duct where the sail is in the
direct path of an unrestricted air stream.
— Sail switch detects when furnace fan is operating.
• Select a location where the air duct is at least 12 in. (305 mm) deep and 8 in. (203
mm) wide to allow operation of the sail without affecting the smooth flow of air in the
duct.
— Airflow at the location can be vertical (up or down) or horizontal.
IMPORTANT
Mounting the S688 in warm air supply duct can reduce the sail life.
• Mount the switch at least 6 in. (152 mm) upstream from an elbow or junction, and at
least 15 in.
(381 mm) downstream from an elbow or junction.
• Locate the switch on the opposite side of the duct from the air entrance. (See Fig.
1-3 in S688 Installation Instructions.)
Selecting Location for Humidistat
• Select a location for the humidistat on the return plenum or on the wall in the living
space.
— Mounting on the return plenum is the easiest installation for the control wiring
circuit.
For return duct mounting, the humidistat should be mounted upstream from the
humidifier or bypass so that it is properly sensing the relative humidity of the living
space. Locate the control at least 8 in. (203 mm) upstream from the humidifier in the
return air duct. (See Fig 2.)
69-1176_A.fm Page 7 Monday, December 7, 2009 9:11 AM

Fig. 2. Selecting duct location for humidistat.
Locating Closest 120V Electrical Outlet
• Select location with access to an outlet. If not available, contact an electrician to
have one installed.
• Make sure that the humidifier cord is adequate to reach from the humidifier to the
outlet.
• Make sure that the 20 ft (6.2m) of thermostat wire is adequate to reach from the
humidifier solenoid, to the sail switch, to the humidistat.
Installing the Humidifier
WARNING
Hazardous Voltage
Can cause personal injury or equipment damage.
Do not cut or drill into any air conditioning or electrical accessory.
CAUTION
Sharp Edges Installation Hazard.
Can cause personal injury.
Wear gloves and safety glasses.

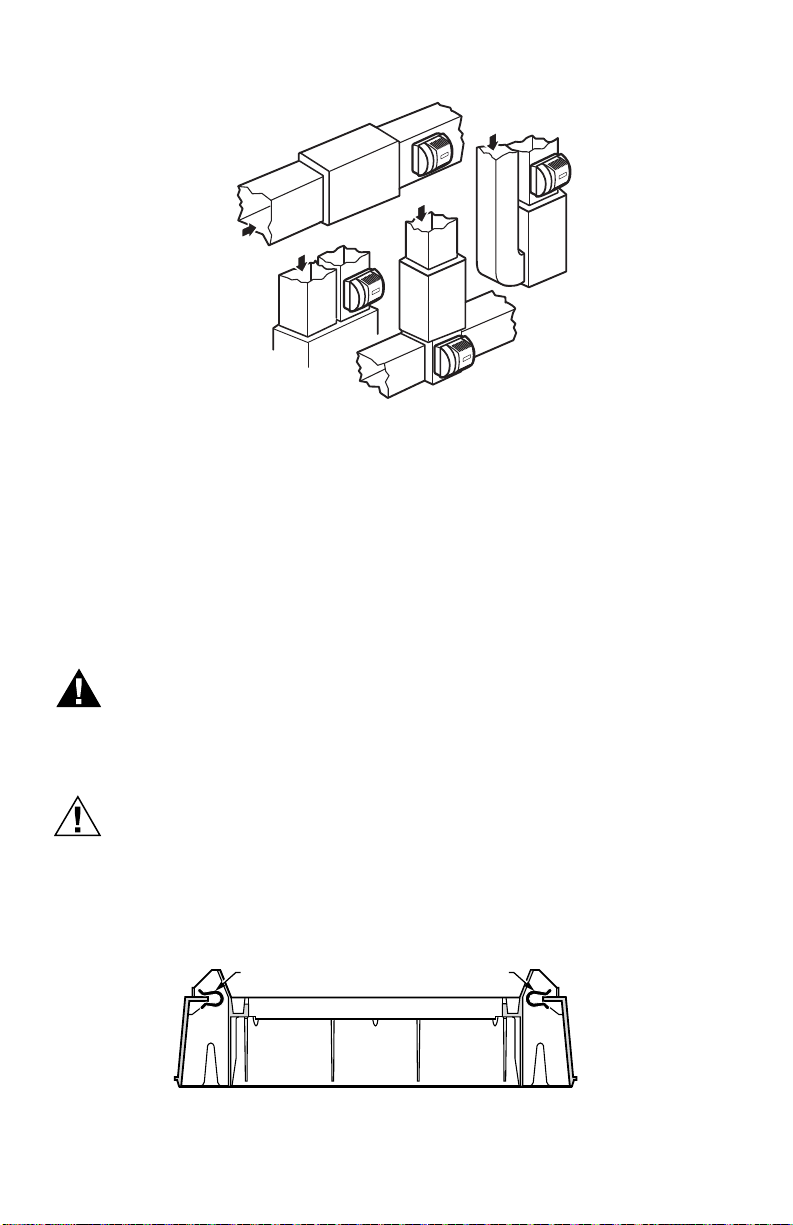

1. Position the securing clips as shown in Fig. 3.
Fig. 3. Position securing clips.
M12808B
HORIZONTAL
DOWN
FLO
LOWBOY
RETURN
RETURN
RETURN
HIGHBOY
RETURN
M12813
CLIP CLIP
69-1176_A.fm Page 8 Monday, December 7, 2009 9:11 AM

HE360A,B POWERED FLOW-THROUGH HUMIDIFIER
9 69-1176—04
2. Make sure the humidifier housing is level, then position it in the opening so the
plastic tabs are in place on the lower sheet metal edge of the opening. Use pli-
ers, as necessary, to flatten cut edges. See Fig. 4.
3. Push in securing clips until completely seated.
4. Drill holes and install the three sheet metal screws on the top of the humidifier
housing. Secure the housing with the three remaining screws.

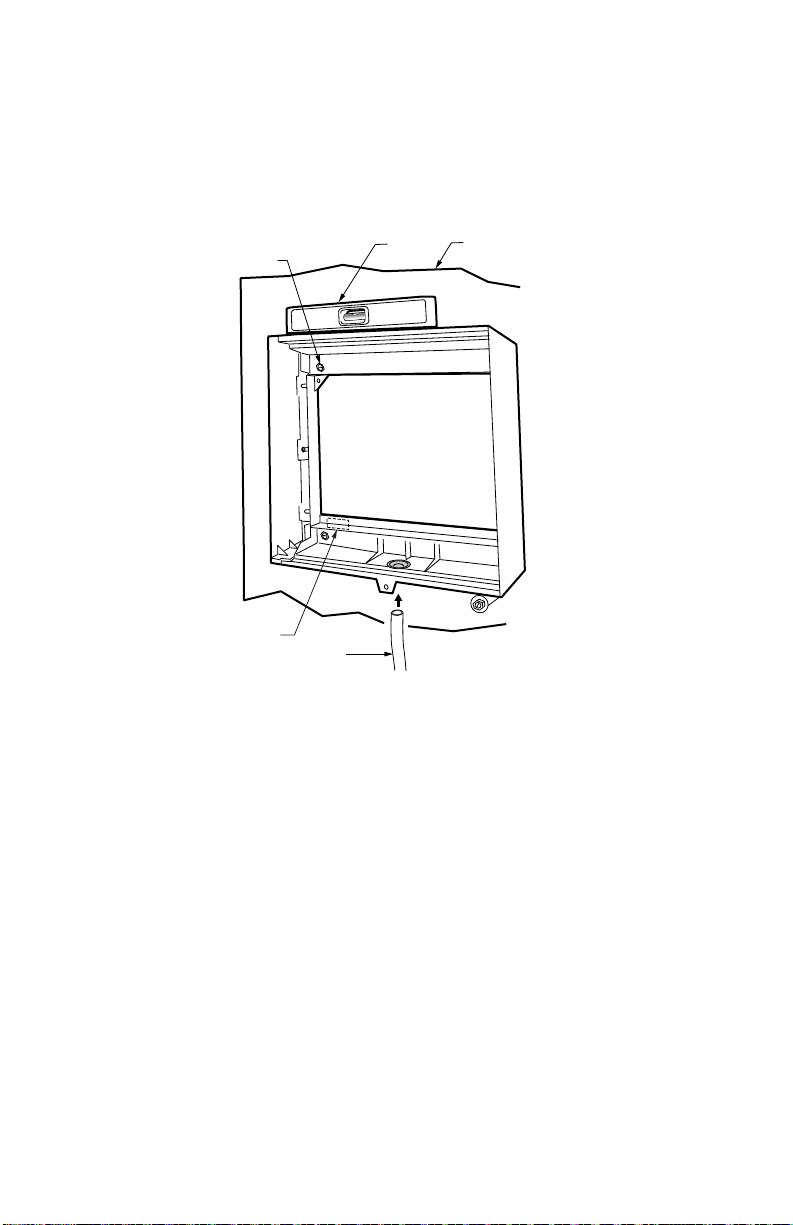

Fig. 4. Installing humidifier on duct.
5. Reinstall the humidifier pad assembly in the humidifier housing.
IMPORTANT
Be sure to reconnect the water feed tube and ensure that the tube is not
pinched or kinked.
6. Hinge the cover in place and secure with the thumbscrew located at the bottom
of the cover.
DUCT
LEVEL
SHEET METAL
SCREWS (4)
PLASTIC
TABS (2)
DRAIN TUBING M20204
OPENING
TO AIR DUCT
69-1176_A.fm Page 9 Monday, December 7, 2009 9:11 AM

HE360A,B POWERED FLOW-THROUGH HUMIDIFIER
69-1176—04 10
Connecting the Plumbing
Use hot or cold water and either hard or softened water in the humidifier.
1. Shut off the water.
CAUTION
Chemical Hazard.
Can cause personal injury or equipment damage.
Do not use any line connected to an air conditioner.
Do not use gas line.
2. Use the self-piercing saddle valve (included) to tap into the water supply line at
the location selected. See Fig. 5. If tapping into galvanized pipe, drain line and
pre-drill 3/17 in. tap for saddle valve. The saddle valve is not designed to regu-
late water flow. The valve is either open or closed.
IMPORTANT
To prevent debris from clogging the solenoid in-line filter, be sure to install the
saddle valve handle pointing toward the ceiling.

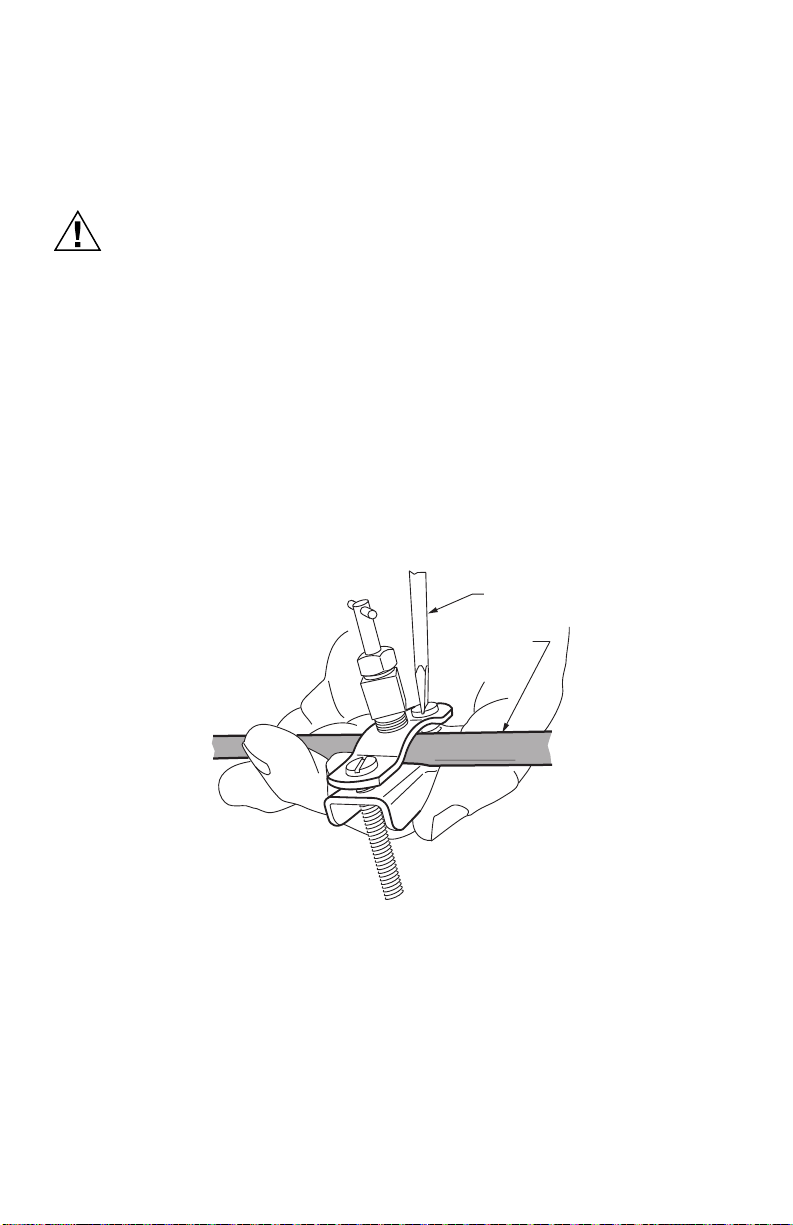

Fig. 5. Installing the saddle valve.
3. Use 1/4 in. (6 mm) OD tubing and connect the saddle valve to the inlet side of
the solenoid valveon the humidifier (see Fig. 6).
a. Place the brass compression nut over the tubing.
b. Install brass insert into end of tubing.
c. Slide the plastic compression ring over the tubing. (Discard copper com-
pression ring provided with valve.)
M20175
SCREW DRIVER
WATER LINE
69-1176_A.fm Page 10 Monday, December 7, 2009 9:11 AM

HE360A,B POWERED FLOW-THROUGH HUMIDIFIER
11 69-1176—04
NOTE: To prevent leaking, use plastic (Delrin) sleeve rings with plastic tubing. Use
copper sleeve rings only with copper tubing.
d. Insert the tubing into the solenoid valve fitting and support the valve while
tightening the compression nut.
NOTE: Do not over-tighten the compression nut. Moderate tightness prevents
leaking.
e. Repeat steps a. through d. for solenoid valve fitting.
f. Secure tubing with clamps provided.
Fig. 6. Installing feed tubing.
4. Connect a 1/2 in. (13 mm) drain tube to the humidifier drain fitting and run to the
floor drain (see Fig. 7).
a. Slide the drain clamp over the tubing.
b. Push the tubing over the drain nipple on the humidifier.
c. Hand-tighten the clamp around the tubing to secure the humidifier drain.
d. Fasten the drain tubing (can use duct tape) along the route to prevent move-
ment and ensure downward slope for correct drainage.
NOTE: Cut tubing to correct length so the tubing terminates at the drain.

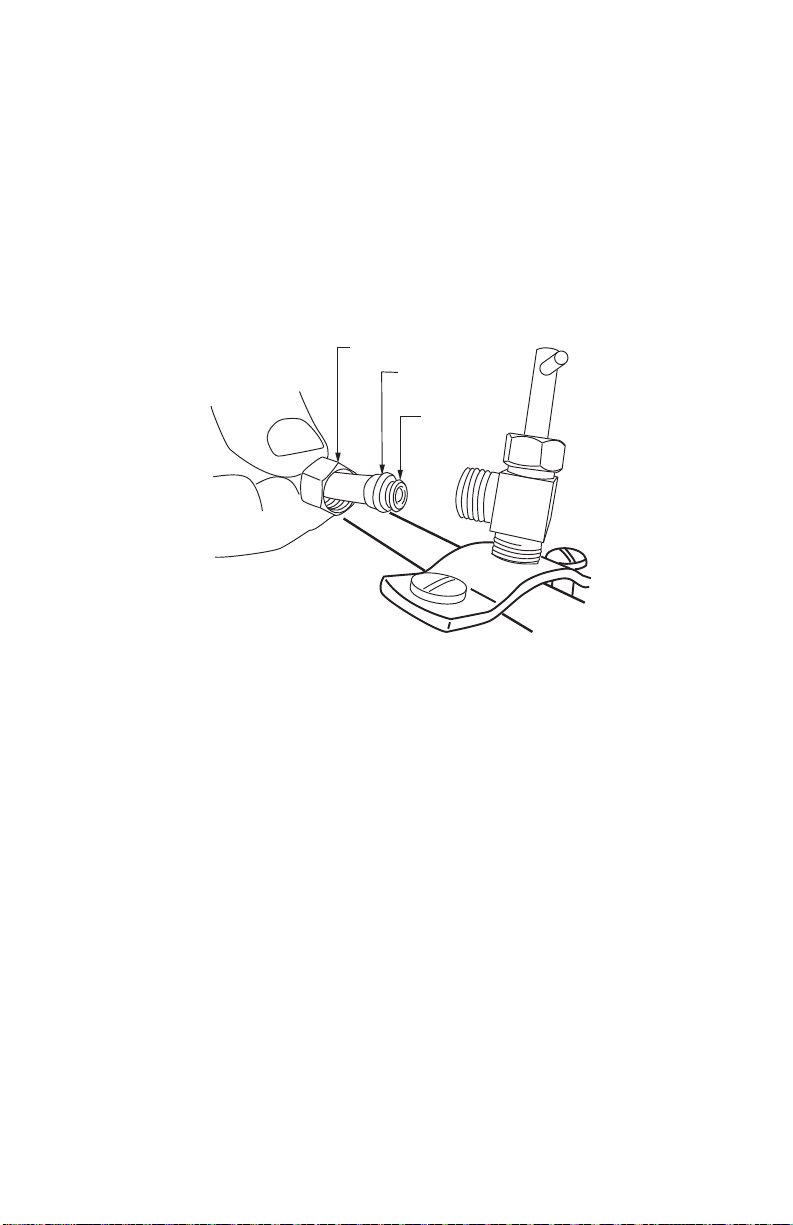

M20176
BRASS COMPRESSION NUT
PLASTIC
COMPRESSION RING
BRASS INSERT
69-1176_A.fm Page 11 Monday, December 7, 2009 9:11 AM

HE360A,B POWERED FLOW-THROUGH HUMIDIFIER
69-1176—04 12
Fig. 7. Installing the drain tubing.
Installing the Sail Switch
Adapting Switch to Air Flow Direction
The S688A Sail Switch has two counterbalancing springs in place as shown in Fig 8.
These springs offset the effect of gravity for air flow direction.
IMPORTANT:
Do not use the sail switch with both springs attached. Be sure to select air
flow direction and remove spring(s) not required for installation.
M20177
69-1176_A.fm Page 12 Monday, December 7, 2009 9:11 AM

HE360A,B POWERED FLOW-THROUGH HUMIDIFIER
13 69-1176—04
Fig. 8. Adapting sail switch to air flow direction or mounting position.
•Vertical downward air flow: Leave the spring in place that is attached to the
bracket marked Down. Remove the spring that is attached to the bracket marked
Up.
•Vertical upward air flow: Leave the spring in place that is attached to the bracket
marked Up. Remove the spring that is attached to the bracket marked Down.
•Horizontal air flow: Remove both springs.
1. Mount the template (provided with the sail switch) at the desired location.
NOTE: Be sure the arrow (indicating air flow) points in the correct direction.
a. For horizontal mounting, level the long dimension shown on the template.
b. For vertical mounting, plumb the long dimension.
2. Cut the hole (indicated on the template) in the ductwork.
3. Center punch the screw holes indicated and drill out with a 1/8 in. (13 mm) drill.
4. Attach the sail to the switch as shown in Fig 9.
UP
M3014
69-1176_A.fm Page 13 Monday, December 7, 2009 9:11 AM

HE360A,B POWERED FLOW-THROUGH HUMIDIFIER
69-1176—04 14
Fig. 9. Attaching sail to switch.
5. Press together the sides of the wire loop. Insert the sail into the duct. (When in
the Off position, the sail should point into the direction of airflow as shown in
Fig.10.)
Fig. 10. Inserting sail switch in direction of airflow.
– LOOSEN SETSCREW
– INSERT SAIL CORD
– TUCK CORD INTO TAB SLOTS
– TIGHTEN SETSCREW
SAIL
M31017
M20178
AIRFLOW
69-1176_A.fm Page 14 Monday, December 7, 2009 9:11 AM

HE360A,B POWERED FLOW-THROUGH HUMIDIFIER
15 69-1176—04
6. Secure the switch by using the sheet metal screws provided.
7. After wiring, snap on the cover.
Installing the Humidistat
Installing on Mounting Duct
1. Apply the template to the duct location chosen for the humidistat. Make sure the
template is level before drilling the holes.
2. Refer to the template (provided with the H8908 Humidistat Installation Instruc-
tions) to drill the control assembly opening and mounting holes for the H8908.
3. Remove the H8908 case from the base.
4. Position the foam gasket on the H8908 base.
5. Position the base on the duct with the arrow up.
6. Secure the base to the duct using the four
1 in. (25 mm) mounting screws provided with humidistat.
7. Connect the low-voltage wires to the leads and replace the H8908 case. See
Fig. 11.
NOTE: For wall mounting instructions, see the H8908 Installation Instructions.

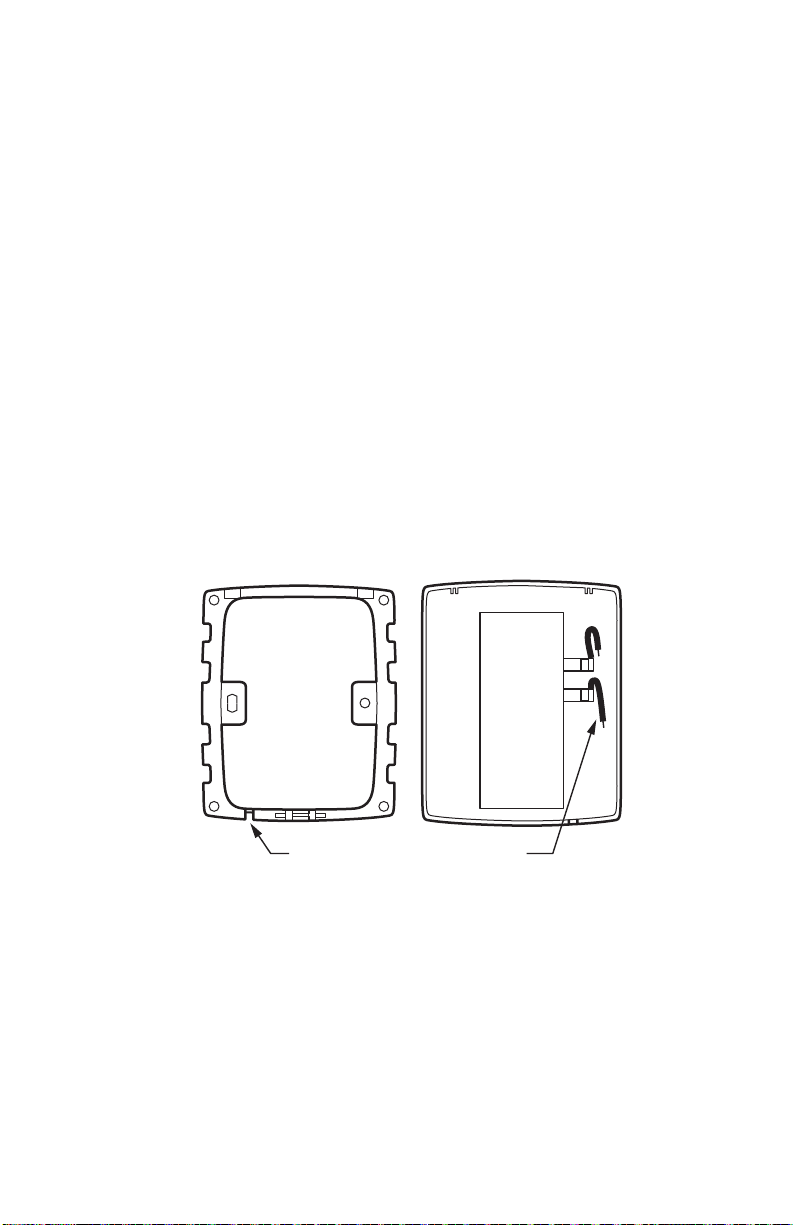

Fig. 11. Humidistat base and rear view.
M20179
WIRE SLOT HUMIDISTAT WIRES
HUMIDISTAT BASE REAR OF HUMIDISTAT
69-1176_A.fm Page 15 Monday, December 7, 2009 9:11 AM

HE360A,B POWERED FLOW-THROUGH HUMIDIFIER
69-1176—04 16
WIRING
CAUTION
Hazardous Voltage.
Can cause personal injury or equipment damage.
Disconnect power supply before installing or servicing equipment.
IMPORTANT
All wiring must comply with applicable local code, ordinances and regula-
tions.
Wire the humidifier solenoid valve, sail switch, humidistat and transformer.See Fig. 12.

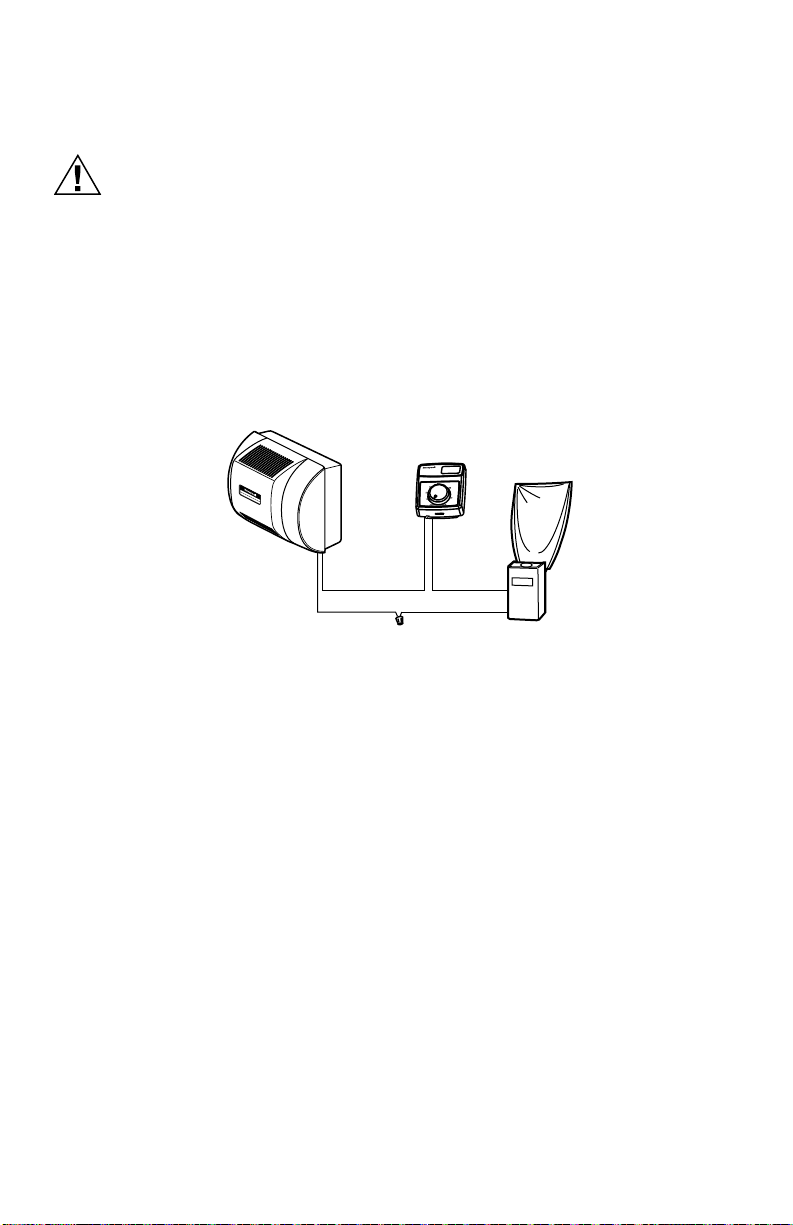

Fig. 12. Wiring the controls.
1. Run the two-strand thermostat wire from the humidifier to the humidistat, and
from the humidistat to the sail switch.
2. Cut lengths of thermostat wire to reach between components, leaving adequate
wire at both ends for connections.
NOTE: Humidistat and sail switch can be wired in any order.
3. At the humidifier, connect the black and white conductors to the two yellow
humidifier wires. (The red wires from the humidifier are not used.)
4. At the humidistat, connect both black conductors to the two humidistat terminals.
Use a wire nut to connect together the two white conductors.
5. At the sail switch, connect the black and white conductors to the Com and NO
sail switch terminals (NC terminal is not used).
HumidityControl
Régulateurd'humidité
-20¡F
-10¡F
0¡F
+10¡F
+20¡F
Over20¡F
15%
20%
25%
30%
35%
40%
HUMIDITY
SETTING
OUTDOOR
TEMPERATURE
-30¡C
-25¡C
-20¡C
-10¡C
-5¡C
Over0¡C
M20205
BLACK
WHITEWHITE
HUMIDIFIER
SOLENOID
VALVE
HUMIDISTAT SAIL
SWITCH
69-1176_A.fm Page 16 Monday, December 7, 2009 9:11 AM

HE360A,B POWERED FLOW-THROUGH HUMIDIFIER
17 69-1176—04
TESTING HUMIDIFIER OPERATION
Checklist
Humidifier is level.
Control wiring was reviewed using circuit diagram.
Humidifier is plugged in.
Feed line has no kinks.
Drain line slopes continuously down and ends at floor drain.
Water hose inside humidifier is connected to PerfectFlow™ water distribution tray.
After installation use the following steps to check the humidifier operation:
1. Turn on the power and the water supply
2. Turn the H8908 Humidistat to On and turn on the heat by setting the thermostat
to 10ºF (6ºC) above room temperature.
IMPORTANT
The furnace blower must be on to activate the humidifier.
3. Make sure that water is flowing out of the drain hose. If water does not flow, see
Troubleshooting Your Humidifier section.
4. Check for leaks.
5. Reset the thermostat and H8908 Humidistat to a comfortable setting for auto-
matic operation.
Controlling Your Humidity Settings
Your H8908 Humidistat controls your humidifier.
• Choose the humidity control setting using the combination of relative humidity/
outdoor temperature setting scale on your humidity control dial.
• Match the dial setting to the outdoor temperature to optimize the humidity level
while reducing the moisture condensation on your windows. See Table 2 to adjust
the humidity control to the recommended setting.
NOTE: As the outside temperature drops, a lower humidity setting is recommended
to accommodate dewpoint effects. These settings should reduce the accumu-
lation of moisture and ice on windows and other areas of the home.
• Adjust the humidity control setting to adjust for indoor activities such as cooking,
showering and clothes drying, which can cause excessive levels of humidity that
can accumulate moisture on your windows.
NOTE: If these activities persist for more than a few hours, set the humidity control to
the lowest setting to turn off the humidifier. If the condition does not improve,
ventilate your home to remove the moisture.
69-1176_A.fm Page 17 Monday, December 7, 2009 9:11 AM

HE360A,B POWERED FLOW-THROUGH HUMIDIFIER
69-1176—04 18
Table 2. Setting Your Humidistat.
When Outside Temperature is: Use This Control Setting:
-20°F (-29°C) 15
-10°F (-23°C) 20
0°F (-18°C) 25
+10°F (-12°C) 30
+20°F (-7°C) 35
Above 20°F (-7°C) 40
69-1176_A.fm Page 18 Monday, December 7, 2009 9:11 AM

HE360A,B POWERED FLOW-THROUGH HUMIDIFIER
19 69-1176—04
MAINTAINING YOUR HUMIDIFIER
A regular maintenance program prolongs the life of your humidifier and makes your
home more comfortable. The frequency of cleaning depends on the condition of your
water.
You can use either hard or soft water in your humidifier, but hard water mineral
deposits are more difficult to clean than soft water deposits.
Use the following procedure to clean your Honeywell humidifier.
WARNING
Serious Personal Injury Hazard.
Can cause electrical shock and injury from moving parts.
Disconnect power and shut off water supply before removing cover.
IMPORTANT
Never oil any part of the humidifier.
Every 1 to 3 Months (Depending on Water Quality)
1. Disconnect the power and turn off the humidifier water supply.
2. Remove the humidifier cover by unplugging the connector and loosening the
thumb screw. Grasp the cover near the bottom and pull toward you. See Fig. 13.
3. Remove the humidifier pad assembly from the humidifier by grasping the top of
the tray and pulling it toward you.
4. Lift the tray off the pad.
5. Gently pinch the water nozzle catches inward until you can lift the water nozzle
off the tray.
6. Carefully remove any mineral deposits from the tray and frame. Be sure the
frame drain hole has nothing blocking it.
Fig. 13. Cleaning your humidifier.
M12809
COVER
ASSEMBLY
HUMIDIFIER
PAD ASSEMBLY
FEED TUBE NOZZLE
WATER
DISTRIBUTION TRAY
HUMIDIFIER
HOUSING
THUMB
SCREW
69-1176_A.fm Page 19 Monday, December 7, 2009 9:11 AM

HE360A,B POWERED FLOW-THROUGH HUMIDIFIER
69-1176—04 20
7. Disconnect the drain hose from the drain fitting on the bottom of the humidifier
housing.
8. Clean the drain fitting, if necessary.
9. Bend the drain hose to loosen any mineral deposits.
10. Flush the drain hose with pressurized water (a running tap) to clean the hose.
11. Reattach the drain hose to the drain fitting.
12. Snap the water nozzle back on the tray.
13. Be sure the marked end of the pad is facing up. Place the tray on the new pad.
14. Place the humidifier pad assembly in the humidifier housing. Be sure the water
feed tube is placed in the guide slots.
15. Replace the humidifier cover.
16. Verify the humidifier operation by following the steps in the Checking Your
Humidifier for Correct Operation section.
CHECKING YOUR HUMIDIFIER FOR CORRECT
OPERATION
After winter startup or servicing, use the following steps to check your humidifier
operation:
1. Turn on the humidifier power and water supply.
2. Turn the humidistat to its highest setting and set the thermostat to 10°F (6°C)
above the room temperature.
3. Observe that water is flowing out of the drain hose.
NOTE: The furnace blower must be running to activate the humidifier.
4. Reset the thermostat and humidistat to a comfortable setting for automatic
operation.
69-1176_A.fm Page 20 Monday, December 7, 2009 9:11 AM
