Honeywell TRADELINE HE360 Manual

69-2631ES-01
HE360 Humidifier and
Installation Kit

HE360 HUMIDIFIER AND INSTALLATION KIT
69-2631ES—01 2
WELCOME
To the comfortable world of humidified air. When you use your Honeywell humidifier,
notice that your skin is not as dry, and that your scratchy throat and irritated nasal
passages that aggravate allergies and asthma are steadily improving.
You have also taken the first step in reducing the zapping you create when you walk on
your carpet and then touch your TV, computer, metal door knob or your pet. Your
furniture and woodwork are also benefitting from the difference that humidified air
makes.
Congratulations! You have just made a great investment in improving the comfort of
your home.
APPLICATION
This kit contains your new Honeywell HE360 Humidifier, H8908 Humidistat and all the
accessories required for installation.
INSTALLATION
Preparing for the Installation
Be sure to identify all the required (Table 1) accessories (included) and make sure the
appropriate tools are available before beginning the installation.
Included Accessories
Table 1. Included Accessories.
Quantity Accessory
20 ft (6.2m) 18 gauge, two-strand thermostat wire
20 ft (6.2m) 1/4 in. (6.35 mm) OD feed water tubing
10 ft (3.1m) 1/2 in (12.7 mm) ID drain tubing

HE360 HUMIDIFIER AND INSTALLATION KIT
3 69-2631ES—01
Required Tools
Tools required for installation include:
• Tin snip.
• Screwdriver.
• Adjustable or open-end wrench.
• Drill, punch or awl.
• Level.
Determining Best Location for Humidifier
CAUTION
Temperature and Static Pressure Hazard.
Can cause property or equipment damage.
Locate humidifier where ambient temperature is between 32°F (0°C) and
160°F (71°C).
Do not install humidifier where freezing temperatures could occur.
Be sure supply plenum static pressure is no greater than 0.4 in. wc and water
pressure is no greater than 124 psi.
• Select a location for the humidifier on the supply (warm air stream) plenum. See
Fig. 1.
• Select a location that cannot damage the air conditioner A-coil during installation.
• Do not locate the humidifier on the furnace body.
• Allow adequate clearance in front of and above the humidifier so you can easily
remove the cover to perform routine maintenance.
— Mount the humidifier at least 3 in. (78 mm) above the furnace body to allow
adequate space for the solenoid valve and drain line.
— Mount the humidifier in a conditioned space to prevent freezing.
1 bag Connecting and mounting hardware:
Wire nuts (4)
No. 8 sheet metal screws (18)
Drain tube clamp
Feed tube mounting clamps (6)
Brass inserts (2)
Plastic compression rings (2)
1 Pressure switch
1 H8908 Humidistat
1 bag Saddle Valve Assembly:
Saddle valve and top clamp (1)
Threaded bottom clamp (1)
Bolts (2)
Rubber gasket (1)
Eyelet (1)
Plastic bushing (1)
Table 1. Included Accessories.
Quantity Accessory

HE360 HUMIDIFIER AND INSTALLATION KIT
69-2631ES—01 4
Fig. 1. Typical humidifier installation locations.
Selecting Water Supply Location
• Use either hard or soft water in the humidifier and either hot or cold water. The
water flow rate, with the humidifier running, is 3.5 gal/hr (13 liters/hr) to flush the
pad and provide moisture for evaporation.
• Make sure that the 20 ft (6.2m) of feed water tubing provided is adequate to
connect the water supply (saddle valve) with the humidifier solenoid valve.
Locating Closest Floor Drain
• Select location with access to a floor drain to provide drainage for air conditioner
condensation and humidifier drainage.
• If you do not have a drain available, we recommend that you install the Honeywell
Whole House Drum or Disk Humidifier. Make sure that the 10 ft (3.1m) of drain
tubing is adequate to reach from the humidifier drain connection to the floor drain.
Selecting Location for Humidistat
• Select a location for the humidistat on the return plenum or on the wall in the living
space.
— Mounting on the return plenum is the easiest installation for the control wiring
circuit.
For return duct mounting, the humidistat should be mounted upstream from the
humidifier or bypass so that it is properly sensing the relative humidity of the living
space. Locate the control at least 8 in. (203 mm) upstream from the humidifier in the
return air duct. (See Fig 2.)
M12808A
HORIZONTAL
DOWN
FLO
LOWBOY
RETURN
RETURN
RETURN
HIGHBOY
RETURN

HE360 HUMIDIFIER AND INSTALLATION KIT
5 69-2631ES—01

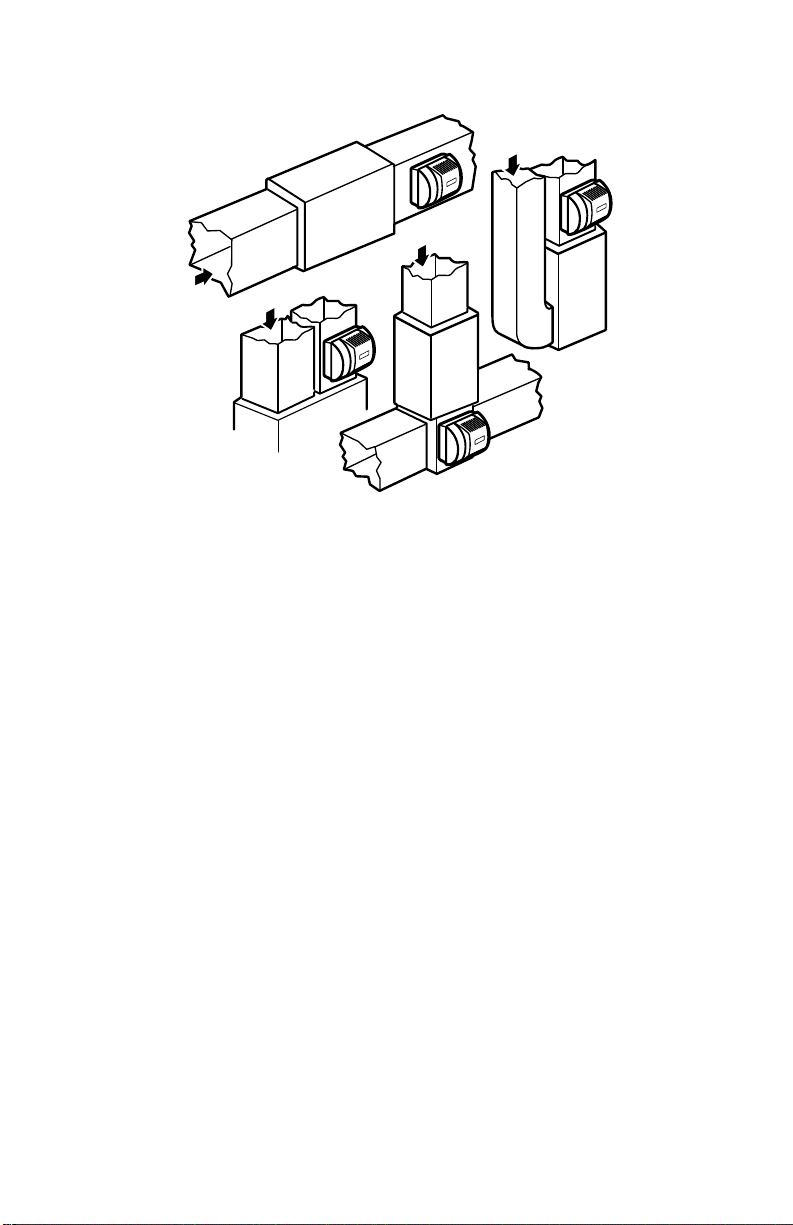

Fig. 2. Selecting duct location for humidistat.
Locating Closest 120V Electrical Outlet
• Select location with access to an outlet. If not available, contact an electrician to
have one installed.
• Make sure that the humidifier cord is adequate to reach from the humidifier to the
outlet.
• Make sure that the 20 ft (6.2m) of thermostat wire is adequate to reach from the
humidifier solenoid, to the pressure switch, to the humidistat.
Installing the Humidifier
WARNING
Hazardous Voltage
Can cause personal injury or equipment damage.
Do not cut or drill into any air conditioning or electrical accessory.
CAUTION
Sharp Edges Installation Hazard.
Can cause personal injury.
Wear gloves and safety glasses.
1. Turn off power to the air handing system at the circuit breaker.
2. Draw a level line on the plenum in the location
chosen for the humidifier. (Leveling assures optimal humidifier performance.)
3. Locate the template (form number 69-2641 included in the box).
4. Tape the template in position and trace around the template.
5. Remove the template and carefully cut the rectangular opening.
6. Disassemble the humidifier; remove the cover and take out the humidifier pad
assembly. See Fig. 3.
ALTERNATE LOCATION
RETURN
AIR
RETURN
AIR
6 in. (152 mm)
MINIMUM 15 in. (381 mm)
MINIMUM
BEST
LOCATION
RETURN AIR DUCT M12831

HE360 HUMIDIFIER AND INSTALLATION KIT
69-2631ES—01 6
Fig. 3. Disassembling humidifier.
7. Position the securing clips as shown in Fig. 4.
Fig. 4. Position securing clips.
8. Make sure the humidifier housing is level, then position it in the opening so the
plastic tabs are in place on the lower sheet metal edge of the opening. Use pli-
ers, as necessary, to flatten cut edges. See Fig. 5.
9. Push in securing clips until completely seated.
10. Drill holes and install the three sheet metal screws on the top of the humidifier
housing. Secure the housing with the three remaining screws.
M12809
COVER
ASSEMBLY
HUMIDIFIER
PAD ASSEMBLY
FEED TUBE NOZZLE
WATER
DISTRIBUTION TRAY
HUMIDIFIER
HOUSING
THUMB
SCREW
M12813
CLIP CLIP

HE360 HUMIDIFIER AND INSTALLATION KIT
7 69-2631ES—01
Fig. 5. Installing humidifier on duct.
11. Reinstall the humidifier pad assembly in the humidifier housing.
IMPORTANT
Be sure to reconnect the water feed tube and ensure that the tube is not
pinched or kinked.
12. Hinge the cover in place and secure with the thumbscrew located at the bottom
of the cover.
Connecting the Plumbing
Use hot or cold water and either hard or softened water in the humidifier.
1. Shut off the water.
DUCT
LEVEL
SHEET METAL
SCREWS (4)
PLASTIC
TABS (2)
DRAIN TUBING M20204
OPENING
TO AIR DUCT

HE360 HUMIDIFIER AND INSTALLATION KIT
69-2631ES—01 8
CAUTION
Chemical Hazard.
Can cause personal injury or equipment damage.
Do not use any line connected to an air conditioner.
Do not use gas line.
2. Use the self-piercing saddle valve (included) to tap into the water supply line at
the location selected. See Fig. 6. If tapping into galvanized pipe, drain line and
pre-drill 3/17 in. tap for saddle valve.
NOTE: The saddle valve is not designed to regulate water flow. The valve is either
open or closed.
IMPORTANT
To prevent debris from clogging the solenoid in-line filter, be sure to install the
saddle valve handle pointing toward the ceiling.
Fig. 6. Installing the saddle valve.
3. Use 1/4 in. (6 mm) OD tubing and connect the saddle valve to the inlet side of
the solenoid valveon the humidifier (see Fig. 7).

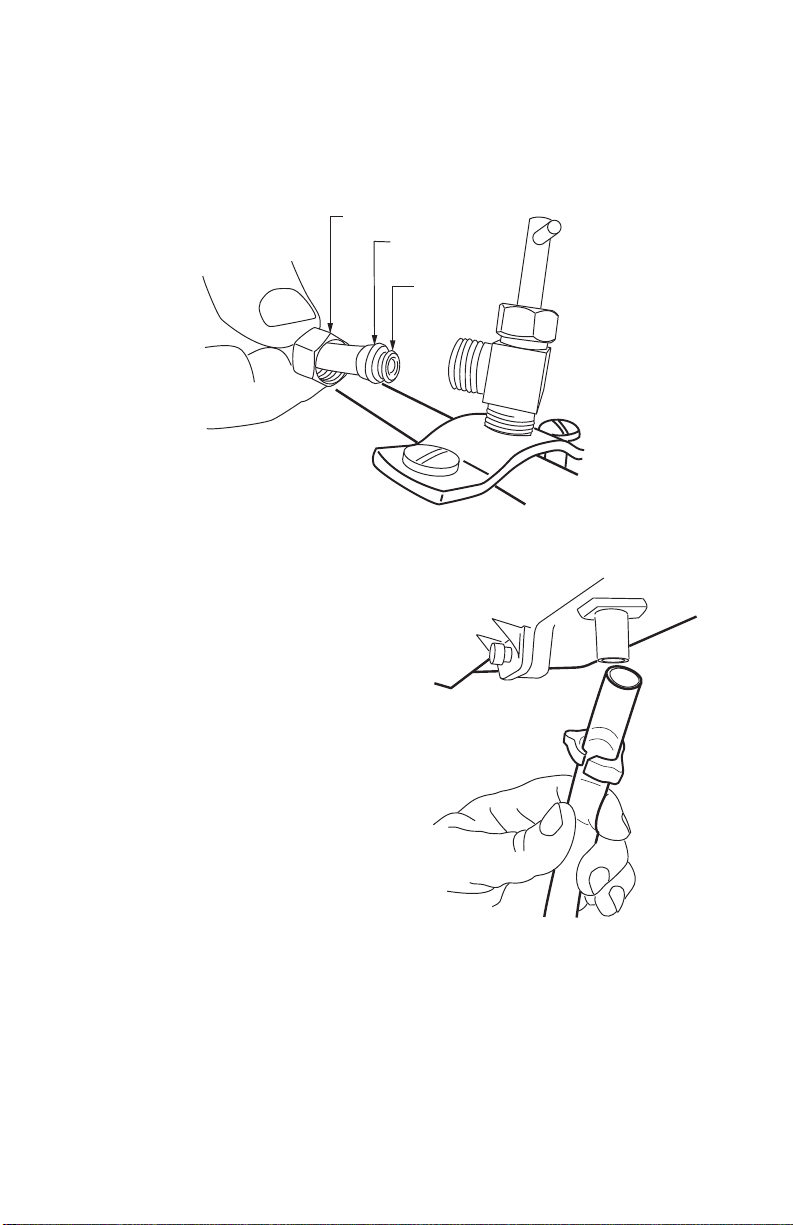

a. Place the brass compression nut over the tubing.
b. Install brass insert into end of tubing.
c. Slide the plastic compression ring over the tubing. (Discard copper compres-
sion ring provided with valve.)
NOTE: To prevent leaking, use plastic (Delrin) sleeve rings with plastic tubing. Use
copper sleeve rings only with copper tubing.
d. Insert the tubing into the solenoid valve fitting and support the valve while
tightening the compression nut.
M20175
SCREW DRIVER
WATER LINE

HE360 HUMIDIFIER AND INSTALLATION KIT
9 69-2631ES—01
NOTE: Do not over-tighten the compression nut. Moderate tightness prevents leak-
ing.
e. Repeat steps a. through d. for solenoid valve fitting.
f. Secure tubing with clamps provided.
Fig. 7. Installing feed tubing.
4. Connect a 1/2 in. (13 mm) drain tube to
the humidifier drain fitting and run to the
floor drain (see Fig. 8).
a. Slide the drain clamp over the tub-
ing.
b. Push the tubing over the drain nip-
ple on the humidifier.
c. Hand-tighten the clamp around the
tubing to secure the humidifier drain.
d. Fasten the drain tubing (can use
duct tape) along the route to prevent
movement and ensure downward
slope for correct drainage.
NOTE: Cut tubing to correct length so the
tubing terminates at the drain.
Fig. 8. Installing the drain tubing.
Installing the Pressure Switch
IMPORTANT
Do not install the switch in an area where temperature exceeds rating of
-40°F to 190°F (-40°C to 88°C).
M20176
BRASS COMPRESSION NUT
PLASTIC
COMPRESSION RING
BRASS INSERT
M20177

HE360 HUMIDIFIER AND INSTALLATION KIT
69-2631ES—01 10
1. Disconnect power from the humidifier before installing.
2. Mount the switch vertically with pressure connectors facing down, using pro-
vided self-tapping screws to secure the switch to the duct.
Fig. 9. Pressure switch—oriented vertically.
M27300

HE360 HUMIDIFIER AND INSTALLATION KIT
11 69-2631ES—01
3. The return duct is recommended,
however the switch can also be
mounted to the supply duct.
4. Cut a 3/4-in. diameter hole in the
duct within 10 feet of the switch to
ensure the provided tubing reaches
the pressure tap elbow.
5. Insert the black rubber gasket into
the duct hole.
6. Connect the tubing to the tubing fit-
ting elbow and insert the tubing fit-
ting elbow into the black rubber
gasket.
7. Connect the other end of the tubing
to the applicable pressure connec-
tion on the switch.
a. Black connection if installed on
the supply
b. Grey connection if installed on
the return
c. Both grey and black if installed
on both
IMPORTANT
With low-speed airflow or vari-
able speed systems it is recom-
mended to run tubing to both the
supply and return ducts.

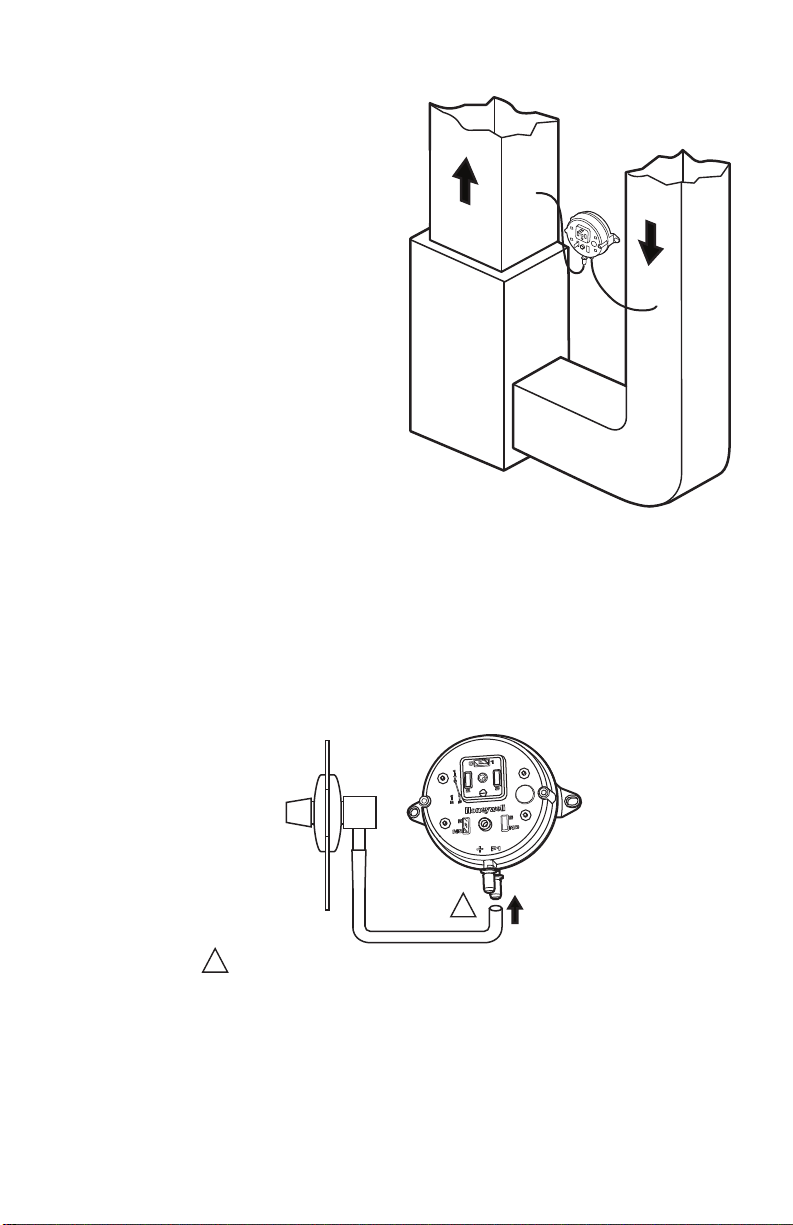

Fig. 10. Mounting the pressure switch.
Fig. 11. Install tubing.
8. You may cut the tubing to fit the connection length between the elbow fitting and
switch. It is also recommended to secure the hose to existing structures to avoid
accidental disconnection.
M27303
A
B
SUPPLY DUCT INSTALL - AIR LINE ONLY TO TAP A,
CONNECTED TO THE + PORT ON THE AIR FLOW SWITCH
RETURN DUCT INSTALL - AIR LINE ONLY TO TAP B,
CONNECTED TO THE – PORT ON THE AIR FLOW SWITCH
SUPPLY/RETURN DUCT INSTALL - AIR LINE CONNECTED
TO BOTH THE + AND – PORTS ON THE AIR FLOW SWITCH
M27304
INSIDE
OF DUCT
CONNECT TUBING TO + CONNECTION IF PRESSURE TAP IS
MOUNTED TO SUPPLY DUCT. CONNECT TO – IF PRESSURE
TAP IS MOUNTED TO RETURN DUCT.
1
1

HE360 HUMIDIFIER AND INSTALLATION KIT
69-2631ES—01 12
Installing the Humidistat
Installing on Mounting Duct
1. Apply the template to the duct location chosen for the humidistat. Make
sure the template is level before drilling the holes.
2. Refer to the template (provided with the H8908 Humidistat Installation
Instructions) to drill the control assembly opening and mounting holes for
the H8908.
3. Remove the H8908 case from the base.
4. Position the foam gasket on the H8908 base.
5. Position the base on the duct with the arrow up.
6. Secure the base to the duct using the four
1 in. (25 mm) mounting screws provided with humidistat.
7. Connect the low-voltage wires to the leads and replace the H8908 case. See
Fig. 12.
NOTE: For wall mounting instructions, see the H8908 Installation Instructions.
Fig. 12. Humidistat base and rear view.
WIRING
CAUTION
Hazardous Voltage.
Can cause personal injury or equipment damage.
Disconnect power supply before installing or servicing equipment.
M20179
WIRE SLOT HUMIDISTAT WIRES
HUMIDISTAT BASE REAR OF HUMIDISTAT

HE360 HUMIDIFIER AND INSTALLATION KIT
13 69-2631ES—01
IMPORTANT
All wiring must comply with applicable local code, ordinances and regula-
tions.
Wire the humidifier solenoid valve, pressure switch, humidistat and transformer. See
Fig. 13.
Fig. 13. Wiring the controls.
1. Run the two-strand thermostat wire from the humidifier to the humidistat, and
from the humidistat to the pressure switch.
2. Cut lengths of thermostat wire to reach between components, leaving adequate
wire at both ends for connections.
NOTE: Humidistat and pressure switch can be wired in any order.
3. At the humidifier, connect the black and white conductors to the two yellow
humidifier wires. (The red wires from the humidifier are not used.)
4. At the humidistat, connect both black conductors to the two humidistat terminals.
Use a wire nut to connect together the two white conductors.
5. At the pressure switch, connect the black and white conductors to the C and NO
pressure switch terminals (NC terminal is not used).
M28974
HUMIDIFIER
SOLENOID
VALVE
HumidityControl
Régulateurd'humidité
-20¡F
-10¡F
0¡F
+10¡F
+20¡F
Over20¡F
15%
20%
25%
30%
35%
40%
HUMIDITY
SETTING
OUTDOOR
TEMPERATURE
-30¡C
-25¡C
-20¡C
-10¡C
-5¡C
Over0¡C
HUMIDISTAT
AIR PRESSURE
SWITCH
TRANSFORMER

HE360 HUMIDIFIER AND INSTALLATION KIT
69-2631ES—01 14
TESTING HUMIDIFIER OPERATION
Checklist
Humidifier is level.
Control wiring was reviewed using circuit diagram.
Humidifier is plugged in.
Feed line has no kinks.
Drain line slopes continuously down and ends at floor drain.
Water hose inside humidifier is connected to PerfectFlow™ water distribution tray.
After installation use the following steps to check the humidifier operation:
1. Turn on the power and the water supply.
2. Turn the H8908 Humidistat to On and turn on the heat by setting the thermostat
to 10ºF (6ºC) above room temperature.
IMPORTANT
The furnace blower must be on to activate the humidifier.
3. Make sure that water is flowing out of the drain hose. If water does not flow, see
Troubleshooting Your Humidifier section.
4. Check for leaks.
5. Reset the thermostat and H8908 Humidistat to a comfortable setting for auto-
matic operation.
OPERATION
How Your Humidifier Works
Your Honeywell humidifier uses the principle that vapor (evaporated water) is created
when warm air blows over a water-soaked area. As the vapor circulates, the relative
humidity rises.
Your humidity control monitors the relative humidity and activates the humidifier
accordingly. The humidifier has a water supply that dispenses water evenly over a
humidifier pad. The warm dry air, from the furnace, passes over the humidifier pad and
picks up the moist air to circulate it throughout your home.
Humidified air feels warmer and more comfortable so you may be able to lower your
thermostat heating setpoint, which saves money on your heating fuel bills. The end
result is that your humidifier gives you a comfortable environment that is also energy
efficient.

HE360 HUMIDIFIER AND INSTALLATION KIT
15 69-2631ES—01
Controlling Your Humidity Settings
Your H8908 Humidistat controls your humidifier.
• Choose the humidity control setting using the combination of relative humidity/
outdoor temperature setting scale on your humidity control dial.
• Match the dial setting to the outdoor temperature to optimize the humidity level
while reducing the moisture condensation on your windows. See Table 2 to adjust
the humidity control to the recommended setting.
NOTE: As the outside temperature drops, a lower humidity setting is recommended
to accommodate dewpoint effects. These settings should reduce the accumu-
lation of moisture and ice on windows and other areas of the home.
• Adjust the humidity control setting to adjust for indoor activities such as cooking,
showering and clothes drying, which can cause excessive levels of humidity that
can accumulate moisture on your windows.
NOTE: If these activities persist for more than a few hours, set the humidity control to
the lowest setting to turn off the humidifier. If the condition does not improve,
ventilate your home to remove the moisture.
Table 2. Setting Your Humidistat.
When Outside
Temperature is:
Use This Control
Setting:
-20°F (-29°C) 15
-10°F (-23°C) 20
0°F (-18°C) 25
+10°F (-12°C) 30
+20°F (-7°C) 35
Above 20°F (-7°C) 40

HE360 HUMIDIFIER AND INSTALLATION KIT
69-2631ES—01 16
MAINTAINING YOUR HUMIDIFIER
A regular maintenance program prolongs the life of your humidifier and makes your
home more comfortable. The frequency of cleaning depends on the condition of your
water.
You can use either hard or soft water in your humidifier, but hard water mineral
deposits are more difficult to clean than soft water deposits.
Use the following procedure to clean your Honeywell humidifier.
WARNING
Serious Personal Injury Hazard.
Can cause electrical shock and injury from moving parts.
Disconnect power and shut off water supply before removing cover.
IMPORTANT
Never oil any part of the humidifier.
Every 1 to 3 Months (Depending on Water Quality)
1. Disconnect the power and turn off the humidifier water supply.
2. Remove the humidifier cover by unplugging the connector and loosening the
thumb screw. Grasp the cover near the bottom and pull toward you. See Fig. 14.
3. Remove the humidifier pad assembly from the humidifier by grasping the top of
the tray and pulling it toward you.
4. Lift the tray off the pad.
5. Gently pinch the water nozzle catches inward until you can lift the water nozzle
off the tray.
6. Carefully remove any mineral deposits from the tray and frame. Be sure the
frame drain hole has nothing blocking it.

HE360 HUMIDIFIER AND INSTALLATION KIT
17 69-2631ES—01
Fig. 14. Cleaning your humidifier.
7. Disconnect the drain hose from the drain fitting on the bottom of the humidifier
housing.
8. Clean the drain fitting, if necessary.
9. Bend the drain hose to loosen any mineral deposits.
10. Flush the drain hose with pressurized water (a running tap) to clean the hose.
11. Reattach the drain hose to the drain fitting.
12. Snap the water nozzle back on the tray.
13. Be sure the marked end of the pad is facing up. Place the tray on the new pad.
14. Place the humidifier pad assembly in the humidifier housing. Be sure the water
feed tube is placed in the guide slots.
15. Replace the humidifier cover.
16. Verify the humidifier operation by following the steps in the Checking Your
Humidifier for Correct Operation section.
CHECKING YOUR HUMIDIFIER FOR
CORRECT OPERATION
After winter startup or servicing, use the following steps to check your humidifier
operation:
1. Turn on the humidifier power and water supply.
2. Turn the humidistat to its highest setting and set the thermostat to 10°F (6°C)
above the room temperature.
3. Observe that water is flowing out of the drain hose.
NOTE: The furnace blower must be running to activate the humidifier.
4. Reset the thermostat and humidistat to a comfortable setting for automatic oper-
ation.
M12809
COVER
ASSEMBLY
HUMIDIFIER
PAD ASSEMBLY
FEED TUBE NOZZLE
WATER
DISTRIBUTION TRAY
HUMIDIFIER
HOUSING
THUMB
SCREW

HE360 HUMIDIFIER AND INSTALLATION KIT
69-2631ES—01 18
TROUBLESHOOTING YOUR HUMIDIFIER
Table 3. Troubleshooting Humidifier.
Problem What to look for What to do
Water leakage Leaking joints. Shut off water.
Tighten connections.
Brass tubing inserts Verify that brass tubing inserts are used.
Saddle valve leaking. Verify rubber pad is installed on saddle
valve.
No water to drain. Electrical Verify control circuit wiring.
Check all connections.
Humidistat Turn humidistat up and down and listen for
contact to click.
Humidifier power Verify that outlet has power.
Solenoid After verifying other wiring components,
turn on furnace fan, turn humidistat up and
down, and listen for solenoid to click.
Plumbing Verify plumbing connections.
Check for kinks.
Saddle valve Verify that needle pierces water line and
then backs out needle to open valve.
Humidifier Remove cover and verify that water flows
into distribution tray.
Drain tubing Verify no obstructions.
Low humidity Furnace blower
not operating. •Reset circuit breaker or check for blown fuse.
•Check that the furnace power is on.
•Check all external wiring connections.
•Check the humidity control setting.
•Call a professional heating contractor.
Rapid air
changes. Drafts
(cold air is dry and
is an added load
to the humidifier).
•Keep doors and windows closed.
•Close fireplace damper when not in use.
•Keep exhaust fan running time to a
minimum.
•Seal around doors and windows.
High humidity Condensation on
walls.
•Turn off humidity control and water until
condensation is completely evaporated.
Heavy
condensation on
windows.
•Turn humidity control down low enough
to eliminate condensation caused by
moisture from bathing, mopping,
cooking, etc. If moisture persists, more
ventilation is needed.

HE360 HUMIDIFIER AND INSTALLATION KIT
19 69-2631ES—01
LIMITED ONE-YEAR WARRANTY
Honeywell warrants this product, excluding humidifier pad, to be free from defects in
the workmanship or materials, under normal use and service, for a period of one (1)
year from the date of purchase by the consumer. If, at any time during the warranty
period, the product is defective or malfunctions, Honeywell shall repair or replace it (at
Honeywell’s option) within a reasonable period of time.
If the product is defective, return it, with a bill of sale or other dated proof of purchase,
to the retailer where you purchased it.
This warranty does not cover removal or reinstallation costs. This warranty shall not
apply if it is shown by Honeywell that the defect or malfunction was caused by damage
which occurred while the product was in the possession of a consumer.
Honeywell’s sole responsibility shall be to repair or replace the product within the
terms stated above. HONEYWELL SHALL NOT BE LIABLE FOR ANY LOSS OR
DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING, DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF
ANY WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF THIS
PRODUCT. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so this limitation may not apply to you.
THIS WARRANTY IS THE ONLY EXPRESS WARRANTY HONEYWELL MAKES ON
THIS PRODUCT. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING
THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, IS HEREBY LIMITED TO THE ONE YEAR DURATION OF THIS
WARRANTY. Some states do not allow limitations on how long an implied warranty
lasts, so the above limitation may not apply to you.
This warranty gives you specific legal rights, and you may have other rights which vary
from state to state.
If you have any questions concerning this warranty, please write to Honeywell
Customer Care, 1985 Douglas Drive, Minneapolis, MN55422. In Canada, write Retail
Products ON15-02H, Honeywell Limited/Honeywell Limitée, 35 Dynamic Drive,
Toronto, Ontario M1V 4Z9.

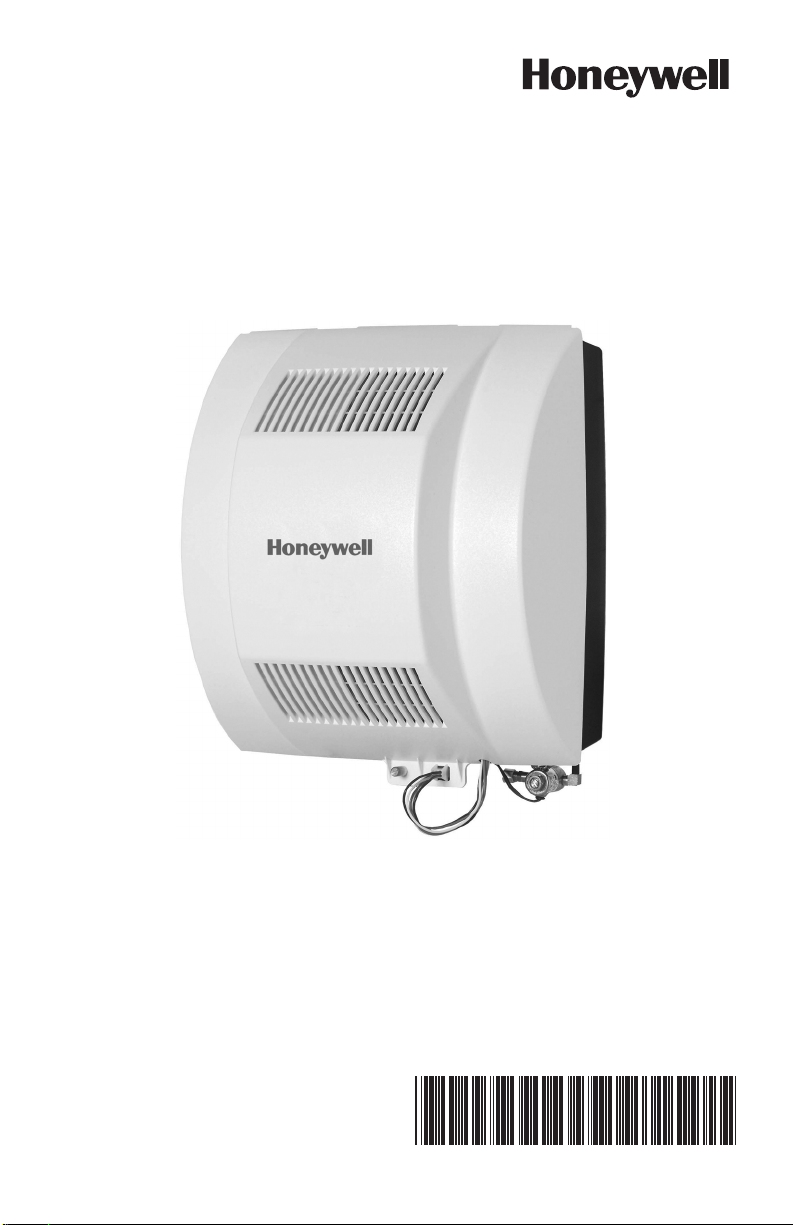

HE360 HUMIDIFIER AND INSTALLATION KIT
Automation and Control Solutions
Honeywell International Inc.
1985 Douglas Drive North
Golden Valley, MN 55422
Honeywell Limited-Honeywell Limitée
35 Dynamic Drive
Toronto, Ontario M1V 4Z9
yourhome.honeywell.com
® U.S. Registered Trademark
© 2011 Honeywell International Inc.
69-2631ES—01 M.S. 05-11
Printed in U.S.A.
