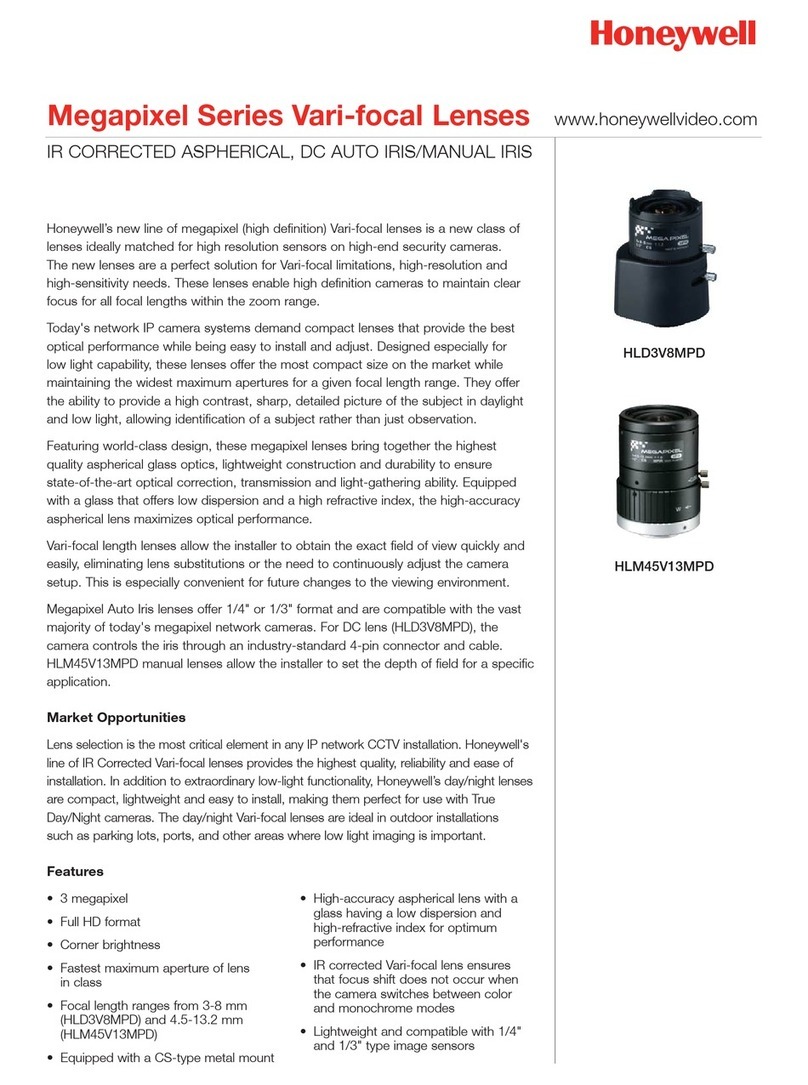

Honeywell HLD3V8MPD User manual

Megapixel Series Vari-focal Lenses
• 3 megapixel
• Full HD format
• Corner brightness
• Fastest maximum aperture of lens
in class
• Focal length ranges from 3-8 mm
(HLD3V8MPD) and 4.5-13.2 mm
(HLM45V13MPD)
• Equipped with a CS-type metal mount
• High-accuracy aspherical lens with a
glass having a low dispersion and
high-refractive index for optimum
performance
• IR corrected Vari-focal lens ensures that
focus shift does not occur when the
camera switches between colour and
monochrome modes
• Lightweight and compatible with 1/4"
and 1/3" type image sensors
IR CORRECTED ASPHERICAL, DC AUTO IRIS/MANUAL IRIS
Honeywell’s range of megapixel (high definition) Vari-focal lenses is ideally matched for
high resolution sensors on high-end security cameras. The new lenses are a perfect
solution for Vari-focal limitations, high-resolution and high-sensitivity needs. These lenses
enable high definition cameras to maintain clear focus for all focal lengths within the
zoom range.
Today's network IP camera systems demand compact lenses that provide the best
optical performance while being easy to install and adjust. Designed especially for low
light capability, these lenses offer the most compact size on the market while maintaining
the widest maximum apertures for a given focal length range. They offer the ability to
provide a high contrast, sharp, detailed picture of the subject in daylight and low light,
allowing identification of a subject rather than just observation.
Featuring world-class design, these megapixel lenses bring together the highest quality
aspherical glass optics, lightweight construction and durability to ensure state-of-the-art
optical correction, transmission and light-gathering ability. Equipped with a glass that
offers low dispersion and a high refractive index, the high-accuracy aspherical lens
maximises optical performance.
Vari-focal length lenses allow the installer to obtain the exact field of view quickly and
easily, eliminating lens substitutions or the need to continuously adjust the camera setup.
This is especially convenient for future changes to the viewing environment.
Megapixel Auto Iris lenses offer 1/4" or 1/3" format and are compatible with the vast
majority of today's megapixel network cameras. For the DC lens (HLD3V8MPD), the
camera controls the iris through an industry-standard 4-pin connector and cable.
HLM45V13MPD manual lenses allow the installer to set the depth of field for a
specific application.
Market Opportunities
Lens selection is the most critical element in any IP network CCTV installation. Honeywell's
range of IR Corrected Vari-focal lenses provides the highest quality, reliability and ease of
installation. In addition to extraordinary low-light functionality, Honeywell’s day/night
lenses are compact, lightweight and easy to install, making them perfect for use with
True Day/Night cameras. The day/night Vari-focal lenses are ideal in outdoor installations
such as car parks, ports, and other areas where low light imaging is important.
Features
HLD3V8MPD
HLM45V13MPD

Megapixel Series Vari-focal Lenses
For additional information,
please visit www.honeywell.com/security/uk
Honeywell Security Group
Aston Fields Road
Whitehouse Industrial Estate
Runcorn
Cheshire
WA7 3DL
Tel: [phone]
www.honeywell.com
SPECIFICATIONS
LENSES HLD3V8MPD HLM45V13MPD
Image Format 1/4” 1/3” 1/4” 1/3”
Lens Mount CS (Metal mount) CS (Metal mount)
Focal Length 3.0-8.0 mm (2.7 X) 4.5-13.2 mm (2.9 X)
Max Aperture Ration 1: 1.2 1: 1.8
Angle of View
D84.8º - 33º 115.8º - 43.9º 56.08º - 20.13º 75º - 26.82º
H67.3º - 26.5º 90.7º - 35.2º 44.80º - 16.12º 60º - 21.5º
V50.2º - 19.9º 67.3º - 26.5º 33.56º - 12.10º 44.8º - 16.12º
Operation Range
Iris F1.2 ~ T360 F1.8 ~ T360
Focus 0.3 m - Infinity 0.5 m - Infinity
Zoom 3.0-8.0 mm 4.5-13.2 mm
Iris Control DC Auto 4-pin DC Manual
Flange Back Length 12.5 mm 12.5 mm
Back Focal Length Tele/Wide 7.8 mm/7.8 mm 18.83-8.78 mm
Coil Resistance Drive Coil: 190 Ohms N/A
Damping Coil: 855 Ohms N/A
Current Consumption (max @ DC 4V) 22 mA 22 mA
Dimensions (L x W x H) 37 x 48.2 x 55 mm 42 x 61 mm
Weight Unit: 61 g 148 g
Construction Housing: ABS Plastic Metal
Finish: Black Black
Temperature Operating: -10°C to 50°C -10°C to 50°C
Storage: -20°C to 60°C -20°C to 60°C
Relative Humidity Up to 90% Up to 90%
Ordering
HLD3V8MPD 3.0-8.0 mm, F1.2, 3 MP Auto Iris Aspherical Vari-focal, IR corrected Lens
HLM45V13MPD 4.5-13.2 mm, F1.8, 3 MP Manual Iris Aspherical Vari-focal, IR corrected Lens
NOTE: Honeywell reserves the right, without notification, to make changes in product design or specifications.
HLD3V8MPD HLM45V13MPD
27.5 mm
42 mm
64.01 mm 8.77 mm
61 mm 12.5 mm
45 mm
26.3 mm
R26.5
37 mm
55 mm
30.3 mm 5 mm
12.5 mm
29.5 mm
43.8 mm
HVS-MPLENS-01-UK(0711)DS-E
July 2011
© 2011 Honeywell International Inc.
