Honeywell BA295S User manual

BA295S
Installation instructions Notice de montage Installatiehandleiding
Istruzioni di montaggio Asennusohje Monteringsvejledningen
Einbauanleitung
Anleitung zum späteren Gebrauch aufbewahren!
Keep instructions for later use!
Conserver la notice pour usage ultérieur!
Handleiding bewaren voor later gebruik!
Conservare le istruzioni per uso successivo!
Säilytä ohje vastaisen varalle!
Vejledning opbevares for senere brug!
Systemtrenner
Backflow Preventer
Disconnecteur
Terugstroombeveiliger
Separatori di sistema
Takaisinvirtauksena
Systemadskiller
32319462-001-Rev. B

MU1H-1252GE23 R0916 Honeywell GmbH
D
1. Sicherheitshinweise .....................................................2
2. Funktionsbeschreibung ................................................2
3. Verwendung .................................................................2
4. Technische Daten ........................................................2
5. Lieferumfang ................................................................2
6. Varianten ......................................................................2
7. Montage .......................................................................2
8. Instandhaltung .............................................................3
9. Entsorgung ...................................................................3
10. Störungen / Fehlersuche ..............................................4
11. Serviceteile ..................................................................4
12. Zubehör ........................................................................5
GB
13. Safety Guidelines .........................................................6
14. Description of function .................................................6
15. Application ...................................................................6
16. Technical data ..............................................................6
17. Scope of delivery .........................................................6
18. Options .........................................................................6
19. Assembly .....................................................................6
20. Maintenance ................................................................7
21. Disposal .......................................................................8
22. Troubleshooting ...........................................................8
23. Spare Parts ..................................................................9
24. Accessories ..................................................................9
F
25. Consignes de sécurité ...............................................10
26. Description du fonctionnement ..................................10
27. Application .................................................................10
28. Caractéristiques techniques .......................................10
29. Livraison .....................................................................10
30. Options .......................................................................10
31. Montage .....................................................................10
32. Maintenance ..............................................................11
33. Élimination .................................................................12
34. Dépannage ................................................................12
35. Pièces ........................................................................12
36. Accessoires ................................................................13
NL
37. Veiligheidsinstructies .................................................14
38. Functieomschrijving ...................................................14
39. Toepassing ................................................................14
40. Technische gegevens ................................................14
41. Leveringsomvang .......................................................14
42. Varianten ....................................................................14
43. Montage .....................................................................14
44. Service .......................................................................15
45. Afvoeren .....................................................................15
46. Storingen / fouten zoeken ..........................................16
47. Service-onderdelen ....................................................16
48. Toebehoren ................................................................17
I
49. Avvertenze di sicurezza .............................................18
50. Descrizione del funzionamento ..................................18
51. Modalità di impiego ....................................................18
52. Dati tecnici .................................................................18
53. Fornitura ....................................................................18
54. Versioni ......................................................................18
55. Montaggio ..................................................................18
56. Manutenzione ............................................................19
57. Smaltimento ...............................................................20
58. Guasti / Ricerca guasti ...............................................20
59. Pezzi di ricambio ........................................................20
60. Accessori ...................................................................21
FIN
61. Turvallisuusohjeita .....................................................22
62. Toiminnan kuvaus ......................................................22
63. Käyttö .........................................................................22
64. Tekniset tiedot ...........................................................22
65. Toimituksen sisältö ....................................................22
66. Lisävarusteet .............................................................22
67. Kokoaminen ...............................................................22
68. Kunnossapito .............................................................23
69. Hävittäminen ..............................................................24
70. Vianmääritys ..............................................................24
71. Varaosat ....................................................................24
72. Lisävarusteet .............................................................25
DK
73. Sikkerhedsanvisning ..................................................26
74. Beskrivelse af funktionen ...........................................26
75. Anvendelse ................................................................26
76. Tekniske data ............................................................26
77. Leveringsomfang .......................................................26
78. Afgangstilslutning .......................................................26
79. Montering ...................................................................26
80. Vedligeholdelse .........................................................27
81. Bortskaffelse ..............................................................28
82. Fejlfinding ..................................................................28
83. Reservedele ...............................................................28
84. Tilbehør ......................................................................29

MU1H-1252GE23R0916 Honeywell GmbH

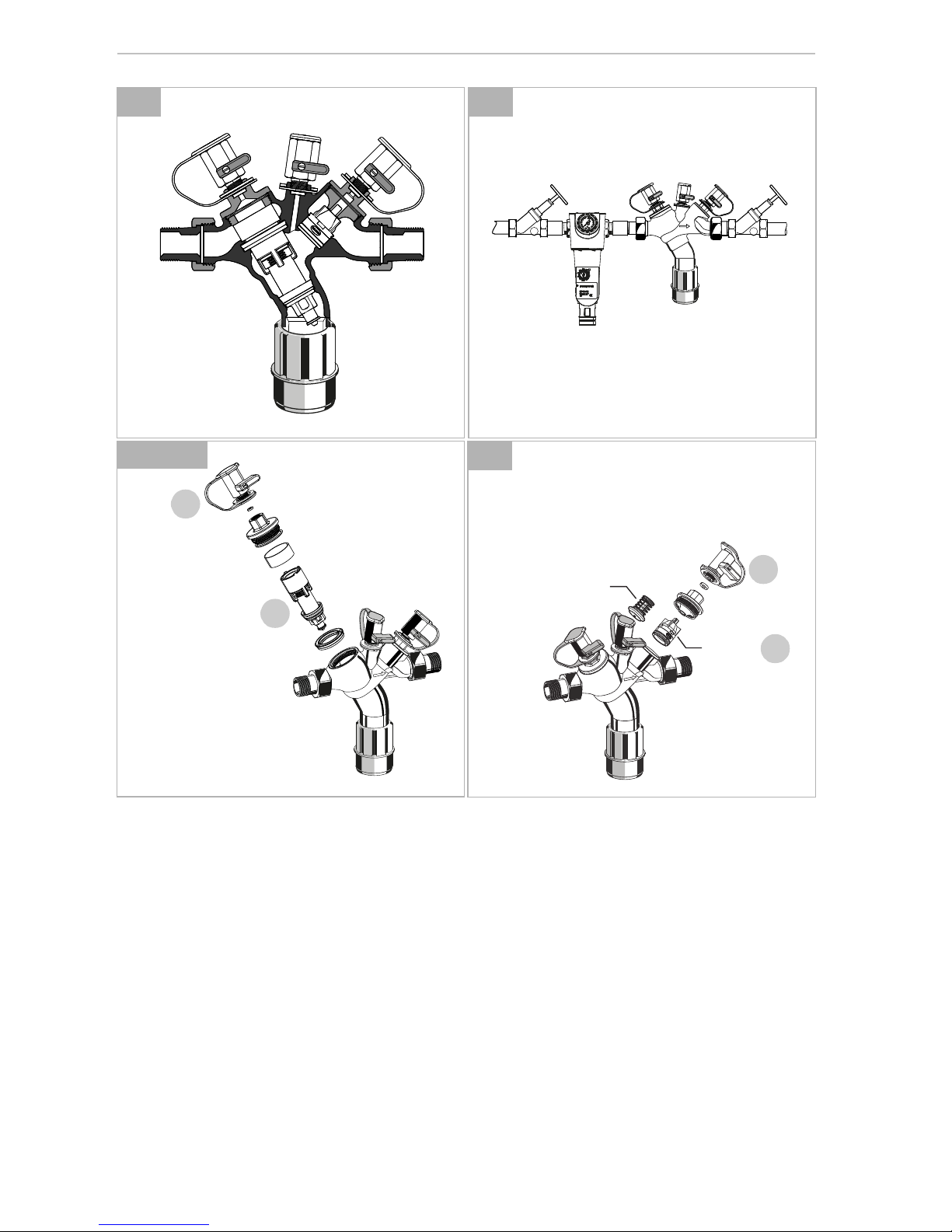

7.2
2.
햲 햳 햴
8.2.1 + 8.3
4.
5.
8.2.2
5.
4.
DN15-40
DN50

Honeywell GmbH 6 MU1H-1252GE23 R0916
GB
1. Safety Guidelines
1. Follow the installation instructions.
2. Use the appliance
• according to its intended use
• in good condition
• with due regard to safety and risk of danger.
3. Note that the appliance is exclusively for use in the appli-
cations detailed in these installation instructions. Any
other use will not be considered to comply with require-
ments and would invalidate the warranty.
4. Please take note that any assembly, commissioning,
servicing and adjustment work may only be carried out by
authorized persons.
5. Immediately rectify any malfunctions which may influence
safety.
2. Description of function
BA type backflow preventers are divided into three pressure
zones. The pressure in zone is higher than in zone ,
which in turn is higher than in zone . A discharge valve is
connected to zone which opens at the latest when the
differential pressure between zones and drops to 0.14
bar. The water from zone discharges to atmosphere, both
check valves close and therefore separate zone from zone
and . In this way the danger of back pressure or back
syphonage into the supply network is prevented. The pipe-
work connection is interrupted and the drinking water network
is protected.
3. Application
4. Technical data
5. Scope of delivery
The backflow preventer consists of:
•Housing
•Integrated strainer, mesh size approx. 0.2 mm
•Valve cartridge with integrated check valve and discharge
valve
•Outlet check valve
•Three ball valves for the connection of a differential pres-
sure gauge
•Connection fittings
•Discharge connection
6. Options
7. Assembly
7.1. Installations Guidelines
•Install shutoff valves before and after backflow preventer
•Install in horizontal pipework with the discharge valve
downwards
•Ensure good access
- Simplifies maintenance and inspection
•If a fine filter is not installed in the drinking water system,
the installation of a filter with a mesh width of 100µ m is
recommended in front of the backflow preventer.
•In the case of fluctuating pre-pressure or an input pressure
over 10 bar, we recommend the insertion of a pressure
regulator in front of the backflow preventer.
•Do not install in places where flooding can occur
•The installation environment should be protected against
frost and ventilated well. Do not install in polluted atmos-
phere, for example toxic vapor, aerosol, gas or dust
•Install discharge pipework which has adequate capacity
Use and type of installation according to EN 1717
^
The factory-set position of the ball valves may not be
altered. Non-compliance with this instruction will make
any warranty claims null and void.
Medium Water
Maximum inlet 
pressure
10.0 bar
Minimum inlet pressure 1.5 bar
Installation position Horizontal with discharge valve down-
wards
Max. operating 
temperature
65 °C (WRAS 60 °C)
Discharge pipe 
connection
DN50 for connection sizes 1/2" - 11/4"
DN70 for connection sizes 11/2" - 2"
Connection size 1/2" - 2"
BA295S-... A = Standard version acc. EN12729 with
threaded connections 1/2" - 2"
BA295S-1B = Special version with threaded 
connections 1"
BA295S-...AGB= Standard version acc. EN12729, all 
materials acc. WRAS, with threaded
connections 1/2" - 2"

MU1H-1252GE23R0916 7 Honeywell GmbH
GB
7.2. Assembly instructions
1. Thoroughly flush pipework
2. Install backflow preventer
•Install in horizontal pipework with discharge connection
directed downwards
• Note flow direction (indicated by arrow)
•Install without tension or bending stresses
•Provide a straight section of pipework of at least five times
the nominal valve size after the backflow preventer
Maintenance of backflow preventer must be carried out
by authorized personnel!
3. Attach drain pipe to discharge connection (plastic pipe
HT 50, HT 70)
4. The appliance is ready for use
8. Maintenance
8.1. Inspection - acc. EN806-5
8.1.1. Testing discharge valve
1. Procedure according to local requirements
8.1.2. Testing outlet check valve
1. Procedure according to local requirements
8.2. Maintenance
In accordance with EN 806-5 a regular maintenance must be
taken.
Frequency: every 1-3 years (depending on local oper-
ating conditions)
To be carried out by an installation company
8.2.1. Cartridge insert
1. Close shutoff valve on inlet
2. Release pressure on outlet side (e.g. through water tap)
3. Close shutoff valve on outlet
4. Remove cover
5. Replace cartridge insert and lip seal
6. Reassemble in reverse order
• push down the cartridge insert till it snaps in
7. Test function (see chapter inspection)
8.2.2. Check valve
1. Close shutoff valve on inlet
2. Release pressure on outlet side (e.g. through water tap)
3. Close shutoff valve on outlet
4. Remove cover
5. Exchange check valve
6. Reassemble in reverse order
7. Test function (see chapter inspection)
8.3. Cleaning
If necessary, the cartridge insert can be cleaned.
Do not use any cleansers that contain solvents and/or
alcohol for cleaning the plastic parts, because this can
cause damage to the plastic components - water
damage could result.
Detergents must not be allowed to enter the environ-
ment or the sewerage system!
1. Close shutoff valve on inlet
2. Release pressure on outlet side (e.g. through water tap)
3. Close shutoff valve on outlet
4. Remove cover
5. Clean or replace cartridge insert and lip seal
6. Reassemble in reverse order
• push down the cartridge insert till it snaps in
7. Test function (see chapter inspection)
We recommend a planned maintenance contract with
an installation company
• Frequency: every 6 month (depending on local oper-
ating conditions)
• To be carried out by an installation company
• Inspection with a test control unit and maintenance-
set (see accessories)
Test with test kit
Quick test for the discharge valve:
• Lower the inlet pressure
- if the discharge valve opens (it drops), the func-
tion is o.k.
Test with test kit
We recommend a planned maintenance contract with
an installation company
• Don’t disassemble cartridge insert to individual
parts!
Caution! DN50 is under spring tension.
The unsnapping of the lid can cause physical injuries.
• To be carried out by an installation company
• To be carried out by the operator
• Don’t disassemble cartridge insert to individual
parts!

Honeywell GmbH 8 MU1H-1252GE23 R0916
GB
9. Disposal
•DZR brass housing
•Valve cartridge in high-grade synthetic material
•Outlet check valve in high-grade synthetic material for
connection size 1/2" - 1 1/2", outlet check valve in dezincifi-
cation resistant brass for connection size 2"
•Brass ball valves
•Sealing elements made of elastomer materials suitable for
drinking water
•Discharge connection in high-grade synthetic material
Observe the local requirements regarding correct waste
recycling/disposal!
10. Troubleshooting
Disturbance Cause Remedy
Discharge valve opens without
apparent reason
Pressure strokes in water supply system Install a pressure reducing valve upstream the
backflow preventer
Fluctuating inlet pressure Install a pressure reducing valve upstream the
backflow preventer
Cartridge insert is contaminated Remove cartridge insert and exchange it
Discharge valve don’t close Deposits on valve seat Remove cartridge insert and clean or exchange it
Damaged ’o’ring Remove cartridge insert and exchange it
Leaky discharge valve Remove cartridge insert and clean or exchange it
Flow is too low Inlet strainer is blocked Remove strainer and clean it

2
1
No. Description Dimension Part No.
1Cartridge insert
complete
½", ¾", 1" B-Version 0904141
1" A-Version, 1¼" 0904142
1½", 2" 0904143
2Check valve ½", ¾", 1" B-Version 0904144
1" A-Version 0904145
1¼" 0904146
1½" 0904147
2" 0904148
TK295 TKA295
D06F F76S
F74CS
MU1H-1252GE23R0916 9 Honeywell GmbH
GB
11. Spare Parts 12. Accessories
D06F Pressure reducing valve
Noise protected pressure reducing valve with
setting scale. Maximum inlet pressure 16 bar, with
brass filter bowl 25 bar, outlet pressure 
range 1.5 - 6.0 bar
A = With clear filter bowl up to 40 °C / 16 bar
B = With brass filter bowl up to 70 °C / 25 bar
TK295 Test kit
Electronic pressure measuring device with digital
indicator, battery-operated.
With case and accessories, ideal for inspection
and maintenance of backflow preventer type BA.
TKA295 Test kit
Analogue pressure measuring device with differ-
ential pressure display.
With case and accessories, ideal for inspection
and maintenance of backflow preventer type BA.
F76S Fine filter, reverse rinsable
AA= With clear filter bowl
AAM = With red bronze filter bowl
F74CS Fine filter
Reverse rinsable fine filter with rotatable connec-
tion piece
