Honeywell Deluxe Programmable Thermostat User manual

169-1400–1
Deluxe
Programmable
Thermostat
69-1400-1
All manuals and user guides at all-guides.com
all-guides.com

269-1400–1
FEATURES
•Program up to four time periods and temperature setpoints
for each daily schedule.
•Set different schedules for each day of the week.
•Backlit for easy readability of display when a key is pressed.
•Press Information ikey for present setting information and
outdoor temperature (select models).
•Select fan operation for each period of each day (select
models with fan key).
•Temporarily set the temperature warmer or cooler.
•Daylight Time key for easy switching in and out of Daylight
Savings Time.
•Program end of Hold (1 to 255 days) for added comfort and
energy savings.
•Copy key for easier programming.
All manuals and user guides at all-guides.com

369-1400–1
PROGRAMMING
The keyboard is located behind the thermostat cover with three
frequently used keys by the display. The thermostat display
shows day, time, program period, temperature, system and fan
operation selection.
The thermostat can be set for four times and up
to eight temperatures for each day of the week
(28 independent time and 56 temperature settings).
The
▲ and ▼ keys provide quick temporary tempera-
ture changes to increase your comfort. The Hold Temp
key provides energy efficient operation for extended
periods of time.
Before starting the programming procedure, you can use the
following charts to organize your program schedule. The factory
preprogrammed time, temperature and fan settings are shown
in brackets. If you choose not to program a daytime energy
savings period, press the period key (Leave or Return) until the
time is blank. The fan setting feature is available on select
thermostat models.
All manuals and user guides at all-guides.com

469-1400–1
Period Start Time Heat Setpoint
Monday
Wake [6:00 AM] [70°F (21°C)]
Leave [8:00 AM] [62°F (16.5°C)]
Return [6:00 PM] [70°F (21°C)]
Sleep [10:00 PM] [62°F (16.5°C)]
Tuesday
Wake [6:00 AM] [70°F (21°C)]
Leave [8:00 AM] [62°F (16.5°C)]
Return [6:00 PM] [70°F (21°C)]
Sleep [10:00 PM] [62°F (16.5°C)]
Wednesday
Wake [6:00 AM] [70°F (21°C)]
Leave [8:00 AM] [62°F (16.5°C)]
Return [6:00 PM] [70°F (21°C)]
Sleep [10:00 PM] [62°F (16.5°C)]
Thursday
Wake [6:00 AM] [70°F (21°C)]
Leave [8:00 AM] [62°F (16.5°C)]
Return [6:00 PM] [70°F (21°C)]
Sleep [10:00 PM] [62°F (16.5°C)]
Friday
Wake [6:00 AM] [70°F (21°C)]
Leave [8:00 AM] [62°F (16.5°C)]
Return [6:00 PM] [70°F (21°C)]
Sleep [10:00 PM] [62°F (16.5°C)]
All manuals and user guides at all-guides.com

569-1400–1
Cool Setpoint Fan Setting
[78°F (25.5°C)] [Auto]
[85°F (29.5°C)] [Auto]
[78°F (25.5°C)] [Auto]
[82°F (28°C)] [Auto]
[78°F (25.5°C)] [Auto]
[85°F (29.5°C)] [Auto]
[78°F (25.5°C)] [Auto]
[82°F (28°C)] [Auto]
[78°F (25.5°C)] [Auto]
[85°F (29.5°C)] [Auto]
[78°F (25.5°C)] [Auto]
[82°F (28°C)] [Auto]
[78°F (25.5°C)] [Auto]
[85°F (29.5°C)] [Auto]
[78°F (25.5°C)] [Auto]
[82°F (28°C)] [Auto]
[78°F (25.5°C)] [Auto]
[85°F (29.5°C)] [Auto]
[78°F (25.5°C)] [Auto]
[82°F (28°C)] [Auto]
All manuals and user guides at all-guides.com

669-1400–1
Period Start Time Heat Setpoint
Saturday
Wake [6:00 AM] [70°F (21°C)]
Leave [8:00 AM] [62°F (16.5°C)]
Return [6:00 PM] [70°F (21°C)]
Sleep [10:00 PM] [62°F (16.5°C)]
Sunday
Wake [6:00 AM] [70°F (21°C)]
Leave [8:00 AM] [62°F (16.5°C)]
Return [6:00 PM] [70°F (21°C)]
Sleep [10:00 PM] [62°F (16.5°C)]
Setting the Current Day and Time
IMPORTANT
Always press the keys with your fingertip or similar
blunt tool. Sharp instruments like pens and pencil
points can damage the keyboard.
Press Set Current Day/Time.
NOTE: On initial power up or after an extended power
loss, 1:00 pm flashes on the display until a key
is pressed.
M14619
Time Set Program
System Fan
Run
Program
Hold Temp
Set Current
Day/Time
Set Current
Day/Time
Wake Leave Return Sleep
Day Heat/Cool
Settings
Daylight
Time Copy
Set Day/Time
Mon
PM
All manuals and user guides at all-guides.com
all-guides.com

769-1400–1
Cool Setpoint Fan Setting
[78°F (25.5°C)] [Auto]
[85°F (29.5°C)] [Auto]
[78°F (25.5°C)] [Auto]
[82°F (28°C)] [Auto]
[78°F (25.5°C)] [Auto]
[85°F (29.5°C)] [Auto]
[78°F (25.5°C)] [Auto]
[82°F (28°C)] [Auto]
Press Day until the current day is displayed.
NOTE: Sun = Sunday, Mon = Monday, Tue = Tuesday,
Wed = Wednesday, Thu = Thursday, Fri = Friday,
Sat = Saturday.
Press Time ▲▲or Time ▼▼until the current time is
displayed.
NOTE: Tapping the Set Current Day/Time will change
the time in one hour increments.
M14620
Time Set Program
System Fan
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day
Day
Heat/Cool
Settings
Daylight
Time Copy
Set Day/Time
PM
Tue
M14621
Time Set Program
System Fan
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day
Time
Heat/Cool
Settings
Daylight
Time Copy
Set Day/Time
AM
Tue
All manuals and user guides at all-guides.com

869-1400–1
NOTE: If the current time is Daylight Savings Time,
press Daylight Time until DST is displayed.
Press Run Program.
Programming the First Day
Start by programming the Wake time and temperature (and fan
operation on select models) for any one day:
Press Wake.
Press Day until the desired day is displayed.
M14622
Time Set Program
System Fan
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day Heat/Cool
Settings
Daylight
Time
Daylight
Time
Copy
Set Day/Time
AM
DST
Tue
M14623
Time Set Program
System Fan
Run
Program
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day Heat/Cool
Settings
Daylight
Time Copy
Wake
Room
System
Fan
Heat
Auto
AM
DST
Tue
M14635
Time Set Program
System Fan
Run
Program
Hold Temp
Set Current
Day/Time Wake
Wake
Leave Return Sleep
Day Heat/Cool
Settings
Daylight
Time Copy
Set Program
Wake
System
Fan
Heat
Auto
AM
Heat
Tue
Setting
M14636
Time Set Program
System Fan
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day
Day
Heat/Cool
Settings
Daylight
Time Copy
Set Program
Mon
Wake
System
Fan
Heat
Auto
AM
Heat
Setting
All manuals and user guides at all-guides.com

969-1400–1

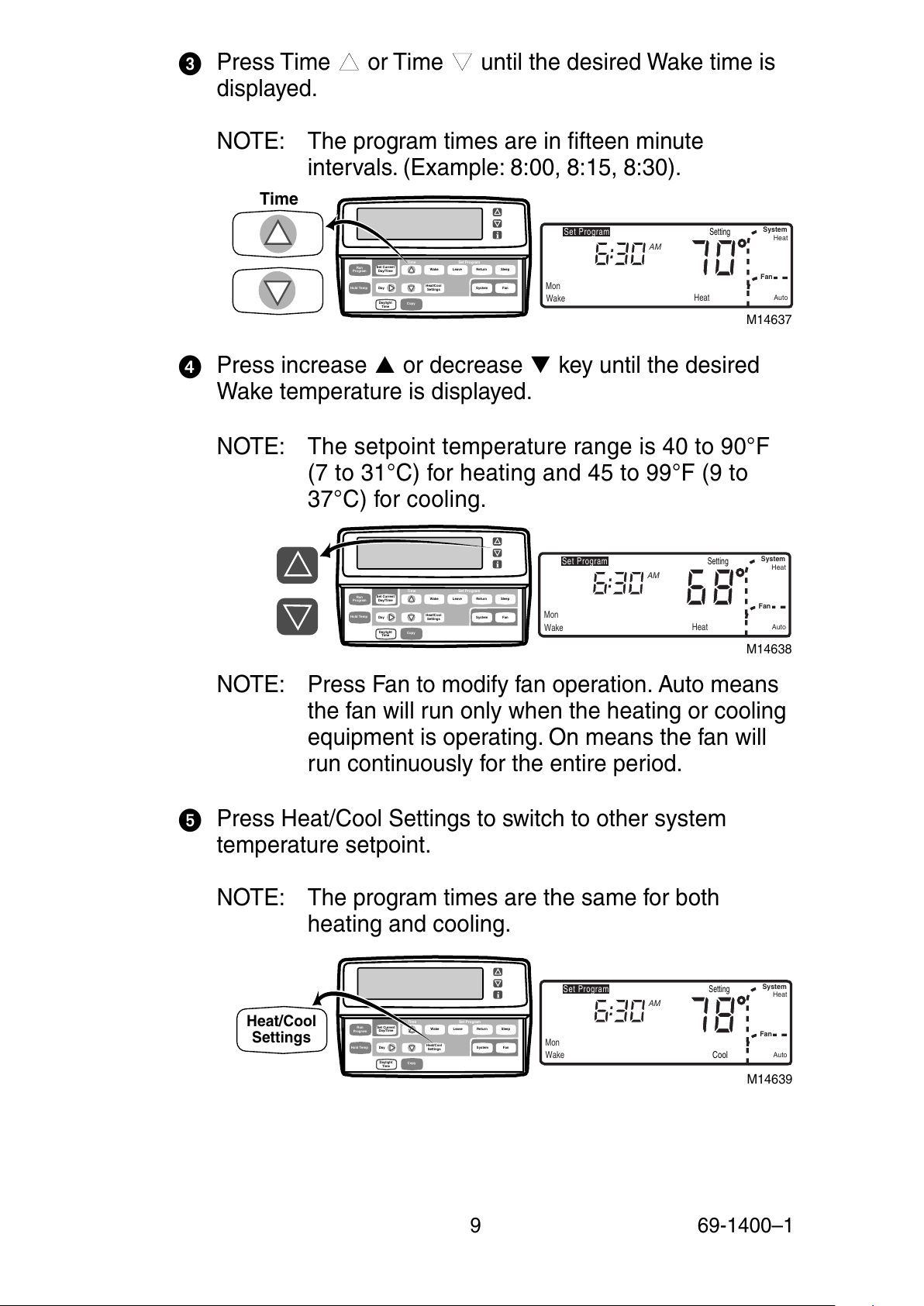

Press Time ▲▲ or Time ▼▼ until the desired Wake time is
displayed.
NOTE: The program times are in fifteen minute
intervals. (Example: 8:00, 8:15, 8:30).
Press increase ▲or decrease ▼key until the desired
Wake temperature is displayed.
NOTE: The setpoint temperature range is 40 to 90°F
(7 to 31°C) for heating and 45 to 99°F (9 to
37°C) for cooling.
NOTE: Press Fan to modify fan operation. Auto means
the fan will run only when the heating or cooling
equipment is operating. On means the fan will
run continuously for the entire period.
Press Heat/Cool Settings to switch to other system
temperature setpoint.
NOTE: The program times are the same for both
heating and cooling.
M14637
Time Set Program
System Fan
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day Heat/Cool
Settings
Daylight
Time Copy
Time
Set Program
Mon
Wake
System
Fan
Heat
Auto
AM
Heat
Setting
M14638
Time Set Program
System Fan
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day Heat/Cool
Settings
Daylight
Time Copy
Set Program
Mon
Wake
System
Fan
Heat
Auto
AM
Heat
Setting
M14639
Time Set Program
System Fan
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day Heat/Cool
Settings
Heat/Cool
Settings
Daylight
Time Copy
Set Program
Mon
Wake
System
Fan
Heat
Auto
AM
Cool
Setting
All manuals and user guides at all-guides.com

10 69-1400–1
Press increase ▲or decrease ▼key until the desired
temperature setpoint is displayed.
Press Leave, Return or Sleep and repeat steps , , 
and for programming the rest of the day. The first day
is now programmed.
IMPORTANT
Repeat steps
 through  for each day of the week
that has a different program than the first day. Refer
to Copying a Day section to copy any program day
to another.
Press Run Program when all days are programmed.
Copying a Day
NOTE: The thermostat must be in the program mode to use
the copy feature. Go to step if the thermostat is
already in the program mode.
Press Wake.
Time Set Program
System Fan
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day Heat/Cool
Settings
Daylight
Time Copy
M14640
Set Program
Mon
Wake
System
Fan
Heat
Auto
AM
Cool
Setting
M14641
Time Set Program
System Fan
Run
Program
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day Heat/Cool
Settings
Daylight
Time Copy
Wake
Room
System
Fan
Heat
Auto
AM
DST
Tue
M14642
Time Set Program
System Fan
Run
Program
Hold Temp
Set Current
Day/Time Wake
Wake Leave Return Sleep
Day Heat/Cool
Settings
Daylight
Time Copy
Set Program
Mon
Wake
System
Fan
Em Heat
Auto
AM
Heat
Tue
Setting
All manuals and user guides at all-guides.com

11 69-1400–1
Press Day to select the day to be copied if different from
the day displayed.
Press Copy.
Press Day until the day to be copied to is displayed.
Press Copy.
NOTE: donE will be displayed for two seconds and
then the normal program display will be shown.
Repeat steps through for all the days desired.
Press Run Program.
M14643
Time Set Program
System Fan
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day
Day
Heat/Cool
Settings
Daylight
Time Copy
Set Program
Mon
Wake
System
Fan
Heat
Auto
AM
Heat
Setting
M14644
Time Set Program
System Fan
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day Heat/Cool
Settings
Daylight
Time Copy
Copy
Mon
M14645
Time Set Program
System Fan
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day
Day
Heat/Cool
Settings
Daylight
Time Copy
Mon Wed
M14646
Time Set Program
System Fan
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day Heat/Cool
Settings
Daylight
Time Copy
Copy
All manuals and user guides at all-guides.com
all-guides.com

12 69-1400–1
Clearing Program Period
NOTE: The thermostat must be in the program mode to use
the clear feature. Go to step if the thermostat is
already in the program mode.
Press Wake, Leave, Return or Sleep.
Press Day until the desired day is displayed.
Press Leave, Return or Sleep until the start time and
temperature setting are cleared (approximately 3 seconds).
NOTE: Wake cannot be cleared.
Repeat steps and for all the periods to be cleared.
Press Run Program.
M14647
Time Set Program
System Fan
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave
Leave
Return Sleep
Day Heat/Cool
Settings
Daylight
Time Copy
Set Program
Mon
Leave
System
Fan
Heat
On
AM
Heat
Setting
M14648
Time Set Program
System Fan
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day
Day
Heat/Cool
Settings
Daylight
Time Copy
Set Program
Leave
System
Fan
Heat
On
AM
Heat
Sat
Setting
M14649
Time Set Program
System Fan
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day Heat/Cool
Settings
Daylight
Time Copy
Leave
Set Program
Leave Heat
Sat
Setting
All manuals and user guides at all-guides.com

13 69-1400–1
Operating the Deluxe
Programmable Thermostat
Setting Temporary Temperatures
Changing Temperature Setting Until the Next Program Period
Press increase ▲or decrease ▼key until the desired tem-
perature setpoint is displayed.
NOTE: If ▼or ▲appear under the temperature display, it
means that both the heating and cooling setpoints are
being adjusted. Tapping the key will change both the
heat and cool setpoints by one degree. Press i after
the desired setpoint is reached to check the setpoints.
NOTE: The temporary temperature setting is displayed for
approximately 3 seconds. The setting is cancelled
when the next period starts or when Run Program
is pressed.
Changing Temperature Setting Indefinitely
Press Hold Temp.
Press increase ▲or decrease ▼key to change the
setting, if desired.
M14651
Time Set Program
System Fan
Run
Program
Hold Temp
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day Heat/Cool
Settings
Daylight
Time Copy
System
Fan
Heat
Auto
Heat
Setting
M14652
Time Set Program
System Fan
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day Heat/Cool
Settings
Daylight
Time Copy
System
Fan
Heat
Auto
Heat
Setting
M14650
Time Set Program
System Fan
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day Heat/Cool
Settings
Daylight
Time Copy
Heat
Setting
All manuals and user guides at all-guides.com

14 69-1400–1
Press Heat/Cool Settings to change between heat and
cool settings.
Press increase ▲or decrease ▼key to adjust tempera-
ture settings.
NOTE: The display changes from the setpoint to the room
temperature after approximately 3 seconds.
Press Run Program to cancel the Hold and to return to
the program.
Changing Temperature Setting Until a Designated Day and Period
Press Hold Temp twice.
Press Time ▲▲ or Time ▼▼ until the desired number of
days is displayed (1 to 255 days). (Example: 18 = Hold
will override the daily programs for 18 days)
M14653
Time Set Program
System Fan
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day Heat/Cool
Settings
Heat/Cool
Settings
Daylight
Time Copy
Cool
Setting
M14654
Time Set Program
System Fan
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day Heat/Cool
Settings
Daylight
Time Copy
Cool
Setting
M14655
Time Set Program
System Fan
Run
Program
Hold Temp
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day Heat/Cool
Settings
Daylight
Time Copy
Wake
System
Fan
Heat
Auto
Hold for
Heat
Days
Setting
M14656
Time Set Program
System Fan
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day Heat/Cool
Settings
Daylight
Time Copy
Time
Wake
System
Fan
Heat
Auto
Hold for
Heat
Days
Setting
All manuals and user guides at all-guides.com

15 69-1400–1
Press Wake, Leave, Return or Sleep to select the period
the program will start. (Example: Return = thermostat will
stop the Hold at the Return period start time)
Press increase ▲or decrease ▼key to adjust the
temperature setting, if desired. (Example: Heat 54°=
heating equipment will operate when the room temperature
is below 54°F)
NOTE: When the System is set for Auto, both heat and
cool settings are needed. If the System is set
for Heat, only the Heat setpoint is needed or if
Cool is selected, only the Cool setpoint
is needed.
Press Heat/Cool Settings to change between heat and
cool settings.
Press increase ▲or decrease ▼key to adjust the
temperature setting, if desired. (Example: Cool 84°=
cooling equipment will operate when the room temperature
is above 84°F)
NOTE: In this example, the thermostat uses the Hold
setting for eighteen days and returns to the daily
programs at the Return period start time. The
temperature settings are heating 54°F and
cooling 84°F. Only the heating temperature is
used because the System is set for Heat. The
thermostat will use both the heating and
cooling temperature settings when the System
is set to Auto.
M14657
Time Set Program
System Fan
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave Return
Return
Sleep
Day Heat/Cool
Settings
Daylight
Time Copy
System
Fan
Heat
Auto
Hold for
Heat
Days
Setting
Return
M14658
System
Fan
Heat
Auto
Hold for
Heat
Days
Setting
Return
Time Set Program
System Fan
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day Heat/Cool
Settings
Daylight
Time Copy
All manuals and user guides at all-guides.com

16 69-1400–1
IMPORTANT
If the Hold needs to be cancelled before the designated
time, press Run Program to return to the program.
Setting System and Fan
The system default setting is Heat and the fan default setting is
Auto. Use the System and Fan keys to change the settings. The
fan settings can be set for each program period individually.
The system selection is for all the program periods.
System settings control the thermostat operation as follows:
Heat: The thermostat controls the heating.
Off: Both the heating and cooling are off.
Cool: The thermostat controls the cooling.
Auto: The thermostat automatically changes between
heating and cooling operation, depending on the indoor
temperature (select models).
Fan settings control the system fan as follows:
On: Fan operates continuously.
Auto: Fan operates with equipment.
Setting Temporary Fan Operation
If your thermostat has a Fan key and this feature, press Fan
until the desired fan operation is selected. This fan setting will
be in effect until the next regularly scheduled period starts.
M14625
Hold Temp
Run
Program
Copy
Daylight
Time
Set Current
Day/Time
System Fan
Time Set Program
Day
System
Fan
Wake Leave Return Sleep
Heat/Cool
Settings
All manuals and user guides at all-guides.com
all-guides.com

17 69-1400–1
Viewing and Resetting Timer Settings
When the thermostat activates a timer, the thermostat flashes
Filter until the timer resets.
1. Reset the timer by pressing the ikey until the exired timer
is displayed.
2. Press the Time ▲ key to reset the timer.
3. Press the Run Program key.
NOTE: You can view the number of days remaining at
anytime by pressing the ikey three or four times. If
more than one timer is active, all active timers show
sequentially when pressing the ikey several times.
M20243
Filter Days
M20244
Filter Days
All manuals and user guides at all-guides.com

18 69-1400–1
M14659
Time Set Program
System Fan
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day Heat/Cool
Settings
Daylight
Time Copy
Daylight
Time
Wake
Room
System
Fan
Em Heat
Auto
AM
DST
Tue
M14660
Time Set Program
System Fan
Run
Program
Hold Temp
Set Current
Day/Time Wake Leave Return Sleep
Day Heat/Cool
Settings
Daylight
Time Copy
Outdoor
Using Daylight Savings Time Feature
This feature allows you to change in and out of Daylight
Savings Time with a key press. When pressed in the fall, the
time will go back one hour. In the spring, the time will go ahead
one hour and the display will show DST. See Setting the
Current Day and Time section for initial setting instructions.
NOTE: Pressing Daylight Time more than once within a five
minute period will scroll you through various time
options (Example: one hour earlier or later with or
without DST). Pressing Daylight Time six times in a five
minute period will return you to your original setting.
Displaying the Outdoor Temperature
If your thermostat is equipped with an outdoor sensor, you can
check the temperature at the sensor by pressing ionce.
All manuals and user guides at all-guides.com

19 69-1400–1
80
90
70
60
90
80
70
60
Replacing the Batteries (select models)
•Install the batteries in the
wallplate so the positive
terminals all point up
(see illustration).
•If the thermostat is
already mounted on the
wall, remove the thermo-
stat by placing your
thumb between the
thermostat and wallplate
and pulling the thermostat
up and away as shown.
When the batteries are
running low, a REPL BAT
message flashes for one to
two months before the
batteries run out completely.
Replace the batteries as soon
as possible once the message
flashes.
If you insert new batteries within 20 to 30 seconds of removing
the old batteries, the system retains the current time and day. If
the display is blank, the batteries are dead or installed incor-
rectly. You must reset the time and day. Refer to Set the Clock
for instructions.
As a precaution when leaving home for longer than
a month, change batteries before leaving to
prevent the system from shutting down due to lack
of power. Always use fresh alkaline batteries.
Nonalkaline batteries do not last as long. They also
can leak, causing damage to the thermostat and the wall
surface.
M10622
INSTALL 3 AA ALKALINE BATTERIES
AS SHOWN, POSITIVE (+) TERMINALS
TOWARD TOP.
WALLPLATE
B
RRCOWYG
M16424
All manuals and user guides at all-guides.com

20 69-1400–1
Adaptive Intelligent Recovery™ Control
Breakthrough Technology Senses Temperature More
Like You Do
Your Deluxe Programmable Thermostat is so smart, it’s
almost human.
•Your body perceives temperature from a variety of sources,
not only from the air in the room, but also from your
surroundings—walls, windows and furnishings.
•Humans feel differences in temperature as slight as two
degrees Fahrenheit.
•Common household thermometers and standard thermostats
sense only air temperature, which might or might not reflect
how hot or cold the room actually feels to a human being.
•Your new thermostat reads both the temperature of the wall
and the air—and responds to temperature changes as little
as one degree Fahrenheit—so room temperature is more
likely to feel right to you and your family.
The Optimum Comfort and Energy Savings Solution
70°F
60°FSLEEP
HEATING MODE
WAKE
SETPOINT
TEMPERATURE
ACTUAL
TEMPERATURE
THERMOSTAT USES THE SAME SCHEME TO RETURN TO LOWER COMFORT
TEMPERAURE DURING THE COOLING SEASON.
M15084
All manuals and user guides at all-guides.com
