Honeywell FocusPRO TH6220D User manual

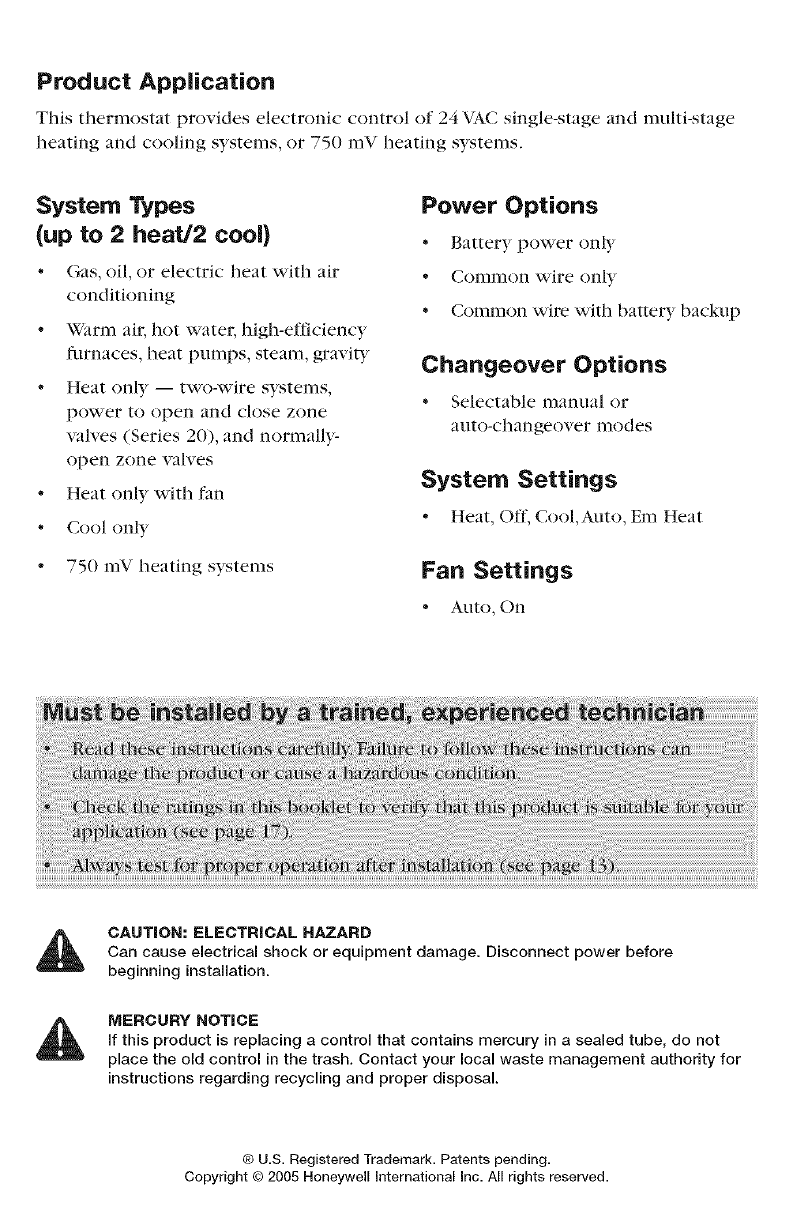

Product Application
This thermostat provides electronic control of 24 VAC single-stage and multi-stage
heating and cooling systems, or 750 mV heating systems.
System Types
(up to 2heat/2 cool)
• (ats, oil, or electric heat with air
conditioning
•Warm air, hot water, high-efficiency
fl|rnaces, heat pumps, steam, gravitT
• Heat only -- two-wire systems,
power to open and close zone
valves (Series 20), and normall D
open zone valves
• Heat only with fan
• Cool only
• 750 mV heating systems
Power Options
• Battery power only
• Common wire only
• Common wire with batte W backup
Changeover Options
• Selectahle manual or
auto-changeover modes
System Settings
•Heat, Oft, Cool, Auto, Em Heat
Fan Settings
.Auto, On
CAUTION: ELECTRICAL HAZARD
Can cause electrical shock or equipment damage. Disconnect power before
beginning installation.
MERCURY NOTICE
If this product is replacing a control that contains mercury in a sealed tube, do not
place the old control in the trash. Contact your local waste management authority for
instructions regarding recycling and proper disposal.
® U.S. Registered Trademark. Patents pending.
Copyright ® 2005 Honeywell International Inc. All rights reserved.

Installation
Pre-installation checklist ......... 2
Wallplate installation ..................... .3
Wiring. ............................................ A
Wiring diagrams .............................. 5
Power options .............................. 10
Thermostat mounting .................. 10
Appendices
Quick reference to controls .......... 15
Quick reference m display ............ 15
Battery replacement ...................... 15
In case of difficult T ...................... 16
Accessories/replacenaent parts .... 17
Specifications ................................ 17
Setup and testing
Installer setup ................................ 11
Installer system test ...................... 13
Explanation of features ................ 14

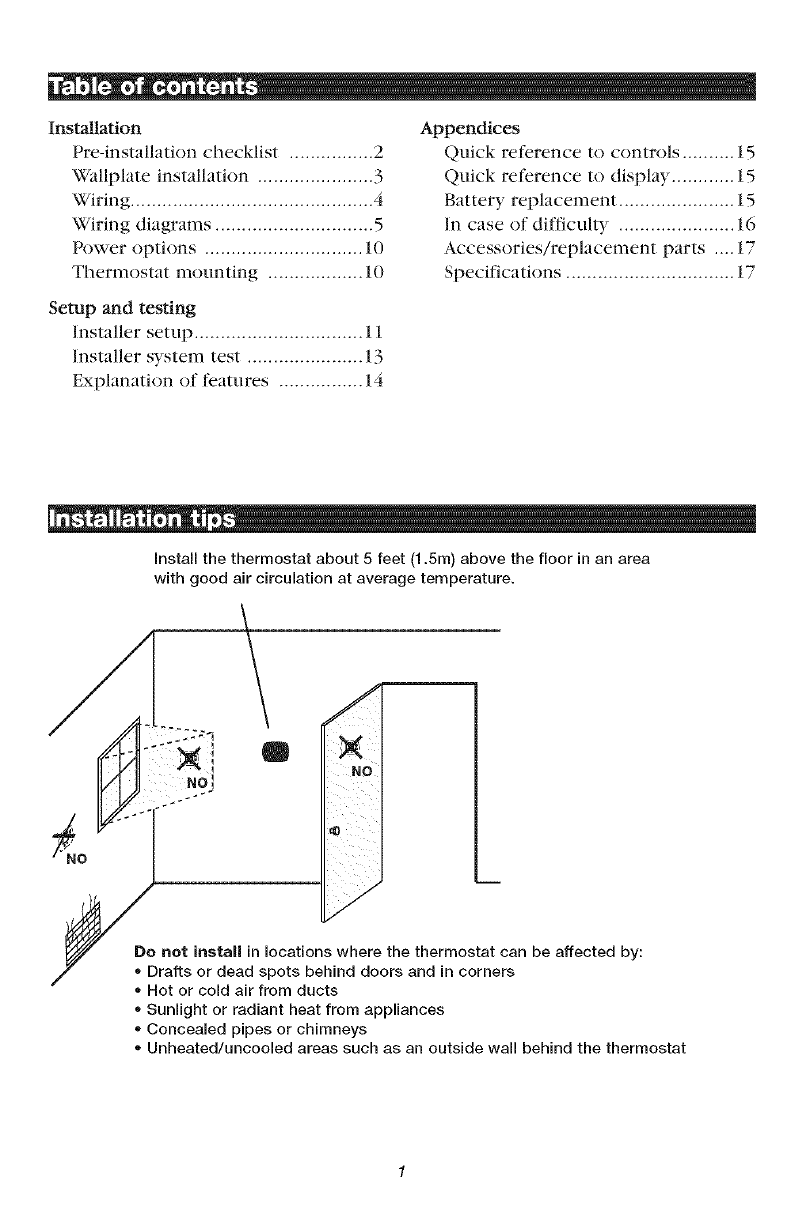

install the thermostat about 5 feet (1.5m) above the floor in an area
with good air circulation at average temperature.
\D
©
Do not instaR in locations where the thermostat can be affected by:
* Drafts or dead spots behind doors and in corners
* Hot or cold air from ducts
* Sunlight or radiant heat from appliances
* Concealed pipes or chimneys
* Unheated/uncooled areas such as an outside wall behind the thermostat

Installation Guide
r'
, i

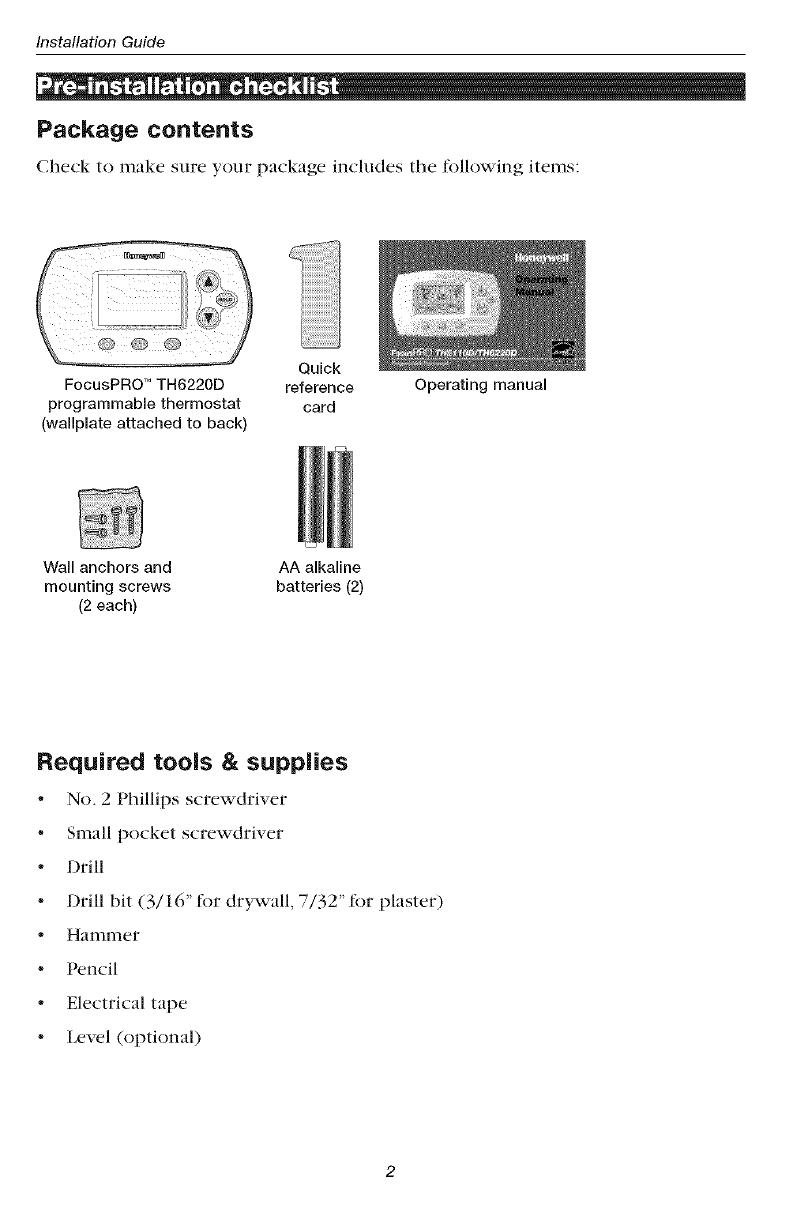

Package contents
Check to make sure your package includes the following items:
FocusPRO TM TH6220D
programmable thermostat
(wallplate attached to back)
Quick
reference
card
Wail anchors and AA alkaline
mounting screws batteries (2)
(2 each)
Operating manual
Required tools & supplies
• No. 2 Phillips screwdriver
• Small pocket screwdriver
• Drill
• Drill bit (3/16" for drywall, 7/32" for plaster)
• Hammer
• Pencil
• Electrical tape
• Level (optional)

FocusPRO TM TH6220D Programmable Thermostat
Insert finger into wire hole and pull to
remove wallplate from thermostat. Remove the wallplate @ore the ther-
mostat as shown at left, then fk>llow
directions below for mounting.
1 ]insert quick reference card in slot
in back of thermostat.
2 Pull wires through wire hole.
3 Position wallplate on wall, level and
mark hole positions with pencil.
4 Drill holes at marked positions as
shown below, then tap in supplied
wall anchors.
Insert quick reference card 5 Place wallplate over anchors, insert
and tighten mounting screws.
Drill 3/16" holes for drywall.
Drill 7/32" holes for piaster.

Installation Guide
o "
CAUTION: ELECTRICAL HAZARD. Can cause electrical shock or equipment damage.
Disconnect power before wiring.
-L E Aux G O/B CYR Rc
Heat Pump
Conventional
NOTES
R & Rc termirtals
In single-transformer system, leave metal
jumper in place between R & Rc. Remove
metal jumper if two-transformer system.
C terminal
The C (common wire) terminal is optional
when thermostat is powered by batteries,
W(O/B) terminal
If thermostat is configured for a heat pump
in the Installer Setup, configure changeover
valve for cool ("O" factory setting) or heat
("B").
L terminal (Output)
Heat pump reset. L terminal powered contin-
uously when thermostat is set to Em Heat.
Configure thermostat for 2 heat /1 cool heat
pump in the Installer Setup.
Wire specifications
Use 18- to 22-gauge thermostat wire.
Shielded cable is not required.
Wiring
1 Loosen screw terminals, insert
wires into terminal block, then
re-tighten screws.
2 Push excess wire back into the
wall opening. Keep wires in shaded
area as shown at left.
Plug the wall opening with non-
flammable insulation to prevent
drafts from affecting thermostat
operation.
Terminal Designations
Conventional Terminal Letters:
Y2 2rid stage compressor contactor
W2 2nd stage heat relay
GFan relay
W 1st stage heat relay
CCommon wire from secondary side of
cooling system transformer
Y1st stage compressor contactor
R Heating power. Connect to secondary
side of heating system transformer.
Rc Cooling power. Connect to secondary
side of cooling system transformer.
Heat Pump Termirtal Letters:
LHeat pump reset. Lterminal powered
continuously when System is set to Em
Heat.
EEmergency heat relay
Aux Auxiliary heat relay
GFan relay
O/B Changeover valve for heat pumps
CCommon wire from secondary side of
cooling system transformer.
YCompressor contactor
R Heating power. Connect to secondary
side of heating system transformer.
Rc Cooling power. Connect to secondary
side of cooling system transformer.

FocusPRO "MTH6220D Programmable Thermostat
i
_, Power supply. Provide disconnect means and overload protection as required.
_. Factory-installed jumper. Remove for 2-transformer systems only.
,_ Optional 24VAC common connection.
_, In Installer Setup, set system type to Heat Only.
A In Installer Setup, set system type to 1Heat/lCeol Heat Pump & changeover valve to 0 or B.
In Installer Setup, set system type to 2Heat/lCool Heat Pump.
_, L terminal is powered continuously when thermostat is set to Em Heat.
Install field jumper between Aux and E if there is no emergency heat relay.
,_ In Installer Setup, set system type to 2Heat/2Cool conventional

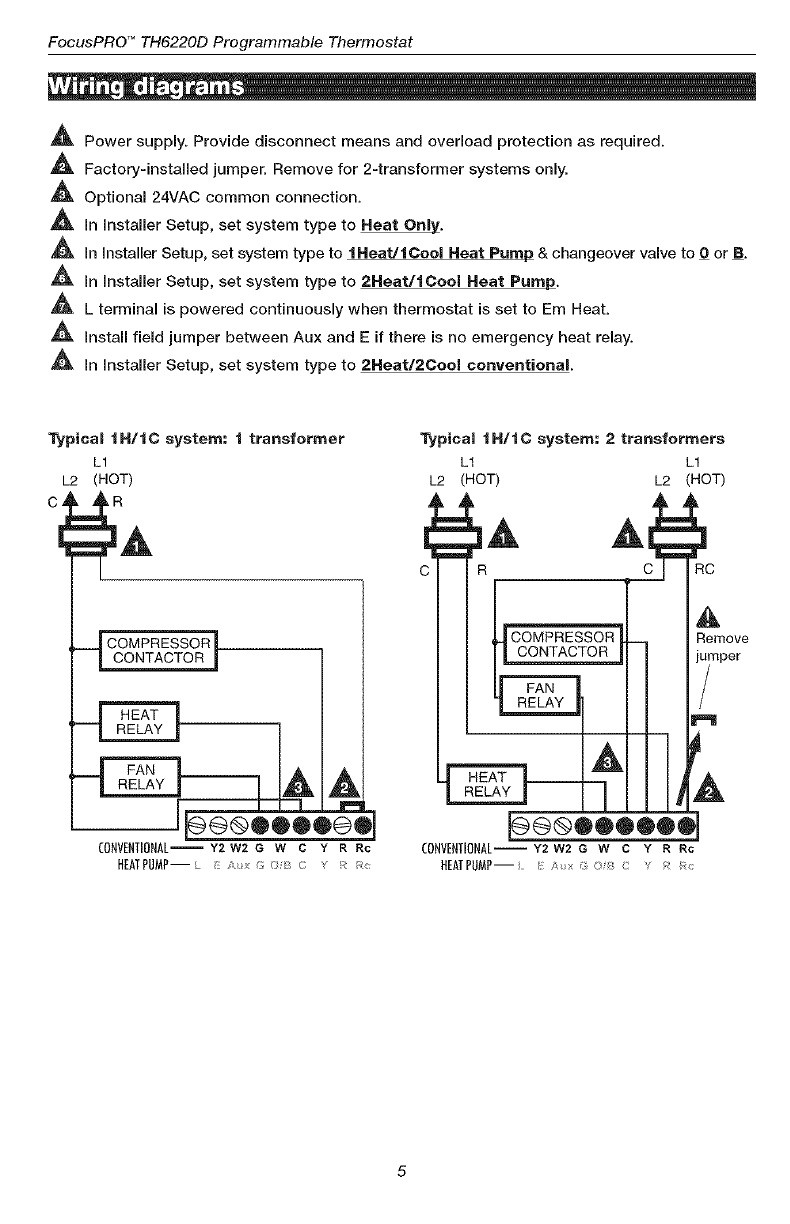

TypicaB 1H/1C system." 1 transformer Typical 1H/1C system: 2transformers
L1 L1 L1
L2 (HOT) L2 (HOT) L2 (HOT)
COMPRESSORi
CONTACTOR __
CONVENTIONAL-- Y2 w2 G W C Y RRc
COMPRESSOR
CONTACTOR
A
Remove
jumper
A
,Z]---q j
@@®@@OO@G
¢0NVENTIONALJ Y2 W2 O W C Y R Rc
HEATPUMP-- ; A 4 G o ; C _ A R<
&

Installation Guide
- 1
_, Power supply. Provide disconnect means and overload protection as required.
,_ Factory-installed jumper. Remove for 2-transformer systems only.
_, Optional 24VAC common connection.
,_ In Installer Setup, set system type to Heat Only.
A In Installer Setup, set system type to 1Heat/lCeel Heat Pump & changeover valve to 0 or B.
In Installer Setup, set system type to 2Heat/lCeel Heat Pump.
_, L terminal is powered continuously when thermostat is set to Em Heat.
_, Install field jumper between Aux and E if there is no emergency heat relay.
In Installer Setup, set system type to 2Heatl2Coel conventional
Typica_ 1H/1C heat pump system
L1
L2 (HOT)
CONTACTOR J
I®®®ooeo®e
HEATPUMP--L EAuxGOIBC Y R Rc
Typica_ heat=only system
L1
L2 (HOT)
c R
CONVENTIONAL-- Y2 w2 G wC Y R Rc

FocusPRO TM TH6220D Programmable Thermostat
J
A Power supply. Provide disconnect means and overload protection as required.
_, Factory-installed jumper. Remove for 2-transformer systems only.
_, Optional 24VAC common connection.
_, In Installer Setup, set system type to Heat Only.
In Installer Setup, set system type to 1Heat/lCeol Heat Pump & changeover valve to 0 or B.
In Installer Setup, set system type to 2Heat/lCoeJ Heat Pump.
_, L terminal is powered continuously when thermostat is set to Em Heat.
_. Install field jumper between Aux and E if there is no emergency heat relay.
,_ In Installer Setup, set system type to 2Heat/2CeeJ conventional
Typical heat-only system with ?an Heat-enVy system (Series 20)
L1 L1
L2 (HOT) L2 (HOT)
kA
R C R
CONVENTiONAl_--Y2w2 aW C Y R Rc
POWERTOOPEN
ANDPOWERTO
CLOSE
MOTORORVALVE
(SERIES2O)

Installation Guide
- 1
_, Power supply. Provide disconnect means and overload protection as required.
,_ Factory-installed jumper. Remove for 2-transformer systems only.
_, Optional 24VAC common connection.
,_ In Installer Setup, set system type to Heat Only.
A In Installer Setup, set system type to 1Heat/lCoel Heat Pump & changeover valve to 0 or B.
In Installer Setup, set system type to 2Heat/lCool Heat Pump.
_, L terminal is powered continuously when thermostat is set to Em Heat.
_, Install field jumper between Aux and E if there is no emergency heat relay.
In Installer Setup, set system type to 2Heatl2Cool conventional

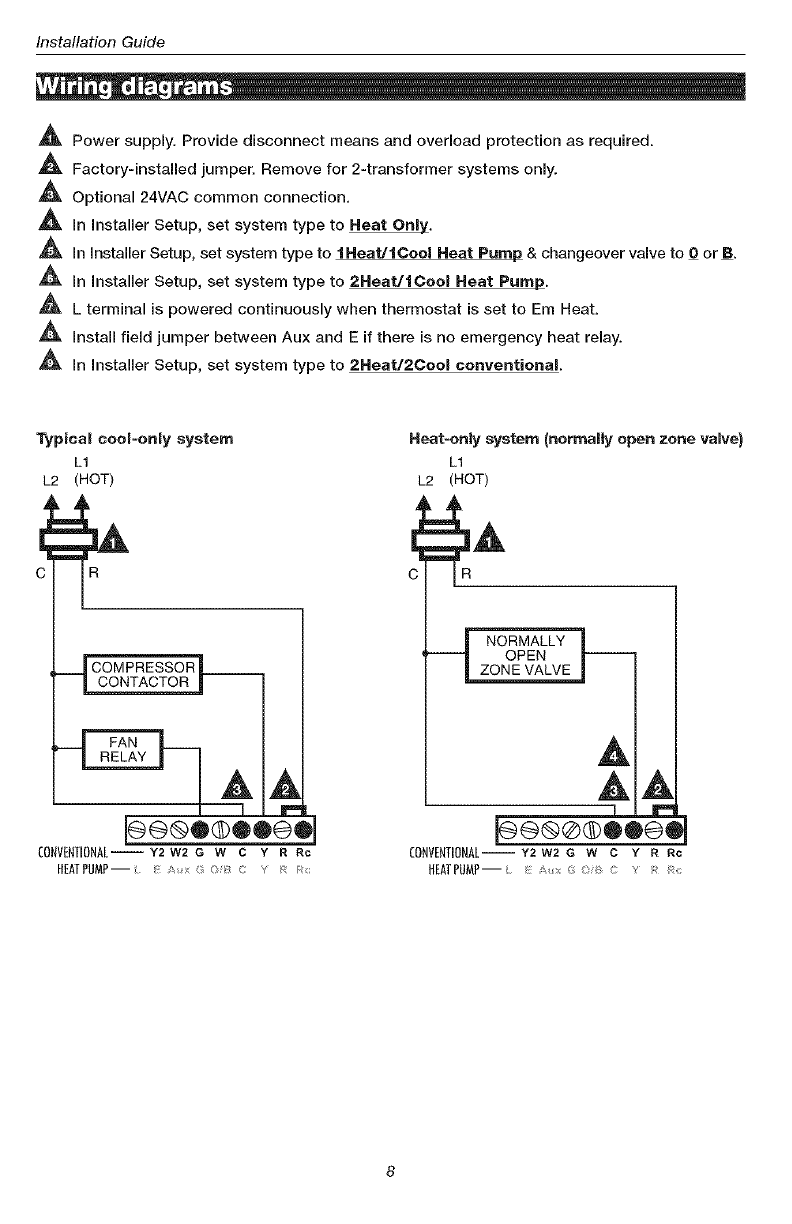

Typica_ cool-only system
L1
L2 (HOT)
COMPRESSOR L_
CONTACTOR_
i i r"
[@@@®@00@G
[0NVENTIONALJ Y2 W2 G W C YRRc
HEATPUMP-- _: <_ _t v ;:
Heat-only system (normafly open zone valve)
L1
L2 (HOT)
c
--iNORMALLY F
OPEN
ZONE VALVE
A
AA
I®÷®®®®®e®
[ONVENTIONALJ Y2 W2 e W C YR Sc

FocusPRO "MTH6220D Programmable Thermostat
i
_, Power supply. Provide disconnect means and overload protection as required.
_. Factory-installed jumper. Remove for 2-transformer systems only.
A Optional 24VAC common connection.
,_ In Installer Setup, set system type to Heat Only.
_. In Installer Setup, set system type to 1Heat/lCeol Heat Pump & changeover valve to 0 or B.
_. In Installer Setup, set system type to 2Heat/lCool Heat Pump.
L terminal is powered continuously when thermostat is set to Em Heat.
Install field jumper between Aux and E if there is no emergency heat relay.
,_ In Installer Setup, set system type to 2Heat/2Cool conventional
TypieaB 2H/2C system (f transformer}
L1
L2 (HOT)
__1 1st STAGE _.
COMPRESSOR|
CONTACTOR |
4 IstSTAGE _=_HEATRELAY
4 FANRELAY _---
4 2nd STAGE
HEATRELAY ! I
COMPRESSOR| I [
CONTAOTOR | I_'-- A A
II ,-
(ONVENTIONAL--Y2 W2 G WCYR Rc
Typical 2H/1C heat pump system
L1
L2 (HOT)
COMPRESSOR
CONTACTOR
CHANGEOVER
VALVE
FAN RELAY
AUXILIARYHEATRELAY
-1 EMERGENCY
HEATRELAY
-1 RELAY}
m
A
AA [eeoooooee
CONVENTIONAL-- vv _ w _ P:
HEATP[JMP--L EAuxGOIB C Y R Rc
A

Installation Guide
Jumper
Connect common
side of transformer
to "C" terminal
L E A_x G ©E_ C Y R R_,

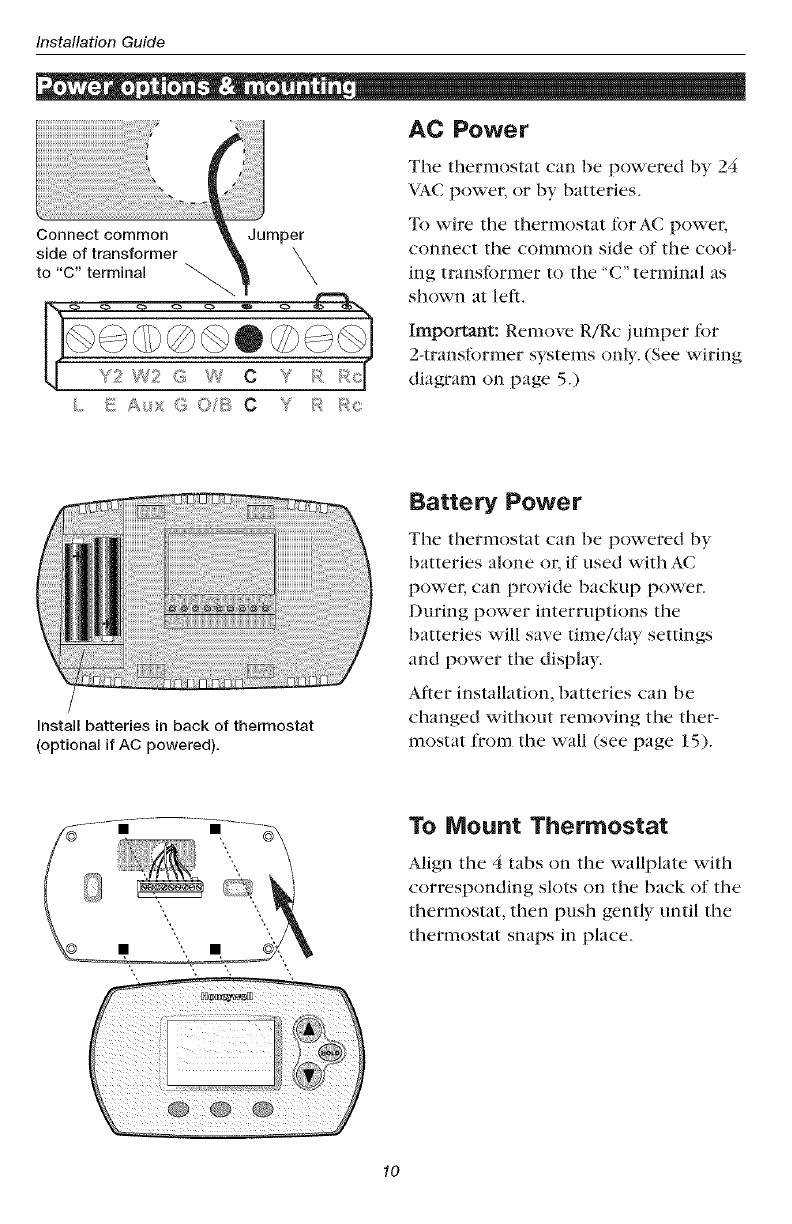

Install batteries in back of thermostat
(optional if AC powered).
AC Power
The thermostat can be powered by 24
VACpower, or by batteries.
To wire the thermostat [i)rAC power,
connect the common side of the cool-
ing transformer to the "C" terminal as
shown at left.
Important: Remove R/Rc jumper for
2-transformer systems only: (See wiring
diagram on page 5.)
Battery Power
The thermostat can be powered by
batteries alone or, if used with AC
power, can provide backup power.
During power interruptions the
batteries will save time/day settings
and power the display:
After installation, batteries can be
changed without removing the the>
mostat from the wall (see page 15).
To Mount Thermostat
Align the 4 tabs on the wallplate with
corresponding slots on the back of the
thermostat, then push gently until the
thermostat snaps in place.
® @ ®
10

FocusPRO TM TH6220D Programmable Thermostat
Follow tile procedure below to configure the thermostat to match the installed
heating/cooling system, and customize feature operation as desired.
Function Setting
_<_ number
To begin, press and hold the A and FAN
buttons until the display changes Press A or Y to change settings
Press NEXTto advance to next function
Press DONEto exit and save settings
Setup Function
1System type
2 Changeover valve
(O/B terminal)
3 Fan control
[heating)
5 Heat cycle rate
(CPH: cycles/hour)
6Second stage heat
cycle rate/
Auxiliary heat
(CPH)
Settings & Options
0Ga% oil or electric heat with air conditioning
1 1 heaV1 cool heat pump
2 Heat only (2-wire systems/power to open & close zone valves/
normally open zone valves)
3 Heat only with fan
4 Cool only
5 2 heat/1 cool heat pump
6 2 heat/2 cool conventional
7 2 heat/1 cool conventional
8 1 heat/2 cool conventional
0Changeover valve (O/B terminal energized in ceoling)
1 Changeover valve (O/B terminal energized in heating)
0Gas or oil furnace = equipment controls fan in heating
1 Electric furnace -- thermostat controls fan in heating
5For gas or oil furnaces of less than 90% efficiency
1 For steam or gravity systems
3 For hot water systems & furnaces of over 90% efficiency
9 For electric furnaces
[Other cycle rate options: 2, 4, 6, 7, 8, 10, 11 or 12 CPH]
5Fer gas or oil furnaces of less than 90% efficiency
1 For steam or gravity systems
3 For hot water systems & furnaces of over 90% efficiency
9 For electric furnaces
[Other cycle rate options: 2, 4, 6, 7, 8, 10, 11 or 12 CPH]
Continued on next page >
11

InstallationGuide
r
Follow the procedure below to configure the thermostat to match the installed
heating/cooling system, and customize feature opemdon as desired.
Function Setting
N®[]_BB number
To begin, press and hold the A and FAN
buttons until the display changes Press A or Y to change settings
Press NaT to advance to next function
Press DaNEto exit and save settings
Setup Function
8Emergency heat
cycle rate (CPH)
9Compressor
cycle rate (CPH)
10 Second stage
compressor cycle
rate (CPH)
12 System setting
adjustment
Settings & Options
9For electric emergency heat
1 For steam or gravity systems
3 For hot water systems & furnaces of over 90% efficiency
5 For gas or oil furnaces of less than 90% efficiency
)Other cycle rate options: 2, 4, 6, 7, 8, 10, 11 or 12 CPH)
Recommended for most compressors
)Other cycle rate options: 1, 2, 4, 5 or 6 CPH)
Recommended for most compressors
)Other cycle rate options: 1, 2, 4, 5 or 6 CPH)
0Manual changeover (HeatlCool/Off)
1 Auto changeover (Heat/Cool/Auto/Off) **See page 14
2 Auto changeover only (Auto) **See page 14
13 Adaptive Intelli= 1On **See page 14
gent Recove_ TM O Off
14 Temperature 0Fahrenheit
display 1 Celsius
15 Compressor
protection
16 Schedule format
27 Heat temperature
range stops
28 Cool temperature
range stops
5 Five-minute compressor off time **See page 14
[Other options: 0, 1, 2, 3 or 4-minute off time]
05/2 (pregremmable weekdays and weekends)
1 5/1/1 (weekdays, Saturday & Sunday programmable)
90 Highest heating temperature setting
40-89 Heating temperature range (increments of 1°F, or 0.5°C)
50 Lowest cooling temperature setting
51-99 Cooling temperature range (increments of 1°F, or 0.5°C)
12

FocusPROTM TH6220D Programmable Thermostat
Follow the procedure below to test the heating, cooling and fan.
System test System
number status
To begin, press and hold the A and T
buttons until the display changes
JPress A to turn on system
Press Y to turn off system
Press NEXTto advance to next test
Press DONEto terminate system test
System Test System Status
10 Heating system
20 Emergency
heating system
30 Cooling system
0Heat and fan turn off
1Heat turns on. Fan also turns on immediately if Function 1 is set
to "1" or "5," or if Function 3 is set to "1" **See page 11
2 Second stage heat turns on
0 Heat and fan turn off
1Heat and fan turn on
2 Second stage heat turns on (Aux)
0 Compressor and fan turn off
1 Compressor and fan turn on
2 Second stage compressor turns on
40 Fan system O
1
70 Thermostat
information
(for reference only)
Fan turns off
Fan turns on
71 Software revision number (major revisions)
72 Software revision number (minor revisions)
73 Configuration identification code (major)
74 Configuration identification code (minor)
75 Production configuration date code (week)
76 Production configuration date code (year)
CAUTION: EQUIPMENT DAMAGE HAZARD
Compressor protection (minimum off time) is bypassed during testing. To prevent
equipment damage, avoid cycling the compressor quickly.

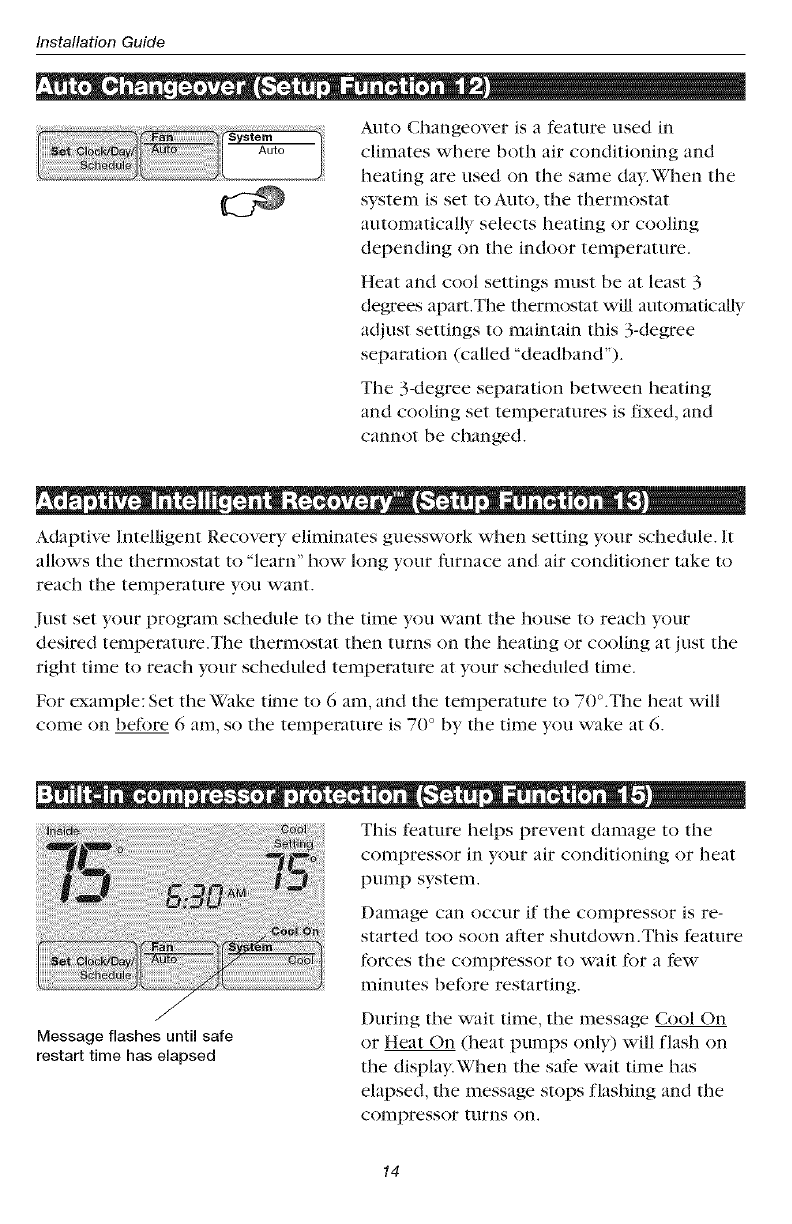

13

InstallationGuide
I
Auto
Auto Changeover is a feature used in
climates where both air conditioning and
heating are used on the same day:When the
system is set to Auto, the thermostat
automatically selects heating or cooling
depending on the indoor temperature.
Heat and cool settings must lye at least 3
degrees apart.The thermostat w_ automatically
adjust settings to maintain this 3-degree
separation (called "deadband").
The 3-degree separation between heating
and cooling set temperatures is fixed, and
cannot lye changed.
Adaptive ]intelligent Recove W eliminates guesswork when setting your schedule, lit
allows the thermostat to "learn" how long your furnace and air conditioner take to
reach the temperature you want.
Just set your program schedule to the time you want the house to reach your
desired temperature.The thermostat then turns on the heatfl_g or coolfl_g at just the
right time to reach your scheduled temperature at your scheduled thne.
For example: Set the Wake tline to 6 am, and the temperature to 70°.The heat will
come on beff)re 6 am, so the temperature is 70 ° by the time you wake at 6.
This feature helps prevent damage to the
COlnpressor in your air conditioning or heat
pump system.
Damage can occur if the compressor is re-
started too soon after shutdown.This feature
forces the compressor to wait for a few
minutes betk)re restarting.
During the wait time, the message Cool On
Message flashes untilsafe or Heat On (heat pumps onl)) will flash on
restart time has elapsed the display:When the safe wait time has
elapsed, the message stops flashing and the
compressor turns on.
14

FocusPRO TM TH6220D Programmable Thermostat
i
Digital display screen Battery holder (see page 10)
\
Temperature buttons
Press to adjust temperature
settings
'Held button
Press to override programmed
temperature control
Function buttons
Press to select the function displayed just above each button.
(Functions change depending on the task.)
| =
Current inside temperature
in Recovery
Adaptive Intelligent
Recovery
Current program
Wake/Leave/Return/Sloe
Low battery warning
/Current time/day
Temperature setting
zAuxiliary heat
(Only for heat pumps
with auxiliary heat)
Set CIockJDay/Schedule
Press to set time, day or
program schedules.
Function buttons "
Press the button beneath each function to view or change
settings (functions change depending on the task)
Heat On/Cool On
(if flashing, see page 14)
Jg
Heat/Cool/Auto/Off/
Em Heat
Fan setting
Auto/On
, i
Press and pull to remove\insert fresh AA
alkaline batteries,
then reinstall
battery holder
15

Installation Guide
[f you have di[Yiculty with your thermostat, please try the suggestions below. Most
problems can be corrected quickly and easily:
Display is blank * Check circuit breaker and reset if necessary.
. Make sure power switch at heating & cooling system is on.
• Make sure furnace door is closed securely.
• If thermostat is battery powered, make sure fresh AA alkaline batteries
are correctly installed (see page 10).
Temperature
se_ings do not
change
Make sure heating and cooling temperatures are set to acceptable ranges:
• Heat: 40° to 90°F (4.5 ° to 32°C).
. Cool: 50° to 99°F (10 ° to 37°C).
Check temperature range stop settings (Function 27 & 28 on page 12).
Heating system
does not respond
("Heat On"
appears on
screen)
Cooling system
does not respond
("Cool On"
appears on
SCl%=en)
o Check for 24 Vac at the equipment on the secondary side of the trans-
former between power and common, if voltage is not present, check the
heating equipment to find the cause of the problem.
* Check for 24 Vac between the heat terminal (W) and the transformer
common, if 24 Vac is present, the thermostat is functional. Check the
heating equipment to find the cause of the problem.
o Check for loose or broken wires between the thermostat and the heating
equipment.
• Check for 24 Vac at the equipment on the secondary side of the trans-
former between power and common, if voltage is not present, check the
cooling equipment to find the cause of the problem
Check for 24 Vac between the cooling terminal (Y) and the transformer
common. If 24 Vac is present, the thermostat is functional. Check the
cooling system to find the cause of the problem.
• Check for loose or broken wires between the thermostat and the cooling
equipment.
Fen does not _ Check installer Setup, Function 3(Fan Control), to make sure the fan
turn on in aear control is properly set to match the type of system (see page 11).
for heat
Heat pump
issues cool air
in heat mode_
OF warm air in
cool mode
o Check Installer Setup, Function 2 (Changeover Valve), to make sure it is
properly configured for your system (see page 11).
Heat/cool both
on at same time_
or heat does
not turn off
Check Installer Setup, Function 1 (System Type), to make sure it is set to
match the installed heating/cooling equipment (see page 11).
Check to make sure heating and cooling wires are not shorted together.
16

FocusPROTM TH6220D Programmable Thermostat
Heating equip- o Check Installer Setup, Function 1 (System Type), to make sure it is set to
merit is running match the installed heating/cooling equipment (see page 11).
in cool mode
Cannot change
system setting
to "Heat"
* Check Installer Setup, Function 1 (System Type), to make sure it is set to
match the installed heating equipment (see page 11).
Change Installer Setup, Function 12 (System Setting) to Manual or Auto
Charteogeover(see page 12).
Cannot change
system setting
to "Cool"
* Check Installer Setup, Function 1 (System Type), to make sure it is set to
match the installed cooling equipment (see page 11).
* Change Installer Setup, Function 12 (System Setting) to Manual or Auto
Charteogeover(see page 12).
"Heat Oil" is o
net displayed
"Cool On" is not *
displayed
"Cool On" or o
"Heat On"
is flashing
Change the System Setting to Heat, and set the temperature level above
the current room temperature.
Change the System Setting to Cool, and set the temperature level below
the current room temperature.
Compressor protection timeout is engaged. Wait 5 minutes for the
system to restart safely, without damage to the compressor.
Please contact your distributor to order replacement parts.
Battery holder ...................................................... Part Number 50007072-001
Cover plate assembly ........................................ Part Number 50002883-001
(Use to cover marks left by old thermostats,)
Temperature Ranges
Heat: 40° to 90°F (4.5 ° to 32°C)
o Cool: 50° to 99°F (10 ° to 37°C)
Electrical Ratings
Terminal Voltage (50/60Hz) Running Current
W(O/B) Heating 20-30 Vac 0.02-1.0 A
Operating Ambient Temperature
* 32° to 120°F (0° to 48.9°C) (Powerpile) 750 mV DC 100 mA DC
Shipping Temperature W2 (Aux) Heating 20-30 Vac 0.02-0.5 A
-20 ° to 120°F (-28.9 ° to 48.9°C) Y Cooling 20-30 Vac 0.02-1.0 A
Operating Relative Humidity Y2 Cooling 20-30 Vac 0.02-1.0 A
5% to 90% (non-condensing) GFan 20-30 Vac 0.02-0.5 A
Physical Dimensions E Emergency heat 20-30 Vac 0.02-1.0 A
3-9/16" H x 5-13/16" W x 1-1/2" D
91 mm H x 147 mm W x 38 mm D LHeat pump reset 20-30 Vac 0.02-0.5 A
17
