Quick Start Guide
Lyric T5 Wi-Fi Thermostat

Mercury Notice: If this product is replacing a control that
contains mercury in a sealed tube, do not place the old
control in the trash. Contact the Thermostat Recycling
Corporation at 18002388192 or thermostat-recycle.org
for information on how and where to properly and safely
dispose an old thermostat.
DISCONNECT POWER BEFORE INSTALLATION.
Can cause electrical shock or equipment damage.
Compatibility
• Compatible with most heating, cooling,
and heat pump systems
• Required: 24 VAC power (“C” wire)
• Does not work with electric baseboard heat (120240V)
• Does not work with millivolt systems
• Android or iOS smartphone, tablet or device
For help, contact:
WEB: yourhome.honeywell.com/support
EMAIL: [email protected]
PHONE: 18006333991
SOCIAL:
Twitter: @Honeywell_Home,
Facebook: Honeywell Home

3
The Lyric T5 WiFi Thermostat is a WiFi®enabled comfort system designed to be easy
to use, as well as maximize your home comfort. Lyric T5 WiFi thermostat provides
control of single stage and multi stage conventional and heat pump heating and
cooling systems.
Key features:
• Connect to the Internet and control
your heating/cooling system from
anywhere with your smart devices.
• View and change your heating/cooling
system settings.
• Programming options to fit any lifestyle:
–Geo Fencing: Use a smartphone’s
location to manage comfort when
home or away.
–Smart Scheduling: Use
combination of Geo Fencing and
time scheduling to fit a busy,
active lifestyle.
–Time Scheduling: Programs for
7Day, 1Day, 511, or 52,
with 4 periods during day.
–No scheduling: You can also
control your comfort manually by
adjusting the temperature yourself.
• Receive alerts, service reminders via
e-mail, and get automatic software and
features upgrades.
Download free Honeywell Lyric app:
• Once connected to WiFi and registered
Honeywell Lyric app., you can control
your thermostat from anywhere
through your tablet or smartphone.
The Honewell Lyric app is available
for Apple® iPhone®, iPad® devices
at iTunes® or at Google Play® for all
Android™ devices.
• It allows you much wider offer of
scheduling options and other comfort
setting compared to standard “on
device only” control.
• Download the Lyric App and register
a new account or enter an existing
account. Add a new device and follow
the steps to configure, set up and
connect the Lyric thermostat to the
local WiFi network.
Welcome

4 5

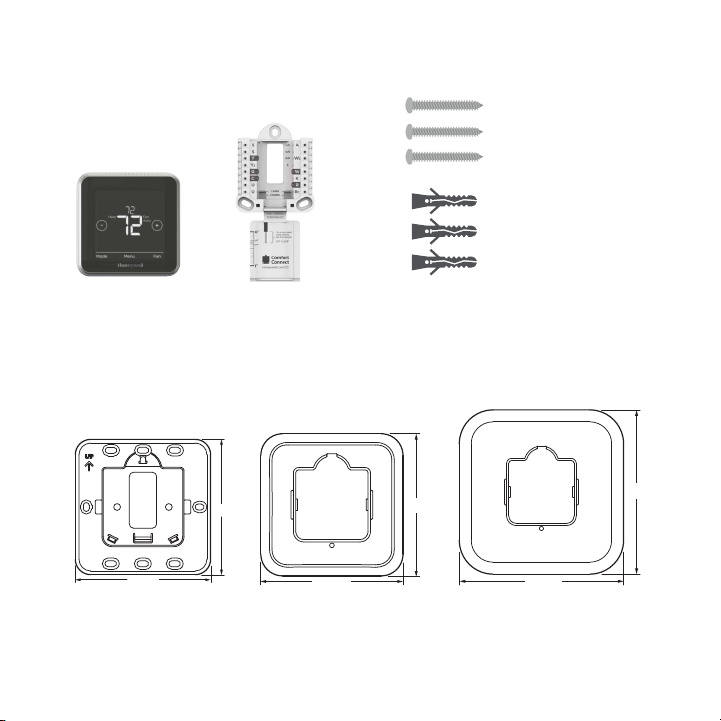

Included in your box:
Thermostat Honeywell Standard
16 Connector (S16)
Screws and Anchors
Honeywell Decorative
Cover Plate – Small
449/64 in (121mm.) x
449/64 in (121mm.)
Honeywell Decorative
Cover Plate – Large
67/64 in (155mm.) x
67/64 in (155mm.)
Honeywell Standard
Installation Adapter
329/32 in (99mm.) x
357/64 in (99mm.)
Optional Accessories Available:
3-57/6
4
(99)
3-29/32 (99)
4-49/64 (121)
4-49/64
(121)
6-7/64 (155)
6-7/64
(155)
Screws and Anchors
M35955

4 5
Tools you will need:
Ballpoint pe
n
Small fl
at head screwdriver
Wire stripper
*
Phillips screwdriver
Needle-nose pliers*
Drill and
drill bit (7/32")*
*Tools you might need
To photograph your existing wiring and
access the thermostat app
Smartphone
Honeywell Lyric app
To configure your system
and connect to your smartphone

6 7

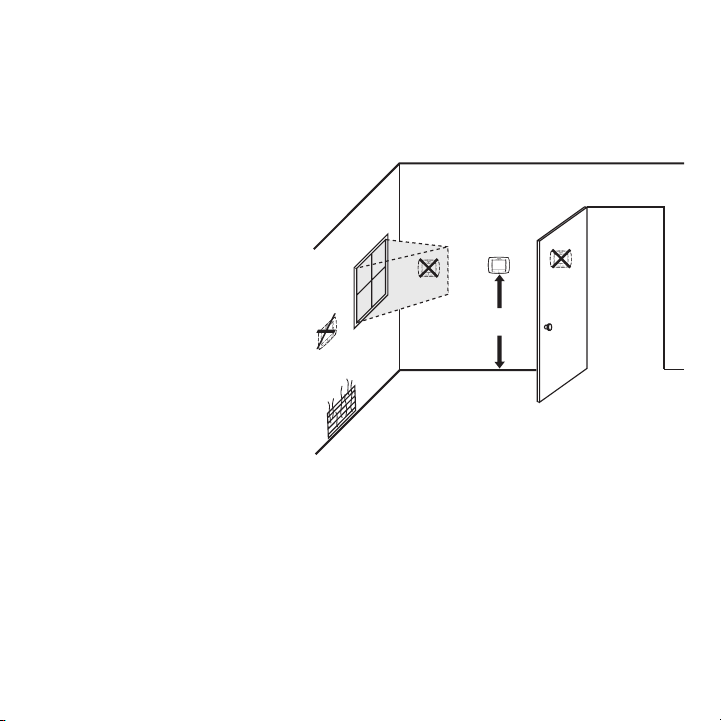

The Lyric T5 WiFi Thermostat should
be mounted in a suitable location.
• Install the thermostat about
5 ft. (1.5m) above the floor in an
area with good air circulation at
average temperature. See Fig. 1.
• Do not install the thermostat
where it can be affected by:
– Drafts or dead spots behind
doors and in corners.
– Hot or cold air from ducts.
– Radiant heat from sun or
appliances.
– Concealed pipes and
chimneys.
– Unheated (uncooled) areas
such as an outside wall
behind the thermostat.
5 FEET
[1.5 METERS]
YES NO
NO
NO
Fig. 1. Selecting thermostat location.
Installation

6 7

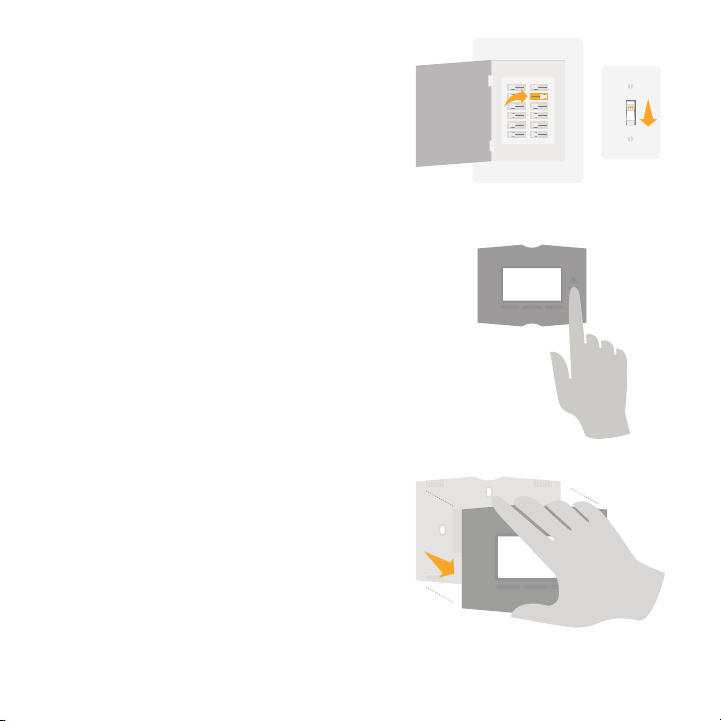

2 Make sure the power is OFF!
Try turning ON your heating/cooling
system by changing the temperature. If
you can’t get the system to turn ON in
5 minutes, you’ll know the power is OFF.
1 Turn OFF power (important!)
To protect yourself and the equipment,
turn OFF the power at the breaker box
or switch that controls your heating/
cooling system.
3 Take the faceplate off your old
thermostat.
On most thermostats, you can take off
the faceplate by grasping and gently
pulling. Some thermostats may have
screws, buttons, or clasps.
Do not remove any wires from your
thermostat.
75
OR
Switch
Breaker box

8
5 Take a picture of how your wiring
looks right now.
Be sure to include the letters next
to the terminals where the wires
are inserted. This will be a helpful
reference when wiring your Lyric
thermostat.
4 Make sure there are no 120/240V
wires.
Do you have thick black wires with
wire nuts? Is your thermostat 120V
or higher? If you answered yes to
either of these questions, you have
a line voltage system and the Lyric
thermostat will not work.
If you are unsure visit:
yourhome.honeywell.com/support
Wire nuts
Thick bl
ack wires

8 9
6 Record if you have wires in the following terminals.
Do no include jumpers.
Check all that apply:
Terminal Color of Wire
R
Rc
RH
7 Record the existing wire configuration.
Note the color of the wires that are plugged into your old thermostat’s
terminals. You will need this information to correctly wire your Lyric
thermostat.
Terminal Color of Wire
L
C
W2
W
U1
U2
If there are wires in terminals that are not listed, you will need additional
wiring support. Visit yourhome.honeywell.com/support to find out if the
Lyric thermostat will work for you.
Tip: You can also use the wiring guide in the Lyric app to create a diagram of
how to wire the new Standard 16 Connector.
Terminal Color of Wire
K
G
Y2
Y

10
8 Disconnect wires & remove the
old thermostat’s wall plate.
Use a screwdriver or a ballpoint
pen to release wires from
terminals.
Tip: To prevent wires from falling
back into the wall, wrap the wires
around your ballpoint pen.
9 Insert the wall anchors
(included).
It is recommended that you use
the screws and wall anchors
included in the box when
mounting your thermostat.
You can use the Honeywell
Standard 16 Connector to mark
where you want to place the wall
anchors. Drill bit size 7/32”.

10 11

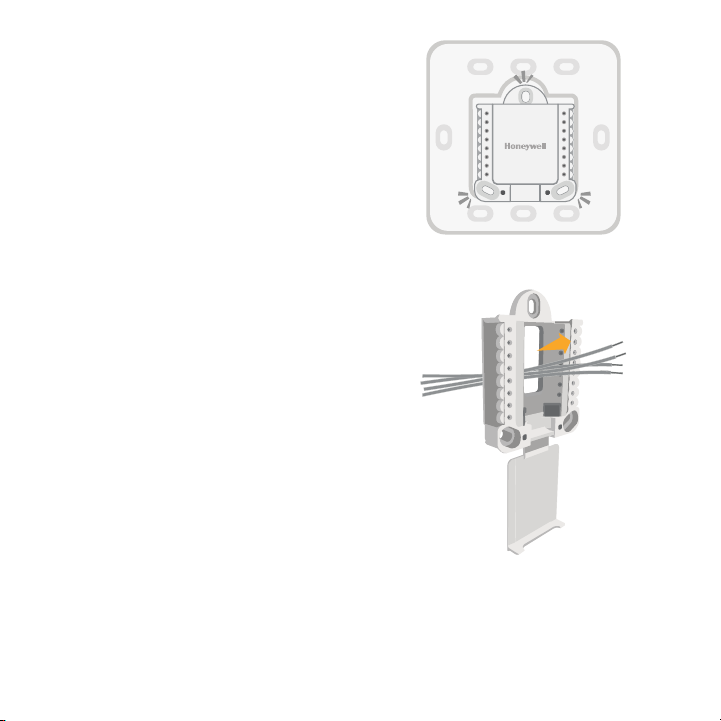

10 Check for any paint gaps or screw
holes left by the old thermostat.
If you choose to use the optional
Honeywell Decorative Cover Plate
and Standard Installation Adapter to
hide blemishes, snap the Connector
to Installation Adapter. For more
information see page 12.
11 Bundle and insert wires through
the new Honeywell Standard 16
Connector.
Gather the wires and guide them
through the hole in the middle of the
Standard 16 Connector.
Make sure at least 1/4-inch of each
wire is exposed for easy insertion
into the wire terminals. You can use
the “wiring guide” on the Standard
16 Connector door to measure the
correct length for exposed wire.
S 1
S 1
Y
Y
2
G
C
U
1
U 2
A
L/A
AUX
AUX
E
O/B
W 2
W 2
W
K
R
R
C

12
OPTIONAL:
Use either small or large Decorative
Cover Plate sold separately to cover any
paint gaps or screw holes left by the old
thermostat.
(For more info where to purchase
thermostat accessories, go to
yourhome.honeywell.com)
First attach Connector to Installation Adapter (picture 1
and 2). In the next step, attach Decorative Cover Plate to
create a tight fit of the thermostat to wall (picture 3).
1 2 3

12 13
12 Review your answer from Step 6.
Set the R-switch up or down based on your
wiring notes in Step 6.
If there is only one wire connected to R,
then your system uses this wire to power
both heating and cooling. Set the R-switch
to the up position.
If you have an R or Rh, and Rc wire, then
your system uses R or Rh to power the
heating system and Rc to power the cooling
system. Set the R-switch to the down
position.
NOTE: U-switch on the bottom left of the
Honeywell Standard 16 Connector is not
needed for this thermostat version.
13 Firmly connect remaining wires from
Step 7.
Push down on the tab to put remaining
wires into its corresponding terminal on
the Standard 16 Connector (one wire per
terminal) until it is firmly in place.
Gently tug on wires to verify they are secure.
To release wires, push down the terminal
levers on the on sides of Standard 16
Connector.
S1
S1
Y
Y2
G
C
U1
U2
A
L/A
AUX
O/B
E
W2
W
K
R
RC
K
R
RC
R(only)
RC (only)
RH(only)
R
RC
Set the R-Switch
If you checked Insert Wire(s) into Terminal(s)
RH
RC
R
Rc
R
Rc
R
Rc
R
Rc
R
Rc
R
R & RC
R
R & RC
R wire
Rc wire
RH wire
R wire
Rc wire
RH wire
Rc wire

14 15
14 Mount the Standard 16
Connector.
Mount the Standard 16
Connector using the provided
screws and anchors. Install all
(3) anchors & screws for a secure
fit on your wall. Make sure the
Standard 16 Connector is level,
ideally by using bubble level,
keeping the bubble between the
two lines.
15 Attach your Lyric T5 WiFi
Thermostat.
Align the Lyric thermostat
onto Honeywell Standard 16
Connector and firmly snap it into
place.
16 Turn your power ON.
Turn ON the power at the breaker
box or switch that controls the
heating/ cooling system.
S
S
Y
Y2
G
C
U
U
A
L/A
AUX
O/B
E
W2
W
K
R
RC
OR
Switch
ON
Breaker box
S1
S1
Y
Y2
G
C
U1
U2
A
L/A
AUX
AUX
E
O/B
W2
W2
W
K
R
RC
S1
S1
Y
Y2
G
C
U1
U2
A
L/A
AUX
AUX
E
O/B
W2
W2
W
K
R
RC

14 15
17 Log in to configure and connect
Your Lyric thermostat is not yet configured
to control your heating/cooling system.
To complete your setup, download the
Lyric App and register a new account or
enter an existing account.
iOS
Search the App Store for Honeywell Lyric.
Create an account and log in to configure
and connect.
Android
Search Google Play for Honeywell Lyric.
Create an account and log in to configure
and connect.

16 17

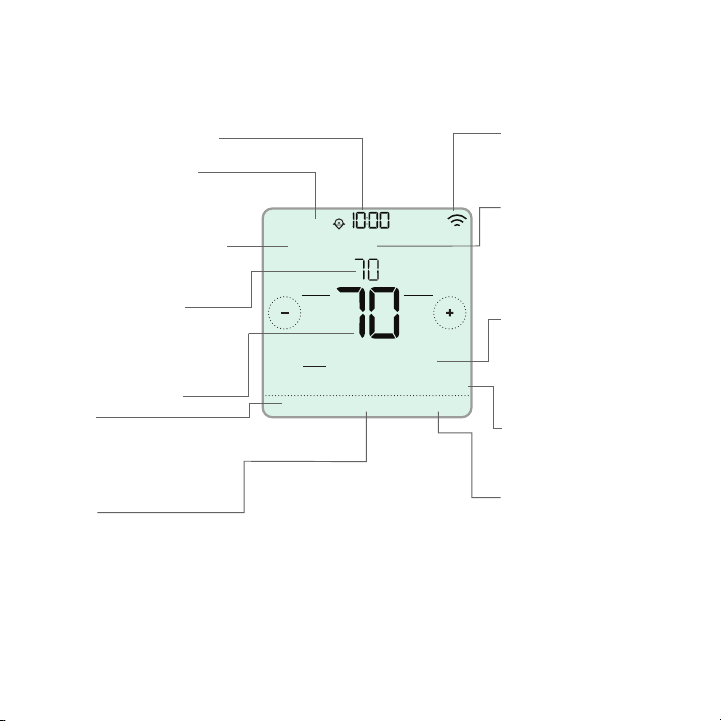

How to use your Lyric T5 WiFi Thermostat
The Screen wakes up by pressing
the center area with the displayed
temperature.
It stays lit for 45 seconds after you
complete changes. Depending
on how your thermostat was
installed, the screen light may
always be on
• Actual time / ISU or Alert
number
• Schedule information
– Following time
based schedule or
geo-location-based
schedule.
• System status information
– Cool On, Heat On
(Emergency Heat On),
Auto changeover On
• Indoor temperature
set-point
– Touch + and – to change
temperature setting and
select Hold until time or
Permanent hold.
• Indoor temperature
• Mode
– Select system mode
Heat/Cool/Off/EM
Heat (emergency heat).
Actual System mode is
displayed on the left side
of indoor temperature
• Menu
– Touch to display options.
Start here to set a
program schedule
AM
Menu FanMode
Fan
Auto
Mode
Heat
Wake Away Home Sleep
Following Schedule
Sched.
On/Off
• Connection status
information
– Status of connection
to your WiFi router
and Internet
• Messaging centre
– Showing device
setup options,
reminders and
alerts, status
of programmed
schedules, schedule
overrides.
• Actual schedule period
– Shows actual
schedule period
Wake/Away/Home/
Sleep. The active
schedule period is
indicated with an
underline (e.g. Wake)
• Sched. On/Off
– Activate or
deactivate your
programming
schedule
• Fan
– Select Fan mode
Auto/On/Circulate.
Actual Fan mode
is displayed on the
right side of actual
indoor temperature

16 17
How to use your Lyric app
Access the
menu
Use shortcuts to
easily activate your
favorite settings
Set desired
temperature
View weather
forecast
Change mode -
heating, cooling, or off
Set away
Interested in more Lyric products? Visit yourhome.honeywell.com to learn about all
available products connected by the Lyric app.
App is regularly enhanced and may change.

18 19
Get the most from Lyric T5 WiFi Thermostat
Diverse programming options that fit any lifestyle:
1. LocationBased scheduling – Lyric thermostat uses your
smartphone’s location to know when you’re away, and saves
you energy. Through geofence technology, it senses your
return and helps make you comfortable upon arrival. You can
also manually override your current setting when you’ll be out
for a few hours by using the Away button on the thermostat or
in the app.
2. Smart scheduling – Use combination of Geo Fencing and
time scheduling to fit a busy active schedule.
3. TimeBased scheduling – Programming type support for
7Day 1Day, 511, or 52 with 4 periods.
4. No scheduling – Control your comfort manually by
adjustment of temperature set points only.
Custom Shortcuts for unique situations. Save the shortcuts you
really like and they’ll be available on your app any time you want.
Customizable comfort has never been so simple.
Smart Alerts. Push notifications remind you of filter changes, warn
you of extreme indoor temperatures or of your heating/cooling
system failures.
Adaptive recovery. The Lyric thermostat learns your heating and
cooling cycle times to deliver just the right temperature, right when
you want it.
Auto changeover. When enabled, the thermostat automatically
selects heating or cooling depending on the indoor temperature.
!

18 19
Frequently Asked Questions
Will Lyric thermostat still work if WiFi connection is lost?
Yes, the temperature can be adjusted directly at the thermostat. However, some features, including
shortcuts and geofencing, are managed only through the Lyric app and will not function while the
connection is down. The Lyric thermostat will automatically reconnect to WiFi once the network is
restored.
Lyric thermostat is not finding the in home WiFi network.
Lyric thermostat operates in the 2.4GHz range. That may be why the Lyric thermostat does not
see the network but the smartphone, which operates in both the 2.4 and 5.0 GHz range, sees the
network. Most routers will broadcast two networks, one SSID on the 5.0 GHz radio and one SSID on
the 2.4 GHz radio.
Can Lyric thermostat be used in a home that does not have WiFi?
Lyric thermostat can work as a basic thermostat without WiFi. The key features, including location
based temperature control and custom shortcuts, require a WiFi connection.
Why does the screen on the Lyric thermostat go blank?
When someone is not touching the thermostat, the display goes to sleep to conserve energy or to
not disturb you at night. The thermostat can still be controlled through the Lyric app. Touching the
thermostat screen wakes it up. You can adjust default display behavior in menu of the thermostat.
A change was made on the Lyric app but it has not shown up on the Lyric thermostat.
There may be a short delay after making temperature and setting changes in the app.
Can there be multiple users for geofencing?
Yes, there can be multiple users. Geofencing will trigger based on the last person to leave and the
first person to return. To properly use geofencing with multiple users:
• Each user needs to create their own Lyric account.
• Each user should use their login ID and password across his or her devices, including
smartphones and tablets.
• No two users should share the same account.

20 21
How are multiple users set up with Lyric thermostat?
Access can be given to any or all Lyric thermostat locations through the Lyric app. Start by pressing
the three-line menu icon in the upper left-hand corner of the home screen. Press the gear wheel
next to the location name. Select Users and press + Add User located at the bottom of the screen.
Type in the email address of the person to be invited. If they have a Lyric account set up, the location
will be automatically added to their account. If they don’t have an account, they will receive an email
invitation prompting them to download the app and create their own account.
Note: All individuals with access to a thermostat share the same user privileges. Users added will be
able to change the thermostat’s settings and shortcuts, as well as add or delete other users.
Is there a way to extend the signal strength?
The range or distance of the WiFi signal is determined by the homeowner’s router. Check the
router’s manual for additional information.
There is a alert that says WiFi Signal Lost. What does that mean?
The WiFi signal to the Lyric thermostat has been lost. Wait for the thermostat to reconnect or select
a new network within the Lyric app configuration menu. If the thermostat is unable to reconnect, you
will need to troubleshoot the router to determine the cause.
Why is the thermostat showing up as offline (strike-through WiFi icon) on top of right corner of
thermostat display?
If the Lyric thermostat displays a strike-through WiFi icon on its screen or shows up as offline
on the Lyric app, it has lost connection to the network. Make sure the router is powered and
broadcasting. The home’s WiFi network may need to be reset by power cycling the router. Consult
the router’s instruction manual for directions on power cycling. When the network has been restored,
the thermostat will automatically reconnect.
An activation email hasn’t been received.
An email will be sent from connected[email protected]. An activation email is needed to
complete the Lyric account setup. If an activation email is not received after five minutes, check the
Spam folder of the email account.
If you do not find it in the Spam folder, click on the Resend button and the activation email will be
resent. If you still do not receive your activation email, please contact the Lyric Technical Support
team at 18006333991 for help.
Frequently Asked Questions
