Honeywell PRO TH3110D User manual

Installation
Guide
TH3110D
Non-programmable Digital Thermostat

Product Application
This thermostat provides electronic control of 24 VAC single-stage heating and cool-
ing systems, or 750 mV heating systems.
System Types
• Gas, oil, or electric heat with air
conditioning
• Warm air, hot water, high-efficiency
furnaces, heat pumps, steam, gravi-
ty
• Heat only
• Heat only with fan
• Cool only
• 750 mV heating systems
Power Type
• Battery power
• Common wire
• Common wire with battery backup
System Settings
• Heat, Off, Cool
Fan Settings
• Auto, On
Must be installed by a trained, experienced technician
• Read these instructions carefully. Failure to follow these instructions can dam-
age the product or cause a hazardous condition.
• Check the ratings in this booklet to verify that this product is suitable for your
application (see page 12).
• Always test for proper operation after installation (see pages 8-9).
CAUTION: ELECTRICAL HAZARD
Can cause electrical shock or equipment damage. Disconnect power before
beginning installation.
MERCURY NOTICE
If this product is replacing a control that contains mercury in a sealed tube, do not
place the old control in the trash. Contact your local waste management authority for
instructions regarding recycling and proper disposal.
® U.S. Registered Trademark. Patents pending.
Copyright © 2005 Honeywell International Inc. All rights reserved.

PRO TH3110D Non-programmable Digital Thermostat
1
Install the thermostat about 5 feet (1.5m) above the floor in an area
with good air circulation at average temperature.
Do not install in locations where the thermostat can be affected by:
• Drafts or dead spots behind doors and in corners
• Hot or cold air from ducts
• Sunlight or radiant heat from appliances
• Concealed pipes or chimneys
• Unheated/uncooled areas such as an outside wall behind the thermostat
NO
NO NO
Table of contents
Installation tips
IInnssttaallllaattiioonn
Pre-installation checklist ................2
Wallplate installation ......................3
Wiring..............................................4
Wiring diagrams ..............................5
IInnssttaalllleerrSSeettuupp
Fan operation settings ....................6
Battery installation ..........................7
Thermostat mounting ....................7
Installer setup..................................8
Installer system test ........................8
AAppppeennddiicceess
Quick reference to controls..........10
Quick reference to display............10
Compressor protection ................10
In case of difficulty ......................11
Accessories....................................12
Specifications ................................12

Installation Guide
2
Pre-installation checklist
Package contents
Check to make sure your package includes the following items:
• PRO TH3110D digital thermostat (wallplate attached to back)
• Operating manual
• Wall anchors and mounting screws (2 each)
• AA alkaline batteries (2)
Required tools & supplies
• No. 2 Phillips screwdriver
• Small pocket screwdriver
• Drill
• Drill bit (3/16” for drywall, 7/32” for plaster)
• Hammer
• Pencil
• Electrical tape
• Level (optional)

PRO TH3110D Non-programmable Digital Thermostat
3

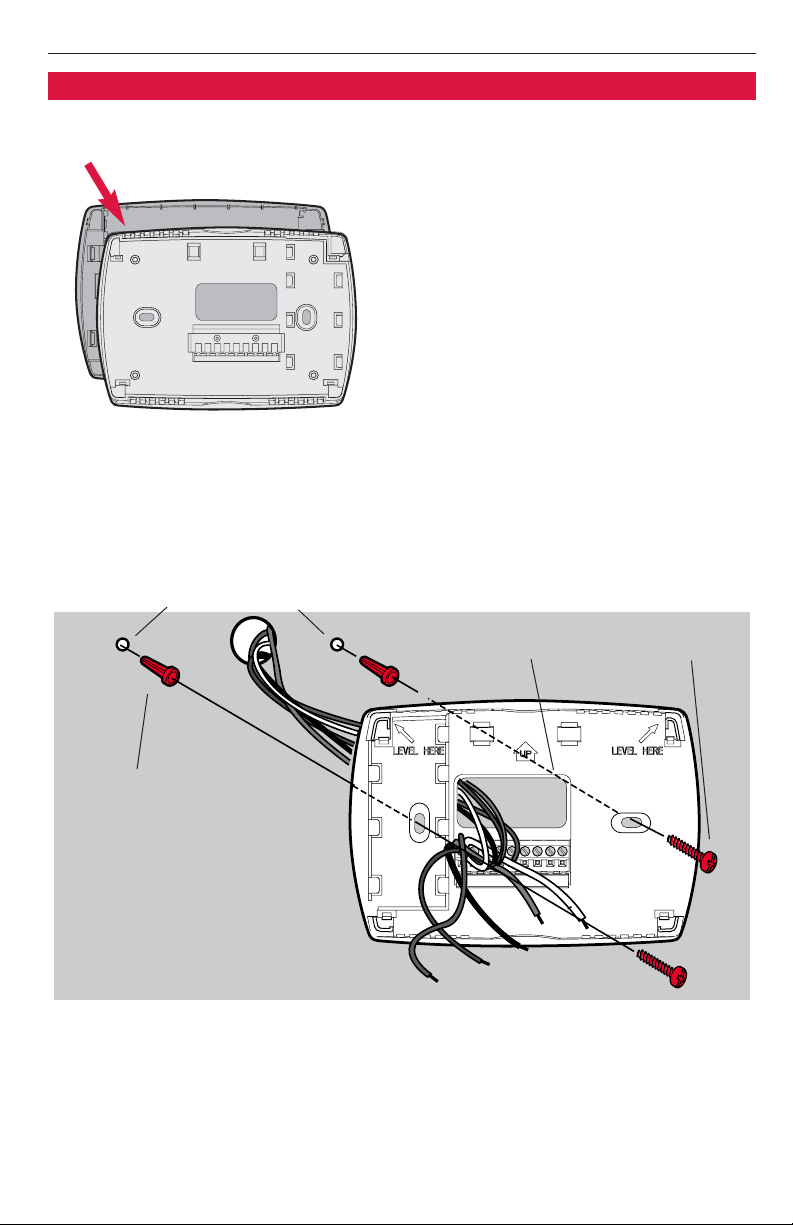

Remove the wallplate from the ther-
mostat as shown at left, then follow
directions below for mounting.
1 Pull wires through wire hole.
2 Position wallplate on wall, level and
mark hole positions with pencil.
3 Drill holes at marked positions as
shown below, then tap in
supplied wall anchors.
4 Place wallplate over anchors, insert
and tighten mounting screws.
Grasp top and bottom of wallplate
and pull to remove from thermostat.
Drill 3/16” holes for drywall.
Drill 7/32” holes for plaster.
Wall anchors
Mounting screwsWire hole
Wallplate installation

Installation Guide
4
Wiring
1 Loosen screw terminals, insert
wires into terminal block, then re-
tighten screws.
2 Push excess wire back into the
wall opening. Keep wires in shaded
area as shown at left.
3 Plug the wall opening with non-
flammable insulation to prevent
drafts from affecting thermostat
operation.
Terminal Designations
WWHeat relay.
YYCompressor contactor.
GGFan relay.
OOHeat pump changeover valve ener-
gized in cooling.
RRccCooling power. Connect to
secondary side of cooling
system transformer.
RRHeating power. Connect to
secondary side of heating
system transformer.
BBHeat pump changeover valve ener-
gized in heating.
CCCommon wire from secondary side
of cooling system transformer.
Terminal
block
NOTES
R & Rc terminals
In single-transformer system, leave metal
jumper in place between R & Rc. Remove
metal jumper if two-transformer system.
Heat pump systems
If wiring to a heat pump, use a small piece of
wire (not supplied) to connect terminals W
and Y.
C terminal
The C (common wire) terminal is optional
when thermostat is powered by batteries.
Wire specifications
Use 18- to 22-gauge thermostat wire.
Shielded cable is not required.
Keep wires in this
shaded area
CAUTION: ELECTRICAL HAZARD. Can cause electrical shock or equipment damage.
Disconnect power before wiring.
Wiring
Jumper

PRO TH3110D Non-programmable Digital Thermostat
5
Typical 1H/1C system: 1 transformer Typical 1H/1C system: 2 transformers
1Power supply. Provide disconnect means and overload protection as required.
2Factory-installed jumper. Remove for 2-transformer systems only.
3Use either Oor Bterminals for changeover valve.
4Use a small piece of wire (not supplied) to connect Wand Yterminals.
5Set fan operation switch to Heat Pump (see page 6) and configure for heat pump (see pg. 8).
6Optional 24 VAC common connection.
Wiring diagrams
Typical 1H/1C heat pump system Typical heat-only system
Typical heat-only system with fan Typical cool-only system
Remove jumper

Installation Guide
6
•GGaassoorrOOiill::For gas or oil heating
systems, leave the fan operation
switch in this factory-set position
(This setting is for systems that
control the fan in a call for heat.)
•EElleeccttrriiccoorrHHeeaattPPuummpp::Change the
switch to this setting for heat
pump or electric heat systems.
(This setting is for systems that
allow the thermostat to control the
fan in a call for heat, if a fan wire is
connected to the GG
terminal.)

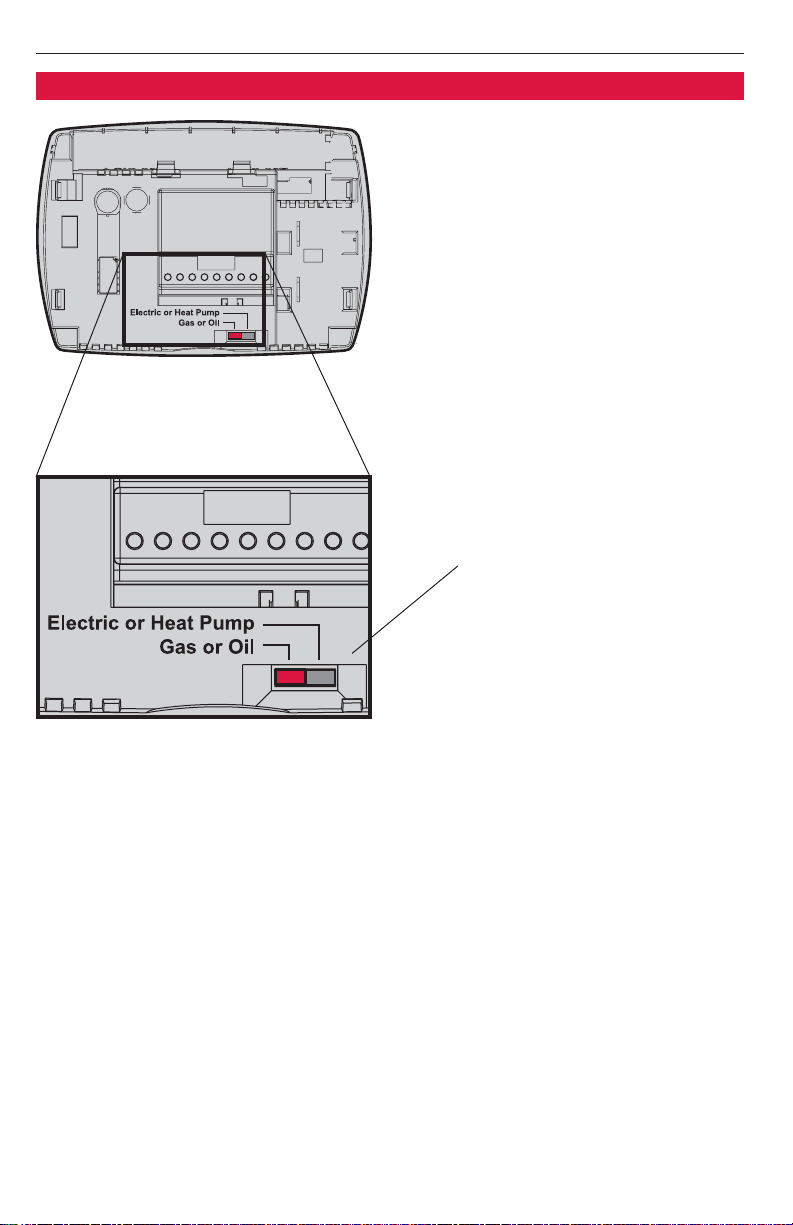

Set fan operation switch
Fan operation settings

PRO TH3110D Non-programmable Digital Thermostat
7
AC Power
The thermostat can be powered by 24
VAC power, or by batteries.
To wire the thermostat for AC power,
connect the common side of the
cooling transformer to the “C” terminal
as shown at left.
IImmppoorrttaanntt::Remove R/Rc jumper for
2-transformer systems only. (See wiring
diagram on page 5.)
Connect common
side of transformer
to “C” terminal
Install batteries in back of thermostat
(optional if AC powered).
Battery Power
The thermostat can be powered by
batteries alone or, if used with AC
power, can provide backup power to
the display during power interruptions.
To Mount Thermostat
Align the 4 tabs on the wallplate with
corresponding slots on the back of the
thermostat, then push gently until the
thermostat snaps in place.
Power options & mounting

10
Installation Guide
8
1
5
9
14
15
System type
Heating cycle rate
(CPH: cycles/hour)
Compressor
cycle rate (CPH)
Temperature
display
Compressor
protection
0 Gas, oil or electric heat with air conditioning
1 Heat pump (5 minute compressor off time in heating and cooling)
5 For gas or oil furnaces of less than 90% efficiency
1 For steam or gravity systems
3 For hot water systems & furnaces of over 90% efficiency
9 For electric furnaces
[Other cycle rate options: 2, 4, 6, 7, 8, 10, 11 or 12 CPH]
3 Recommended for most compressors
[Other cycle rate options: 1, 2, 4, 5 or 6 CPH]
0 Fahrenheit
1 Celsius
5 Five-minute compressor off time **See page 10
[Other options: 0, 1, 2, 3 or 4-minute off time]
Setup Function Settings & Options
To begin, press and hold the and
buttons until the display changes
Function
number
Press to change settings
Press to advance to next function
Press and hold to exit and save settings
Setting
Installer setup
Follow the procedure below to configure the thermostat to match the installed
heating/cooling system, and customize feature operation as desired.
Setup
Installer system test
After completing the installer setup above, press the button again to begin a
system test (see next page).
Press and hold both buttons

PRO TH3110D Non-programmable Digital Thermostat
9
10 0
Test
10
30
70
Heating system
Cooling system
Thermostat
information
(for reference only)
0 Heat and fan turn off.
1 Heat turns on. Fan also turns on immediately if Fan Operation
Switch is set to Electric Heat/Heat Pump (see page 6).
0 Compressor and fan turn off.
1 Compressor and fan turn on.
71 Software revision number (major revisions)
72 Software revision number (minor revisions)
73 Configuration identification code (major)
74 Configuration identification code (minor)
75 Production configuration date code (week)
76 Production configuration date code (year)
System Test System Status
Installer system test
CAUTION: EQUIPMENT DAMAGE HAZARD
Compressor protection (minimum off time) is bypassed during testing. To prevent
equipment damage, avoid cycling the compressor quickly.
System switch
System test
number
System status
1 Set SSYYSSTTEEMMswitch to Cool.
2 Press to turn on cooling system, then check system status (see table, below).
3 Press to turn off cooling system.
4 Set SSYYSSTTEEMMswitch to Heat.
5 Press to turn on heating system, then check system status (see table, below).
6 Press to turn off heating system.
7 [Optional] Set SSYYSSTTEEMMswitch to Offto display thermostat information (see table, below).
Press to display 71-76.
8Press and hold to terminate system test at any time.
Follow the procedure below to test the heating and cooling system.

Installation Guide
10
Inside Set To
75 75
Heat On
Cool On
°°
Replace Batt

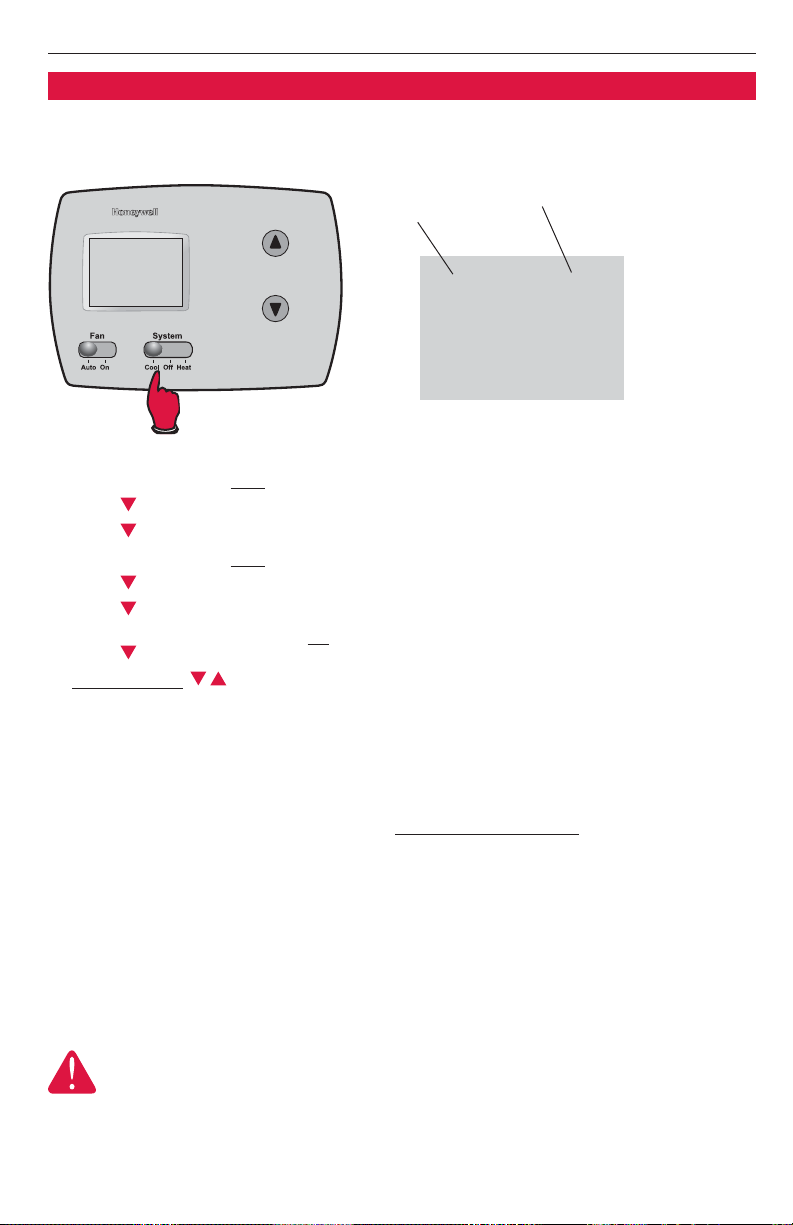

Quick reference to display screen
Current inside temperature
Low battery warning
Temperature setting
System status
On when “calling” for
heating or cooling;
flashes when waiting for
compressor restart
Quick reference to controls
Digital display screen Temperature buttons
Press to adjust temperature
settings
System switch
•Cool: Thermostat controls only
the cooling system.
•Heat: Thermostat controls only
the heating system.
•Off: Heating and cooling
systems are off.
Fan switch
On: Fan runs continuously.
Auto: Fan runs only when heating
or cooling system is on.
Inside Set To
75 75
Cool On
°°
Built-in compressor protection (Setup Function 15)
This feature helps prevent damage to the
compressor in the air conditioning or heat
pump system.
Damage can occur if the compressor is re-
started too soon after shutdown.This feature
forces the compressor to wait for a few min-
utes before restarting.
During the wait time, the message Cool On
(or Heat On if you have a heat pump) will
flash on the display.When the safe wait time
has elapsed, the message stops flashing and
the compressor turns on.
Message flashes until safe
restart time has elapsed

PRO TH3110D Non-programmable Digital Thermostat
11
In case of difficulty
If you have difficulty with your thermostat, please try the suggestions below. Most
problems can be corrected quickly and easily.
Display is blank • Check circuit breaker and reset if necessary.
• Make sure heating & cooling power switches are on.
• Make sure equipment door is securely closed.
• If battery powered, make sure fresh AA alkaline batteries are installed.
Temperature
settings do not
change
Make sure heating and cooling temperatures are set to acceptable ranges:
• Heat: 40° to 90°F (4.5° to 32°C).
• Cool: 50° to 99°F (10° to 37°C).
Fan does not
turn on in a
call for heat
• Make sure the Fan Operation switch is set to the proper system.
Heating system
does not respond
(“Heat On”
appears on
screen)
• Check for 24 Vac at the equipment on the secondary side of the trans-
former between power and common. If voltage is not present, check the
heating equipment to find the cause of the problem.
• Check for 24 Vac between the heat terminal (W) and the transformer
common. If 24 Vac is present, the thermostat is functional. Check the
heating equipment to find the cause of the problem.
• Check for loose or broken wires between the thermostat and the heating
equipment.
Cooling system
does not respond
(“Cool On”
appears on
screen)
• Check for 24 Vac at the equipment on the secondary side of the trans-
former between power and common. If voltage is not present, check the
cooling equipment to find the cause of the problem
• Check for 24 Vac between the cooling terminal (Y) and the transformer
common. If 24 Vac is present, the thermostat is functional. Check the
cooling system to find the cause of the problem.
• Check for loose or broken wires between the thermostat and the cooling
equipment.
“Cool On” or
“Heat On”
is flashing
• Compressor protection timeout is engaged. Wait 5 minutes for the
system to restart safely, without damage to the compressor.
“Heat On” is
not displayed
• Set the System switch to Heat, and set the temperature level above the
current room temperature.
“Cool On” is
not displayed
• Set the System switch to Cool, and set the temperature level below the
current room temperature.

Installation Guide
12
Accessories
Please contact your distributor to order accessories.
Cover plate assembly ............................................Part Number 50002883-001
(Used to cover marks left by old thermostats.)
Specifications
Temperature Ranges
• Heat: 40° to 90°F (4.5° to 32°C)
• Cool: 50° to 99°F (10° to 37°C)
Operating Ambient Temperature
• 32° to 120°F (0° to 48.9°C)
Shipping Temperature
• -20° to 120°F (-28.9° to 48.9°C)
Operating Relative Humidity
• 5% to 90% (non-condensing)
Physical Dimensions
• 3-13/16” H x 5-3/8” W x 1-1/4” D
• 97 mm H x 137 mm W x 32 mm D
Electrical Ratings
System Voltage (50/60Hz) Running Current
Heating 20-30 Vac 0.02-1.0 A
(Powerpile) 750 mV DC 100 mA DC
Cooling 20-30 Vac 0.02-1.0 A

Honeywell International Inc.
1985 Douglas Drive North
Golden Valley, MN 55422
http://yourhome.honeywell.com
Automation and Control Solutions
Printed in U.S.A. on recycled
paper containing at least 10%
post-consumer paper fibers.
® U.S. Registered Trademark.
© 2005 Honeywell International Inc.
Patents pending. All rights reserved.
69-1846 • 06-2005
Honeywell Limited-Honeywell Limitée
35 Dynamic Drive
Scarborough, Ontario M1V 4Z9
