2-zone application

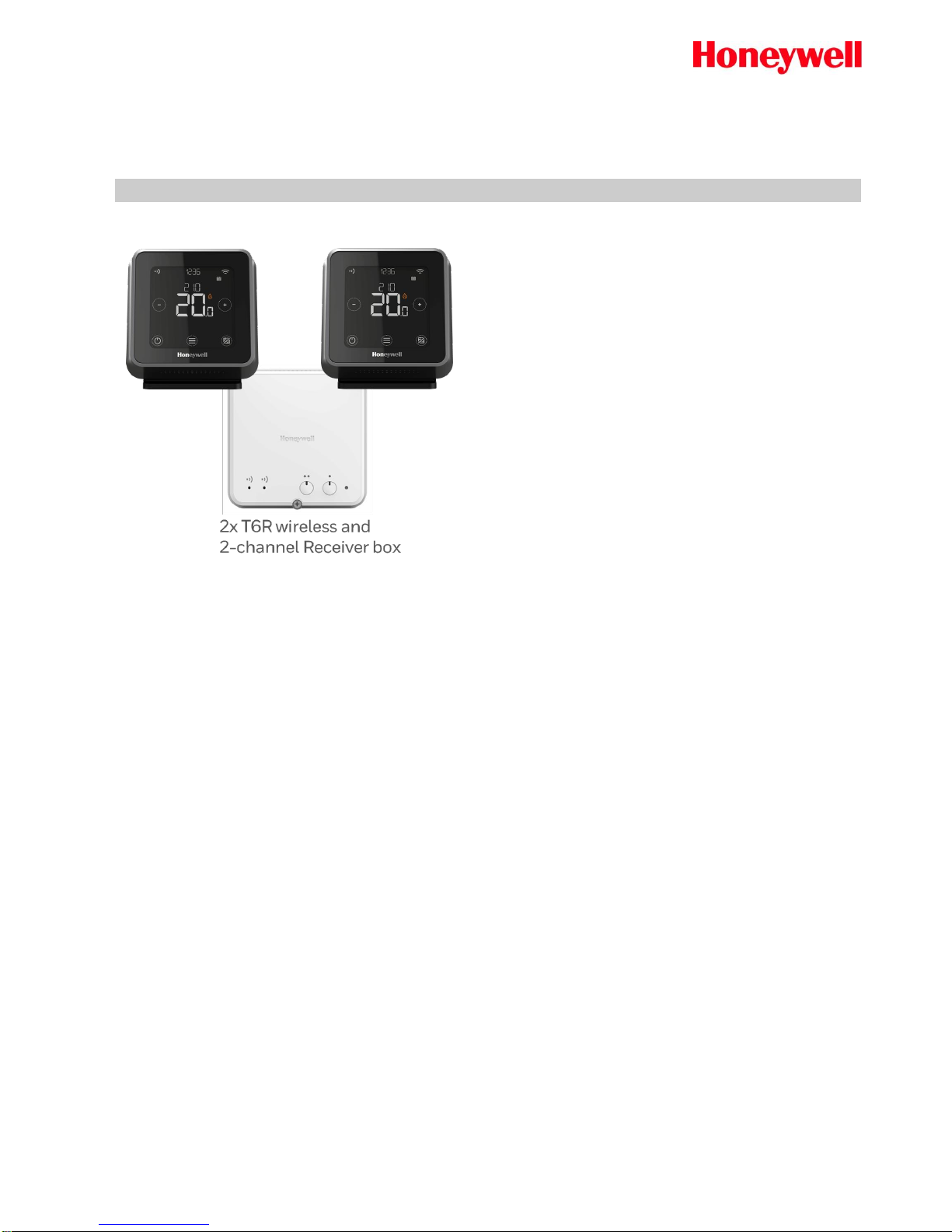

2XT6R SMART THERMOSTAT & 2-CHANNEL RECEIVER BOX
APPLICATION MANUAL
With the new 2-channel Receiver box (R6H911RF) and
2x a T6R wireless smart thermostats (T6H700RW)
automatic time and temperature control of 2 heating
zones and a boiler for homes and apartments can be
managed.
It’s compatible with 24-230V on/off and OpenTherm®
appliances such as gas boilers, combi-boilers and heat
pump. Also works with zone valve applications but not
with electric heating (240V).
The solution is designed with the installer in mind.
The 2-channel Receiver box offers mounting options for
directly on the wall or on a wall box. Wiring can be from
below or from the back by lifting the terminal platform,
which makes installation quick and easy.
The T6R wireless thermostat has a high contrast PMVA
display with dynamic text line and touch screen buttons.
The thermostat has a simple programming philosophy to
make it easier to install and very user friendly.
The 2-zone solution is ideal for consumers who want to
split the comfort control of their home in 2 areas, like
upstairs and down-stairs or a living and working area.
The solution offers remote comfort control of both zones
via the Honeywell Home app.
FEATURES
T6R Smart Thermostat
Attractive, ultra-modern styled thermostats make it ideal for
any location in any type of home.
Wireless with table stand to fit a new and retrofit
installations.
Wi-Fi communication to connect to the Internet
- Smart Home and Apple HomeKit ready
A dynamic text display on the LCD that gives enhanced
feedback to the user / installer.
High LCD Contrast and backlighting for easier viewing in all
light conditions.
Time out screen with selectable brightness
Factory programmed daily or 5+2 default heating schedule.
Schedule with up to 6 independent time and temperature
pairs to suit the comfort needs.
“Hold until”temperature override of programmed schedule
temperature till the next switch point.
Schedule off mode for manual operation.
Setpoint and room temperature always displayed.
OFF position has an integral frost protection setting at
minimum 5C so that pipes in the house will never freeze in
winter.
Alert messages to assist in fault-finding.
Honeywell Home mobile App for:
- Remote view and change of settings
- Schedule changes
- Smartphone Geolocation temperature control

User menu allows extra functions to be set at the discretion
of the user:
- Language selection
- Wi-FI setup
- Optimisation
- Clock setting
- Resetting the heating program to factory default
- Brightness
- Temperature offset
- Lock function
Advanced menu (Installer Set-Up) allows extra functions to
be set at the discretion of the installer to match the
consumers applications and needs:
- System type
- OpenTherm data
- Upper / Lower Set point Limit Adjust
- Minimum ON time
- Cycle rate
- Factory Reset
- Binding
2-channel Receiver box
Clear LED indication of bound devices
Override button per zone with LED indication
Simple binding via override button
A flip up wiring platform for easy wiring
Pinhole for easy reset.
2 on/off relay outputs
OpenTherm®compatible heating control output.

2 ZONE T6R SMART THERMOSTAT
2 T6R-2Z-EN0H 8603 NL01 R0718

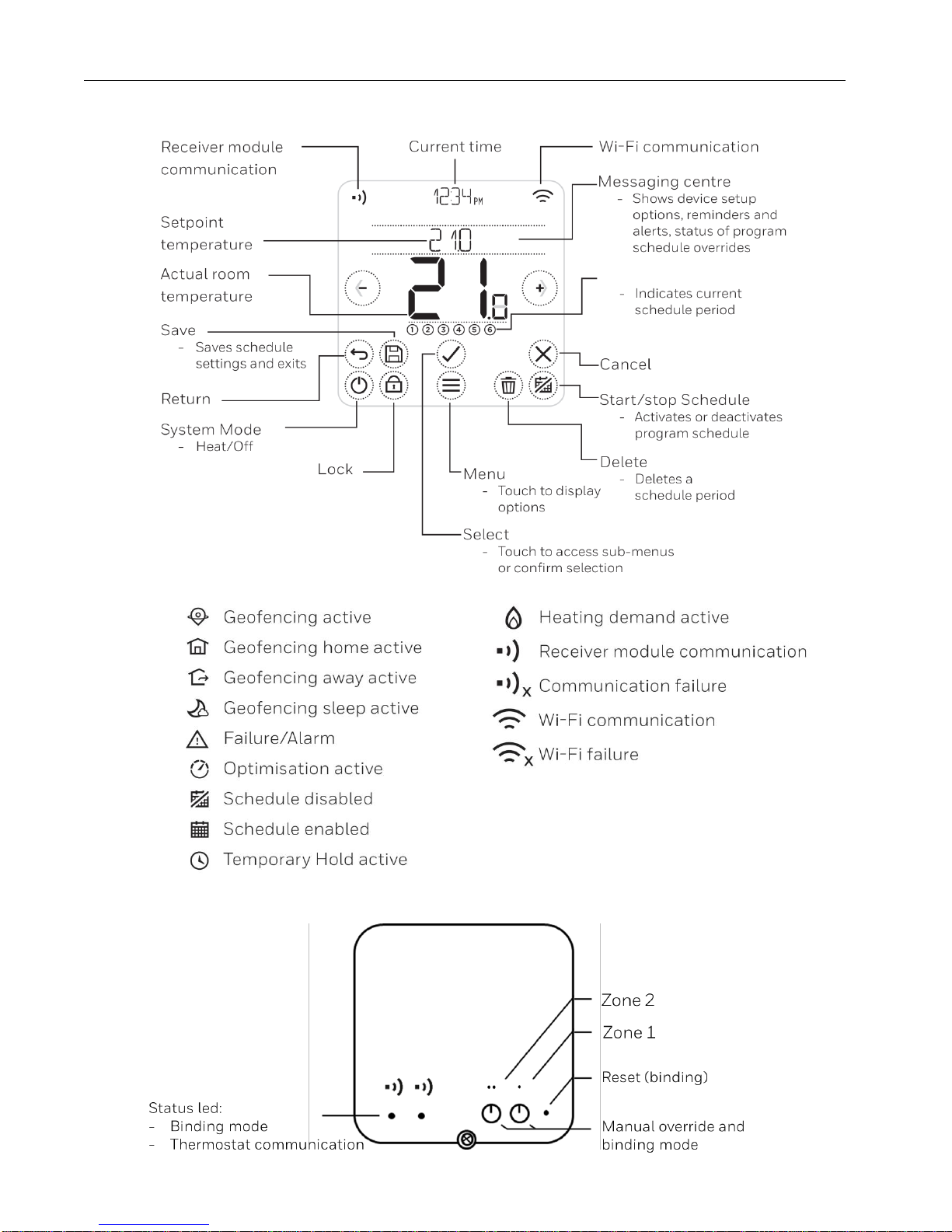

T6R THERMOSTAT DISPLAY/BUTTON LAYOUT
Reference to the icons:
2-CHANNEL RECEIVER BOX
INTERFACE
Schedule period

2 ZONE T6R SMART THERMOSTAT
T6R-2Z-EN0H 8603 NL01 R0718
3
WIRING OPTIONS 2-CHANNEL RECEIVER BOX
The 2-channel Receiver box always requires 230V power and is suitable for both 24V and 230V zone valve
applications.
Note: For the wiring of the OpenTherrm® boiler a separate cable is required.
C) Wiring 2 zone valves (24V) and 24V
on/off boiler
Zone valve end switches used for
controlling boiler (demand)
D) Wiring 2 zone valves (24V) OpenTherm®
boiler
Demand of zones used for controlling
(modulating) OpenTherm® boiler
A) Wiring 2 zone valves (230V) and basic
230V on/off boiler
Zone valve end switches used for
controlling boiler (demand)
B) Wiring 2 zone valves (230V) and OpenTherm®
boiler
Demand of zones used for controlling
(modulating) OpenTherm® boiler

2 ZONE T6R SMART THERMOSTAT
T6R-2Z-EN0H 8603 NL01 R0718
4

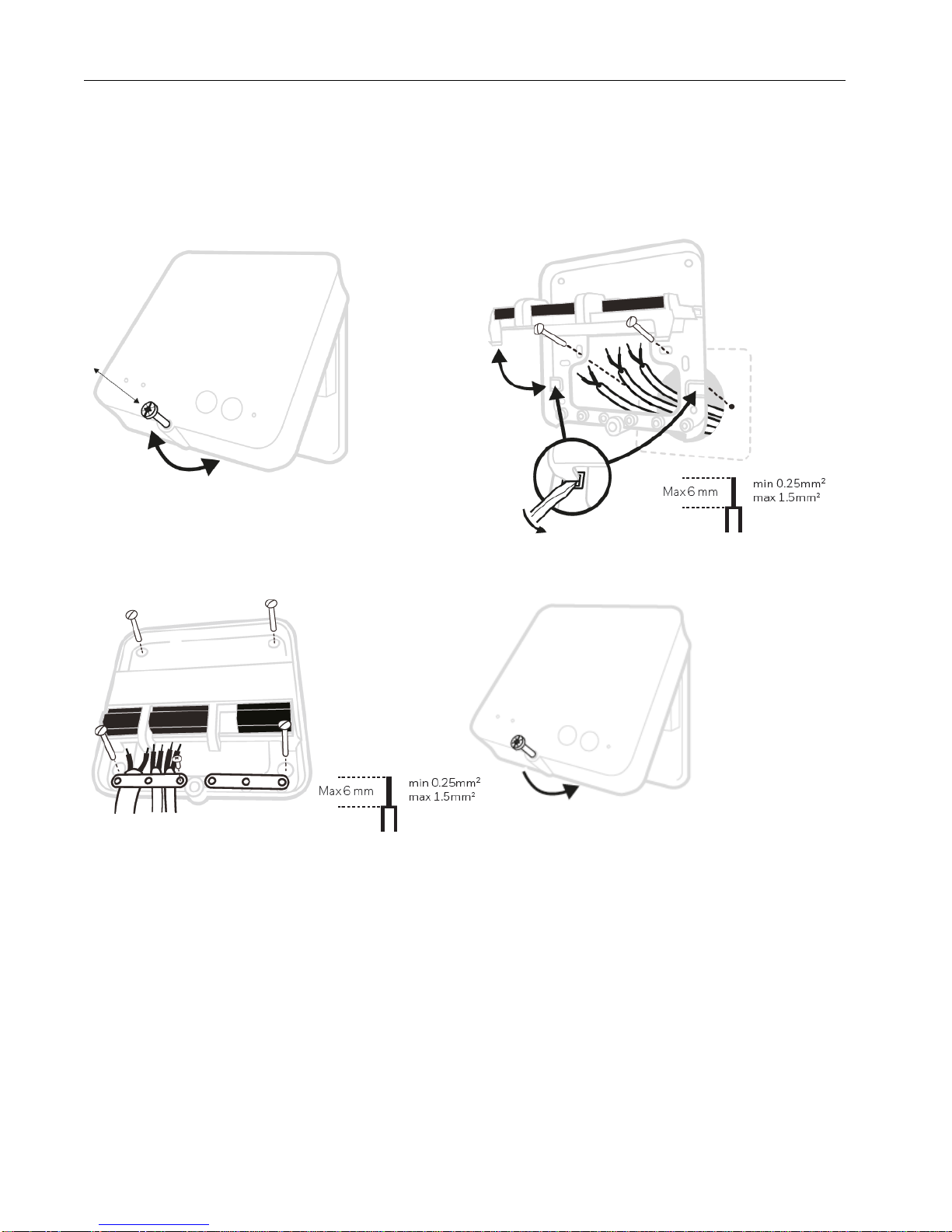

B. Wall box or Rear wiring
Hinge open the terminal block flap to access the
cables and wall box screw holes.
C. Surface wiring
Use the cable clamps to secure the surface
wiring.
D. Replace cover
Locate the hinges at the top of the cover and wall
plate, close the cover and secure with the screw.
A. Opening and removing top cover
Loosen the front screw and hinge open to remove
the top cover.
To ensure your safety, always make sure mains power is switched OFF before accessing wiring.
Find a suitable location near the boiler. Leave at least 30cm distance from any metal objects including wall
boxes and boiler housing.
POWER UP 2-CHANNEL RECEIVER BOX
Turn ON mains power to the 2-channel Receiver box and the Heating Appliance and installation is complete.
None of the LED’s will be lit after power up!
Do not plug-in the adapter of one of the T6R thermostats yet, because they need to be bound to the Receiver
box.
MOUNTING AND WIRING 2-CHANNEL RECEIVER BOX

2 ZONE T6R SMART THERMOSTAT
T6R-2Z-EN0H 8603 NL01 R0718
5
Zone 1 Thermostat powering up, setup and binding
T6R THERMOSTAT SET UP AND BINDING
Both the T6R Smart Thermostats still need to be bound to the 2-channel Receiver box before they can control
the comfort in their zone.
Now place the first zone thermostat near the 2-channel Receiver box and plug-in the adapter.
When SETUP is displayed on the screen of the thermostat, follow the next steps:
Choose the
appropriate plug.
Touch
to begin
setup.
Select language.
Set clock format, time
and date.
Touch
to start binding
with 2-channel Receiver box.
Next put the 2-channel Receiver box into binding mode by
pressing Zone 1 button for 3 sec.
- The first RF LED will flash amber
Touch
and the signal
will be sent.
When binding successful:
- thermostat shows SUCCESSS
Zone 1 status LED shows green
touch
to proceed.
Touch
to select
system type.
When binding is NOT successful:
- Thermostat will show FAILED
- Receiver box will exit binding after 3 min.
RF communication might be too far or is blocked due to wrong location of the
Thermostat or Receiver box. Try to move closer or re-locate and re-bind again.
Note: When the Receiver box has been bound before first press
with a small pin the pinhole for approximately 3 seconds to
reset the binding. All LED’s will flash amber for a moment.

2 ZONE T6R SMART THERMOSTAT
T6R-2Z-EN0H 8603 NL01 R0718
6

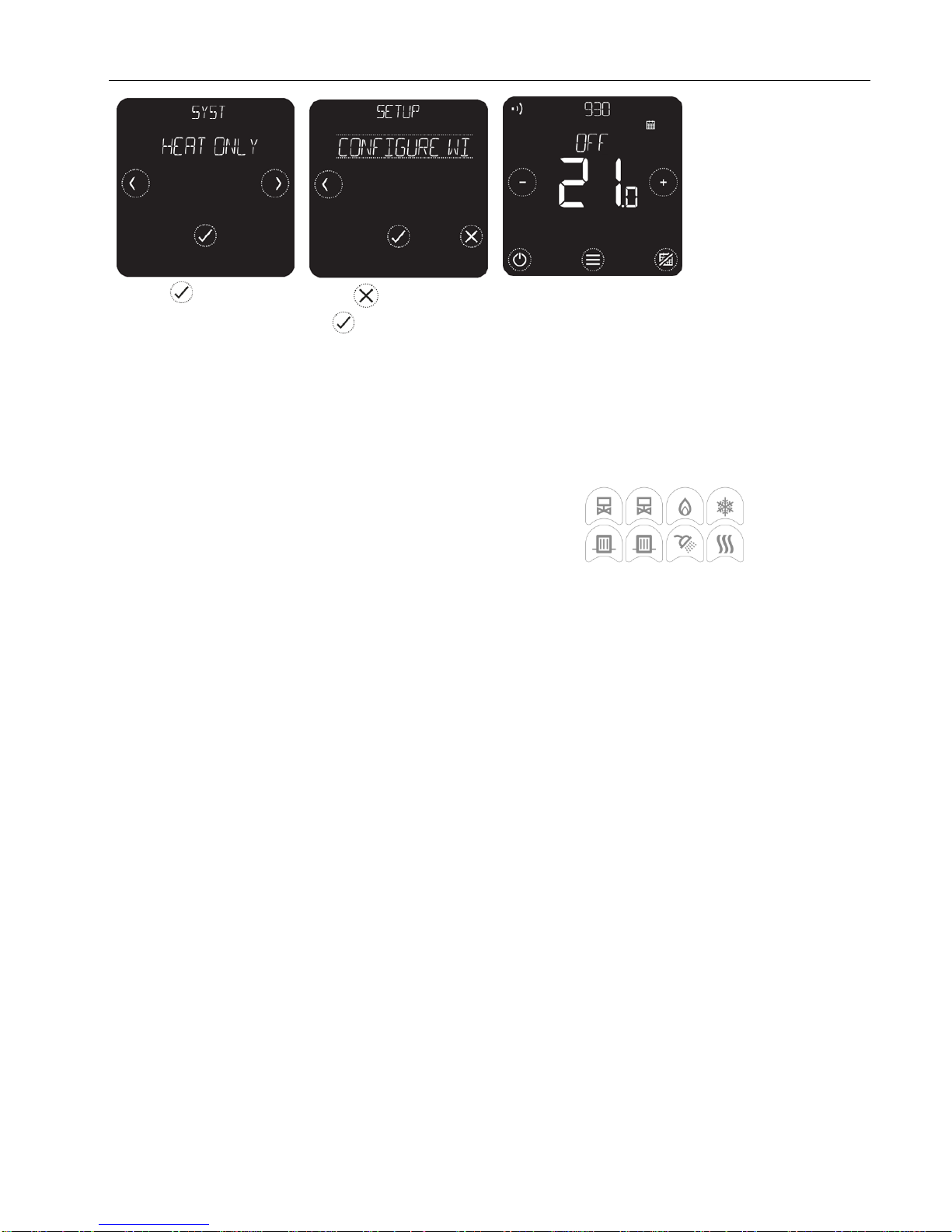

Touch
to finalise setup.
(
to setup using the
Honeywell App is currently
unsupported)
Touch
to select heat
only application
Zone 1 thermostat setup and
binding is complete.
Thermostat is switched OFF
Zone 2 Thermostat powering up, setup and binding
Now place the second zone thermostat near the 2-channel Receiver box and plug-in the adapter.
When SETUP is displayed on the screen of the thermostat, follow the next steps:
Touch
to begin
setup.
Select language.
Set clock format, time
and date.
Touch
to start binding
with 2-channel Receiver box.
Next put the 2-channel Receiver box into binding mode by
pressing Zone 2 button for 3 sec.
- The first RF LED will flash amber
Touch
and the signal
will be sent.
When binding successful:
- thermostat shows SUCCESSS
Zone 2 status LED shows green
touch
to proceed.

2 ZONE T6R SMART THERMOSTAT
T6R-2Z-EN0H 8603 NL01 R0718
7
After binding the second zone the binding and setup is complete.
Place both thermostats on an even and horizontal surface in their appropriate area (zone)
to control the comfort.
Note: The thermostats should not be placed near draughts, in direct sunlight or near heat
sources. It should be at least 1.2 - 1.5 meters from the floor.
Use the included stickers on the cover of the Receiver box to indicate
the application.
Touch
to finalise setup.
(
to setup using the
Honeywell App is currently
unsupported)
Touch
to select heat
only application
Zone 2 thermostat setup and
binding is complete.
Thermostat is switched OFF
Once setup is completed go to the advanced menu to change application specific changes.

2 ZONE T6R SMART THERMOSTAT
T6R-2Z-EN0H 8603 NL01 R0718
8
Special Features
Description
Heat Range
The normal lower temperature limit of 5 oC can be increased up to 21 oC to protect the
inhabitants from cold conditions. This is a useful feature aimed at supporting the elderly,
children and disabled inhabitants.
The normal upper temperature limit of 35 oC can be reduced down to 21 oC to save energy. This
feature is useful for leased homes and apartments.
Schedule options
The thermostat has 2 default schedules: daily (every day) and 5+2 (week + weekend days)
Optimisation (optimal
start, optimal stop and
delayed start)
Optimal Start: learns how long it takes your system to reach the programmed temperature. It
turns on the heating system earlier to make sure it’s comfortable at the scheduled time.
Optimal Stop: Saves energy and money by switching off a little bit earlier than the normal
programmed time. If the home is up to temperature, it will not notice the effect on the
temperature, but will show a difference in the fuel bill.
Delayed start: Saves energy by slightly delaying the start of heating depending on the
difference between the scheduled temperature and the actual room temperature
Clock setting
Change display format (default 24hr) and adjust time and date.
When connected to Internet time and date will be synchronized
Low Load Control
If the Receiver box is connected to an OpenTherm appliance this setting is used in the demand
control. When an appliance is no longer able to modulate lower the control switches from
modulating control to low/off control.
Temperature Offset
If the Thermostat is located in a hot/cold location and cannot be moved because of wiring then
the measured/ displayed temperature can be adjusted by +/- 1,5 oC. This feature is useful if the
homeowner wants the reading to match another appliance temperature display.
Binding
Menu to bind the Thermostat and the Receiver box, test the RF signal strength of the radio
communication and to clear an existing binding.
Reset
Menu to reset the thermostat back to factory default settings, reset the schedule to default
settings, reset the Wi-Fi and Homekit settings.
Failsafe
When the radio communication between the Thermostat and Receiver box is lost for longer
than 1 hour the Receiver box will start to cycle the demand 20% on / 80% off.
Menu item
Default
Options
Language
English
English, Francais, Espanol, Deutsch, Nederlands, Italiano
OpenTherm
-
OpenTherm boiler data when a vailable (see OpenTherm communication)
Cycle rate
6
3,6,9 or 12
Min on time
1 minute
1, 2, 3, 4 or 5 minutes
Heat range
Min = 5.0
Max = 37.0
Min: 5.0°C to 21.0 °C, Max:21.0°C to 37.0 °C
Schedule options
Daily
1 = daily schedule, 2 = 5+2 days schedule
Optimisation
Opt.start on
Opt.stop off
Opt start: 0 = off, 1 = on, 2 = Delayed start
Opt stop: 0 = off, 1 = on
Clock
Format: 24h
Time: --:--
Date: 01/09/2016
Clock format: 1 = 12h, 2 = 24h
Setup time and date
Low Load Control
ON
0= Off, 1 = On
Temperature offset
0.0
-1.5°C to 1.5 °C
Bind
-
Bind, check RF and clear bind.
Adv Reset
-
Factory, schedule, Wi-Fi and Homekit reset
Failsafe
OFF
0= Off, 1 = On
ADVANCED MENU
To enter the Advanced menu (installer set-up):
Press the menu key for 5 seconds.

2 ZONE T6R SMART THERMOSTAT
T6R-2Z-EN0H 8603 NL01 R0718
9
OPENTHERM® COMMUNICATION
OpenTherm® is a manufacturer independent communication protocol between modulating appliances (boilers, air heaters
and heat recovery units) and room thermostats.
Via the OpenTherm® protocol, the Receiver box of the T6 / T6R thermostat constantly communicates with the connected
appliance.
Modulating
The T6/T6R thermostat controls, via the Receiver box, the OpenTherm® communicating appliance modulating. This means
that, depending on the heat demand, the burner capacity is adjusted in the appliance. This creates a very accurate control
of the room temperature.
On top of that, this method of temperature control is more energy-efficient and environmentally friendly.
Low Load Control
When a boiler is no longer capable of modulating back it will stop the burner and then will be a cycling on it's own
continuously during this low control setting (requested water temperature).
In order to have a proper performance and to switch the pump on/off as well we created low load control. This is cycling
between off and min modulation level.
The cycle rate is related to the time the water temperature is cooling off below the control setpoint (demand) and the on
time of the boiler to get heated to the control setpoint.
It's an algorithm which optimizes the cycle rate and tries to get the boiler on for the longest time.
Hot water control
Most Combi-boilers have a small internal storage for hot tap water. By keeping a number of liters of hot water, the
appliance can supply hot tap water directly without having to heat it up first. With a longer period of none use or absence,
for example sleep or holiday, the hot water storage does not have to be kept at a high temperature.
The T6/T6R thermostat can provide additional savings here. With the last programmed period (sleeping)
the hot water status can easily be switched to a saving level or completely be switched off.
With these Combi-boilers, a menu "Hot water during sleep" (on/off) will be available in the installer menu (page 6).
OpenTherm® data
De T6/T6R thermostat offers the ability to view some appliance data via de OpenTherm® communicatie.
See table on page 6 which data can be viewed.
Note: Depending on the connected appliance, more or less data is displayed on the T6/T6R thermostat and certain
settings of the appliance may or may not be changed from the thermostat. Refer to the instruction manual of the
appliance for specific information.
Advanced menu item
Default
Data / Options
OpenTherm
Submenu
(read only)
-Low Load Control
-Control Setpoint Requested supply temperature
-Supply Water Temperature Actual supply water temperature
-Return Water Temperature Actual return water temperature
-Max Supply Water Temperature
-Hot water Temperature Actual hot water temperature
-Hot Water Setpoint
-Actual Power Actual power of appliance
-Water Pressure
Hot Water Overnight
1
0= OFF, 1 = ON
Hot Water Setpoint
60
30 tot 75 °C (appliance depending)
Max Supply Water Setpoint
90
30 tot 90 °C (appliance depending) - future
Low Load Control
1
0= OFF, 1 = ON

2 ZONE T6R SMART THERMOSTAT
T6R-2Z-EN0H 8603 NL01 R0718
10
HEAT DEMAND CONTROL
The control of the heat demand of the 2 zones depends on the applied boiler type.
An on/off boiler or an OpenTherm® modulating boiler can be applied.
The 2-channel Receiver box receives from both zone thermostats the heat demand and will control the
corresponding zone valve via the relay contact to open.
For the cycle rate setting recommend the standard setting 6x per hour.
When an on/off boiler is applied, it can only be controlled on/off by means of the zone valve end switches
For an OpenTherm® boiler, use the OpenTherm® connection on the 2-channel Receiver box.

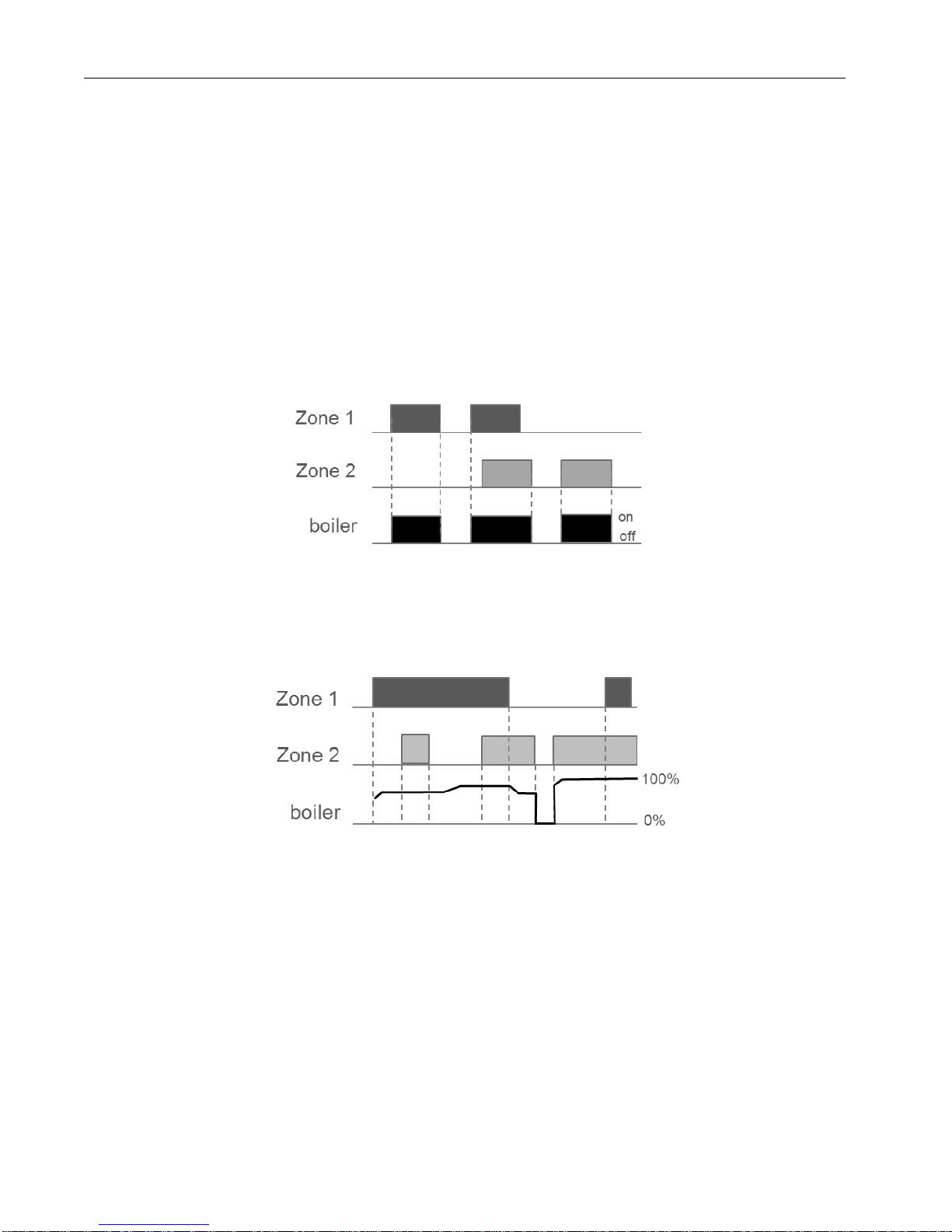

ON/OFF controlled boiler
The boiler will be switched on when one of the zone valves is completely opened and the end switch switches.
When both end switches are not switched, the boiler is off.
The cycle rate setting determines also the cycle rate of the boiler.
There is no synchronization of the heat demand of the 2 zone thermostats, which could cause the boiler to
switch off (end demand of a zone) and almost instantly switch on again by the demand of the other zone.
Some boilers have an anti-cycle time, which prevents them from switching on directly again.
OpenTherm® controlled boiler
When one of the zone thermostats communicates a demand the OpenTherm® will also be receiving a heat
demand. When both zones no longer require heat the demand is taken away and the boiler will switch off.
The 2-channel Receiver box constantly compares the demand of both zones and communicates the highest
demand to the OpenTherm® boiler.

2 ZONE T6R SMART THERMOSTAT
T6R-2Z-EN0H 8603 NL01 R0718
11
DIMENSIONS
T6R
RECEIVER BOX
SPECIFICATIONS
T6R Thermostat
Control form
Adaptive Fuzzy Logic
Room
Temperature
display range
From 0 oC to 50 oC
Dimensions
(w x h x d)
T6R (wireless) 108 x 103 x 68 mm
Time display
24 hour or 12 hour AM/PM format
Time keeping
accuracy
Synchronized with Internet when
connected or typically better than 10
minutes per year
Program
5+2 or daily schedule with 6 daily time
and temperature level changes
Time setting
resolution
Program - 10 minute steps
Temperature
setting range
Program : 5 to 37oC in 0.5 oC steps
OFF : 5 oC
Power
T6R (wireless) 5VDC power adapter
Receiver box
Power
230VAC
Electrical rating
Relay contacts
230 V~, 50...60 Hz, 0.5 A to 5 A resistive
0.5 A to 3 A inductive (0.6 pf)
24 V~, 50...60 Hz, 0.5 A to 5 A resistive
0.5 A to 3 A inductive (0.6 pf)
Cycle rate
Selectable by application (see installer
set up)
Wiring
Terminal block capable of accepting
wires up to 1.5 mm2
Wire access
From back via large wall box opening.
From bottom with cable clamps.
Mains wiring –left.
Low voltage wiring –right.
Dimensions
110 x 110 x 40 mm (w x h x d)
IP class
30
RF communication
RF operation
band
ISM (868.0-868.6) MHz, 1% duty cycle
Max. power
25mW

Protocol
Encrypted
Comm. Range
30 m in a residential building
environment
Comm.
technology
short, high rate transmissions to
minimise air time and avoid collisions
Receiver class
R.E.D.
Receiver Category 2
RF binding
method
Factory pre-bound packs

Wi-Fi
IEEE 802.11b/g/n –2.4GHz
Max. power
100mW
Environmental and standards
Operating
temperature range
0 to 40oC
Shipping and storage
temperature
-20 to 55oC
Humidity range
10 to 90% rh, non-condensing
EMC
2014/30/EU
LVD
2014/35/EU
R.E.D.
2014/53/EU
WEEE Directive
2012/19/EU

ErP
Class VI (+4%), (EU) 811/2013
Honeywell, declares that this thermostat is in compliance
with the essential requirements and other relevant
provisions of Directive 2014/53/EU

T6 SMART THERMOSTAT
Honeywell Control Systems Limited
Newhouse Industrial Estate
Motherwell ML1 5SB
United Kingdom
T6R-2Z-EN0H 8603 NL01 R0718
Description
Model
EAN code
Literature
T6R Wireless Smart Thermostat (spare)
2-channel Receiver box R6 wireless
(spare)
T6H700RW4011
R6H911RF4018
5025121381161
5025121381130
All packaging contains 6
languages: English, Dutch,
French, German, Italian and
Spanish
Symptom (Fault message)
Possible Cause
Remedy
The Receiver box button LED
is green but the zone valve
does not switch on.
Zone valve wiring might be incorrect
or broken
Check the Receiver box wiring
One of the status LED’s on
the Receiver box is red
(Communication loss)
The Receiver box receives no
communication from that
thermostat: RF communication
might be too far or is blocked due to
Receiver box location.
Thermostat is no longer powered.
Try to move thermostat or Receiver box closer or
re-locate.
Check the power to the thermostat
Thermostat alert messages
WIFI RADIO ERROR
The Wi-Fi radio of thermostat is
faulty.
Power cycle the thermostat (30s no power) and
restart, else replace thermostat
INTERNAL MEMORY ERROR
The internal memory of thermostat
is faulty.
Replace thermostat
NO COMMUNICATION
RECEIVER BOX
The thermostat receives no
communication from the
thermostat: RF signal is blocked due
to the location of the thermostat.
Receiver box is no longer powered.
RF communication might be too far or is blocked
due to the location of the Thermostat or Receiver
box.
Check the power to the Receiver box
RF SIGNAL OFRECEIVER
BOX LOW
There is a weak radio signal from the
Receiver box
Try to move thermostat or Receiver box closer or
re-locate.
NO RECEIVER BOX
The thermostat is not bound with
the Receiver box
Bind or re-bind the Receiver box
NO INTERNET
Thermostat has no longer Internet
connection.
End user needs to check their Internet connection
via router.
NO WIFI SIGNAL
Thermostat has no longer a Wi-Fi
connection.
End user needs to check their Wi-Fi network of
router.
REGISTER ONLINE
Thermostat is connected to Internet
but not yet registered to an account.
End user needs to download the App, create an
account and register the thermostat.
WIFI NOT CONFIGURED
Thermostat is not connected to
Wi-Fi network.
End user needs to download the App, create an
account, connect and register the thermostat.
BOILER FAILURE FAULT xx
The OpenTherm boiler reported a
failure number XX.
Check the boiler
BOILER LOW WATER PRESSURE
The boiler reported low water
pressure.
Fill up the hydronic system with water.
TROUBLE SHOOTING
ORDERING SPECIFICATION
