Honeywell FOCUSPRO TH6320R User manual

Operating
Manual
FocusPro®TH6320R
Wireless Thermostat
Thermostat Sans Fil
Termóstato inalámbrico
Operating Manual
69-2093EFS-07

M28450
Read and save these instructions.
Need Help?
For assistance with this product please visit http://yourhome.honeywell.com
or call Honeywell Customer Care toll-free at 1-800-468-1502
® U.S. Registered Trademark. Patents pending.
Copyright © 2013 Honeywell International Inc. All rights reserved.
Battery Holder
Press down and pull to
remove batteries.
Batteries should be
replaced once a year
(see page 16).
Quick Reference
Card
Grasp and pull to
see basic operating
instructions at a
glance.
CAUTION: EQUIPMENT DAMAGE HAZARD. To prevent possible compressor damage, do
not operate cooling system when outdoor temperature is below 50 °F (10 °C).

Français : voir la page 20 • Español: vea la página 40
1 69-2093EFS—07
Contents
About your new thermostat
Programming at a glance ................... 2
Quick reference to controls................. 3
Quick reference to display .................. 4
Programming & Operation
Set time and day................................. 5
Fan settings (auto/on)......................... 6
System settings (heat/cool ................. 7
Program schedules............................. 8
Program schedule overrides............. 10
Auto-changeover (heat/cool)............. 12
Remote control ................................. 13
Display outdoor climate .................... 14
Find lost remote control.................... 14
Special features................................ 15
Appendices
Battery replacement ......................... 16
In case of difficulty............................ 18
Limited warranty ............................... 19
Regulatory information ..................... 60

Operating Manual
69-2093EFS—07 2
About your new thermostat
Your new thermostat is pre-programmed and ready to go. All you have to do is set
the time and day. Then check the settings below and change if needed:
1. Set time and day (required for proper operation)...................See page 5
2. Select fan setting (Auto/On)......................................................See page 6
3. Select system setting (Heat/Cool)............................................See page 7
4. Program schedules: Preset to energy-saving levels
while you’re at work or asleep (assumes you
wake at 6 am, leave at 8 am, return at 6 pm
and go to bed at 10 pm) .........................................................See pages 8-9
CAUTION: EQUIPMENT DAMAGE HAZARD. You can override the program schedule at any
time, and manually adjust the temperature (see pages 10-11).

Français : voir la page 20 • Español: vea la página 40
3 69-2093EFS—07
Quick reference to controls
M28451
Digital display (see page 4) Battery holder (see page 16)
Temperature buttons
Press to adjust temperature
settings (see page 9–11)
Hold button
Press to override programmed
temperature control (see page 11)
Function buttons
Press to select the function displayed just above each button.
(Functions change depending on the task.)

Operating Manual
69-2093EFS—07 4
Auto
Wake
Fan
Clock/Day
Schedule
Set
Aux Heat On
System More
Heat
AM
Heat
Setting
M28452
Indoor Recovery
75
75
6:30
Replace Battery
Quick reference to display screen
Current inside temperature Low battery warnings
(see pages 16–17)
Temperature setting
(see pages 9–11).
Current time/day
(see page 5)
Recovery
(see page 15)
Current program
period
Wake/Leave/Return/
Sleep (see pages 8-9)
Set Clock/Day/
Schedule
(see pages 5 and 9) More
Press to view outdoor climate (if
outdoor sensor is installed), or to find
a misplaced remote control if installed
(see page 14)
Auxillary heat
(Only for heat pumps with
auxillary heat)
System status
Heat On/Cool On
(If flashing, see page 15)
System setting
Heat/Cool/Auto/Off/Em
Heat (see page 7)
Fan Setting
Auto/On (see page 6)

Français : voir la page 20 • Español: vea la página 40
5 69-2093EFS—07
Set the time and day
1. Press SET CLOCK/DAY/SCHEDULE,
then press sor tto set clock.
2. Press SET DAY, then press sor t
to select the day of week.
3. Press DONE to save.
Auto
Fan
Clock/Day
Schedule
Set System More
Heat
PM
M28453
4:30
DaySchedule
Wed
Done
Set Set
M28454
Note: If the SET CLOCK/DAY/SCHEDULE
option is not displayed, press DONE or
CANCEL.
Note: If the display flashes Set Clock,
the thermostat will follow your settings
for the weekday “Wake” time period until
you reset the time and day.
Press SET DAY, then select current day
Press SET CLOCK/DAY/SCHEDULE, then adjust time

Operating Manual
69-2093EFS—07 6
Select the fan setting
In “Auto” mode (the most commonly used
setting), the fan runs only when the heat-
ing or cooling system is on.
If set to “On,” the fan runs continuously.
Press FAN to select Auto or On.
Auto
Fan
Clock/Day
Schedule
Set System More
Heat
M28455
Clock/Day
Schedule
Set
On
FanSystem More
Heat
M28456
Note: Options may vary
depending on your heating/ cooling
equipment.

Français : voir la page 20 • Español: vea la página 40
7 69-2093EFS—07
Select the system setting
Auto
Fan
Clock/Day
Schedule
Set System More
Heat
M28457
Auto
Fan
Clock/Day
Schedule
Set System More
Cool
M28458
• Heat:Thermostat controls only the
heating system.
• Cool:Thermostat controls only the
cooling system.
• Off:All systems are off.
• Auto:Thermostat automatically selects
heating or cooling depending on the
indoor temperature.
• Em Heat: (only for heat pumps with
auxiliary heat): Thermostat controls
Emergency and Auxiliary Heat.
Compressor is locked out.
Press SYSTEM to select:
Note: Options may vary
depending on your heating/ cooling
equipment.

Operating Manual
69-2093EFS—07 8
Energy-saving settings for maximum cost savings
This thermostat is pre-set to use energy-saving program settings. We recommend
these settings, since they can reduce your heating/cooling expenses.
(See next page to adjust times and temperatures of each time period.)
Wake
(6:00 am)
Leave
(8:00 am)
Return
(6:00 pm)
Sleep
(10:00 pm)
Cool (Mon-Fri)Heat (Mon-Fri) Heat (Sat-Sun) Cool (Sat-Sun)
70 °78 °70 °78 °
62 °85 °62 °
[Or cancel period]
85 °
[Or cancel period]
70 °78 °70 °
[Or cancel period]
78 °
[Or cancel period]
62 °82 °62 °82 °

Français : voir la page 20 • Español: vea la página 40
9 69-2093EFS—07
To adjust program schedules
1. Press SET CLOCK/DAY/SCHEDULE, then SET
SCHEDULE.
2. Press s or t to set your weekday Wake time
(Mon–Fri), then press NEXT.
3. Press s or t to set the temperature for this
time period, then press NEXT.
4. Set time and temperature for the next time
period (Leave). Repeat steps 2 and 3 for each
weekday time period.
5. Press NEXT to set Weekend time periods (Sat-
Sun), then press DONE to save & exit.
Note: Make sure the thermostat is set to the
system you want to program (Heat or Cool).
M28459
Day
Done
Schedule
SetSet
Auto
Fan
Clock/Day
Schedule
Set System More
Heat
Cancel
Period
Mon Tues Wed Thur Fri
Wake
Done Next
AM
Heat
Setting
70
6:00
Set Schedule

Operating Manual
69-2093EFS—07 10
Auto
FanCancel System More
Heat
PM
Heat
Setting
M28460
Indoor
75
75
6:00
Hold Until
Program schedule override (temporary)
Press sor tto immediately adjust
the temperature. This will temporarily
override the temperature setting for
the current time period.
The new temperature will be
maintained only until the next
programmed time period begins (see
page 8).
To cancel the temporary setting at
any time, press CANCEL.
Press to resume
program schedule
Temperature will be
maintained until the
time shown
Press to temporarily adjust temperature.

Français : voir la page 20 • Español: vea la página 40
11 69-2093EFS—07
Auto
FanCancel System More
Heat
PM
Heat
Setting
M28461
Indoor
75
75
6:00
Hold

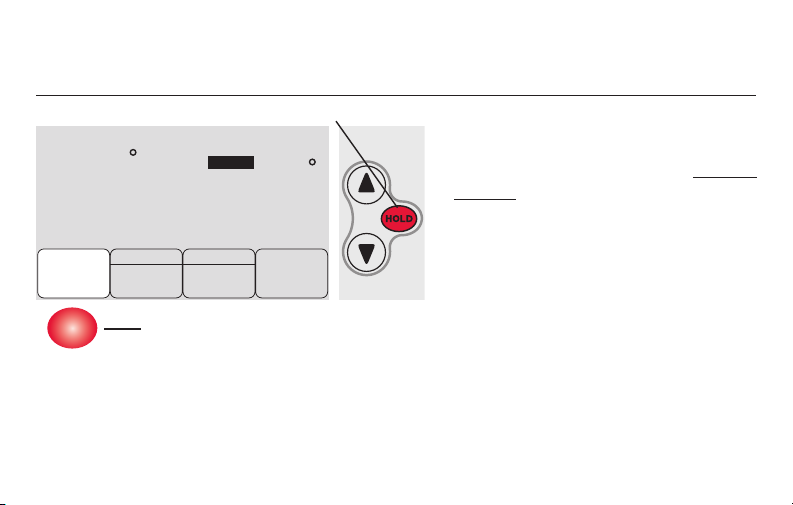

Program schedule override (permanent)
Press HOLD to permanently adjust
the temperature. This will override
the temperature settings for all time
periods.
The “Hold” feature turns off the pro-
gram schedule and allows you to
adjust the thermostat manually, as
needed.
Whatever temperature you set will
be maintained 24 hours a day until
you manually change it, or press
CANCEL to resume the programmed
schedule.
Press to permanently adjust temperature.
Press to resume
program schedule

Operating Manual
69-2093EFS—07 12
Auto Changeover is a feature used in climates
where both air conditioning and heating are
often used on the same day. When the system is
set to Auto, the thermostat automatically selects
heating or cooling depending on the indoor tem-
perature.
Heat and cool settings must be at least 3
degrees apart. The thermostat will automatically
adjust settings to maintain this 3-degree separa-
tion.
Auto Changeover
Auto
Auto
Fan
Clock/Day
Schedule
Set System More
M28462
Press until screen
displays “Auto”
Note: The Auto system setting
may not appear, depending on
how your thermostat was installed.

Français : voir la page 20 • Español: vea la página 40
13 69-2093EFS—07
Temperature is measured at loca-
tion of remote control
Remote control
Note: The thermostat may take up to 15 seconds to respond to commands entered at
the remote control. See Remote Control Operating Manual for more information.
at Thermostat
Reading
at Remote
Remote has Control
M28463
72
75
Auto
FanCancel More
The optional remote control can act as a
mobile thermostat, to maintain a comfortable
temperature as you move from room to
room.
When the system is responding to
temperatures measured at the Remote, the
thermostat will display “Remote has Control.”
Press CANCEL to restore temperature control
to the thermostat (the system will only
respond to temperatures measured at the
thermostat).

Operating Manual
69-2093EFS—07 14
Auto
Fan
Clock/Day
Schedule
Set System More
Heat
M28464
FindRemote
Done
%
Outdoor
Humidity
Outdoor
85
50
M28465
Additional features
To display outdoor climate
If you have an outdoor air sensor, press
MORE to display the current outdoor tempera-
ture and humidity. Press DONE to exit.
To find a lost remote control
If you misplace a remote control, press
MORE, then FIND REMOTE. The remote will
beep for two minutes to help you locate it.
Press anywhere on the display screen to
stop the beeping.
Press to display more
options
Press to find a lost
remote control
Outdoor
humidity
Outdoor
temperature

Français : voir la page 20 • Español: vea la página 40
15 69-2093EFS—07
Built-in compressor protection: This feature helps prevent damage to the
compressor in your air conditioning or heat pump system. Damage can occur if the
compressor is re-started too soon after shutdown. This feature forces the compressor
to wait for a few minutes before restarting.
During the wait time, the display will flash the message Cool On (or Heat On if you
have a heat pump).
Adaptive Intelligent Recovery: This feature eliminates the guesswork when setting
your schedule. It allows the thermostat to “learn” how long your furnace and air
conditioner take to reach programmed temperature settings, so the temperature is
reached at the time you set.
Special features
Note: When Adaptive Intelligent Recovery is in effect, the thermostat will
display “Recovery.”

Operating Manual
69-2093EFS—07 16
M28466
Battery replacement
M28442M
28
44
2
Replace Battery
Install fresh batteries when the REPLACE
BATTERY warning begins flashing. The warning
flashes about two months before the batteries
are depleted.
Remove the battery holder and install 2 fresh
AA alkaline batteries.
After batteries are installed, the thermostat will
automatically restore communication with the
wireless network within a few minutes.
Press down and pull to remove.
Insert fresh AA alkaline
batteries, then reinstall
battery holder.
Note: If batteries are inserted within 2 minutes,
the time and day will not have to be reset. All
other settings are retained in memory.

Français : voir la page 20 • Español: vea la página 40
17 69-2093EFS—07
Battery replacement (outdoor air sensor)
M28443
M28444
Replace outdoor sensor batteries when the
REPLACE BATTERY OUTDOOR warning begins
flashing on the thermostat. The warning
flashes about two months before the
batteries are depleted.
Remove the sensor from the bracket, remove
the cover and install 2 fresh AA lithium
batteries.
After batteries are installed, the sensor will
automatically restore communication with the
wireless network within a few minutes.
Remove sensor
from bracket
Remove cover and
install 2 fresh AA
lithium batteries

Operating Manual
69-2093EFS—07 18
In case of difficulty
Heating or cooling
system does not
respond
• Check circuit breaker and reset if necessary.
• Make sure power switch at heating & cooling system is on.
• Make sure furnace door is closed securely.
• Wait 5 minutes for the system to respond.
Screen displays
“No Signal”
Thermostat has lost radio contact with the wireless network (usually because of
a power outage). To restore power:
• Check circuit breaker and reset if necessary.
• Make sure power switch at heating & cooling system is on.
• Make sure furnace door is closed securely.
After power is restored, the thermostat will automatically restore wireless
communication within a few minutes.
