Owner’s Guide
TL8130A1005
7-Day Programmable Thermostat
69-1805EF-03.book Page -1 Thursday, February 28, 2013 4:21 PM

Overview
Before you start..................................................1
About your thermostat........................................2
Controls..............................................................3
Display ...............................................................4
Installation
Installing the thermostat .....................................5
Wiring diagram ...................................................6
Setting the configuration switches......................7
Setup
Time and day......................................................8
Daylight Saving Time .........................................9
Preset temperatures.........................................10
Default schedule ..............................................11
Modifying the schedule ....................................12
Operation
Running the schedule (Automatic mode) .........13
Temporary override of schedule.......................13
Permanent override (Manual mode) ...............14
Appendices
Error messages................................................15
Technical specifications....................................16
Warranty...........................................................17
Customer assistance........................................18
Table of contents
69-1805EF-03.book Page 0 Thursday, February 28, 2013 4:21 PM

TL8130A1005
1
Read the entire document
CAUTION:
• Installation must be carried out by a certified electrician and must comply with national and local
electrical codes.
• To prevent severe shock or electrocution, always cut the power at the service panel before working
with wiring.
• Use this thermostat for resistive loads only.
• Do NOT install the thermostat in an area where it can be exposed to water or rain.
• Avoid locations where there are air drafts (top of staircase, air outlet), dead air spots (behind a
door), direct sunlight or concealed chimney or stove pipes.
• For a new installation, choose a location about 1.5 m (5 ft.) above the floor.
• Install the thermostat on an inside wall facing the heating system.
• Install the thermostat onto an electrical box.
• Use special CO/ALR solderless connectors if you connect the thermostat to aluminum wires.
• Keep the thermostat's top and bottom air vents (openings) clean and unobstructed at all times.
Before you start
69-1805EF-03.book Page 1 Thursday, February 28, 2013 4:21 PM

Owner’s Guide
2
Honeywell’s TL8130A1005 thermostat can be connected to an electric heater to
control the room temperature.
Supplied Parts
• One (1) thermostat
• Two (2) mounting screws
• Four (4) solderless connectors for copper wires
About your thermostat
69-1805EF-03.book Page 2 Thursday, February 28, 2013 4:21 PM

TL8130A1005
3

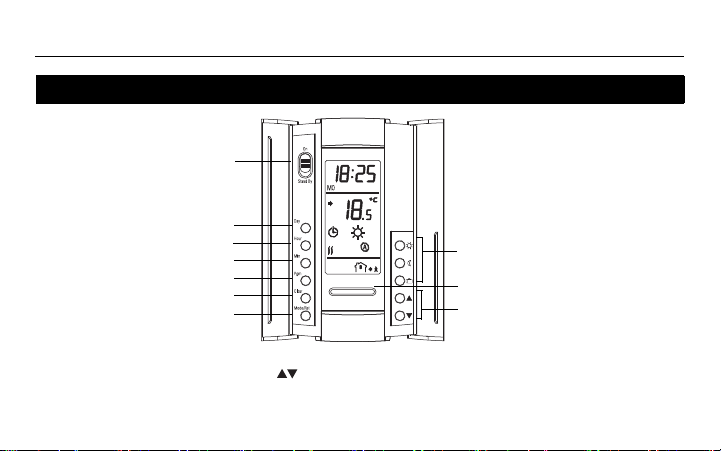

Controls
On/Standby switch*
Day button
Temperature adjustment buttons**
Program button
Mode selection / program exit
Preset temperature buttons
(see page 10)
Backlight button**
Program clear button
Hour button
Minutes button
*
Place at Standby to cut power to the heater (e.g., in the summer). This will not affect the time and temperature settings.
** When the backlight button or either of the buttons is pressed, the display illuminates for 12 seconds.
69-1805EF-03.book Page 3 Thursday, February 28, 2013 4:21 PM

Owner’s Guide
4
Display
Temperature*
Operation mode icon
(see pages 13 & 14)
Period (see page 11)
Time
Number of flames varies
according to heating intensity
Preset temperature icon (see page 10)
Appears when the setpoint
temperature is displayed*
Indicates this thermostat model is used
to control the ambient temperature
Day
* The thermostat normally displays the actual (measured) temperature. To view the setpoint temperature, briefly press
either of the buttons. The setpoint will appear for 5 seconds. To change the setpoint temperature, press one of the
buttons until the desired temperature is displayed. To scroll faster, press and hold the button.
69-1805EF-03.book Page 4 Thursday, February 28, 2013 4:21 PM

TL8130A1005
5

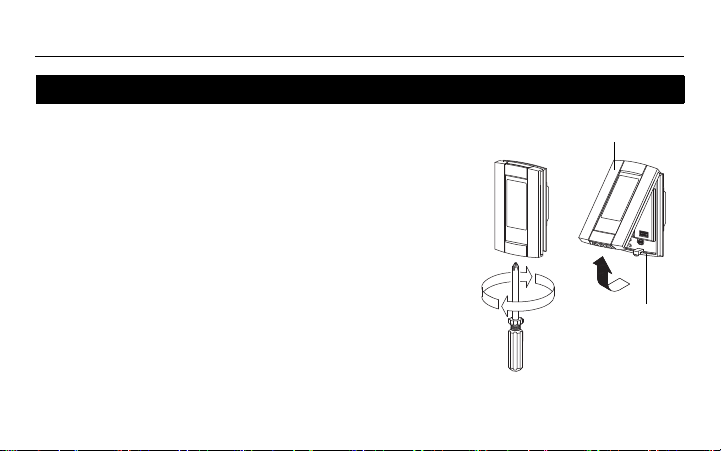

1) Turn the heating system off at the main electrical panel.
2) Loosen the bottom screw and remove the thermostat faceplate
from its wallplate. (The screw cannot be completely removed.)
3) Connect the thermostat to the load and to the power supply
(see page 6).
4) Install the wallplate to the electrical box using the provided
screws.
5) If necessary, set the configuration switches on the back of the
faceplate (see page 7).
6) Install the faceplate back on the wallplate and tighten the
screw. If there is a sticker on the screen, peel it off.
7) You can now return power to the heating system at the main
electrical panel.
Installing the thermostat
Wallplate
Faceplate
69-1805EF-03.book Page 5 Thursday, February 28, 2013 4:21 PM

Owner’s Guide
6
NOTE: Connect the wires using the provided solderless connectors for copper wires.
Wiring diagram
Power
Load
69-1805EF-03.book Page 6 Thursday, February 28, 2013 4:21 PM

TL8130A1005
7

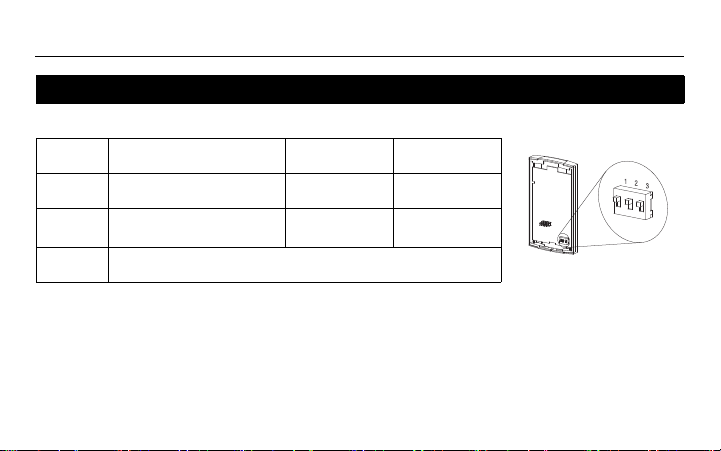

Configuration switches are on the back of the faceplate.
Set the configuration switches
# Configurations Up Down
1 Display format °F / 12 h °C / 24 h
2Early Start1
1. Early Start is used in Automatic mode only. When Early Start is enabled (on), the thermostat
determines when to start heating so the Comfort temperature is attained at the beginning of
periods 1 and 3. When Early Start is disabled (off), heating starts only at the beginning of
periods 1 and 3; thus there is a delay before the Comfort temperature is reached.
Enable Disable
3 Not used
69-1805EF-03.book Page 7 Thursday, February 28, 2013 4:21 PM

Owner’s Guide
8
To set the clock and the day:
1) Press the Hour button to set the hour.
2) Press the Min button to set the minutes.
3) Press the Day button to set the day.
4) Press the Mode/Ret button to return the thermostat to normal display.
NOTE: The thermostat will automatically return to normal display if no button is
pressed for 60 seconds.
Time and day
69-1805EF-03.book Page 8 Thursday, February 28, 2013 4:21 PM

TL8130A1005
9
When the Daylight Saving Time function is enabled (On), the thermostat automatically switches to Daylight
Saving Time on the second Sunday of March and to normal time on the first Sunday of November.
NOTE: The Daylight Saving Time function is disabled (default setting) when the clock loses its setting.
To set the
Daylight Saving Time function and to set the date:
1) Press the Day button (3 seconds) until DLS appears on the screen.
2) Press either of the buttons to toggle between On (enabled) and Off (disabled).
3) Press the Day button briefly. The year setting is displayed.
4) Press either of the buttons to set the current year.
5) Press the Day button briefly. The month setting is displayed.
6) Press either of the buttons to set the current month.
7) Press the Day button briefly. The date setting is displayed.
8) Press either of the buttons to set the current date.
9) Press the Mode/Ret button to return the thermostat to normal display.
NOTE: The thermostat will automatically return to normal display if no button is pressed for 60 seconds.
Daylight Saving Time
69-1805EF-03.book Page 9 Thursday, February 28, 2013 4:21 PM

Owner’s Guide
10

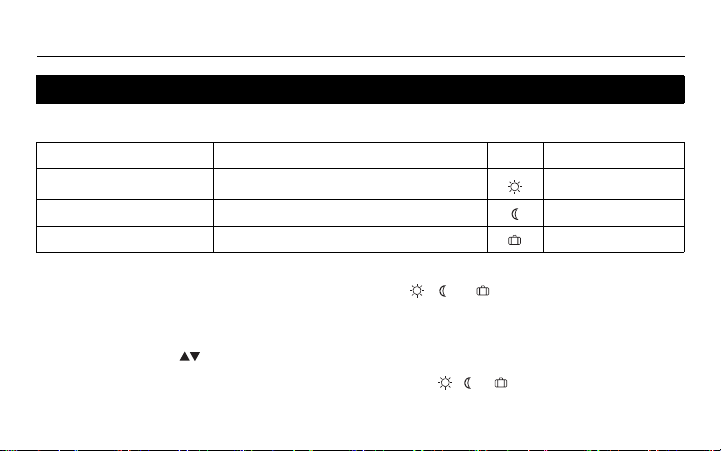

The thermostat has 3 preset temperatures. Their default settings are shown in the following table.
To use a preset temperature:
Briefly press the appropriate preset temperature button ( , or ). The preset temperature will
become the current setpoint and its icon will appear on the screen.
To modify a preset temperature:
1) Press one of the buttons to display the desired temperature.
2) Press and hold the appropriate preset temperature button ( , or ) until its icon is displayed.
Preset temperatures
Preset temperature Intended use Icon Default setting
Comfort When at home 21.0°C (70°F)
Economy When asleep or away from home 16.5°C (62°F)
Vacation During prolonged absence 10.0°C (50°F)
69-1805EF-03.book Page 10 Thursday, February 28, 2013 4:21 PM

TL8130A1005
11
The schedule consists of 4 periods per day, which represents a typical work day. The Comfort ( ) preset
temperature is automatically used in Periods 1 and 3 and the Economy ( ) preset temperature in Periods
2 and 4. You can program the thermostat to skip (cancel) the periods that do not apply to your situation. For
example, you can skip periods 2 and 3 for the weekend.
NOTE: If you wish to use only 2 periods, use the following combinations: “1 and 4” or “2 and 3”. Early Start
(see page 9) will not work with any other combinations.
You can have a different program every day; i.e., each period can start at a different time every day. The
thermostat has been programmed with the following schedule.
Default schedule
Period Description Setting MO TU WE TH FR SA SU
Wake Comfort 6:00 AM 6:00 AM 6:00 AM 6:00 AM 6:00 AM 6:00 AM 6:00 AM
Leave Economy 8:00 AM 8:00 AM 8:00 AM 8:00 AM 8:00 AM --:-- --:--
Return Comfort 6:00 PM 6:00 PM 6:00 PM 6:00 PM 6:00 PM --:-- --:--
Sleep Economy 10:00 PM 10:00 PM 10:00 PM 10:00 PM 10:00 PM 10:00 PM 10:00 PM
69-1805EF-03.book Page 11 Thursday, February 28, 2013 4:21 PM

Owner’s Guide
12
1) Press Pgm. Period 1 for Monday is displayed.
2) To program another period, press Pgm to display that period.
3) To program another day, press Day to display that day (hold for 3 seconds to
select the entire week).
4) Press Hour and Min to set the period start time, or press Clear to skip
(cancel) the period (--:-- will be displayed).
5) Repeat steps 2 to 4 to program another period.
6) Press Mode/Ret to return the thermostat to normal display.
NOTE: The thermostat will automatically return to normal display if no button is
pressed for 60 seconds.
Modifying the schedule
69-1805EF-03.book Page 12 Thursday, February 28, 2013 4:21 PM

TL8130A1005
13
In Automatic mode, the thermostat follows the programmed schedule (see
page 11). To place the thermostat in this mode, press Mode/Ret until is
displayed.
If you modify the setpoint temperature (by pressing the , or button) when
the thermostat is in Automatic mode, the new temperature will be used until the
beginning of the next period. flashes during the temporary override. You can
cancel the temporary override by pressing Mode/Ret.
Running the schedule (Automatic mode)
Temporary override of schedule
69-1805EF-03.book Page 13 Thursday, February 28, 2013 4:21 PM

Owner’s Guide
14
To place the thermostat in Manual mode, press Mode/Ret to display on the
screen. In this mode, the thermostat does not follow the programmed schedule.
Press the , or button to set the temperature.
Permanent override of schedule (Manual mode)
69-1805EF-03.book Page 14 Thursday, February 28, 2013 4:21 PM

TL8130A1005
15

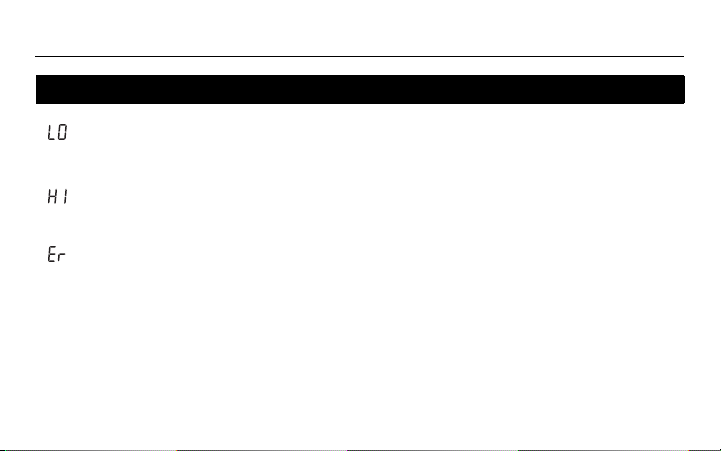

The measured temperature is below the display range. Heating is
activated.
The measured temperature is above the display range. Heating is
deactivated.
Verify the thermostat connection and sensor connection.
Error Messages
69-1805EF-03.book Page 15 Thursday, February 28, 2013 4:21 PM

Owner’s Guide
16
Power supply: 240/208 VAC, 50/60 Hz
Maximum load: 16.7 A (4000 W @ 240 VAC)
(3470 W @ 208 VAC)
Heating cycle: 15 minutes
Setpoint range: 5 °C to 30 °C (40 °F to 86 °F)
Display range: 0 °C to 70 °C (32 °F to 158 °F)
Resolution: 0.5 °C (1 °F)
Data protection: In the event of a power failure, most settings are saved.
However the time and Daylight Saving Time must be set if the power failure lasts
more than 6 hours. The thermostat will return to the mode that was active prior to
the power failure.
Technical Specifications
69-1805EF-03.book Page 16 Thursday, February 28, 2013 4:21 PM

TL8130A1005
17
Honeywell warrants this product, excluding battery, to be free from defects in the workmanship or materials, under normal use and service, for a
period of five (5) years from the date of purchase by the consumer. If at any time during the warranty period the product is determined to be defec-
tive or malfunctions, Honeywell shall repair or replace it (at Honeywell's option).
If the product is defective,
(i) return it, with a bill of sale or other dated proof of purchase, to the place from which you purchased it, or
(ii) call Honeywell Customer Care at 1-800-468-1502. Customer Care will make the determination whether the product should be returned to
the following address: Honeywell Return Goods, Dock 4 MN10-3860, 1885 Douglas Dr N, Golden Valley, MN 55422, or whether a replace-
ment product can be sent to you.
This warranty does not cover removal or reinstallation costs. This warranty shall not apply if it is shown by Honeywell that the defect or malfunction
was caused by damage which occurred while the product was in the possession of a consumer.
Honeywell's sole responsibility shall be to repair or replace the product within the terms stated above. HONEYWELL SHALL NOT BE LIABLE FOR
ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING, DIRECTLY OR INDI-
RECTLY, FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF THIS PRODUCT. Some states do
not allow the exclusion or limitation of incidental or consequential damages, so this limitation may not apply to you.
THIS WARRANTY IS THE ONLY EXPRESS WARRANTY HONEYWELL MAKES ON THIS PRODUCT. THE DURATION OF ANY IMPLIED WAR-
RANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED TO
THE FIVE-YEAR DURATION OF THIS WARRANTY. Some provinces do not allow limitations on how long an implied warranty lasts, so the above
limitation may not apply to you.
This warranty gives you specific legal rights, and you may have other rights which vary from province to province.
If you have any questions concerning this warranty, please write Honeywell Customer Relations, 1985 Douglas Dr, Golden Valley, MN 55422 or call
1-800-468-1502.
Warranty
69-1805EF-03.book Page 17 Thursday, February 28, 2013 4:21 PM

Owner’s Guide
18
If you have any questions about the operation of your thermostat, please go to
www.honeywell.com/yourhome, or call Honeywell Customer Care toll-free at
1-800-468-1502.
Printed in USA
69-1805EF-03 02-2013
Customer assistance
69-1805EF-03.book Page 18 Thursday, February 28, 2013 4:21 PM
