Honeywell RTH5160 Series User manual

RTH5160 Series
Non-Programmable
Thermostat
Quick Installation Guide

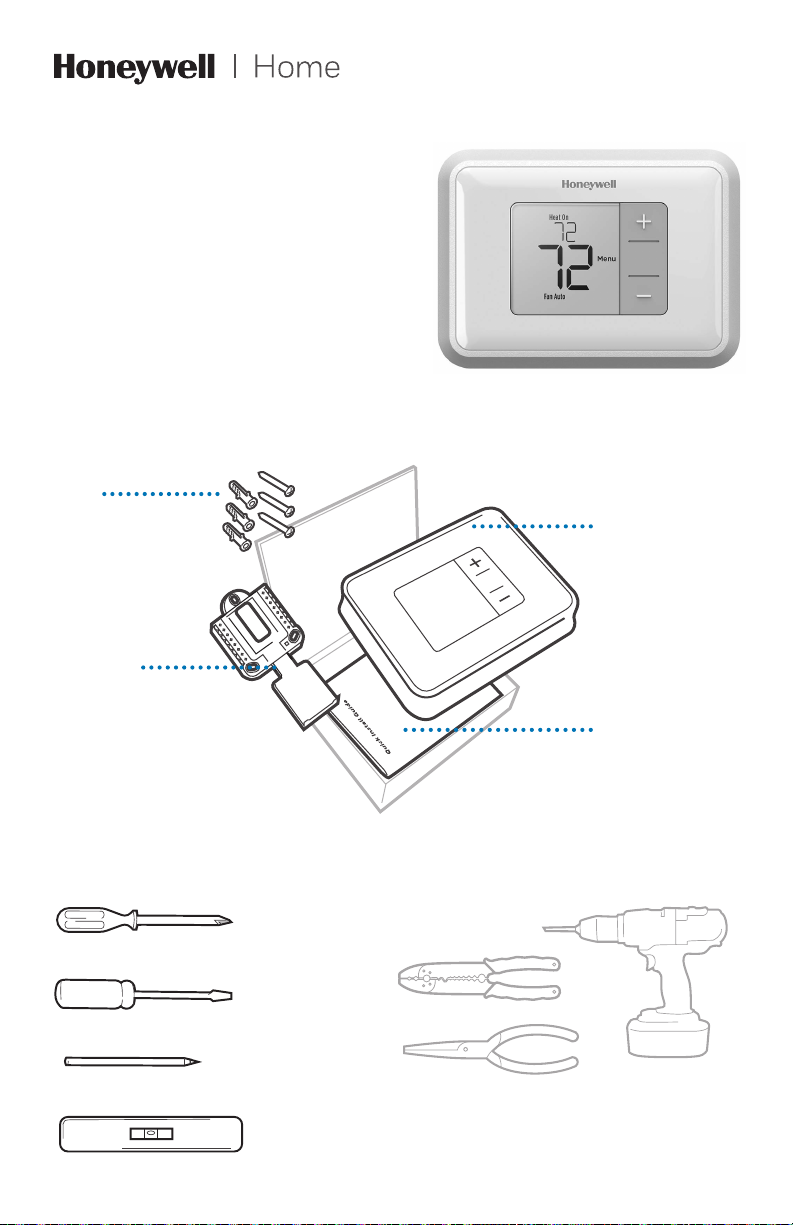

Tools you will need Tools you may need
Wire stripper
Needle-nose pliers Drill and
drill bit (7/32 in)
Included in your box
Screws and
anchors
UWP™
Mounting
System
(UWP)
RTH5160
Thermostat
Quick Install Guide
Small flat head scr
ewdriver
Phillips scr
ewdriver
Pencil
Level

2
Quick Installation Guide
Removing your old thermostat
2 Check that your system is off.
Change the temperature on your
old thermostat to be above room
temperature in heat mode or below
it in cool mode. If you don’t hear the
system turn on within 5 minutes, the
power is off.
Note: If you have a digital
thermostat that has a blank display,
skip this step.

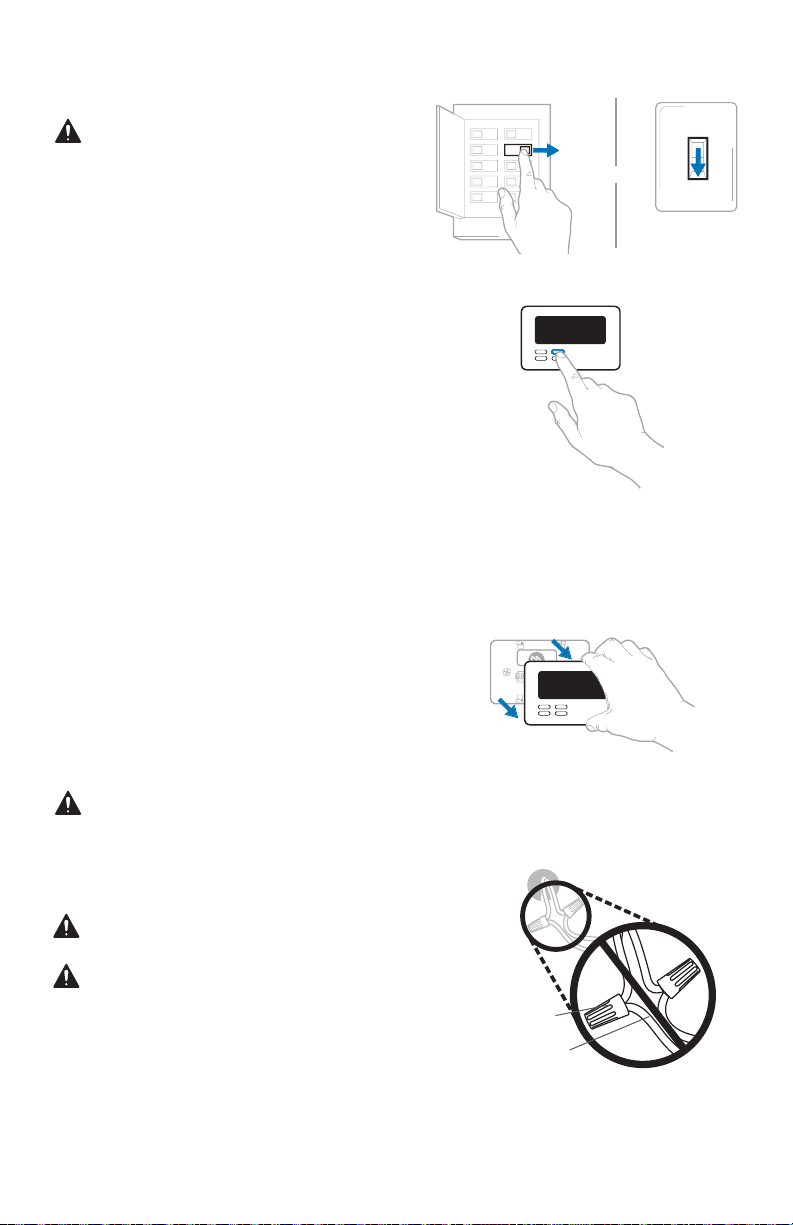

1 Turn power OFF.
To protect yourself and your
equipment, turn off the power at
the breaker box or the switch that
controls your heating/cooling
system.
3 Remove the old thermostat’s
faceplate.
On most thermostats, you can take
off the faceplate by grasping and
gently pulling. Some thermostats
may have screws, buttons, or clasps.
Do not remove any wires from your
thermostat at this time!
75
75
OFF
OFF
ON
OFF
OFF
ON
Breaker box
Switch
4 Make sure there are no 120/240V
wires.
Do you have thick black wires with
wire nuts?
Is your thermostat 120V or higher?
If you answered yes to either of
these questions, you have a line
voltage system and the thermostat
will not work.
Wire nut
Thick black wire
OR

3
RTH5160 Series

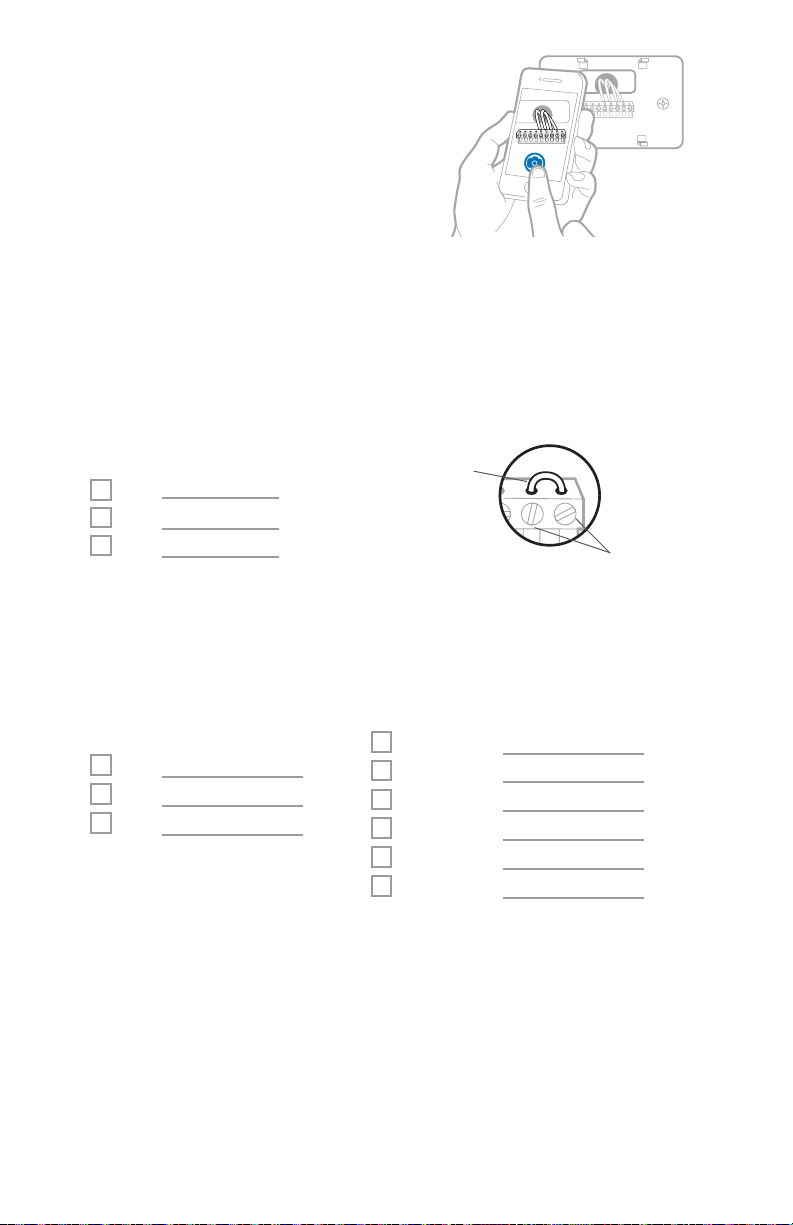

5 Take a picture of how your wiring
looks right now.
Be sure to include the letters next
to the terminals where the wires
are inserted. This will be a helpful
reference when wiring your new
thermostat.
Tip: If the color of your wires has
faded or if 2 terminals have the
same wire color, use the wire labels
provided in the package to label
each wire.
YRRC
Example of
a jumper
Terminals
1/4” to 3/8”
6 Record which R-wire(s) you have and write down the color of the wire(s).
Note: Do not include jumpers as a part of your count. The thermostat does
not need jumpers.
Terminal Wire Color
R
R h
Rc
7 Record the remaining wires and write down the color of the wires.
Check mark the wires that are connected to terminals. Next to the check mark,
write down the color of the wire. Do not include jumpers as a part of your
count.
Check all that apply (Not all will apply):
Terminal Wire Color
Y
G
C
Terminal Wire Color
A or L/A
O/B
W2 or AUX
E
W
K
NOTES:
• Cdoes not power the thermostat display or operations; batteries are
always required.
• If Kwas used on old thermostat you have a wire-saver at the equipment.
Re-wiring would need to be done so that Y and G are used instead of K.
• The RTH5160 thermostat does not support L/A, S, or U terminals.
• If there are wires in terminals that are not listed, you will need
additional wiring support. Visit yourhome.honeywell.com/support to
find out if the thermostat will work for you.

4
Quick Installation Guide

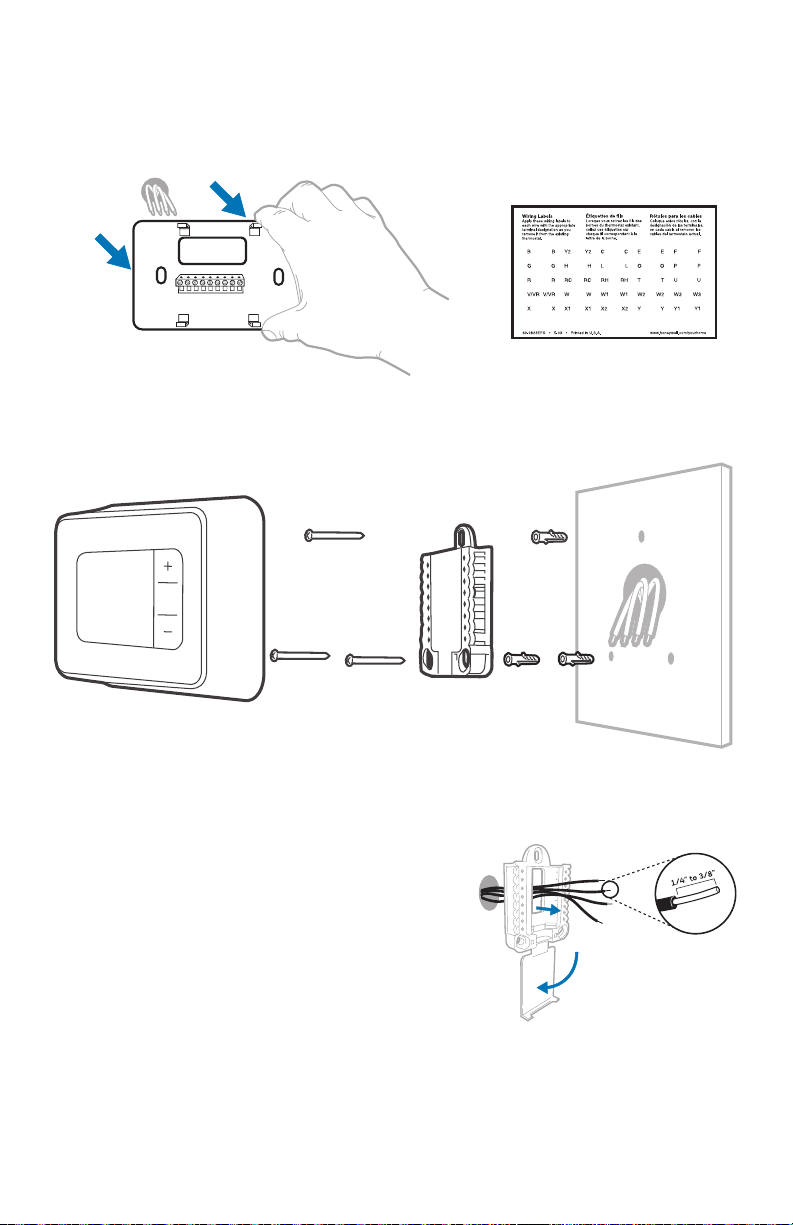

8 Disconnect the wires and remove the old wall plate.
Use a screwdriver to release wires from terminals. Then, use a wire label to
identify each wire as it’s disconnected. The letter on the wire label should
match the letter on the terminal.
Tip: To prevent wires from falling back into the wall, wrap the wires around a
pencil.
Installing your RTH5160 thermostat
9 Bundle and insert wires through the UWP.
Pull open the UWP and insert the bundle of
wires through the back of the UWP.
Make sure at least 1/4 inch of each wire
is exposed for easy insertion into the wire
terminals.
RTH5160
Thermostat Screws UWP
Mounting
System Anchors Wall

5
RTH5160 Series
10 Insert the wall anchors.
It is recommended that you use the
wall anchors included in the box to
mount your thermostat.
You can use the UWP to mark where
you want to place the wall anchors.
a) Level the wall plate.
b) Mark the location of the wall
anchors using a pencil.
c) Drill the holes.
d) Insert wall anchors.
e) Make sure anchors are flush with
wall.
Tip: Use a 7/32 drill bit.
Insert wires into the inner holes of the terminals on the UWP. The tabs will
stay down once the wire is inserted.
If you have 1 R-wire (R, Rh, or Rc)
If you have 2 R-wires (R or Rh, and Rc)
or
1. Set R-switch
to the up
position.
1. Set R-switch
to the down
position.
2. Insert your
R-wire (R, Rh
or Rc) into
R-terminal.
2. Insert your Rc wire
into Rc-terminal
3. Insert your R
or Rh wire into
RTerminal.
11 Set R-switch position and insert R-wire(s).
Set the R-switch up or down based on your wiring notes in Step 6.
NOTE: Alternate wiring options are shown on pages 1112.

6
Quick Installation Guide
13 Confirm wiring matches snapshot.
Please confirm wiring matches terminals from the photo you took in Step 5.
14 Mount the UWP and close the door.
Mount the UWP using the provided screws. Install all three screws for a secure
fit on your wall. Close the door after you’re finished.
Use 3x supplied
screws #8 11/2”
1/4” to 3/8”

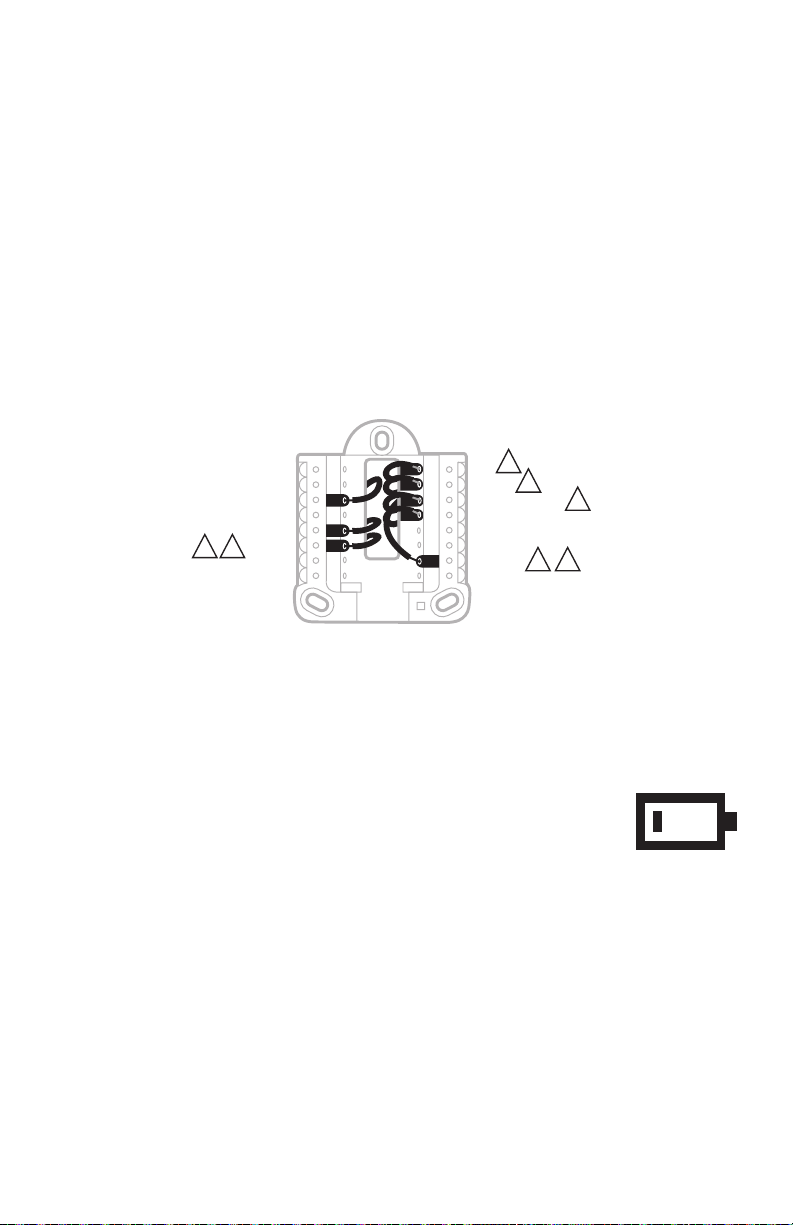

12 Connect remaining wires.
Depress the tabs to put the
wires into the inner holes of the
corresponding terminals on the
UWP (one wire per terminal) until it is
firmly in place.
Gently tug on the wires to verify
they are secure.
Tip: If you need to release a wire
again, push down the corresponding
terminal tab on the side of the UWP.
NOTE: Alternate wiring options are
shown on pages 1112.
This wiring is just an example,
yours may vary.

7
RTH5160 Series
15 Install batteries.
Insert two AA alkaline batteries in the back of the thermostat as shown.

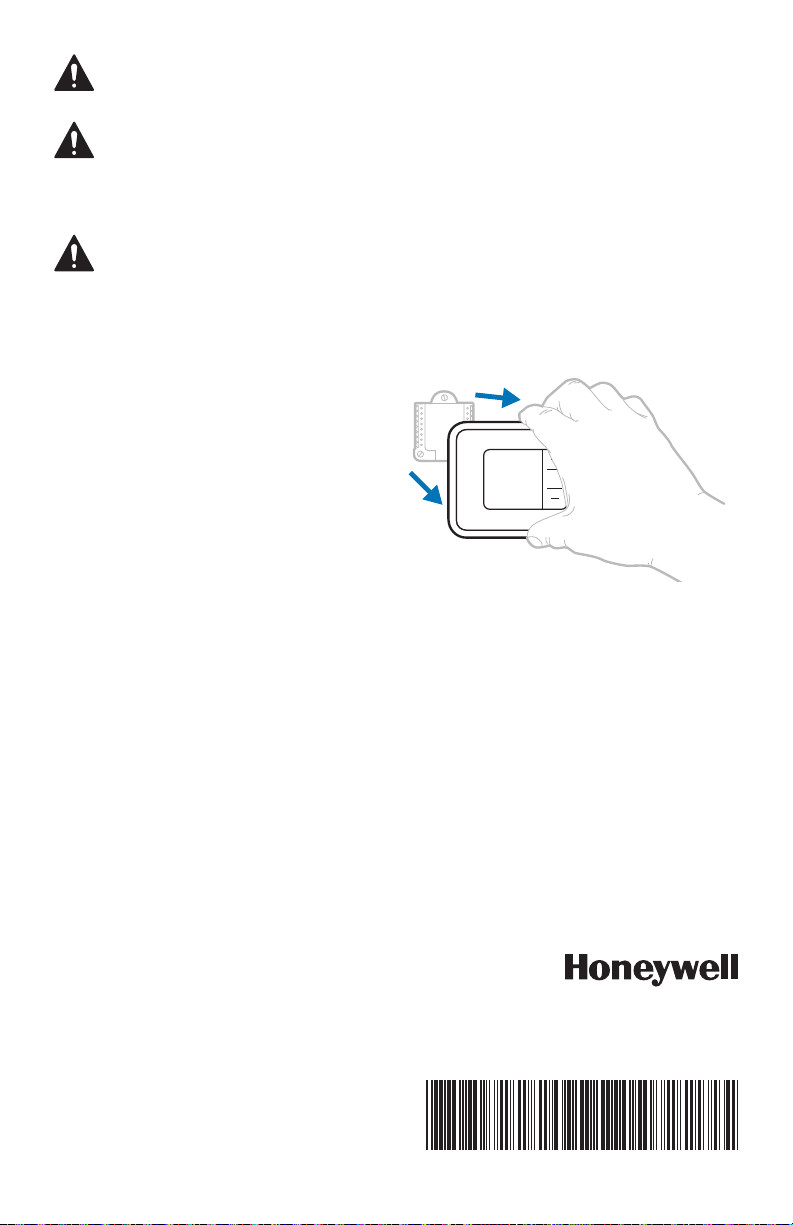

16 Attach your thermostat.
Align the thermostat onto the UWP
and firmly snap it into place.
17 Turn your power ON.
Turn on the power at the breaker box
or switch that controls the heating/
cooling system.
OFF
ON
ON
OFF
ON
ON
Breaker box
Switch
OR

8
Quick Installation Guide
Now that you have installed your thermostat, please follow the steps below to
setup your system and personalize your thermostat.

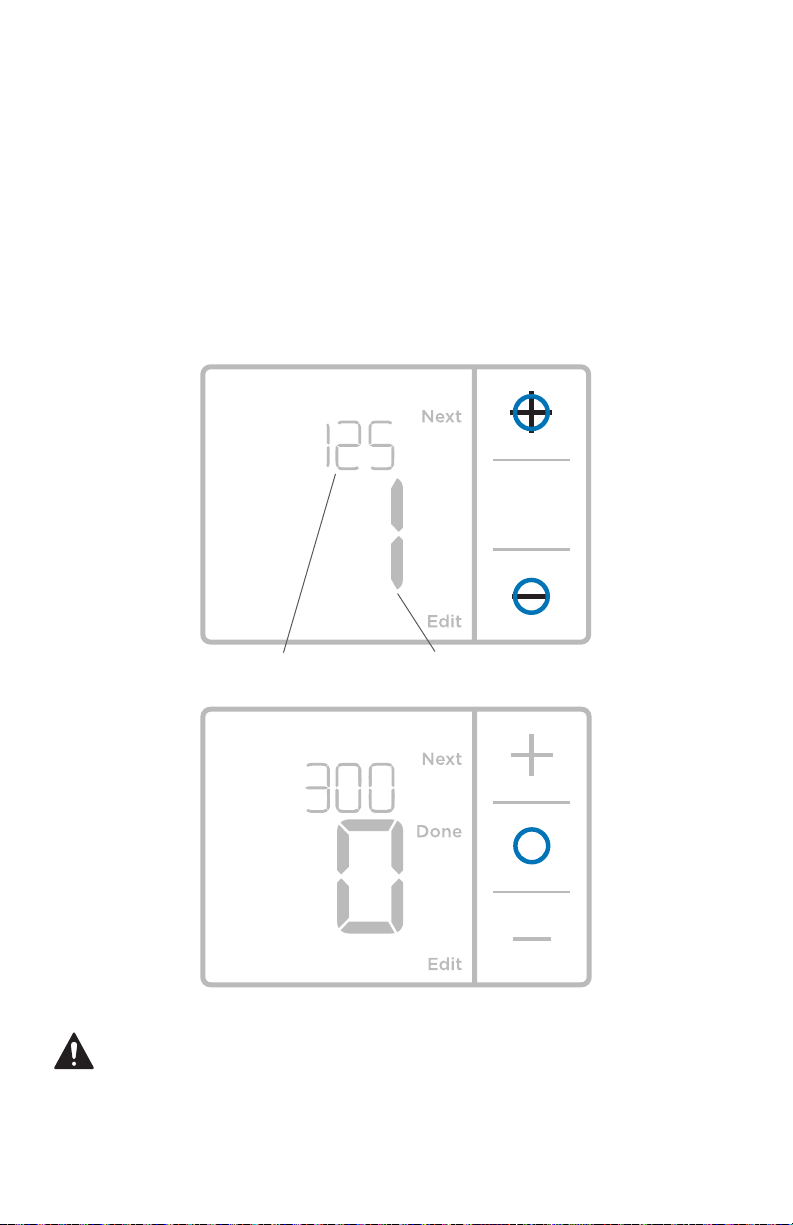

18 Select System Setup options.
Press Edit (-) to change values or select from available options. Then press
Next (+) to save changes and advance to the next System Setup number.
See “System Setup options” on the next page for a full list of System Setup
numbers and options .
Repeat until all of the System Setup options have been set, and then press
Done. The thermostat will save and exit to the home screen.
19 Continue to “System operation settings” on page 10.
System Setup
Setup number Option number
NOTE: To re-enter the System Setup from the Home Screen, press and hold
the Menu button for approximately 5 seconds.

9
RTH5160 Series
System Setup Number and Description Options (factory default in bold)
125 = Temperature Indication Scale 0 = Fahrenheit
1 = Celsius
200 = Heating System Type
1 = Conventional Forced Air Heat
2 = Heat Pump
3 = Radiant Heat (Boiler)
5 = None (Cool Only)
Note: This option selects the basic system type your thermostat will
control.
205 = Heating Equipment Type
Conventional Forced Air Heat:
1 = Standard Efficiency Gas Forced Air
2 = High Efficiency Gas Forced Air
3 = Oil Forced Air
4 = Electric Forced Air
5 = Hot Water Fan Coil
Heat Pump:
7 = Air to Air Heat Pump
Radiant Heat:
9 = Hot Water Radiant Heat
12 = Steam
Note: This option selects the equipment type your thermostat will
control. This feature is NOT displayed if feature 200 is set to Cool Only.
218 = Reversing Valve O/B
0 = O (O/B in Cool)
1 = B (O/B in Heat)
Note: This option is only displayed if the Heat Pump configured. Select
whether reversing valve O/B should energize in cool or in heat.
220 = Cool Stages / Compressor Stages
(200=Conv / 200=HP)
0, 1, 2
Note: Select how many Cool or Compressor stages of your equipment
the thermostat will control. Maximum of 2 Cool stages or 1 Compressor
stage. Set value to 0 if you do not have Cool Stage/Compressor Stage.
221 = Heat Stages / Backup Heat Stages
Heat Stages: 1, 2
Backup Heat Stages: 0, 1
Note: Select how many Heat or Aux/E stages of your equipment the
thermostat will control. Maximum of 2 Heat Stages for conventional
systems. Maximum of 1 Aux/E stage for systems with more than 1
heating equipment type. Set value to 0 if you do not have Heat Stage/
Backup Heat Stage.
300 = System Changeover
0 = Manual
1 = Automatic
Note: Thermostat can automatically control both heating and cooling
to maintain the desired indoor temperature. To be able to select
“automatic” system mode on thermostat home screen, turn this feature
ON. Turn OFF if you want to control heating or cooling manually.
NOTE: Once you have cycled through all of the System Setup numbers, press
Done to save and exit to the home screen.
System Setup options
Setup Complete
You have now finished installing and setting up your thermostat.

10
Quick Installation Guide

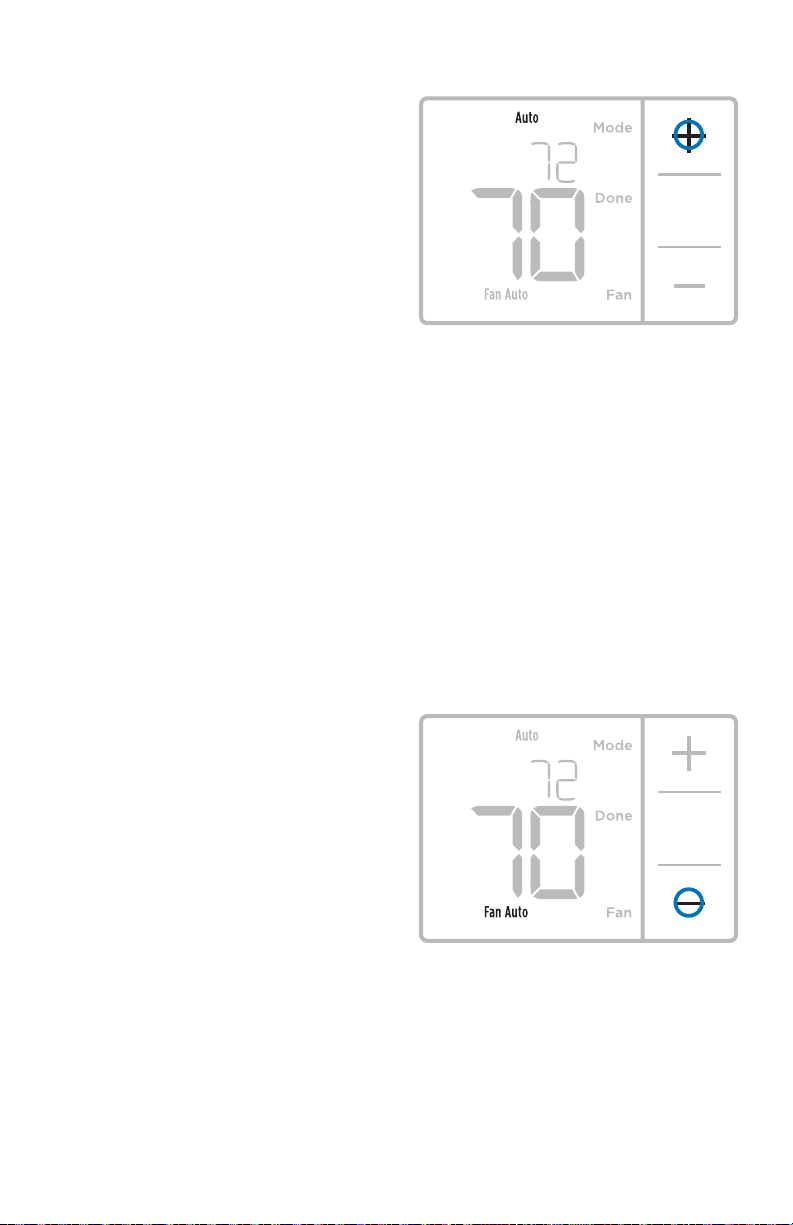

Fan operation settings
1 Press Menu, and then press the Fan (-)
button to cycle to the next available
Fan mode.
2 Cycle through the modes until the
required Fan mode is displayed,
then press Done.
NOTE: Available Fan modes vary with
system settings.
Fan modes:
‒Auto: Fan runs only when the
heating or cooling system is on.
‒On: Fan is always on.
System operation settings
1 Press Menu, and then press the
Mode (+) button to cycle to the next
available System mode.
2 Cycle through the modes until the
required System mode is displayed,
and then press Done.
NOTE: Available System modes vary by
model and system settings.
System modes:
‒Auto: Thermostat selects heating
or cooling as needed.
‒Heat: Thermostat controls only the
heating system.
‒Cool: Thermostat controls only the
cooling system.
‒Em Heat (only for heat pumps
with auxiliary heat): Thermostat
controls Auxiliary Heat. Compressor
is not used.
‒Off: Heating and cooling system is
off. Fan will still operate if fan is set
to On.
NOTE: Heat On/Cool On may flash for 5
minutes due to compressor protection.

11
RTH5160 Series
Wiring—conventional systems
Alternate wiring (conventional systems)
If labels do not match terminals, connect wires as shown below (see notes, below).
NOTES:
1. If you must connect both
Rand Rc wires, set the
R Slider Tab to the down
position (2 wires).
2. If your old thermostat
had both Rand RH wires,
set the R Slider Tab to
the down position (2
wires). Then connect the
Rwire to the Rc terminal,
and the RH wire to the R
terminal.
3. If your old thermostat had only 1 Cor C1 wire, connect it to the Cterminal. If
your old thermostat had 2 Cor C1 wires, wrap each separately with electrical
tape and do not connect them.
4. Cdoes not power the thermostat display or operations; batteries are always
required.
Wiring—heat pump
Connect wires: heat pump
1 Match each labeled wire with same letter on new thermostat.
2 Insert the wires into the matching terminal.
NOTE: If you have difficulty inserting wires, you may have to press down the
terminal push button next to the corresponding terminal.
Labels don’t match?
If labels do not match letters on thermostat, see “Alternate wiring
(conventional systems)“ above.
AUX
S
S
Y
U
U
G
C
Y
A
Rc
W
K
W2
R
L/A
O/B
E
AUX
S
S
U
U
G
C
Y
A
Rc
W
K
W
2
R
L/A
O/B
E
Y
4
2
2
3
or Y1 or M
or F
or C1 or X or B
or W1 or H
or R
or RH or 4 or V

12
Quick Installation Guide
Alternate wiring (for heat pumps only)
NOTES:
1. Keep R Slider Tab in the up position (1 wire).
2. If your old thermostat had both Vand VR wires, stop now and contact a
qualified contractor for help.
3. If your old thermostat had separate Oand Bwires, attach the Bwire to the C
terminal. If another wire is attached to the Cterminal, stop now and contact
a qualified contractor for help.
4. If your old thermostat had Y1, W1 and W2 wires, stop now and contact a
qualified contractor for help.
5. Cdoes not power the thermostat display or operations; batteries are always
required.
6. This model doesn’t support the heat pump fault alert (L/A terminal). If this
is desired, please contact a contractor for replacement model.
Batteries are required to provide power. Install fresh batteries immediately when
the low battery icon appears. The icon appears about two months before the
batteries are depleted.
Even if the low battery icon does not appear, you should replace
batteries once a year, or before leaving home for more than a
month.
If batteries are inserted within two minutes, the time and day will not have to be
reset. All other settings are permanently stored in memory, and do not require
battery power.
NOTE: When replacing batteries, alkaline batteries are recommended.
Battery replacement
AUX
S
S
Y
U
U
G
C
Y
A
Rc
W
K
W2
R
L/A
O/B
E
3 5
3
4
or Xor B
or F
or Y1 or M
2
or HorB
or Vor VR
or Wor W1 or W2
or Xor X2
or F
21
6

13
RTH5160 Series
Alerts screen
1 You will see the alert icon and the
alert number on the screen.
2 Press Next (+) to see additional alerts,
if any. Then press Done to go back to
the home screen.
NOTE: If the alert is a critical alert,
you may not be able to access the
home screen and should call a HVAC
professional.
Number Alert/Reminder Definition
170 Internal Memory Error The memory of the thermostat has encountered an
error. Please replace the thermostat.
173 Thermostat
Temperature Sensor
Error
The sensor of the thermostat has encountered an
error. Please replace the thermostat.
405 Low Battery Alert The batteries are getting low. Replace them within
two months.
407 Critical Low Battery The batteries are almost depleted and should be
replaced as soon as possible.
Alerts codes

14
Quick Installation Guide
If you have difficulty with your thermostat, please try the following suggestions.
Most problems can be corrected quickly and easily.
Display is blank Make sure fresh AA alkaline batteries are properly installed (see
page 7).
Cannot change system
setting to Cool
Check System Setup Option 220 to make sure the options are
set to either 1 or 2 (see page 9).
Fan does not turn on
when heat is required
Check System Setup Option 205 to make sure it is set to match
your heating equipment (see page 9).
Heating system is running
in cool mode
Check System Setup Option 200 or 218 to make sure it is set
to match your heating and cooling equipment (see see page
9).
Heating or cooling system
does not respond
Press Menu and then Mode to set system to Heat. Make sure the
temperature is set higher than the Inside temperature.
Press Menu and then Mode to set system to Cool. Make sure the
temperature is set lower than the Inside temperature.
Check circuit breaker and reset if necessary.
Make sure power switch at heating & cooling system is on.
Make sure furnace door is closed securely.
Wait 5 minutes for the system to respond.
Heat On / Cool On
flashing on the screen
Compressor protection feature is engaged. Wait 5 minutes for
the system to restart safely, without damage to the compressor.
Heat pump issues cool air
in heat mode, or warm air
in cool mode
Check System Setup Option 200 or 218 to make sure it is set to
match your heating and cooling equipment (see page 9).
Troubleshooting

15
RTH5160 Series
Honeywell warrants this product, excluding battery, to be free from defects in
the workmanship or materials, under normal use and service, for a period of
one (1) year from the date of purchase by the consumer. If at any time during
the warranty period the product is determined to be defective or malfunctions,
Honeywell shall repair or replace it (at Honeywell’s option).
If the product is defective,
(i) return it, with a bill of sale or other dated proof of purchase, to the place from
which you purchased it; or
(ii) call Honeywell Customer Care at 18004681502. Customer Care will make
the determination whether the product should be returned to the following
address: Honeywell Return Goods, Dock 4 MN103860, 1985 Douglas Dr. N.,
Golden Valley, MN 55422, or whether a replacement product can be sent to you.
This warranty does not cover removal or reinstallation costs. This warranty shall
not apply if it is shown by Honeywell that the defect or malfunction was caused by
damage which occurred while the product was in the possession of a consumer.
Honeywell’s sole responsibility shall be to repair or replace the product within
the terms stated above. HONEYWELL SHALL NOT BE LIABLE FOR ANY LOSS
OR DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING, DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY
WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF THIS PRODUCT.
Some states do not allow the exclusion or limitation of incidental or consequential
damages, so this limitation may not apply to you.
THIS WARRANTY IS THE ONLY EXPRESS WARRANTY HONEYWELL MAKES ON
THIS PRODUCT. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING
THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, IS HEREBY LIMITED TO THE ONEYEAR DURATION OF THIS
WARRANTY.
Some states do not allow limitations on how long an implied warranty lasts, so
the above limitation may not apply to you. This warranty gives you specific legal
rights, and you may have other rights which vary from state to state.
If you have any questions concerning this warranty, please write Honeywell
Customer Relations, 1985 Douglas Dr, Golden Valley, MN 55422 or call 1800
4681502. In Canada, write Retail Products ON1502H, Honeywell Limited/
Honeywell Limitée, 35 Dynamic Drive, Toronto, Ontario M1V4Z9.
1-year limited warranty

Home and Building Technologies
In the U.S.:
Honeywell
1985 Douglas Drive North
Golden Valley, MN 55422-3992
customer.honeywell.com
® U.S. Registered Trademark.
© 2017 Honeywell International Inc.
33-00200EF—01 M.S. 08-17
Printed in U.S.A.
33-00200EF-01
For assistance with this product,
please visit
http://yourhome.honeywell.com.
Or call Honeywell Customer Care
toll-free at 18004681502.
Customer assistance
Pull to remove the
thermostat from the
UWP.
CAUTION: MERCURY NOTICE
If this product is replacing a control that contains mercury in a sealed
tube, do not place the old control in the trash. Contact your local waste
management authority for instructions regarding recycling and proper
disposal.
CAUTION: ELECTRICAL HAZARD
Can cause electrical shock or equipment damage. Disconnect power before
beginning installation.
ALERT: HHW PROPER DISPOSAL
This product is an electronic device and considered Household Hazardous
Waste (HHW). It should not be disposed of with other household waste.
Contact your local waste management authority for instructions regarding
recycling and proper disposal.

Série RTH5160
Thermostat non
programmable
Guide d’installation
rapide
Outils requis Outils pouvant être requis
Dénudeur de fils
Pince à bec elé Perceuse et
mèche (7/32 po)
Inclus dans cette boîte
Vis et
ancres
Système de
montage
UWP™ (UWP)
Thermostat
RTH5160
Guide d’installation
rapide
Petit tournevis plat
Tournevis cruciforme
Crayon
Niveau

2
Guide d’installation rapide
Retrait de l’ancien thermostat
2 Assurez-vous que votre système
est désactivé.
Réglez la température de
votre ancien thermostat à une
température plus élevée que la
température ambiante, en mode
chauffage, ou moins élevée,
en mode climatisation. Si vous
n’entendez pas le système se mettre
en marche au bout de 5 minutes,
cela signifie que l’alimentation est
coupée.
Remarque : Si vous avez un
thermostat numérique qui a un
écran vierge, sautez cette étape.
1 Coupez l’électricité.
Pour vous protéger ainsi que
pour protéger votre équipement,
coupez l’alimentation au niveau
du disjoncteur ou de l’interrupteur
contrôlant le système de chauffage/
refroidissement.
3 Retirez la plaque frontale de
l’ancien thermostat.
Sur la plupart des thermostats, il
est possible de retirer la plaque
en la saisissant et en la tirant
délicatement. Certains thermostats
peuvent avoir des vis, des boutons
ou des fermoirs.
Ne retirez aucun fil du thermostat
à ce stade!
75
75
Disjoncteur
Interrupteur
4 Assurez-vous qu’il n’y a aucun fil
de 120/240 V.
D’épais fils noirs sont-ils présents
avec des serre-fils?
Votre thermostat fonctionne-t-il
sur 120 V ou plus?
Si vous avez répondu oui à l’une
ou l’autre de ces questions, votre
système fonctionne sur tension
secteur et le thermostat ne
fonctionnera pas.
Capuchon de
connexion
Fil noir épais
OU
ARRÊT
ARRÊT
MARCHE
ARRÊT
ARRÊT
MARCHE

3
Série RTH5160
5 Prenez une photo du câblage
existant.
Assurez-vous que les lettres
adjacentes aux bornes de
branchement des fils sont sur la
photo. Cette référence vous sera utile
lorsque vous procéderez au câblage
de votre nouveau thermostat.
Conseil : Si la couleur des fils s’est
estompée ou si deux bornes ont
des fils de même couleur, utilisez
les étiquettes de fil fournies dans
l’emballage pour étiqueter chaque fil.
1/4” to 3/8”
6 Prenez en note les fils R que vous avez en indiquant leur couleur
respective.
Remarque : Ne comptez pas les cavaliers. Le thermostat ne requiert
aucun cavalier.
Borne Couleur de fil
R
R h
Rc
7 Prenez en note les fils restants en indiquant leur couleur respective.
Cochez la case correspondant aux fils qui sont branchés dans les bornes.
Notez la couleur du fil sur la ligne qui se trouve à côté de la case cochée. Ne
comptez pas les cavaliers.
Cochez tous les éléments applicables (les éléments ne s’appliquent pas
tous) :
Borne Couleur de fil
Y
G
C
Borne Couleur de fil
A ou L/A
O/B
W2 ou AUX
E
W
K
REMARQUES :
• Cn’alimente pas l’affichage ou les commandes du thermostat; il a toujours
besoin de piles.
• Si Kétait utilisé sur l’ancien thermostat, cela signifie qu’un module
Wiresaver a été installé. Il sera nécessaire d’effectuer un nouveau câblage
afin d’utiliser Y et G plutôt que K.
• Le thermostat RTH5160 ne prend pas en charge les bornes L/A, S ou U.
• S’il y a des fils sont dans des bornes non énumérées, une assistance
supplémentaire sera requise pour le câblage. Visitez yourhome.
honeywell.com/support pour déterminer si le thermostat fonctionnera
dans votre configuration.
YRRC
Exemple de
cavalier
Bornes

4
Guide d’installation rapide
8 Débranchez les fils et retirez l’ancienne plaque murale.
Utilisez un tournevis pour dégager les fils des bornes. Utilisez ensuite une
étiquette de fil pour identifier chaque fil au fur et à mesure qu’il est débranché.
La lettre sur l’étiquette du fil doit correspondre à la lettre de la borne.
Conseil : Pour éviter que les fils ne tombent derrière le mur, enroulez-les
autour d’un crayon.
Installation de votre thermostat RTH5160
9 Regroupez et insérez les fils dans le
système de montage UWP.
Ouvrez le système UWP et insérez le faisceau
de fils à l’arrière du système UWP.
Assurez-vous qu’au moins 1/4 po de chaque
fil est exposé pour faciliter l’insertion dans
les bornes de câble.
Thermostat RTH5160 Vis Système de montage
UWP Ancres Mur
