Honeywell RTH7000 User manual

Operating
Manual
RTH7000 Series
Programmable Thermostat
69-1899EF-02

Read and save these instructions.
Need Help?
For assistance with this product please visit http://yourhome.honeywell.com
or call Honeywell Customer Care toll-free at 1-800-468-1502
® U.S. Registered Trademark. Patents pending.
Copyright © 2013 Honeywell International Inc. All rights reserved.
CAUTION: EQUIPMENT DAMAGE HAZARD. To prevent possible compressor damage, do not
operate cooling system when outdoor temperature is below 50°F (10°C).
This manual covers RTH7400 and RTH7500 models.
(Pull thermostat from wallplate and turn over to find model number)
This thermostat contains a Lithium battery which may contain Perchlorate material.
Perchlorate Material—special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate

RTH7400/RTH7500
1 69-1899EF—02
About your new thermostat
Thermostat features.................................... 2
Programming at a glance............................ 3
Quick reference to controls ......................... 4
Quick reference to status display................ 5
Programming & Operation
Clock setting................................................ 6
Fan setting .................................................. 7
System setting ............................................ 8
Using program schedules ........................... 9
Program schedule overrides ..................... 13
Furnace filter reminder.............................. 15
Special features ........................................ 16
Appendices
Battery replacement.................................. 17
In case of difficulty .................................... 18
1-year limited warranty.............................. 20
This thermostat is ready to go!
Your new thermostat is pre-programmed
and ready to go.
See page 3 to check settings.
Table of contents

Operating Manual
69-1899EF—02 2
About your new thermostatAbout your new thermostat
Congratulations! You’ve just purchased the world’s most advanced, easy-to-use thermo-
stat. It has been designed to give you many years of reliable service and touchscreen
climate control.
Features
• Dailyprogramschedulesmaximizecomfortandeconomy.
• Energy-savingsettingsformaximumcostsavings.
• One-touchtempcontroloverridesprogramscheduleatanytime.
• Precisecomfortcontrolkeepstemperaturewithin1°Fofthelevelyouset.
• Change/checkreminderletsyouknowwhentoreplacefurnacefilter.
• Largescreendisplaywithbacklightiseasytoread—eveninthedark.
2

RTH7400/RTH7500
3 69-1899EF—02
This thermostat is ready to go!
Your new thermostat is pre-programmed and ready to go. All you have to do is set the
time and day. Then check the settings below and change if needed:
1. Set clock ................................................................................................See page 6
2. Select fan setting: Preset to Auto .......................................To change, see page 7
3. Select system setting: Preset to Heat ................................To change, see page 8
4. Program schedules: Preset to energy-saving levels
while you’re at work or asleep (assumes you wake at
6 am, leave at 8 am, return at 6 pm and go to bed
at 10 pm)..................................................................... To change, see pages 10–14
ONE-TOUCH TEMP CONTROL: You can override the program schedule at any time, and
manually adjust the temperature (see pages 13–14).

Operating Manual
69-1899EF—02 4
Quick reference to controls
Arrow buttons
Press to adjust temperature (see pages 11-14), or to make selections from screen menus.
Clock & More
Press to set clock (see
page 6) or furnace
filter reminder.
Schedule
Press to set program schedule (see pages 11-12).
System & Fan
Press to select fan
operation (see page
7) or system (see
page 8).

RTH7400/RTH7500
5 69-1899EF—02
Quick reference to status display
System & Fan Schedule Clock & Mode
System
Cool
Fan Auto
Mon
Set to
Heat OnRecovery
AM
75
75
6:01
Current day of week
Smart Response®
Technology in effect
(see page 15)
Current inside temperature Current time
Temperature setting
System setting
(see page 8) Fan setting
(see page 7)
Other display messages:
• Cool On: Cooling system is activated
• Heat On: Heating system is activated
• Aux Heat On:Auxiliaryheatingsystemis
activated (heat pump systems only)

Operating Manual
69-1899EF—02 6

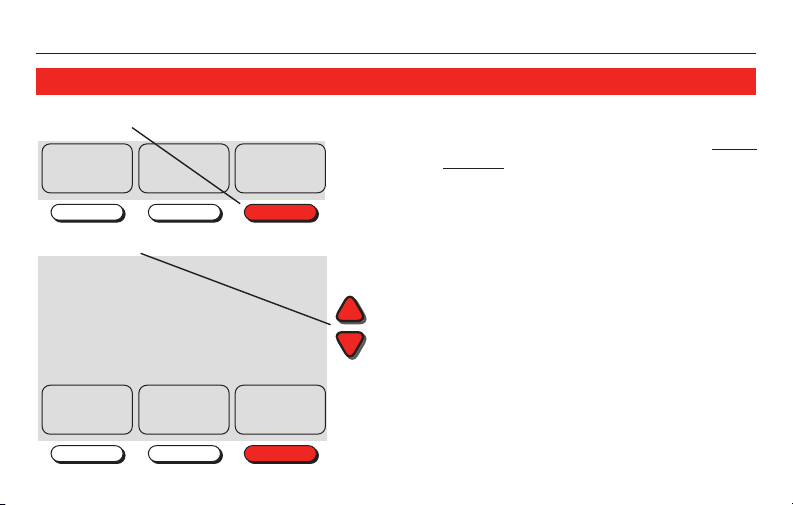

Clock setting
To set the current time display, press CLOCK,
then press s or tto adjust the time. Press
and hold s or tto advance the time more
quickly.
Press DONEtosave&exit(orpressGO BACK
toexitwithoutchangingthetime).
Note: The real-time clock should never
require adjustment since it automatically
updates for daylight savings time, and stores
all date/time information.
Note: To change the current week
day display, see System Setup in your
Installation Guide.
System & Fan Schedule Clock & More
Go Back Done
Mon
AM
6:01
Press CLOCK
Adjust time, then press DONE

RTH7400/RTH7500
7 69-1899EF—02
Fan setting
Press SYSTEM & FAN, then FAN to select fan
operation:
• On: Fan is always on.
• Auto: Fan runs only when the heating or
cooling system is on.
System & Fan Schedule Clock & More
System Fan Done
System
Heat
Fan Auto
Press SYSTEM & FAN
Press FAN to select mode, then press DONE

Operating Manual
69-1899EF—02 8
System setting
Follow steps at left to select system:
• Heat: Thermostat controls only the heating
system.
• Cool: Thermostat controls only the cooling
system.
• Auto: Thermostat automatically selects heating
or cooling depending on the indoor temperature.
• Off: All systems are off.
• Em Heat(onlyforheatpumpswithauxiliary
heat):ThermostatcontrolsEmergencyand
AuxiliaryHeat.Compressorislockedout.
Note: The Auto and EmHeat system settings may not
System & Fan Schedule Clock & More
System Fan Done
System
Heat
Fan Auto
Press SYSTEM & FAN
Press SYSTEM to select mode,
then press DONE
appear, depending on how your thermostat
was installed.

RTH7400/RTH7500
9 69-1899EF—02
Save money by setting program schedules
It’seasytoprogramyoursystemformaximumenergysavings.Youcanprogramfourtime
periods each day, with different settings for weekdays and weekends.
Set to the time you awaken and the temperature you want
during the morning, until you leave for the day.
Set to the time you leave home and the temperature you
want while you are away (usually an energy-saving level).
Set to the time you return home and the temperature you
want during the evening, until bedtime.
Set to the time you go to bed and the temperature you want
overnight (usually an energy-saving level).
WAKE
6:00 am
70 °
LEAVE
8:00 am
62 °
RETURN
6:00 pm
70 °
SLEEP
10:00 pm
62 °

Operating Manual
69-1899EF—02 10
Energy-saving settings for maximum cost savings
This thermostat is pre-set to use energy-saving program settings. We recommend these
settings,sincetheycanreduceyourheating/coolingexpenses.(Seenextpagetoadjust
times and temperatures of each time period.)
Wake
(6:00 am)
Leave
(8:00 am)
Return
(6:00 pm)
Sleep
(10:00 pm)
Cool (Mon-Fri)Heat (Mon-Fri) Heat (Sat-Sun) Cool (Sat-Sun)
70 °78 °70 °78 °
62 °85 °62 °
[Orcancelperiod]
85 °
[Orcancelperiod]
70 °78 °70 °
[Orcancelperiod]
78 °
[Orcancelperiod]
62 °82 °62 °82 °

RTH7400/RTH7500
11 69-1899EF—02

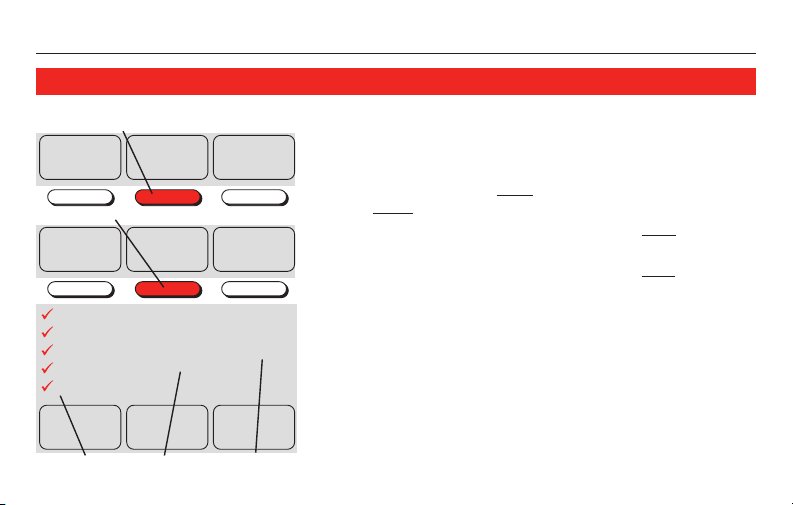

To adjust program schedules (RTH7400 only)
1. Press SCHEDULE, then EDIT to see weekdays.
2. Press SELECT DAY to highlight Mon-Fri (they will
share the same settings).
3. Press NEXT STEP twice, then press s or tto set
Wake time for selected days.
4. Press NEXT STEP, then s or tto set Heat
temperature for this time period.
5. Press NEXT STEP, then s or tto set Cool
temperature for this time period.
6. Repeat steps 3-5 to program other time periods
(LEAVE, RETURN, SLEEP), then press DONE.
7. Repeat steps 1-6 to program Saturday/Sunday.
(Press s or tuntil the desired day is flashing, then
press SELECT DAY.)
8. Press DONEtosave&exit.
System & Fan Schedule Clock & More
Go Back Edit View
Go Back Next Step Done
Period
Wake
MON
TUE
WED
THU
FRI
Set to
Heat
AM
62
6:00
Select day(s) Select time Select temp
Press SCHEDULE
Press EDIT

Operating Manual
69-1899EF—02 12
To adjust program schedules (RTH7500 only)
1. Press SCHEDULE, then EDIT to see weekdays.
2. Press SELECT DAY. You can select multiple days to
program with the same settings.
3. Press NEXT STEP twice, then press s or tto set
Wake time for selected day(s).
4. Press NEXT STEP, then s or tto set Heat
temperature for this time period.
5. Press NEXT STEP, then s or tto set Cool
temperature for this time period.
6. Repeat steps 3-5 to program other time periods
(LEAVE, RETURN, SLEEP), then press DONE.
7. Repeat steps 1-6 to program Saturday/Sunday.
(Press s or tuntil the desired day is flashing,
then press SELECT DAY.)
8. Press DONEtosave&exit.
System & Fan Schedule Clock & More
Go Back Edit View
Go Back Next Step Done
Period
Wake
MON
TUE
WED
THU
FRI
Set to
Heat
AM
62
6:00
Select day(s) Select time Select temp
Press SCHEDULE
Press EDIT

RTH7400/RTH7500
13 69-1899EF—02

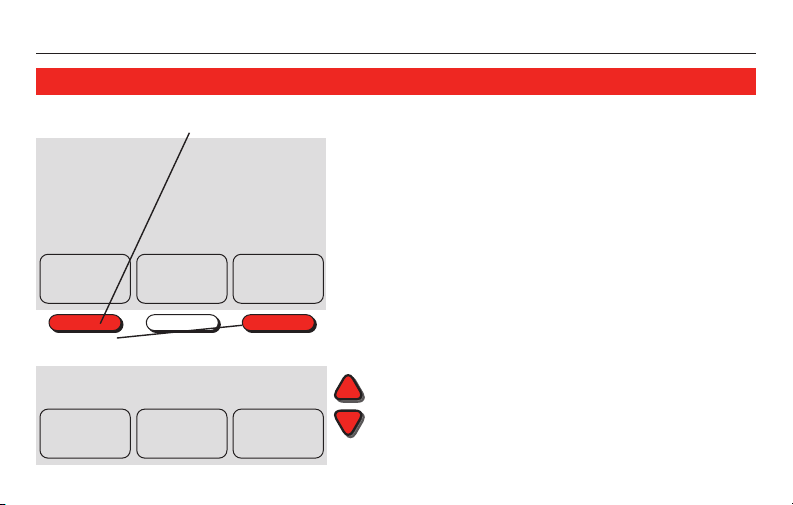

Program schedule override (temporary)
Press s or tto immediately adjust the
temperature. This will temporarily override the
temperature setting for the current time period.
The new temperature will be maintained until
thenexttimeperiod.
Whenthetimerexpires,theprogramschedule
will resume and set the temperature to the level
you’ve programmed for the current time period.
To cancel the temporary setting at any time,
press USE SCHEDULE.
System & Fan Use
Schedule Clock & More
System
Heat
Fan Auto
Mon Temporary
Set to
Heat On
AM
62
68
6:08
Press USE SCHEDULE to
resume program schedule
Adjust temperature

Operating Manual
69-1899EF—02 14
Program schedule override (permanent)
Press s or tto adjust temperature, then press
HOLD. This will turn off the program schedule.
Whatever temperature you set will be
maintained 24 hours a day, until you manually
change it, or press USE SCHEDULE to cancel
“Hold” and resume the program schedule.
Hold Cancel
System
Heat
Fan Auto
Permanent Hold
Mon
Set to
AM
62
68
6:08
Press HOLD to turn off program
schedule and maintain set
temperature
Adjust temperature

RTH7400/RTH7500
15 69-1899EF—02
If activated during installation, the furnace filter
reminder alerts you when it is time to replace
your filter.
Press RESET after changing the filter, to restart
the timer.
Toresetthereminderintervalbeforeitexpires:
1. Press MORE, then NEXT.
2. Press RESET.
3. Press DONEtosaveandexit.
Reset Schedule Clock & More
System
Heat
Fan Auto
Set to
Change Filter
Heat On
AM
70
70
6:01
Press MORE to reset reminder interval
Press RESET after changing filter
Furnace filter reminder
Reset Next Done
Days
60

Operating Manual
69-1899EF—02 16
Special features
Smart Response®Technology: This feature allows the thermostat to “learn” how long the furnace
and air conditioner take to reach programmed temperature settings, so the temperature is reached at
thetimeyouset.Forexample:SettheWaketimeto6am,andthetemperatureto70°.Theheatwill
come on before 6 am, so the temperature is 70° by the time you wake at 6. The message “Recovery”
is displayed when the system is activated before a scheduled time period.
Compressor Protection: This feature forces the compressor to wait a few minutes before restarting,
topreventequipmentdamage.Duringthewaittime,themessage“Wait”isdisplayedonscreen.
Auto Changeover (RTH7500 only): This feature is used in climates where both air conditioning
and heating are used on the same day. When the system is set to Auto, the thermostat automatically
selects heating or cooling depending on the indoor temperature. Heat and cool settings must be at
least 3 degrees apart. The thermostat will automatically adjust settings to maintain this 3-degree
separation.
CAUTION: To avoid possible compressor damage, do not use Auto Changeover if the
outside temperature drops below 50°F (10°C).

RTH7400/RTH7500
17 69-1899EF—02
Battery replacement
Batteries are optional (to provide backup power) if
your thermostat was wired to run on AC power when
installed.
Install fresh batteries immediately when the LO BATT
warning begins flashing. The warning flashes about 30
days before batteries are depleted.
Evenifthewarningdoesnotappear,youshouldreplace
batteries once a year, or before leaving home for more
than a month.
Grasp thermostat and pull to
remove from wallplate
Insert 2 fresh AA alkaline batteries

Operating Manual
69-1899EF—02 18
In case of difficulty
If you have difficulty with your thermostat, please try the following suggestions.
Most problems can be corrected quickly and easily.
Display is blank • Check circuit breaker and reset if necessary.
• Make sure power switch at heating & cooling system is on.
• Make sure furnace door is closed securely.
• If thermostat is battery powered, make sure fresh AA alkaline batteries
are correctly installed (see page 17).
No response to
key presses (or
temperature will
not change)
Make sure heating and cooling temperatures are set to acceptable ranges:
• Heat:40°to90°F(4.5°to32°C).
• Cool:50°to99°F(10°to37°C).
