VisionPRO®Series
Installation Guide
Wired Directly to Equipment
Dual Powered - C Wire or Battery
(C wire or Wire Saver required to use RedLINK accessories)
MCR35577

2
Current display. Underlined label
signifies the current display.
Mode control buttons. Use to change
settings for Fan or System.
Menu. Select options to: set schedules,
view equipment status, change IAQ
settings, access installer options*, etc.
Current status. Shows system mode
(heat/cool), outdoor temperature (with
optional outdoor sensor).
Current schedule. Shows desired
temperature and schedule status.
Indoor conditions. Shows indoor
temperature.
Current Time.
Alert Light. On when alert
message is active or system is set
to Em Heat. Flashes for battery-only
power; on continuous for 24 VAC.
microSD Card Port. Use card
to load settings and dealer
information.
Reference to key features
* Password is the date code.
Getting started
Follow these basic steps to install this thermostat,
and set installer options.
1 Installing the thermostat
2 Performing initial setup
3 Finding your password (Date Code)
• To make changes to Installer Setup
• To perform an Installer Test
Residential/Résidentiel 1-800-468-1502 http://yourhome.honeywell.com Commercial/Commerciale 1-888-245-1051 http://customer.honeywell.com Honeywell, Golden Valley, MN 55422
RoHs Compliant
Conformité RoHs
Assembled in Mexico
Assemblé au Mexique
TH8321R1001
1
1324
M35505
Residential/Résidentiel 1-800-468-1502 http://yourhome.honeywell.com Commercial/Commer
ciale
1-888-245-1051 http://customer
.honeywell.com
Honeywell, Golden V
alley, MN 55422
RoHs Compliant
Conformité RoHs
Assembled in Mexico
Assemblé au Mexique
TH8320NR1016
1
1324
Thermostat (back view)
Password
(Date Code)

3

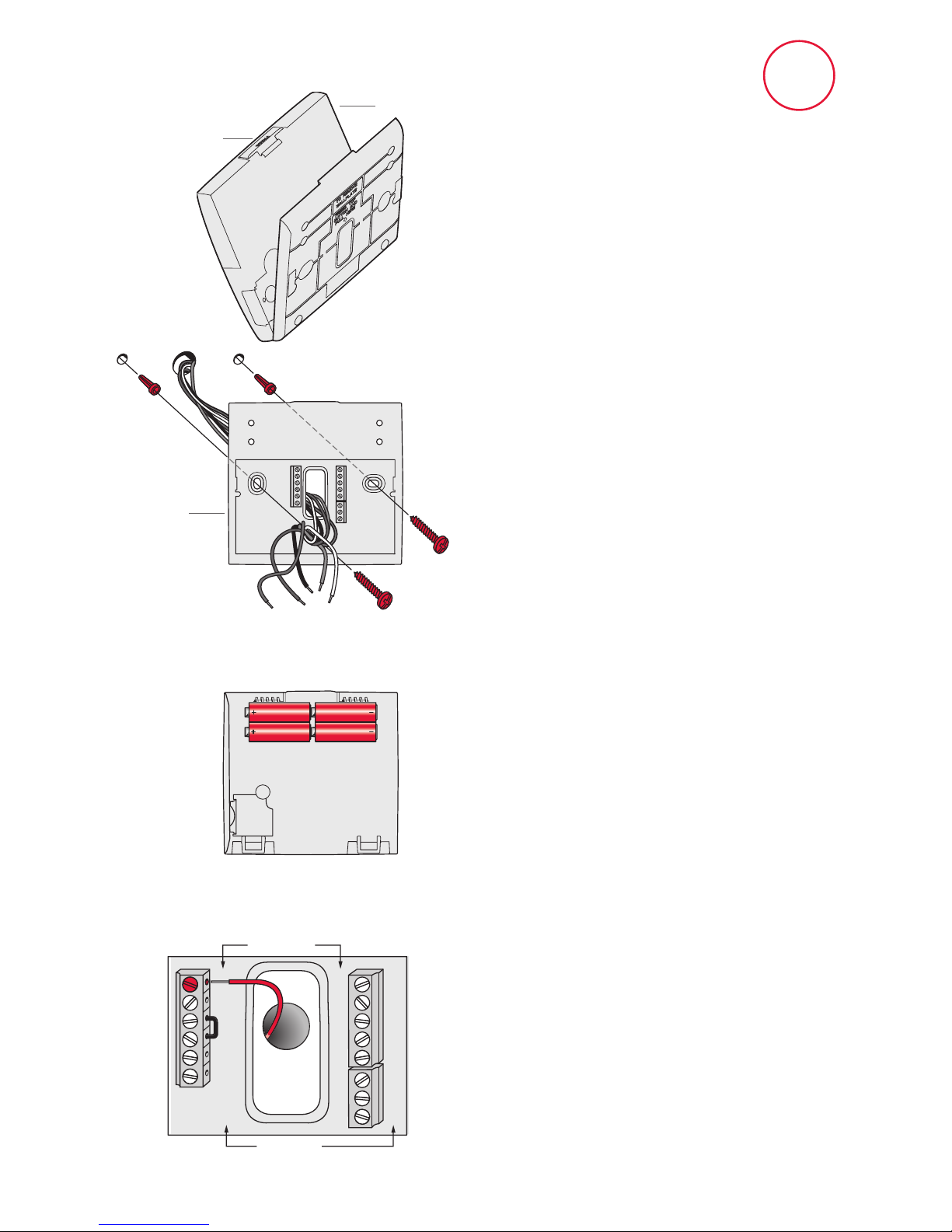

1.1 Separate wallplate from thermostat.
Press button on top and pull to
remove the wallplate.
1.3 Connect power.
1.3a Insert supplied AA alkaline
batteries for primary or backup
power.
S1
S1
W
Y
G
W2
Y2
A
S1
S1
O/B
Y
G
AUX
-E
Y2
L/A
K
RC
R
U1
U1
U2
U2
C
CONVENTIONAL
HEAT PUMP
1.3b For 24VAC primary power,
connect common side of
transformer to C terminal.
1.2 Mount wallplate as shown.
Mount new wallplate using screws
and anchors included with the
thermostat.
Drill 3/16-in holes for drywall.
Drill 7/32-in holes for plaster.
Thermostat (back view)
Wallplate
(back view)
Wallplate
S1
S1
W
Y
G
W2
Y2
A
C
K
R
C
R
U1
U1
U2
U2
S1
S1
O/B
Y
G
AUX
-E
Y2
L/A
Thermostat
Button
1Installing the thermostat

4

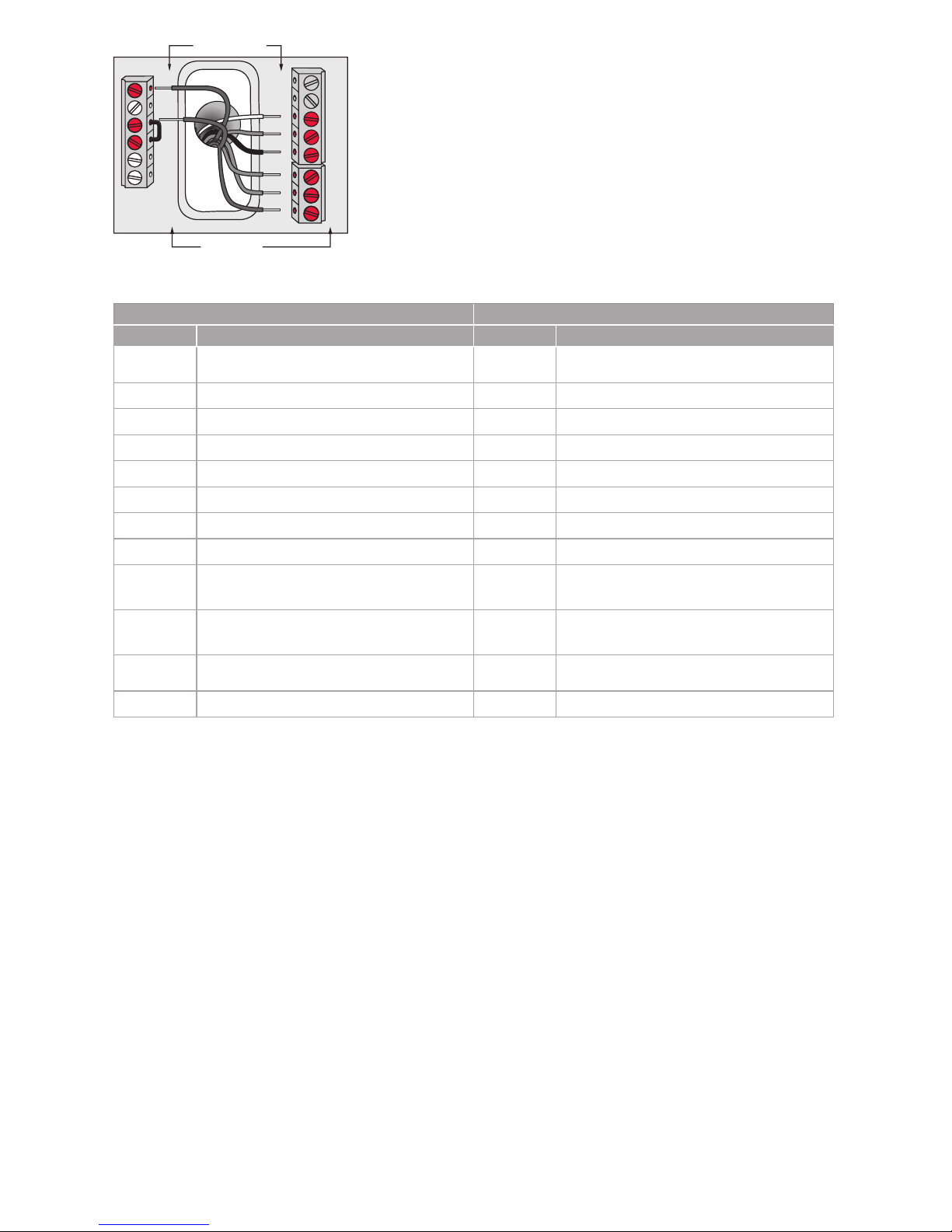

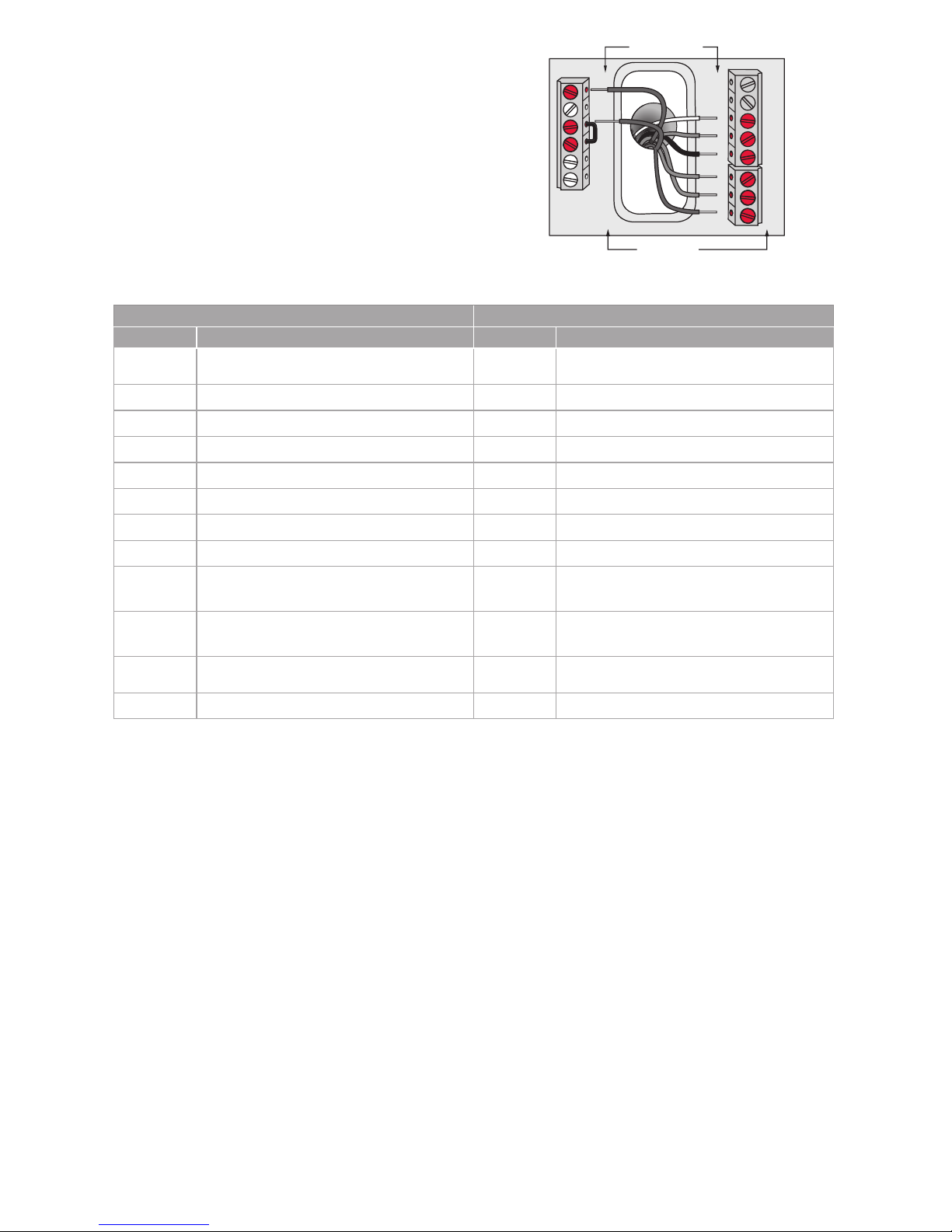

1.4 Wire the thermostat.
Once wiring is complete turn on 24vac.
S1
S1
W
Y
G
W2
Y2
A
S1
S1
O/B
Y
G
AUX
-E
Y2
L/A
K
RC
R
U1
U1
U2
U2
C
CONVENTIONAL
HEAT PUMP
Terminal Designations
Conventional System Heat Pump
Terminal Description Terminal Description
CCommon wire from secondary side of
cooling transformer (if 2 transformers). CCommon wire from secondary side of cooling transformer.
Rc* Cooling power. Rc Cooling power.
R* Heating power. R Heating power.
W Heat Stage 1 O/B Changeover valve for heat pumps.
W2 Heat Stage 2 AUX-E Backup Heat/Emergency Heat
Y Compressor Stage 1 Y Compressor Stage 1
Y2 Compressor Stage 2 Y2 Compressor Stage 2
G Fan Relay G Fan Relay
AConnect to Economizer Module or
Lighting Panel (TOD). L/A Connect to Compressor Monitor, Zone
Panel, Economizer Module or Lighting
Panel (TOD).
U1 / U1 Universal relay for humidification, dehumidification, ventilation, or a stage of
heating/cooling. U1 / U1 Universal relay for humidification,
dehumidification, ventilation, or a stage of
heating/cooling.
S1 / S1 Universal input for a wired indoor, outdoor
or discharge sensor. S1 / S1 Universal input for a wired indoor, outdoor or discharge sensor.
K** Connect to K on Wire Saver module. K** Connect to K on Wire Saver module.
* Remove factory installed jumper for two transformer systems.
** The THP9045A1023 Wire Saver module is used on heat/cool systems when you only have four wires at the thermostat and you
would like the thermostat to be powered with a common wire. Use the K terminal in place of the Y and G terminals on conventional
or heat pump systems to provide control of the fan and the compressor through a single wire—the unused wire then becomes your
common wire. See THP9045 instructions for more information.

5
1.5 Remove coin cell battery tab
1.5a Remove tab to activate coin
cell battery.
NOTE: Coin cell battery saves time
and date during a power loss.
1.6 Mount thermostat on wallplate.
Align thermostat at bottom and
snap into place as shown.
REMOVE DURING
INSTALLATION
REMOVE DURING
INSTALLATION
Thermostat
Coin
cell
battery
tab
MCR34009A
C
K
RC
R
U1
U1
24
VAC
C
R
SYSTEM
TRANSFORMER
24
VAC
HUM, DEHUM OR
VENT
TRANSFORMER
THERMOSTAT
POWERED
HUMIDIFIER,
DEHUMIDIFIER
OR VENTILATOR
120 VAC
LINE
VOLTAGE
120 VAC
LINE
VOLTAGE
MCR34010A
C
K
RC
R
U1
U1
120 VAC
LINE
VOLTAGE
24
VAC
C
R
SYSTEM
TRANSFORMER
THERMOSTAT
NON-POWERED
HUMIDIFIER,
DEHUMIDIFIER
OR VENTILATOR
FIELD INSTALL JUMPER
BETWEEN R AND U1
CONNECTING A HEAT OR COOL STAGE TO U1DEHUMIDIFICATION WITH LOW SPEED FAN
NON-POWERED HUMIDIFIER, DEHUMIDIFIER OR VENTILATORPOWERED HUMIDIFIER, DEHUMIDIFIER OR VENTILATOR
Wire the thermostat universal relay to the low speed fan
for dehumidication control at the equipment. The
thermostat relay can be set to normally open or
normally closed in the thermostat installer setup.
U1 terminals are normally open dry contacts when set
up for a stage of heating or cooling.
You must install a eld jumper if the stage of heating
or cooling is powered by system transformer. Do NOT
install a eld jumper if the stage of heating has its own
transformer.
1
2
Normally open, dry contacts
Normally closed, dry contacts
MCR34014A
1
C
K
RC
R
U1
U1
24
VAC
C
R
SYSTEM
TRANSFORMER
THERMOSTAT
DEHUMIDIFICATION
WITH LOW SPEED FAN
FIELD INSTALL JUMPER
BETWEEN R AND U1
OR
120 VAC
LINE
VOLTAGE
2
C
K
RC
R
U1
U1
24
VAC
C
R
TRANSFORMER
THERMOSTAT
MCR34007A
HEAT STAGE 3, COOL
STAGE 3, BACKUP HEAT
STAGE 2 FOR HEAT
PUMPS, OR GEOTHERMAL
RADIANT HEAT
1
120 VAC
LINE
VOLTAGE
Wiring Diagrams

6
Initial setup options define the type of system you are installing:
• Residential or commercial
• Non-zoned or zoned
2.1 Follow prompts on the screen to
select the appropriate options.
2.2 Finish the initial setup.
Finish the setup by selecting the desired
options. Touch Done after you select the
last option you want to change.
The thermostat now displays its Home screen
and the thermostat setup is complete.
APPLICATION
residential
2Performing initial setup
M34150
THERMOSTAT TYPE
programmable
M35576

7
• To make changes to Installer Setup
• To perform an Installer Test

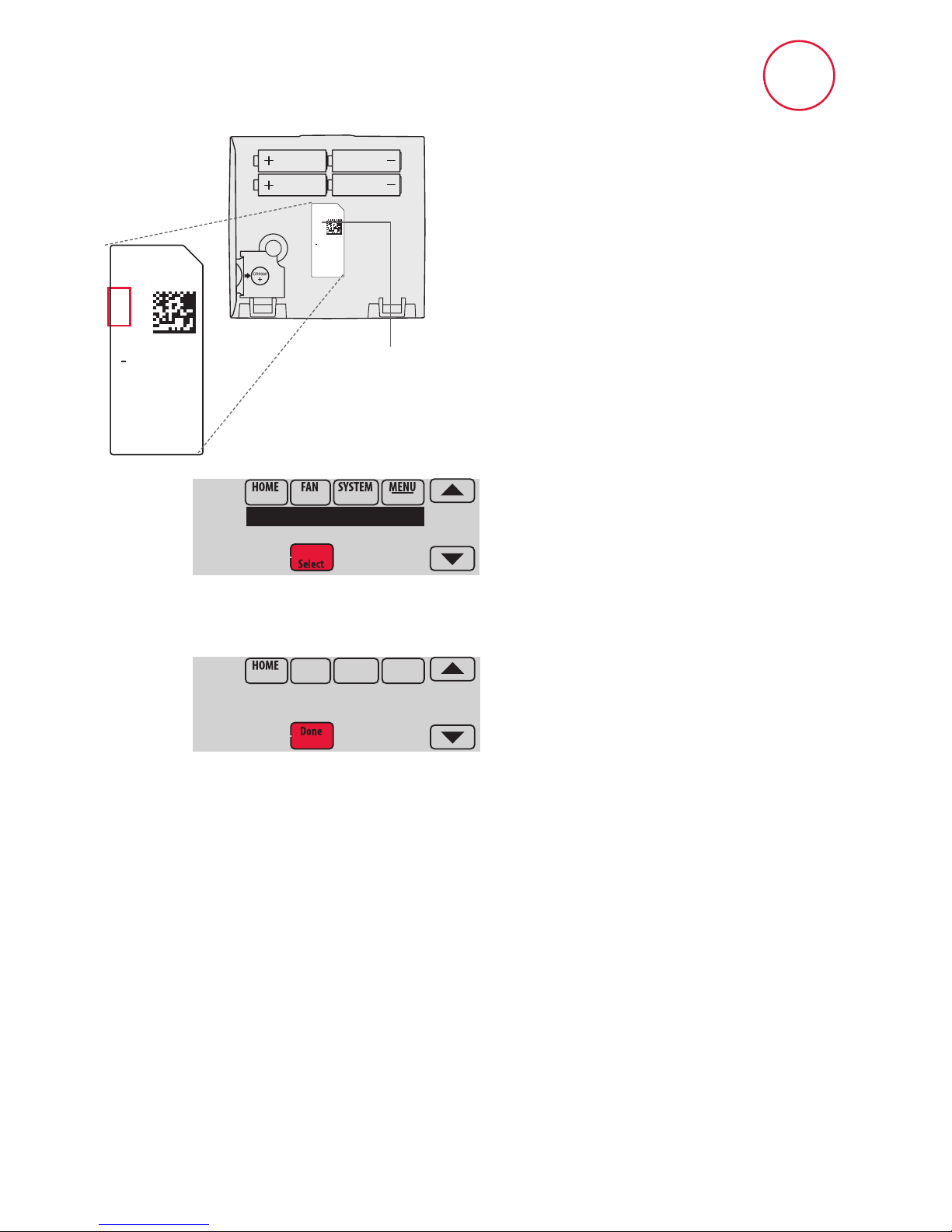

Finding your password
You can find the date code
on the back of the thermostat,
or
1 Touch Menu.
2 Select Dealer Information.
3 Scroll down to see the Date Code.
MCR35506
TH8320NR1016
Date Code: 1324
MCR34022
Dealer Information
Installer Options
3Finding your password (Date Code)
Residential/Résidentiel 1-800-468-1502 http://yourhome.honeywell.com Commercial/Commerciale 1-888-245-1051 http://customer.honeywell.com Honeywell, Golden Valley, MN 55422
RoHs Compliant
Conformité RoHs
Assembled in Mexico
Assemblé au Mexique
TH8321R1001
1
1324
M35505
Residential/Résidentiel 1-800-468-1502 http://yourhome.honeywell.com Commercial/Commer
ciale
1-888-245-1051 http://customer
.honeywell.com
Honeywell, Golden V
alley, MN 55422
RoHs Compliant
Conformité RoHs
Assembled in Mexico
Assemblé au Mexique
TH8320NR1016
1
1324
Thermostat (back view)
Password
(Date Code)

8
Making changes to Installer Setup
and performing an Installer Test
NOTE: Use a microSD card to save
set up time. See next page.
1 Touch Menu.
2 Select Installer Options.
3 Enter password (date code) and
touch Done.
4 Select Installer Setup or Installer Test.
5 Follow prompts on the screen to select
the desired setup options or to perform an
equipment test.
MCR33977
Enter password
0 0 0 0
MCR33976
Installer Options
MCR34015
Installer Setup
Installer Test

9

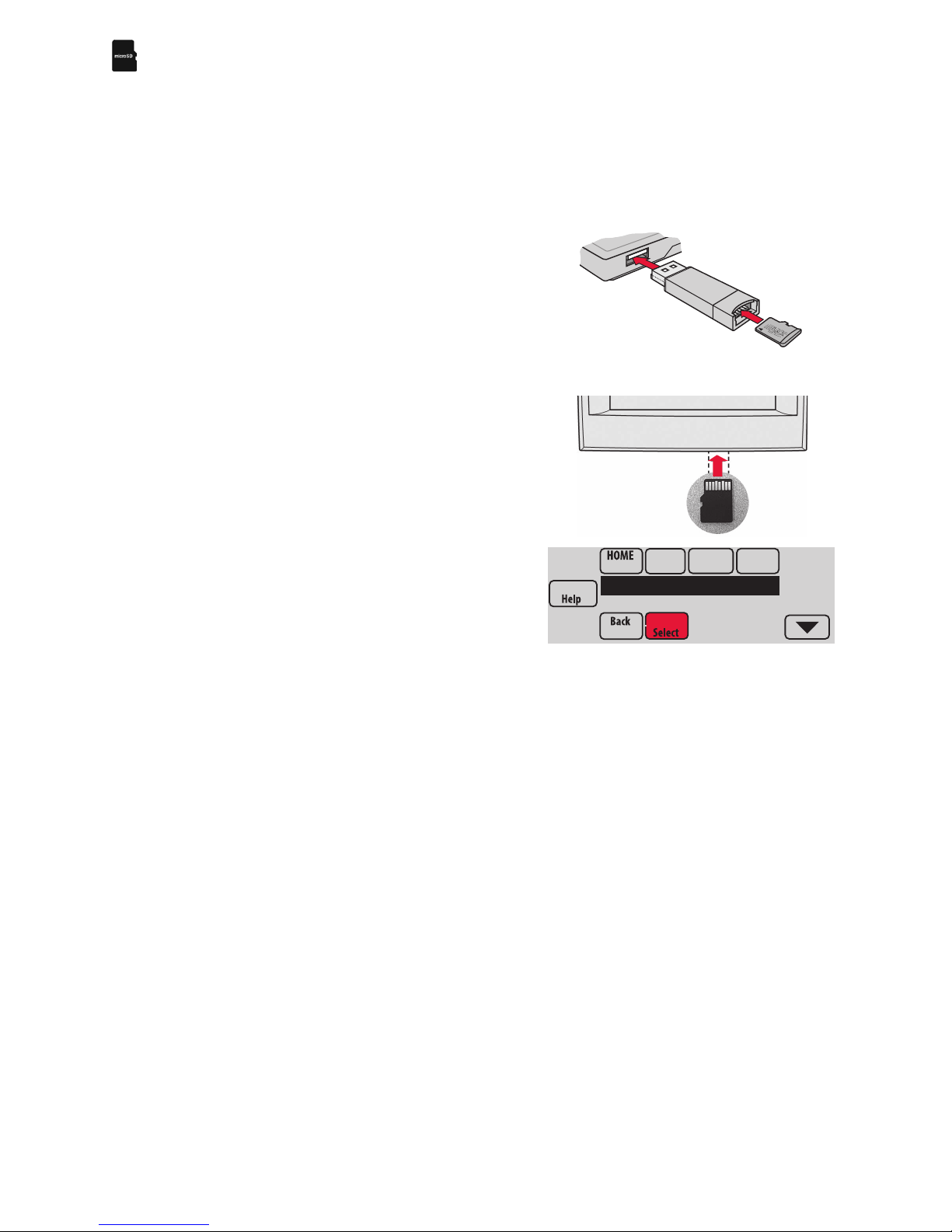

Using a microSD card for setup, data logs and software upgrades
Use a microSD (secure digital) card to save setup time by loading Installer Setup settings,
Dealer Information, Holiday Schedules, and Custom Reminders to multiple thermostats.
For troubleshooting help, you can save the thermostat Data Logs (Alerts Log and
Interaction Log) to a microSD card - then view them on your computer. Also use the
microSD card to upgrade the thermostat software.
Loading Dealer Information and New Thermostat Software:
1 Visit http://thermostatsetup.honeywell.com
to enter your dealer information or load new
thermostat software.
2 Connect a microSD USB Adapter to your
computer to download the file(s).
3 After the file(s) are downloaded, remove the
microSD card from the adapter and insert into
thermostat.
To use the microSD card in the thermostat:
1 Slide card into the bottom of thermostat.
2 Select the item to load or save.
3 Follow the prompts on the screen.
• To add information from the card to the
thermostat, select Load from SD Card.
• To put thermostat information on the
card, select Save to SD Card.
4 When you are finished, touch Done, then
Home, and remove the microSD card.
MCR34059
Installer Setup
Dealer Information
microSD
card
USB
adapter
Computer
microSD
card
Thermostat

10
VisionPRO®Auto-Azan Overview
After the initial installation process is complete, provided that the correct latitude, longitude
and time zone has been entered, the Honeywell VisionPRO® controller TH8320NR1016/U
will calculate the correct prayer times and will automatically adjust the start times
according to the necessary astronomical calculations and requirements. So, there will be
no need to manually correct the prayer times.
Occasionally for special functions such as Ramadan and Eid Prayers, the override button
can be used to set the thermostat status to occupied mode and the system will continue
running until the override button is disengaged.
Programming the VisionPRO®Auto-Azan.
If you wish to take advantage of the inbuilt Auto-Azan feature, please note the longitude
and latitude of the site location before initial programming of the device and have the
information ready to enter when prompted.
Proceed with thermostat programming according to the specific application.
1 Enter “Installer setup” mode using the method described in the installation
instructions.
2 At “Setup#1601” screen use the “UP / DOWN” arrow buttons to index to the longitude
appropriate to the thermostat being programmed. Use the “NEXT” button to move to
the next screen.
3 At “Setup#1602” screen use the “UP/DOWN” arrow buttons to index to the latitude
appropriate to the thermostat being programmed. Use the “NEXT” button to move to
the next screen.
4 At “Setup#1603” screen use the “UP/DOWN” arrow buttons to index to the time zone
appropriate to the thermostat being programmed. The choices available are either 3 or 4
hours ahead of GMT. Use the “NEXT” button to move to the next screen and continue
normal programming.
5 Exit Installer Setup and return to normal operating mode when programming is
complete.
Once the TH8320NR1016/U has been programmed and the location and time zone
entered, the VisionPRO®Auto-Azan feature will calculate and adjust the switching times
appropriate to the specific location of the system.

11
Specifications and replacement parts
Operating Ambient Temperature
Thermostat: 32 to 120° F (0 to 48.9° C)
Operating Relative Humidity
Thermostat: 5% to 90% (non-condensing)
Physical Dimensions (height, width, depth)
Thermostat: 4-15/16 x 4-5/8 x 1-1/8 inches (126 mm x 118 mm x 29 mm)
Electrical ratings
Terminal Voltage (50/60 Hz) Max. Current Rating
W - OB 18 to 30 VAC and 750 mVDC 1.00A
Y (cooling) 18 to 30 VAC 1.00A
G (fan) 18 to 30 VAC 0.50A
W2 - Aux (heating) 18 to 30 VAC 0.60A
Y2 (cooling) 18 to 30 VAC 0.60A
A-L/A (output) 18 to 30 VAC 1.00A
U1/U1 30 VAC max. 0.50A
Accessories and replacement parts
Accessories / Replacement Parts Part Number
Wired Outdoor Sensor 10k ohm NTC C7089U1006
Wired Wall-mount Indoor Sensor 10k ohm NTC C7189U1005
Wired Flush-mount Indoor Sensor 20k ohm NTC C7772A1004, C7772A1012
Wired Wall-mount Indoor Sensor 20k ohm NTC TR21
Wired Wall-mount Indoor Sensor 10k ohm NTC TR21-A
Cover Plate (covers marks left by old thermostats) THP2400A1019
Wire Saver Module THP9045A1023
Model Numbering TH8320
Stages 3H/2C HP
2H/2C CONV
Residential or Commercial P
Dual Powered - C Wire or Battery P
Onboard Humidity Sensor P
Number of Universal Relays 1
Number of Universal Sensor Inputs 1
Economizer / TOD Output P
DISCONNECT POWER BEFORE INSTALLATION. Can cause electrical shock or equipment
damage.
This thermostat contains a Lithium battery which may contain Perchlorate material.
Perchlorate Material—special handling may apply. See local regulations.
MERCURY NOTICE: If this product is replacing a control that contains mercury in a sealed
tube, do not place the old control in the waste.
Must be installed by a trained, experienced technician. Read these instructions carefully.
Failure to follow these instructions can damage the product or cause a hazardous condition.

Automation and Control Systems
Honeywell Middle East Ltd.
Emaar Business Park, Bldg 2, 3rd Floor
Sheikh Zayed Rd.
P.O Box 232362 , Dubai
http://www.honeywell.com
[phone]
[phone] (Fax)
® U.S. Registered Trademark.
© 2015 Honeywell International Inc.
33-00073EA—01 M.S. 06-15
Printed in U.S.A.
33-00073EA-01
For assistance please visit http://www.honeywell.com,
or call: [phone] • [phone] (Fax)
Need Help?

®VisionPRO 
 
MACR35577
زﺎﻬﺠﻟﺎﺑ ﴍﺎﺒﳌا ﻠﺴﻟا ﻞﻴﺻﻮﺘﻟا
ﺔﻳرﺎﻄﺑ وأ يدﺎﻋ ﻚﻠﺳ - ﺔﺟودﺰﻣ ﺔﻗﺎﻃ
(يدﺎﻋ ﻚﻠﺳ ماﺪﺨﺘﺳا مﺰﻠﻳ)

2
      .  
.
      .   
.() System  () Fan
     :    .
 *    IAQ   
. 
  (/)    . 
.(   ) 
      .  
.
.     .   
. 
       . 
.(   ) Em Heat   
          
.   24   
    .microSD  
. 
  

  
         
.  
1
 
2
  
3
( )    
•    
•  
Residential/Résidentiel 1-800-468-1502 http://yourhome.honeywell.com Commercial/Commerciale 1-888-245-1051 http://customer.honeywell.com Honeywell, Golden Valley, MN 55422
RoHs Compliant
Conformité RoHs
Assembled in Mexico
Assemblé au Mexique
TH8321R1001
1
1324
M35505
Residential/Résidentiel 1-800-468-1502 http://yourhome.honeywell.com Commer
cial/Commerciale
1-888-245-1051 http://customer
.honeywell.com
Honeywell, Golden V
alley, MN 55422
RoHs Compliant
Conformité RoHs
Assembled in Mexico
Assemblé au Mexique
TH8320NR1016
1
1324
( ) 
 
( )

3
1.1.    
.         
1.3.   
1.3a     AA  
.    
1.3b  24      
       
.C  
1.2.      
       
.
.     3/16   
.     7/32   
( ) 
 
( )
 
S1
S1
W
Y
G
W2
Y2
A
C
K
R
C
R
U1
U1
U2
U2
S1
S1
O/B
Y
G
AUX
-E
Y2
L/A


1
 
S1
S1
W
Y
G
W2
Y2
A
S1
S1
O/B
Y
G
AUX
-E
Y2
L/A
K
RC
R
U1
U1
U2
U2
C
ﻲﺣﻼﻄﺻا
ﺔﺌﻓﺪﺘﻟا ﺔﺨﻀﻣ

4
1.4  
         
.   24
  
   
   
C(   )        C.      
Rc* .  Rc . 
R* .  R . 
W1   O/B .   
W2 2   AUX-E  / 
Y1   Y1  
Y2 2   Y2 2  
G  G 
A(  )       L/A           
.(  ) 
U1 / U1 /          
. U1 / U1 /           .
S1 / S1 .         S1 / S1 .        
K** .    K   K** .    K  
.          *
  K    .                 /   THP9045A1023     **
.     THP9045   .        -                G Y 
S1
S1
W
Y
G
W2
Y2
A
S1
S1
O/B
Y
G
AUX
-E
Y2
L/A
K
RC
R
U1
U1
U2
U2
C
ﻲﺣﻼﻄﺻا
ﺔﺌﻓﺪﺘﻟا ﺔﺨﻀﻣ

5
1.5    
1.5b.     
      :
.  
1.6.    
        
.   
REMOVE DURING
INSTALLATION
REMOVE DURING
INSTALLATION

 
 
U1           
                 
.             
.            .          U1   
              
.            .
1
2
    
    
  
MACR34009A
C
K
RC
R
U1
U1
ﺖﻟﻮﻓ 24
ددﱰﻣ رﺎﻴﺗ
C
R
مﺎﻈﻨﻟا لﻮﺤﻣ
ﺔﻟازإ وأ ﺐﻴﻃﱰﻟا لﻮﺤ
ﻣ
ﺔﻳﻮﻬﺘﻟا وأ ﺔﺑﻮﻃ
ﺮﻟا
تﺎﺘﺳﻮﻣﺮﺗ
ﺔﻟازإ وأ ﺐﻴﻃﺮﺗ زﺎﻬﺟ
ﺔﻳﻮﻬﺗ وأ ﺔﺑﻮﻃﺮﻟا
ﺔﻗﺎﻄﻟﺎﺑ دوﺰﻣ
ﺔﻗﺎﻃ ﻂﺧ
120 ﺪﻬﺠﺑ
رﺎﻴﺗ ﺖﻟﻮﻓ
ددﱰﻣ
ﺔﻗﺎﻃ ﻂﺧ
120 ﺪﻬﺠﺑ
رﺎﻴﺗ ﺖﻟﻮﻓ
ددﱰﻣ
ﺖﻟﻮﻓ 24
ددﱰﻣ رﺎﻴﺗ
MACR34010A
C
K
RC
R
U1
U1
C
R
ﺔﻟازإ وأ ﺐﻴﻃﺮﺗ زﺎﻬﺟ
ﻏ ﺔﻳﻮﻬﺗ وأ ﺔﺑﻮﻃﺮﻟا
ﺔﻗﺎﻄﻟﺎﺑ دوﺰﻣ
U1و R ﺑ رﻮﺒﻋ ﺔﻠﺻو ﺐﻴﻛﺮﺗ
ﺖﻟﻮﻓ 24
ددﱰﻣ رﺎﻴﺗ
مﺎﻈﻨﻟا لﻮﺤﻣ
تﺎﺘﺳﻮﻣﺮﺗ
ﺔﻗﺎﻃ ﻂﺧ
120 ﺪﻬﺠﺑ
رﺎﻴﺗ ﺖﻟﻮﻓ
ددﱰﻣ
MACR34014A
1
C
K
RC
R
U1
U1
C
R
ﺔﺣوﺮﻣ ماﺪﺨﺘﺳﺎﺑ ﺔﺑﻮﻃﺮﻟا ﺔﻟازإ
ﺔﻀﻔﺨﻨﳌا ﺔﻋﴪﻟا
وأ
U1و R ﺑ رﻮﺒﻋ ﺔﻠﺻو ﺐﻴﻛﺮﺗ
ﺖﻟﻮﻓ 24
ددﱰﻣ رﺎﻴﺗ
لﻮﺤﻣ
تﺎﺘﺳﻮﻣﺮﺗ
ﺔﻗﺎﻃ ﻂﺧ
120 ﺪﻬﺠﺑ
رﺎﻴﺗ ﺖﻟﻮﻓ
ددﱰﻣ
2
C
K
RC
R
U1
U1
C
R
MACR34007A
،3 ﺪﻳﱪﺘﻟا ﺔﻠﺣﺮﻣ ،3 ﺔﺌﻓﺪﺘﻟا ﺔﻠﺣﺮﻣ
2 ﺔﻴﻃﺎﻴﺘﺣﻻا ﺔﺌﻓﺪﺘﻟا ﺔﻠﺣﺮﻣ
ﺔﺌﻓﺪﺘﻟا وأ ،ﺔﺌﻓﺪﺘﻟا تﺎﺨﻀﳌ
ﺔﻴﺿرﻷا ﺔﻳراﺮﺤﻟا
1
ﺖﻟﻮﻓ 24
ددﱰﻣ رﺎﻴﺗ
لﻮﺤﻣ
تﺎﺘﺳﻮﻣﺮﺗ
ﺔﻗﺎﻃ ﻂﺧ
120 ﺪﻬﺠﺑ
رﺎﻴﺗ ﺖﻟﻮﻓ
ددﱰﻣ

6
:        
•  
•     
2.1.        
2.2.  
() Done  .      
.      
     
thermostat setup is complete
.(  )
APPLICATION
residential
2
  
M34150
THERMOSTAT TYPE
programmable
M35576

7
•    
•  
   
          
1.() Menu 
2.( ) Dealer Information 
3.      
3
( )    
MCR35506
TH8320NR1016
Date Code: 1324
MCR34022
Dealer Information
Installer Options
Residential/Résidentiel 1-800-468-1502 http://yourhome.honeywell.com Commercial/Commerciale 1-888-245-1051 http://customer.honeywell.com Honeywell, Golden Valley, MN 55422
RoHs Compliant
Conformité RoHs
Assembled in Mexico
Assemblé au Mexique
TH8321R1001
1
1324
M35505
Residential/Résidentiel 1-800-468-1502 http://yourhome.honeywell.com Commercial/Commer
ciale
1-888-245-1051 http://customer
.honeywell.com
Honeywell, Golden V
alley, MN 55422
RoHs Compliant
Conformité RoHs
Assembled in Mexico
Assemblé au Mexique
TH8320NR1016
1
1324
( ) 
 
( )

8
       
.   .   microSD   :
1.() Menu 
2.( ) Installer Options 
3.() Done  ( )   
4 ) Installer Test  ( ) Installer Setup 
.(
5             
.
MCR33977
Enter password
0 0 0 0
MCR33976
Installer Options
MCR34015
Installer Setup
Installer Test
