SPECIFICATION DATA
68-3083-02
PC3F1558IUF00 Hydronic
Circulating 3 Speed Pump
APPLICATION
The PC3F in-line, wet rotor circulator with universal flange is
designed for applications in closed-loop hydronic heating and
cooling systems, as well as in solar-powered systems. The
pump is non-submersible and for use in dry, frost-free, well-
ventilated installations.
SPECIFICATIONS
Rate of flow: Up to 15 gpm (56.8 lpm)
Pressure head: Up to 19.4 ft (6 m)
Voltage:
115 VAC +/- 10% 60Hz
Amperage:
See “Speed switching” on page 2.
Max. Pressure:
145 psi (at room temperature);
50 psi (at 200°F [93°C])
Temperature Range:
Ambient temperature: 32°F to 104°F (0°C to 40°C)
Media temperature: 14°F to 230°F (-10°C to 110°C) [to 200°F
(93°C) with optional check valve installed]
Storage Temperature: -40°F to 100°F (-40° to 66°C)
Standards:
Insulation Class F
Temperature class: TF 95 Fig. 1. Pump dimensions in in. (mm).
Shipping Weight: 7.8 lbs (3.54 Kg)
L1 L2 L3 L4 L5
6.5 (165.5) 5.5 (140) 4.7 (118) 6.6 (167) 3.2 (80.2)
M32832A
L2
L4
L3
L1
L5

PC3F1558IUF00 HYDRONIC CIRCULATING 3 SPEED PUMP
Automation and Control Solutions
Honeywell International Inc.
1985 Douglas Drive North
Golden Valley, MN 55422
customer.honeywell.com
® U.S. Registered Trademark
© 2012 Honeywell International Inc.
68-3083—02 M.S. Rev. 09-12
Printed in United States
Materials
Control: 3-step switch with manual speed selection
Motor Protection
The motor includes an internal thermal overload protection.
External motor protection is not required.
Speed switching
Three speed, with manual selector.
Flange Connections
Universal flange
Bolt hole spacing: 3-5/32 in. (80.2 mm)
Bolt holes: 1/2 in. (12.7 mm)
Media
Clean water or water with up to 20% glycol. Up to 50% glycol
may be used, but flow characteristics will differ from these
specifications.

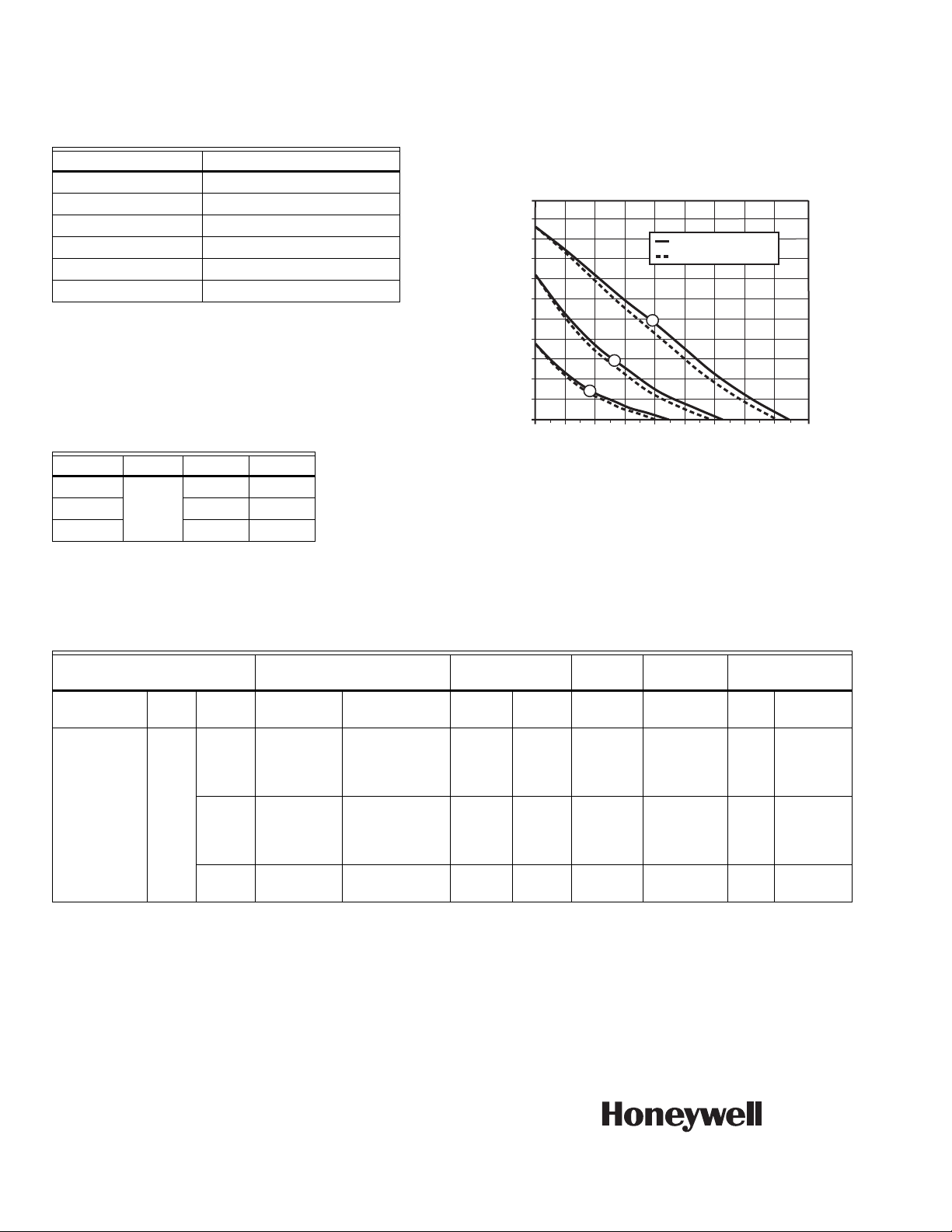

Fig. 2. Flow curve characteristics.
Optional and Replacement Parts
Check valves: PCV100
Flange gasket: PCG100
Table 1. Cross Reference for Pump Replacement
The information in this table is based on publicly available information as of the date of this publication. Honeywell is not liable if
information is found to be incorrect.
If the cross referenced model uses a flow check valve, then use a flow check with the Honeywell model as well.
Each Honeywell circulator replaces both regular and rotated flange models.
Component Material
Pump body Cast iron
Impeller Polyamide
Shaft Ceramic
Bearing Ceramic
Bearing plate Stainless steel
Can Stainless steel
Speed Volts Amps Watts
1
115
0.28 32
20.4855
30.7485
PC3F1558IUF00
M32852A
2
2
4
6
8
10
10
0
0468
12
12 14
14
16
18
20
16 18
1
22
WITHOUT CHECK VALVE
WITH CHECK VALVE
2
3
H
(FEET)
US GPM
Honeywell Grundfos Taco
Bell &
Gossett Armstrong Wilo
Model Pump
Length
Speed Single
Speed
3-Speed Single
Speed
3-Speed Single
Speed
3-Speed
PC3F1558IUF00 6.5”
High UP-42F
UP-42F-FC
UPS15-58 High
UPS15-58-FC High
005F
007F
008F
008F-IFC
00R High
00R Med
NRF-22
LR-20WR
Astro 30
Astro 30-3
Astro 50-3
Astro 230C1
Star 16 Star S16 High
Medium UP15-42FC UPS15-58 Low
UPS15-58-FC Low
005F-IFC
006F
006F-IFC
007F-IFC
00R Low NRF9F/LW
NRF-25 Med
Star S16 Med
Low UP15-18F
UP15-18F-FC
Star 5
S16 Low
