SPECIFICATION DATA
68-3085-02
PC3F4344IUF00 Hydronic
Circulating 3 Speed Pump
APPLICATION
The PC3F in-line, wet rotor circulator with universal flange is
designed for applications in closed-loop hydronic heating and
cooling systems, as well as in solar-powered systems. The
pump is non-submersible and for use in dry, frost-free, well-
ventilated installations.
SPECIFICATIONS
Rate of flow: up to 59 gpm (223 lpm)
Pressure head: up to 17 ft (5.2 m)
Voltage:
115VAC +/-10% 60hz
Amperage: See “Speed switching” on page 2.
Max. Pressure:
145 psi (at room temperature);
50 psi (at 200°F [93°C])
Temperature Range:
Ambient temperature: 32°F to 104°F (0°C to 40°C)
Media temperature: 14°F to 230°F (-10°C to 110°C) [to 200°F
(93°C) with optional check valve installed]
Storage Temperature: -40°F to 100°F (-40° to 38°C)
Standards:
Insulation Class F
Temperature Class FT 95
Fig. 1. Pump dimensions in in. (mm).
Shipping weight: 11 lbs (5 Kg)
L1 L2 L3 L4 L5
8.5 (216) 6.1 (155) 6.9 (174) 8.9 (227) 3.4 (87.3)
M32832A
L2
L4
L3
L1
L5

PC3F4344IUF00 HYDRONIC CIRCULATING 3 SPEED PUMP
Automation and Control Solutions
Honeywell International Inc.
1985 Douglas Drive North
Golden Valley, MN 55422
customer.honeywell.com
® U.S. Registered Trademark
© 2012 Honeywell International Inc.
68-3085—02 M.S. Rev. 09-12
Printed in United States
Materials
Control: 3-step switch with manual speed selection
Motor protection
The motor includes an internal thermal overload protection.
External motor protection is not required.
Speed switching
Three speed, with manual selector.
Flange Connections
Universal flange
Bolt hole spacing 3-7/16 in. (87.3 mm)
Bolt holes 1/2 in. (12.7 mm)
Media
Clean water or water with up to 20% glycol. Up to 50% glycol
may be used, but flow characteristics will differ from these
specifications.

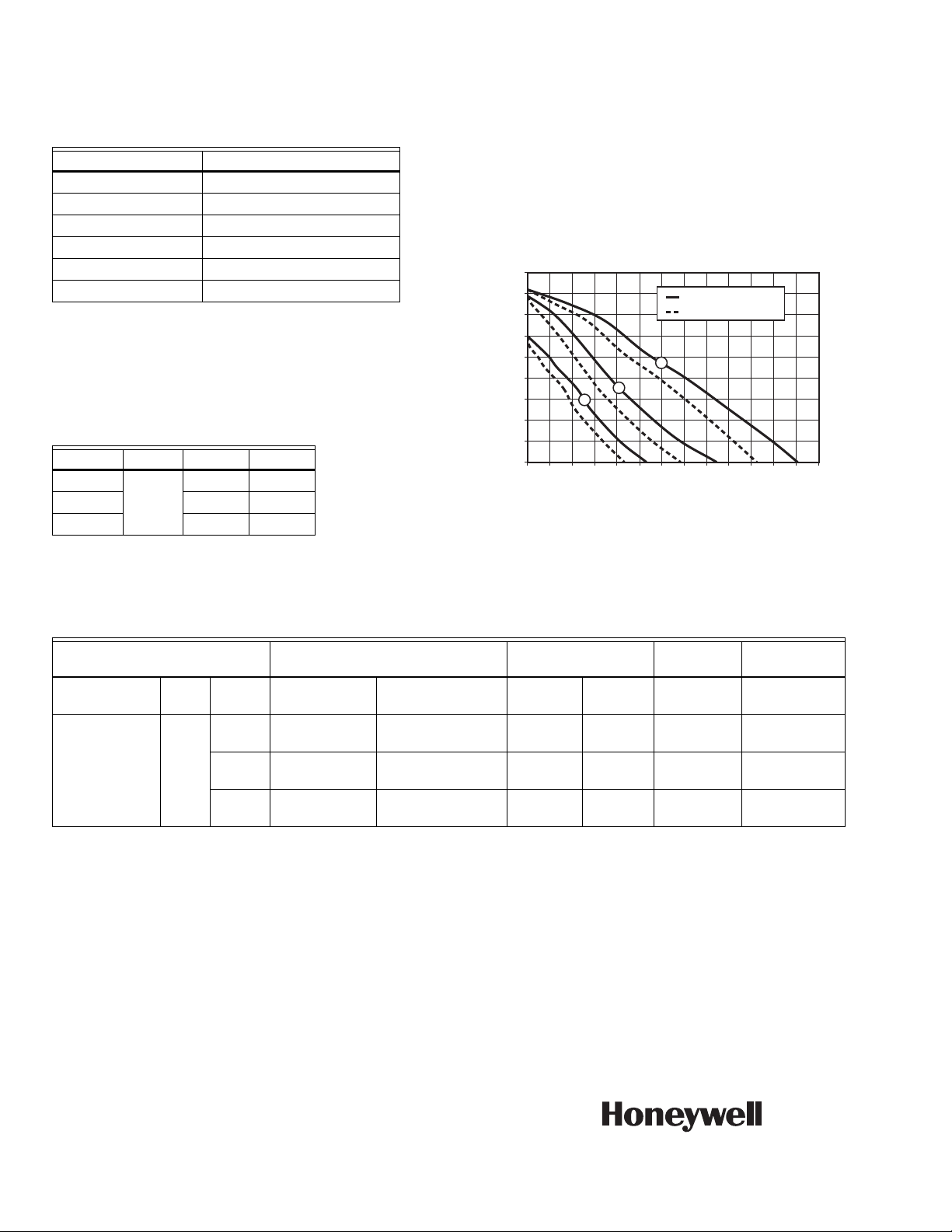

Fig. 2. Flow curve characteristics.
Optional and Replacement Parts
Check valves: PCV150
Flange gasket: PCG150
Table 1. Cross Reference for Pump Replacement
The information in this table is based on publicly available information as of the date of this publication. Honeywell is not liable if
information is found to be incorrect.
If the cross-referenced model uses a flow check valve, then use a flow check with the Honeywell model as well.
Each Honeywell circulator replaces both regular and rotated flange models.
Component Material
Pump body Cast iron
Impeller Polyamide
Shaft Ceramic
Bearing Ceramic
Bearing plate Stainless steel
Can Stainless steel
Speed Volts Amps Watts
1
115
1.26 145
21.61185
31.83210
PC3F4344IUF00
M32851A
H
(FEET)
US GPM
0
2
4
6
8
10
12
14
16
18
0 5 10 15 20 25 30 35 40 45 50 55 60 65
3
2
1
WITHOUT CHECK VALVE
WITH CHECK VALVE
Honeywell Grundfos Taco
Bell &
Gossett Armstrong
Model Pump
Length
Speed Single
Speed
3-Speed Single Speed 3-Speed
PC3F4344IUF00 8.5”
High UP43-44F
UP43-44F-FC
UPS43-44 High
UPS43-44-FC High
HV
H-32
E16
Medium UPS43-44 Med
UPS43-44-FC Med
0010F
0012F-IFC
0010 Med NRF-33 H32
Low UPS43-44 Low
UPS43-44-FC Low
0010F-IFC 0010 Low
