Weather Forecaster with Dual Projection
(PCR426W)
USER MANUAL
2
TABLE OF CONTENTS
INTRODUCTION 3
PRODUCT OVERVIEW Error! Bookmark not defined.
MAIN UNIT Error! Bookmark not defined.
REMOTE SENSOR 7
BEFORE YOU BEGIN 8
BATTERY INSTALLATION 9
LOW BATTERY WARNING 10
GETTING STARTED 10
REMOTE AND INDOOR TEMPERATURES WINDOW 11
WEATHER FORECAST WINDOW 12
MAXIMUM AND MINIMUM READINGS 12
LOST COMMUNICATION 12
TRANSMISSION COLLISION 13
WWVB RADIO CONTROLLED TIME 14
ATOMIC CLOCK 14
CLOCK AND CALENDAR DISPLAY WINDOW 15
MANUAL SETTINGS 15
CLOCK ALARMS 16
SNOOZE 18
PROJECTION 18
LIGHT SENSOR 20
PRECAUTIONS 20
TROUBLESHOOTING 21
SPECIFICATIONS 22
FCC STATEMENT 23
DECLARATION OF CONFORMITY 24
STANDARD WARRANTY INFORMATION 25

3
3
INTRODUCTION
Thank you for selecting the Honeywell Weather Forecaster with Dual
Projection. This device delivers weather monitoring features and precise
time keeping with ability of projecting the information onto the wall or the
ceiling.
In this package you will find:
·One Weather Forecaster with Dual Projection (receiver)
·One remote sensor (transmitter) TS13C
·One AC/DC Adapter
·One User Manual
Please keep this manual handy as you use your new item. It contains
practical step-by-step instructions, as well as technical specifications and
precautions you should know.
4
FRONT VIEW
REAR VIEW
SIDE VIEW
H
I
G F E D
A B
C
J
K
L
M
N
O Q
P
R

5
5
FRONT VIEW
A. CLOCK WINDOW
Displays atomic time, alarms and calendar
B. FORECAST WINDOW
Displays weather forecast
C. TEMPERATURE WINDOW
Displays indoor and remote outdoor temperature
D. ALARM button
·Toggles between the calendar display and three alarm modes
·Programming of alarms
·Activates or deactivates available alarms
E. CHANNEL selector
·Allows selecting different remote channel reading
·Allows displaying minimum and max imum temperature readings
when used with DOWN (▼) button
F. MODE button
·Toggles between clock display modes - time with seconds or time
with day of the week
·Activates manual clock programming mode
G. UP (▲) button
·Increases all function parameters
·Activates US Time Zone selection mode
·Activates atomic time signal receiving function when used along
with DOWN (▼) button
H. DOWN (▼) button
·Decreases all function parameters
·Activates the remote temperature signal search function
·Activates the atomic time signal receiving function when used
along with UP (▲) button
6
REAR VIEW
I. ROTATE knob
Allows rotating of the projected image
J. FLIP button
Flips the projected image 180° degr ees
K. FOCUS knob
Allows adjusting of the sharpness of the projected image
L. BATTERY COMPARTMENT
Accommodates 4 (four) UM-3 or AA 1.5V alkaline batteries
SIDE VIEW
M. LIGHT SENSOR switch
Allows selecting of the LCD backlight modes –ON, OFF, and AUTO
N. CONTINUOUS PROJECTION switch
Enables continuous projection of the time and remote temperature
O. FORECAST PROJECTOR
Projects weather forecast
P. SNOOZE / LIGHT button
Activates LCD backlight, snooze and projection for 5 seconds
Q.TIME/TEMPERATURE PROJECTOR
Projects current time and remote temperature
R. LIGHT SENSOR
Detects environmental light conditions

7
7
REMOTE SENSO R
FEATURES
·Transmits remote temperature to the main unit via radio signal
·100 feet (30 meters) transmission range without interference
·LCD display of measured temperature
·Selects one of three transmission (3) channels
·Selects temperature display in either Celsius or Fahrenheit
·Case can be wall mounted us ing built-in hanger

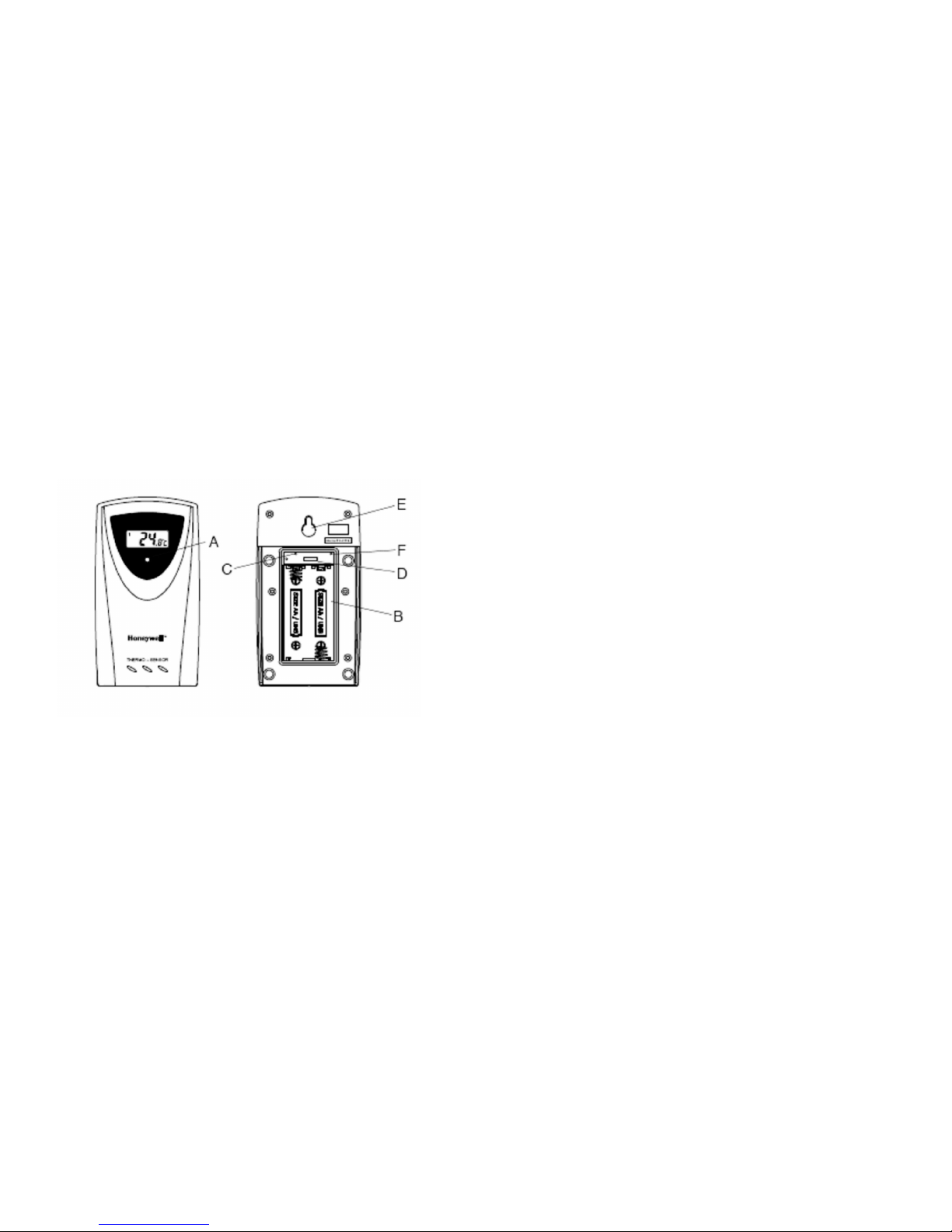

A. LED INDICATOR
·Flashes once when transmitting a reading to the main unit.
·Flashes twice when battery power is low.
B. BATTERY COMPARTMENT
Holds two AA-size batteries
C. RESET
Resets all readings
D. CHANNEL switch
8
Selects the desired transmission channel
E. WALL-MOUNT RECESSED OPENING
Keeps the remote sensor on the wall
F. °C/ °F selector
Selects the temperature display in Celsius or Fahrenheit
BEFORE YOU BEGIN
·We recommend using alkaline batteries for the remote sensor
and main unit when temperatures are above 32°F (0°C). We
recommend using lithium batteries for the remote sensor when
temperatures are below 32°F (0°C).
·Avoid using rechargeable batteries. (Rechargeable batteries
cannot maintain c orrect power requirements).
·ALWAYS install batteries in the remote sensor before the main
unit.
·Insert batteries matching the polarity in the battery compartment
·Press RESET after each battery change with a paper clip or wire.
·Remove protective plastic screen from LCD display (if any).
·During an initial setup, place the main unit close to the remote
sensor.
·After reception is established (the remote temperature will appear
on the main unit’s display), position the remote sensor and the
main unit within the effective transmission range of 100 feet (30
meters).
·The remote sensor can be placed indoors or outdoors,
depending on the area where the temperature is intended to
be measured. If you intend measuring outdoor temperature,
place temperature sensor outdoors
·The main unit must be placed indoors.

9
9
NOTE:
1. Avoid pressing any buttons on the main unit before the remote
temperature is displayed.
2. The effective operating range may be influenced by the surrounding
building materials and how the receiver and transmitter are positioned.
3. Place the remote sensor so that it faces the main unit (receiver),
minimizing obstructions such as doors, walls, and furniture.
4. Though the remote sensors are weather-resistant, they should be
placed away from direct sunlight, rain or snow. The best suggested
location for the remote sensor for outdoors is under the eave on the north
side of the building.
NOTE: When the temperature falls below freezing, the batteries in
the outdoor remote sensor may have reduced volt age supply and a
shorter effective range. We recommend using lithium batteries at
temperatures of 32°F (0°C) and below.
BATTERY INSTALLATION
REMOTE SENSOR
NOTE: Install the batteries; select the channel and temperature in C°
or F° before mounting the remote sensor.
·Remove the screws from the battery compartment with a small
Phillips screwdriver.
·Set the channel. The switch is located in the battery
compartment. Channel 1 is typically selected if only one remote
sensor is being used.
·Install 2 “AA”size alkaline batteries (not included) matching the
polarities shown in the battery compartment.
·Replace the battery compartment door and secure the screws.
·Secure the remote sensor in the desired location.
10
MAIN UNIT
·Open the battery compartment door.
·Install 4 batteries (UM-3 or “AA”size 1.5V) matching the polarity
as shown in the battery compartment.
·Replace the battery compartment door.
LOW BATTERY WARNING
A low-battery indicator [ ] will appear on the indoor or remote
temperature reading line of the main unit warning that the corresponding
batteries need replacement.
GETTING STARTED
After batteries are installed; remote sensor will transmit temperature
readings at 45 second intervals. It may take up to two minutes to receive
the initial readings. Upon successful reception, remote temperature will
appear in the temperature window below the weather forecast on the
main unit’s display (the default remote channel is channel one). The main
unit will automatically update readings.
After communication between the main unit and remote sensor has
been established, secure t he remote sensor in the desired location.
If no signal is received from the remote sensor within two minutes,
dashes [- - -] will be displayed. Press and hold the main unit DOWN (▼)
button for two seconds to initiate another signal search for the remote.

11
11
REMOTE AND INDOOR TEMPERAT URES WINDOW
The temperature window default display shows the indoor and remote
temperature information (remote temperature is on the top, and indoor
temperature is on the bottom line) .The IN icon indicates that the unit is
displaying the indoor readings.
The remote temperature for channel two and three can be recalled by
pressing CHANNEL button.
The wave (reception) icon is located above the remote channel number
and indicates the reception status from the remote sensor.
The following three types of reception status may be displayed:
The unit is in searching mode.
Temperature reading is securely registered.
No signal is detected. - - -
NOTE: If the indoor or remote temperature goes above or below
operating specification range, the main display will show dashes “- - -”
12
WEATHER FORECAST WINDOW
The Weather Forecaster is capable of detecting atmospheric pressure
changes. Based on collected data, it forecasts the weather for the next 12
to 24 hours.
NOTE: The weather forecast accuracy is approximat ely 70%.
Display shows forecasted, not current conditions. The SUNNY icon
indicates clear weather, even when displayed during the night-time.
MAXIMUM AND MINIMUM READINGS
The maximum and minimum r ecord of the indoor and remote
temperatures will be automatically stored in the memory of the main unit.
To display the minimum or maximum temperature reading press
CHANNEL and DOWN (▼) buttons simultaneously.
If no button is pressed for the next 15 seconds, the unit will return to the
current temperature display.
To clear the memory, press and hold CHANNEL button for two seconds
and all previously stored readings will be erased.
LOST COMMUNICATION
If the main unit display line for the remote sensor reading goes blank,

13
13
press and hold DOWN (▼) button for 2 seconds to begin a new signal
search. If the signal still isn’t received, please make sure that:
·The remote sensor is in its proper location.
·The distance between main unit and remote sensor(s) is not over
100 feet (30meters).
·The path between units is clear of obstacles. Shorten the
distance if necessary.
·Fresh batteries are installed correctly in both remote sensor and
main unit.
If there is no reception, perform the following steps:
·Bring the main unit and r emote sensor close together.
·Remove four (4) small screws from the back of the remote sensor
with small Phillips screwdriver, and open the batter y
compartment.
·Remove the batteries from the battery compartment and reinstall
them in the same manner. Remote sensor LED indicator will flash
showing transmission of the signal.
·Remove the batteries from the main unit and r einstall them in the
same manner.
·Set the main unit CHANNEL to the same channel set on the
remote sensor. When the transmission is successfully received
the remote temperature will appear on the main unit’s display.
TRANSMISSION COLLISION
Signals from the other household devices such as wireless doorbells,
home security systems, and entry control, may interfere with this product
or cause temporary reception interruption. This is normal and will not
14
affect the general performance of the product. The transmission and
reception of the temperature readings will resume once the interference
subsides.
WWVB RADIO CONTROLLED TIME
The NIST (National Institute of Standards and Technology) radio station
(WWVB) is located in Ft. Collins, Colorado. It transmits an exact time
signal continuously throughout the most of the continental United States.
The Weather Forecaster receives the WWVB signal through the internal
antenna from up to 2,000 miles away. The radio controlled clock will
search for the atomic time signal. Due to signal strength reception can be
limited during the daylight hours.
The WWVB tower icon on the main unit’s display will flash indicating a
radio signal reception from the WWVB station. If the tower icon is not fully
lit, or if the time and date are not set automatically, please consider the
following:
·During night-time hours, atmospheric disturbances are reduced
and radio signal reception may improve. A single daily reception
is sufficient to keep the clock accuracy within 1 second.
·Make sure the unit is placed at 8 feet (2 meters) away from
interference sources: TV, computer monitor, microwave, etc.
·The received signal may be weakened within metal or concrete
wall rooms such as basements or office buildings. Place the
Projection Clock near the window for best reception.
ATOMIC CLOCK
Immediately after establishing communication betw een the main unit and
remote sensor, the atomic time signal receiver will open and start to

15
15
search for the atomic time signal. It usually takes between 5-8 minutes.
NOTE: Do not press any buttons on the main unit during auto search
as it may interrupt product’s operation, and you will need to start set
up procedure again.
Once the atomic time signal is received, the date and ti me will be set
automatically, and the [ ] icon will appear.
NOTE: It is necessary t o set your Time Zone, having in mind that the
default zone is a Pacific Standard Time (PST). (Refer to MANUAL
SETTINGS section)
If the time signal has not been received in 8 minutes, you may use the
MODE button to set the time and date manually . (Refer to the MANUAL
SETTINGS section).
After the clock is set manually, place the Weather Forecaster by the
window for the better reception. The atomic clock receiver is programmed
that it will continue to search for the atomic time signal daily for every
hour between 1:00 am and 4:30 am.
Once the time signal has been successfully received, the time and date
will be updated automatic ally.
CLOCK AND CALENDAR DISPLAY WINDOW
The Weather Forecaster with Dual Projection displays current time in two
display modes –in hour-minutes-seconds and in hour-minutes-day
The date is displayed in month-date format below the current time with
the day of the week and US map.
MANUAL SETTINGS
It is necessary to set the desired TIME ZONE.
TIME ZONE
16
·Press MODE button so that the Day of the Week abbreviation is
displayed to the right of the time; for example: pm 2:37tu
·Select the Time Zone by pressing and holding the “▲” or UP
button for 3 seconds.
·Keep holding “▲” or UP button until the des ired US Time Zone
(Pacific, Mountain, Central or Eastern) is highlighted on the
display’s US map, located to the right of the time display and
above the day of the week.
·Release the “▲” or UP button. The Time Zone is set.
CLOCK
·Press and hold MODE button for 3 seconds: the year will flash.
Press UP (▲)or DOWN (▼)to change flashing digits.
·After the year is set, press MODE button again to confirm and
move to the next parameter.
·Continue setting month, date, hour, minutes, language for the
day of the week and temperature in Fahrenheit or Celsius.
·Press MODE for the last time to return to the time of day with
seconds, after the last parameter is set.
CLOCK ALARMS
The Weather Forecaster with Dual Projection has two time alarms –
Weekday alarm (W) and Single day alarm(S) - and one Ice Warning
Alarm (PRE-AL).
·If Weekday alarm is activated, it will sound at the set time and
the alarm icon will flash Mondays through Fridays.
·If Single day alarm is activated, it will sound at the set time and
the alarm icon will flash only for this specific day and will not
activate on subsequent days.
·If Ice Warning Alarm is activated, in will sound at the s et time

17
17
and alarm icon will flash once the remote temperature for
Channel One (1) will reach 32°F(0°C) and below.
NOTE: Ice Warning Alarm can be set only if one or both - Weekday
or Single alarm are programmed.
SETTING THE WEEKDAY (W) AND SINGLE DAY(S) ALARMS
·Press ALARM ON/OFF button once to enter into the alarms
setting mode. The default alarm is a Weekday alarm (W). The
abbreviation “OFF”with a letter “W”next to it will be displayed, if
the alarm has not been set previously.
·Press and hold ALARM ON/OFF button for two seconds. The
hour digit will flash.
·Enter the hour using UP (▲) or DOWN (▼).
·Press ALARM ON/OFF again. The minute digits will flash.
·Enter the minutes using UP (▲) or DOWN (▼).
·Press ALARM ON/OFF button again to confirm and the weekday
alarm time will be set.
·Set Single day alarm if desired in the same manner .
SETTING THE ICE WARNING ALARM (PRE-AL)
If Weekday or Single day alarm is set, the Ice Warning Alarm can be
programmed.
·Press ALARM ON/OFF button once to enter into the Ice Warning
Alarm setting mode. The abbr eviation “OFF”with a “PRE-AL”
next to it will be displayed.
·Press and hold ALARM ON/OFF button for two seconds. The
“30”number will flash, meaning that if selected, the alarm will
sound 30 minute s earlier than the Weekday or Single alarm.
·Select the desired Ice Warning Alarm interval in 15 minutes
18
increments between 15 and 90 minutes , using UP (▲) or DOWN
(▼)buttons
·Press ALARM ON/OFF button again to confirm and exit from the
alarm setting mode.
ACTIVATING THE ALARM
·Press ALARM ON/OFF button to enter into the alarms mode.
·Press UP (▲) to activate or DOWN (▼)to deactivate desired
·If alarms are activated, the corresponding icons W, Sor PRE-AL
will be displayed.
SNOOZE
When any alarm sounds, press the SNOOZE/LIGHT button to temporarily
stop the alarm. The alarm sound will resume in five minutes. If the alarm
is not disabled after that, it will sound for four more minutes and then will
stop by itself.
PROJECTION
The Weather Forecaster is capable of projecting images for a short period,
as well as continuously. This require both batteries and power adapter.
TIME AND REMOTE TEMPERATURE PROJECTION
·Press SNOOZE/LIGHT button once to project the current time
and the remote temperature image for five seconds.

19
19
NOTE: The Weather Forecaster projects only Channel 1 (one) remote
temperature
·Press FLIP button to rotate projected image 180° c lockwise
·Press and hold FLIP button for 2 seconds to change temperature
information from remote to indoor
·Press and hold FLIP button for 2 seconds again and the
projected image will alternate between the remote and indoor
temperature every 5 seconds.
NOTE: During initial product setup (remote sensor and at omic time
signal search) there will be no remote temperature projected.
CONTINUOUS TIME AND TEMPERATURE PROJECTION

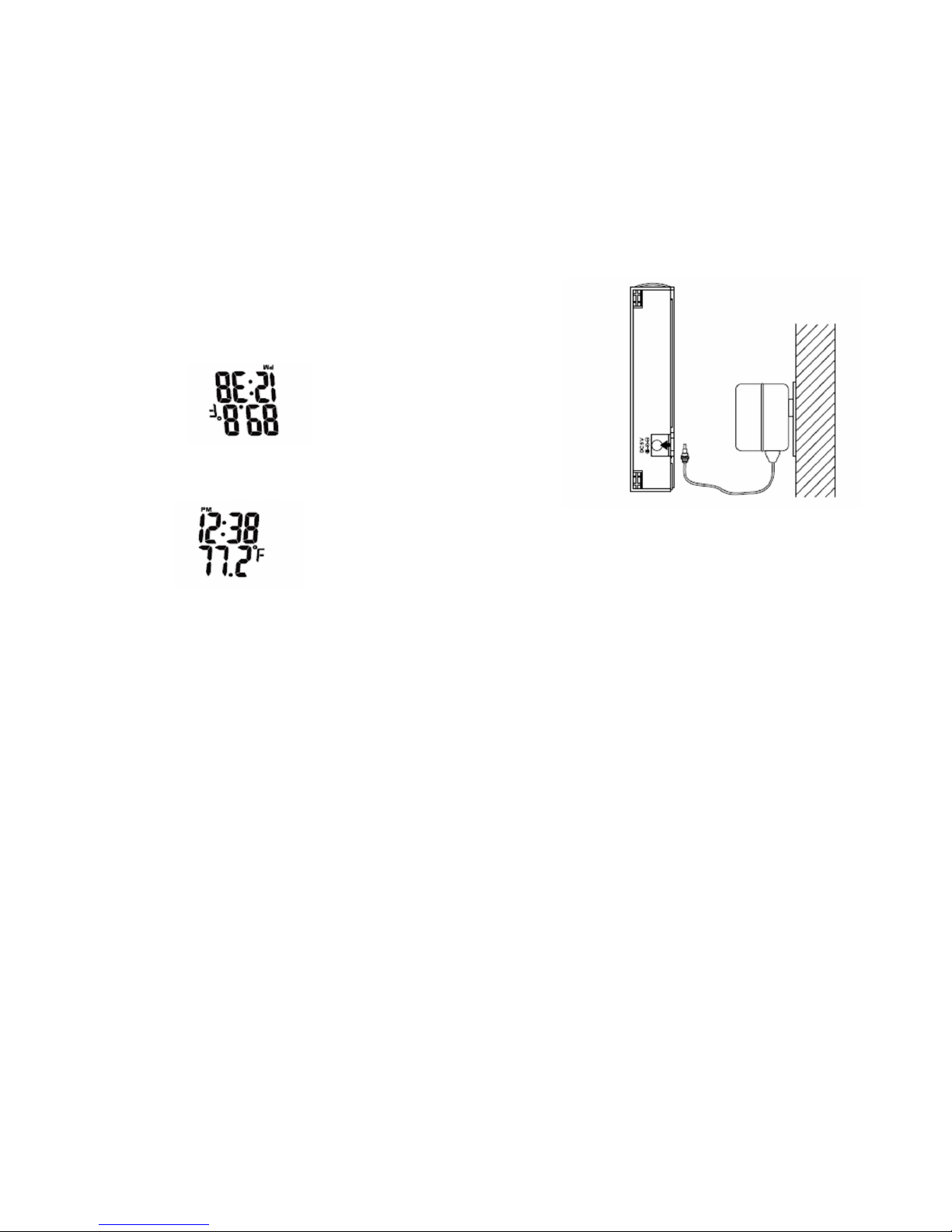

·Connect AC/DC adapter provided with the product to project the
time and temperature image continuously.
20
·Slide the CONTINUE PROJECTION switch to the arrow direction
shown on the main unit’s side: the current time and temperature
will be projected on the wall or the ceiling.
LIGHT SENSOR
The Weather Forecaster is equipped with the light sensor which detects
the environmental light conditions. At the light conditions lower than 100
LUX, the LCD will light up automatic ally if AC adapter is connected. The
backlight can be set using the LIGHT SENSOR switch modes:
AUTO –automatic LCD backlight
ON –continuous LCD backlight
OFF-- turns off LCD backlight
PRECAUTIONS
This product is engineered to give you years of satisfactory service if
handled carefully. Here are a few precautions:
·Do not immerse the unit in water.
·Do not clean the unit with abrasive or corrosive materials. They

21
21
may scratch the plastic parts and corrode the electronic circuits.
·Do not subject the product to excessive force, shock, dust,
temperature, or humidity, which may result in malfunctions,
shorter lifespan, damaged batter ies, and damaged par ts.
·Do not tamper with the unit’s internal components. Doing so will
invalidate the warranty and may cause damage. The unit
contains no user-serviceable parts.
·Use only fresh batteries. Do not mix new and old batteries.
·Read the user's manual thoroughly before operating the unit.
TROUBLESHOOTING
Check here before contacting customer service.
Issue Symptom Solution
Main unit US Atomic Time
signal is not
received
Place unit by the window and
keep it there overnight
Check batteriesCannot locate
remote sensor Check location
Press and hold the main unit
DOWN ( ▼) button to search
for the remote sensor signal
Cannot change the
channel
Press “RESET”after setting
the channel
Cannot change the
C° to F° and back
Press “RESET”after setting
C/F
Remote sensor
Data does not
match data on the
main unit
Initiate manual sensor search
(Press and hold DOWN ( ▼)
button on the main unit)
22
SPECIFICATIONS
Main Unit
Time
12 hour display in hh: mm format
Date format: month –day
User-selectable US Time Zone
Day of the week: User-selectable in three languages- English, Spanish or
French
Dual 4 minutes crescendo alarm with snooze
Ice Warning Pre-Alarm with programmable time intervals
Weather
Indoor Temperature
Proposed operating range: -5.0°C to +50.0°C/23.0°F to 122.0°F
Temperature resolution: 0.1°C/0.2°F
User-selectable (F° or C°) temperature display
Weather Forecast in six large graphic icons
EL backlight
Low battery indicator
Projection
Focus adjustment
180° projected image rotation and flip
Light sensor detects low light conditions (100 LUX and lower)
Remote Sensor
Remote Temperature
Proposed operating range with alkaline batteries:
-20.0°C to + 70.0°C/-4.0°F to + 158°F
Proposed operating range with lithium batteries:
-38.8°C to + 70.0°C/-38.0°F to +158°F
Temperature resolution: 0.1°C/0.2°F
Low battery indicator
RF Transmission Frequency: 433 MHz
Maximum number of remote sensors: 3 (one included)
RF transmission range: Maximum 100 feet (30 meters)
Temperature transmission cycle: approximately 45 seconds
Power
Main unit: 4 AA size (UM-3) 1.5V batteries (not included)
AC/DC adapter - 7.5 V (included)
Remote Sensor: 2 AA size (UM-3) 1.5V batteries (not included)
Dimensions
Main unit: 3.25(L) x 4.5(H) x 1.25(D) inches
Remote sensor: 2.37(L) x 4(H) x 1(D) inch

23
23
FCC STATEME NT
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Warning: Changes or modification to this unit not expressly approved by
the party responsible for compliance could void the user’s authority to
operate the equipment.
NOTE: This equipment had been tes ted and found to comply with the
limits for a Class B Digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment, installed
and used in accordance with the instructions, may cause harmful
interference to radio communications.
There is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment
off and on, the user is encouraged to improve or correct turning the
interference by one or more of the following measures:
·Reorient or relocate the receiving antenna
·Increase the separation between the equipment and r eceiver.
·Connect the equipment to an outlet on a circuit different from that
to which the receiver is connected.
·Consult the dealer or an experienced radio / TV technician for
help.
24
DECLARATION OF CONFORMITY
We
Name: Hideki Electronics, Inc.
Address: 7865 SW Mohaw k, Tualatin, OR 97062
Telephone No.: 503 6128395
declare that the product
Product No.: PCR426W
Product Name: Weather Forecaster with Dual Projection
Manufacturer: Hideki Electronics Ltd.
Address: Unit 2304-06, 23/F Riley House, 88 Lei Muk Road, Kwai Chung,
New Territories, Hong Kong
is in conformity with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference
that may cause undesired operation.
The information above is not to be used as a contact for support or
sales. Please call our customer service hot line (refer to the Standard
Warranty Information) for all contacts.

25
25
STANDARD WARRANTY INFORMATION
This product is warranted from manufacturing defects for one year from
the date of retail purchase. It does not cover damages or wear resulting
from accident, misuse, abuse, commercial use, or unauthorized
adjustment and repair.
Note that online product registration is required to ensure valid warranty
protection.
To register your product, go to our Company website at:
www.honeywellweatherstations.com. Click Online Product Registration
under the Customer Service menu.
Should you require assistance with this product and its operation, please
contact our Customer Service Hotline [phone].
Please direct all returns to the place of the original purchase. Should this
not be possible, contact Hideki Customer Service Hotline for assistance
and to obtain a Return Merchandise Authorization (RMA). Returns without
a return authorization will be refused. Please retain your original receipt
as you may be asked to provide a copy for proof of purchase.
Hideki Electronics, Inc. reserves the right to repair or replace the product
at our option.
Copyright (2007) Hideki Electronics Inc. All Rights Reserved. The
Honeywell Trademark is used under license from Honeywell Intellectual
Properties Inc.
Honeywell International Inc. makes no representations or warranties with
respect to this product.
All user manual contents and information are subject to change.
M1H426001
