Honeywell TE923W - Deluxe Weather Station User manual

HONEYWELL
PROFESSIONAL WEATHER STATION
WITH REMOTE CONTROL
TE923W
USER MANUAL

2
Table of Contents
Introduction 3
Standard Package Contents 4
Installation 5
Before you begin 6
Ultraviolet (UV) Sensor 6
Remote Thermo-Hygrometer Sensor 9
Rain Gauge 11
Anemometer (wind sensor) 13
Main Unit 15
Battery installation 16
Buttons and Controls 18
Initial Set Up 20
Backlight 20
Connecting Weather Station to a Personal Computer 21
Navigating through the modes 22
Customizing your Weather Station 25
Operations and Window Selection 25
Pressure and Weather Forecast Window 25
UV Window 28
Time Window 29
Manual Settings 29
Sunrise/Sunset Window 33
Temperature and Humidity Window 35
Rain Window 37
Wind Window 38
Memory Reset Procedure 40
Maintenance 40
Troubleshooting 41
PRECAUTIONS 41
Appendix - City Codes 43
Specifications 45
FCC STATEMENT 47
DECLARATION OF CONFORMITY 48
STANDARD WARRANTY INFORMATION 48

3
Introduction
Thank you for selecting the Honeywell Professional Weather Station with Remote control. This
compact and easy-to-use product features a wide variety of time and weather data, such as
precise atomic time, perpetual calendar, air temperature, relative humidity, barometric pressure,
wind speed and direction, rainfall, UV levels and etc.
In this package you will find:
One Main Unit (receiver) (TE923WD)
One IR Remote Control (TS607)
One Rain Gauge (remote rain sensor/transmitter) (TS906)
One Anemometer (remote wind sensor/transmitter) (TS805)
One UV (ultraviolet) sensor (remote ultraviolet sensor/transmitter) (TS704)
One Five-Channel Temperature & Humidity Sensor (transmitter) (TS34C)
One CD disk with generic PC connection software
One USB cable
One 7.5V AC/DC Adapter
Mounting Hardware with Allen Wrench
One User Manual
Required for installation (not included)
-Small Phillips screwdriver
-Anemometer mounting pole
-Small paper clip to reset sensors
NOTE: If any items are missing or damaged, please contact Hideki Electronics Customer Service
before proceeding with installation.

4

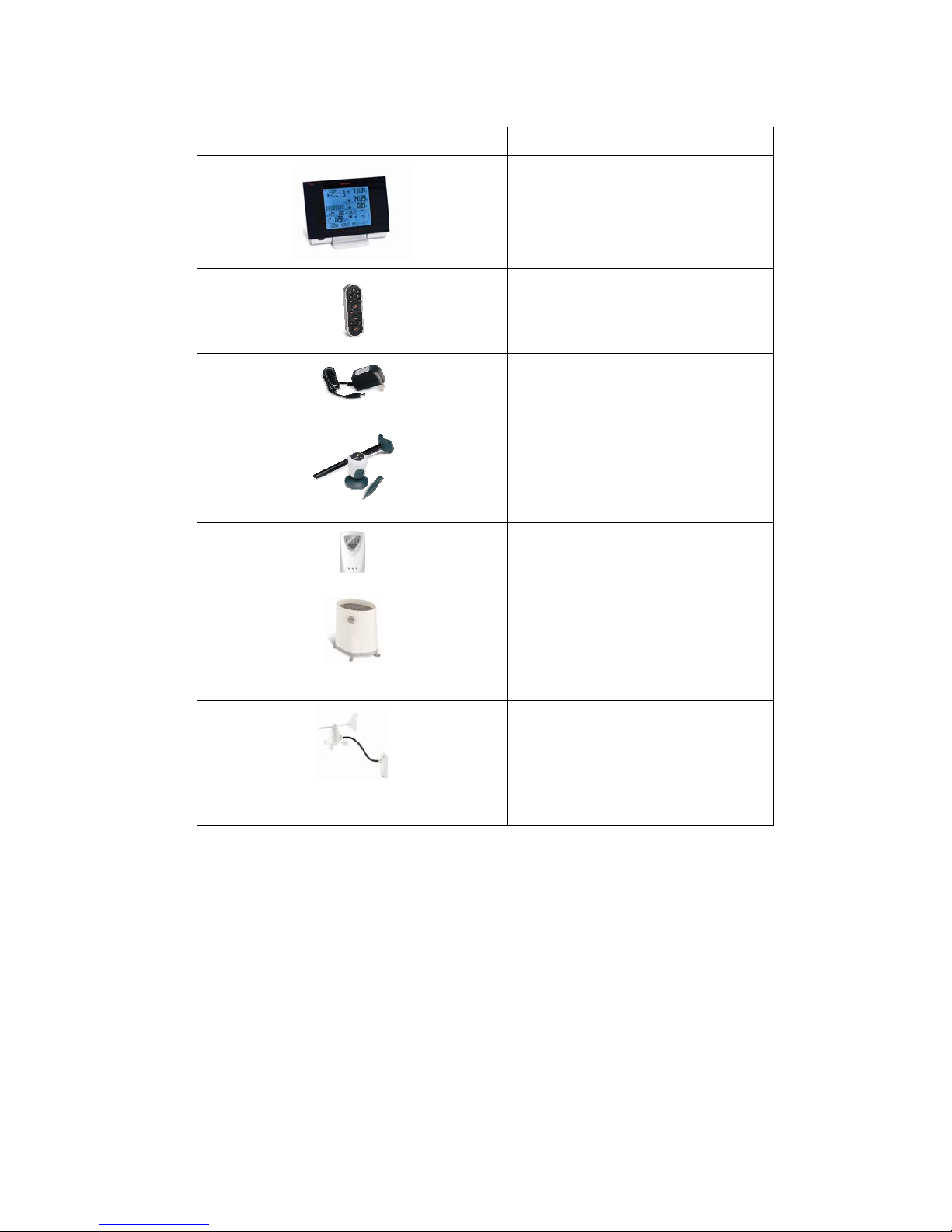

Standard Package Contents
Picture Components
Main Unit
Remote Control
AC/DC 7.5V power adaptor
UV Sensor consists of:
Sensor Unit
U-Shaped Sensor holder
Circular Ground Stand
Stake Base
Wall-Mounting Base
Thermo Hygrometer Sensor
Rain Gauge consists of:
Funnel shaped top with battery
compartment
Rain Gauge bucket
Bucket see-saw mechanism
Protective screen
Anemometer consists of:
Wind Cups
Wind Vane
Anemometer arm
Anemometer base
Weather Capture CD ROM PC Software

5
4 screws for securing rain gauge to the flat surface;
4 screws for securing anemometer to vertical
surface
Mounting hardware
2m (6ft) USB cable PC connection cable
Installation
The Honeywell Professional Weather Station TE923W operates at 433MHz radio frequency, so no
wire installation is required between the main unit (receiver) and the remote weather sensors
(transmitters).
The remote weather sensors include a thermo-hygrometer (temperature and humidity) sensor, UV
(ultraviolet) sensor, anemometer (wind sensor) and a rain gauge (rain sensor). All data measured
by these remote sensors is transmitted to the main unit wirelessly, with the operating range in the
open area from 100 feet (30 meters) for anemometer and rain gauge; and up to 328 feet (100
meters) for thermo-hygrometer and UV sensors.
Remote UV sensor, anemometer and a rain gauge must be placed outdoors to measure weather
elements.
Remote thermo-hygrometer can be placed indoors or outdoors, depending on the area where the
temperature and humidity are intended to be measured. If you intend measuring outdoor
temperature and humidity, place the remote sensor outdoors.
NOTE: It is critical to assemble and power up all of the remote weather sensors BEFORE setting
up the main unit.
NOTE: It is critical to power up and test communication between all of the weather sensors and the
main unit BEFORE permanently mounting them outside.

6
Before you begin
•We recommend using alkaline batteries for the remote weather sensors and the main
unit when temperatures are above 32°F (0°C). We recommend using lithium batteries for
the remote weather sensors when temperatures are below 32°F (0°C).
•Avoid using rechargeable batteries. (Rechargeable batteries cannot maintain correct
power requirements).
•ALWAYS install batteries in the remote weather sensors before the main unit.
•Insert batteries before first use, matching the polarity in the battery compartment
•Remove protective plastic screen from LCD display (if any).
•During an initial setup, place the main unit close to the remote weather sensors.
•After reception is established (all of the remote readings will appear on the main unit’s
display), position the remote sensors and the main unit within the effective transmission
range of up to 328 feet (100 meters). Ideally they should be placed within the line of sight
of the main unit. See placement tips in the user manual for each remote weather sensor
separately.
•Transmission range may be affected by trees, metal structures and electronic appliances.
•The main unit must be placed indoors.
•The effective operating range may be influenced by the surrounding building materials
and how the receiver (main unit) and transmitters (weather sensors) are positioned.
•Place the remote weather sensors so that they face the main unit (receiver), minimizing
obstructions such as doors, walls, and furniture.
Note: When the temperature falls below freezing, the batteries in the outdoor remote
weather sensors may have reduced voltage supply and a shorter effective range. We
recommend using lithium batteries at temperatures of 32°F (0°C) and below.
IMPORTANT: Make sure that the remote weather sensors are easily accessible for cleaning and
maintenance.
We recommend cleaning the remote weather sensors periodically, as the dirt and debris
may affect sensors accuracy.
Ultraviolet (UV) Sensor
FEATURES
•Ultraviolet light levels measurement
•Remote UV levels data transmission to the main unit via 433MHz signal
•328 feet (100 meters) operating range
•Low battery indicator
•Three different placement options – ground, stake and wall

7

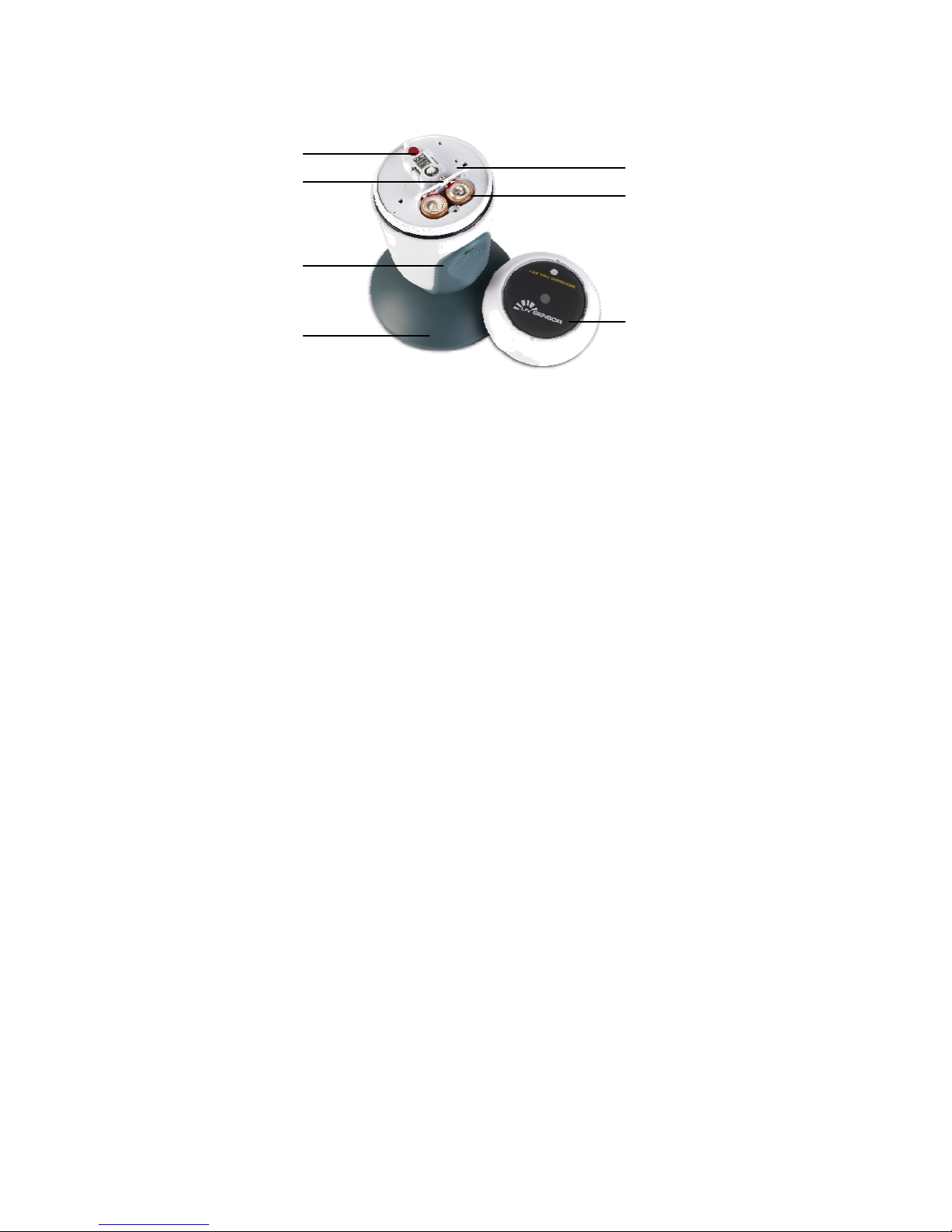

A. LED INDICATOR
•Flashes once when the remote sensor transmits a reading to the main unit
•Flashes twice when battery power is low
B. BATTERY COMPARTMENT SCREW
Holds battery compartment door in place
C. U-SHAPED SENSOR HOLDER
Holds UV sensor in upright position
D. CURCULAR GROUND STAND
Secures sensors in the sensor holder on the flat surface
E. UV SENSOR LID
Covers UV sensor and seals battery compartment
F. BATTERY COMPARTMENT
Holds two AA-size batteries
G. BATTERY COMPARTMENT DOOR
Covers two AA-size batteries
Assembly
•Snap the U-shaped sensor holder onto the UV sensor unit side grooves
•Insert the round end of the U-shaped holder into one of the mounting hardware pieces
provided
Battery installation
•Unscrew the lid on top of the UV sensor unit.
•Remove the screw from the battery compartment door with a small Phillips
A
GB
C
D
F
E

8
screwdriver
•Insert two 2 “AA” size 1.5V batteries (not included) matching the polarities shown in
the battery compartment.
•Replace the battery compartment door and secure the screw
•Screw the UV sensor unit lid back
Mounting
There are three different options available for mounting the UV sensor: ground stand, stake and
wall mount.
Ground:
•Insert the U-shaped sensor holder round end into the circular ground stand opening,
matching 2 round holes in the opening
•Secure the sensor in a location with a maximum sun exposure throughout the day.
Stake:
•Snap the sharp stake end onto the metal bar and secure with the screws provided.
•Insert the other end of the metal bar into the U-shaped sensor holder and secure with the
screws provided.
•Secure the sensor in a location with a maximum sun exposure throughout the day.
Wall:
•Insert the wall mounting end into the metal bar and secure with the screws provided.
•Snap the other end of the metal bar on to the U-shaped sensor holder and secure with
the screws provided.
•Secure the sensor in a location with a maximum sun exposure throughout the day.

9
Placement tips:
The UV sensor should be mounted in the area free of sunlight shadows or reflections from the
nearby objects.
RemoteThermo-Hygrometer Sensor
FEATURES
•Remote data transmission to the main unit via 433 MHz signal
•328 feet (100 meters) operating range without interference
•LCD display of measured temperature and humidity
•Five (5) transmission channels selection
•Case can be wall mounted using built-in hanger

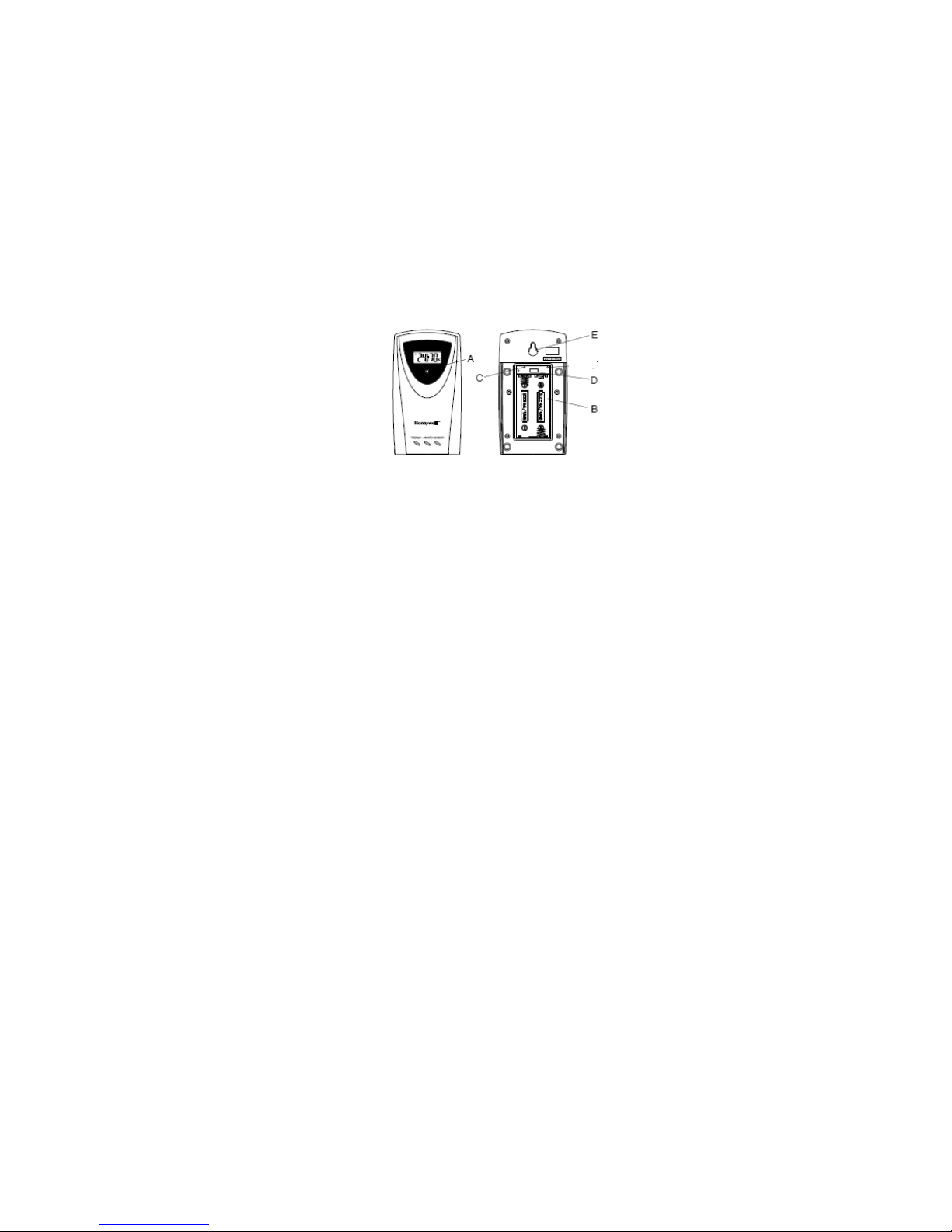

A. LED INDICATOR
•Flashes once when the remote sensor transmits a reading to the main unit.
•Flashes twice when battery power is low.
B. BATTERY COMPARTMENT
Holds two AA-size batteries
C. RESET
Resets all readings (requires small paper clip)
D. CHANNEL SWITCH
Selects the desired channel from 1 to 5
E. WALL-MOUNT RECESSED OPENING
Keeps the remote sensor on the wall
Note: Install the batteries and select the channel before mounting the sensor.
Battery installation
•Remove the screws from the battery compartment with a small Phillips screwdriver.
•Set the channel 1 through 5. The switch is located in the battery compartment. Channel 1
is typically selected if only one remote sensor is being used.
•Install 2 “AA” size alkaline batteries (not included) matching the polarities shown in the
battery compartment.

10
•Replace the battery compartment door and secure the screws.
•Secure the thermo-hygrometer remote sensor in the desired location.
Mounting
•The remote thermo-hygrometer sensor can be placed on the flat surface or mounted on
the wall in vertical position
•Use the wall mount hardware and screws provided when mounting the
thermo-hygrometer sensor on the wall
Placement
•The remote thermo-hygrometer sensor should be placed in the area with a free air
circulation and sheltered from the direct sunlight and an extreme weather conditions.
•Ideally, place the thermo-hygrometer sensor above the natural surfaces (such as a
grassy lawn).
•Avoid placing the thermo-hygrometer sensor near sources of heat such as chimneys and
heating elements.
•Avoid any areas collecting and radiating a heat from the sun, such as metal, brick or
concrete structures, paving, patios and decks.
•The international standard for the valid air temperature measurements is 4 feet
(1.25meters) above the ground.
Operation
Immediately after batteries are correctly installed, the remote sensor will start transmitting a
temperature and humidity data to the main unit.
Note: Every time after replacing batteries in the sensor, press and old DOWN arrow button
for 3-4 seconds on the main unit’s control panel or hand held remote control.

11
Rain Gauge
FEATURES
•Precipitation measurement
•Remote transmission of the rainfall data to the main unit via 433 MHz signal
•100 feet (30 meters) operating range without interference
•Built-in installation level
•Non-corrosive protective screen

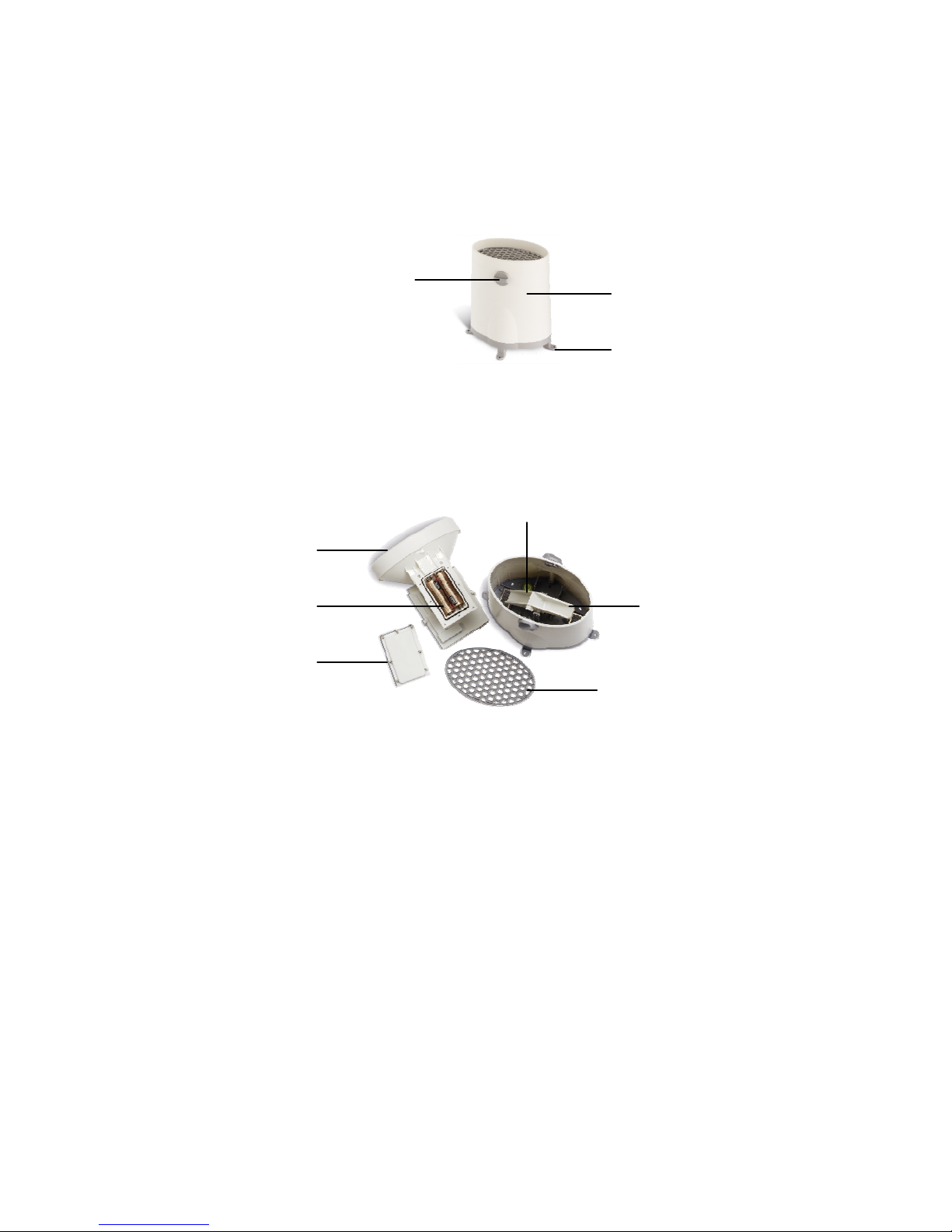

A. Rain gauge bucket
Contains mechanical components
B. Knob
Secures the top on the rain gauge bucket
C. Rain gauge bucket feet
Secures the rain gauge on its place
D. Funnel-shaped top with battery compartment
Contains battery compartment and rainfall counting electronics
E. Battery compartment
Holds two AA-size batteries
F. Screws
D
B
C
E
F
G
I
A
H
H
C

12
Secure battery compartment cover
G. Built-in level with bubble
Ensures level rain gauge mounting for proper operation
H. Bucket see-saw mechanism
Collects the rainfall in one of its containers and self-empties once full
I. Protective screen
Protects the rain gauge funnel from debris
Battery installation
•Unlock the funnel-shaped top on the rain gauge by turning both knobs on the sides in an
anti-clockwise direction.
•Remove the funnel-shaped top lifting it off the rain gauge bucket.
•Remove 7 small screws from the battery compartment cover using a small Phillips
screwdriver
•Insert 2 “AA” size alkaline batteries (not included), matching the polarities as shown in
the battery compartment.
•Replace the battery compartment door and secure the screws.
•Insert the funnel-shaped top into the rain gauge bucket and secure it into place by turning
the knobs clockwise.
Mounting
•Make sure that the rain gauge bucket is level – check if the bubble center is inside the
built-in leveler.
•Place the protective screen over the top to protect the rain gauge from the debris.
•Mount the rain gauge in place using mounting hardware.
•Make sure that the rain gauge is in open area where precipitation falls directly into the
gauge’s bucket, ideally 2-3 feet above the ground.
Placement
•The rain gauge should be placed in an open area away from the walls, fences, trees and
other coverings which may reduce the amount of rain falling into the bucket. Additionally,
trees and rooftops may be sources of pollen and debris.
•To avoid the rain shadow effects, place the rain gauge horizontally, on the distance
corresponding to two to four times the height of any nearby obstruction.
•It is important that excess rain can flow freely away from the rain gauge.
Operation
After batteries are correctly installed, the rain gauge will start transmitting a rainfall data to the main
unit.
Note: Every time after replacing batteries, press and old DOWN arrow button for 3-4
seconds on the main unit’s control panel or hand held remote control.

13
Anemometer (wind sensor)
FEATURES
•Wind speed, wind gust and wind direction measurement
•Measures the temperature at the place of anemometer
•Remote wind speed, wind gust and wind direction data transmission to the main unit via
433 MHz signal
•Operating range 100 feet (30 meters)
•Wall or pole mount

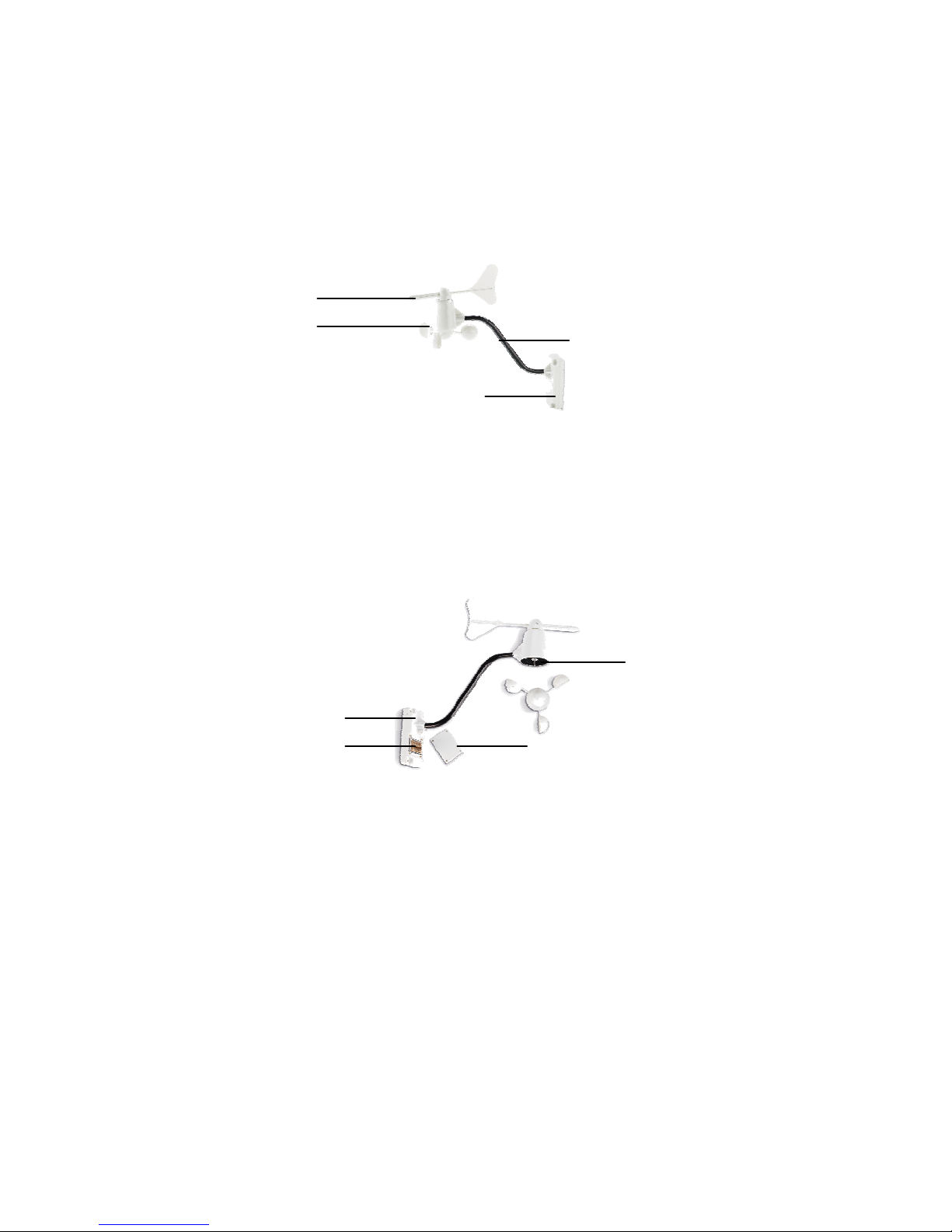

A. WIND VANE
Indicates wind direction
B. WIND CUPS
Measures wind speed
C.ANEMOMETER BASE
•Holds battery compartment
•Allows mounting the anemometer vertically
D.ANEMOMETER ARM
Connects battery compartment to the anemometer assembly
A
DB
C
E
G
F H

14
E. WIND CUPS SHAFT
Holds wind cups on the anemometer arm
F. BATTERY COMPARTMENT
Holds 2 AA-size batteries
G. WALL MOUNT SCREW OPENINGS
Allows securing the anemometer in place
H. BATTERY COVER
Secures battery compartment on the anemometer base
Assembly
•Slide the wind cups on to the anemometer rotating shaft. Do not use force.
•Insert the longer arm of the Allen Wrench (provided) into the wind cup set screw opening.
Feel the head of the set screw inside the wind cups and tighten carefully the set screw
securing the wind cups to the rotating shaft.
•Test to ensure cups are securely fastened to the shaft and cannot be removed
Battery installation
•Remove four (4) screws from the battery compartment with a small Phillips screwdriver.
•Open the battery compartment and install 2 “AA” size alkaline batteries (not included)
matching the polarities shown.
•Do not close battery compartment yet as you need to make sure that the anemometer
sends the signal to the main unit (0.0 mph will appear on the main unit’s wind window if
the signal was sent and received successfully)
Aligning
This procedure must be performed after main unit has been powered and all remote weather
sensors signals were received successfully.
•Manually point the wind direction vane to the north (use a compass or map if necessary).
•Press the “SET” button located inside battery compartment (on the shorter side) with a
paper clip. “SET” button selects a new direction for NORTH and, when pressed
repeatedly, alternates between the factory default NORTH and user selected NORTH.
•Watch for the next anemometer data transmission in the main unit’s wind window – the
direction will be updated
•Replace the battery compartment door and secure the screws.
Note: Repeat aligning procedure every time after changing the batteries.
Mounting
Mount the anemometer onto a vertical surface, using the fittings provided.
Placement tips:
•The anemometer should be mounted in an open area with a free air flow; away from the

15
nearby trees, buildings or other structures.
•For optimal performance, mount the anemometer at 33 feet (10meters) above the ground
in unobstructed area.
Mounting
Mount the anemometer onto a vertical surface, using the fittings provided.
Placement
•The anemometer should be mounted in an open area with a free air flow; away from the
nearby trees, buildings or other structures
•It is suggested mounting anemometer at 33 feet (10meters) above the ground in
unobstructed area
Main Unit
The main unit measures pressure, indoor temperature, humidity, and receives atomic time data
from the US Atomic Clock and all remote weather sensors. It should be placed indoors.
FEATURES
Time
•Precise time and date set via RF signals from US Atomic clock
•12 or 24 hour time format
•Manual adjustment of time and date
•Calendar displaying date with month and day in 6 languages English, German,
French, Italian, Spanish and Dutch
•Sunrise/set calculation for over 100 pre-programmed world cities in accordance with
the geographical information entered by the user
•Moon Phase calendar and historical data for the past and future 39 days
•Dual crescendo alarms with programmable snooze and pre-alarm
Weather
•Weather forecast for the next 12 to 24 hour in seven large icons: Sunny, Partly
Cloudy, Cloudy, Light Rain, Unstable Weather and Snowy
•Barometric pressure in imperial or metric units
•Altitude adjustment for pressure compensation
•24 hour barometric pressure history chart
•Multiple weather alarms including Hi/Low temperature, Hi daily rainfall, Hi wind gust
and Hi wind speed alerts
•Indoor/Outdoor Temperature & Humidity in up to 5 remote locations (additional
sensors required)
•Dew point and comfort level indicators
•Wind speed and wind gust averages and memory

16
•Wind direction
•Rainfall amount with minimum and maximum memory
•UV intensity with daily and weekly highs and lows
•200 weather records without PC connection
•PC software (included) and USB port
•Operating range from 100 feet (30 meters) up to 328 feet (100 meters)
Display
•Light sensor detects low light conditions and LCD lights up automatically when
adapter is connected
•Infrared remote control of all display functions
Power
•AC/DC adapter for automatic remote control
•4 AA batteries
Battery installation
•Open the battery compartment door on the back of the main unit.
•Insert four (4) AA size batteries according to the polarities shown and replace the battery
compartment door.
•Connect 7.5 V AC/DC adapter provided to the main display unit and plug into to the wall
power outlet.
Note: TheAC/DC adapter connection is required for automatic backlight control and a
handheld remote control functions. If the main unit operates solely on the battery
power, the auto backlight control and handheld remote control functions will be
disabled.

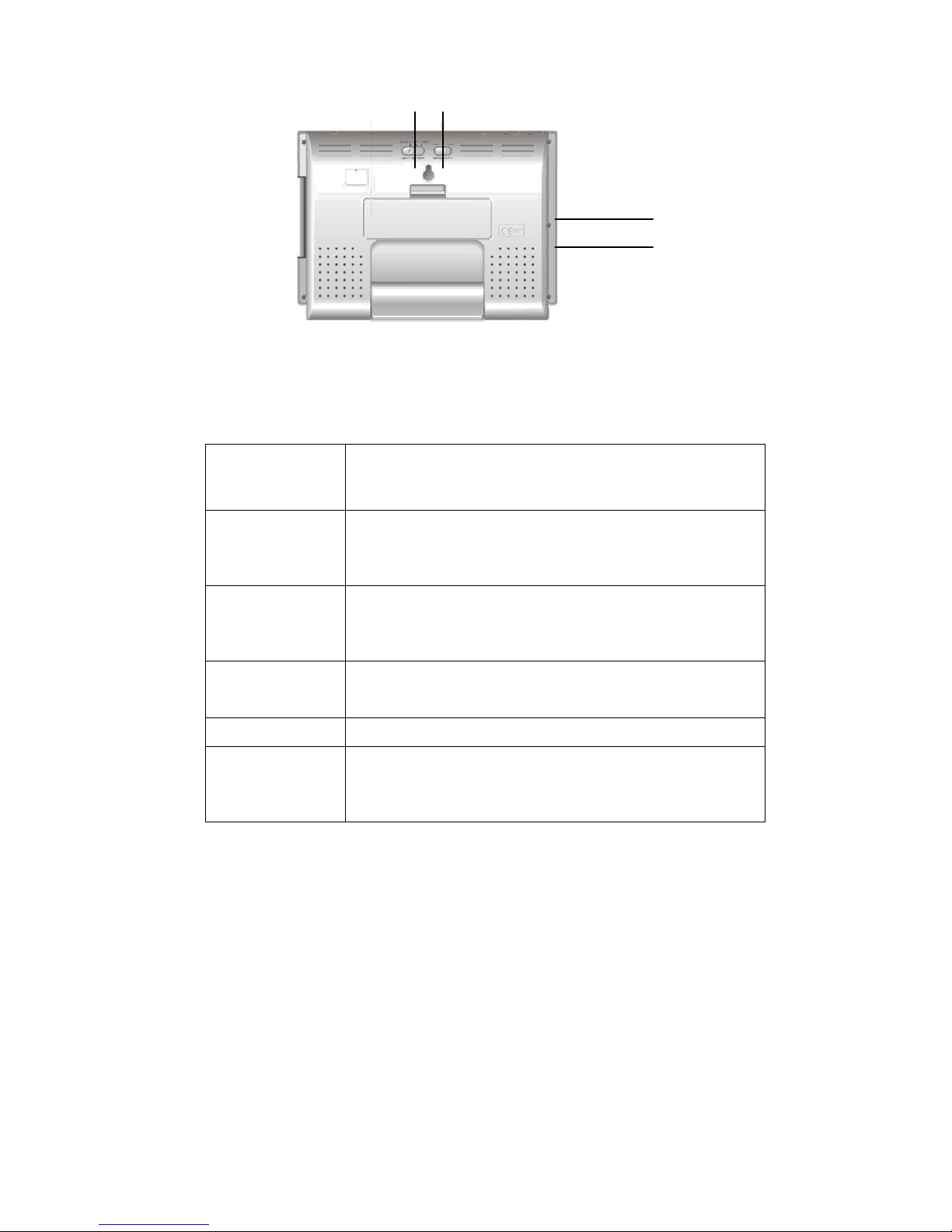

•When placing the main unit on the table or other horizontal surface, unfold the table
stand adjusting it to the desired viewing angle.
•When mounting the main unit on the wall or vertical surface, fold the table stand back
into the unit and use the mounting hardware provided.
Placement
•Make sure that the main unit is locating within the operating range of all remote weather
sensors.
•Ideally the remote weather sensors should be mounted within the line of sight of the main
unit.
•Transmission range may be affected by trees, metal structures and electronic appliances.
•Test reception before permanently mounting all the remote weather sensors.
Avoid placing the main unit in the following areas:
•Direct sunlight and surfaces emitting and radiating heat, such as heating ducts or air
conditioners.
•Areas with interference from the wireless devices (such as cordless phones, radio
headsets, baby listening devices) and electronic appliances.

17
Operation
Once the main unit is powered, the display will show all available LCD segments for 2 seconds.
IMPORTANT:All of the display functions will be locked, allowing setting your local altitude and
pressure parameters .The locked display will show the pressure icon and abbreviation “inHg”
flashing in Pressure Window, indoor temperature and humidity readings in
Temperature/Humidity Window, default time in Time Window and a default sunset/sunrise time
in the Sunrise/Sunset Window.
If pressure and altitude are not configured during this time, the Weather Station will self-calibrate in
a few minutes and show the default settings for the pressure and altitude (sea level) and then all
remote weather sensors readings.
NOTE: When adjusting altitude in feet or meters, be noted that the last small digit is not a
decimal but a whole number.
Example: “350” feet means 350 feet (three hundred fifty feet).
To set the pressure & altitude units and program your altitude, use the handheld remote control or
the main unit control panel
G H I J

18
Buttons and Controls
Most of the handheld remote control buttons are corresponding to the main unit controls.
To expose the main unit control buttons, press the OPEN button on the upper right corner of the
main unit and the controls’ cover door will open.
Main unit and handheld remote control adequate buttons
A. UP
-Selects the next available mode anti-clockwise
-Increases parameters
B. DOWN
-Selects the next available mode clockwise
-Decreases parameters
-Recalls all remote sensors signals when depressed and held for 5
seconds
C. SET
-Rotates display for current mode
-If depressed and held, enters into the programming mode or changes
parameter’s units
-Confirms set parameters
D. MEMORY
-Allows displaying the moon phase, UV, temperature, humidity, rainfall
and wind memory records
E. HISTORY -Allows displaying the sea-level pressure history
F,G. ALARM/CHART
-Allows displaying the time alarms and alerts for the temperature,
rainfall and wind.
-If depressed and held, allows entering into the alarm/alert
programming mode
N
M
KL

19
-When depressed and hold in pressure and forecast mode, allows
viewing of the different bar charts
H. CHANNEL
-Changes the temperature and humidity channel
-Enables the temperature and humidity channel auto-scan mode
I. LIGHT/SNOOZE -Enables a backlight for 5 seconds
-Snoozes the alarms
Main unit only
J. OPEN -Opens the control buttons panel on main unit
K. LIGHT SENSOR
– AUTO, ON, OFF -Toggles the light sensor to automatic, on or off setting
L. SENSITIVITY
– HIGH/LOW -Adjusts the light sensor sensitivity
M.AC/ DC ADAPTOR INPUT - Connects main unit to the power outlet through the AC to
7.5V DC adapter provided
N. USB Port - USB Port provides PC connectivity
Handheld remote control only TS607 (Selections)
Temperature & Humidity
Button -Selects the Temperature and Humidity Mode
Wind Button -Selects the Wind Mode
UV Button -Selects the UV Mode
Pressure & Weather -Selects the Pressure and Weather Forecast Mode

20
Forecast Button
Rain Button -Selects the Rain Mode
Sunrise/Sunset Button -Selects the Sunrise/Sunset Mode
Clock andAlarm Button -Selects the Clock and Alarm Mode
Button -Selects 24 hours History Chart
-Alternates between Pressure, Channel1 Temperature or
Channel One Humidity
Initial Set Up
•Power up each of the remotes as instructed in previous sections
•Then power up the main display.
•Once the main unit is powered, the display will briefly show all available LCD segments
for a moment.
•IMPORTANT: Do not press any buttons during the set up process which typically takes
about 5-10 minutes.
The display functions will be automatically set including local altitude and pressure parameters.
The display will show the pressure icon and “inHg” (inches of Mercury) flashing. You will
know that the unit is finished self-adjustment when the display shows the default settings for the
pressure and altitude (sea level) indoor/outdoor temperature and humidity readings, remote
sensors readings, etc.
Many settings can be changed or customized to your preference, after the display has stabilized
•The pressure parameters during Initial Setup (See Pressure and Weather Forecast
Window)
•The time, the date and the weekday language (Clock and Alarm Window)
•The location data will determine the time zone and sunrise and sunset times (Sunrise&
Sunset Window)
IMPORTANT: If after the initial setup, the altitude or other parameters are not displayed, or dotted
lines are displayed, for example (-.- -) you may have to restart the main unit to reset it.
Note: It is a normal unit operation that history chart is constantly moving on the main unit display
Backlight
The main unit backlight can be turned on, off or automatically toggled depending on the
environment light conditions. Use the light sensor switch at the back of the main unit to select a
desired backlight setting.
For the automatic backlight control, the sensitivity of the light sensor can be adjusted to high or low
