Introduction

Thank you for selecting the Honeywell Semi-Professional Weather Station. This compact and easy-to-use product uniquely

measures and monitors weather data right at your immediate location. It includes a wide range of weather features plus

precise atomic time and perpetual calendar. Weather measurements include: air temperature, relative humidity, barometric

pressure, wind speed and direction, rainfall levels and more.

Standard Package Contents

In this package you will find:

One Main Unit (receiver) (TE821WD)

One Rain Gauge (remote rain sensor/transmitter) (TS906)

One Anemometer (remote wind sensor/transmitter) (TS805)

One Three-Channel Temperature & Humidity Sensor (transmitter) (TS33C)

One 7.5V AC/DC Adapter

Anemometer Mounting Hardware with wrench tool

One User Manual

Required for installation (not included)

-Small Phillips screwdriver

-Anemometer mounting pole

-Small paper clip to reset sensors

NOTE: If any items are missing or damaged, please contact Hideki Electronics Customer Service before proceeding with

installation.

Installation

The Honeywell Semi-Professional Weather Station operates at 433MHz radio frequency, so no wire installation is required

between the main unit (receiver) and the remote weather sensors (transmitters). The remote weather sensors include (1)

thermo-hygrometer (temperature and humidity) sensor, anemometer (wind sensor) and a rain gauge (rain sensor). All data

measured by these remote sensors is transmitted to the main unit wirelessly, with the operating range up to 328 feet (100

meters) in the open area. The Anemometer and the Rain Gauge must be placed outdoors to measure weather elements.

Remote Thermo-Hygrometer can be placed indoors or outdoors. If you intend measuring outdoor temperature and humidity,

place the remote sensor outdoors, preferably not in the direct sunlight.

Before you begin

The components of this Honeywell Semi-Professional Wireless Weather Station operate at 433MHz radio frequency. No

interconnecting wires are required between the main unit (receiver) and the remote sensors (transmitters).

Power up and test communications between all of the sensors and the main unit BEFORE mounting them outside.

·For most applications alkaline batteries are acceptable where temperatures remain above 32°F (0°C).

·At temperatures below 32ºF(0ºC) use lithium batteries otherwise transmission performance will be reduced or

interrupted

·Avoid using rechargeable batteries. (Rechargeable batteries do not provide correct power levels).

·ALWAYS install batteries in the remote sensors before the main unit. (Please read batteries installation instructions in

the manual for each remote sensor before installation)

·Insert batteries matching the polarity in the battery compartment

·Remove plastic sleeve from LCD display (if any).

·During an initial setup, place the main unit close to the remote sensors.

·After reception is established (all of the remote readings will appear on the main unit’s display), position the remote

sensors and the main unit within the effective transmission range. Ideally they should be placed within the line of sight

of the main unit. See placement tips in the user manual for each remote sensor.

·Transmission range may be affected by trees, metal structures and electronic appliances.

·The main unit must be placed indoors.

·The effective operating range may be influenced by the surrounding building materials and how the receiver (main unit)

and transmitters (sensors) are positioned.

·Place the remote sensors so that they face the main unit (receiver), minimizing obstructions such as doors, walls, and

furniture.

·Make sure that the remote sensors are easily accessible for cleaning and maintenance.

Note: When the temperature falls below freezing, the outdoor sensor batteries may have reduced voltage and a reduced

effective range. We recommend using lithium batteries at temperatures below 32°F (0°C).

IMPORTANT: We recommend cleaning the remote sensors periodically, as dirt and debris affects sensor accuracy.

Thermo-Hygrometer Sensor TS33C

FEATURES

·LCD display of measured temperature and humidity

·Remote data transmission to the main unit via 433 MHz signal

·328 feet (100 meters) transmission range without interference

·Three (3) transmission channels selection

·Case can be wall mounted using built-in hanger

A. LED INDICATOR

·Flashes once when the remote sensor transmits a reading to the main unit.

·Flashes twice when battery power is low.

B. BATTERY COMPARTMENT

Holds two AA-size batteries

C. RESET

Resets all readings (requires small paper clip.)

D. CHANNEL SWITCH

Selects the desired sensor channel from 1 to 3

E. WALL-MOUNT RECESSED OPENING

Keeps the remote sensor on the wall

Note: Install the batteries and select the channel before mounting the sensor

Battery installation

·Remove the screws from the battery compartment with a small Phillips screwdriver.

·Set the channel 1 through 3. The switch is located in the battery compartment.

If you have more than one sensor, set one sensor to Channel 1 and the second sensor to Channel 2, etc. The sensors must

operate on separate channels. Install 2 “AA”size batteries matching the polarities shown in the battery compartment.

IMPORTANT: When channel number is selected, it will be displayed on the sensor’s LCD display

·Replace the battery compartment door and secure the screws.

·Secure the thermo-hygrometer remote sensor in the desired location.

Mounting

·The remote thermo-hygrometer sensor can be placed on the flat surface or mounted on the wall in vertical position

·Use the screws when mounting the thermo-hygrometer sensor on the wall

Placement tips:

·The remote thermo-hygrometer sensor should be placed in the area with a free air circulation and sheltered from the

direct sunlight and an extreme weather conditions.

·Ideally, place the thermo-hygrometer sensor above the natural surfaces (such as a grassy lawn).

·Avoid placing the thermo-hygrometer sensor near sources of heat such as chimneys and heating elements.

·Avoid areas that collect or radiate heat from the sun, such as metal, brick/concrete structures, paving, or patio decks.

·The best location for temperature measurements is 4 feet (1.25meters) above the ground.

Rain Gauge TS906

FEATURES

·Precipitation measurement

·Remote rainfall data transmission to the main unit via 433 MHz signal

·100 feet (30 meters) transmission range without interference

·Built-in installation level

A. Rain gauge bucket

Contains electronic components

B. Knob

Secures the top on the rain gauge bucket

C. Rain gauge feet

Secures the rain gauge in place

D. Funnel-shaped top with battery compartment

Contains battery compartment and rainfall counting electronics

E. Battery compartment

Holds two AA-size batteries

F. Screws

Secures battery compartment cover

G. Built-in level with bubble

Ensures level rain gauge mounting for proper operation

H. Bucket see-saw mechanism

Collects the rainfall in one of its containers and self-empties once full

I. Protective screen

Protects the rain gauge funnel from debris

Battery installation

·Unlock the funnel-shaped top on the rain gauge by turning both knobs on the sides in an anti-clockwise direction.

·Remove the funnel-shaped top lifting it off the rain gauge bucket.

·Remove 7 small screws from the battery compartment cover using a small Phillips screwdriver

·Insert 2 “AA”size alkaline batteries (not included), matching the polarities as shown in the battery compartment.

·Replace the battery compartment door and secure the screws.

·Insert the funnel-shaped top into the rain gauge bucket and secure it in place by turning the knobs clockwise.

Mounting

·Make sure that the rain gauge bucket is level –check inside built-in level for bubble center.

·Place the protective screen over the top to protect the rain gauge from the debris.

·Where practical, mount the rain gauge in place with wood screws (not included).

·Make sure that the rain gauge is in open area where precipitation falls directly into the gauge’s bucket, ideally 2-3 feet

above the ground.

Placement tips

·The rain gauge should be placed in an open area away from the walls, fences, trees and other coverings which may

reduce the amount of rain falling into the bucket. Additionally, trees and rooftops may be sources of pollen and debris.

·To avoid the rain shadow effects, place the rain gauge horizontally, on the distance corresponding to two to four times

the height of any nearby obstruction.

·It is important to locate the unit where rain can flow away freely.

Anemometer (wind sensor) TS805

FEATURES

·Wind speed and wind direction measurement

·Remote wind speed and wind direction data transmission to the main unit via 433 MHz signal

·Operating range 100 feet (30 meters)

·Wall or pole mount

A. WIND VANE

Indicates wind direction

B. WIND CUPS

Measures wind speed

C. ANEMOMETER BASE

·Holds battery compartment

·Allows mounting the anemometer vertically

D. ANEMOMETER ARM

Connects battery to the anemometer head assembly.

E. WIND CUPS SHAFT

Holds wind cups on the anemometer arm

F. BATTERY COMPARTMENT

Holds 2 AA-size batteries

G. WALL MOUNT SCREW OPENINGS

Allows securing the anemometer in place

H. BATTERY COVER

Secures battery compartment on the anemometer base

Assembly

·Slide the wind cups on to the anemometer rotating shaft. Do not use force.

·Insert the longer arm of the Allen Wrench (provided) into the wind cup set screw opening. Feel the head of the set

screw inside the wind cups and tighten carefully the set screw securing the wind cups to the rotating shaft.

·Test to ensure cups are securely fastened to the shaft and cannot be removed

Battery installation

·Remove four (4) screws from the battery compartment with a small Phillips screwdriver.

·Open the battery compartment and install 2 “AA”size alkaline batteries (not included) matching the polarities shown.

·Replace the battery compartment door and secure the screws.

Aligning

·Manually point the wind direction vane to the north (use a compass or map if necessary).

·Press the “SET”button located inside battery compartment (on the shorter side) with a paper clip. “SET”button selects

a new direction for NORTH and, when pressed repeatedly, alternates between the factory default NORTH and user

selected NORTH.

Note: Repeat this procedure every time after changing the batteries.

Mounting

Mount the anemometer onto a vertical surface, using the fittings provided.

Placement tips:

·The anemometer should be mounted in an open area with a free air flow; away from the nearby trees, buildings or

other structures.

·For optimal performance, mount the anemometer at 33 feet (10meters) above the ground in unobstructed area.

Main Unit

The main unit measures pressure, indoor temperature, humidity, and receives atomic time data from the US Atomic Clock and

outdoor measurements from remote sensors. It should be placed indoors.

FEATURES

Time

·Precise time and date set via RF signals from US Atomic clock

·12 or 24 hour time format

·Manual adjustment of time and date

·Calendar displaying date with month and day in 6 languages English, German, French, Italian, Spanish and Dutch

·Time Zones for over 100 pre-programmed world cities

·Moon Phase calendar and historical data for the past and future 39 days

·Dual crescendo alarms with programmable snooze

Weather

·Weather forecast for the next 12 to 24 hour in seven large icons: Sunny, Partly Cloudy, Cloudy, Light Rain, Heavy

Rain, Unstable Weather and Snowy

·Barometric pressure in imperial or metric units

·Altitude adjustment for pressure compensation

·24 hour barometric pressure history chart

·Multiple weather alerts including: Hi/Low temperature, Daily Rainfall, Hi wind gust and Hi wind speed alerts

·Indoor/Outdoor Temperature & Humidity in up to 4 remote locations (additional sensors required)

·Dew point and comfort level indicators

·Wind direction, speed and wind gust averages and memory

·Rainfall amount with minimum and maximum memory

·Operating range from 100 feet (30 meters) up to 328 feet (100 meters)

Display

·Light sensor detects low light conditions and LCD lights up automatically when adapter is connected

Power

·Open the battery compartment door on the back of the main unit.

·Insert four (4) AA size batteries according to the polarities shown and replace the battery compartment door.

·Connect 7.5V AC/DC adapter provided to the main display unit and plug into the wall power outlet.

Note: The AC/DC adaptor connection is required for automatic backlight control. When the main unit operates

solely on the battery power, the auto backlight control functions are disabled.

·When placing the main unit on the table or other horizontal surface, connect the table stand to the back of the unit.

·When mounting the main unit on the wall or vertical surface, detach the table stand and use the mounting hardware

Placement tips

·Make sure that the main unit is locating within the operating range of all remote sensors.

·Ideally the remote sensors should be mounted within the line of sight of the main unit.

·Transmission range may be affected by trees, metal structures and electronic appliances.

·Test reception before permanently mounting all the remote sensors.

Avoid placing the main unit in the following areas:

·Direct sunlight and surfaces emitting and radiating heat, such as heating ducts or air conditioners.

·Areas with interference from the wireless devices (such as cordless phones, radio headsets, baby listening devices)

and electronic appliances.

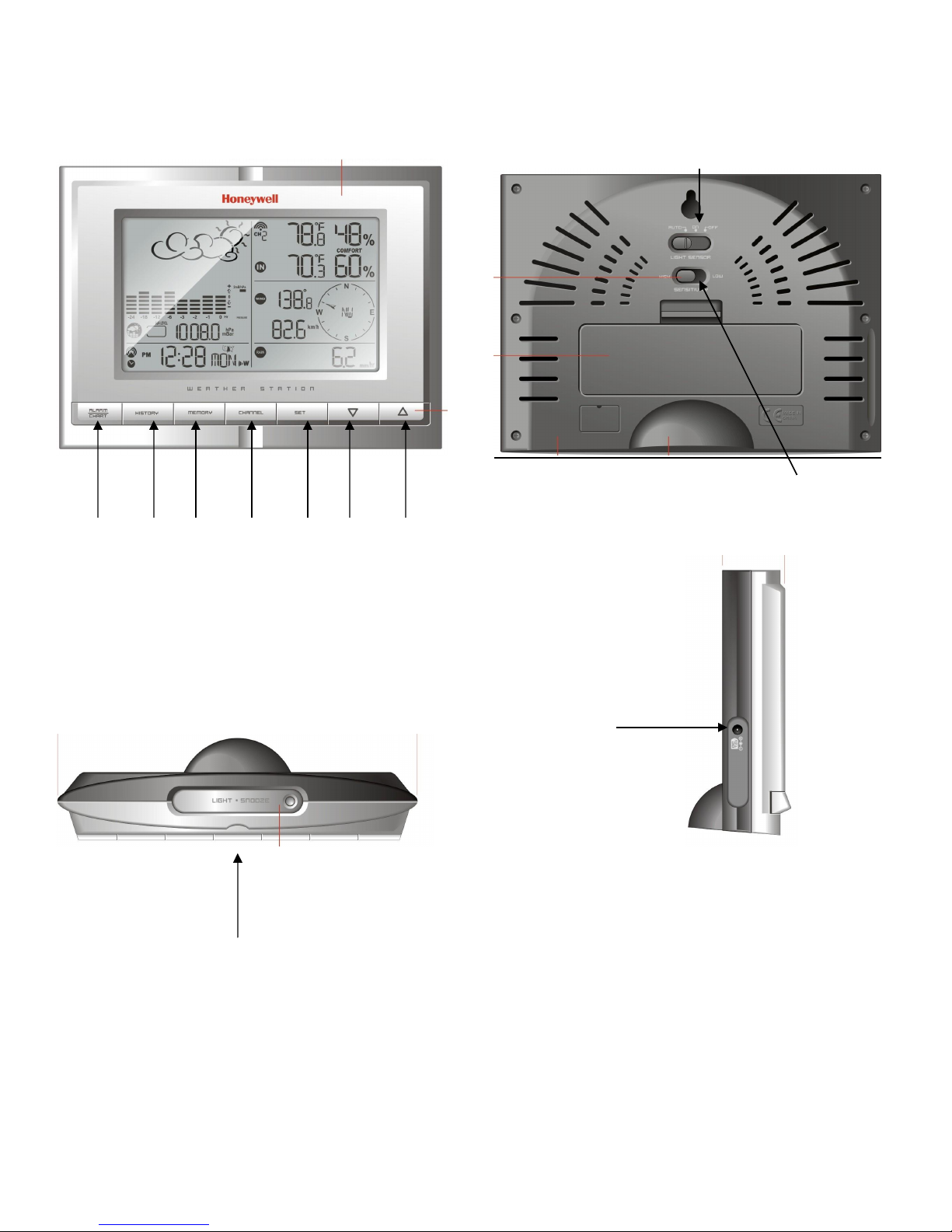

Buttons and Controls

G F E D C B A

A. UP

- Selects the next available window counter-clockwise

- Increases parameters

-If pressed and help, activates an atomic time signal search

B. DOWN

- Selects the next available window clockwise

- Decreases parameters

-If pressed and help, activates all remote sensors signal search

C. SET

- Alternates the parameters for the selected window

- If depressed and held, enters into the programming mode or

changes parameter’s units

- Pressed again closes programming mode and confirms selected

parameters

D. CHANNEL

- Manually selects the channel # for receiving temperature and

humidity sensor data

- Enables the temperature and humidity channel auto-scan mode

E. MEMORY

- Records: moon phase, temperature, humidity, rainfall and wind

records. Then stores in memory

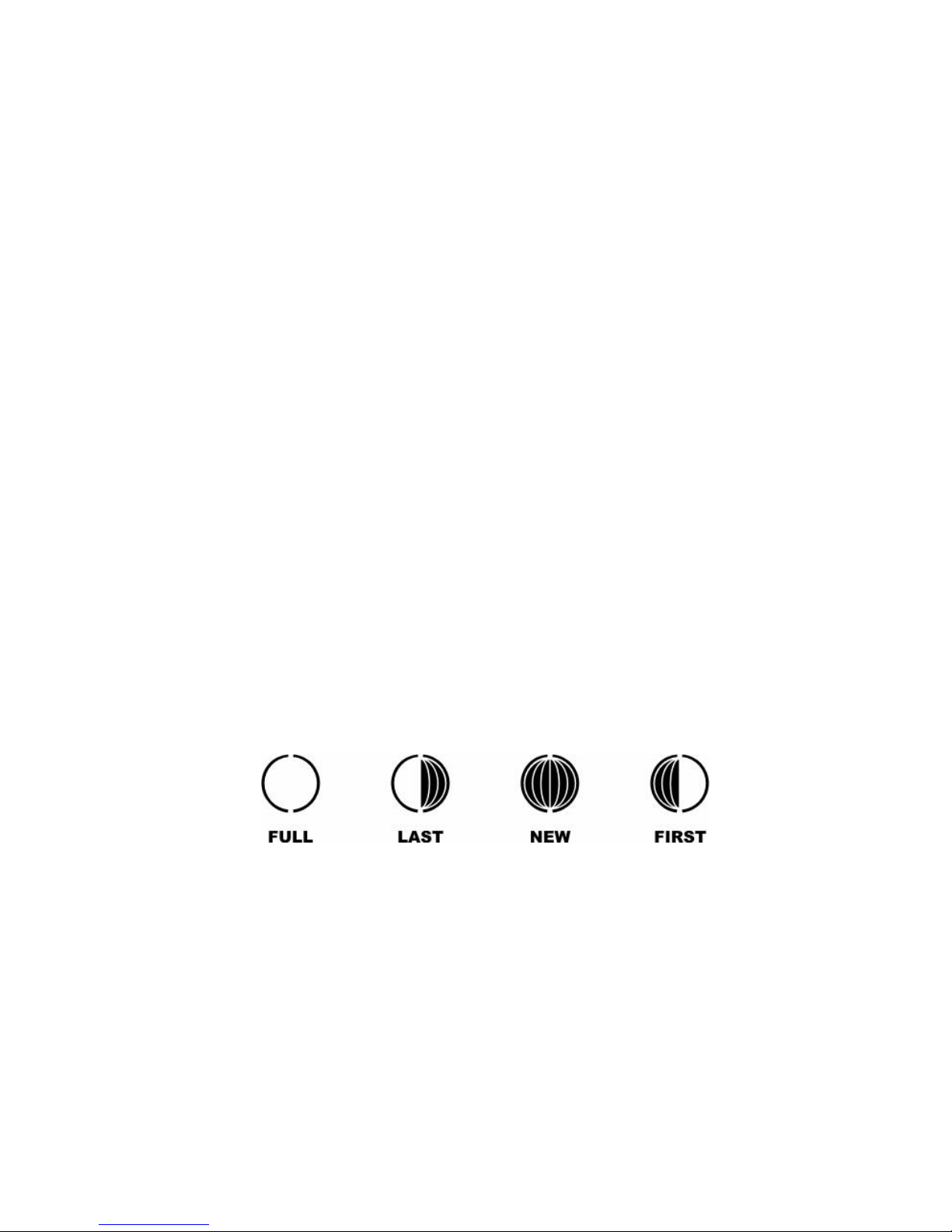

- Moon phase: Determined by the day of month interval

- Sets and stores pressure & altitude units in Memory

F. HISTORY - Allows displaying the sea-level pressure history

G ALARM/CHART

- Displays alarm times and programmed alerts for temperature,

rainfall and wind.

- Press and hold, to enter the alarm/alert programming mode

- Press and hold in pressure and forecast window, to view

different bar charts

H. SENSOR

–AUTO, ON, OFF

- Sets the light sensor to: automatic, on or off

I. SENSITIVITY

–HIGH/LOW

- Adjusts the automatic light sensor sensitivity

J LIGHT/SNOOZE - Illuminates the display backlight for 5 seconds

- Activates Snooze delay for alarms (programmable 1 to 15

minutes)

K. AC/ DC

ADAPTOR INPUT

- Connects main unit to the power outlet through the AC to 7.5V

DC adapter provided

Initial Set up

1. Power up each of the remotes as instructed in previous sections.( Remove clear protective plastic slips from the

battery compartments)

2. Then power up the main display.

3. Once the main unit is powered, the display will briefly show all available LCD segments for a moment.

4. IMPORTANT: Do not press any buttons during the set up process which typically takes about 5-10 minutes.

The display functions will be automatically set including local altitude and pressure parameters. The display will show the

pressure icon and “inHg”(inches of Mercury) flashing. You will know that the unit is finished self-adjustment when

the display shows the default settings for the pressure and altitude (sea level) Indoor/outdoor temperature and humidity

readings, remote sensors readings, etc.

Many settings can be changed or customized to your preference, after the display has stabilized

·The pressure parameters during Initial Setup (See Pressure and Weather Forecast Window)

·The time, the date and the weekday language (Clock and Alarm Window)

·The location data (City) will determine the time zone

IMPORTANT: If after the initial setup, the altitude or other parameters are not displayed, or dotted lines are displayed, for

example (-.- -) you may have to restart the main unit to reset it..

Note: It is a normal unit operation that history chart is constantly moving on the main unit display

Operation and Window Selection

The main unit has five different operating windows each displaying unique data. When a specific window is selected the

corresponding icon will start flashing. Press the UP arrow button on the main unit to cycle through the windows clockwise or

DOWN arrow button anti-clockwise.

The basic operation of your weather station has been designed to work straight out of the box 10 minutes after power is

provided to the main unit. You will have to select a city location following the steps identified under INITIAL SETUP before

proceeding.

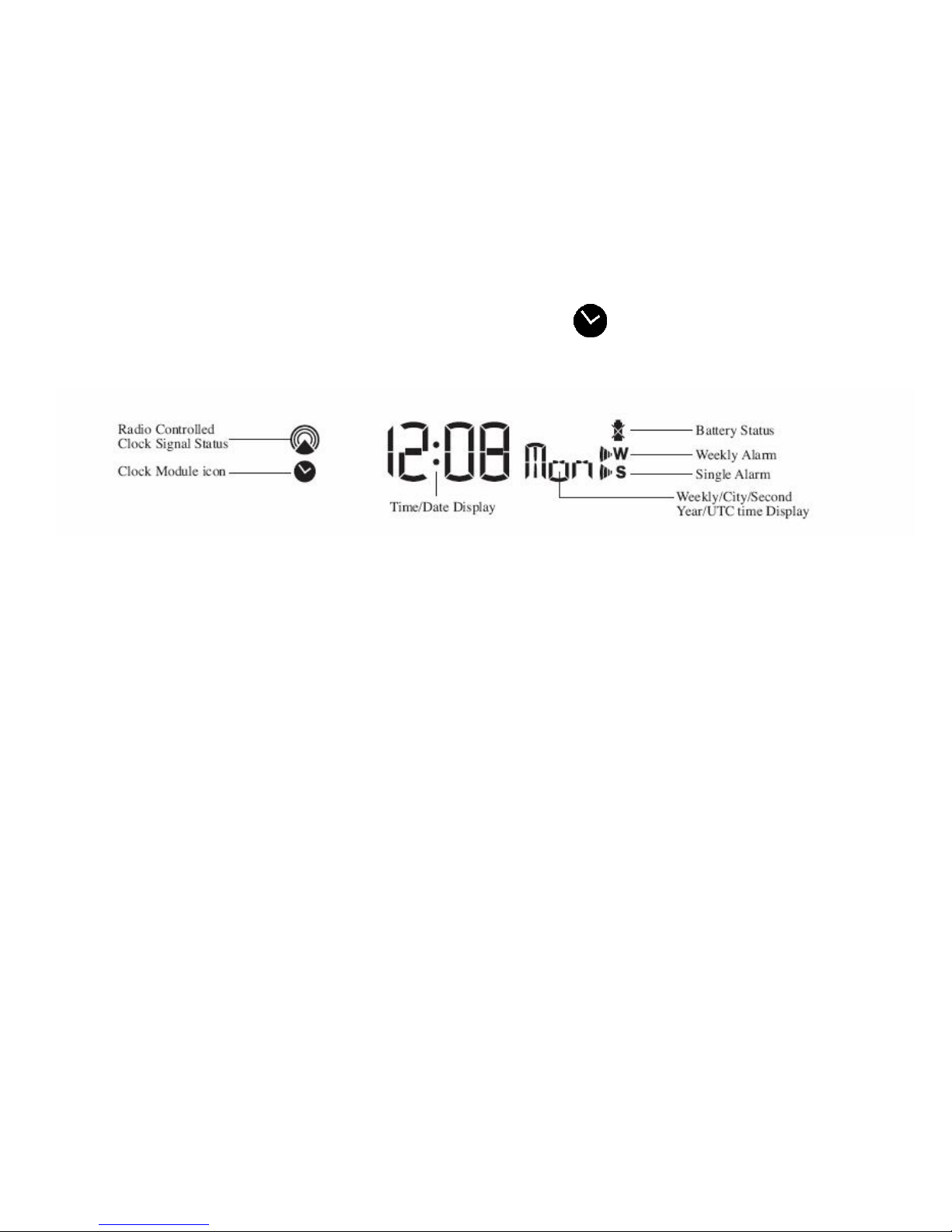

Clock and Alarms Window

Clock and Calendar Displays

To alternate your view of the 5 Clock & Calendar displays, briefly press the SET button:

1. Time with the Day of the week

2. Time with the City abbreviation

3. Time with the Seconds

4. Month/ Day/ Year or Day/ Month/ Year.

5. Current UTC Time (Coordinated Universal Time)

Selecting Clock and Alarm Window

Press main unit UP arrow button or DOWN arrow button until the clock icon next to the time/date display continues to

flash.

Initial Settings: City, Time, Date and Language

·With the Clock and Alarm icon flashing, press and hold SET button until the day of week language abbreviation “ENG”

will flash.

·Press UP or DOWN arrow button to select the desired language for day of the week in English, German, French,

Italian, Spanish or Dutch

·Press SET button to confirm selection.

·Select the desired City Code flashing (LAX is Los Angeles for example) for your area by pressing UP or DOWN. This

will set the unit to the appropriate time zone for your location. Refer to table, back of this book, for a list of available

cities.

·Press SET to confirm the city selection.

·Press UP or DOWN to select the correct year.

·Press SET to confirm year selection.

·Press UP or DOWN to select the correct month.
