Installation Guide
for EMPRESS™ 2.4GHz Active RFID Reader
(Model: HKRAR-EMWF)
Revision: 1
Before use, please read these instructions completely
Copyright© Hong Kong RFID Ltd. 2008, All rights reserved. Reproduction of any part is strictly prohibited.
Hong Kong RFID Limited
Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong
Disclaimer
The information and know-how included in this document are the exclusive property of Hong Kong RFID
Limited and are intended for the use of the addressee or the user alone. The addressees shall not forward to
another their right of using the information, know-how or document forwarded herewith, in whole or in part in
all matters relating or stemming from or involved therein, where for consideration or with consideration, and
shall not permit any third party to utilize the information, know-how or the documents forwarded herewith or
copies or duplicated thereof, unless at the company’s consent in advance and in writing.
Enterprise License
No part of this document may be reproduced, distributed, publicized or made publicly available in part or in
total without prior written consent of Hong Kong RFID Ltd. All content herein is solely owned by Hong Kong
Important Notice
All statements, technical information, and recommendations related to Hong Kong RFID’s products are
based on information believed to be reliable, but the accuracy or completeness is not guaranteed. Before
using this product, you must evaluate it and determine if it is suitable for your intended application. You
assume all risks and liability associated with such use. Any statements related to the product which are not
contained in 3M’s current publications, or any contrary statements contained on your purchase order shall
have no force or effect unless expressly agreed upon, in writing, by an authorized officer of Hong Kong RFID.
EMPRESS is a trademark of Hong Kong RFID.
Copyright© Hong Kong RFID Ltd. 2008, All rights reserved. Reproduction of any part is strictly prohibited.
Hong Kong RFID Limited
Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong
Contents
1.1 INTRODUCTION ...............................................................................................................................4
1.2 SYSTEM OVERVIEW ........................................................................................................................5
1.2.1 Components...............................................................................................................................5
1.2.2 Setup ..........................................................................................................................................7
1.2.3 Application: Access Control System..........................................................................................8
1.2.4 Application: Location System....................................................................................................8
1.3 READER INDICATORS ......................................................................................................................9
1.3.1 Omni–directional Antenna for Empress Active Reader ...........................................................10
1.3.2 Directional Antenna for Empress Active Reader (Optional)....................................................10
1.4 FIRST TIME INSTALLATION:...........................................................................................................13
1.5 WIRELESS CONNECTION CONFIGURATION GUIDE.........................................................................18
1.5.1 Briefly description ...................................................................................................................18
1.5.2 Status-system ...........................................................................................................................19
1.5.3 Status-Active Client .................................................................................................................19
1.5.4 Network Setting........................................................................................................................20
1.5.5 Wireless Setting........................................................................................................................21
1.5.6 Access Point Setup...................................................................................................................22
1.5.7 Client Mode Setup....................................................................................................................26
1.5.8 Security....................................................................................................................................27
1.5.9 Others ......................................................................................................................................29
1.6 COMPUTER SOFTWARE INSTALLATION ..........................................................................................32
1.7 DEMO SOFTWARE USER GUIDE.....................................................................................................33
Copyright© Hong Kong RFID Ltd. 2008, All rights reserved. Reproduction of any part is strictly prohibited.
Hong Kong RFID Limited
Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong
1.1 Introduction
Thank you for purchasing EMPRESS™Reader, it is wireless and therefore is easy to
install with low installation costs. It is a 2.4GHz Gain Adjustable Reader which uses the
advanced 0.18um CMOS IC, and is well-fitted for being a Data Collector.
Through IEEE 802.11b/g (EMWF version), the reader gathers and transmits data to the
wireless router or act as access point all by itself. Once powered, the HKRAR-EM series
is instantly connected and become part of the network.
HKRAR-EMWF Active reader is user friendly with a web interface. You can get data and
do analysis with a PC in an efficient way with its Wi-Fi feature. Its Omni-directional
antenna can identify tags from all directions. Users can adjust the identification distance
according to actual situations in order to make identification more accurate.
Copyright© Hong Kong RFID Ltd. 2008, All rights reserved. Reproduction of any part is strictly prohibited.
Hong Kong RFID Limited
Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong
1.2 System Overview
1.2.1 Specification
Direction
Omni-directional, standard rubber antenna
Range
30~50m (depends on different Active RFID Tags),
Frequency
2.4GHz--2.5GHz ISM
RF Output Power
0dBm
Sensitivity
-85dBm
Power
500mA,5V
Modulation
GFSK
Software Interface
XtractorTM, .Net Platform
Data Rate
1Mbps
Operating Temperature
-40~60`C
Operating Humidity
95%(Non-condensing)
Anti-collision
200 tags simultaneously, shown within 5 sec.
Interface
WI-FI, IEEE 802.11b/g. can act as AP
Dimension
125mm * 108mm * 26mm

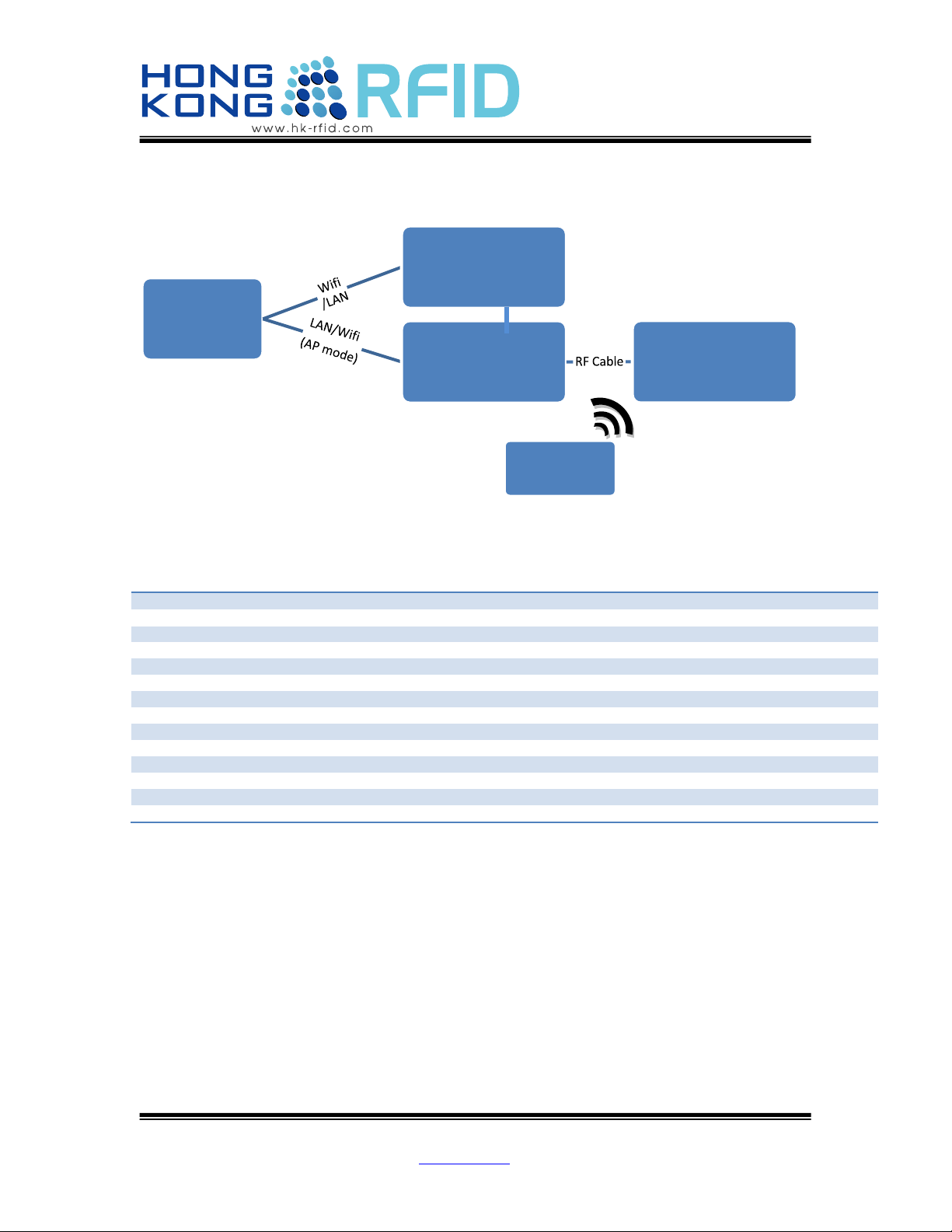

PC or
Controller
Wireless Router
Empress 2.4GHz
Active Reader
Directional or
Omni-Directional
Antenna
Active Tags
Active Tags broadcast Tag ID and
listen for comments at defined
time interval (e.g 1 signal per
second)
Active Tag ID and information
passed to PC through reader itself
or other network devices
Copyright© Hong Kong RFID Ltd. 2008, All rights reserved. Reproduction of any part is strictly prohibited.
Hong Kong RFID Limited
Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong
1.2.2 Components
One standard package of this product consists of following items;
-EMPRESS Reader x 1 piece
-2.4GHz Antenna x 2 pieces
-DC Power Adaptor 5V 2.5Ax 1 piece
-A Cross Cat-5 Cable (optional)
Other Essential Components
-Active Transponders from Hong Kong RFID
-Personal Computer
Minimum PC Requirements: XXXXXX
NOTE:
Active Transponders are essential to test the system and they are sold separately. Please
contact your sales representative if you do not have any active transponders.
Copyright© Hong Kong RFID Ltd. 2008, All rights reserved. Reproduction of any part is strictly prohibited.
Hong Kong RFID Limited
Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong
1.2.3 Network Setup
XXX mode
XXX mode
(external antenna for illustration)
AP mode
[Type sidebar content. A sidebar is a
standalone supplement to the main
document. It is often aligned on the left
or right of the page, or located at the
top or bottom. Use the Text Box Tools
tab to change the formatting of the
sidebar text box.
Type sidebar content. A sidebar is a
standalone supplement to the main
document. It is often aligned on the left
or right of the page, or located at the
top or bottom. Use the Text Box Tools
tab to change the formatting of the
sidebar text box.]
Copyright© Hong Kong RFID Ltd. 2008, All rights reserved. Reproduction of any part is strictly prohibited.
Hong Kong RFID Limited
Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong
1.2.4 Application: Access Control System
AntennaReaderController
Computer
Automatic Door
Tag
Access Control System
Fig.3 Overview of the access control system
The system can control an automatics door to achieve the purpose of access
control. The results of the reader captured are recorded in the Controller.
1.2.5 Application: Location System
XXXXXX
Copyright© Hong Kong RFID Ltd. 2008, All rights reserved. Reproduction of any part is strictly prohibited.
Hong Kong RFID Limited
Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong
1.3 Reader Indicators
Name
Function / Description
1
DC Power Jack
Supply power
2
Red LED
Power ON
3
Green LED
Data processing identity
4
NETWORK
Connect to PC to reader
5
RESET
Reboot button
Please hold the button for 5sec
6
Wifi
For Wifi Antenna
7
ANT
For any 2.4GHz antenna, directional or omi-directional
1
2
3
4
5
6
7
Copyright© Hong Kong RFID Ltd. 2008, All rights reserved. Reproduction of any part is strictly prohibited.
Hong Kong RFID Limited
Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong
1.3.1 Omni–directional Antenna for Empress Active Reader
This antenna detects all tags in range from all angles.
Technical Specification:
1.3.2 Directional Antenna for Empress Active Reader (Optional)
Directional antenna only detects tags in specific angle. Please note that the antenna has
horizontal and vertical orientation.
Frequency Range (MHz)
2400-2483
Bandwidth(MHz)
83
Gain (dBi)
8
VSWR
<=1.5
Impedance (ohm)
50
Max. Power (W)
50
Connector
N Female
Dimension (mm)
145 x 97 x 38
Weight (g)
210
Copyright© Hong Kong RFID Ltd. 2008, All rights reserved. Reproduction of any part is strictly prohibited.
Hong Kong RFID Limited
Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong
Long Range Directional 2.4GHzAntenna: HKRAA-2417
Electrical Specification
Frequency Range 2400-2500MHz
VSWR ≤1.5
Input Impedance 50Ω
Gain 17dBi
Polarization Type Vertical or Horizontal
Hoizontal Plane ΘHP 20 ±2°
Vertical Plane ΘHP 20 ±2°
Front to Back Ratio ≥26dB
Maximum Input Power 6W
Connector Type N -Female
Lightning Protection DC ground
Mechanical Specifications
Dimension 305mm ×305mm ×25mm
Weight 1.5Kg
Rated Wind Velocity 210km/h
Radome material UV-Resistance ABS
Working Temperature -40~60℃
Copyright© Hong Kong RFID Ltd. 2008, All rights reserved. Reproduction of any part is strictly prohibited.
Hong Kong RFID Limited
Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong
Mid Range Directional 2.4GHz Antenna HKRAA-2414
Copyright© Hong Kong RFID Ltd. 2008, All rights reserved. Reproduction of any part is strictly prohibited.
Hong Kong RFID Limited
Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong
1.4 First Time Installation:
1) Take out the reader from the box and connect the all two antenna (ANT and WiFi) at
the back of the reader
2) Plug the power adapter in the power jack. The red LED will turn on.
3) Connect the reader to a PC with Cross Cat 5 cable
4) Open your web browser and type 192.168.1.254 (if cannot open the setting page, try
to turn off other connections, e.g. WIFI)
5) A dialog box will prompt you for the User name and Password. Enter the default
values and click OK. Default login of setup page
user name: admin
password : admin
6) Continue the following setting step, the setup page will be display after log-in.
Copyright© Hong Kong RFID Ltd. 2008, All rights reserved. Reproduction of any part is strictly prohibited.
Hong Kong RFID Limited
Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

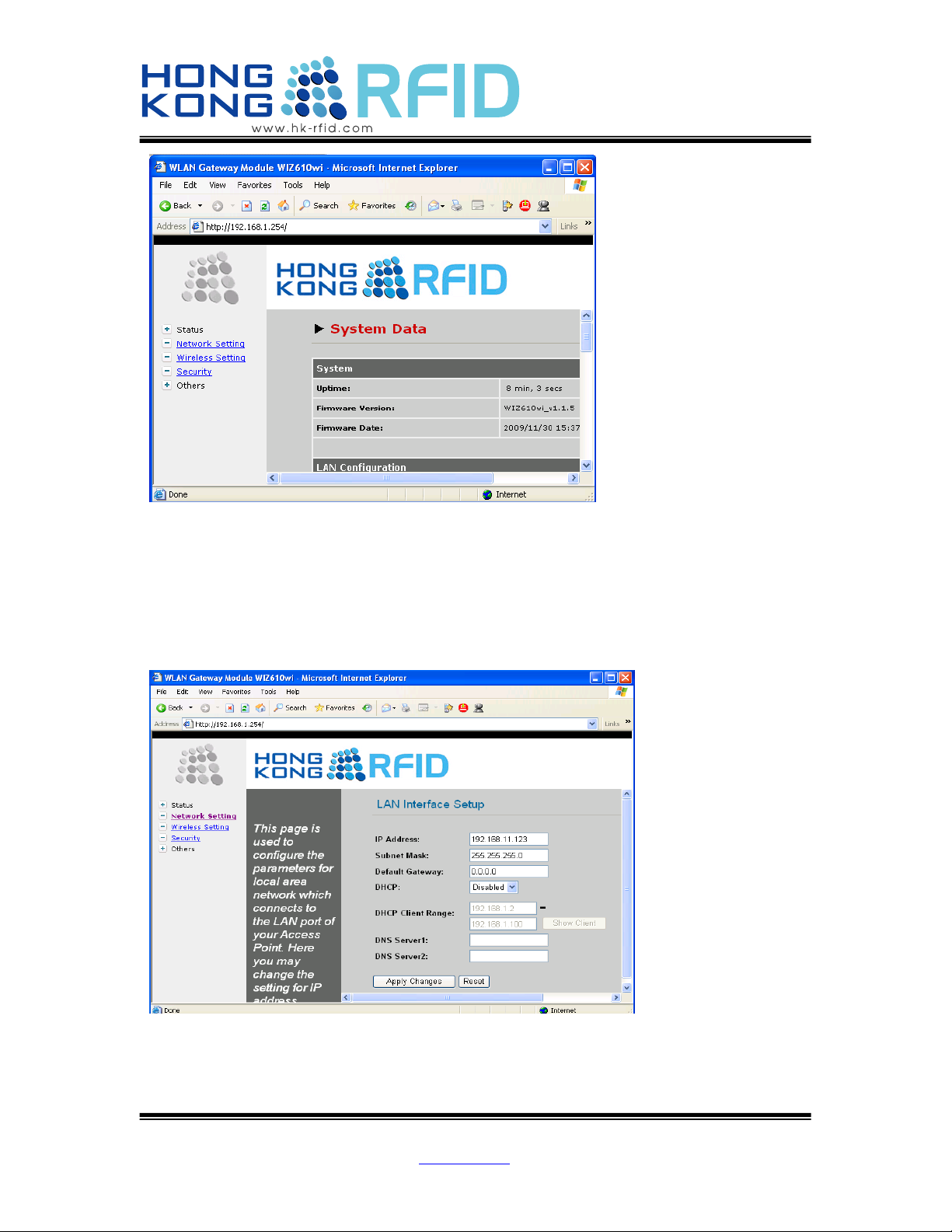

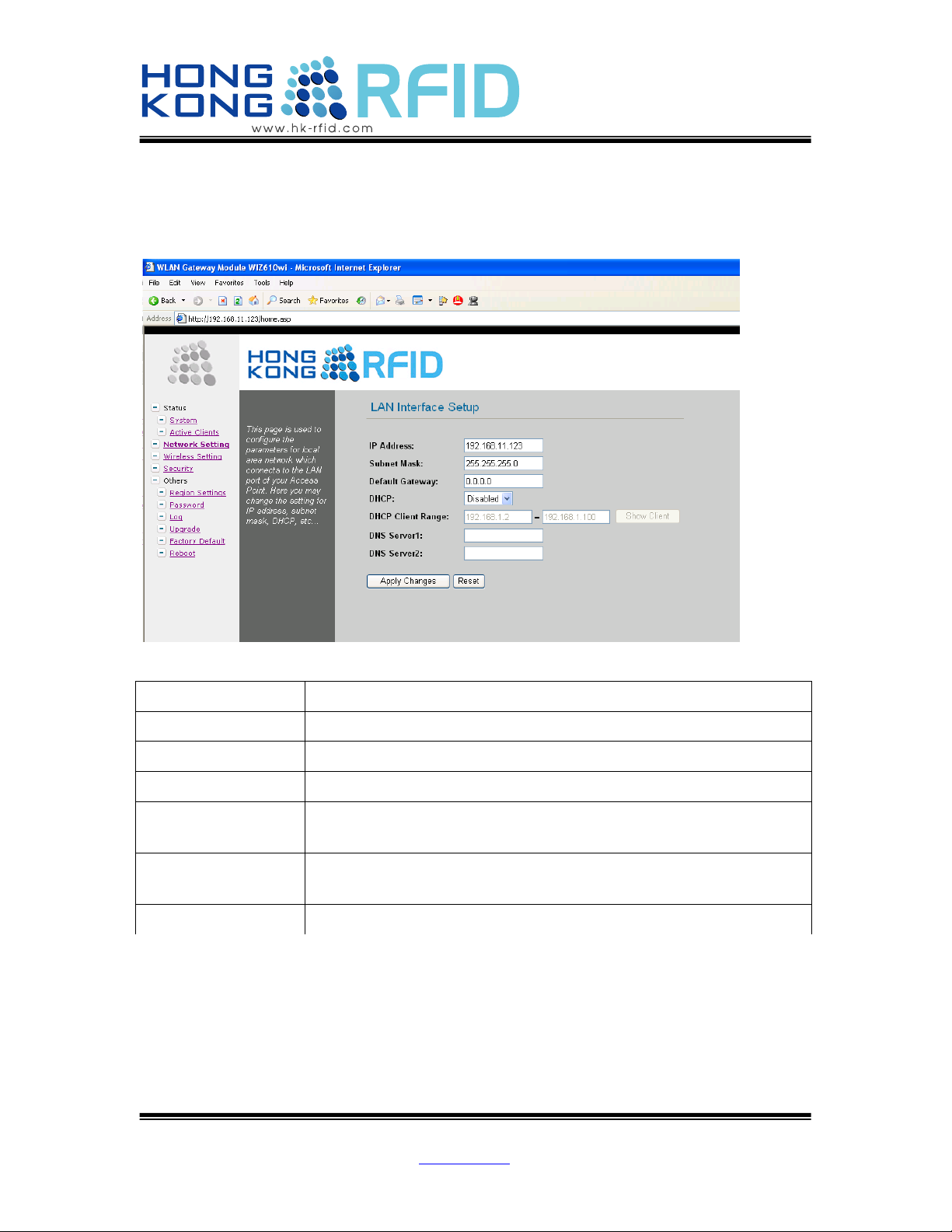

7) Select Network Setting on the left column. The LAN Interface Setup will display.
8) Select an idle IP address on your network and Enter in the IPAddress. Enter the
Subnet Mask and Default Gatway of your network. Disabled DHCP. Press Apply
Changes.
9) Successful message will show and click new IPAddress to continuous setting.
Copyright© Hong Kong RFID Ltd. 2008, All rights reserved. Reproduction of any part is strictly prohibited.
Hong Kong RFID Limited
Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong
NOTE:
1) skip from here on if new IP address is in same subnet of previous one
Go the Start => settings => control panel => network connections.
2) Selection connection which connect to the reader.
3) Press properties
4) Select Internet Protocol(TCP/IP) and press properties
5) change the IP address which in the same domain with reader.
6) Press OK to close all the dialog.
7) Open Internet Explorer and type in the new IP address in the address field and
press Enter
Copyright© Hong Kong RFID Ltd. 2008, All rights reserved. Reproduction of any part is strictly prohibited.
Hong Kong RFID Limited
Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong

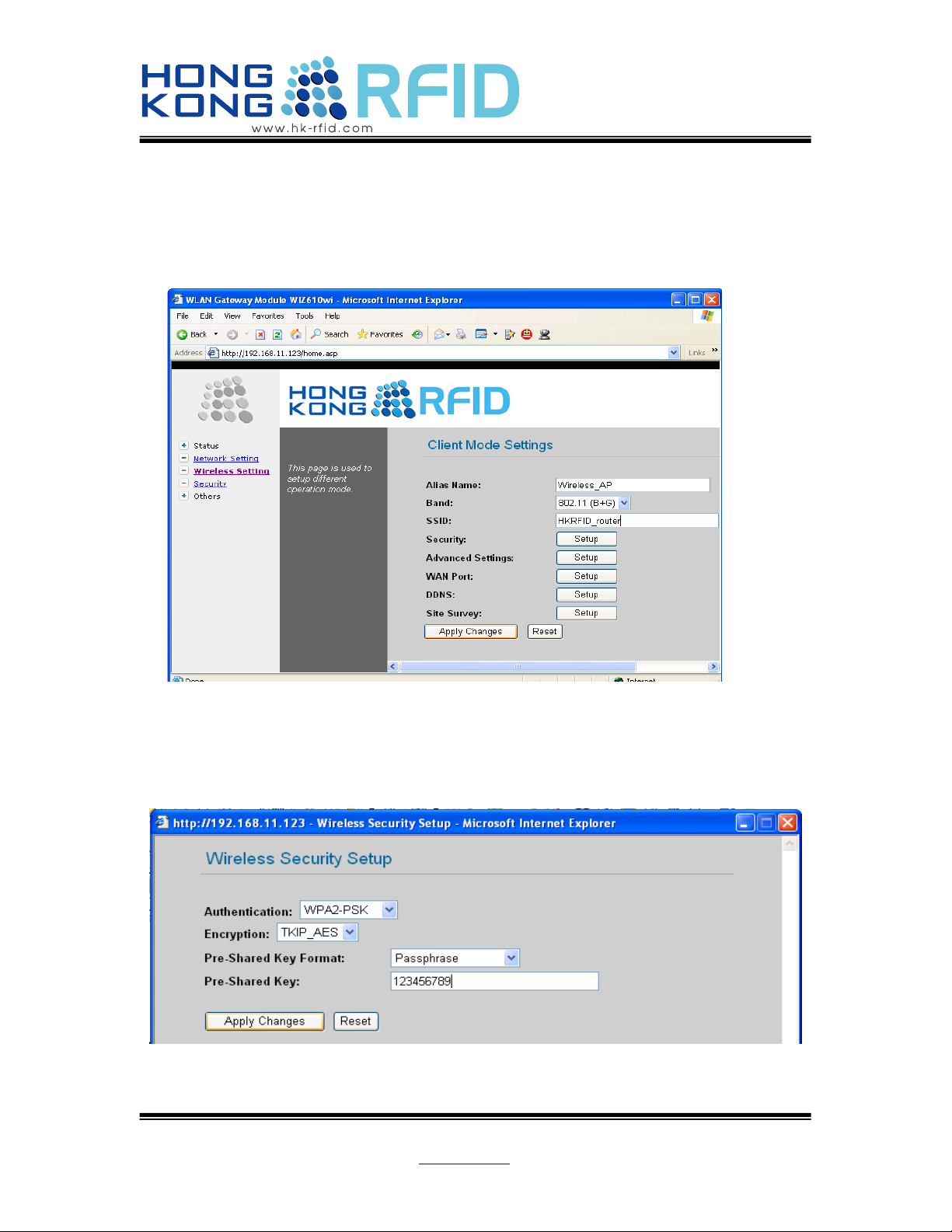

8) Select Wireless Setting on the left column. Operation Mode will show
9) Select Client and press Setup. It takes a moment applying the setting and Client
Mode Setting will show.
10)Enter the SSID name in of your wireless network and press Apply Changes.
11) Press Security Setup. A Wireless Security Setup dialog will show.
12) Select your network authentication and Select/Enter according information.
Press Apply Change.
Copyright© Hong Kong RFID Ltd. 2008, All rights reserved. Reproduction of any part is strictly prohibited.
Hong Kong RFID Limited
Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong
13) It takes a moment applying setting.
14) After loading the setting. Close the entire dialog.
15) All setting complete.
Copyright© Hong Kong RFID Ltd. 2008, All rights reserved. Reproduction of any part is strictly prohibited.
Hong Kong RFID Limited
Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong
1.5 Wireless Connection Configuration Guide
1.5.1 Briefly description
< check the system status and reader configuration
<check the all active client status
< setting network config. e.g. IP address, subnet Mask, etc.
< setting the operation mode and the wireless connection
< setting the wireless connection security
< select the country code
< charge password
< for user setup/check the log file of the reader
< upgrade the firmware
< to reset all setting to factory default setting
< reboot the reader
Copyright© Hong Kong RFID Ltd. 2008, All rights reserved. Reproduction of any part is strictly prohibited.
Hong Kong RFID Limited
Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong
1.5.2 Status-system
It shows all the system information: firmware version, LAN configuration, WLAN
configuration, Serial configuration.
1.5.3 Status-Active Client
In this page, the information of clients connecting to WIZ610wi is displayed. If you click
“Refresh” button, the client list and information are updated.
Copyright© Hong Kong RFID Ltd. 2008, All rights reserved. Reproduction of any part is strictly prohibited.
Hong Kong RFID Limited
Add: Unit 207A, 2/F, Building 9, No.5 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong
1.5.4 Network Setting
For user change the network setting of the reader.
Name
function
IPAddress
Set the IP address to the reader
Subnet Mask
Set your network subnet mask to the reader
Default Gateway
Set the your network gateway to the reader
DHCP:
When the reader set as a server, you can set the reader activate the
DHCP function.
DHCP Client Range
When the reader set as a server and DHCP function is on, user
should set a range of IP address to the client for connection.
Show Client
To show the list of connected Clients
Table of contents
