Honic HN-4KA User manual

Quick Start Guide
HN-4KA
UltraHD 4K 8MP Weatherproof
Outdoor POE IP Camera

Contents
NO. Item Quantity
1 Bullet IP Camera 1
2 Quick Start Guide 1
3 Screws Pack 1
4 Drill Template 1
5 Waterproof Components for
RJ45
1
Quick Reference
 Default Static IP: 192.168.1.168
 HTTP Port: 80
 RTSP Port: 554
Main Stream: rtsp://ip address:port/0
Sub Stream: rtsp://ip address:port/1
Tri Stream: rtsp://ip address:port/2
 HTTPS Port: 443
 ONVIF Port: 8999
 APP Port: 6000
 JEPG Address: http://ipaddress:http port/snap.jpg
rtsp://ipaddress:rtsp port/snap.jpg
 FFMPEG Address:
rtsp://username:password@ipaddress:rtsp port/0 (or 1,2)

 Default Passwords: Username: admin Password:
admin
 Device ID: Please check the label on the camera
(package), or (Configuration-Network-Advanced Setup-
p2p)
 DHCP disabled in default, to enable DHCP, please
check “Quick Configuration Tool” chapter bellow
 PoE Standards: IEEE 802.3af
 Captcha: Please check the label on the camera
(package), you need it when you add device to mobile
app.
 Software Supported: Blue Iris, iSpy, Synology,
Zoneminder etc. NAS supported
 NVR Supported: Onvif NVRs
 VMS Compatible List: Original VMS Lite (Windows,
Mac), Milestone、Exacq、Avigilon、MARCH、Axxon、Nuuo
 Browser Supported: IE 8-11 (Windows), Safari (Mac)
Google Chrome (lower than Ver44), Firefox (lower than
Ver53)
Higher version of Chrome and Firefox no longer support
NPAPI.

Dimensions and Appearance (mm)
No. Description
1 DC 12V Power
2 Network (PoE)
 It is recommended to connect the camera to the PoE
Router or an external PoE switch. If using a DC power
adapter with the camera, a REGULATED power supply is
REQUIRED.

Insert MicroSD Card
This camera has microSD card slot to record video data
if with microSD card inserted.
When inserting / replacing the SD card, make sure that
power is off and that recording has been deactivated
(Deactivated in default) in the browser (Configuration >
System > SD Card > Rec Setup > Deselect Enable Record;
Activate recording again in the same dialog).
 Class10 or higher MicroSD card required
 Reboot the camera each time you format MicroSD card.
 MicroSD card is NOT included; Support max 128GB.
 Make sure that power is off when inserting MicroSD
card.
Insert the MicroSD card

Insert the microSD card and gently press it until you hear
click sound. Make sure that the SD card is fully inserted.
To Install the Camera
General Guidelines
1. Try to place the camera in a position that a
potential security threat will find it difficult to avoid
detection. A strategy which is often effective is to
monitor entrances and exits - after all, a security
threat has to get in somewhere.
2. The internal components of the camera can be
damaged by prolonged exposure to direct
sunlight. Don’t let direct sunlight into the lens!
3. The camera gets great images when it’s in the
shade, looking at subjects that are well lit. Don’t

place the camera in bright light and have it facing
shade or darkness.
4. Bright light sources to the sides of, or behind the
subject will interfere with your images.
5. The camera’s night vision will give well-exposed
images if the area is dark. However, if there’s a
bright point source in the camera’s view (a
streetlight, car headlights or similar) then it might
not engage night vision mode.
6. The camera’s casing is resistant to water, different
weather conditions and tampering. It would take
an overwhelming event of this kind to damage the
housing of the camera (severe weather such as
hurricanes or someone intentionally damaging the
lens would be enough). However, the cable and
connector are vulnerable and require protection.
Installation Diagram
 Ensure the camera is working correctly prior to
permanent installation by temporarily connecting the
camera(s) and cable(s) to the NVR or computer.
Installation Diagram

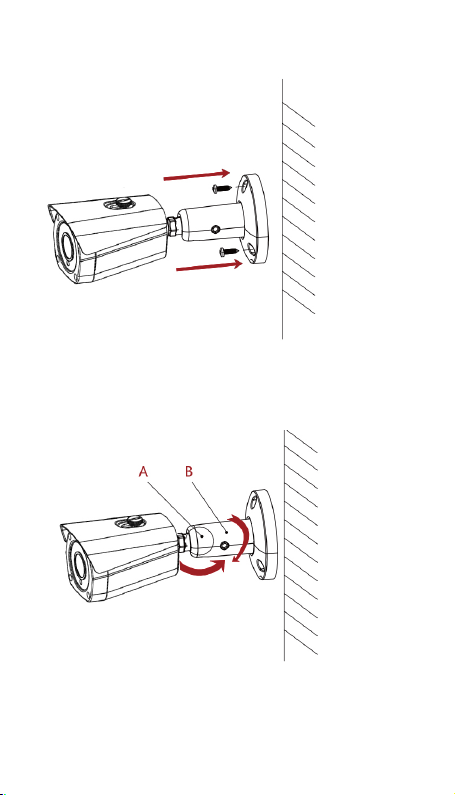

1. Fix the bracket to the wall with screws
2. Loose the regulation screw to adjust the camera
angle (A for vertical angle, B for axial angle).

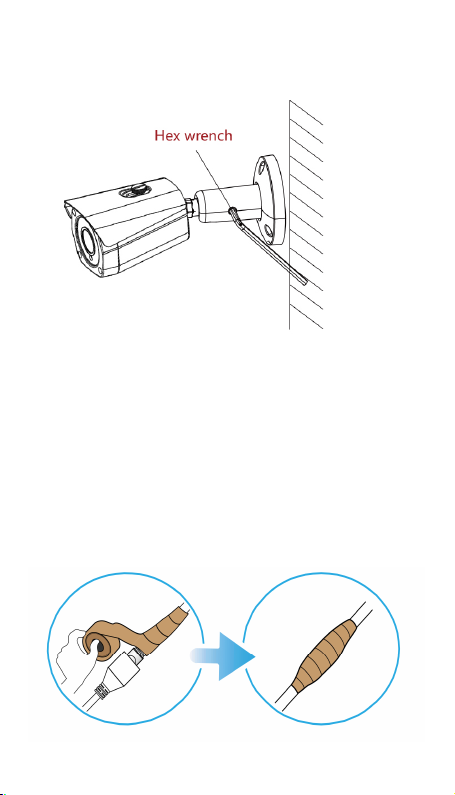

3. Tighten the screw with hex wrench to complete the
installation.
 If you install the camera outside of your home, we
highly recommend using waterproof tape to wrap all the
trail cables connection areas. Use as much as is necessary
for the layer of tape to protect the connections. This will
help prevent water or moisture from leaking into the
cables which can cause the cable connections to degrade
over time or stop working.

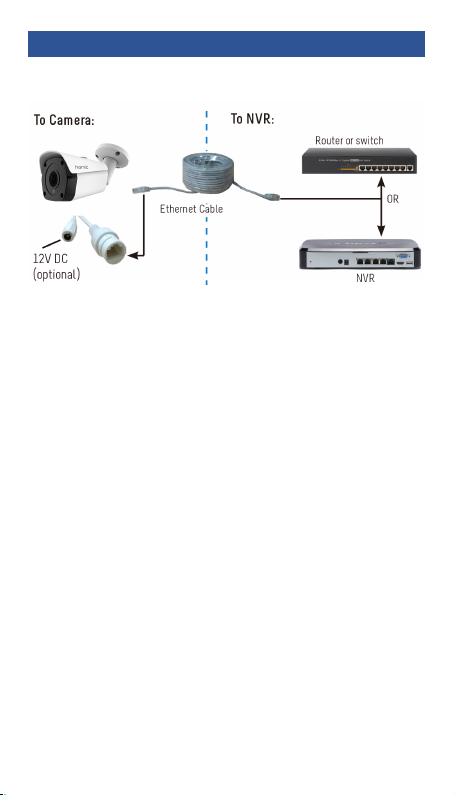

Connecting th
e Camera
1. Connect the Ethernet cable to the camera.
 A 12V DC power adapter (NOT included) is only
required if connecting the camera’s Ethernet cable to a
router or switch that does not support PoE.
2. Connect the other end of the Ethernet cable to the
NVR’s PoE ports. The camera may take up to 1 minute to
power up after being connected to the NVR.
OR
Connect the other end of the Ethernet cable to a PoE
router or switch on your network. See your NVR
instruction manual for details on connecting the camera
to your NVR.
 Support Onvif NVRs, Onvif port in default: 8999
