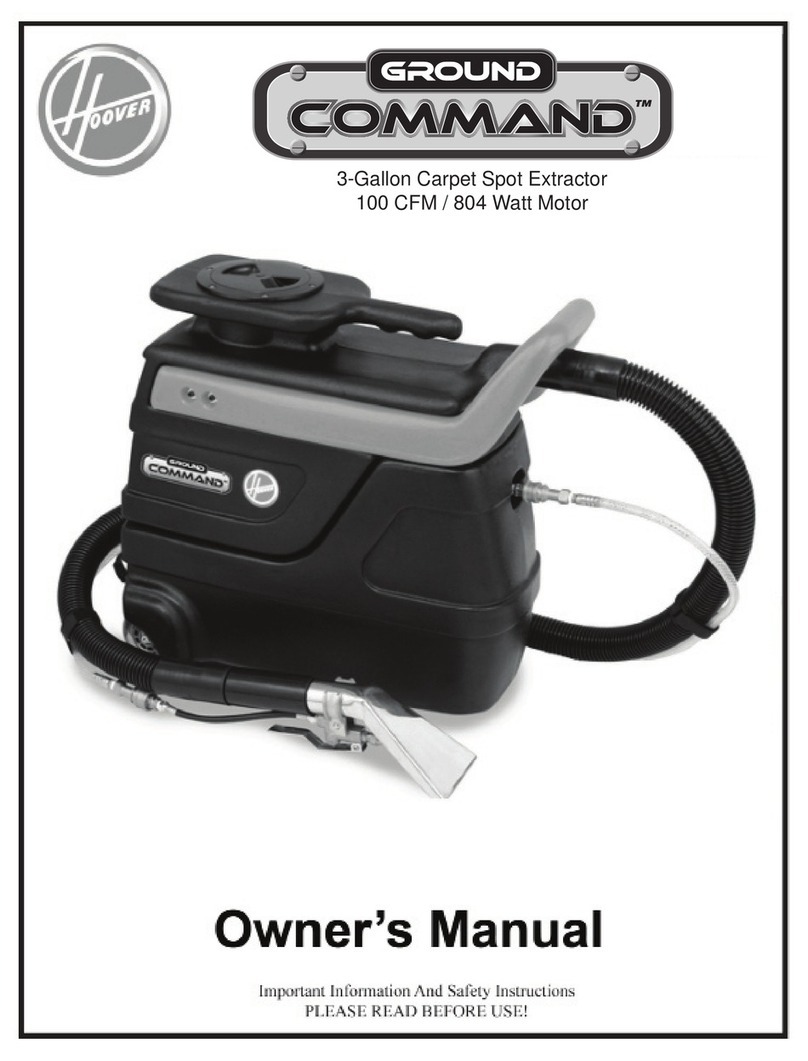

Hoover Ground Command User manual

3-Gallon Carpet Spot Extractor
100 CFM / 804 Watt Motor
™
PART# 961130015-9/10-REV1

3-Gallon Carpet Spot Extractor
100 CFM / 804 Watt Motor
™
Dear Customer,
Congratulations on your purchase of your Hoover Spot Extractor
carpet and upholstery machine. The world of carpet cleaning is becoming more
high-tech and competitive and we strive to provide you with the most innovative
products. Our Carpet Spot Extractor is yet another example of this, bringing a new
dimension to carpet and upholstery cleaning with its cutting-edge features, quality
and design.
Please review this manual, paying careful attention to the Safety Instructions section.
Keep in mind that any unnecessary damage, neglect or abuse of this machine will
void your warranty. You can be condent that simple maintenance will ensure that
your extractor provides quality performance for many years to come.
If warranty questions arise, please consult your manual or contact your distributor.
Should you have any questions regarding maintenance, replacing parts or ordering
parts, please call an authorized distributor.
Before you begin using your extractor, please thoroughly review the Owner’s Manual.
Again, congratulations on your purchase of your Ground Command Spot Extractor.

TABLE OF CONTENTS
Warranty Information...............................................................................2
Return Material Authorization Procedure (RMA)....................................3
Safety Instructions....................................................................................4
Preparing Your Unit for Use.....................................................................4
Problem Solving.......................................................................................5
Wiring Diagram........................................................................................6
Machine Schematic...................................................................................7
Machine Parts Breakdown........................................................................8
Hose and Hand Tool Schematic and Parts Breakdown.............................9
Page 1
3-Gallon Carpet Spot Extractor
100 CFM / 804 Watt Motor
™

Page 2
3-Gallon Carpet Spot Extractor
100 CFM / 804 Watt Motor
™
you n

Ground Command - CH83005
3-Gallon Carpet Spot Extractor
with In-Line Heater
100 CFM / 800 Watt Motor
Page 3
3-Gallon Carpet Spot Extractor
100 CFM / 804 Watt Motor
™

Ground Command - CH83005
3-Gallon Carpet Spot Extractor
with In-Line Heater
100 CFM / 800 Watt Motor
Page 4
3-Gallon Carpet Spot Extractor
100 CFM / 804 Watt Motor
™

Page 5
This machine

Page 6

Page 7
Ground Command - CH83005 Machine Schematic
3-Gallon Carpet Spot Extractor
100 CFM / 804 Watt Motor
™

Drawing# Item ID Item Description Qty Needed
1 . SP-3-ST-BLK Black 3 Gal.Sol. Tank 1.00
2 . SP-3-RT-BLK Black 3 Gal. Rec. Tank 1.00
3. 10-0383 6-32 x 1/4 Phil Pan Screw 6.00
4. 10-0400-D Latch for Sniper 1.00
5. 10-0412 C-Channel for Spotter Handle 2.00
6. 10-0414 Rivet for Spotter Handle 4.00
7. 10-0384 .125 Thick Nylon Washer 4.00
8. 10-0385 .06 Thick Nylon Washer 4.00
9. 10-0074 Flat Washer #8 SAE 11.00
10 . 10-0216 Allen Head Screw for Backpack 4.00
11 . 10-0379 8-32 x 3/8 Screw 4.00
12 . 10-0405 1 1/2" PVC SCH40 Slip Thread 1.00
13 . 10-0302-A Hatch Cover Gasket for Spotter 1.00
14 . 10-0416-A 1-1/2" Black ABS Stand Pipe 1.00
15 . 10-0304 Spotter Cap & Float Assembly 1.00
16 . 10-0419 Screw for Spotter Hatch 6.00
17 . SP-3-HS-BLK Black 3 Gal. HeatSkirt 1.00
18 . 10-0831 S/R Bracket for Sniper 1.00
19 . 10-0832 S/R Strap Bolts 2.00
20 . 10-0300 55 psi Pump for Spotter 1.00
21 . 10-0403-M 1/8" Brass Male Nipple 1.00
22 . 10-0901 175psi Relief Valve for Heater 1.00
23 . 10-0510 1/8" Brass Plug 1.00
24 . 80-0017 Bulk Head fitting for Sniper 2.00
25 . 80-0024-B !MPT x 3/8 Barb 4.00
26 . 10-0826 3/4" Hose Clamp for Sniper 6.00
27 . 10-0843 3/8" Black Hose for Sniper 1.00
28 . 10-0434 Threaded Hose for Spotter 1.00
29 . 10-0407 1/8" Strait Nylon Barb NPT 2.00
30 . 10-0845-2 1/8" Strainer for Spotter 1.00
31 . 10-0301 L Bracket for Spotter 1.00
32 . 10-0828 90 Brass Fitting for Sniper 1.00
33 . 10-0022 Shoulder & Waist Belt Screw 3.00
34 . 10-0017 Deflector Screw 1.00
35 . T-C-011Female Terminal Conector
36 . T-WPUR Purple Wire
37 . 80-0011-2 90 Deg. Street Elbow 1.00
38 . 80-0010 1/4" Brass Tee 1.00
39 . 10-0843 3/8" Black Hose for Sniper 1.00
40 . 10-0852 1/4" 90 Degree Brass Elbow 1.00
41 . 80-0101-M 1/4" Male Check Valve 1.00
42 . 80-0014 3/8" B x 1/4" F 90 Deg. 1.00
43 . 10-0479 1/4" Male Close Nipple 1.00
44 . 10-0870 1/4" Male QD 1.00
45 . 10-1500-B Heater Element 600 Watt 1.00
46 . 10-0814 Senor for Sniper Heater 1.00
47 . 10-0814-B Manual Sensor for Heater 1.00
48 . 10-0907 Strain Relief for Tube Heater 1.00
49 . 10-0906 Box for Tubular Heater 1.00
50 . 10-0900 Heater Body Tubular 1.00
51 . 10-0801-G PipeWrap Insulation for Heater 1.00
52 . SP-3-H-ORA-1 3 Gallon Spotter Orange Handle 1.00
53 . 10-0387 5/16 x 1in Spotter Wheel Bolt 2.00
54 . 10-0303 Roller Blade Wheel for Spotter 2.00
55 . 10-0822 Exhaust Grate for Sniper 2.00
56 . 10-0419-A Screw for Sniper Hatch 2.00
57 . 10-0014 Motor Screw 2.00
58 . 10-0380 10-32 x 3/8" Screw 2.00
59 . 10-1024 Motor Mount Plate for Spotter 1.00
60 . 10-0354 3 Gallon Spotter Motor 1.00
61 . 10-0386 Stamped Motor Screen 1.00
63 . 10-1030 Spotter Motor Gasket 1.00
64 . 10-0027-A Strain Relief Nut 1.00
65 . T-WBLA Black Wire
65 . 10-0027 Pigtail Strain Relief 1.00
66 . 10-0448 20 ft. Spotter/Air Mover Cord 1.00
67 . 10-0025 On/Off Switch 3.00
68 . 10-1026 Switch Plate for 3 Gal. w/Heat 1.00
69 . 10-0400-C Keeper Latch for Sniper 1.00
70 . 80-0022-A Screw for 500psi Panel 2.00
71 . 10-0204 Motor Mount Back-Up Washer 2.00
Ground Command - CH83005 Parts Breakdown
Page 8
Parts Breakdown

Page 9
Hoses and Hand Tool
Drawing # Item ID Item Description Qty Needed
1. 10-0501 4" Stainless Steel Uph. Tool 1.00
2. 10-0463 Black Slip Hose Cuff - Spotter 2.00
3. 50-1008 15Ft. Vacuum Hose 1-1/4" 1.00
4. 10-0868 1/4" Female QD for Sniper 1.00
5. 80-8007 1/4" x 15ft. Extractor Hose 1.00
6. 10-0388 Velcro Strap 1.00
7. 10-0870 1/4" Male QD 1.00
8. 10-0507 8" Black Hose for SS Hand Tool 1.00
9. 10-0506 Valve clamp for SS Hand Tool 1.00
10 . 10-0504 Valve for Stainless Hand Tool 1.00
11 . 10-0502 Jet for Stainless Hand Tool 1.00
3-Gallon Carpet Spot Extractor
100 CFM / 804 Watt Motor
™

Hoover Inc.
7005 Cochran Road
Glenwillow, OH 44139
[phone]
For Service, Ask for Tech. Service Dept., ext 2554
www.hoover.com
Model #_________________________________________________________________
Serial #_________________________________________________________________
Distributor Name:________________________________________________________
Distributor Phone #:______________________________________________________
Date of Purchase:________________________________________________________
NOTES:
Ground Command - CH83005
3-Gallon Carpet Spot Extractor
with In-Line Heater
100 CFM / 800 Watt Motor
