Hoover Hv-rtm480 User manual

Model Number: HV-RTM480

480 L Top Mount Refrigerator

INSTRUCTION MANUAL

E209

AFTER SALES SUPPORT

(AU) 1300 886 649 (NZ) 0800 836 761

After Sales Support

(AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support

Contents

03 General Safety Instructions

06 Product Overview

07 Getting Started

09 Instructions

14 FAQs and Troubleshooting Guide

16 Other Useful Information

After Sales Support

(AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support

General Safety Instructions

Pay particular attention to messages that follow this safety alert symbol

or the words DANGER, WARNING or CAUTION. These words are used

to alert you to a potential hazard that can seriously injure you and others.

The instructions will tell you how to reduce the chance of injury and let

you know what can happen if the instructions are not followed.

Refrigerant matters

WARNING: Do not damage the refrigerant circuit! Never use an appliance with a

damaged refrigerant circuit! If the refrigerant circuit becomes damaged during transport

or installation, avoid proximity to open fires and all types of heat and ignition sources.

Thoroughly ventilate the room in which the appliance is located.

The room for installing the appliance must be at least 1 m³ per 8 g of refrigerant.

The amount and type of refrigerant in the appliance can be found in the technical

specifications on page 18 and on the appliance rating plate. It is hazardous for anyone

other than an authorised service person to service this appliance. In Queensland,

the authorised service person MUST hold a Gas Work Authorisation for hydrocarbon

refrigerants to carry out servicing or repairs which involve the removal of covers.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Read this manual thoroughly before first use, even if you are familiar with this type of

product. The safety precautions enclosed herein reduce the risk of fire, electric shock and

injury when correctly adhered to. Keep the manual in a safe place for future reference,

along with the completed warranty card, purchase receipt and carton. If applicable, pass

these instructions on to the next owner of the appliance.

This symbol alerts you to take care as the appliance contains flammable

materials: isobutane as refrigerant and cyclopentane as insulation

blowing gas. While isobutane (R600a) is a gas with a high level of

environmental compatibility, it is nevertheless flammable. Do not expose

the appliance to high heat, sparks and open flames.

Responsible disposal

At the end of its working life, do not throw this appliance out with your household waste.

Electrical and electronic products contain substances that can have a detrimental

effect on the environment and human health if disposed of inappropriately. Observe any

local regulations regarding the disposal of electrical consumer goods and dispose of it

appropriately for recycling and recovery of the refrigerant and blowing agent.

WARNING! This refrigeration appliance contains flammable refrigerants and insulation

blowing gases, which must be removed before disposal. Contact your municipal

authorities for any codes or regulations concerning the disposal of such materials.

DANGER! Risk of child entrapment: When discarding this or another refrigerator, pull

the plug out of the socket, cut the connection cable (as close to the appliance as you can)

and remove the doors to prevent playing children to suffer electric shock or to get trapped

inside the appliance. If the discarded appliance has a spring lock (latch) on the door or lid,

make the spring lock unusable to prevent it from becoming a death trap for children.

After Sales Support

(AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support

To reduce the risk of fire, electric shock or injury, always follow basic safety precautions

and accident prevention measures when using this appliance, including the following:

Electrical safety

• Voltage: Plug the appliance in a 220–240 V, 50 Hz, properly earthed power outlet,

which must be in good working order. Make sure your outlet voltage and circuit

frequency correspond to the voltage stated on the appliance rating label.

• Power connection: Do not use an adaptor; do not use an extension cord. Plug

the power plug directly into a separate power point that cannot easily be turned off

accidentally, and that is easily accessible so you can switch it off when required.

• Power cord: Do not kink or damage the power supply cord. Do not attempt

to lengthen it. Do not leave the cord exposed or dangling. Secure it behind the

appliance so no one steps on or places anything on the cord or against it. A

squashed or damaged power plug may overheat and cause a fire.

WARNING: When positioning the appliance, ensure the power supply cord is not

trapped or damaged. Do not locate multiple portable socket outlets or portable

power supplies at the rear of the appliance.

• Damaged cord: Do not use a cord that shows cracks or abrasion damage along

its length or at either end. Any damage to the cord may cause a short circuit, fire

and/or electric shock. If the power cord is damaged, it must be replaced by the

manufacturer or its service agent. Contact the after sales support line for advice.

• WARNING! The light bulb supplied with this appliance is a special use bulb, which

is only suitable for use with this appliance, it is not usable for domestic lighting. Do

not use the appliance without the lamp properly installed. Do not touch the light bulb

if it has been on for a long period of time, as it could be very hot. The interior lamp

can only be replaced by authorised service personnel. Please contact our after sales

support centre for a service if the lamp needs replacing.

• Disconnection: Never unplug the unit by pulling the cord. Always grip the plug firmly

and pull straight out from the power point.

• Electrical work: All electrical work associated with the installation must be carried

out by a licensed electrician.

Usage conditions and restrictions

• Indoor domestic use only: This appliance is intended for indoor household use

only. It is not suitable for industrial or commercial use. Do not use this appliance

for anything other than its intended purpose, and only use it as described in this

manual. Do not attempt to alter or modify this appliance in any way.

• This appliance is intended to be used in household and similar applications, such

as:

– staff kitchen areas in shops, offices and other working environments;

– farm houses and by clients in hotels, motels and other residential type

environments;

– bed and breakfast type environments;

– catering and similar non-retail applications.

General Safety Instructions (Cont.)

After Sales Support

(AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support

General Safety Instructions (Cont.)

• Usage restrictions: This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision or instruction

concerning the use of the appliance by a person responsible for their safety.

• Children: Supervise children to ensure they do not play with the appliance. Close

supervision is necessary when any appliance is used by or near children. Never

allow children to operate, play with or crawl inside the appliance.

• WARNING! Do not use any electrical appliances (such as ice cream makers)

inside refrigeration appliances, unless they are approved for this purpose by the

manufacturer.

Cleaning and maintenance

• Disconnect: Switch off and unplug the appliance from the mains socket before

cleaning, maintenance or servicing. Failure to do so can result in electric shock,

injury or death. Do not connect or disconnect the plug when your hands are wet.

• Flames: Do not let open flames or ignition sources enter the appliance.

• Flammable/explosive substances: Never clean this appliance with flammable

fluids. Do not store or use volatile, flammable or explosive substances such as

aerosol cans with a flammable propellants in or close to this or any other appliance.

The fumes can create a fire hazard or explosion.

• Solvents: Do not use solvent based cleaning agents or abrasives on the interior as

these may damage or discolour the surfaces of the appliances.

• WARNING! Do not use mechanical devices or other means to accelerate the de-

frosting process, other than those recommended by the manufacturer. Never use a

sharp or metal instrument to remove frost or clean the fridge. Use a plastic scraper, if

necessary.

• Service: Do not attempt to repair, modify or replace any part of the appliance

unless specifically recommended in this manual. Refer all other servicing to a

qualified service technician, or contact the after sales support centre for advice.

Installation (see pages 7-8 for comprehensive installation instructions)

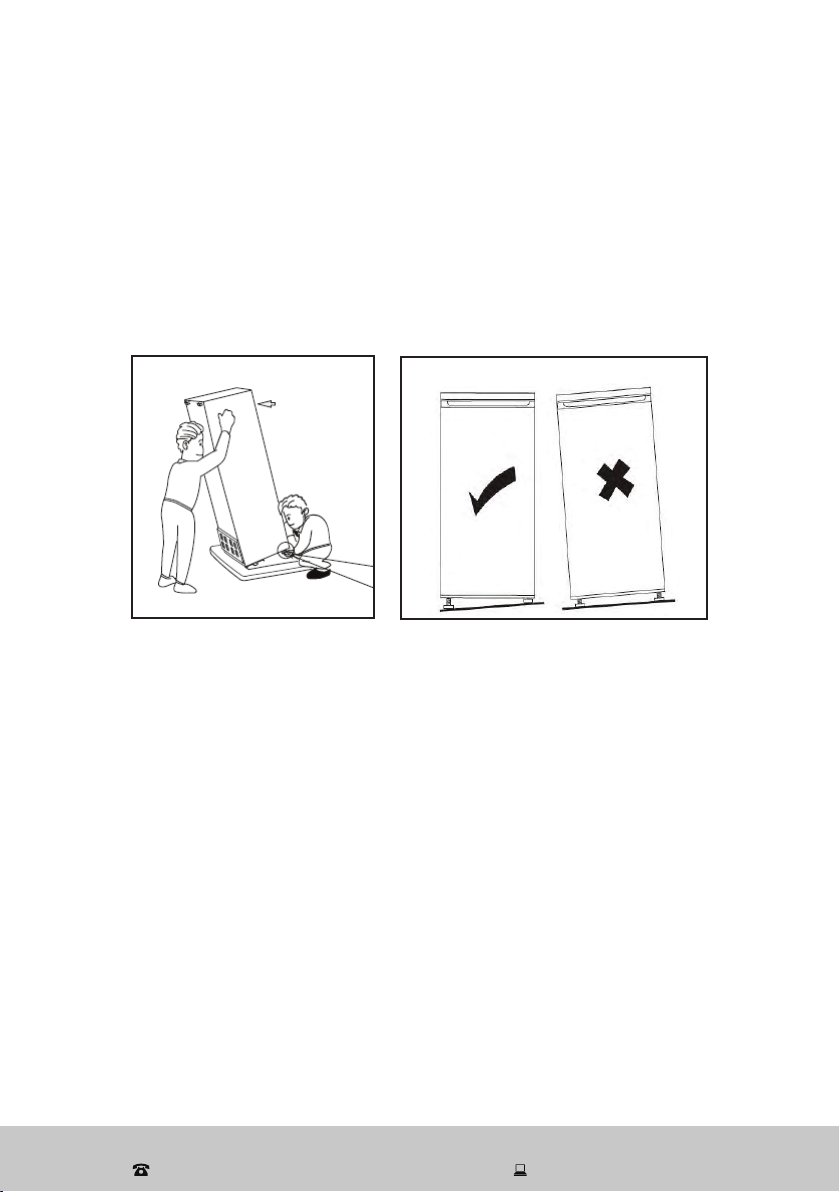

• Heavy: This appliance is heavy, take care when moving it. To avoid back or other

injury, consider a two person lift or mechanical aid when installing it. Failure to do so

can result in back or other injury.

• Freestanding design: This appliance is designed to be freestanding only and

should not be recessed or built in.

• Keep it upright: Do not tilt the fridge more than 45º from upright when moving it.

• Handle with care: Do not apply force to any part such as the condenser or door.

• WARNING: Ventilation: To ensure proper ventilation, keep any ventilation openings,

in the appliance enclosure or in the built-in structure, clear of obstructions. Ensure

adequate air circulation around the appliance to prevent overheating.

After Sales Support

(AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support

• Level: Install the appliance level in order to ensure proper operation (see page 8).

• Location: Install the appliance in an area that meets the following requirements:

• Ambient temperature: The ambient temperatures must correspond to the climate

class (T) indicated on the rating plate of the appliance (16 °C–43 °C).

• Floor surface: The floor must be sturdy, level (or nearly level) and strong enough to

support the unit when it is fully loaded. If you must position the appliance on carpet,

use a plastic carpet protector underneath the appliance.

• Areas to avoid: Avoid areas where the appliance would be exposed to direct sunlight,

sources of heat (stove, heater, radiator, etc.), extreme cold ambient temperatures or

excessive moisture and high humidity (such as outdoors or exposed to wind, rain

water spray or drips). Installing it in the coolest area of the room will save energy

consumption and running costs.

General Safety Instructions (Cont.)

After Sales Support

(AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support

Product Overview

Top mount refrigerator

1 Freezer Shelf

2 Decorative block

3 Fridge Shelves (x2)

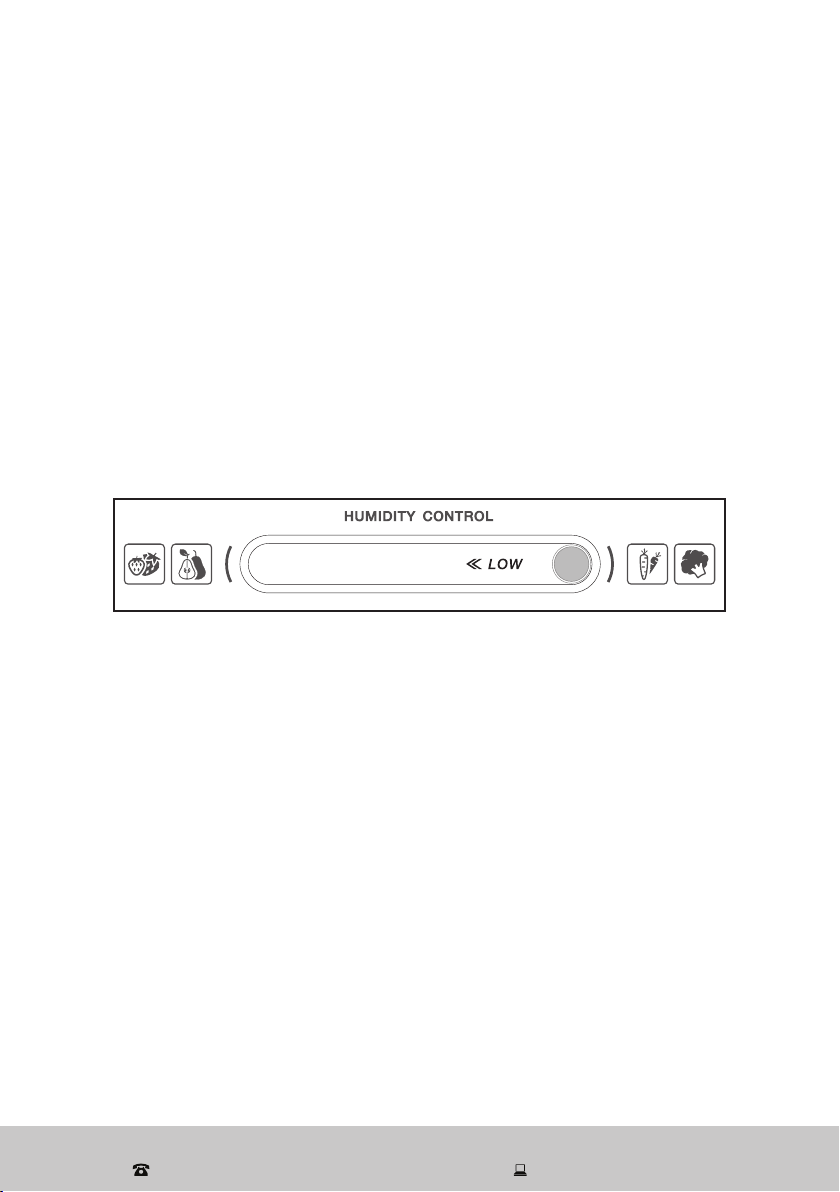

4 Crisper drawer (with cover)

5 Levelling feet

6 Door balconies (2x freezer, 3x fridge)

Other inclusions (not shown)

Instruction manual

Quick start guide

Warranty certificate

NOTE: Due to continued product improvement, images and illustrations in this

manual may vary slightly from the product purchased. All images in this manual are for

reference purposes only. Parts are not necessarily pictured to scale.

Scope of delivery

After Sales Support

(AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support

Getting Started

Unpacking

• Packaging materials: This product has been packaged to protect it against

transportation damage. Remove all packaging materials from around and inside the

appliance and keep the original packaging carton and materials in a safe place. It

will help prevent any damage if the product needs to be transported in the future,

and you can use it to store the appliance when it is not in use. In the event that the

carton is to be disposed of, please recycle all packaging materials where possible.

Plastic wrapping can be a suffocation hazard for babies and young children, so

ensure all packaging materials are out of their reach and disposed of safely.

• Parts: Check to ensure you have all the parts listed in the Product Overview section.

• Damage: When unpacking, check the appliance carefully for damage. If it is

damaged, do not install the appliance. Contact our after sales support centre for

advice on examination or return of the damaged appliance.

• Power cord: Unwind the power cord to its full length and inspect it for damage.

Do not use the appliance if the appliance or its cord has been damaged or is not

working properly. In case of damage, contact our after sales support centre for

advice on examination, repair or return of the damaged product.

• Read the manual: Before installing your new fridge, read all safety instructions,

especially the sections on installation and electrical safety on pages 4-5. Installation

instructions follow below and on the next page.

Installation

Space requirements

• Door opening: Place the unit so there is enough space for the doors to open easily.

• Clearances: Ensure that air can circulate freely around the back of the cabinet,

which is necessary to cool the compressor and condenser. Allow at least 100 mm

clear space at the back of the unit (Fig. 1) and 50 mm at the sides (Fig. 2).

Fig. 2

50 mm (min)

1250 mm

1300 mm

135°

Fig. 1

100 mm

After Sales Support

(AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support

Getting Started (Cont.)

Levelling the appliance

The appliance must be installed level so that it can work properly and the magnetic

doors seals are properly aligned. To level the unit, tilt it slightly backward, then adjust

one or both levelling feet at the base of the cabinet (Fig. 3) until the unit is level (Fig. 4).

Fig. 4

• Overhanging wall units: To ensure best performance, if the appliance is positioned

below an overhanging wall unit, the minimum distance between the top of the

cabinet and the wall unit must be at least 100 mm. Ideally, however, the appliance

should not be positioned below overhanging wall units.

Setting up

• Cleaning the interior: Make sure the fridge is disconnected from the power supply

before cleaning the interior. Remove any tape that secured drawers, trays and

shelves during transport. Clean the interior surfaces and all internal accessories

with lukewarm water, a soft cloth and a neutral/mild soap/detergent. This will

remove any dust from transit and storage and help remove the typical smell of a

brand new product. Then dry thoroughly. CAUTION: Do not use harsh or abrasive

detergents or powders as these will damage the finish.

• Before plugging in your new fridge, let it stand upright for at least 4 hours.

This will allow the refrigerant gases to settle into the compressor and reduce the

possibility of a malfunction in the cooling system.

• Connecting the appliance: Plug the unit into a dedicated, properly installed and

earthed wall outlet. WARNING! It must be possible to disconnect the appliance

from the mains power supply; the plug must therefore be easily accessible after

installation. Secure the power supply cord behind the unit. Do not leave it exposed

or dangling to prevent injury and accidental disconnection from the power supply.

• Earthing: The appliance must be earthed. The plug of the power supply cord is

equipped with a contact for this purpose. Do not under any circumstances cut or

remove the third (earth) prong from the power cord. If the plug does not fit your

outlet, please consult a licensed electrician for advice to have the outlet changed.

Fig. 3

Doors

After Sales Support

(AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support

Instructions

Temperature regulation

This refrigerator has two separate temperature controls, one in the freezer and one

in the fridge compartment, so you can adjust the temperature in each compartment

separately according to the food stored.

First Use

The first time you turn the unit on, set the temperature controls to SUMMER

(freezer) and COLDEST (fridge) for 2–3 hours before loading the compartments.

When the temperature has been reached and the thermostat starts cycling off

and on, adjust the temperature to the settings that best suit your needs and

place food in the compartments.

• Refrigerator: To adjust the fridge temperature,

turn the refrigerator temperature control dial

clockwise towards COLDEST to lower the

temperature and anticlockwise towards COLD

to increase the temperature inside the fridge

compartment (Fig. 5).

A middle setting on COLDER should be

appropriate for normal usage.

• Freezer: To adjust the freezer temperature,

turn the freezer temperature control dial

anticlockwise towards SUMMER to lower the

temperature (recommended for hot months)

and clockwise towards WINTER to increase the

temperature (recommended for cold months)

(Fig. 6).

A middle setting on NORMAL should be

appropriate for normal usage.

• When making ice cubes, or after you have

added larger quantities of unfrozen food, set

the control temporarily to SUMMER for fast

freezing.

Fig. 5

Fig. 6

NOTE:

• The appliance may not operate at the set

temperature on particularly hot days, or if it is

located in a particularly hot area, or if the door

is opened too frequently.

• On hot summer days, when ambient temperatures are high and the thermostat is

set to a colder setting, the compressor may run continuously to maintain the low

temperatures in the compartments.

After Sales Support

(AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support

Fresh food storage

The fridge compartment is suitable for short-term storage of all your fresh food.

• The temperature inside the fridge compartment varies depending on the amount

of food stored and the frequency of door opening. It is low enough to limit some

bacterial growth, but it is not suitable for long-term storage of perishable foods.

• The walls of the fridge are equipped with a series of runners so that you can position

the glass shelves to suit your individual storage requirements.

• The door balconies in the fridge compartment are suitable for storage of food and

drink bottles, cans and jars. They may be placed at different heights: gradually pull a

balcony up until it is free, then reposition it as required.

• The easy-to-pull-out crisper drawer is covered with a glass shelf to help you keep

your fruit and vegetables fresh. Slide the humidity regulator (Fig. 7) to the left for low

humidity (for example, when storing fruit), or to the right to create a high-humidity

environment which helps keep vegetables crisp.

Instructions (Cont.)

Fig. 7

After Sales Support

(AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support

Instructions (Cont.)

Fresh food storage tips

• In order to maintain good cooling efficiency and save energy, do not open the doors

for too long or too often.

• Do not overload the fridge.

• Keep enough space around items for cold airflow.

• Do not block ventilation openings.

• Do not place items directly against the back wall.

• Let hot food cool down to room temperature before storing them in the fridge.

Otherwise the cooling capacity will be affected and power consumption increased.

Hot items may also affect the plastic parts inside the appliance.

• If necessary, wipe containers clean and dry before storage in the refrigerator.

• Thaw frozen foods in the fridge compartment to ensure safety and save energy.

• Use sealed containers or storage bags to prevent food from drying out, losing its

taste or taking on aromas from other foods.

• Cover cooked foods and store them on any shelf in the fridge compartment.

• Store butter and cheese in airtight containers, or wrap them thoroughly.

• Make sure milk bottles are properly closed before storage on a door balcony.

• Do not keep bananas, potatoes, onions and garlic in the refrigerator.

After Sales Support

(AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support

Instructions (Cont.)

The freezer compartment

The freezer compartment, located at the top of the appliance, is equipped with a glass

shelf and door balcony for convenient access and organised storage. It is suitable for

freezing domestic quantities of fresh food and long-term storage (up to three months)

of frozen food.

Freezing fresh food

• Do not store food uncovered in the freezer. Always use good quality, freezer-proof

packaging to maintain food quality. Remove air from packages of solid food and seal

bags tightly before freezing.

• Ensure that food placed in the freezer is dated and labelled. This will help you keep

track of storage times.

• Keeping portions small will ensure they are frozen (and subsequently defrosted) rapidly.

• Make sure that fresh, unfrozen food packages do not touch food that is already

frozen, thus avoiding a temperature rise in the frozen food.

• When freezing food, do not push food together too much, leave some space for air

to circulate around each item. Do not place packages directly against the back wall.

• When adding large amounts of fresh food to the freezer, keep in mind that it will take

approximately 24 hours for fresh food to freeze to solid frozen state. For best results,

do not add other fresh food to the freezer drawer during this time.

• Do not place hot foods or liquids which may evaporate in the freezer compartment.

Storing frozen food

• When buying frozen food, only buy quantities that you can store straight away; use

an insulated container/bag for your shopping and when you get home, place the

food in the freezer immediately.

• When storing pre-packed, commercially frozen food, follow the food manufacturer’s

instructions for storing the food in a home freezer. Do not exceed any storage times

listed on the packaging.

• Once you have opened a packet of frozen food, rewrap it airtight to prevent surface

evaporation which causes drying or freezer burn.

• Do not store bottles in the freezer as they may shatter. Do not store carbonated

liquids such as bottles of fizzy drink in the freezer as the container could explode

under pressure and damage the freezer.

• Do not refreeze food once it has been defrosted. If it has thawed accidentally, use it

up immediately or throw it away. Alternatively, if the food is uncooked and has not

been completely defrosted, it may be cooked and then refrozen.

• CAUTION! Do not remove items from the freezer if your hands are damp or wet as

this could cause skin abrasions.

After Sales Support

(AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support

Instructions (Cont.)

Energy saving tips

• Locate the appliance in the coolest area of the room, away from heat-producing

appliances and out of direct sunlight.

• Let hot foods cool to room temperature before placing them in the freezer.

Overloading the compartments forces the compressor to run longer.

• Wrap foods properly, and wipe containers dry before placing them in the freezer

compartment. This cuts down on frost build-up inside the unit.

• Do not line the storage drawers or shelves with aluminium foil, wax paper or paper

towelling. Liners interfere with cold air circulation, making the appliance less efficient.

• Do not pack food packages close together as this prevents air circulating. Position

packages so that air can circulate freely around them.

• Organise and label food to reduce door openings and extended searches. Remove

as many items as needed at one time and close the door as soon as possible.

• Do not open the door of the fridge or freezer compartment unnecessarily or leave it

open for longer than required, especially during a power failure.

• Do not run the appliance permanently on the lowest temperature setting.

Power failure

• Most power failures are corrected within a few hours and should not affect the

temperature inside your fridge or freezer compartments, if you minimise the number

of times the doors are opened. However, if the power is going to be off for a longer

period of time, you need to take proper steps to protect your food.

• Do not refreeze frozen food without checking its condition first. If in doubt, discard

the food. Do not refreeze food that has thawed completely.

Going away?

• Short vacation: Leave the appliance operating during vacations of less than a month.

• Long vacation: If you are not going to use the appliance for longer periods, remove

all food and unplug the power cord. Clean and dry the interior thoroughly. To

prevent odour and mould growth, leave the door open slightly, blocking it open, if

necessary. (Restrict children’s access to the room with the open appliance to avoid

creating a child entrapment risk.)

Moving the appliance

• Remove all food from inside the fridge and freezer compartments, securely tape

down the drawers and shelves and tape the doors shut. Turn the levelling feet up to

the base to avoid damage.

• Protect the outside of the unit with a blanket or similar soft material and make sure

the appliance stays secure in the upright position during transportation.

After Sales Support

(AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support

FAQs and Troubleshooting Guide

Problem Possible cause

The appliance does not

operate.

• It is not plugged in. Ensure it is properly plugged

in and there is power at the socket (plug another

appliance into the outlet to check).

• The circuit breaker tripped or has blown a fuse.

• The fridge temperature control is set too warm.

• A general power outage has cut power to your home

(check the household lights).

The appliance turns on and

off frequently.

• The room temperature is hotter than normal.

• A large amount of food has been added to one of the

compartments.

• The fridge or freezer door is opened too often, or not

closed completely.

• The door gasket does not seal properly. Check and

ensure the doors are properly aligned.

• The appliance does not have the correct clearances

around it for air circulation.

There are vibrations. • The appliance is not level.

The appliance seems to

make too much noise.

• A rattling noise may come from the flow of the

refrigerant, which is normal.

• As each cycle ends, you may hear gurgling sounds

caused by the flow of refrigerant.

• Contraction and expansion of the inside walls may

cause popping and crackling noises.

• The appliance is not level. Readjust the feet.

• The appliance is touching the wall or other object.

Move it slightly.

The door(s) will not close

properly.

• The appliance is not level.

• The door gasket is dirty or bent.

• The shelves, drawers or balconies are out of position.

The appliance door will not

open.

• If the door has just been opened, leave it for a few

seconds to allow the air pressure to equalise before

trying again.

If you experience a problem with the appliance, check in the following table for

solutions to help you solve the problem. If none of the solutions offered help you solve

the problem, please contact our after sales support centre for advice.

After Sales Support

(AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support

FAQs and Troubleshooting Guide (Cont.)

Problem Possible cause

The appliance freezes or

cools too much.

• The temperature is set too cold. Turn it to a warmer

setting temporarily.

Food in the freezer

compartment is not

properly frozen.

• The freezer temperature is set too warm; set it to a

colder setting.

• The freezer door was opened for too long or too

frequently.

• If a large amount of food has been added to the

freezer compartment, turn the temperature control to

a colder setting temporarily.

• The appliance is located near a heat source.

Moisture forms on the

inside or outside walls of

the appliance.

• Hot and humid weather increases the internal rate of

frost build-up. This is normal.

• Open the door less often and make sure it is always

properly closed.

The external appliance

surface is warm.

• The exterior walls can be warmer than room

temperature. This is normal while the compressor

works to transfer heat from inside the fridge or

freezer compartments.

Excessive frost and ice has

built up.

• The freezer door has been left open.

• Something is preventing the door from closing.

• The door gasket is dirty or damaged.

Heavy build-up of frost on

the door seal.

• The door seal is not airtight. Carefully warm the

leaking sections of the seal with a hair dryer (on a

cool setting). At the same time, shape the warmed

door seal by hand until it sits correctly.

The compressor runs

continuously.

• The temperature is set too cold: select a warmer

setting.

• A door is open, or something is obstructing proper

door closure.

• A door gasket is worn, dirty or damaged.

• Large quantities of food have been added to the

appliance.

• The room temperature is hotter than usual.

After Sales Support

(AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support

Other Useful Information

Cleaning the appliance

For hygienic reasons the appliance interior, including the interior accessories, should

be cleaned regularly.

• Set both temperature controls to the minimum positions and unplug the appliance.

• Remove your frozen and refrigerated food packages from the compartments. Keep

the food temporarily in another fridge or cooler bag to keep defrosting to a minimum.

• Remove all shelves and drawers.

• Wash the inside surfaces and the interior accessories with a damp, warm cloth

moistened in a water and baking soda solution (about 2 tablespoons of baking soda

to 1 litre of water). Wring excess water out of the cloth before cleaning around the

temperature controls or any electrical parts. Rinse and wipe dry with a soft cloth.

• Clean the outside of the unit with a damp, well wrung out cloth.

• Keep the gaskets around the doors clean and free of debris.

• After everything is dry, reinstall the shelves and drawers and place the appliance

back into service.

WARNING!

To reduce the risk of electric shock or injury, always switch off the appliance and

disconnect it from the power supply before cleaning or maintenance.

WARNING!

• Never clean the unit with an abrasive, acid, oil or solvent based cleaning agent, or

with abrasive pads or scourers. Never use flammable fluids or sprays for cleaning

as the fumes from these substances can create a fire hazard or explosion.

• Never clean the appliance with a steam cleaner. Moisture could accumulate in

the electrical components, danger of electric shock! Hot vapours can lead to the

damage of plastic parts.

• The appliance must be completely dry before it is placed back into service.

• Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the

juice from orange peel, butyric acid, or cleansers that contain acetic acid. Do not

allow such substances to come into contact with the appliance parts.

After Sales Support

(AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support

Defrosting the appliance

Manually defrosting the freezer compartment is not necessary as this is a frost-free

appliance which will be defrosted automatically.

Storage

If the appliance is not going to be used for an extended period of time, please store

the unplugged, cleaned appliance safely in the original packaging in a dry location, out

of reach of children.

Other Useful Information (Cont.)

Service, repair and spare parts

Do not attempt to alter or modify this appliance in any way. Do not attempt to repair or

replace any part of the appliance unless it is specifically recommended in this manual.

All other servicing should be referred to a qualified technician and only genuine spare

parts must be used. Contact our after sales support centre for advice.

Our after sales support centre stocks spare parts for the appliance. To purchase a

part, contact us at tempo.org/support or on 1300 886 649.

After Sales Support

(AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support

Other Useful Information (Cont.)

Technical specifications

Model HV-RTM480

Rated voltage 220 – 240 V~

Rated frequency 50 Hz

Rated current 1.3 A

Climate category T

Electrical protection class I

Total input power 140 W

Defrost power 220 W

Refrigerant R600a (57 g)

Insulation blowing agent Cyclopentane

Fridge compartment volume 370 L

Freezer compartment volume 110 L

Total volume 480 L

Dimensions (approx.) 1780 (H) x 680 (D) x 790 (W) mm

Net weight (approx.) 78 kg

The RCM Mark (Regulatory Compliance Mark) indicates that the product

complies with the relevant guidelines of the ACMA as well as corresponding

government requirements for the safety of electrical devices.

E209

Compliance

This product has been fully tested and meets all requirements as set out by standards

AS/NZS 60335.1 and AS/NZS 60335.2.24.

This marking indicates that the appliance is suitable for use in tropical climates

under ambient temperatures of 18 °C to 43 °C.
