Hoover FloorMate SpinScrub FH40000 User manual

f
®ENGLISH "_ pp. 1-19
ESPANOL _ p_g. 20-31
FloorMate TM
SpinScrub TM
Hard Floor Cleaner

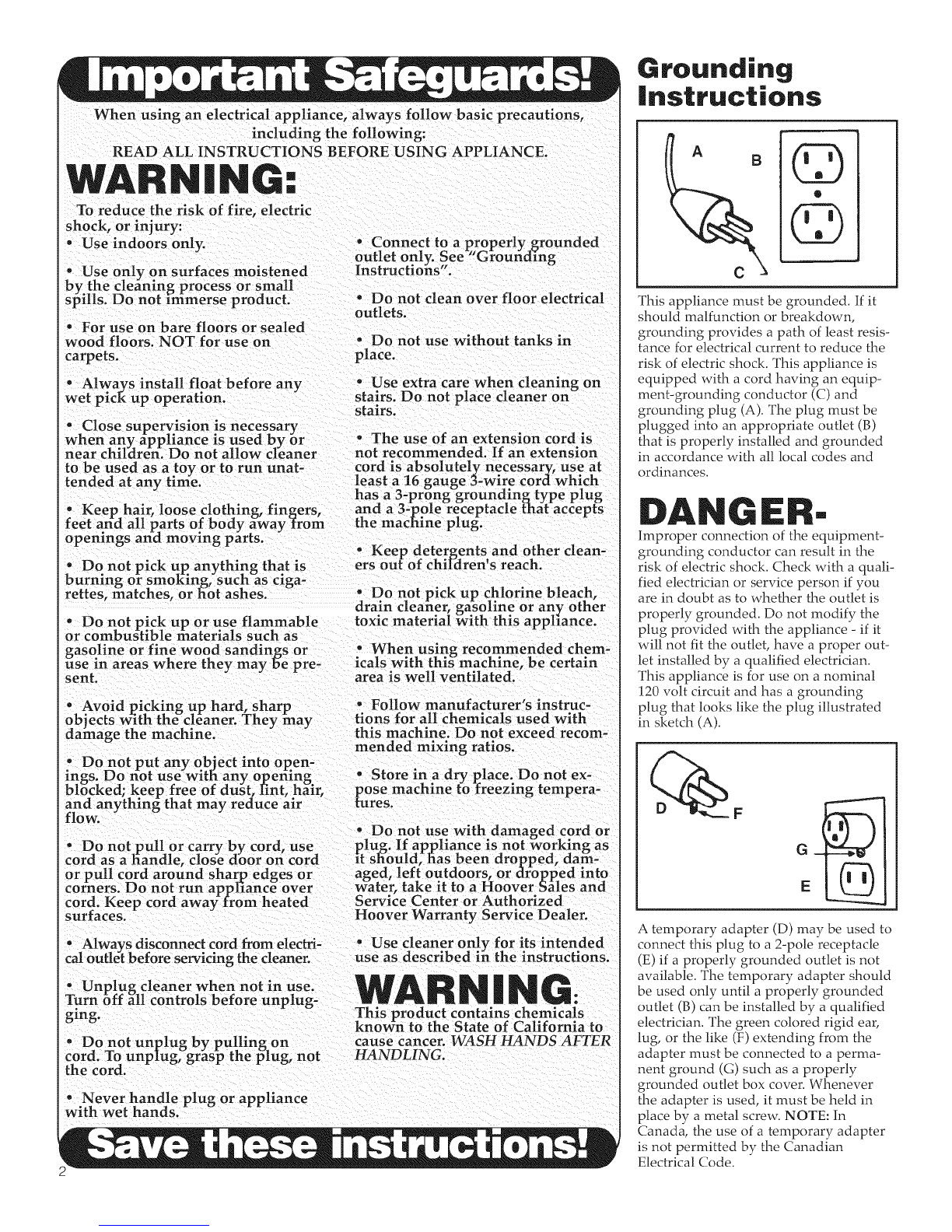

When using an electrical appliance, always follow basic precautions,
including the following:
READ ALL INSTRUCTIONS BEFORE USING APPLIANCE.
WARNING:
To reduce the risk of fire, electric
shock, or injury:
•Use indoors only.
"Use only on surfaces moistened
by the cleaning process or small
@ills. Do not lh_merse product.
,For use on bare floors or sealed
wood floors. NOT for use on
carpets.
,Always install float before any
wet pick up operation.
• Connect to a properly grounded
outlet only. See "Grounding
Instructions".
°Do not clean over floor electrical
outlets.
° Do not use without tanks in
place.
°Use extra care when cleaning on
stairs, Do not place cleaner on
stairs.
°Close supervision is necessary
when any appliance is used by or -The use of an extension cord is
near children. Do not allow cleaner not recommended. If an extension
to be used as a toy or to run unat- cord is absolutely necessary, use at
tended at any tinde, least a 16 gauge J-wire cordwhich
has a 3-prong groundingtype plug
°Keep hair, loose clothing, fin_ers, and a 3;pole receptacle t_hat accepts
feet and all parts of body away _rom the machine plug.
openings affd moving parts. °Keep detergents and other clean-
"Do not pick up anything that is ers out of chffdren's reach.
burning or smoking, such as ciga-
rettes, matches, or ffot ashes. -Do not pick up chlorine bleach,
drain cleaher, gasoline or any other
°Do not pick up or use flammable toxic material with this apphance.
or combustible materials such as
gasoline or fine wood sandin_s or °When using recommended chem-
use in areas where they may _e pre- icals with this machine, be certain
sent. area is well ventilated.
° Avoid ]?icking up hard, sharp • Follow manufacturer's instruc-
objects with th_ cleaner. They may tions for all chemicals used with
damage the machine, this machine. Do not exceed recom-
mended mixing ratios.
°Do not put any object into open-
ings. Do r_ot use witl_ any opening ,Store in a dry place. Do not ex-
blocked; keep free of dust, l_nt, hair, pose machine to treezing tempera-
and anything that may reduce air tures.
flow. ,Do not use with damaged cord or
°Do not pull or carry by cord, use plug. If appliance is not working as
cord as a l_andle, close d_or on cord it st_ould, fias been dropped, dam-
or pull cord around sharp edges or aged, left outdoors, or dropped into
corners. Do not run apphance over water, take it to a Hoover Stiles and
cord. Keep cord away from heated Service Center or Authorized
surfaces. Hoover Warranty Service Dealer.
°Always disconnect cord from electri- • Use cleaner only for its intended
cal oufl6t before servicing the cleaner, use as described ih the instructions.
• Unplug cleaner when not in use. 'WARNING."
Turn off all controls before unplug-
grog. This product contains chemicals
known to the State of California to
,Do not unplug by pulling on cause cancer. WASH HANDS AFTER
cord. To unpIug, grasp the plug, not HANDLING.
the cord.
°Never handle plug or appliance
with wet hands.
Grounding
|nstructions
AB©
®
©
This appliance must be grounded. If it
should malfunction or breakdown,
grounding provides a path of least resis-
tance for electrical current to reduce the
risk of electric shock. This appliance is
equipped with a cord having an equip-
ment-grounding conductor (C) and
grounding plug (A). The plug must be
plugged into an appropriate outlet (B)
that is properly installed and grounded
in accordance with all local codes and
ordinances.
DANGER-
Improper connection of the equipment-
grounding conductor can result in the
risk of electric shock. Check with a quali-
fied electrician or service person if you
are in doubt as to whether the outlet is
properly grounded. Do not modify the
plug provided with the appliance - if it
will not fit the outlet, have a proper out-
let installed by a qualified electrician.
This appliance is for use on a nominal
120 volt circuit and has a grounding
plug that looks like the plug illustrated
in sketch (A).
F
A temporary adapter (D) may be used to
connect this plug to a 2-pole receptacle
(E) if a properly grounded outlet is not
available. The temporary adapter should
be used only until a properly grounded
outlet (B) can be installed by a qualified
electrician. The green colored rigid era,
lug, or the like (F) extending from the
adapter must be connected to a perma-
nent ground (G) such as a properly
grounded outlet box cover. Whenever
the adapter is used, it must be held in
place by a metal screw. NOTE: In
Canada, the use of a temporary adapter
is not permitted by the Canadian
Electrical Code.

fTo contact us:-
ohooverocom
.1-800-944.9200 - automated service
dealer locator
.1-800-263-6376 -our Consumer
Response Center, Mon-Fri 8am - 7pro EST
J
f Fill in and Save "x
For your records, enter the model number and
serial numbers in the spaces provided. These
numbers are located on the data label on the back
of the cleaner body.
Model No.
Serial No.
Save your sales receipt and attach it to this
manual. Proof of date of purchase may be
required for warranty service of your cleaner.
A. Hard floor cleaner
J
"x
Important safeguards ........ 2
Carton contents .............. 3
Cleaner description ........... 4
Assembly
Handle assembly ........... 5
Brush/nozzle assembly .... 5-6
General operation
Mode selector dial .......... 8
Solution tank ............ 9-10
Recovery tank ............. 11
Automatic shut-off ......... 11
To clean filters .......... 11-12
How to clean
Recommended cleaning
sequence .................. 12
Cleaning floors ............ 13
Picking up spills .......... 13
Storage ..................... 14
Maintenance
Cleaning the nozzle ....... 14
Cleaning the brushes... 15-16
Troubleshooting ............ 17
Service ..................... 18
Warranty ................... 19
J
B. Upper handle
C. Brush assembly
D. Nozzle
E. Floor cleaning
concentrate
*Some models include a
second set of brushes (gray
bristles) for cleaning grout
and Grout Cleaner
f
A
C
B
Ei 'i.
©2007 Hoover, Inc.
hoover.corn Continued -_ 3

1
3
4
11 1
17
T_his cleaner is intended for household _
use.
Operate cleaner only at voltage speci-
fied on data plate on back of cleaner.
Plug cleaner into a properly grounded
outlet.
_. 13 J
This user manual applies to models with either 6 or 7 brushes.
FFeatures
1. Soft hand grip
2. ON/OFF switch
3. Solution trigger: squeeze to release
cleaning solution
4. Mode selector dial: turns brushes
ON for wet cleaning and OFF for wet
pickup and dry vacuuming
5. Clean solution tank cap/measuring cup
6. Clean solution tank
7. Clean solution tank release
8. Recovery tank release
9. Recovery tank lid and filter
10. Recovery tank: collects dry debris as
well as dirty cleaning solution
11. Nozzle release buttons: release
nozzle for easy clean-up (located
behind nozzle)
12.
13.
14.
15.
16.
17.
18.
19.
Nozzle
Squeegee (underneath nozzle)
Bumper
Soft-tread wheels
Carrying handle
Upper handle release button
Cord hooks: top hook rotates
for quick cord release
Handle release pedal
4

Assemble handle
Rotate bottom handle support (A)
up to the upright position until a
snap is felt.
Q lign control rod (B) on upper han-
dle (C) with slot in bottom handle
support (D).
O ush upper handle (C) all the way
down until you hear it snap in
place.
Install brushes and n°zz!e
To install brushes, place handle in
upright position. Tilt cleaner back so
that it rest!s on the floor.
Align post (A) on brush block with hole
(B) on bottom of cleaner. Turn brushes
slightly until post fits easily into hole.
J
Continued -4 5

E
Press brush assembly firmly to
p into place.
To install nozzle, make sure latches
(C) are out.
Align middle section (D) of nozzle with
opening (E) on cleaner.
Remove cardboard packing insert from
squeegee area on underside of nozzle.
O While holding nozzle in place, slide
latches inward to loci; in place.
unfola.anale
Raise upper handle (A) to upright
position until it locks in place.

H naiore o sepeaa
O Step on pedal (A) to lower handle
to operating position. Handle does
not lock into a single position, but
"floats" to allow convenient operation.
J
0N/OFF switch
O ush switch (A) once to turn cleaner
ON. Push switch again to turn
cleaner OFF.
Transporting
17.omove your cleaner from room to
room, put handle in upright posi-
tion, tilt cleaner back on rear wheels
and push forward.
The cleaner may also be lifted using
the carrying handle (A) on the front
of the cleaner.
a_
i_
Continued -_ 7

Your HOOVER FloorMate TM SpinScrub TM Cleaner can be used to both vacuum dry debris and wet
clean non-carpeted floor surfaces such as vinyl, tile and sealed wood. It is not intended for use on
carpet or rugs.
CAUTION: To prevent damage to wood floors, follow the flooring manufacturer's cleaning
recommendations.
If using cleaner on sealed wood floors, inspect floor surface for worn finish, bare wood or sepa-
rated joints. Do not use FloorMate TM SpinScrub TM Cleaner to wet clean sealed wood floors if any
of these conditions exist.
Mode selector dial
AThe Mode selector dial (A) turns
brushes on and off.
For dry debris pickup, turn the dial to the
DRY VAC position. In this position, the
brushes will not rotate and are raised off the
floor surface.
To wet clean with brushes turned ON, turn the
dial to the WASH position.
For wet pickup, turn the dial to the WET PICK-
UP position.
Refer to "How to clean" section for complete
cleaning instructions.

The tanks
Solution (upper) tank
The solution tank holds detergent and water that is to be dispersed onto the
surface being cleaned.
How to fill
Disconnect cleaner from electrical outlet.
Place cleaner handle in upright, locked position.
To remove tank, squeeze release button
pull tank straight out.
Carry tank to a sink.
Rotate tank cap counter-clockwise and
up to remove cap (A).
O Turn cap (A) upside down to serve as a measuring
cup.
For hard surface floors such as vinyl, linoleum, marble,
laminate wood, polyurethane sealed wood or other wood
floors that can normally be cleaned using water, use one
cup (2 oz.) HOOVER@ Floor to Floor TM Cleaner.
Check for worn spots or joint separations before using,
as these conditions could lead to damaged flooring when
using water to clean floor.
J
NOTE: For cleaning ceramic and other tiles, some models
include a set of grout brushes with gray bristles. Use these
for tile floors wl_ere extra attention is needed for cleaning
grout. (See "Cleaning the brushes" section for how to
remove and replace the brush assemblies.)
Using cup, measure 1-1/2 cupfuls (3 oz.) of HOOVER@
Grout Cleaner*.
*Available at additional cost if not included with your
model. Continued -_

DO NOT use cleaning concentrates that contain solvent based ingredients.
CAUTION: HOOVER® Grout Cleaner* cannot be used in Hoover SteamVac TM products.
Doing so could damage your SteamVac TM Cleaner.
*Available at additional cost if not included with your model.
J
Pour cleaning concentrate into tank (B). Fill tank to
line (C) (1 quart) with warm water.
_If rubber ring (D) on cap has become dislodged,
reposition it with uneven side against ledge (E) as
shown.
O Replace cap. Rotate cap clockwise until it locks in
place. Cap must be locked in place for proper per-
formance and to prevent leaking.
J
Slide tank straight into position until latch snaps in
place.
10

Recovery (lower) tank
Automatic shut-off
An automatic suction shut-off is built into the recovery
tank to prevent the tank from overflowing.
When the shut-off activates, the cleaner will not pick up
debris and the sound of the motor will change. The recov-
ery tank is full and must be emptied.
How to empty
Turn cleaner off and disconnect from electrical outlet.
Although not necessary for satisfactory performance, it is
recommended that the recovery tank be emptied after dry
vacuuming and before wet operation.
Check the solution tank also. It may need to be refilled at
this time.
To remove tank, press down on release button (B) and
pull tank straight out.
B
Remove tank lid (C). Empty tank.
To clean filters
The tank lid contains a washable, reusable filter. Clean this
filter when suction is low or reduced.
Turn cleaner off and disconnect from electrical outlet.
O emove recovery tank and lid (Figs. 24 & 25). Remove
filter lid (A), then remove filter (B). Remove loose
debris from filter bytapping the filter or gently brushing
using your hand. The filter may also be rinsed for addition-
al cleaning. Allow filter to air dry between uses.
'A B
J
J
Continued -_ 11

Reposition filter.
Replace filter lid. Press down firmly until snapped
in place.
Dry or loose debris will also collect on the filter screen
located in the tank lid.
To remove debris from screen, remove the pleated
filter from the lid. Remove debris from screen (D).
The filter screen may also be cleaned by rinsing it under
running water.
Reposition pleated filter in lid. Replace lid onto recovery
tank, pressing down firmly until snapped in place.
O To replace recovery tank, place bottom of tank
behind ledge (E) and pusI_ tank straight into cleaner
body until it is locked in place.
Recommended cleaning sequence
Use your HOOVER® FloorMate TM SpinScrub TM Cleaner to:
• Dry Vacuum to remove loose dirt, hair and debris.
• Wet Clean the floor surface. The brushes will provide light agitation to help loosen dirt.
• Wet Pickup reduces drying time of the floor surface.
!"_ The Mode selector dial turns the brushes on and off.
O or dry debris pickup, turn the dial to the DRY VAC posi-
tion (A). In this position, the brushes will not rotate and are
raised off the floor surface.
To wet clean with brushes turned ON, turn the dial to the WASH
position (B).
For wet pickup, turn the dial to the WET PICKUP position (C).
12

Cl eani g floo s
NOTE: Your HOOVER® FloorMate TM SpinScrub TM cleaner may be used to clean wood floors that
have been sealed with a polyurethane coating and can be cleaned with water.
CAUTION: To prevent damage to wood floors, follow the flooring manufacturer's cleaning rec-
ommendations.
If using cleaner on sealed wood floors, inspect floor surface for worn finish, bare wood or sepa-
rated joints. Do not use FloorMate TM SpinScrub TM cleaner to wet clean sealed wood floors if any
of these conditions exist.
2_ ilTM
ii
Set Mode selector dial to DRY VAC position and vacuum floor.
Turn cleaner off and disconnect from electrical outlet. Empty recovery tank (see Figs. 24 &
25). Determine the type of brushes to be used (either gray for ceramic and other tiles or white
for vinyl and sealed wood floors). See "Cleaning the brushes" for removing and replacing
brushes.
3
¸¸4¸¸¸¸¸¸¸
¸¸¸5¸¸
¸¸¸91
ii
Fill solution tank with either Floor to Floor Cleaning Concentrate or Grout Cleaner*, depend-
ing upon the type of floor being cleaned, and water (see Figs. 17 through 23).
Do not use solvent based cleaning concentrates in your cleaner. Do not use any type of
wax in your cleaner.
Turn Mode selector dial to WASH position.
Dry hands and plug cleaner into a properly grounded outlet.
Step on handle release pedal and lower handle to operating position. Turn cleaner ON.
To release solution, squeeze trigger (A) (Fig. 31). Slowly
move cleaner forward and backward over area to be cleaned.
Squeeze trigger to release solution as needed.
Overlap strokes by one inch to help prevent streaking. The
cleaner s suction will pick up the dirty solution throughout
cleaning.
To greatly enhance drying of the floor surface, release trigger
and turn Mode selector dial to the WET PICKUP position. Continue to move cleaner over the
area to pick up the dirty solution.
To continue cleaning another area, turn Mode selector dial to WASH position. Repeat steps 7
through 9.
Note: When cleaning sealed wood floors, make sure all areas are completely dry. Ensure
that no water remains on the floor.
I0¸¸¸
Note: When switching between wet cleaning and wet pickup, it is not necessary to turn the
cleaner off. Simply move the Mode selector dial between the two settings.
Empty recovery tank or clean the filter when the motor sound becomes higher in pitch and
there is a loss of suction (see "Automatic shut-off" section).
*Available at additional cost if not included with your model.
Picking up spills
Your cleaner may also be used to pick up small liquid spills (1 quart or less, never to
exceed 1/4 inch in depth) on non:carpeted floors. Turn Mode selector dial to the WET PICK-
UP position and release the trigger. Continue to move cleaner over the area to pick up the
spilL
Do not use the cleaner to pick up flammable or combustible liquids or chemicals, do not
use the cleaner to pick up detergents that contain solvent based ingredients.
Coret ireued -_ 13

Before storing cleaner:
Turn cleaner OFF and disconnect from electrical outlet.
• Empty and rinse solution and recovery tanks. Allow to air
dry.
Press on upper handle release button to lower handle for
storage.
Make sure that nothing is pressing on the nozzle squeegee.
Do not store cleaner on a wood surface unless cleaner is
completely dry.
J
Cleaning the nozzle
Turn cleaner OFF and disconnect from electrical outlet.
The cleaner's nozzle can be removed for easy cleaning.
Slide the two nozzle release latches (A) outward.
Remove nozzle (B) by pulling straight out.
O inse nozzle under running water. Remove debris
from squeegee (C) and wipe with a damp cloth.
14

J
O To replace nozzle, make sure latches (D) are out.
Cleaner should be in the upright position for easier assem-
bly of the nozzle.
Align middle section (E) of nozzle with opening (F) on cleaner.
While holding nozzle in place, slide latches inward to lock
place.
J
15

B
Cleaning the brushes
The brush assembly can be removed for easy cleaning.
Turn cleaner OFF and disconnect from electrical outlet.
Place handle in the upright position.
Remove tanks to prevent leaking. Set aside.
Pull the two nozzle release buttons (A) out. Remove nozzle.
Tilt cleaner back so handle rests on floor.
O ush two brush release buttons (B) and remove the brush
assembly.
The brushes can be washed with a mild detergent and rinsed. Do
not use a solvent based detergent.
To replace brushes, align post (C) on brush block with hole
(D) on bottom of cleaner. Turn brushes slightly until post
fits easily into hole. Press brush assembly firmly to snap into
place.
EReturn cleaner to upright position. Replace nozzle,
making sure latches (E) are out.
Align middle section (F) of nozzle with opening (G) on
cleaner.
J
While holding nozzle in place, slide latches inward
to loci< in place.
Replace tanks.
16

Use the list below to help solve minor problems.
What!s the problem? What to do
Cleaner won't run
Low suction
Water puddling behind cleaner
Won't pick up dirty solution
Cleaner pushes a line of dry debris
in front of it
Cleaning solution won't dispense
Brushes won't rotate
¢" Make sure the cleaner is
plugged in firmly.
¢" Check the fuse or breaker.
¢" Empty the recovery tank; it may be full
ant{ the automatic shut-off engaged.
¢" Make sure filter and filter lid are properly
positioned.
¢" Make sure tanks are locked in place.
¢" Check the filter and clean if dirty.
¢" Make sure nozzle is replaced properly
and locked.
¢" Use recommended detergents to reduce
excess foaming.
¢" Make sure solution tank is installed
properly.
¢" Empty recovery tank.
¢" Check Mode selector dial to ensure it is
set for WET PICKUP.
/Make sure recovery tank is installed
properly.
¢" Empty recovery tank.
¢"Make sure filter and filter lid are properly
positioned.
¢" Check Model selector dial to ensure it is
set for DRY VAC.
¢" Tip nozzle off floor by pushing down on
h_indle to pick up debn's that 1_too large
to clear the squeegee.
¢" Make sure solution tank is locked in
position.
¢" Refill the solution tank if it is empty.
¢" Check Mode selector dial to ensure it is
set for WASH.
¢" Reset circuit breaker.
(1) Push ON/OFF switch to turn cleaner
OFE
Wait one minute.
Plug the cleaner into electrical outlet.
Puslh the ON/OFF switch again to
turn cleaner ON.
If the brushes continue to stall and the
breaker trips again, clean the brushes to
remove debris.
Continued -_ 17

Lubrication
The motor is equipped with bearings which contain sufficient lubrication for the life of the motor.
The addition of lubricant could cause damage. Do not add lubricant to motor bearings.
To approved HOOVER service and genuine HOOVER parts, locate the nearest Hoover
Sales and Service Center or Authorized Hoover Warranty Service Dealer (Depot) by:
¢" Checldng the Service Section of Hoover on-line at hoovencom OR
¢" Checking the Yellow Pages under "Vacuum Cleaners - Household" OR
•/ Calling 1-800-944-9200 for an automated referral of authorized service outlet locations
(U.S. only)
Do not send your cleaner _o Hoover in Glenwillow, Ohio for service; this will only result in delay.
If further assistance is needed, contact the Hoover Consumer Response Center,
Phone: [phone] Mon-Fri 8am-7pm EST.
In Canada, contact Hoover Canada, Carson Building, 100 Carson St., Etobicoke, Ontario M8W
3R9 Phone: [phone] Mon-Fri 8am-Tpm EST.
Always identify your cleaner by the complete model number when requesting information or
ordering parts. (The model number appears on the back of the cleaner. )
18

Full One Year
Warranty
(Domestic Use)
Your HOOVER® appliance is war-
ranted in normal household use, in
accordance with the Owner's
Manual against original defects in
material and workfiaanship for a
period of one full year from date of
purchase. This warranty provides, at
no cost to you, all labor and parts to
place this appliance in correct operat-
ing condition during the warranted
period. This warranty applies when
the appliance is purchased in the
UnitedStates including its territories
and possessions, or in Canada or
from a U. S. Military Exchange.
Appliances purchased elsewhere are
covered by a limited one year war-
ranty which covers the cost of parts
only. This warranty does not al3ply if
the appliance is used in a comf_erciat
or rental application.
This warranty only applies when the
product is in use in the country or
territory in which it is purchased.
Warranty service can only be
obtainedby presenting the appliance
to one of the following authorized
warranty service outlets. Proof of
purchase wilt be required before ser-
vice is rendered.
1. Hoover Sales and Service
Centers.
2. Hoover Authorized Warranty
Service Dealers (Depots).
For an automated referral of autho-
rized service outlets in the U.S.A.,
phone [phone] OR
visit Hoover on-line at hoover.corn
This warranty does not cover pick
up delivery, or house calls; however,
if you mailyour appliance to a
Hoover Sales and Service Center for
warranty service, transportation wilt
be paid one way.
While this warranty gives you spe-
cific legal rights, you may also H-ave
other rights which vary from state to
state.
If further assistance is needed, or if
there are questions concerning this
warranty or the availability of war-
ranty service outlets, write or phone
the Consumer Response Center,
Phone [phone] Mon-Fri 8am-
7pm EST.
In Canada, contact Hoover Canada,
Carson Building, 100 Carson St.,
Etobicoke, Ontario M8W 3R9 Phone: 1-
800-263-6376 Mon-Fri 8am-7pm EST.
19
