Hoover ONEPWR Blade+ User manual

Power
Scrub
Elite
User Guide
Cordless Vacuum
User Guide
CLSV-B3ME
CLSV-B4ME
hoover-mea.com
Cordless Vacuum
Cordless Vacuum

IMPORTANT SAFETY INFORMATION
2
This machine is intended for household use only and NOT for commercial
or industrial use.
PLEASE KEEP INSTRUCTIONS FOR FURTHER USE AND USE ONLY AS
INSTRUCTED IN THIS GUIDE.
•Don’t leave the charger plugged in when unattended.
•Don’t use the machine if it is faulty or has been dropped, damaged or left outdoors.
•Don’t use the machine to pick up any flammable or combustible materials (lighter fluid,
petrol, kerosene etc.)or use the machine in an area with explosive vapours or liquid.
•Don’t use the machine to pick up hot coals, cigarette butts, matches or smoking hot
burning items or use in an area where there may be harmful fluids (chlorine, bleach
and ammonia drain cleaner).
•Don’t handle the charger, battery or use the machine with wet hands.
•Don’t unplug the charger by pulling on the power cord.
•Don’t use the charger if the power cord or plug is damaged.
•Don’t attempt to remove blockages with sharp objects as this may cause damage to
the machine.
•Don’t use the machine with the incorrect battery or charger as this may result in
damage or injury to the user. The correct battery charger information is listed on the
battery pack ratings label.
•Don’t charge the battery outdoors, or leave the charger connected to the mains when
not in use.
•Don’t use the machine with a damaged battery. If the battery is damaged return the
machine, battery and charger to the point of purchase.
•Don’t over fill the dirt container to avoid blocking the air flow through the machine.
•The brushbar in the powered head constantly rotates when switched on. Never use
the powered head on one spot for an extended period of time as the brushbar may
damage the floor surface.
•Only Hoover ONEPWR batteries (BV15020ME/BV15030ME/BV15040ME) and
charger (BV05100ME) should be used with this machine.
•Only Hoover ONEPWR recommended tools and accessories should be used with this
machine.
•Always remove the battery from the machine before carrying out any maintenance or
if storing unused for a long period of time.
•Keep all openings clear and free from debris as this may affect the airflow/suction.
•Turn off all controls on the machine before disconnecting or connecting the battery.
•Always protect the charger power cord from heated surfaces or near open flames.
•Only use the machine indoors on dry surfaces and keep the area you’re cleaning
well lit.

IMPORTANT SAFETY INFORMATION 3
•The machine can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
machine in a safe way and understand the hazards involved. Children shall not play
with the machine. Cleaning and user maintenance shall not be made by children
without supervision.
•Keep fingers, hair and loose clothing away from moving parts and openings whilst
using the machine.
•Store the machine in a cool, dry area. Keep the machine away from rain and
moisture.
•Take extra care when using the machine on the stairs.
•Use only CE approved 13amp extension cords, non-approved extension cords may
overheat. Care should be taken to arrange the extension cord as it can be a trip
hazard.
•Always turn the powered head brushbar off when cleaning hard floors. To prevent
any damage being sustained, test on an inconspicuous area of the flooring first.
•Always make sure the separator and filter are fitted correctly before using your
machine and only use the machine with the filter and separator in place.
•Always check the powered head and accessories are free from damage, dirt and
debris before using.
•This machine does not stay upright without constant support. Between uses, lie flat
on the floor in a suitable location so that it does not become a trip hazard or can be
stepped on.
BATTERY SAFETY PRECAUTIONS
•Replace the battery with a Hoover ONEPWR battery only. Use of another battery
may present a risk of fire or explosion.
•Do not attempt to disassemble the battery, remove any component projecting from the
battery terminals and do not dispose of in a fire.
The battery and charger have no user serviceable parts. Fire or injury may result.
•Prior to disposal, protect exposed terminals with heavy insulating tape to prevent
shorting. The battery is to be disposed of safely at your local battery recycling centre.
•When the battery pack is not in use, keep it away from other metal objects that
can make a connection from one terminal to another. Shorting the battery terminals
together may cause burns or a fire.
•In case of battery leakages, avoid any contact with skin. Return the machine, battery
and charger to the point of purchase.

4GENERAL INFORMATION
Service and Help
If you have any queries or concerns about using your Hoover cordless vacuum,
visit hoover-mea.com
Consumables
To purchase spares and accessories, please visit hoover-mea.com
The use of genuine Hoover spare parts helps to maintain optimised performance and validates
your guarantee.
Technical Specifications CLSV-B3ME CLSV-B4ME
Weight (without battery pack) 2.9kg 2.8kg
Dirt bin capacity 0.6L 0.6L
Run time and charge time dependent on battery pack and power mode used.
Subject to technical change without notice.
© 2020 Techtronic Floor Care Technology Ltd
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
This marking on the product(s) and/or accompanying documents means that used electrical and electronic equipment
(WEEE) should not be mixed with general household waste. For proper treatment, recovery and recycling, please take
this product(s) to designated collection points where it will be accepted free of charge. Disposing of this product correctly
will help save valuable resources and prevent any potential negative effects on human health and the environment, which
could otherwise arise from inappropriate waste handling.
Please contact your local authority for further details of your nearest designated collection point.

5
MACHINE OVERVIEW
1Carry handle
2Dirt container
3Filter cover and filter
4Dirt container release latch
5Dirt release button
6Power ON/OFF
7Brushbar ON/OFF
8Boost ON/OFF
9Battery level indicator light
10 Reach wand
11 Powered head
12 Brushbar
13 Battery dock
14 Filter cover release tab
(hidden)
15 Crevice tool
16 Dusting brush
17 Crevice tool storage caddy
18 Wall mount
screws and wall plugs
19 Upholstery tool*
20 Motorised pet tool*
21 ONEPWR Battery
22 ONEPWR Charger
6
7
8
9
13
14
1
10
11
12
2
3
4
5
18
171615
Accessories
2119 20 22
*19 and 20 are only available
with model CLSV-B4ME

6OPERATION
Without the handheld attached to the
reach wand and powered head,
push the wall bracket onto the top
and back of the reach wand.
Choose a location for the machine to be stored, preferably near to a mains
supply although not directly above or below a mains socket. Stand the
machine powered head and wand against the wall, ensuring the powered
head is flat on the floor.
Holding the wall bracket securely
against the wall, make a small mark for
each screw. Secure the wall bracket to
the wall using the wall plugs and screws.
The dusting brush can be fitted onto
the wall bracket.
Fully assemble the machine and
firmly press the machine into the wall
bracket to secure. Always ensure the
machine is securely locked into place.
To assemble the dirt container, line up the arrow on
the dirt container connection with the arrow on the
handle. Push the dirt container onto the handle until it
clicks into place.
Attach the handheld to the reach wand until it clicks into
place. Attach the reach wand to the powered head until it
clicks into place. Push the tool caddy onto the reach wand
and slot the crevice tool into place.
Assembly
Attaching the wall mount

7
OPERATION
IMPORTANT: THIS MACHINE IS ONLY TO BE USED WITH HOOVER ONEPWR BATTERIES AND CHARGER.
PLEASE READ THE SAFETY GUIDE BEFORE USE.
Before first use, ensure the battery is fully charged. Failure to fully charge the battery before first use may result
in poor battery performance. The life expectancy of the battery will vary depending on the usage of
the machine.
Inserting the battery
Charging the battery
Slide the battery down on to
the charger.
The charger light will flash white to
show when the battery is charging.
The light on the charger will stop
flashing and go off when the battery
is fully charged.
Once fully charged, slide the battery
off the charger to remove.
To check the battery charge
level press the battery symbol.
Place your foot on the powered
head.
CAUTION: The brushbar in the powered head constantly rotates when switched on. Never use the powered
head on one spot for an extended period of time as the brushbar may damage the floor surface. Always turn
the powered head brushbar off when cleaning hard floors. To prevent any damage being sustained, test on an
inconspicuous area of the flooring first.
Slide the battery into the handheld
until it clicks into place.
Pull the handle backwards to recline.

8OPERATION
8
Press the brushbar on/off button to
switch the brushbar on.
Press the boost button on to increase
the suction for particularly dirty areas.
Press the on/off button to switch the
machine on.

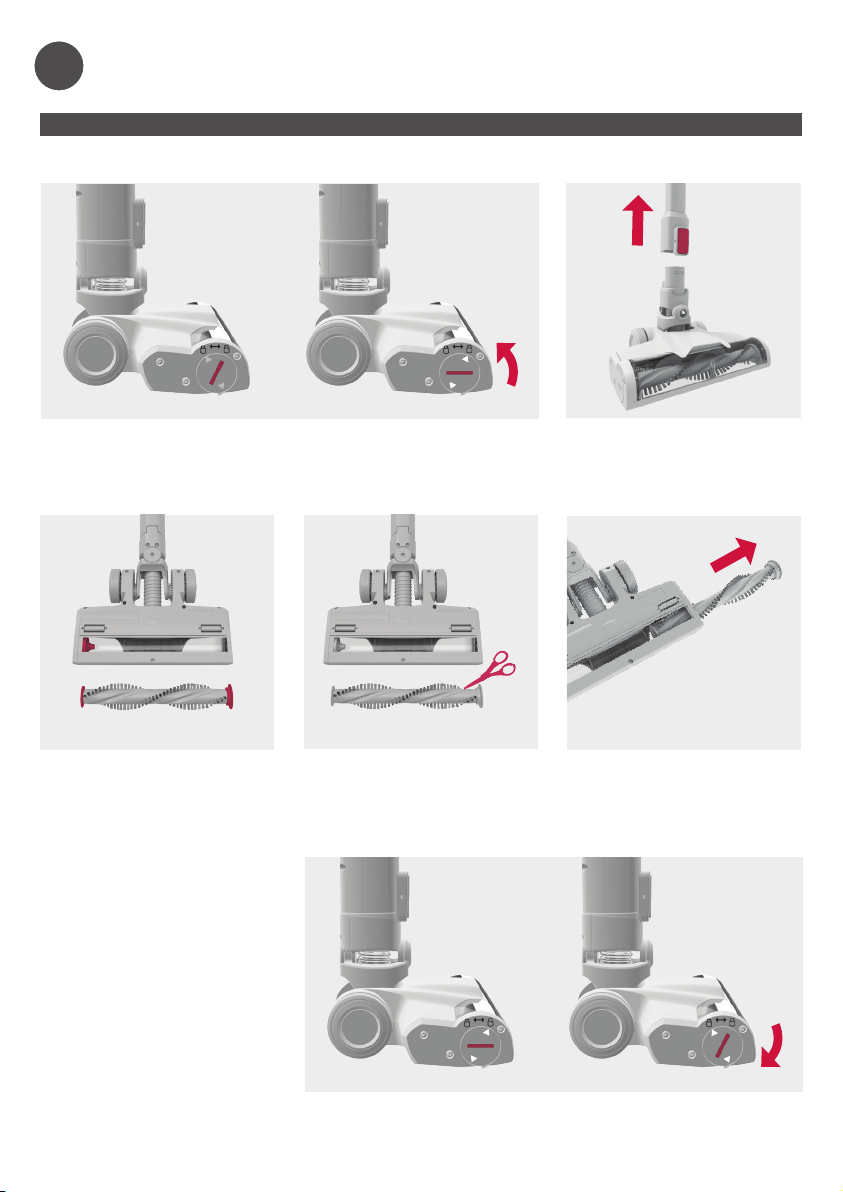

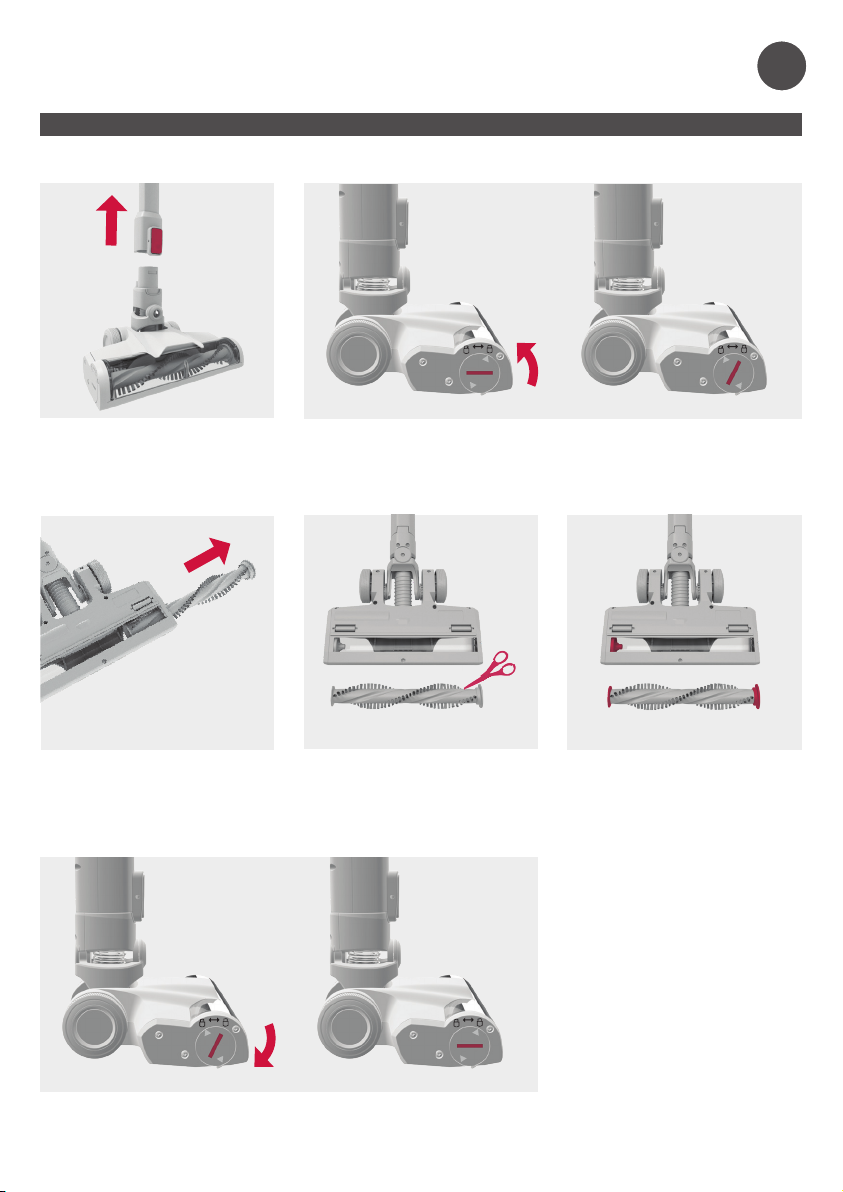

CAUTION: If the brushbar in the powered head has been obstructed, the
brushbar motor protection sensor may have been activated. The brushbar will
stop, the light on the powered head will illuminate red and the machine may
switch off. To reset remove the powered head from the reach wand/handheld
and clear any obstruction. Wait 1 minute before refitting the powered head
tool, switch the machine on and press the brushbar ON/OFF button.
IMPORTANT: The powered head brushbar should be ON for carpets and OFF for hard floors.
Constant use of the boost mode and brushbar will reduce the battery run time.
When the machine is in use the
battery level indicator lights will
illuminate indicating how much
charge is remaining. When less than
20% charge is remaining the bottom
light will flash red indicating the
battery is running low and charging
is required.
All of the accessories, including the
powered head can be attached
directly onto the handheld or the
reach wand. The crevice tool and
dusting brush can be used for hard
to reach places and at different
heights for above floor cleaning.
Using the cordless vacuum and tools

9
MAINTENANCE 9

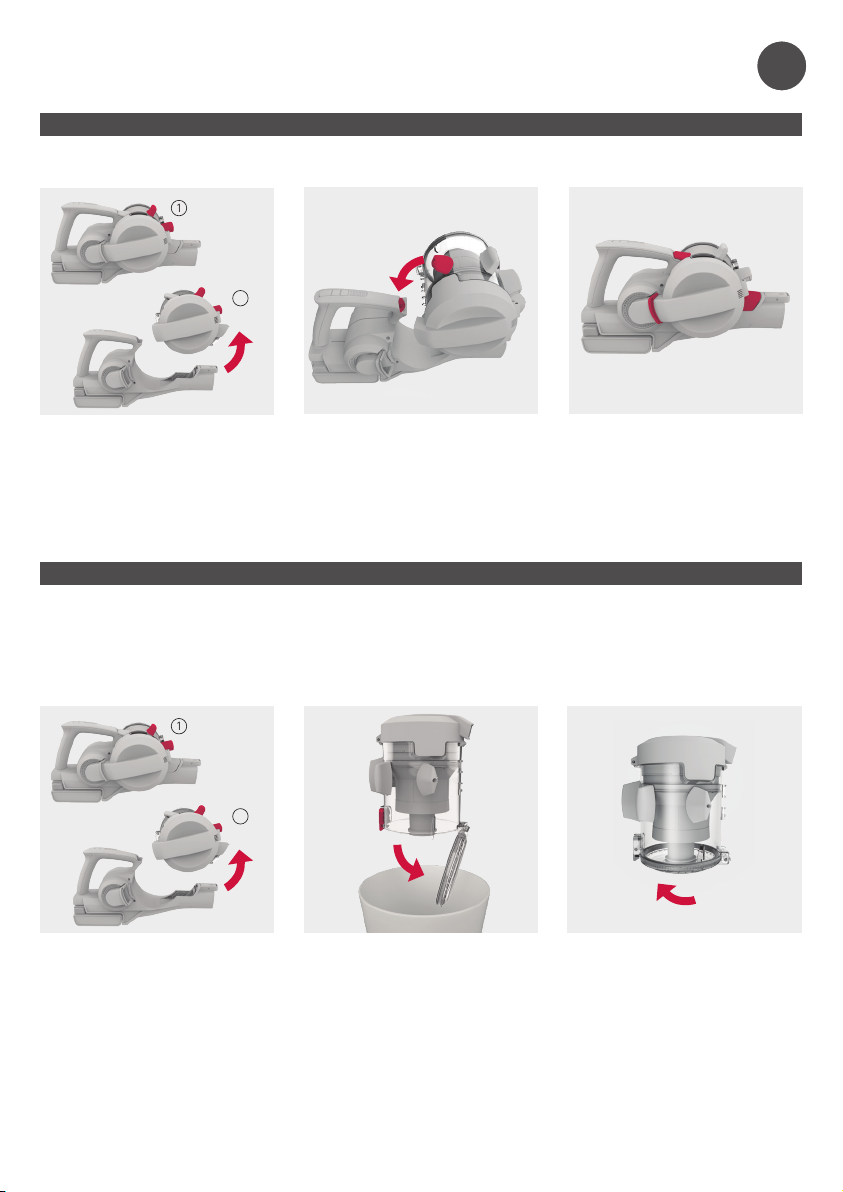

Removing and refitting the dirt container
Emptying the dirt container
CAUTION: Always remove the battery before carrying out any maintenance or troubleshooting.
CAUTION: Don’t over fill the dirt container to avoid blocking the air flow through the machine.
For best cleaning results, empty the dirt container after every use. Filters should be tapped over a bin every
4-6 uses to remove dirt and debris and washed every 3 months. Filters should be replaced every 6-9 months
depending on the level of use.
1. Squeeze the latch on the dirt
container to release.
2. Tilt and lift to remove from the
handheld.
1. Squeeze the latch on the dirt
container to release.
2. Tilt and lift to remove from the
handheld.
Hold the dirt container over a bin and
press the dirt release button to allow
dirt and debris to fall out.
To close, push the dirt release door
until it clicks into place.
To refit, line up the dirt container
connection with the handheld handle.
Push the dirt container back onto the
handle until it clicks into place.
When correctly fitted all 3
connection points will be aligned
and will sit flush.
2
1
2
1

10 MAINTENANCE
Wash the filter under running water
(40°C max). Leave for at least 24hrs
or until fully dry before replacing.
24hr
40°C
MAX
CAUTION: Ensure both the
filter and separator are refitted
before use.

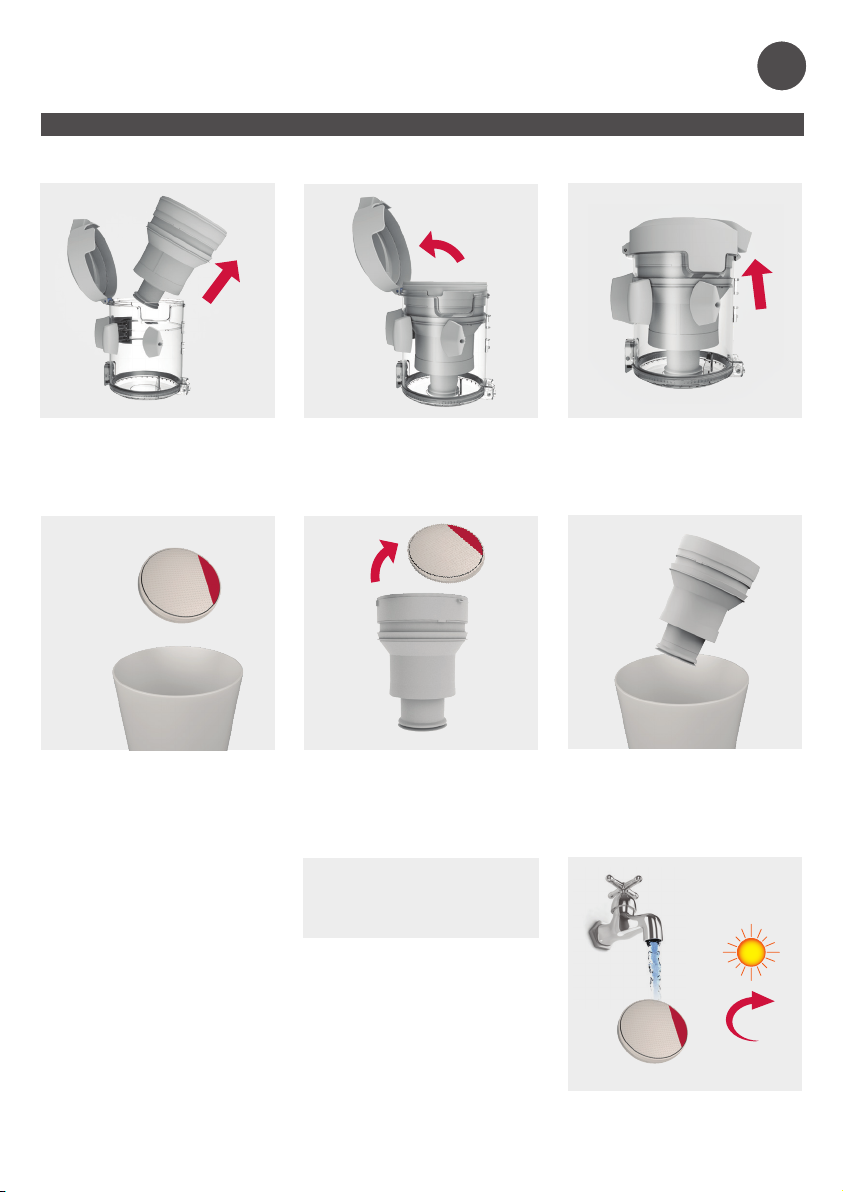

Cleaning the filter and separator
CAUTION: Always remove the battery before carrying out any maintenance or troubleshooting.
Push the tab on the lid of the dirt container and lift the cover to
access the filter.
Lift the filter and separator from the
dirt container.
Tap the separator over a bin to
remove dirt and debris and wipe over
the metal shroud with a dry cloth.
Pull the tab on the filter to remove
from the separator.
Tap the filter against the bin to
remove any dirt and debris.

11
MAINTENANCE
Cleaning and replacing the powered head brushbar
Pull the brushbar out from the
brushbar housing.
To remove any threads or hair, slide
the blade of a pair of scissors into the
groove on the brushbar and cut along
the groove.
Clear any dirt/debris from the end
caps and inside the housing of the
powered head.
Refit the brushbar into the floorhead. Align the arrow on the brushbar cover
so it points north, firmly push and twist clockwise to lock.
Using a coin, push and turn the brushbar lock anticlockwise to release
the brushbar.
Press the floorhead release button
to remove the floorhead from the
machine.

12 MAINTENANCE

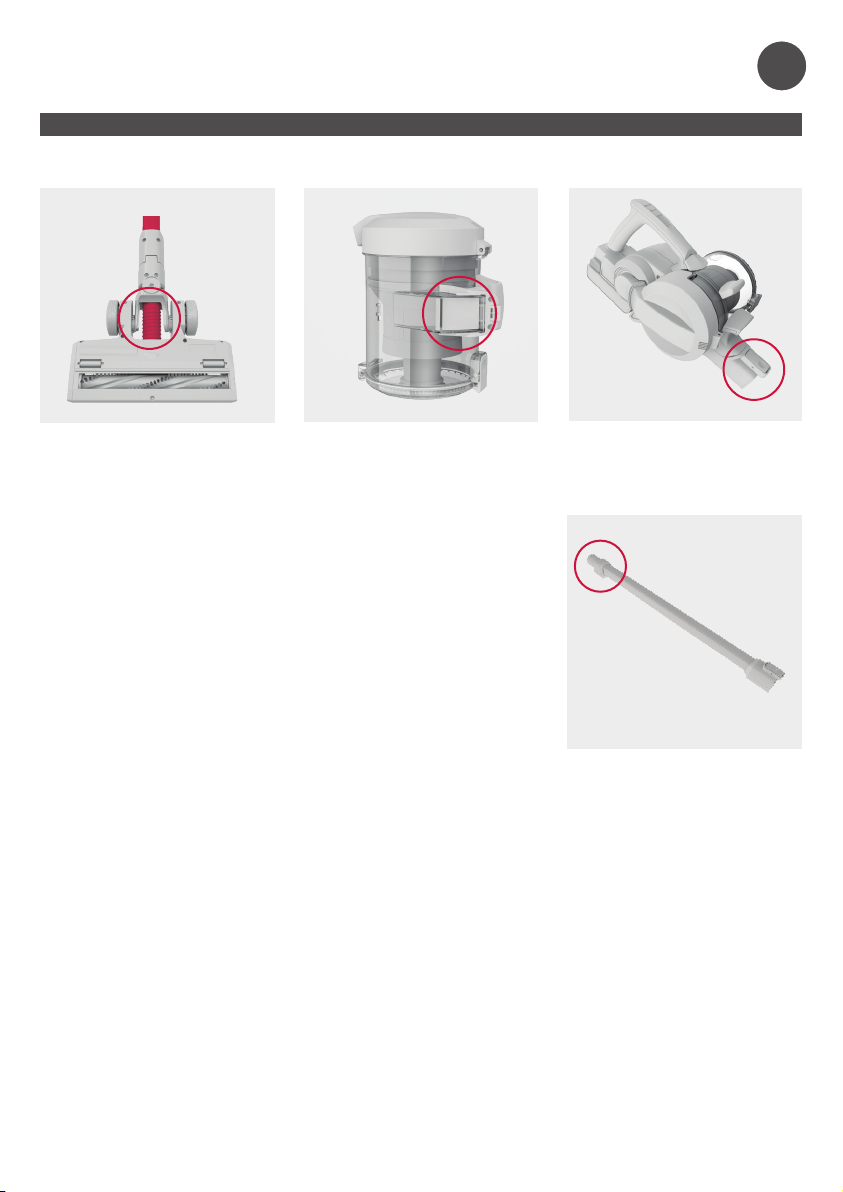

Checking for blockages
To test for a blockage in the reach wand, drop a small
ball of paper into the wand. The paper will drop
through if the wand is clear. Use a broom handle or
similar blunt object to remove any blockage.
Press the handheld release button
and remove the reach wand. Check
and clear any dirt and debris from
the handheld connection point.
Press the dirt container release
button and remove the dirt container.
Check and clear any dirt and debris
from behind the dirt container flap.
Check the powered head for any
blockages and use a blunt object to
remove the blockage.

13
FAQs
CAUTION: To reduce the risk of personal injury, unplug the cordless vacuum before performing
maintenance/troubleshooting checks.
Is there an accessory missing?
Check the contents on the back of the box.
Why does the machine have no power?
• The battery is not fitted correctly. See 'Inserting the battery'.
• The battery has no charge. See 'Charging the battery'.
• The motor thermostat may have tripped. Empty the dirt container and check for blockages. Clean the filters
and allow the machine to cool for approximately 1 hour. If you have washed the filters, wait 24 hours to fully
dry before placing back on the machine. See 'Cleaning the filter and separator'.
• The brushbar motor sensor has been activated. To reset remove the powered head from the reach wand/
handheld and clear any obstruction. Wait 1 minute before refitting the powered head, switch the machine on
and press the brushbar ON/OFF button. See 'Using the cordless vacuum'.
Why won’t the machine pick up?
• The dirt container may not be correctly fitted. See 'Removing and refittiing the dirt container'.
• The dirt container may be blocked. Check the dirt container and handheld inlet for blockages. See 'Emptying
the dirt container'.
• The filters may be clogged. See 'Cleaning the filter and separator'.
• There maybe a blockage. See 'Checking for blockages'.
• The brushbar on the powered head has not been activated. See 'Using the cordless vacuum and tools'.
• The powered head may be blocked. See 'Cleaning and replacing the powered head brushbar'.
• The machine, powered head and reach wand may not be correctly fitted. See 'Assembly'.
Why is there a red light?
• Battery charge is running low (<20%). See 'Charging the battery'.
Why is there a red light on the powered head?
• The powered head brushbar has been obstructed. See 'Cleaning and replacing the powered head brushbar'.
Why won’t the brushbar turn?
• The brushbar on the powered head has not been activated. See 'Using the cordless vacuum and tools'.
• The tool/brushbar may be obstructed. See 'Cleaning and replacing the powered head brushbar'.
• The machine, powered head and reach wand may not be correctly fitted. See 'Assembly'.

14 NOTES

14


13  
. /          :
    
.       
       
•." "   .    
•." "   .   
•   .         .      .      
."  "   .         24    
•   .     /        .     
."   "   .   /          
    
•."    "  .       
•."  "   .          .    
•."  "   .   
•." "   .    
•."    "   .        
•."       "   .    
•.""   .           
   
•." "   .(%20  )   
      
•."       "   .    /   
     
•."    "   .        
•."       "   .    /  
•.""   .           

12

 
         
        .  
         .
.   
.      
.         
        
         .
.
           
.  

11 
       
.              
.         
      /  
. 
             .       
.       
         
. 
.       

24hr
10

  
.             :
.            
.   
        
.  
.             
.
      :
.
.(  40  )     
.          24 
 40



2
1
2
1
20
9
    
  
.             :
.             :
    6-4         .          
.    9-6     . 3     
.       .1
.     .2
.        .1
.      .2
         
.  
         
.
    
.
         
.
   
.   
