Hoover HGM600X/1 User manual

C
ooker Hood
Instruction Manual
ENGLISH(EN)--------------------------------------------------------------- page 001
HGM600X/1,HGM610NX/1

1

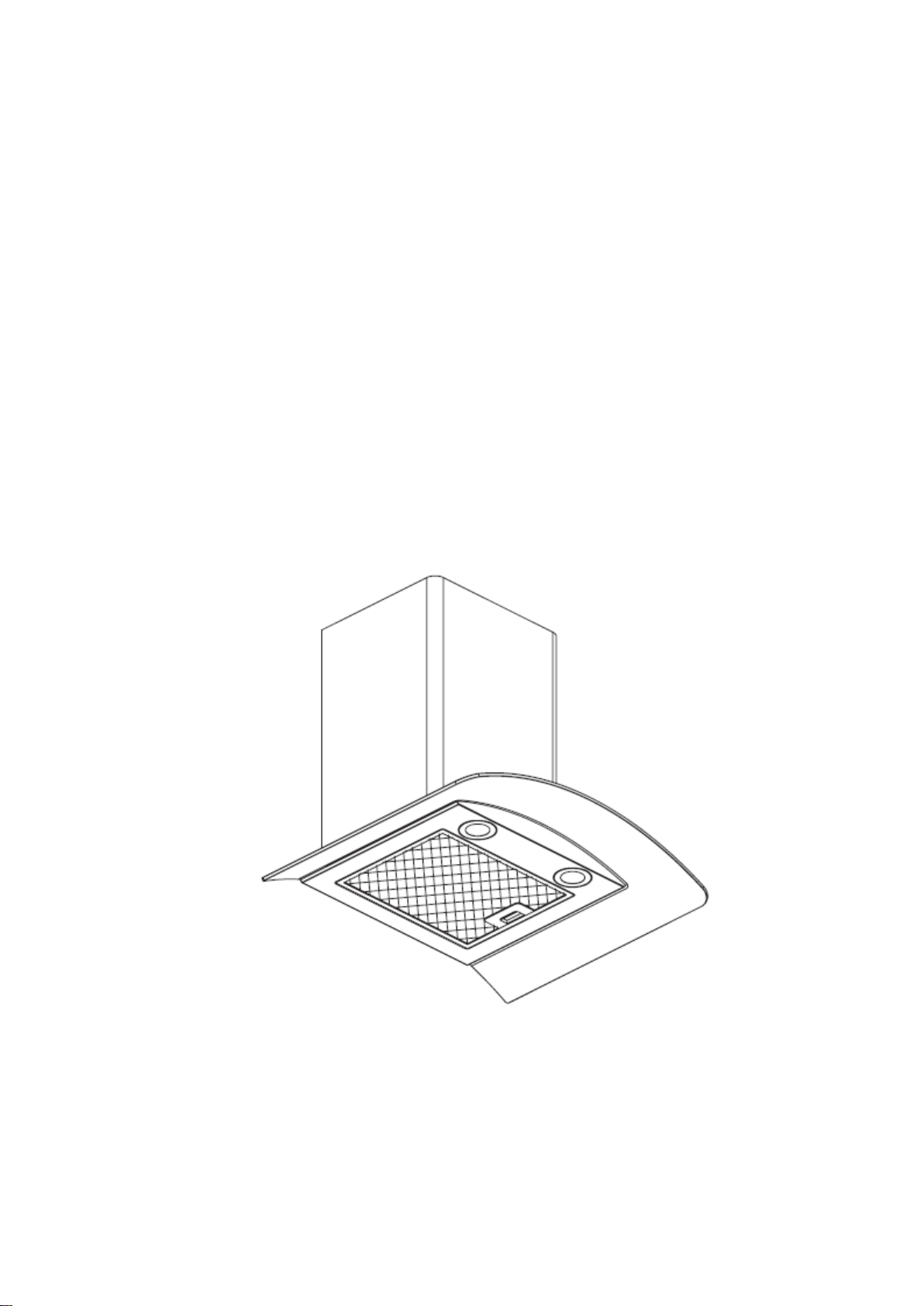

Cooker Hood
Instruction Manual

2
Content
1…………………………………..………………………………Safety instructions
2…………………………………..………………………………Installation
3…………………………………..………………………………Start using your cooker hood
4…………………………………..………………………………Troubleshooting
5…………………………………..………………………………Maintenance and cleaning
6…………………………………..………………………………Environment protection

3
SAFETY INSTRUCTIONS
This manual explains the proper installation and use of your cooker hood,
please read it carefully before using even if you are familiar with the product.
The manual should be kept in a safe place for future reference.
Never to do:
●Do not try to use the cooker hood
without the grease filters or if the filters
are excessively greasy!
●Do not install above a cooker with a
high level grill.
●Do not leave frying pans unattended
during use because overheated fats or
oils might catch fire.
●Never leave naked flames under the
cooker hood.
●If the cooker hood is damaged, do not
attempt to use.
●Do not flambé under the cooker hood.
●CAUTION: Accessible parts may
become hot when used with cooking
appliances.
●The minimum distance between the
supporting surface for the cooking
vessels on the hob and the lowest part
of the cooker hood. (When the cooker
hood is located above a gas appliance,
this distance shall be at least 65 cm)
●The air must not be discharged into a
flue that is used for exhausting fumes
from appliances burning gas or other
fuels. Range hoods and other cooking
fume extractors may adversely affect
the safe operation of appliances
burning gas or other fuels (including
those in other rooms) due to back flow
of combustion gases. These gases
can potentially result in carbon
monoxide poisoning. After installation
of a range hood or other cooking fume
extractor, the operation of open flued
gas appliances should be tested by a
competent person to ensure that back
flow of combustion gases does not
occur.
Always to do:
●Important! Always switch off the
electricity supply at the mains during
installation and maintenance such as
light bulb replacement.
●The cooker hood must be installed in
accordance with the installation
instructions and all measurements
followed.
●All installation work must be carried
out by a competent person or qualified
electrician.
●Please dispose of the packing material
carefully. Children are vulnerable to it.
●Pay attention to the sharp edges
inside the cooker hood especially
during installation and cleaning.
●Make sure the ducting has no bends
sharper than 90 degrees as this will
reduce the efficiency of the cooker
hood.
●Warning: Failure to install the screws
or fixing device in accordance with
these instructions may result in
electrical hazards.
●Warning: Before obtaining access to
terminals, all supply circuits must be
disconnected.

4
Always to do:
●Always put lids on pots and pans
when cooking on a gas cooker.
●When in extraction mode, air in the
room is being removed by the cooker
hood. Please make sure that proper
ventilation measures are being
observed. The cooker hood removes
odours from room but not steam.
●There shall be adequate ventilation of
the room when the cooker hood is
used at the same time as appliances
burning gas or other fuels.
●Cooker hood is for domestic use only.
●If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
●This appliance can be used by
children aged from 8 years and above
and persons with reduced physical,
sensory or mental capabilities or lack
of experience and knowledge if they
have been given supervision or
instruction concerning use of the
appliance in a safe way and
understand the hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made by
children without supervision.
Always to do:
●Caution: The appliance and its
accessible parts can become hot
during operation. Be careful to avoid
touching the heating elements.
Children younger than 8 years old
should stay away unless they are
under permanent supervision.
●There is a fire risk if cleaning is not
carried out in accordance with the
instructions
●Regulations concerning the discharge
of air have to be fulfilled.
●Clean your appliance periodically by
following the method given in the
chapter MAINTENANCE.
●For safety reason, please use only the
same size of fixing or mounting screw
which are recommended in this
instruction manual.
●Regarding the details about the
method and frequency of cleaning,
please refer to maintenance and
cleaning section in the instruction
manual.
●Cleaning and user maintenance shall
not be made by children without
supervision.
●When the cooker hood and
appliances supplied with energy other
than electricity are simultaneously in
operation, the negative pressure in the
room must not exceed 4 Pa (4 x 10-
5bar).
●WARNING: Danger of fire: do not
store items on the cooking surfaces.
●Asteam cleaner is not to be used.
●NEVER try to extinguish a fire with
water, but switch off the appliance and
then cover flame e.g. with a lid or a
fire blanket.

5
INSTALLATION (VENT OUTSIDE)

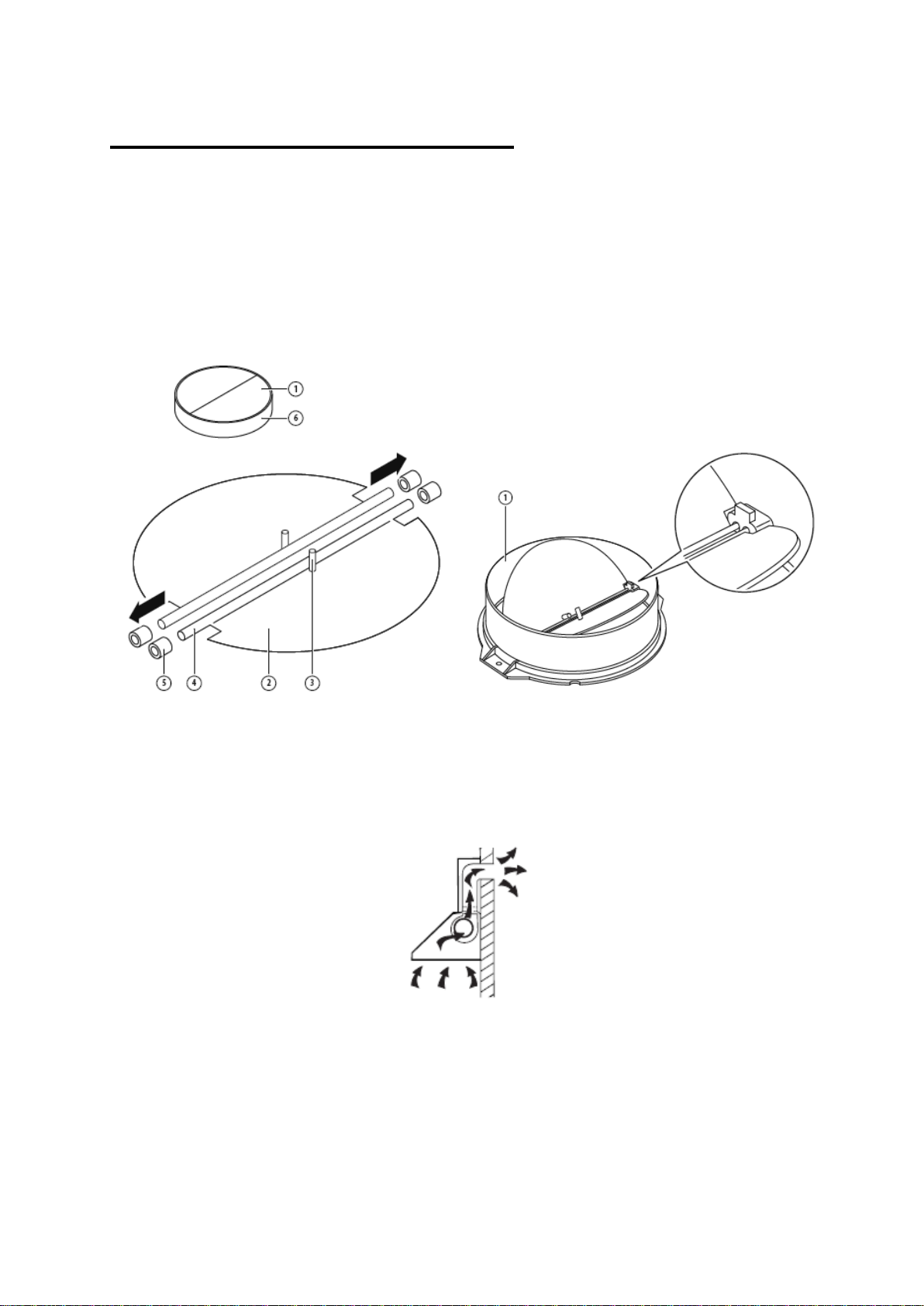

MOUNTING OF THE V-FLAP
If the cooker hood does not have an assembled V-flap 1, you should mount the half-
parts to its body.The images only show an example of how to mount the V-flap,
because the outlet may vary according to different models and configurations.
To mount the V-flap 1 you should:
• Mount two half-parts 2 into the body 6;
• the pin 3 should be top oriented;
• the axis 4 should be inserted into the holes 5 on the body;
• repeat all the operations for the 2nd half-part.
INSTALLATION
If you have an outlet to the outside, your cooker hood can be connected as below
picture by means of an extraction duct (enamel, aluminum, flexible pipe or non-
flammable material with an interior diameter of 150mm)
1. Before installation, turn the unit off.
2. The cooker hood should be placed at a distance of 65~75cm above the cooking
surface for best effect. See pic 1.

6
3. Install the hook on a suitable place once the installation height is fixed, and keep it
in line. The fixed position of the inside chimney bracket is the place of chimney.
See pic 2.
4. Attach the converter and expansion pipe, and fix the pipe on the converter with a
cable tie. Then put the cooker hood on the hook. See pic 3. Note:The expansion
pipe is not included in the product.
5. After adjust the height,fix the body with 2 pcs ST4*30mm safety screws. Note: The
two safety vents are positioned on the back housing, with diameter of 6mm. See
pic 4.
6. Lead the expansion pipe outside of the room, then use 2 pcs ST4*8mm screws to
install the outside chimney bracket onto the outside chimney, here should be sure
the inside chimney can be moved inside freely. See pic 5.
7. Put the two chimneys together onto the cooker hood body, meanwhile adjust the
height of the inside chimney into the suitable height, and fix the inside chimney to
the inside chimney bracket with 2 pcs ST4*8mm screws. See pic 6.

7
Electrical Installation
All installation must be carried out by a competent person or qualified electrician. Before
connecting the mains supply ensure that the mains voltage corresponds to the voltage on the
rating plate.
Direct Connection
The appliance must be connected directly to the mains using an omnipolar circuit breaker with
a minimum opening of 3mm between the contacts.
The installer must ensure that the correct electrical connection has been made and that it
complies with the wiring diagram.
The cable must not be bent or compressed.
Regularly check the power plug and power cord for damage. If the supply cord is damaged, it
must be replaced bya special cord or assembly available from the manufacturer or its service
agent.
WARNING: This is a Class I appliance and MUST be earthed
This appliance is supplied with a 3 core mains cable coloured as follows:
Brown = L or Live
Blue = N or Neutral
Green and Yellow = E or Earth
HINTS FOR EXHAUST DUCT INSTALLATION
The following rules must be strictly followed to obtain optimal air extraction:
• Keep expansion pipe short and straight.
• Do not reduce the size or restrict the expansion pipe.
• When using the expansion pipe always install the pipe pulled taut to minimize
pressure loss.
• Failure to observe these basic instructions will reduce the performance and increase
noise levels of the cooker hood.
• Any installation work must be carried out by a qualified electrician or competent
person.
•Do not connect the ducting system of the hood to any existing ventilation system
which is being used for any other appliance ,such as warmer tube, gas tube , hot wind
tube.
•The angle of the bend of the expansion pipe should not be less than 120º; you must
direct the pipe horizontally, or, alternatively, the pipe should go up from the initial point
and should be led to an outer wall.

8

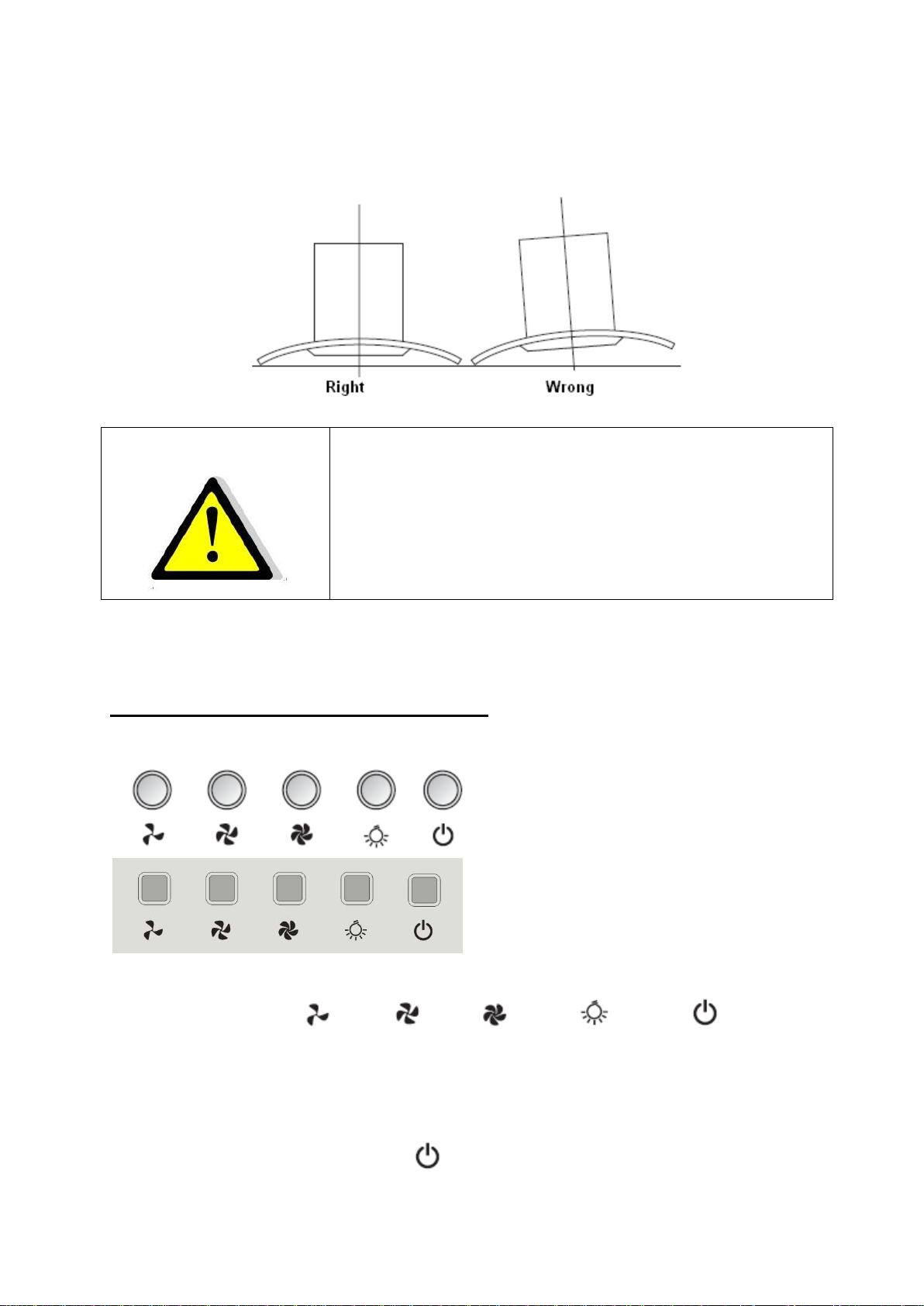

•After the installation ,make sure that the cooker hood is level to avoid grease
collection at on end.
•Ensure the expansion pipe selected for installation complies with relevant standards
and is fire retardant.
WARNING:

For safety reason, please use only the same
size of fixing or mounting screws
which are
recommended in this instruction manual.
Failure to install the screws or fixing device in
accordance with these instructions may result
in electrical hazards.

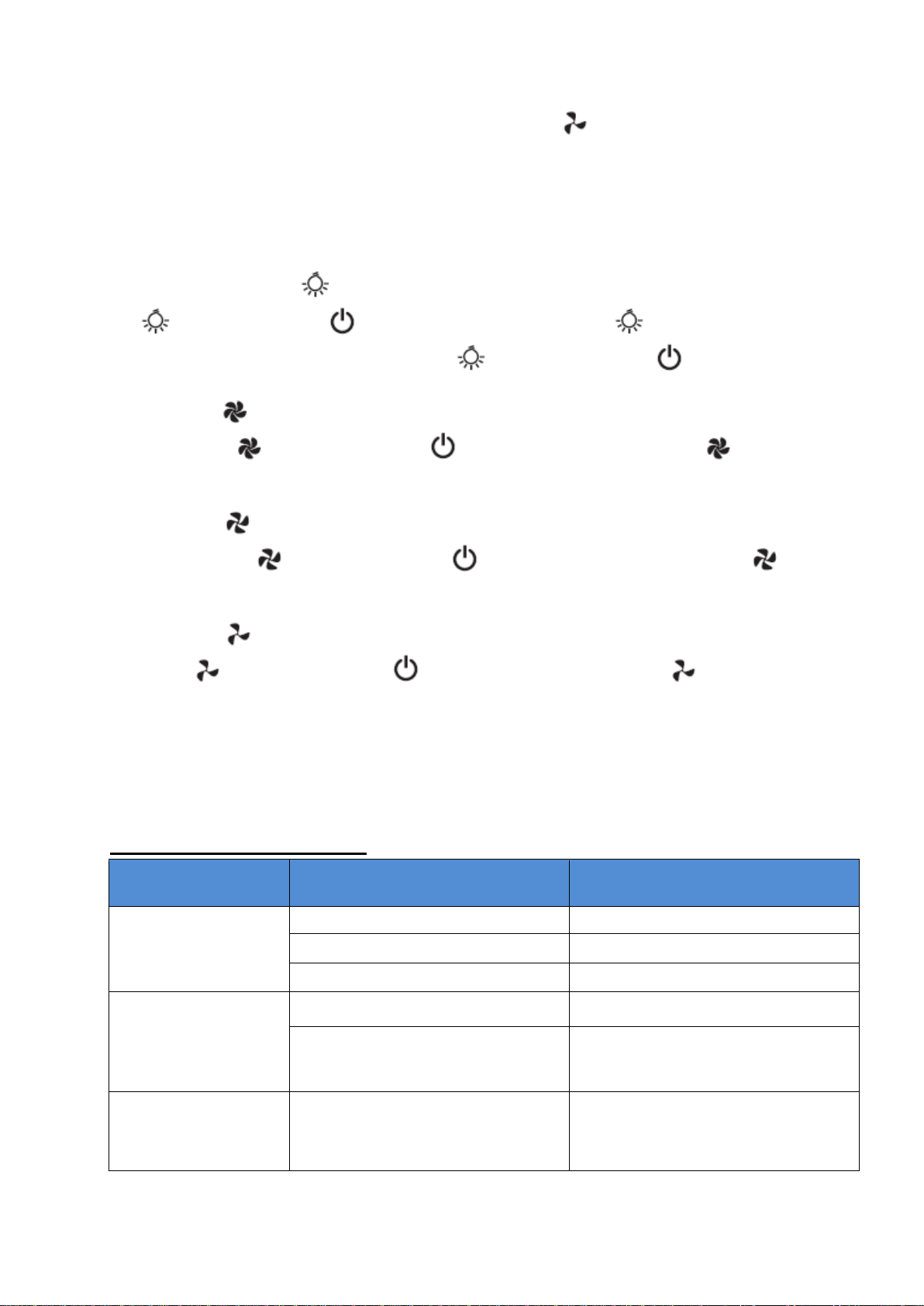

Start Using Your Cooker Hood
Electronic button
There are five buttons: (Low), (Mid), (High), (Lamp),
(Power).See picture above.
1. After connecting to power, indicator light will lit on, all the output close and the hood
will enter standby mode. The indicator light will be off automatically after reminding
if no operation.
2. Power on: Press power button once, its indicator light will lit on, the hood

9
works at low speed. Indicator light of low speed will be bright. Press power
button again to close it, and its indicator light will be off. All the function operation of
the hood will be closed, the hood enters into standby mode, and run by circle.
The speed buttons and lamp button can work separately and not controlled by the
power button. When a certain function button is pressed, the hood operates at that
function status. Press (Power) button under any status, the cooker hood will be
switched off without any functions.
3. Press lamp button once; lights will be turn on. Indicator light of lamp button
and power button will lit on. Press lamp button again to turn off the
lights. Indicator light of lamp button and power button will be off. And
recycle like this.
4. Press the (High) button once, motor runs on high speed, the indicator light of
high button and power button will beam. Press high button again and
the motor will stop. Indicator light of high button and power button will be off,and
run by circle.
5. Press the (Mid) button once, motor runs on middle speed, the indicator light of
middle button and power button will beam. Press middle button again
and the motor will stop. Indicator light of middle button and power button will be
off,and run by circle.
6. Press the (low) button once, motor runs on low speed, the indicator light of low
button and power button will beam. Press low button again and the
motor will stop. Indicator light of low button and power button will be off,and run by
circle.
7. Low speed, mid speed and high speed cannot work at the same time. When hood
is on high speed, press low speed, it will turn to low speed at once; when it is in low
speed, press middle speed, it will turn to middle speed immediately, and so on.
TROUBLESHOOTING
Fault Possible Cause Solution
Light on, but motor
does not work
Fan switch turned off Select a fan switch position.
Fan switch failed Contact service center.
Motor failed Contact service center.
Light does not
work, motor does
not work
House fuses blown Reset/Replace fuses.
Mains power cable is loose or
disconnected
Refit mains power cable to
power outlet.
Switch power outlet on.
Oil leakage One way valve and the outlet
are not tightly sealed Take down the one way valve and seal with sealant.

10
Leakage from the connection of
chimney and cover Take chimney down and seal.
Lights not working Broken or faulty bulbs Replace bulbs as per this
instruction.
Insufficient suction
The distance between the
cooker hood and the gas top is
too far
Refit the cooker hood to the
correct distance.
The Cooker hood
inclines The fixing screw is not tight enough Tighten the hanging screw and make it horizontal.
NOTE:
Any electrical repairs to this appliance must conform to your local, state and
federal laws.Please contact the service centre if in any doubt before
undertaking any of the above.Always disconnect the unit from the power source when
opening the unit.
MAINTENANCE AND CLEANING
Caution:
• Before maintenance or cleaning is carried out, thecooker hood should be
disconnected from the mains power supply. Ensure that the cooker hood is
switchedoff at the wall socket.
• External surfaces are susceptible to scratches andabrasions, so follow the cleaning
instructionsto ensure the best possible result is achieved withoutdamage.
GENERAL
Cleaning and maintenance should be carried out withthe appliance cold especially
when cleaning.Avoid leaving alkaline or acid substances (lemonjuice, vinegar etc.) on
the surfaces.
STAINLESS STEEL
The stainless steel must be cleaned regularly (e.g.weekly) to ensure a long life
expectancy.Dry with a clean soft cloth. A specialized stainlesssteel cleaning fluid may
be used.
NOTE:
Ensure that wiping is done along with thegrain of the stainless steel to prevent
anyunsightly crisscross scratching patterns fromappearing.
CONTROL PANEL SURFACE
The inlay control panel can be cleaned using warmsoapy water. Ensure the cloth is
clean and well wrungbefore cleaning. Use a dry soft cloth to remove anyexcess
moisture left after cleaning.
Important
Using neutral detergents and avoid using harsh cleaning chemicals, stronghousehold
detergents or products containingabrasives,as this will affect the appearanceof the
applianceand potentially remove any printingof artwork on the control panel and will

11
voidmanufactures warrantee.
GREASE MESH FILTERS
The mesh filters can be cleaned by hand.Soak them for about 3 minute in water with a
mild detergent and then brush it gently with a soft brush. Do not apply too much
pressure so as to avoid any damage to it . (Leave to dry naturally out of direct sun light)
Filters should be washed separately to crockery andkitchen utensils. It is advisable not
to use rinse aid.
INSTALLING GREASE MESH FILTERS
• To install filters for the following four steps:
- Angle the filter into the slots at the back of the hood.
- Push the button on the handle of the filter.
- Release the handle once the filter fits into a resting position.
- Repeat to install all filters.
CARBON FILTER-not supplied
Activated carbon filter can be used to trap odors. Normally the activated carbon filter
should be changed every 3 to 6 months according to your cooking habits. The
installation procedure of activated carbon filter is as below:
1. In order to install the activated carbon filter, the mesh filter should be detached first.
Press the lock and pull it downward.
2. Turn the carbon filter on both sides of the motor anti-clockwise. Replace the carbon
filters with the new carbon filters.
3. Place the mesh filter.
4. Connect the power supply to the wall socket.

12
NOTE:
•Make sure the filter is securely locked. Otherwise, it would loosen and cause
danger.
•When activated carbon filter attached, the suction power will be lowered.
BULB REPLACEMENT
Important :

The bulb must be replaced by the manufacturer, its
service agent or similarly qualified persons.

Always switch off the electricity supply before
carrying out any operations on the appliance. When
handling bulb, make sure it ha
s completely
cooleddown before any direct contact with hands.
When handling bulb
s hold with a cloth or gloves
toensure perspiration does not come in contact with
thebulb as this can reduce the life of the bulb.
Note:
Before replacing light that the cooker hood can be isolated from the supply
mains by means of a plug or an all pole switch.
Protect against danger when changing lights, such as wearing gloves.
Changing the lights:
Remove the grease filter.
Use a tool or the hand to press the spring splinter of both sides of LED light to the
inside, until the light is pressed out, see pic 1.Then slightly pull the light connecting
wire out, and dismantle the terminal of the light connecting wire. See pic 2.
Apply the reverse procedure to install the light back.
• ILCOS D code for this lamp is: DSR-1.5/65-S-64
– LED modules– round lamp
– Max wattage: 2×1.5W
– Voltage range: DC 12V
– Dimensions:

13
ENVIRONMENTAL PROTECTION:
NOTE:
The following shows how to reduce total environmental impact (e.g. energy use) of the
cooking process).
(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.
INFORMATION FOR DISMANTLING
Do not dismantle the appliance in a way which is not shown in the user manual. The
appliance could not be dismantled by user. At the end of life, the appliance should
not be disposed of with household waste. Check with your Local Authority or retainer
for recycling advice.
This appliance is labelled in accordance with European Directive 2012/19/EU on Waste Electrical
and Electronic Equipment Regulations 2013 regarding electric and electronic appliances (WEEE).
The WEEE contain both polluting substances (that can have a negative effect on the environment)
and base elements (that can be reused). It is important that the WEEE undergo specific treatments
to correctly remove and dispose of the pollutants and recover all the materials. Individuals can
play an important role in ensuring that the WEEE do not become an environmental problem; it is
essential to follow a few basic rules:
- the WEEE should not be treated as domestic waste;
- the WEEE should be taken to dedicated collection areas managed by the town council or a registered
company.
ln many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the
old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance
is of an equivalent type and has the same functions as the purchased appliance.
