Hope Industrial Systems HIS-ML18B User manual

1
Hope Industrial Systems, Inc.
User Manual
18” Industrial LCD Monitor
Model No. HIS-ML18B

2
TABLE OF CONTENTS
Safety and Regulatory Information.............................3
Using the LCD Display...............................................4
Adjusting the Screen Image.......................................5
Main Menu Controls...................................................6
Installation Instructions ..............................................9
Cleaning...................................................................11
Troubleshooting.......................................................12
Specifications...........................................................13
Warranty Statement.................................................16

3
Safety and Regulatory Information
Warning
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
Dangerously high voltages are present inside the unit. Do not disassemble the
unit. Refer servicing to qualified personnel only.
This equipment is not intended for use in critical applications where its failure
to operate would create immediate life threatening circumstances. Applica-
tions including, but not limited to, nuclear reactor control, aerospace naviga-
tion systems and life support systems are not appropriate for this product.
This product is intended to be mounted in a suitable cabinet or other enclosure.
The NEMA 4, 4x or 12 ratings are applicable only when properly installed in a
like rated enclosure.
This product is a UL Recognized Component and must be used with a listed
computer.
FCC Notice
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense. Any changes or modifica-
tions not expressly approved by the grantee of this device could void the user’s authority to operate
the device.

4
Using the LCD Display
Setting the Timing Mode
Setting thetiming modeisimportant for maximizing thequality of thescreen im-
age and minimizing eye strain. The timing modeconsistsof theresolution (exam-
ple1280 x 1024) and r efr esh r ate (or vertical frequency; example 75 Hz). After
setting thetiming mode, usethecontrolsto adjust thescreen image.
For thebest picturequality set your LCD display timing modeto: VESA 1280 x
1024 @ 60Hz.
To set theTiming Mode:
1 Set theresolution: Right-click on theWindowsdesktop > Pr oper ties > Set-
tings > set the resolution.
2 Set the refresh rate: See your graphic card's user guide for instructions.
WARNING: Do not set thegraphicscard in your computer to exceed themaxi-
mum refresh rateof 75Hz; doing so may result in permanent damageto your LCD
display.
OSD and Power Lock Settings
• OSD L ock: Pressand hold [1] and theup arrow for 10 seconds. If any but-
tons are pressed the message OSD Locked will display for afew seconds.
• OSD Unlock: Pressand hold [1] and theup arrow again for 10 seconds.
• Power Button Lock: Pressand hold [1] and thedown arrow for 10
seconds. If thepower button ispressed themessage Power Button Locked
will display for afew seconds. With or without thissetting, after apower
failure, your LCD display’spower will automatically turn ON when power
is restored.
Power Button Unlock: Press and hold [1] and the down arrow again for 10
seconds.

5
Adjusting the Screen Image
Use thebuttons on the rear control panel to display and adjust theOn-Screen Display (OSD) con-
trols which display on thescreen.
Do the following to adjust thescreen image:
1 To display the Main Menu, press button [1].
NOTE: All OSD menus and adjustment screens disappear automatically after about 30 seconds.
2 To select acontrol you want to adjust, press▲ or ▼to scroll up or down the Main Menu.
3 After the control is selected, pressbutton [2]. A control screen liketheoneshown below ap-
pears.
4 To adjust the control, presstheup ▲or down ▼buttons.
5 To save the adjustments and exit the menu, press button [1] twic e.
The following tips may help you optimizeyour display:
• Adjust your computer'sgraphic card so that it outputsavideo signal 1280 x 1024 @ 60 Hz to the
LCD display. (Look for instructionson "changing the refresh rate" in your graphic card'suser
guide.)
• If necessary, make small adjustments using H POSITION and V POSITION until the screen
image is completely visible. (The black border around the edge of the screen should barely touch
theilluminated "active area" of the LCD display.)

6
Main Menu Controls
Adjust themenu itemsshown below by using theup ▲ and down ▼ buttons.
Control
Explanation
Auto Image Adjust
automatically sizes, centers, and fine tunes the video signal to
eliminate waviness and distortion.
Pressthe[2] button to obtain asharper image.
NOTE: AutoImageAdjust workswithmost common video cards. If thisfunction
doesnot work on your LCD display, then lower thevideo refresh rateto 60 Hz and
set the resolution to itspre-set value.
Contrast adjusts the difference between the image background (black level) and the
foreground (white level).
Brightness
adjusts background black level of the screen image.
Color Adjust providesseveral color adjustment modes: preset color temperatures
and
RGB
which allowsyou to adjust red
(
R), green
(
G), and blue
(
B) separately.
The factory setting for thisproduct is6500K (6500 Kelvin).
9300K
— Adds blue to the screen image for cooler white (used in most office set-
tingswith fluorescent lighting).
6500K
— Adds red to the screen image for warmer white and richer red.
5400K
— Adds green to the screen image for a darker color.
5000K
— Adds blue and green to the screen image for a darker color.
User Color
— Individual adjustments for red (R), green (G), and blue (B).
1
To select color (R, G or B) pressbutton [2].
2
To adjust selected color, press ▲ or down ▼.
Importan
t: If you select RECALL from the Main Menu when the product is set to a
Preset Timing Mode, colorsreturn to the6500K factory preset.

7
Manual Image Adjust
displays the Manual Image Adjust menu.
The
Manual Image Adjust
controls are explained below:
Horizontal Size
adjusts the width of the screen image.
Horizontal Position
moves the screen image left or right.
Vertical Position
moves the screen image up or down.
Fine Tune
sharpens focus by aligning the illuminated text and/or graphic characters.
Sharpness
adjusts the clarity and focus of the screen image.
Scaling
adjuststhe video input signal to the screen sizeusing thefollowing options.
Fill screen
adjusts the video signal to fill the screen.
Fill Aspect Ratio
maintainsthecorrect video signal proportionsfor differ-
ent resolutions.
1:1
adjuststhe video signal so that the height and width of the pictureare
the same.
Setup Menu
displaysthe menu shown below.
The
Setup Menu
controls are explained below:
Language
allowsyou to choosethelanguage used in themenusand control screens.

8
Resolution Notice
displaystheResolution Noticemenu shown below.
Resolution Notice
advises the optimal resolution to use.
OSD Position
allowsyou to movetheon-screen display menus and control screens.
OSD Timeout
sets the length of time an on-screen display screen is displayed. For
example, with a“15 second” setting, if acontrol isnot pushed within 15 seconds,
the display screen disappears.
OSD Background allows you to turn the On-Screen-Display background on or off.
Memory Recall
returnsadjustments to the original factory settingsif thedisplay is
operating in a factory Preset Timing Modelisted in thisuser guide.
Exception: Thiscontrol doesnot affect changes made with the User Color control.

9
Installation Instructions
Preparing for Installation
Important! Perform the following steps BEFORE Installation of the moni-
tor into the panel.
1. Ensure that sufficient power is available.
2. Ensure that sufficient space is available to allow for proper airflow into and
out of the unit.
3. Ensure that the air temperature around the unit (top and bottom) will not ex-
ceed the rated specifications of the unit.
The maximum rated temperature of the HIS-ML18 is 45 ° C (113 ° F)
when properly ventilated with moving air across the back of the
unit– consult the factory for installation instructions when conti-
nuous 24/7 operation exceeds 40 ° C (104 ° F).
Remember that heat rises – the temperature at the top of the cabi-
net will be much hotter than at the bottom when the air is not cir-
culating.
Also, remember that even though this product is designed to oper-
ate at 45 ° C with proper ventilation, the life span of any electronic
device is shortened when it is consistently operated at high tem-
peratures. Therefore it is wise to take steps to keep the tempera-
ture of the ambient air around the unit as low as possible.
4. Ensure that the ambient humidity of the air around the unit does not exceed
the rated specifications for the unit
The maximum rated humidity for the HIS-ML18 is 90% non-
condensing

10
Installation into Panel

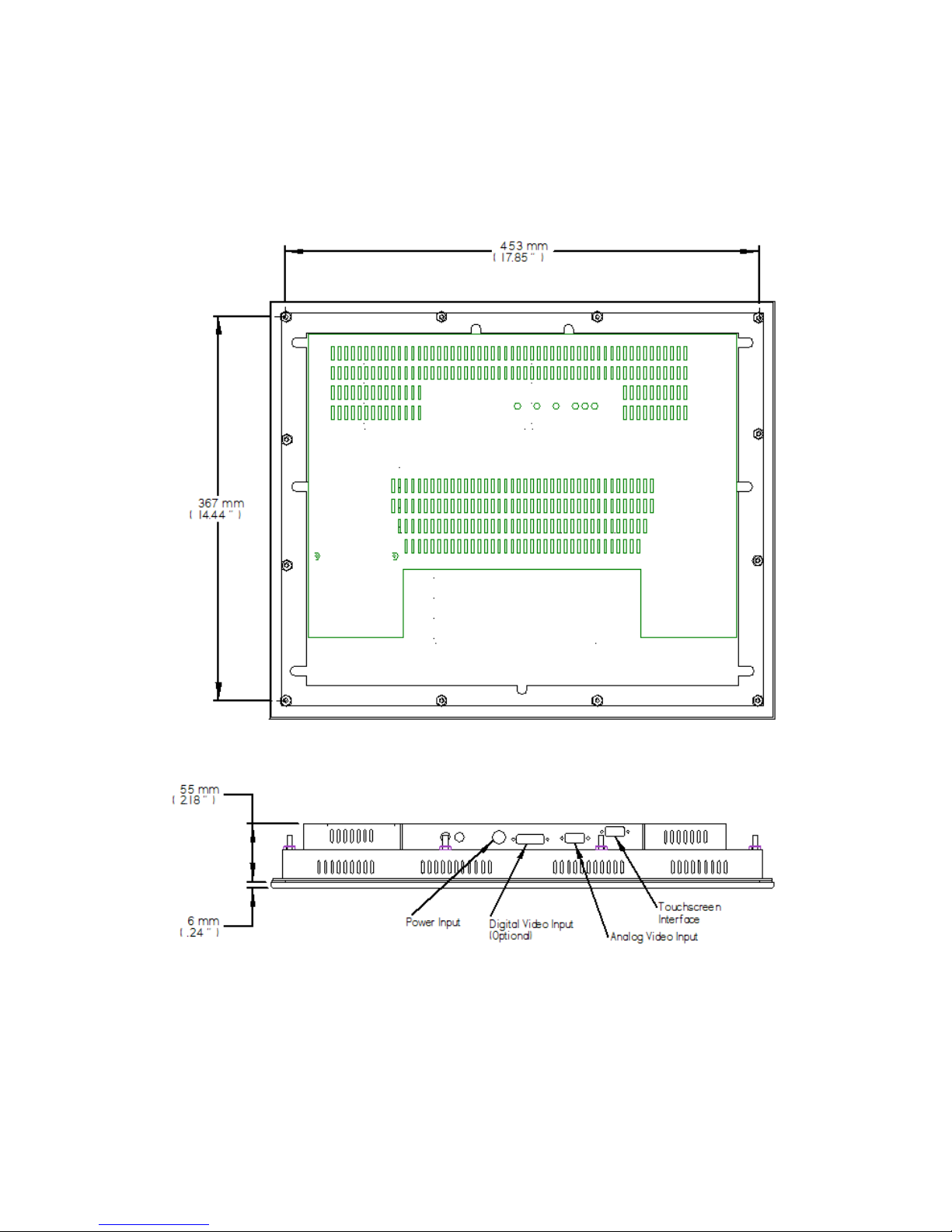

1. Refer to the drawing below.
2. Locate position in panel for mounting of the monitor. Assure that there
is adequate space begin the panel. Allow extra space (0.5 in. behind and
on each side) for air ventilation.
3. Cut a rectangular hole in the panel. Clean and deburr.
Dimensions: 17.85” (454mm) W x 14.44” (367mm) H ; +/- .020”

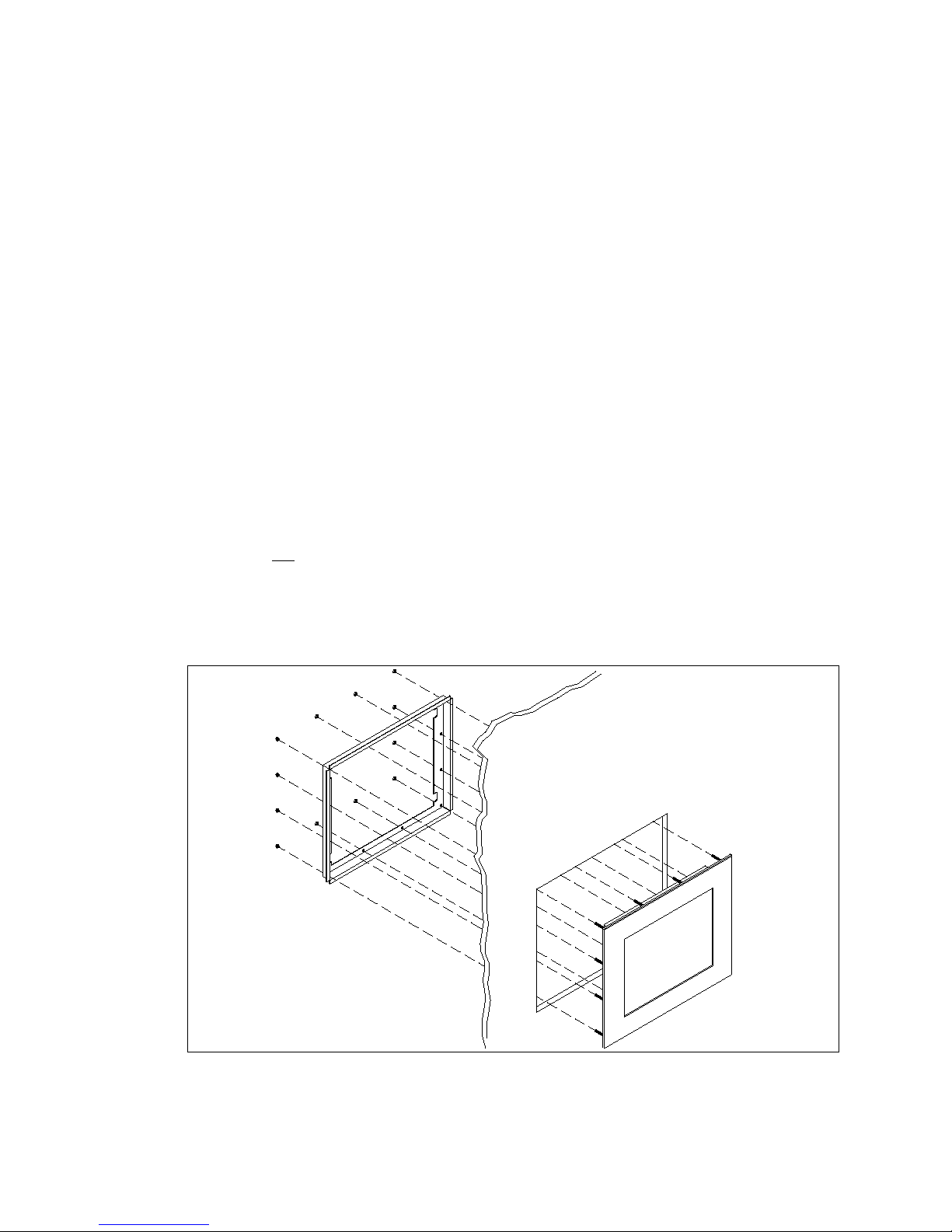

4. Separate the rear collar from the unit by removing the 12 nuts.
5. Insert the unit into the front of the panel and re-attach the collar.
6. Tighten all 12 nuts to a torque of 24 inch-pounds to assure a water-tight
seal between the poron bezel gasket on the monitor and equipment panel.
HIS will not assume liability for damage to internal electronics due to
improper installation.

11
Cleaning
Resistive Touchscreen model
Any standard glass cleaner can be used to clean the touchscreen.
Always spray the glass cleaner on the cloth or towel and then clean
the touchscreen. Glass cleaner sprayed directly on the monitor could
possibly leak inside a non-sealed unit and cause damage.
Vinegar or ammonia will not hurt the touchscreen. Again, spray the cloth
and then clean the touchscreen.
Tempered Anti-Reflective Glass Window
Use any standard glass cleaner as long as there is no abrasive or oily con-
tent. The anti-reflective coatings are physically part of the surface of the
glass and resist degradation to the Military Specifications.
Acrylic Bezel
The acrylic front bezel can be cleaned in the same manner as the touch-
screen or glass window.

12
Troubleshooting
Blank Screen After installing the power adapter and connecting I/O cable to a PC, the
monitor displays a blank screen.
•Press the power button and check to see if the power LED is lit.
•If the LED is not lit, make sure the PC is powered on. Make sure all
cables are connected.
•If the LED stays yellow, check to see if the PC is in the power saving
mode by pressing any keys on the keyboard.
Rolling Screen
•Change PC display resolution to 1280x1024 at 60hz.
•Unplug the power adapter to monitor, then plug it in again.
•Press monitor power button again.
•Reset the monitor to the original factory setting.
•Press “Auto Adjust” button on OSD menu.
Unstable Screen
•Select “Auto Adjust”.
•Make sure the PC display resolution is not set greater than
1280x1024 at 60hz.
•Make sure the PC display resolution matches one of the factory-
preset timings in this manual.
•Change the PC display resolution to 1280x1024 at 60hz.
•Reset the monitor to the factory setting.
•Select “Auto Adjust”.
Screen is not perfect
•Make sure the PC display resolution matches one the factory preset
timings shown in this manual.
•Recall factory setting. Refer to panel controls and OSD functions in
this manual.
•Fine-tune the picture by performing the following adjustments in this
order – pitch, phase, and position. Refer to OSD functions in this
manual.

13
Drawings

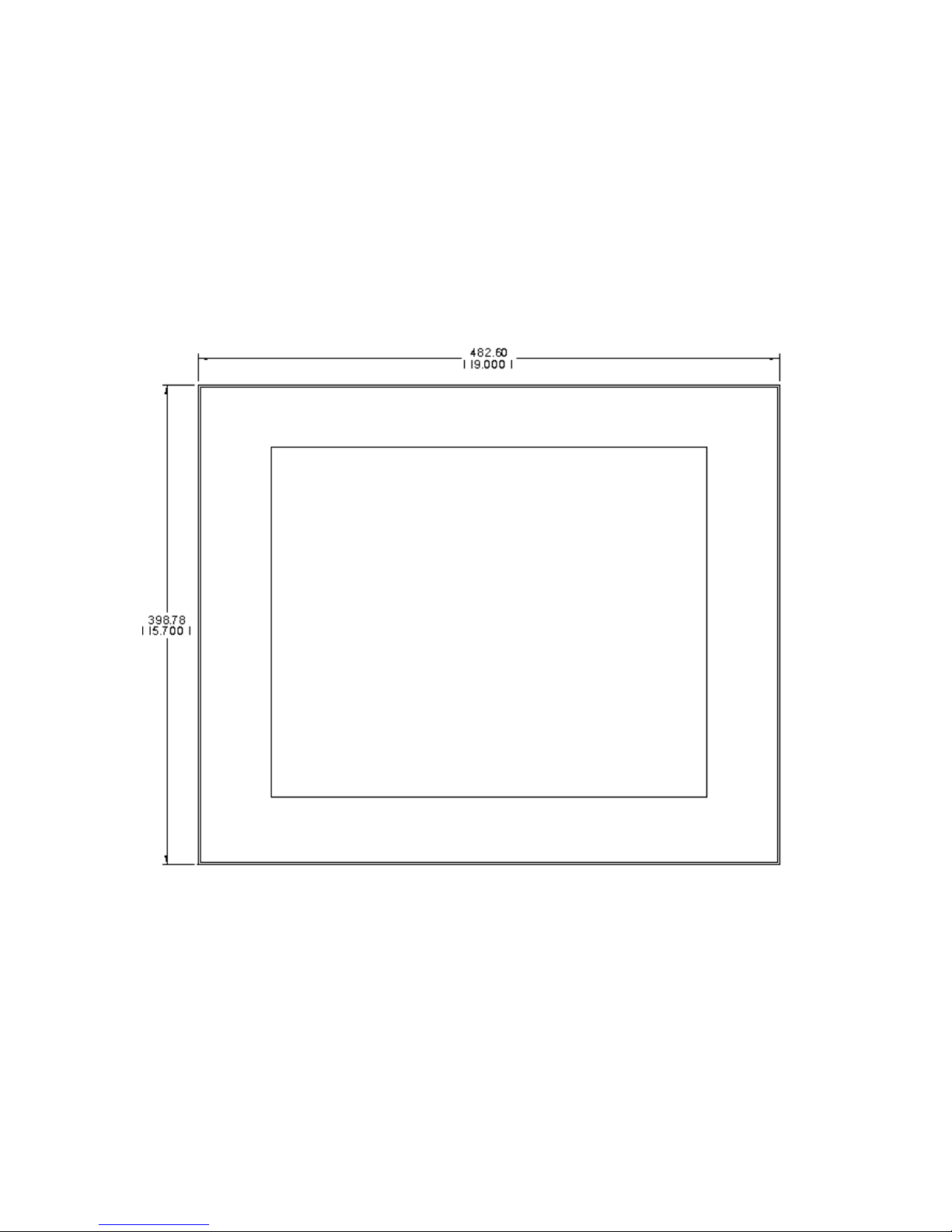

Front View

14
Bottom and Rear View (showing cutout dimensions)

15
Specifications
Display
Type
Thin-film transistor (TFT) Active Matrix Liquid Crystal
Size
18.0” diagonal
Image size
14.1” (359mm) x 11.3” (287mm)
Native resolution
SXGA (1280 x 1024) @ 60 Hz
Plug and Play
DDC1/2B compatible
Minimum resolution
VGA (640 x 350), operation in native resolution (1280 x
1024) will ensure best results
Pixel pitch
0.281mm (H) x 0.281 mm (V)
Number of colors
16M (24 bit)
Viewing Angle (Hori/Vert)
160
°
/ 160
°
, typical
Brightness (white)
250 nits (cd/m2) min
Contrast ratio
600:1 (min.)
Back light 4 CCFTs (Cold Cathode Fluorescent Tube);
60,000 hours, half-life; replaceable
Screen protector (when
not shipped with touch-
screen)
Tempered glass to ANSI-Z97.1 SPEC; AR coated on both
sides; 98% Transmission of light; 99% Reduction of glare;
53% UV blocking; 30% NIR Blocking; proprietary hydrophob-
ic coating on outside reduces fingerprint smears, repels liq-
uid spills and makes glass easy to clean.
Video
Input connector
HD-15 plus optional DVI digital input
Input signal format Analog RGB signals, DVI Analog/Digital, S-Video, 0.7 Vp-p
Horizontal scan 31kHz – 64kHz
Supported Video Stan-
dards Std VGA – 640x480 @ 60Hz SVGA – 800x600 @ 60Hz
XGA – 1024x768 @ 60Hz
1280x1024 @ 60 Hz (native)
Vertical scan 50 Hz – 80 Hz
Response rate (typical) 25 ms, typical

16
Electrical
Power Adapter Input
100VAC – 240VAC, 50-60 Hz
Power adapter output
12VDC @ 5.0 amps
Monitor input
12VDC
Power consumption
Approximately 46 watts
Power management
DPMS/energy star, < 3W
Compliance
UL 1950, cUL 959; FCC Class A
Environmental
Temperature
0-45°C (consult factory for installation instructions when con-
tinuous 24/7 operation exceeds 40
°
C)
Humidity
20% to 90% non-condensing
Shock
30g (1/2 sine, 11 msec.)
Vibration
0.006 inch p-p 15-57Hz, 1.0g 57-640Hz sine
Altitude
Operating: up to 10,000 feet; Non-operating: up to 40,000
feet
Functional
Panel controls (rear
access)
Power (soft), 1, DOWN, UP, 2
OSD (On Screen Display)
controls Auto image adjust, contrast, brightness, color adjust (9300K,
6500K-default, 5400K, 5000K, user color), manual image
adjust (H/V size/position, fine tune, sharpness, scaling), se-
tup menu (language, resolution notice, OSD position, OSD
timeout, OSD background), memory recall)
Touch screen option
Elo Touch systems AccuTouch 5-wire resistive system;
emulates a mouse; RS-232 interface to host computer
Rack mount option
Fits in standard 19” EIA rack, 9U height

17
Enclosure
Type Panel mount; rear collar compresses gasket against panel,
held by 12 10-32 studs
Panel rating
NEMA 12/4/4X (with proper installation) – built to IP65 stan-
dards
Physical
Depth
2.1” (64mm) behind panel maximum
Bezel
Acrylic - matte finish, black; or Stainless Steel
Front bezel outside di-
mensions 19.0” (483mm) W x 15.7” (399mm) H x 0.236” (6mm) thick
(not including gasket)
Cutout dimensions 17.60” (452mm) W x 14.40” (366mm) H ; +/- .020”
Net weight
19 lbs.
Shipping weight
25 lbs.
VGA Pin assignment
Pin No. Signal Pin No. Signal
1
Red
9
No pin
2
Green
10
Ground
3
Blue
11
Ground
4
Ground
12
SDA
5
Ground
13
H. sync
6
Ground
14
V. sync
7
Ground
15
SCL
8
Ground

18
Warranty Statement
Who is Covered?
This warranty covers the purchaser of this product only and is not transferable without our written consent.
What Does This Warranty Cover and What is the Period of Coverage?
We warrant this product to be free from defects in material and workmanship, subject to the conditions set forth
below. This warranty remains in force for a three-year period beginning on the date we invoice you for the
product. If HIS repairs or replaces a product under warranty, its warranty term is not extended.
What Will We Do to Correct Problems and How Do You Get Service?
We will repair or replace (at our sole option) any part of the unit which proves to be defective. Replacement
parts may be new or refurbished and will meet the same specifications of the original parts or unit. We will
return the product to you, by the shipping method we choose in the U.S.A. at our expense. You must pay for
shipments to locations outside of the U.S.A. In order to receive warranty service you must get prior approval
from HIS. To request warranty service you can telephone us at 770-992-0297 or send an email to ser-
[e-mail]. If we determine that warranty service is needed we will give you a Return Material
Authorization (RMA) number. This RMA number must be conspicuously marked on the outside of the ship-
ping box. HIS will not accept shipments not accompanied by the RMA number. You must ship or deliver the
product to HIS Freight prepaid.
Pixel Faults
Permanently dark or bright pixels can happen to TFT displays. Five or less permanently dead pixels (out of 1.3
million) do not make a good case for exchanging the unit. Please contact our Customer Service Department if
the number of pixel faults exceeds the above-mentioned figure.
What Does This Warranty Not Cover?
This warranty does not cover equipment which has been damaged due to misuse, abuse or accident such as:
operating the equipment outside of published specifications; displaying fixed images for long periods of time
resulting in afterimage effects; improper or unauthorized repair by anyone other than HIS or a service agency
authorized by HIS to perform such repairs; fire, flood, “acts of God”, or other contingencies beyond the control
of HIS.
HIS’ RESPONSIBILITY FOR MALFUNCTIONS AND DEFECTS IN HARDWARE IS LIMITED TO REPAIR AND REPLACEMENT AS
SET FORTH IN THIS WARRANTY STATEMENT.HIS SHALL NOT BE LIABLE FOR DIRECT,INDIRECT,INCIDENTAL,
CONSEQUENTIAL,OR OTHER TYPES OF DAMAGES RESULTING FROM THE USE OF ANY HIS PRODUCT OTHER THAN THE
LIABILITY STATED ABOVE.THESE WARRANTIES ARE IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED,
INCLUDING,BUT NOT LIMITED TO,THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE.SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR THE LIMITATION OR
EXCLUSION OF LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE EXCLUSIONS OR
LIMITATIONS MAY NOT APPLY TO YOU.You are cautioned that the performance of this product can be affected by
many factors, such as system configuration, software, application, and operator control of the system. It is your
responsibility to determine suitability of this product for your purpose and application.
Hope Industrial Systems

19
Publication UM-ML18B-1.0 August 2002 2002 Hope Industrial Systems, Inc.
