Hopeland Shine HH340 User manual
- 1 -
HH340/380
Shine 340/380
User Manual
- 2 -
Welcome to become user of Hopeland RFID products.
Thank you for choosing the multi-port reader Shine 340/380,
hope to bring convenience for your work
- 3 -
CONTENTS
1.TECHNICAL SPECIFICATIONS.............................................................................................................................. - 5 -
1.1 FEATURES................................................................................................................................................................- 5 -
1.2 MAIN FUNCTIONS AND TECHNICAL PERFORMANCE............................................................................................ - 5 -
1.2.1 Product Features........................................................................................................................................- 5 -
1.2.2 Typical Applications.................................................................................................................................. - 5 -
1.2.3 Specifications..............................................................................................................................................- 5 -
2. SKETCH MAP............................................................................................................................................................. - 8 -
2.1 PHYSICAL CONSTRUCTION..................................................................................................................................... - 8 -
2.2 NET WEIGHT........................................................................................................................................................... - 8 -
2.3 INTERFACE DIAGRAM............................................................................................................................................. - 8 -
2.3.1 Power, Communication And I/O Interfaces......................................................................................- 8 -
2.3.2 I/O Interface Definition.......................................................................................................................... - 9 -
2.3.3 Coaxial RF Feeder Cable (optional).................................................................................................... - 12 -
2.3.4 Network Connection Diagram.............................................................................................................. - 12 -
2.3.5 HDMI Output Description....................................................................................................................... - 12 -
2.3.6 USG OTG Function Description........................................................................................................... - 12 -
3. INSTALLATION INSTRUCTIONS........................................................................................................................ - 13 -
3.1 PRECAUTIONS....................................................................................................................................................... - 13 -
3.2 INSTALLATION CONDITIONS................................................................................................................................... - 13 -
3.3 DEVICE CONNECTION...........................................................................................................................................- 14 -
3.3.1 Connect Power Adapter Or PoE Switch............................................................................................ - 14 -
a.Connect Power Adapter............................................................................................................................- 14 -
b.Connect PoE Switch................................................................................................................................... - 14 -
3.3.2 Connect External Antenna And RF Cable......................................................................................... - 15 -
3.3.3 Connect to PC........................................................................................................................................... - 15 -
3.3.4 Install SIM Card.........................................................................................................................................- 15 -
3.4 INSTALL READER.................................................................................................................................................. - 16 -
3.5 ACCEPTANCE........................................................................................................................................................ - 16 -
3.5.1Structural Acceptance............................................................................................................................ - 16 -
3.5.2 Performance Acceptance......................................................................................................................- 16 -
4. ANDROID OS DEMONSTRATION OPERATION.............................................................................................. - 17 -
4.1 HDMI HIGH-DEFINITION DISPLAY OUTPUT INTERFACE.................................................................................... - 17 -

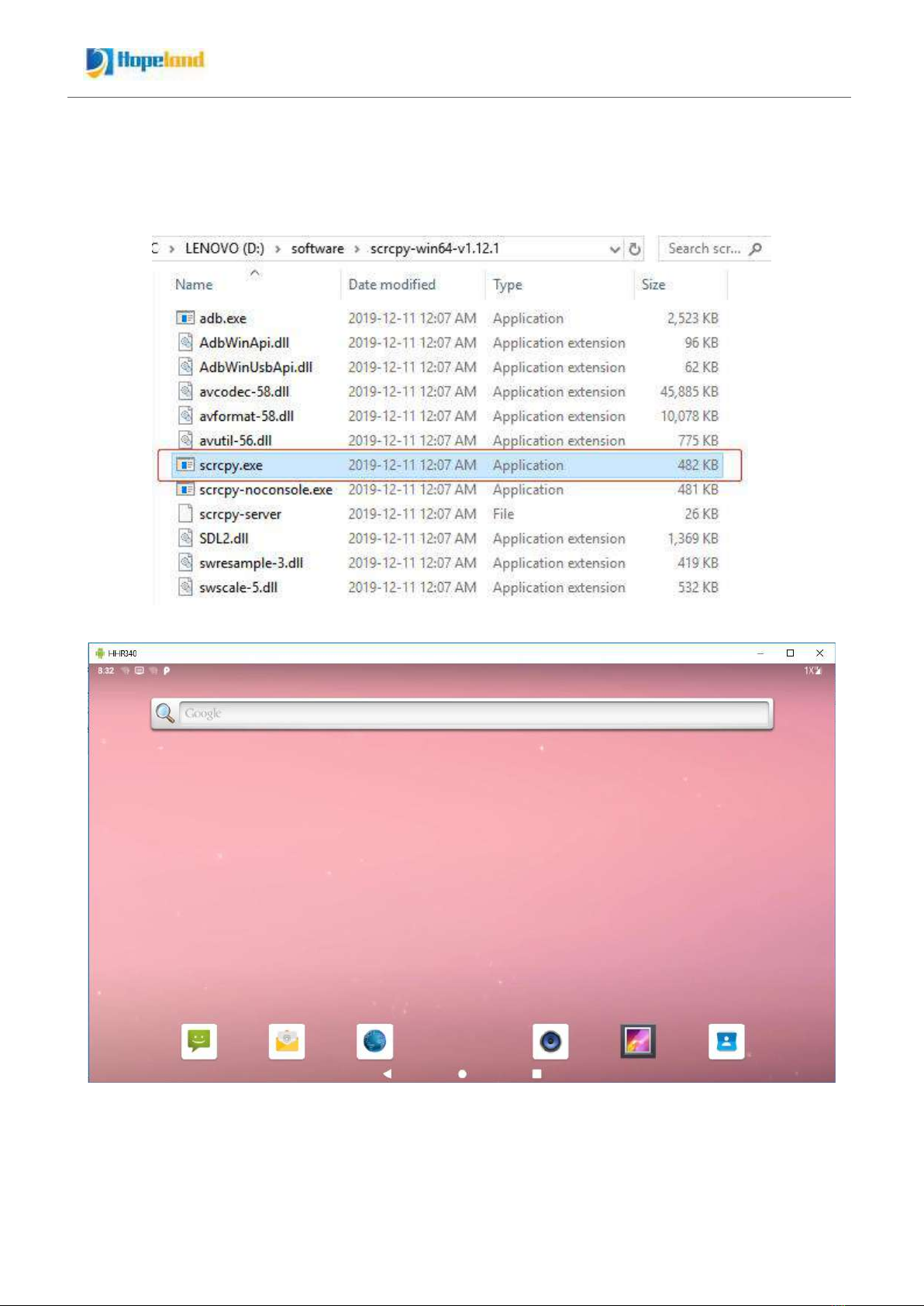

4.2 DISPLAY READER ANDROID OS TO PC VIA SCRCPY.........................................................................................- 17 -
4.3 WIFISETTINGS..................................................................................................................................................... - 18 -
4.4 BLUETOOTH SETTINGS.........................................................................................................................................- 19 -
4.5 MOBILE NETWORK SETTINGS.............................................................................................................................. - 22 -
4.6 RUN ANDROID DEMO........................................................................................................................................... - 22 -
- 4 -
5. WEB PAGE OPERATION INSTRUCTIONS........................................................................................................- 25 -
5.1 SYSTEM LOGIN......................................................................................................................................................- 25 -
5.1.1 Login............................................................................................................................................................ - 25 -
5.1.2 System Navigation................................................................................................................................... - 25 -
5.2 RFID SETTINGS....................................................................................................................................................- 26 -
5.2.1 Antenna Configuration............................................................................................................................- 26 -
5.2.2 Frequency Configuration....................................................................................................................... - 27 -
5.2.3 Baseband Configuration........................................................................................................................ - 27 -
5.2.4 Advanced Baseband Settings.............................................................................................................. - 28 -
5.3 READER SETTINGS............................................................................................................................................... - 29 -
5.3.1 Ethernet Configuration........................................................................................................................... - 29 -
5.3.2 Wireless Network Configuration..........................................................................................................- 30 -
5.3.3 RS485 Configuration............................................................................................................................... - 31 -
5.3.4 Advanced Network Parameters........................................................................................................... - 32 -
5.4 ADVANCED SETUP................................................................................................................................................ - 32 -
5.4.1 Advanced Setup....................................................................................................................................... - 32 -
5.4.2 Filter Settings............................................................................................................................................ - 33 -
5.4.3 TASK SETTINGS.....................................................................................................................................................- 34 -
5.4.3.1 Offline Cache..................................................................................................................................... - 35 -
5.4.3.2 Whitelist............................................................................................................................................- 35 -
5.4.3.3 Local Tag Log.................................................................................................................................... - 35 -
5.4.3.4 UDP Upload........................................................................................................................................ - 35 -
5.4.3.5 Wiegand Upload................................................................................................................................- 35 -
5.4.3.6 HttpPost Upload................................................................................................................................- 36 -
5.4.3.7 MQTT Upload..................................................................................................................................... - 37 -
5.4.3.8 MySQL Upload...................................................................................................................................- 38 -
5.4.3.9 MSSQL Upload.................................................................................................................................. - 40 -
5.4.4 Account Modify......................................................................................................................................... - 43 -
5.5 LOG MANAGEMENT.............................................................................................................................................. - 43 -
5.5.1 Operation Log............................................................................................................................................- 43 -
5.5.2 Tag Log........................................................................................................................................................ - 44 -
6. COMMON FAILURES..............................................................................................................................................- 46 -
6.1 DAILY MAINTENANCE........................................................................................................................................... - 46 -
6.2 COMMON FAILURE ANALYSIS AND SOLUTION................................................................................................... - 46 -
7. PACKAGING ACCESSORIES AND STORAGE................................................................................................ - 47 -
7.1 PACKAGE...............................................................................................................................................................- 47 -
7.2 ACCESSORIES....................................................................................................................................................... - 47 -
7.3 STORAGE REQUIREMENTS....................................................................................................................................- 48 -
8. AFTER-SALE SERVICE.......................................................................................................................................... - 49 -
Shine 340/380 User Manual
- 5 -
1.Technical Specifications
1.1 Features
Shine HH340/380 is a high performance four-port/eight-port fixed UHF RFID reader with
built-in high-performance Android OS 9. which has strong computing power, large storage
capacity, rich interfaces, open development environment, and convenient extension of
custom applications. it supports ISO18000-6C/6B protocols. The work frequency includes
China standard dual frequency 920MHz~ 925MHz and 840MHz - 845MHz, FCC 902MHz ~
928MHz and ETSI 865MHz ~ 868MHz.
Output power from 0 ~ 35dBm optional, with long identification distance, fast reading speed,
high accurate rate, strong anti-interference ability, good protection performance and easy
installation.
1.2 Main Functions And Technical Performance
1.2.1 Product Features
Using the Impinj R2000 platform and bi-amplifier synthesis circuitry.
Octa-Core processor 4×Cortex-A53 Based 2.3GHZ, 4×Cortex-A53 Based 1.8GHZ;
Support protocol: ISO18000-6B/C EPC C1G2
Built-in Android 9.0 to facilitate customer customized application development;
RJ-45/HDMI/RS-485/OTG/Wiegand port multiple communication interfacesS support;
Independent mold opening, all aluminum die-casting, efficient heat dissipation;
RSSI support: the strength of the signal can be sensed.
Antenna detection support
Built-in 4G LTE, Bluetooth, WiFi wireless transmission function
1.2.2 Typical Applications
Logistics industry such as container operation management, warehouse inventory
management, cargo transfer tracking, etc..
Intelligent vehicle management e.g. vehicle inspection, customs clearance, vehicle license
check, etc..
Anti-forgery identification.
Production automation, parts flow management, etc.
E-ticketing and identification of personnel cards, etc..
Power patrol, asset access management, etc.
1.2.3 Specifications
Shine 340/380 User Manual
- 6 -
Main Function
Air interface protocol: ISO18000-6B/C EPC C1G2 all mandatory commands
Built-in Android 9.0 operating system
Rich communication interfaces (RJ-45, HDMI, RS-485, OTG, 4G, WiFi, Bluetooth,
Wiegand interface)
Adjustable RF output power
POE power supply (optional)
Working mode: fixed frequency/frequency hopping optional
I/O interface: 4 optocoupler inputs, 4 relay outputs (drive capacity: DC 30V/ 2A, AC
125V/0.3A)
Anti-collision protocol, strong multi-tag recognition ability
Support dense reading
Support antenna detection function
Support online upgrade
Support tag data filtering
Support RSSI: senses the strength of the signal
Performance Parameters
Working frequency: GB, 920MHz ～925MHz, 840MHz ～845MHz; FCC, 902MHz ～
928MHz; ETSI, 865MHz～868MHz; JPN, 916MHz～920MHz
RF output power (port): 35dBm±1dB (MAX)
Output power adjustment: 1 dB step
Channel occupied bandwidth: <200KHz
Frequency stability: ≤±10ppm
Reading distance: 0m ～20m (related to factors such as transmitting power, antenna
type, tag type and application environment)
Writing distance: 0m～10m (related to factors such as transmitting power, antenna type,
tag type and application environment)
Tag recognition speed: >400 times/sec
Network interface communication rate: 10M/100M adaptive
Communication Interfaces
HDMI interface: adaptive resolution (up to 4K);
Ethernet interface: 10M/100M Ethernet interface
RS458 interface: the default baud rate is 115200bps
4G: Support LTE-FDD (CAT-7)/LTE-TDD (CAT-7)/WCDMA/TD-SCDMA/
EVDO/CDMA/GSM and other standards
WIFI: 802.11 a/b/g/n/ac
Shine 340/380 User Manual
- 7 -
BT: BT v2.1+EDR, 3.0+HS, v4.1+HS
USB interface: support OTG, Type-C
I/O interfaces: 4 relay outputs/4 optocoupler inputs
RF interface: four/eight TNC antenna interfaces
Power Parameters
Equipment power supply: DC 9V～30V (60W);
POE: IEEE802.3af/at/bt standard (optional)
Working power consumption: 30W (output power 35dBm)
Environmental Parameters
Working temperature: -20℃～+70℃
Storage temperature: -40℃～+85℃
Working humidity: 10%～95%RH without condensation
Compliance With Certification
Compliant with China Radio Model Approval
Meet FCC and CE testing standards
Shine 340/380 User Manual
- 8 -
2. Sketch map
2.1 Physical construction

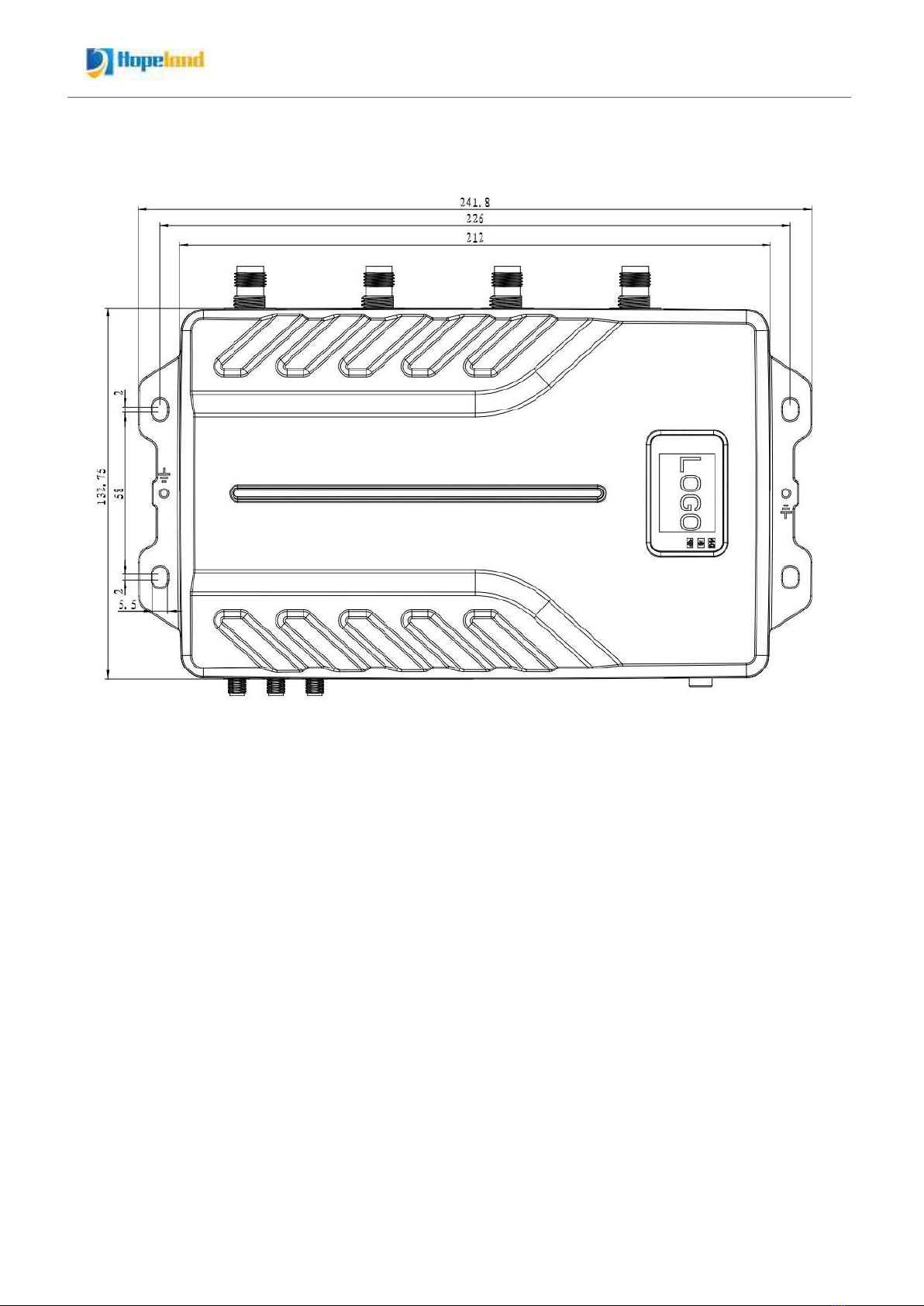

Picture 2-1 Structure diagram of Shine 340/380 reader
Shine 340/380 Reader Volume Parameter is:
241mm×132mm×36mm
2.2 Net Weight
HH340：0.9kg
HH380: 1kg
2.3 Interface Diagram
2.3.1 Power, Communication And I/O Interfaces
Picture 2-3 Schematic diagram of reader power, communication and I/O interfaces
Picture 2-3 is a schematic diagram of the reader and the power supply, communication and
I/O interface panel. For details, see Table 2-2.
Table 2-2 Reader power supply, communication and I/O interfaces
Shine 340/380 User Manual
- 9 -
Interface ID
Interface Name
Detailed Description
Power supply interface
DC, 10~30V, power capacity not less than 30W.
Ethernet interface
10/100M Ethernet interface, reader control and
communication interface.
POE:IEEE802.3af/at/bt standard (optional)
HDMI output
HDMI signal output 720P with audio.
USB interface
The USB TYPE-C interface can be connected to a
computer and supports OTG.
I/O interface
See 2.3.2 for detailed definition
Antenna (optional)
The left one is WIFI, Bluetooth antenna (shared), the
middle and right one are 4G antennas
Reset button
Long press for 3 seconds to restart, long press for 10
seconds to restore factory settings
2.3.2 I/O Interface Definition
Upper Row:
Bottom Row：
I/O control signal definitions are shown in Table 2-3：
Table 2-3 I/O control interface signal function definition
Pin ID
Pin Description
R1
Relay 1# output; DC_MAX: 30V, 2A; AC_MAX: 125V, 0.3A; logic '0' indicates open circuit,
Shine 340/380 User Manual
- 10 -
logic '1' indicates closed, default is open circuit.
L1
Relay 1# output; DC_MAX: 30V, 2A; AC_MAX: 125V, 0.3A; logic '0' indicates open circuit,
logic '1' indicates closed, default is open circuit.
R2
Relay 2# output; DC_MAX: 30V, 2A; AC_MAX: 125V, 0.3A; logic '0' indicates open circuit,
logic '1' indicates closed, default is open circuit.
L2
Relay 2# output; DC_MAX: 30V, 2A; AC_MAX: 125V, 0.3A; logic '0' indicates open circuit,
logic '1' indicates closed, default is open circuit.
R3
Relay 3# output; DC_MAX: 30V, 2A; AC_MAX: 125V, 0.3A; logic '0' indicates open circuit,
logic '1' indicates closed, default is open circuit.
L3
Relay 3# output; DC_MAX: 30V, 2A; AC_MAX: 125V, 0.3A; logic '0' indicates open circuit,
logic '1' indicates closed, default is open circuit.
R4
Relay 4# output; DC_MAX: 30V, 2A; AC_MAX: 125V, 0.3A; logic '0' indicates open circuit,
logic '1' indicates closed, default is open circuit.
L4
Relay 4# output; DC_MAX: 30V, 2A; AC_MAX: 125V, 0.3A; logic '0' indicates open circuit,
logic '1' indicates closed, default is open circuit.
GND
Ground
GND
Ground
IN1
Optocoupler 1# input, DC, 0~24V, higher than 1V is high level, lower than 1V is low level
IN2
Optocoupler 2# input, DC, 0~24V, higher than 1V is high level, lower than 1V is low level
IN3
Optocoupler 3# input, DC, 0~24V, higher than 1V is high level, lower than 1V is low level
IN4
Optocoupler 4# input, DC, 0~24V, higher than 1V is high level, lower than 1V is low level
IN_GND
Optocoupler input ground, reader optocoupler external input signal ground
WG0
Wiegand data 0 signal, the default state is high level
WG1
Wiegand data 1 signal, the default state is high level
GND
Ground
485-A
RS485 A signal
485-B
RS485 B signal
GPI Usage Example:
Infrared sensor type selection: Choose PNP NO type, which means that the infrared is
normally low, when the object is detected, the signal line outputs a positive voltage signal.
Shine 340/380 User Manual
- 11 -
GPO Usage Example:
Relay type GPO: GPO is equivalent to a switch, logic ‘0’ means open circuit, logic ‘1’ means
closed, default is open circuit state. You can connect the alarm light, buzzer, etc. to the GPO
for use. The usage is shown in the following figure.
Wiegand Connection Instructions：
Connect reader Wiegand 0 to Wiegand 0 of controller,
connect reader Wiegand 1 to Wiegand 1 of controller,
connect reader GND to Wiegand controller GND
Shine 340/380 User Manual
- 12 -
2.3.3 Coaxial RF Feeder Cable (optional)
Picture 2-6 schematic diagram of feeder line
RF cable TNC(Reverse polarity, internal thread, inner pin) connector connect with reader
antenna TNC connector, RF cable SMA connector connect with external circular polarization
antenna’s SMA connector, cable maximum length is 5m, impedance 50Ω, insertion loss is
less than 2dB, high-performance cable can also be selected, and the length can be
increased appropriately, insertion loss is less than 2dB.
Note: Poor contact of cable connector or an ultra-long RF cable can cause excessive
attenuation of the transmitted signal and received echo signal, resulting in deterioration of
read/write performance.
2.3.4 Network Connection Diagram
The network interface is used for long-distance high-speed connection (not greater than 80
m). It can be connected to a switch or router via a network cable, or it can be directly
connected to a PC network interface. The specific connection is shown in Figure 2-7:
Figure 2-7 Network application connection
2.3.5 HDMI Output Description
The HDMI output signal defaults to 720P (1280*720). Display devices with a resolution lower
than 720P may display incomplete or no display.
HDMI has audio output. If you need audio playback, you can expand the audio playback
device on the HDMI display terminal or choose a display device with audio playback
function.
2.3.6 USG OTG Function Description
USB OTG currently supports keyboard, mouse, touch screen and USB storage devices, and
more mobile devices can be supported through the system update.
The USB OTG supports external USB HUB, and the above devices can be used at the same
time.
Shine 340/380 User Manual
- 13 -
3. Installation Instructions
3.1 Precautions
To ensure the normal and stable operation of the device and your personal property and
safety, please carefully read the following notes before install HH340/380 reader.
1. Firstly, check whether the power socket is connected to the ground, and to see
whether the local power supply voltage is in accordance with the applicable voltage range of
the reader;
2. Check the device and the external connection if is closely connected;
3. Pay attention to the type selection and the length limit of the network cable and the
serial cable:
Network cable connects directly, no longer than 80 meters
Serial cable connects directly, no longer than 10 meters
4. When installing several readers, the antenna position and the antenna spacing should
be appropriate to avoid interference with each other.
3.2 Installation Conditions
Shine 340/380 User Manual
- 14 -
Before installing the reader, please check carefully whether the product is in good condition
and the accessories are complete. If there is any parts missing or damage, please contact
the supplier in time.
3.3 Device Connection
3.3.1 Connect Power Adapter Or PoE Switch
a.Connect Power Adapter
Plug the power cord into the AC power supply outlet and then plug the other end of the
power cord into the power connector of the reader and fasten it.
Power on the reader, wait for about 10 seconds, the system completes the initialization
process and enters the standby state.
b.Connect PoE Switch
A complete PoE system includes two parts: Power Sourcing Equipment (PSE) and Powered
Device (PD). PoE switches are PSE devices, and readers are PD devices. According to the
power consumption required by the reader, it belongs to 802.3at class 4 or 802.3bt class 5
devices.
Choose the PoE switch according to the maximum output power of the reader that needs to
be used in the actual project.
0dBm to +35.0dBm (PoE++)
0dBm to +33dBm (PoE+)
PD Classes:
IEEE802.3af(PoE) include Class 0~3, IEEE802.3at (PoE+)include Class 4,
IEEE802.3bt(POE++) include Class 5 ~ 8
Class
PD available power
Class
PD available power
0
13W
5
40W
1
3.84W
6
51W
2
6.49W
7
62W
3
13W
8
71W
4
25.5W
PoE protocols supported by various network cables:
PoE(AF)
PoE+(AT)
PoE++(BT)
CAT 5E
√
√
CAT 6
√
√
CAT 6A UTP
√
√
CAT 6A FTP
√
√
Shine 340/380 User Manual
- 15 -
CAT 7 S/FTP
√
√
√
CAT 7A S/FTP
√
√
√
CAT 8.2 S/FTP
√
√
√
3.3.2 Connect External Antenna And RF Cable
The reader built with four/eight TNC coaxial cable connectors for connecting external
antennas, select low consumption RF cable, connectors should be tightened (Ensure to be
waterproof when install outdoors);
The reader antenna angle or tilt need to adjust to the best position through the actual test
according to the specific application.
3.3.3 Connect to PC
The reader is supplied with different dedicated connection cables for the network, USB
and power interfaces.
USB interface is used for short-distance communication (not greater than 2m), directly
connected to the PC USB interface through a USB TYPE-C cable to realize the
communication between the PC and the reader;
The RJ45 network port is used for long-distance communication (not greater than 80m),
and an extended network cable can be used to connect to a PC.
3.3.4 Install SIM Card
When you need to use mobile data services, please purchase a Subscriber Identity
Module (SIM) card.
Remove the cover of the SIM card slot.
Lift the SIM card slot and insert the SIM into the slot so that its gold contacts are facing
down, place the SIM card fully in the card holder, and return it to its initial position.
Shine 340/380 User Manual
- 16 -
Re-install the cover of the SIM card slot.
3.4 Install Reader
The reading and writing range of the reader depends on the onsite application, the tilt angle
of the antenna is adjusted to achieve the best reading and writing performance.
3.5 Acceptance
The acceptance criteria are mainly given from two aspects: structure and performance.
3.5.1Structural Acceptance
Whether the reader is fixed firmly without looseness;
Whether the cables are connected firmly;
Whether the screws are tightened.
3.5.2 Performance Acceptance
Whether the reader is working normally;
Whether the reading range is reasonable.
Open
Lock
Shine 340/380 User Manual
- 17 -
4. Android OS Demonstration Operation
4.1 HDMI High-definition Display Output Interface
HH340/380 is equipped with an HDMI high-definition display output interface. In workstation
application scenarios, an external monitor can be connected to operate the reader, or
software development on the reader
4.2 Display Reader Android OS to PC via Scrcpy
Using Scrcpy on a PC to display Reader Android OS on a PC.You can download Scrcpy
through the link below or search and download by yourself.
Link 1：https://pan.baidu.com/s/1p3RHvKb4YgGV11WaG7fNzg Extraction code：2121
Link 2：https://drive.google.com/file/d/1I141-IBK_JWTJlJvsBqw0_aAFSumwrRm/view?usp=sharing
Shine 340/380 User Manual
- 18 -
1.After the reader is turned on, first connect the PC and the reader type C interface
through the supplied USB cable
2.Open the folder of the Scrcpy software, double-click scrcpy.exe to execute the Scrcpy
software
3.Operate the reader OS through the same screen interface
4.3 WiFi Settings
Shine series readers have a built-in WiFi module. You can set WiFi parameters through the
Demo software, or you can set the WiFi parameters through the Android OS.
Shine 340/380 User Manual
- 19 -
1. After the reader is powered on, connect the supplied WiFi/Bluetooth shared antenna
to the reader’s WiFi/Bluetooth shared antenna interface
2. Enter the WiFi setting interface of the Android OS, select the WiFi hotspot to connect
to, and remember the obtained ip address after connected, and then you can use this ip to
connect to the reader through the demo software.
4.4 Bluetooth Settings
Shine series readers have a built-in Bluetooth module, which can be paired with the reader’s
Bluetooth through a PC. After the Bluetooth serial port is generated, the Demo software can
Shine 340/380 User Manual
- 20 -
use this Bluetooth serial port to communicate with the reader.
1. After the reader is powered on, connect the supplied WiFi/Bluetooth shared antenna
to the reader’s WiFi/Bluetooth shared antenna interface
2. View the Bluetooth name of the reader through the Android OS
3. Pair the Bluetooth name with the PC system. After the pairing is completed, check
the Bluetooth serial port generated between the PC and the reader's Bluetooth. The port
with outgoing direction, which is the Bluetooth serial port number that the demo can use for
communication.
This manual suits for next models
1
Table of contents
Other Hopeland RFID System manuals
