Hoppe AUDIO MINI Service manual
INSTALLATION INSTRUCTIONS / OWNER’S MANUAL:
AUDIO MINI
OFF-ROAD SOUND SYSTEM FOR YAMAHA WOLVERINE RMAX2 / RMAX4 /
X2 / X4 MODELS
www.hoppeindustries.com
22667 FM 15 Troup, TX 75789
(262) 552-2770
Revision - 2 of 17
Thank you for choosing the Hoppe Audio Mini off-road sound system. We hope you
enjoy the off-road sound system, and we ask that you follow these instructions very
closely. Doing so will save you time and ensure that your experience with the new Audio
Mini is a positive one.
We strongly suggest that you read the complete instructions before beginning the
installation process to eliminate the possibility of performing unnecessary work.
Having a safe and clean environment and using the proper tools is essential for a
successful installation.
It is critical that proper eye wear, ear protection, and protective clothing is worn
throughout the top installation.
When you receive your Audio Mini off-road sound system, please check to ensure that all
parts and hardware are included. If there are any parts missing or if you have any
questions concerning the system at this time call Hoppe at (262)-552-2770 Mon-Thur.
8am-5pm CST or Friday 8am -12pm CST. Or you can email us at
Hoppe reserves the right to change specifications, equipment, or designs at any time
without notice and without incurring obligation.
Revision - 3 of 17
TABLE OF CONTENTS
SECTION 1 –Tools Required............................................................................................ 4
SECTION 2 –About your Audio Mini sound system ......................................................... 4
2.1 Applicable Year Models:.......................................................................................... 4
2.2 Audio Equipment Details:......................................................................................... 4
2.3 Warranty: .................................................................................................................. 5
2.4 Care and Maintenance: ............................................................................................. 5
2.5 Warnings:.................................................................................................................. 5
SECTION 3 –Pre-Installation Inspection ......................................................................... 7
SECTION 4 –Installation.................................................................................................. 8
Revision - 4 of 17
SECTION 1 – Tools Required
Socket wrench set
Combination wrench set
Wire cutters
In addition to the above items, you may need shop supplies such as electrical tape, wire
ties, thread locking compound, etc.
SECTION 2 – About your Audio Mini sound system
2.1 Applicable Year Models:
This Audio Mini off-road sound system is designed to fit the following Wolverine
models:
2021-2022 Wolverine RMAX2 1000 (all versions)
2021-2022 Wolverine RMAX4 1000 (all versions)
2021-2022 Wolverine X2 850 (all versions)
2021-2022 Wolverine X4 850 (all versions)
All versions means it includes sub-models such as Sport, R-Spec, XT-R, and
Limited Edition editions.
This system is compatible with most front windshields and roofs.
Accessories that mount overhead near the front of the roll cage such as rear view
mirrors, wiper motors, etc. may not be compatible or may require modification.
Contact Hoppe customer service for questions.
2.2 Audio Equipment Details:
Your Audio Mini off-road sound system is powered by using
their marine series audio equipment. This equipment is designed to function in all
weather conditions with an IPX6 water resistance (powerful water jet) rating. The stereo
is specifically engineered to provide excellent sound quality and volume in an open air
enviroment so you can enjoy your music on the go.
To learn more details about your stereo system, you can access product information and
manuals for the stereo equipment here:
KMC2 receiver: https://www.kicker.com/kmc2
Speakers: https://www.kicker.com/41KM604W
You can feel free to crank up the volume without much worry of harming your system.
However, it is wise to use a little common sense. If you hear any distortion, back off a
little.
Use the equalizer settings in your KMC2 receiver to adjust the settings to your
preferences.
Revision - 5 of 17
2.3 Warranty:
Your Audio Mini comes equipped with a 1 year limited warranty covering the light, the
stereo equipment, and the enclosure. The date of warranty coverage will be determined
by the registration date of the warranty card or online warranty registration.
http://www.motortrike.com/TrikeAccWarranty.aspx
If the warranty is not registered with Hoppe, the warranty period will begin when the
Audio Mini was shipped from Hoppe's factory.
2.4 Care and Maintenance:
Your off-road sound system does not require any maintenance other than an occasional
cleaning. To clean your audio system, simply hose off or power wash from a distance. If
needed, use a mild automotive soap and sponge or brush. Use common sense. Do not use
a high pressure power washer up close where it could cut, scar, or force water beyond the
design intent of the enclosure, light, or stereo equipment.
There is an inline fuse, close to the end of the chassis harness where it connects to the
battery. It can be accessed by pulling the cap off of the fuse holder. There is also a mini
40-amp ignition relay built into the chassis harness next to the inline fuse. See Figure 1.
Figure 1: Fuse location.
Fuse 1: 15 amp mini fuse for light / radio receiver power.
2.5 Warnings:
This off-road system adds up to 25 lbs. to your vehicle and is located up high on the roll
cage. This increases the vehicle’s center of gravity and changes the vehicle dynamics and
handling characteristics. Use extra caution as you learn the driving characteristics of your
vehicle with your new off-road sound system installed. High speed cornering, off camber
IGNITION
RELAY
INLINE
FUSE
Revision - 6 of 17
or side hill, acceleration, and braking performance will be negatively impacted by the
weight of the sound system.
Do not listen to your stereo at an uncomfortable volume for extended periods of time.
Potential hearing loss may result.
Revision - 7 of 17
SECTION 3 – Pre-Installation Inspection
Included in your off-road sound system are the following components:
Pre-assembled Audio Mini off-road sound system (All speakers and electronics
come preinstalled with interior wire harness.)
Chassis wire harness
Mounting brackets
Hardware bag
Zip ties
If any of the parts are missing, damaged, or you have any questions concerning them,
please call Hoppe at (262)-552-2770 Mon-Thur. 8am-5pm CST.
In addition to accounting for all of the parts that you should receive with the top, you
should inspect the vehicle in the following ways.
Ensure that the vehicle is equipped with the factory roll cage, and the roll cage has
not been bent out of shape in a roll over.
Make sure the vehicle does not have any aftermarket accessories that are
incompatible with the top.
Make sure the battery is in good condition and holds a charge.
Make sure the charging system is in good condition.
Revision - 8 of 17
SECTION 4 – Installation
1. Place the provided loop clamps in the approximate mounting location on the roll
bars. The Audio Mini brackets will rest on the loop clamps and be tightened in the
following steps. See Figure 2.
Figure 2: Approximate locations of the loop clamps.
2. Remove the factory bolt from the front cross member as indicated in Figure 3.
The bolt will be reused. Note: Driver side shown. (Passenger side similar)
Figure 3: Remove the factory cross member bolt.
3. Place the driver’s side bracket on the inside of the cross member. Use the factory
bolt and loosely tighten it until the bracket is secured to the loop clamp in the
following steps. Verify correct orientation of the mounting bracket. See Figure 4.
Note: Driver side shown. (Passenger side similar)
Revision - 9 of 17
Figure 4: Mounting location of the Audio Mini bracket.
4. Use the supplied 3/8”-16 x 1” bolts, washers, and nylock nuts to secure the loop
clamps to the mounting brackets. Snugly tighten the bolts to still allow for
adjustment of the Audio Mini placement. See Figure 5. Note: Driver side bracket
shown. (Passenger side similar)
Figure 5: Hardware for mounting the loop clamps to the brackets.
Revision - 10 of 17
5. Using an assistant, hang the Audio Mini off-road sound system on the brackets
using the supplied ¼”-20 bolts and washers (loosely tightened). Note: The sound
system weighs up to 25 lbs. Since you will have to lift and bolt each end, it is
helpful to have an assistant for this step. See Figure 6 and Figure 7.

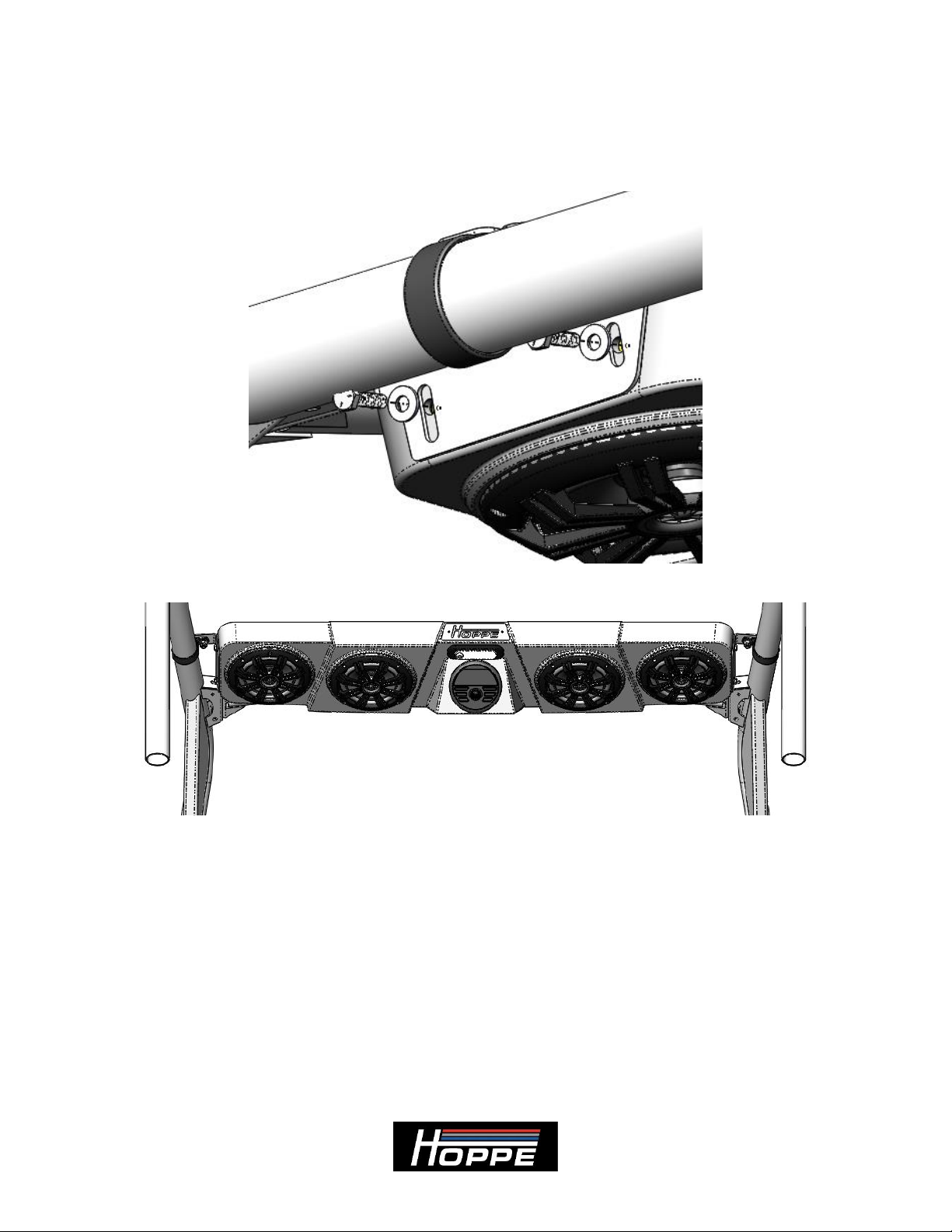

Figure 6: Install the ¼”-20 bolts and washers to mount the Audio Mini to the brackets.
Figure 7: Loosely install the sound system on the mounting brackets.
6. Tighten both loop clamp bolts and both front cross member bolts to secure the
brackets to the roll cage, once you have the Audio Mini in your desired position.
See Figure 4 and Figure 5.
7. Tighten the 4 mounting bracket bolts after achieving the desired viewing position
relative to the roof or roll cage. Slots in the brackets allow for adjustability to
achieve your desired viewing position. See Figure 8.
Revision - 11 of 17
Figure 8: Up-down positioning of the Audio Mini.
8. Remove the hood from the front of the vehicle by lifting and rotating the lock
knobs, lifting to release the 4 bosses, and sliding towards the front of the vehicle.
See Figure 9.
Figure 9: Remove the hood from the vehicle.
9. Remove the plastic panel to gain access to the area under the dash. Remove the 9
torx screws to remove the panel. See Figure 10.
LOCK
KNOBS
HOOD BOSSES
Revision - 12 of 17
Figure 10: Remove the torx screws and plastic panel.
10. Route the end of the chassis harness with the mating connector for the Audio Mini
along with the wire bundle under the dash toward the driver’s front down tube
opening. See Figure 11.

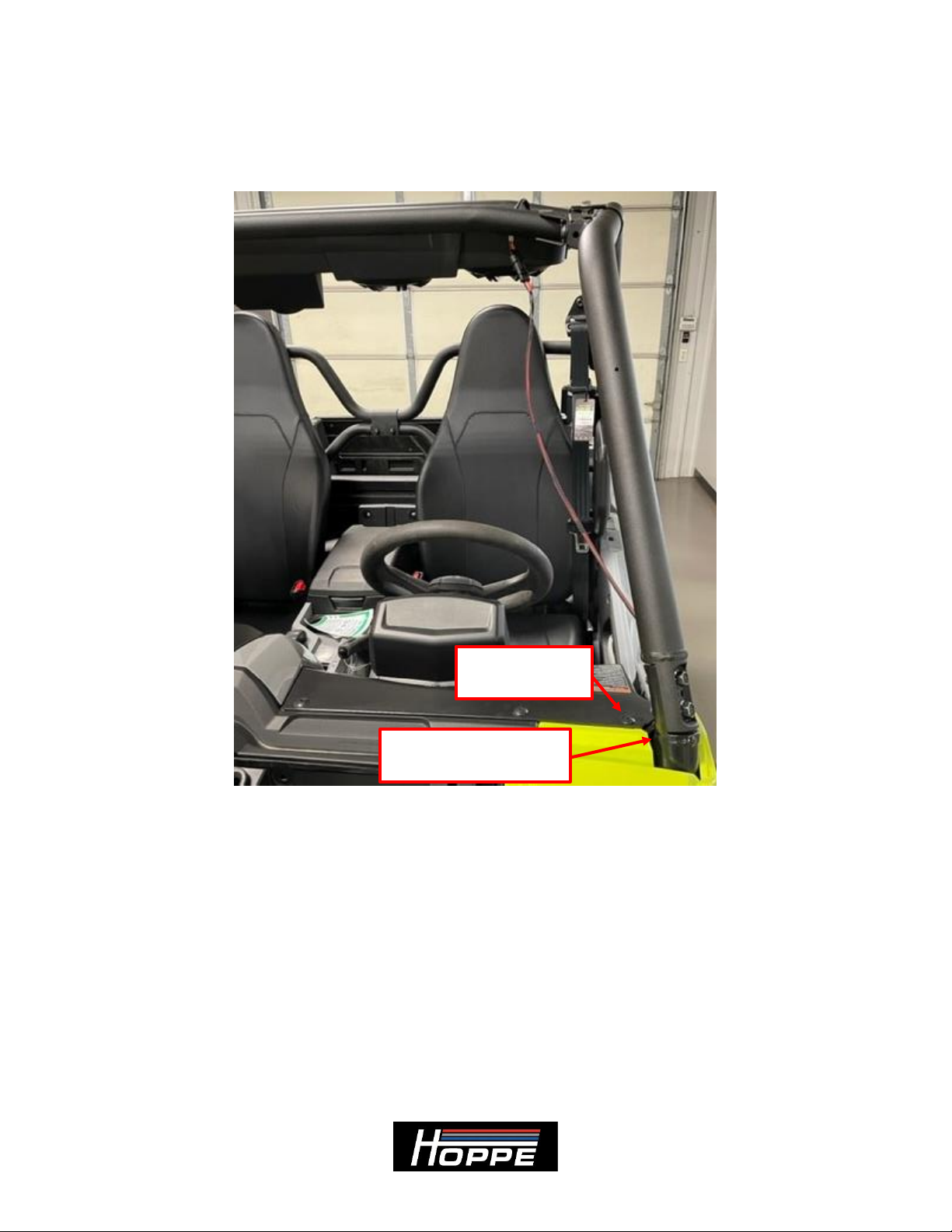

Figure 11: Chassis harness routing under dash to opening.
UNDER
DASH
TOWARD
OPENING
Revision - 13 of 17
11. Remove the torx screw on top of the dash next to the driver’s front down tube.
Gently lift the dash panel, pull the chassis harness connector through the opening,
and connect it to the mating connector on the Audio Mini. The harness will be
secured to the inside of the cage tube at the end of the installation. See Figure 12.
Figure 12: Chassis harness routing up the front down tube.
12. Pick one of the unused accessory connectors to plug in the ignition connector
from the Audio Mini chassis harness. See Figure 13.
REMOVE
TORX SCREW
PULL CONNECTOR
THROUGH OPENING
Revision - 15 of 17
14. Connect the chassis harness battery cables to the battery, clamping the cables on
top of any existing cables with the factory hardware. Connect the red harness wire
to the terminal with the existing red battery cable (+ 12V). Connect the black
harness wire to the terminal with the existing black battery cable (- 12V). See
Figure 15.
Figure 15: Battery cable connections.
15. Zip tie the chassis harness to the factory wire loom under the hood and at the
indicated locations on the driver’s front down tube. See Figure 16 and Figure 17.
RED TO +
BLACK TO -
Revision - 17 of 17
17. You are now ready to enjoy the music and lighting provided by your Audio Mini
off-road sound system. Basic operation works as follows:
Turn the vehicle ignition switch on to power up the stereo system. (You
must press the power button for first time connections or if the power was
previously turned off manually.)
Press the source button on the stereo receiver to select the input source
from AM/FM radio or Bluetooth.
Press and hold the menu button to access the Device Settings menu.
oUse the Volume knob to change the values for each setting, and
press it to confirm the setting.
Press and hold the Volume knob to access the Audio Settings menu.
oUse the Volume knob to change the values for each setting, and
press it to confirm the setting.
The dome light can be used with or without the vehicle’s ignition switch
on. Press the on/off switch to activate the light. Warning: Extended use
of the dome light or stereo without the vehicle’s charging system
functioning will deplete the battery and the engine may not start.
To learn about the more advanced features and operation of your stereo, visit the
Kicker website links found in SECTION 2 –About your Audio Mini sound system
of this document.
Thank you for choosing the Hoppe Audio Mini off-road sound system for your Yamaha
Wolverine UTV. We hope you enjoy your new sound system and lighting. We invite you,
in your travels, to stop by our manufacturing plant in Troup, Texas, for a factory tour and
to meet the people who designed and manufactured your Audio Mini off-road sound
system. This will also give you an opportunity to check out our sister companies
,
and our extensive line of trike conversions, automotive, motorcycle, and power sports
accessories.
We believe you will be impressed by what you witness and the people you will meet.
Other manuals for AUDIO MINI
8
Table of contents
