4 VEP CLASS 423
Operating and Maintenance Instructions
DCC Ready/ DCC Fitted
Electric Locomotive
Routine Maintenance
Track Cleaning – In normal use, model railway layouts
will eventually accumulate a blackish deposit on the
running surfaces of the rails, and some of this will be
transferred onto the locomotive’s pick-up wheels.
The 12 volt DC supply is collected from the track
through the wheels on one side of the locomotive and
returned through the wheels on the other side. If the
deposit is allowed to build up, it will have the following
adverse effects:
• The driving wheels will not be able to achieve
maximum traction
• There will be a reduction in the power reaching the
locomotive motor
It is therefore essential that the track, and wheels, are
kept clean. This can be done by wiping the surfaces with
a clean, non-fluffy cloth. More stubborn deposits can be
removed by using the Hornby Track Cleaning Rubber,
reference R8087, which can be obtained from Hornby
Service Dealers.
Motor – The locomotive is fitted with a sealed, long-
life, 5-pole motor which requires no maintenance.
After a considerable amount of use the motor may
require replacement and this should be carried out by a
Hornby Service Dealer.
Chassis – The locomotive chassis may, from time to
time, pick up fluff, fabric fibres and pet hairs which can
become entangled in the gears and around axles. For
this reason, it is not advisable to run the locomotive on
track which is laid on a carpet. It is important to check
regularly and remove any such debris with the aid of
small tweezers.
Lubrication – Although the locomotive was lubricated
during manufacture, the lubricant can sometimes dry
out in storage. Lubrication should be carried out at
approximately 6-monthly intervals, or every 100 hours
of running. Instructions for carrying out lubrication
procedures are given in section 1 on pages 2 and 3.
Locomotive Bodywork – The locomotive body is
overall spray painted and the rest of the decoration is
applied by a printed process, not transfers.
Spare Parts and Service
Spare parts packs can be obtained from Hornby Service Dealers who are also able to offer a repair service.
Waste electrical products should not
be disposed of with household waste.
Please recycle where facilities exist.
Check with your Local Authority or
retailer for advice
General
Please read right through these instructions,
particularly the Safety Notes on page 4.
Hornby locomotives are precision built and, if treated
with care, will give many years of good service.
Care should be taken to avoid damage when handling
the model.
This locomotive should not be operated on track
curves of less than 438mm radius, which is Hornby
2nd radius track.
The five-pole electric motor of the locomotive is
designed to be operated from a variable 12 volts,
DC power supply only. This should be obtained by using
a suitable Power Controller operated from the normal
domestic mains electricity supply.
NEVER CONNECT A LOCOMOTIVE DIRECTLY
TO THE MAINS ELECTRICITY SUPPLY.
The locomotive will normally draw a current of between
·2 and ·4 amp depending upon the track configuration
and whether or not gradients are included. There will
be a current surge on starting the locomotive.
Running Hints
If a locomotive ceases to respond normally to the power
DCC Ready
Contact your specialist dealer for advice.
controller, or runs badly, check that the following are in
order:
• All electrical connections are correctly made and the
wall power socket is switched ‘ON’.
• The power lead is correctly fitted to the Power
track.
• All track sections are correctly fitted together and
all fishplates (rail-joiners) are fitting tightly onto
adjoining metal rails.
• All locomotive wheels are correctly positioned on the
track rails.
• The direction control switch on the train controller is
set to operate in one direction or the other, and not
in the central ‘OFF’ position.
Television Suppression
Your Hornby locomotive incorporates radio and television interference suppressors. Should interference be
experienced despite these precautions, it may be due to close proximity of the model railway layout to receivers,
aerials, or their ‘downlines’. In this case, move the layout further away from aerials and receivers.
It is most important that track and wheels be kept absolutely clean.
Hornby Hobbies Limited Margate Kent CT9 4JX UK Tel: [phone] www.hornby.com
Printed in China
4/1402
A Hornby product
IMPORTANT
• Only remove the locomotive from the packaging by carefully pushing through
the finger holes below and carefully lifting.
• This locomotive is made to exacting fine scale standards and therefore
necessarily incorporates small, delicate, protruding parts – handle with care.
• Before using the model, read through the Operating and Maintenance
Instructions in this leaflet.
Safety Notes
•This locomotive is not suitable for children under
14 years of age. Handle with care.
•This locomotive is intended for indoor use only.
•The transformer is not a toy. It is a ‘Transformer
for Toys’. Before use, check that the transformer is
the correct voltage for your mains electricity supply.
This locomotive is only to be used with the
recommended transformer. The transformer should
be examined regularly for damage to the casing, plug
pins and cables.
In the event of such damage, the set should not
be used until the transformer is replaced with
a new Hornby recommended unit. Never
attempt to open the transformer yourself.
•This locomotive must not be connected to more
than the recommended number of power supplies.
The out-put terminals of the transformer must not
be connected directly, or indirectly, to the output of
any other AC circuit derived from a transformer or
mains power supply.
•Before cleaning any part, disconnect the
transformer from the mains electricity supply.
Do not use liquid for cleaning.
•Please retain these details and address for future
reference.

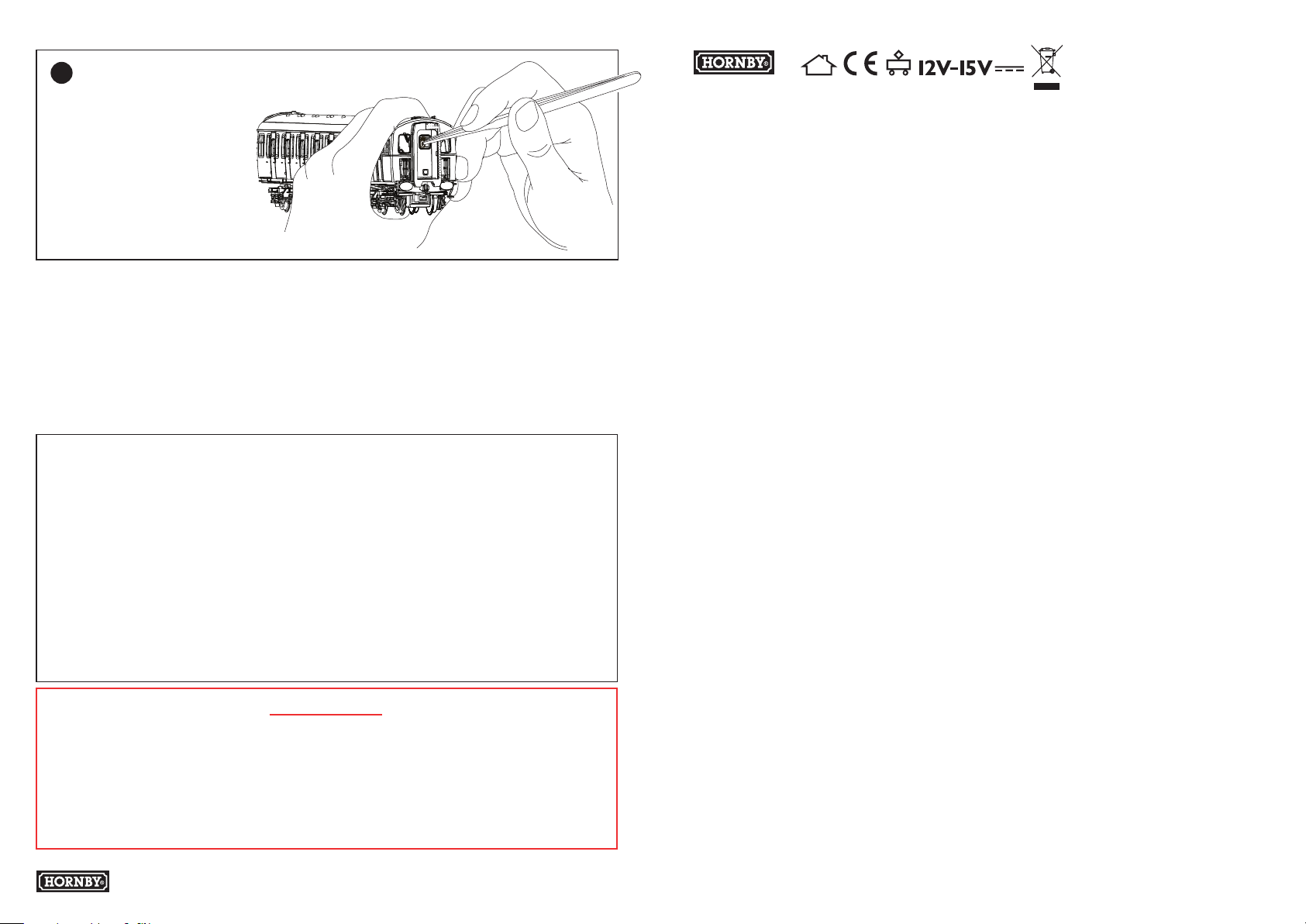

Destination Code Instructions
6
Using the sticker sheet provided, remove
your selected numbers and carefully
apply to the front and rear of the
train over the top of the LED’s as
shown in Fig.9.
Fig.9

Body Removal
4
Fig.2
Lubrication
3
Coupling Sequence
1
Fig.3
Fig.1
DTCL MBSO TSO DTCL
To gain access to the gears pull the bogie from
the motor housing as show in Fig. 4.
IMPORTANT – Only apply small single drops of
light machine oil to the places indicated in red in
Fig.4. This is best achieved by making a simple oil
‘dropper’ as illustrated in Fig.3. Insert a straight-
ened paper clip into a cork and use a bottle cap as
a container for the oil. A small drop of oil can then
be picked up by the dropper and applied in
exactly the right place. Immediately wipe off any
excess oil, especially from the locomotive body.
Only lubricate moving parts.
Coupling
2
This 4-car train should be coupled in the correct sequence as
illustrated. The Jumper Boxes should appear in line to ensure
that the train is connected prototypically.
Fig.4
4-Car Train roof view
Motorised Car
Jumper Box positions
For coupling coaches see Fig.2.
Fig.5
Fig.6
Fig.8
Unclip the body sides from the
chassis (Fig.5), making sure all the
lugs are free from the holes in
the body. The body will lift off
easily (Fig.6).
IMPORTANT. For all drive and
dummy units please be aware
that the LED PCB is connected
to the chassis by a flying lead.
Please ensure that the plug is
disengaged so as not to be
putting any strain on the flying
lead (Fig.7) DCC Ready
If your locomotive is not pre-fitted with
a decoder, please see Fig. 8 for location
of DCC socket within the drive unit.
5
32
Fig.7
