Hoselink US5640-WG User manual

Metal 9-Pattern Sprinkler
youtube.com/hoselink
MODEL: US5640-WG
Metal 9-Pattern Sprinkler
MODEL: US5640-WG
Cultivating ConnectionsCultivating Connections
User ManualUser ManualUser Manual
Troubleshooting
This is a strong and durable product that should give
you many years of service. Should you experience
a blockage, simply unscrew the Hoselink Accessory
Connector and flush it out with water. The mesh filter
will stop large particles in the water from entering
the sprinkler. This can also be removed for cleaning
if necessary.
For more information visit
hoselink.com
or call
[phone]

Kit Contents
1 x 9-Pattern Sprinkler
1 x Accessory Connector
With nine different spray patterns, our best-selling
sprinkler has the right setting for you. Ideal for gardens
of all shapes and sizes, the Hoselink 9-Pattern Sprinkler
only waters where you want it, so you don’t have to worry
about wasting a drop of water.
Assembly Instructions
STEP 1 Connect to Water Supply
Connect to a water supply by attaching your Hoselink-
fitted hose end to the Accessory Connector included with
the sprinkler.
STEP 2 Choose Spray setting
Choose the desired spray setting by turning the black
pattern selector dial until it clicks into place on your
chosen setting. The selected pattern will be the one in
front of the brass water inlet.
STEP 3 Turn on water
Turn on water source.

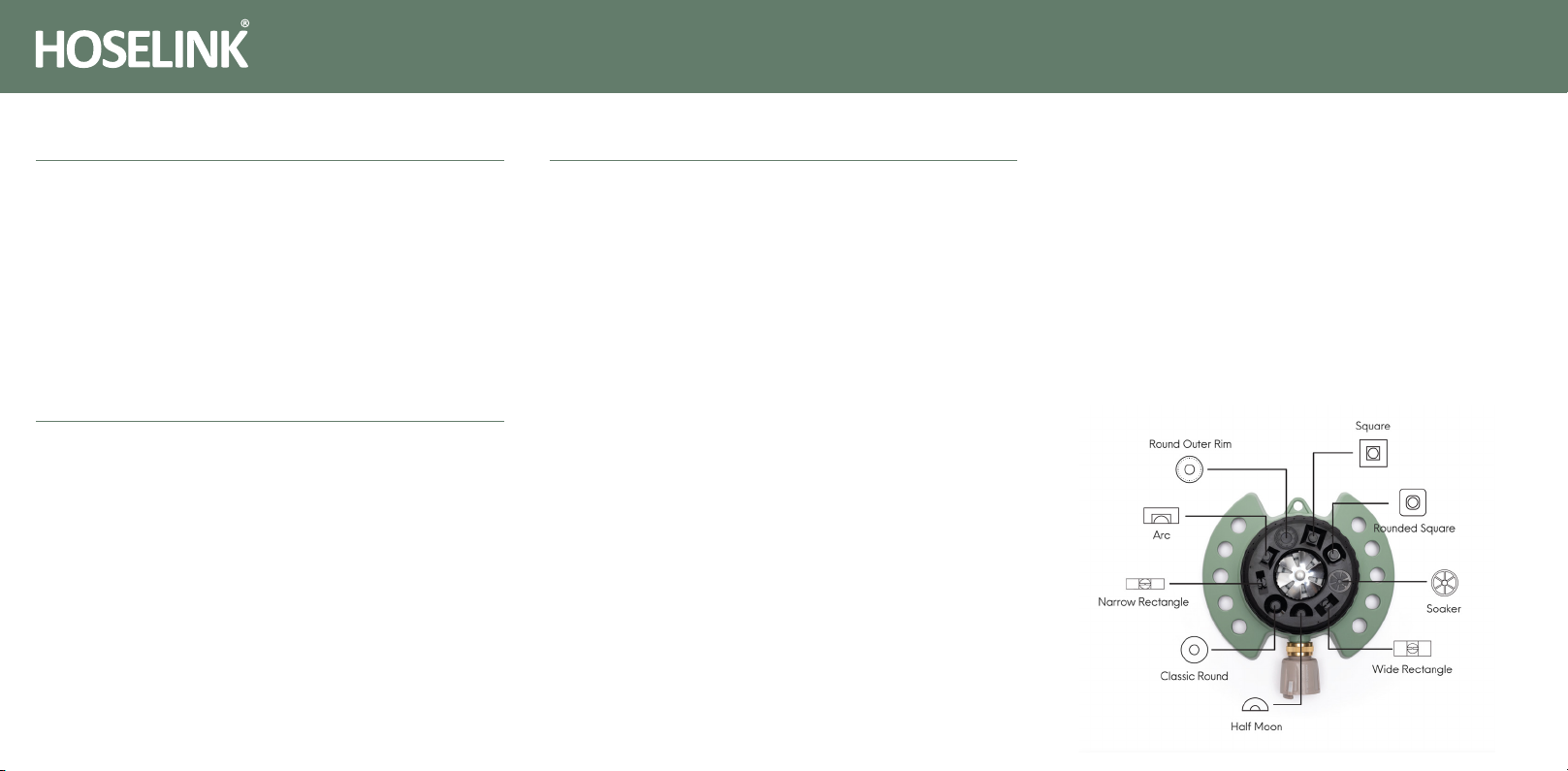

Settings
There are nine spray settings to choose from depending
on your water application. Some settings may perform
better than others according to the supplied water
pressure. For each setting, water is emitted from the
actual function selected, except for the Soaker and
Round Outer Rim functions as outlined below.
1 Soaker
This is the only function that utilises the centre fan. Water
is emitted from the holes under the fan blades. Please
note, the centre fan requires strong water pressure to spin.
2 Rounded Square
Sprays in a square-like shape with rounded corners.
3 Square
Sprays in a square shape.
4Round Outer Rim
Sprays gentle jets from the holes around the outside of the
pattern selector dial.
5 Arc
Sprays in a rectangular arc in front of the sprinkler.
6 Narrow Rectangle
Sprays in a narrow band to either side of the sprinkler.
7 Classic Round
Sprays in a regular circular shape.
8 Half Moon
Sprays in a half circle in front of the sprinkler.
9 Wide Rectangle
Sprays in a wide band to either side of the sprinkler.
