Hosen HS-LMS30 User manual

1
Mini Spot Moving Head
USER MANUAL
HS-LMS30

2
T
ABLE OF CONTENTS
PART1 PRODUCT(GENERAL).......................................................... 1
1.1--PRODUCT INTRODUCTION............................................................... 1
1.2--PRODUCT OVERVIE W..................................................................... 2
1 . 3 - - TE CH NI C AL S P E C IF IC ATI O NS .. .. . . .. . . . . . . . .. . . .. .. .. . . .. . . .. . . . .. . . .. . . .. . . .. . . . . . . . . 3
1.4--PHOTOMETRIC DATA....................................................................... 3
1.5--SAFETY WARNING........................................................................... 3
PART2 INSTALLATION...................................................................... 4
2.1--F U S E R E PL ACE MEN T...... . .. . . . .. . .. . . .. . . . .. . .. . . . .. . .. . .. . . . .. . .. . . .. . .. . .. . .. . . . .. . . .. . .. . .
4
2.2--S E T TI N G U P ( S TAND ALO N E ) . ... .. . .. . .. . . .. . . . .. . .. . .. . . . . .. . .. . .. . . . .. . .. . .. . . . .. . . .. . .. . ..
4
2.3--L E D P C B RE P L ACEM ENT.. . .. .. . .. . . .. . .. . .. . . . .. . . . .. . .. . . . . .. . .. . . .. . .. . .. . .. . . . .. . . .. . .. . . . ..
5
2.4--S E T TI N G U P (M AS TE R SL AVE ) . . ... .. . .. . . . .. . . .. . . .. . . .. . . . .. . .. . . .. . .. . .. . .. . . . .. . . .. . .. . ....
6
2.5--S E T TI N G U P (D M X512 C O NTROLL E R . ... .. . .. . . . .. . .. . .. . .. . .. . . . .. . .. . . .. . .. . .. . . . .. . . .. .
6
PART3 DISPL AY PANEL OPERATION................................................. 7
3.1--B ASIC. . .. . .. . .. . .. . . . .. . .. . . . . .. . .. . . .. . . .. . . .. . . . .. . .. . .. . . . .. . .. . . .. . .. . .. . .. . . . .. . .. . . .. . . . .. . . . .. . .
7
3.2--M EN U . . .. . . . .. . .. . .. . . . .. . .. . . .. . .. . .. . .. . .. . . . .. . . . .. . . .. . .. . . . .. . .. . .. . .. . . . .. . .. . . .. . .. . .. . . . .. .. . .. .
7
3.3--I N TRO. . .. ...... . . . .. . .. . .. . .. . .. . .. . . . .. . .. . . ... . . .. . . . .. . .. . .. . .. . . . .. . .. . . .. . .. . .. . .. . . . .. . . .. . . . . .. .
9
3.4--I N V E RT. . .. .. . . .. . .. . .. . . . .. . . .. . .. . .. . . . .. . .. . . . .. . .. . . . .. . . .. . .. . .. . .. . .. . . . .. . .. . . .. . . . .. . .. . .. .. . .. .
9
3 .5 -- R AN GE . . .. .. .. . .. . .. .. . .. . .. .. . .. . .. . .. . .. . .. . .. .. . .. .. . .. . .. . .. .. .. . .. . .. .. . .. . .. .. .. . .. . .. .. . .. .. . ..
10
3.6--S P E CI AL. ... . . . .. . .. . .. . . . ... . .. . . . .. . .. . .. . . . .. . . . .. . . .. . .. . .. . .. . . . .. . .. . . .. . .. . .. . . . .. . .. . . .. . . . . .
10
3.7--E D I T . .. .. . .. . .. . .. . . . .. . . .. . .. . .. . .. . .. . .. . . . .. . . . .. . .. . . . .. . . .. . .. . .. . .. . .. . . . .. . .. . . .. . .. . . . .. . . . .. . .. .
11
3.8--DE F AULI T.. . .. .. . .. . . . .. . . .. . .. . .. . . . .. . .. . . .. . . . .. . .. . .. . . . .. . .. . . .. . . .. . . .. . .. . .. . .. . . . .. . . .. . ... . . .
11
PART4 USING A DMX512 CONTROLLER.............................................1 2
4.1--B ASIC ADDRE S SI NG . . . .. . .. . .. . .. . .. . . . .. . . .. . .. . . . .. . .. . .. . . . .. . .. . . .. . .. . .. . .. . . . .. . . .. . .. . . . .
12
4.2--CH ANNEL AS S I GN M EN T...... . . . .. . .. . . . .. . .. . . .. . . . .. . .. . .. . . . .. . .. . .. . .. . . . .. . . .. . .. . .. . . . .. .
12
PART5 APPENDIX........................................................................... 15
5.1--T R O U B L E SH O O T I N G .. .. . .. . . . .. . .. . . .. . .. . .. . . . .. . . . .. . .. . . .. . .. . .. . .. . . . .. . .. . . .. . . . .. . .. . .. .
15

3
1
PRODUCT (GENERAL)
1.1
PRODUCT INTRODUCTION
This product is designed for indoor use only. Suitable for stage. Bar or nightclub
applications. Direct input of D X512 signal allows the fixtures to be controlled from any
D X512 controller. The fixture is fully programmable with one custom program available and
is supplied with two automatic programs (all accessible from D X512 controller).This product
can be operated as a single unit or with multiple units for large applications.
1.2

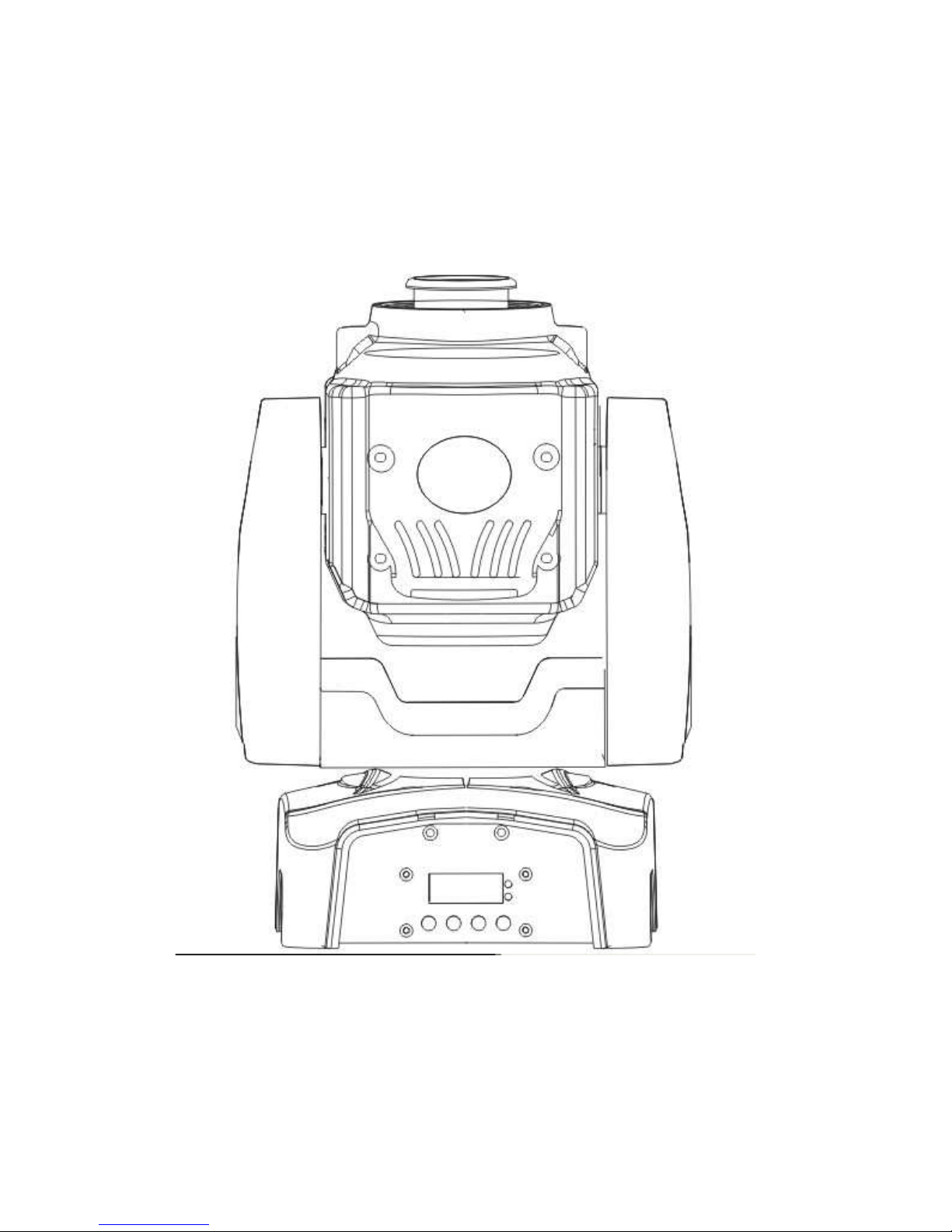

PRODUCT OVERIEW

4
1.3 TECHNICAL SPECIFICATIONS
Electrical
Voltage:AC100-240V, 50/60Hz
Rated Power: 5W
LED
LED:1PC(30W white)
Cooling: Forced air convection
Optical System
Focus: Manual linear focus
Dimmer:0-100%
Strobe:0-20Hz
3-facet Prism
FOCUS
Operation
Control mode:DMX512/Master-Slave/Auto/Custom/Sound
LED display
DMX512 CHS: 11 CHS/12CHS
Pan/Tilt
Pan 630 Tilt2 0
Pan/Tilt speed
User-selectable Pan/ Tilt ranges
Reverse Pan/Tilt movement
Rotating Gobo
Gobo(interchangeable)
Gobo-flow effect
Gobo shake
Bi-directional rotation
Color
9 dichroic -filters
Rainbow-flow effect
Other features
Custom program(255 steps)
Size:240x200x354mm
Weight: kg

5
1.4
PHOTO ETRIC DATA
1.5
SAFETY WARNING
IMPORTANT
【ALWAYSREAD THEUSER MANUAL BEFORE OPERATION.】
【PLEASE CONFIRM THAT THE POWER SUPPLYSTATED ON THE RODUCT
IS THE SAME AS THE MAINS POWER SUPPLT IN YOUR AREA. 】
This product must be installed by a qualified professional.
Always operate the equipment as described in the user manual.
A minimum distance of 0.5m must be maintained between the equipment and combustible
surface.
The product must always be placed in a well ventilated area.
Always make sure that the equipments installed securely.
DO NOT stand close to the equipment and stare directly into the LED light source.
Always disconnect the power supply before attempting and maintenance.
Always make sure that the supporting structure is solid and can support the combined weight
of the products.
The earth wire must always be connected to the ground.
Do not touch the power cables if your hands are wet.
ATTENTION
This product left the place of manufacture in perfect condition. In order to maintain this
condition and for safe operation, the user must always follow the instructions and safety
warnings described in this user manual.
Avoid shaking or strong impacts to any part of the equipment.
Make sure that all parts of the equipment are kept clean and free of dust.
Always make sure that the power connections are connected correct and
secure.
If there is any malfunction of the equipment, contact your distributor immediately.
When transferring the product, it is advisable to use the original packaging in which the
product left the factory.
Shields, lenses or ultraviolet screens shall be changed if they have becomed amaged to such
an extent that their effectiveness is impaired.
The lamp(LED) shall be changed if it has become damaged or thermal deformed

6
2 INSTALLATION
2.1 FUSE REPLACE ENT
Remove the safety cap by a screwdriver.
Fetch the old fuse from safety cap.
Install a new fuse.
Install the safety cap
2.2
SETTING UP(STAND ALONE)
The LED fixture can be used as stand alone unit. The stand alone functions
AUTO 1, AUTO 2, SOUND 1, SOUND2 and CUSTOM can be activated
without the need to connect to any controller or connecting to any other equipment.
Simply, access the <operation>menu from the DISPLAY and select the target
program to activate.

2.3
LED PCB PEPLACE E ENT

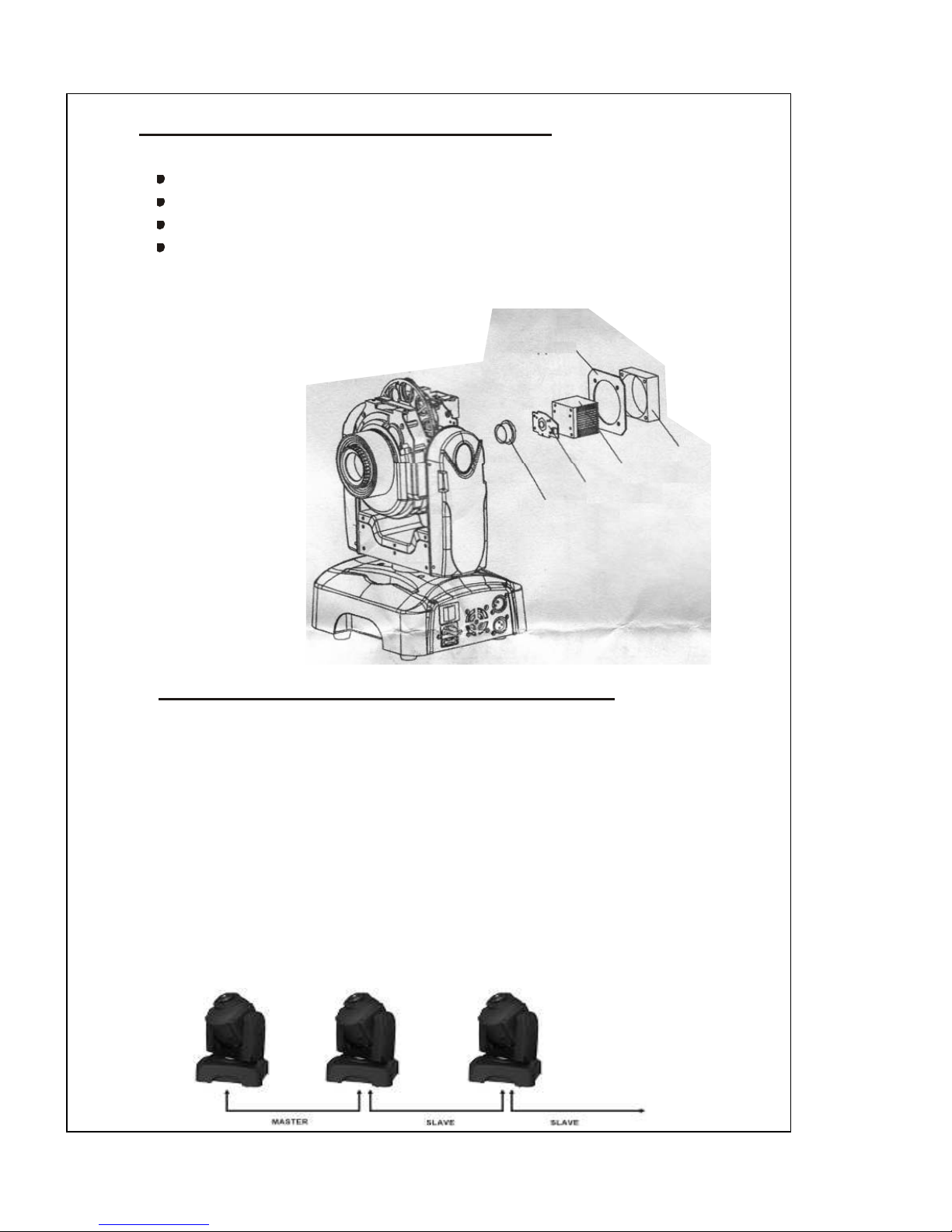

Take off the head cover.
Remove the fan cover, fan, fan supports, heat sink step by step.
Replace the new LED PCB.
Install all parts on the original position.
2.4
SETTING UP( ASTER/SLAVE)
When units are connected in series using DMX512 signal cable connect the units as shown in the
diagram below.
Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3 pin connector
of the first(MASTER) fixture.
Connect the end of the cable coming from the MASTER fixture which will have a (female) 3pin
connector to the input connector of the next fixture consisting of a (male) 3 pin connector.
Then proceed to connect from the output as stated above to the input of the following fixture and
soon.
Set the first unit in the series to one of the STAND ALONE modes as described in section2.2
All other units in the series should be set to <SLAVE>from the <operation>menu.

8
2.5
SETTING UP (D X512 CONTROLLER)

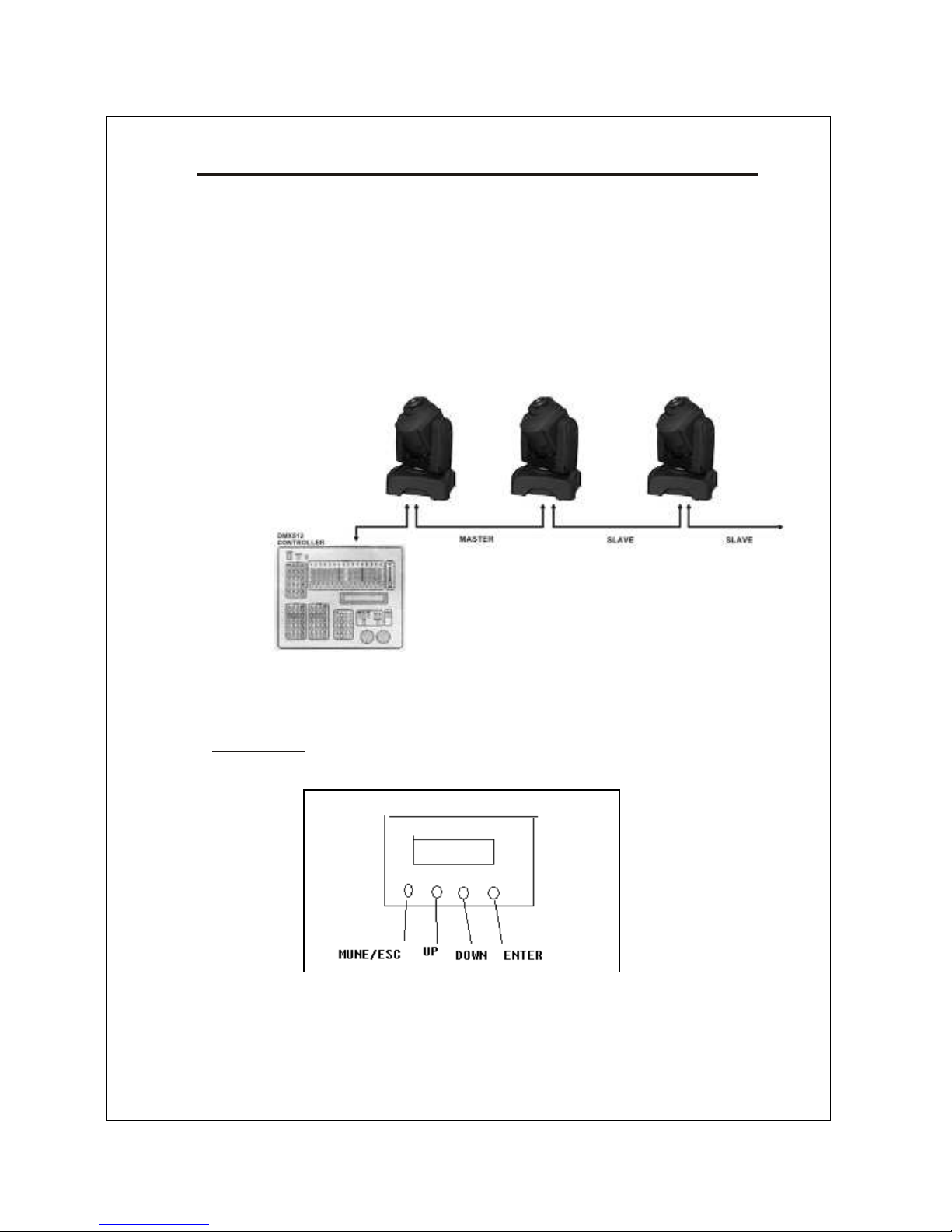

When units are connected in series to a DMX512 controller and other DMX512 equipment,
connect the equipment as shown in the diagram below.
Connect the (male) 3 pin connector side of the DMX cable t o the output (female)
3 pin connector of the controller.
Connec
t the end of the cable coming from the controller which will have a (female) 3
pin connector to the input connector of the next fixture consisting of a(male) 3 pin connector.
Then proceed to connect from the output as stated above to the input of the following fixture
and so on.
If over 32pcs fixtures connected ,the amplifier is needed.
3 DISPLAY PANEL OPERATION
3.1 BASIC
The LED fixture is mounted with a LCD display and 4 control buttons.
MENU Scroll through the main menu or exit from the current sub-menu
ENTER the currently selected menu or confirm the current function value Scroll
DOWN through the menu list or decrease the value of the current function value Scroll
UP through the menu list or increase the value of the current function

9

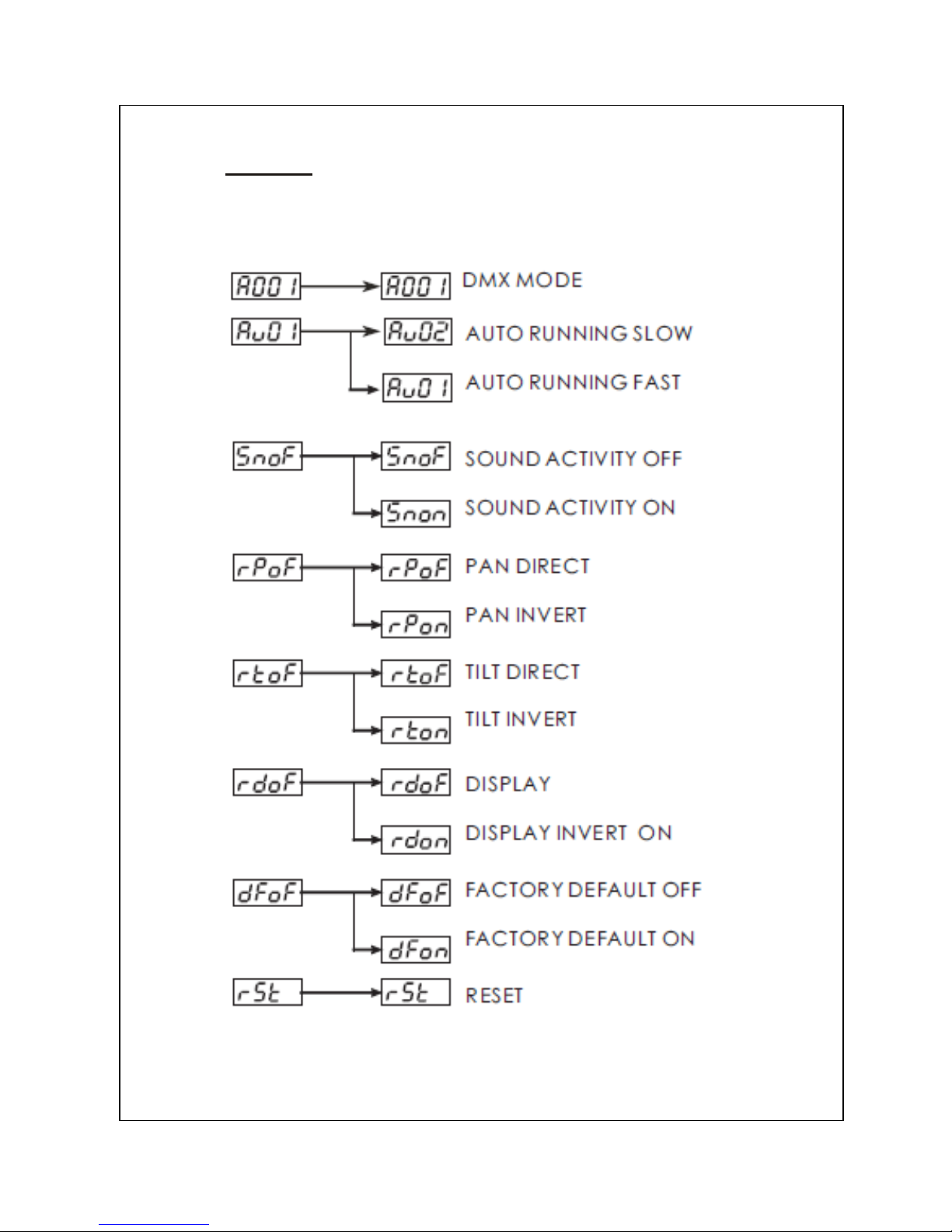

3.2 ENU

10
4. DMX CHANNEL PROTOCOL
Channels DMX Control Content Description
CH1 000-255 PAN MOVEMENT
CH2 000-255 TILT MOVEMENT
CH3 000-255 PAN/TILT SPEED
000-014 WHITE
015-02 COLOR 1
028-042 COLOR 2
043-054 COLOR 3
055-068 COLOR 4
069-082 COLOR 5
083-09 COLOR 6
098-110 COLOR
111-121 COLOR 8
122-12 COLOR 9
128-192 WHOLE WHEEL FORWARD F-S
CH4 COLOR
193-255 WHEEL BACKWARD S-F
000-018 WHITE
019-03 GOBO 1
038-056 GOBO 2
05 -0 5 GOBO 3
0 6-093 GOBO 4
094-113 GOBO 5
114-132 GOBO 6
133-144 GOBO
145-208 WHOLE WHEEL FORWARD F-S
CH5 GOBO
209-255 WHEEL BACKWARD S-F
000-011 NOT ROTATION
012-130 F-S
CH6
GOBO
ROTATION 131-255 S-F
000-011 WHITE
012-030 RESET AFTER 10 SECOND
031-250 SHUTTER S-F WHITE
CH
STROBOFLASH
251-255 WHITE
CH8 DIMMING 000-255 LINEA DIMMING
CH9: 000-255 X 16bit
CH10: 000-255 Y 16bit
CH11 PRISM 000-255 OPEN
CH12 FOCUS 000-255 LINEAR FOCUS

11
5.APPENDIX
Technical Specification
WEI HT&DIMENSIONS
Length............................................................................................250mm
Width..............................................................................................240mm
Height.............................................................................................390mm
Packing size............................................................. 410x330x280mm
Net weight..........................................................................................6kgs
Gross weight ................................................................................ .3kgs
POWER
Powersettings......................................................220V50Hz/60Hz
Fuse........................................................................................2A220V
Consumption...............................................................................80W
LI HT SOURCE
1 X 30W WHITE............................
COLOR...........................................................
LAMP LIFE: 50,000Hrs
CONTROL & PRO RAMMIN
Data output................................................locking3-pinXLRmalesocket
Datainput............................................locking3-pinXLRfemalesocket
Protocols...............................................................................DMX-512
DMX channels..................................................................................12
