Hoshizaki Refrigerated Prep Table with Raised Rail User manual

Hoshizaki
“A Superior Degree
of Reliability”
www.hoshizaki.com
Commercial Kitchen Equipment
Hoshizaki America, Inc.
Issued: 1-12-2009
Revised: 5-10-2011
INSTRUCTION MANUAL
Model
Refrigerated Prep Table with Raised Rail

2
IMPORTANT
Only qualied service technicians should attempt to install, service, or maintain
this unit. No installation, service, or maintenance should be undertaken until
the technician has thoroughly read this Instruction Manual. Likewise, the
owner/manager should not proceed to operate the unit until the installer has
instructed them on its proper operation. Failure to install, operate, and maintain
the equipment in accordance with this manual may adversely affect safety,
performance, component life, and warranty coverage.
Hoshizaki provides this manual primarily to assist qualied service technicians in the
installation, maintenance, and service of the unit.
Should the reader have any questions or concerns which have not been satisfactorily
addressed, please call, write, or send an e-mail message to the Hoshizaki Technical
Support Department for assistance.
HOSHIZAKI AMERICA, INC.
618 Highway 74 South
Peachtree City, GA 30269
Attn: Hoshizaki Technical Support Department
Phone: [phone] Technical Support
[phone]
Fax: [phone]
[phone]
E-mail: [email protected]
Web Site: www.hoshizaki.com
NOTE: To expedite assistance, all correspondence/communication MUST include the
following information:
  •ModelNumber
  •SerialNumber
  •Completeanddetailedexplanationoftheproblem.

3
CONTENTS
Important Safety Information ................................................................................................. 5
I. Installation Instructions ....................................................................................................... 6
A. Location ........................................................................................................................ 6
B. Checks Before Installation............................................................................................. 6
C. Setup............................................................................................................................. 7
D. Electrical Connection .................................................................................................. 10
E. Accessing the Controls.................................................................................................11
F. Final Checklist...............................................................................................................11
II. Operating Instructions...................................................................................................... 12
A. Operation .................................................................................................................... 12
B. Startup ........................................................................................................................ 13
C. Cabinet and Rail Temperature..................................................................................... 13
1. Temperature Display............................................................................................... 13
2. Adjusting the Temperature Setpoint ....................................................................... 13
3. Rail Cooling Switch................................................................................................ 14
4. Changing the Temperature Display Scale (°F or °C) ............................................. 14
D. Defrost......................................................................................................................... 14
1. Cabinet Defrost ...................................................................................................... 14
2. Rail Defrost............................................................................................................ 14
E. Food Storage............................................................................................................... 15
1. Cabinet................................................................................................................... 15
2. Rail ........................................................................................................................ 15
F. Safety Devices ............................................................................................................. 16
1. High Pressure Switch ............................................................................................. 16
2. Compressor Short Cycle Timer.............................................................................. 16
3. Compressor Protector............................................................................................ 16
4. Defrost Protection .................................................................................................. 16
a) Cabinet ............................................................................................................ 16
b) Rail................................................................................................................... 16
G. Alarm Codes ............................................................................................................... 17
H. Cooling Performance .................................................................................................. 18
1. Cabinet................................................................................................................... 18
2. Rail ........................................................................................................................ 18
I. Condensation ............................................................................................................... 18
IMPORTANT
This manual should be read carefully before the unit is installed and operated.
Only qualied service technicians should install, service, and maintain the unit.
Read the warnings contained in this booklet carefully as they give important
information regarding safety. Please retain this booklet for any further reference
that may be necessary.

4
III. Cleaning and Maintenance Instructions.......................................................................... 19
A. Cleaning...................................................................................................................... 19
1. Work Surface.......................................................................................................... 19
2. Rail and Rail Cover................................................................................................ 20
3. Exterior .................................................................................................................. 20
4. Cabinet Interior ...................................................................................................... 20
5. Door/Drawer Gaskets ............................................................................................ 20
6. Shelves (if applicable)............................................................................................ 20
7. Drawers (if applicable)............................................................................................ 20
B. Maintenance................................................................................................................ 21
1. Rail Condensate Pan ............................................................................................. 21
2. Air Filter.................................................................................................................. 21
3. Condenser ............................................................................................................. 21
4. Power Supply Connection...................................................................................... 21
C. Shutdown and Long Storage....................................................................................... 22

5
Important Safety Information
Throughout this manual, notices appear to bring your attention to situations which could
result in death, serious injury, or damage to the unit.
WARNING Indicates a hazardous situation which could result in death or
serious injury.
CAUTION Indicates a situation which could result in damage to the unit.
IMPORTANT Indicates important information about the use and care of the
unit.
WARNING
This unit should be destined only to the use for which it has been expressly
conceived. Any other use should be considered improper and therefore
dangerous. The manufacturer cannot be held responsible for eventual damage
caused by improper, incorrect, and unreasonable use.
To reduce the risk of death, electric shock, serious injury, or re, follow
basic precautions including the following:
•Thisunitrequiresanindependentpowersupply.Seethenameplateforproper
voltage and breaker/fuse size. Failure to use a proper breaker or fuse can
result in a tripped breaker, blown fuse, or damage to existing wiring. This
could lead to heat generation or re.
•THIS UNIT MUST BE GROUNDED. This unit is equipped with a 3-prong
grounding plug to reduce the risk of potential shock hazards. It must be
plugged into a properly grounded, independent 3-prong wall outlet. If the
outlet is a 2-prong outlet, it is your personal responsibility to have a qualied
electrician replace it with a properly grounded, independent 3-prong wall
outlet. Do not remove the ground prong from the power cord and do not use
an adapter plug.
•Donotuseanextensioncord.
•Makesurethepowerswitchisinthe"OFF"positionbeforeplugginginor
unplugging the unit to reduce the risk of electric shock.
•Donotuseaunitwithadamagedpowercord.Thepowercordshouldnotbe
altered, jerked, bundled, weighed down, pinched, or tangled. Such actions
could result in electric shock or re. To unplug the unit, be sure to pull the
plug, not the cord, and do not jerk the cord.
•Toreducetheriskofelectricshock,donottouchtheplugorpowerswitchwith
damp hands.
•Thisunitshouldbedisassembledorrepairedonlybyqualiedservice
personnel to reduce the risk of electric shock, injury, or re.
•Donotmakeanyalterationstotheunit.Alterationscouldresultinelectric
shock, injury, re, or damage to the unit.

6
I. Installation Instructions
WARNING
1. This unit must be installed in accordance with all applicable national, state,
and local regulations.
2. Unit is heavy. Use care when lifting or positioning. Work in pairs when needed
to prevent injury or damage. Hold the bottom of the unit. Do not hold doors/
drawers; they could become deformed or come off. Do not tilt the unit more
than 45°.
A. Location
WARNING
This unit is not intended for outdoor use. Normal operating ambient
temperature should be within 45°F to 86°F (7°C to 30°C). Operation of the unit,
for extended periods, outside of this normal temperature range may affect unit
performance.
For best operating results:
•Theunitshouldnotbelocatednexttoovens,grills,orotherhighheatproducing
equipment.
•Thelocationshouldprovidearmandlevelfoundationfortheunit.
•Theunitshouldnotbelocatedinacorrosiveenvironment.
•Theunitmaybesafelyinstalledandoperatedushwithwalls,butformaximum
performance, install a minimum of 4 inches (102 mm) from all walls.
•Allowatleast20inches(50cm)atthefrontforproperaircirculation.
B. Checks Before Installation
WARNING
Refer to the nameplate for electrical specications. The nameplate is located on
the right side wall of the cabinet interior. For more electrical connection details,
see"I.D.ElectricalConnection."Wereservetherighttomakespecicationand
design changes without prior notice.
•Visuallyinspecttheexterioroftheshippingpackageandimmediatelyreportanydamage
to the carrier. Upon opening the package, any concealed damage should also be
immediately reported to the carrier.
•Removetheshippingcarton,tape,andpackingmaterial.Removethestainlesssteelrail
cover(s) from the worktop and set aside to avoid damage.
•Removeallaccessorycontainersbeforediscardingthepackingmaterials.Disposeofall
packing materials in a proper and environmentally responsible manner.
•Checkformissingordamagedaccessories.

7
C. Setup
1. Remove the Unit from the Pallet and Remove the Plastic Film
1) Move as close to the nal location as possible.
2) Remove the bolts that secure the cabinet to the pallet. Using safe lifting practices, slide
theunitforwardfromthepalletandgentlylowerittotheoor.Donotallowdoorsor
drawers to bear the weight of the unit when lowering.
3) Remove the protective plastic lm from the exterior and interior, including the rail cover.
If the unit has been exposed to the sun or to heat, remove the lm after the unit cools.
2. Install the Rail Condensate Pan

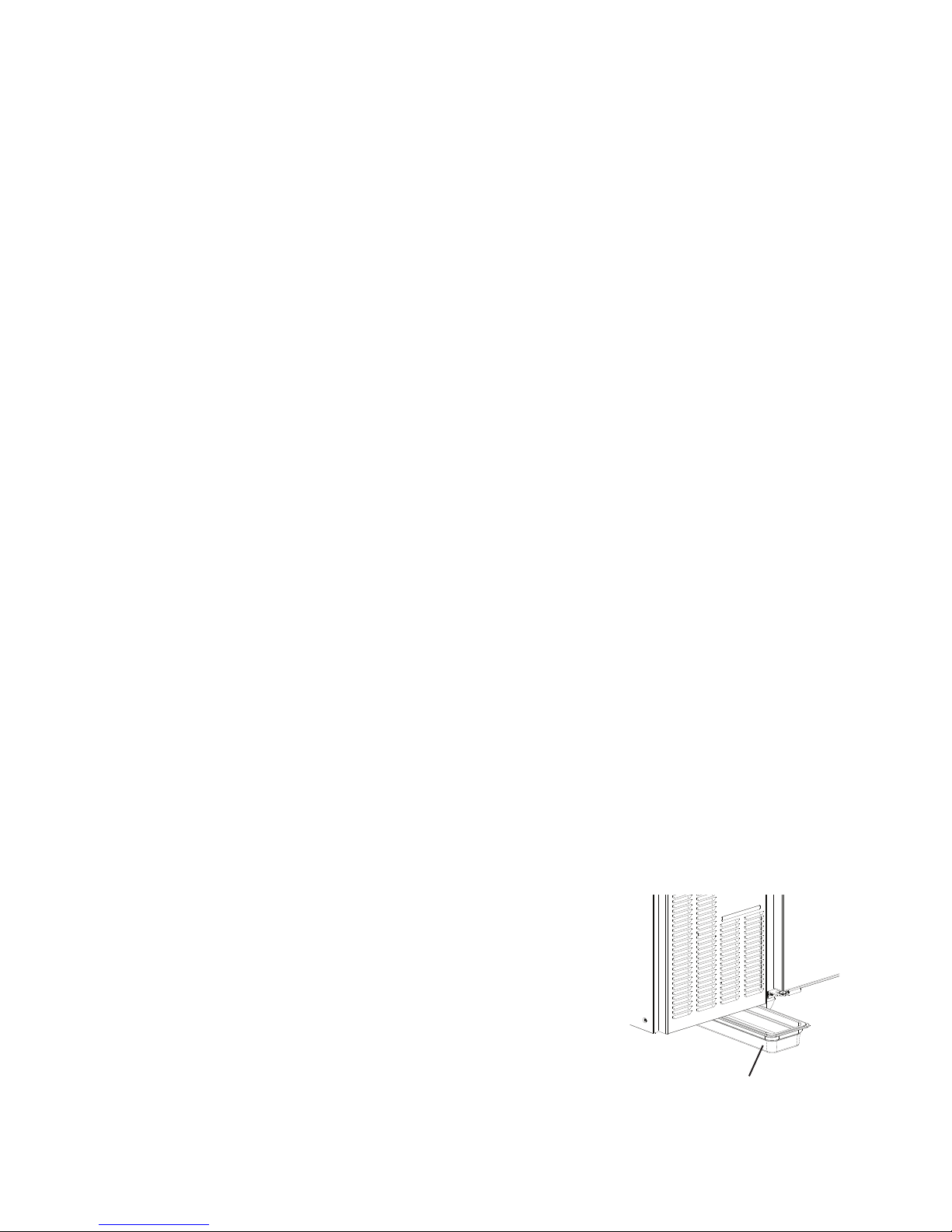

Slide the rail condensate pan into place on the
brackets under the front of the unit. See Fig. 1. Make
sure the pan contacts the rear stops.
Rail Condensate Pan
Fig. 1
3. Check the Refrigeration Circuit
1)Visuallycheckthattherefrigerantlinesdonotrubortouchotherlinesorsurfacesand
that the condenser fan blade and rail fan blades turn freely.
2) Check that the compressor is snug on all mounting pads.
4. Position the Unit and Lock the Front Casters
The front casters on the unit are lockable. After positioning the unit in its nal location,
lock the front casters.
5. Install the Shelves (if applicable)
Shelf support clips are provided in the accessory pack.
1. Place the shelf support clips into the pilasters and air
duct (4 shelf support clips per shelf). See Fig. 2.
2. Place the shelves in position on the shelf support
clips.
Fig. 2
Shelf
Support
Clip
Air Duct
Shelf

8
2) Insert the rail cover's rear pins into the rear slots on both brackets, then use the rail
cover's front pins and the notches on the brackets to place the rail cover in the open
position. You can use either set of notches. The hollow side of the rail cover should face
down. See Fig. 4.
WARNING
When the rail cover is open, make sure the rear pins on both sides of the rail
cover are securely in the rear slots and the front pins are resting securely in the
notches. Otherwise, the rail cover could close suddenly and cause injury.
3) Place rail dividers (sold separately) and empty pans (sold separately) on the rail. On
the HPR100A(-D), place the divider included with the unit as shown in Fig. 5. When
operating the rail, the entire rail must be covered by rail dividers and pans. Otherwise,
the rail will not cool properly.Usepanswithadepthofupto6"(15cm).Donotuse
damaged rail dividers or pans.
6. Prepare the Rail
1) Install the rail cover brackets in the orientation shown using the 5×10 stainless steel
machine screws provided. See Fig. 3.
Fig. 4
Rear Pin
Rear Slot
Front Pin Notches
Rail Cover
Bracket
Screws
Left Right
Screws
Bracket
Fig. 3
Divider
(HPR100A(-D))
Fig. 5

9
Fig. 6
Bracket
Screws
Worktop Cutting Board Bracket
Screws
Fig. 7
7. Attach the Cutting Board
1) Attach the cutting board brackets to the ends of the worktop using the 4×8 stainless
steel sheet-metal screws provided. Snug the screws, but do not tighten. See Fig. 6.
2) Slide the cutting board (sold separately) under the cutting board brackets. To secure the
cutting board, slide the cutting board brackets down onto the cutting board and tighten
the screws. See Fig. 7.
WARNING
Make sure the cutting board is secure. Otherwise, the cutting board could
come off and cause injury.

10
D. Electrical Connection
WARNING
1. Electrical connection must meet national, state, and local electrical code
requirements. Failure to meet these code requirements could result in death,
electric shock, serious injury, re, or severe damage to equipment.
2. This unit requires an independent power supply. See the nameplate for proper
voltage and breaker/fuse size. Failure to use a proper breaker or fuse can
result in a tripped breaker, blown fuse, or damage to existing wiring. This
could lead to heat generation or re.
3. THIS UNIT MUST BE GROUNDED: This unit is equipped with a 3-prong
grounding plug to reduce the risk of potential shock hazards. It must be
plugged into a properly grounded, independent wall outlet. If the outlet is a
2-prong outlet, it is your personal responsibility to have a qualied electrician
replace it with a properly grounded, independent 3-prong wall outlet. Do not
remove the ground prong from the power cord and do not use an adapter
plug. Failure to follow these instructions may result in death, electric shock, or
re.
4. Do not use an extension cord.
5.Makesurethepowerswitchisinthe"OFF"positionbeforeplugginginor
unplugging the unit to reduce the risk of electric shock. The power switch is
located behind the front panel.SeeFig.8in"I.E.AccessingtheControls."
6. Do not use a unit with a damaged power cord. The power cord should not be
altered, jerked, bundled, weighed down, pinched, or tangled. Such actions
could result in electric shock or re. To unplug the unit, be sure to pull the
plug, not the cord, and do not jerk the cord.
7. To reduce the risk of electric shock, do not touch the plug or power switch with
damp hands.
8. The GREEN ground wire in the factory-installed power cord is connected to a
screw on the evaporator case. If it becomes necessary to remove or replace
the power cord, be sure to connect the power cord's ground wire.
•Usuallyanelectricalpermitandservicesofalicensedelectricianarerequired.
•Themaximumallowablevoltagevariationis±10percentofthenameplaterating.
•Thisunitshouldbedisassembledorrepairedonlybyaqualiedservicetechnicianto
reduce the risk of electric shock or re.

11
E. Accessing the Controls
The controls are located behind
the front panel. See Fig. 8. To
open the front panel, grip the
outer edge of the front panel
near the bottom and top and
pull open approximately 1/2 inch
(13 mm) until it is disengaged. To
remove the front panel, swing the
panel open completely and lift up
approximately 1/2 inch (13 mm).
F. Final Checklist
1) Is the unit level and are the front casters locked?
2) Is the unit in a site where the ambient temperature is within 45°F to 86°F (7°C to 30°C)
all year around?
3)Isthereatleast20"(50cm)atthefrontforproperaircirculation?
4) Have the protective plastic lm, shipping carton, tape, and packing material been
removed from the unit?
5) Have the unit and accessories been checked for shipping damage?
6) Has the power supply voltage been checked or tested against the nameplate rating?
Is the power supply a properly grounded, independent 3-prong wall outlet? Does
the electrical connection meet all national, state, and local code and regulation
requirements.
7) Has the rail condensate pan been installed and slid back until it contacts the rear stops?
8) Have the refrigerant lines been checked to make sure they do not rub or touch other
lines or surfaces? Have the condenser fan blade and rail fan blades been checked to
make sure that they turn freely? Are the compressor hold-down bolts snug?
9) Have the shelves (if applicable) been properly installed?
10) Have rail dividers, pans (empty until the unit cools down), and a cutting board (all sold
separately) been properly installed? Has the divider included with the HPR100A(-D)
been properly installed?
11) Has the end user been given the instruction manual, and instructed on how to operate
the unit and the importance of the recommended periodic maintenance?
12) Has the end user been given the name and telephone number of an authorized service
agent?
13) Has the warranty card been lled out and forwarded to the factory for warranty
registration?
Fig. 8
Power Switch
Rail Cooling Switch
Temperature Control
Manual Defrost Button

12
II. Operating Instructions
A. Operation
CAUTION
1. Do not leave the doors/drawers open.
2. Open and close the doors/drawers with care. Doors/drawers opened too
quickly or forcefully may cause injury or damage to the unit or surrounding
equipment.
3. To prevent deformation or cracks, do not spray insecticide onto the plastic
parts or let them come into contact with oil.
4. To avoid damage to the gasket, use only the door/drawer handle (do not grab
the top of the door/drawer directly) when opening and closing.
WARNING
For All Units
1. To reduce the risk of electric shock, do not touch the attachment plug or
switches with damp hands.
2. Do not hang on or push down on the doors/drawers. The doors/drawers
might be damaged, fall off, or the unit could tip over, causing injury.
3.Donotstoreanyvolatileorammablesubstances,suchasbenzine,
ether, alcohol, adhesives, or LPG in the unit. They are potential sources of
explosion or re.
4. Do not throw anything onto the shelves or load any single shelf with more
than 120 lb (54.5 kg) of product. They might fall off and cause injury.
5. Do not store food or food containers near the air outlet. They might freeze up
and crack or break causing a risk of injury or contamination of other food.
6.Donotusecombustiblesprayorplacevolatileandammablesubstances
near the unit. They might catch re.
7. Do not pour or spray water into the rail area. The rail drain is for condensate
only. Excessive liquid in the rail area could result in electric shock.
8. Do not operate the unit with fan shrouds removed. Keep hands clear of fan
shrouds when the unit is operating. The rotating fans may cause injury.
9. Do not put anything into the machine compartment or the condenser air inlet/
outlet. The fan rotating rapidly inside might cause injury or heat generation.
Additional Warning For Units with Drawers
1. Do not hang on or push down on the drawers, and do not load any single
drawer with more than 150 lb (68 kg) of product.
2. Depending on the weight of product in the drawers, secure the unit as
necessary to prevent it from overturning.
3. Do not open more than one drawer at a time and never stand on the drawers.

13
B. Startup
WARNING
All parts are factory-adjusted. Improper adjustments may adversely affect
safety, performance, component life, and warranty coverage.
Supplypowertotheunit.Openthefrontpaneltoaccessthecontrols.See"I.E.Accessing
theControls."Movetherailcoolingswitchtothe"NORMAL"position,thenmovethe
powerswitchtothe"ON"position.Allowtheunittocooldownpriortoloadingitwithfood.
Pans (leave empty until the unit cools down) should be in place and cover the entire rail.
Otherwise, the rail will not cool properly. Close the rail cover while waiting for the rail to
cool down.
WARNING
When the rail cover is open, make sure the rear pins on both sides of the rail
cover are securely in the rear slots and the front pins are resting securely in the
notches. Otherwise, the rail cover could close suddenly and cause injury.
IMPORTANT
At startup, there is a 2 minute delay before the compressor starts.
C. Cabinet and Rail Temperature
1. Temperature Display
•Therailandcabinettemperaturesaredisplayedon
the control panel. See Fig. 9. The control panel is
located behind the front panel. The display default is
°F, but it can be changed to read °C. To change, see
"II.C.4.ChangingtheTemperatureDisplayScale(°F
or°C)."
•Thetemperaturesareupdatedevery30seconds.
2. Adjusting the Temperature Setpoint
The temperature setpoint is the temperature at which the compressor comes on. The
factory default is 37°F (3°C) for the cabinet and 33°F (1°C) for the rail. The temperature
differential for the compressor to turn off is -3.6°F (-2°C). If necessary, adjust the setpoint
temperatures as follows:
1)Presstheappropriate"SET"buttontodisplaythecurrentrailorcabinetsetpoint
temperature.
2)Tochangethesetpoint,pressandholdtheappropriate"SET"buttonwhilepressing
the up or down button. The cabinet temperature is adjustable between 21°F and 53°F
(-6°C and +12°C). The rail temperature is adjustable between -13°F and +53°F (-25°C
and +12°C).
3) After 10 seconds, the new setpoint will be saved automatically.
Fig. 9
F

14
3. Rail Cooling Switch
The rail cooling switch is used to adjust the intensity of cooling. When the rail cooling
switchisinthe"NORMAL"position,therailfansoperatecontinuously.Whentherail
coolingswitchisinthe"LOW"position,therailfansoperatecontinuouslywhentherail
iscoolingdownandintermittentlywhenrailcooldownisachieved.The"NORMAL"
positionisrecommendedwhentherailisactivelybeingused.The"LOW"positionis
recommended when not actively preparing food and the rail cover is closed. If not actively
preparing food for a long period such as overnight, seal pans with plastic wrap in addition
to closing the rail cover. Alternatively, seal ingredients and store them in a refrigerator or
freezer.
4. Changing the Temperature Display Scale (°F or °C)
The factory setting is °F. To change the display to °C, follow the steps below.
1)Pressandholdboththe"SET"buttonandthe"SERVICEUSEONLY"buttonfor
5seconds."F5"appearsinthedisplaywindow.(If"F0"isdisplayed,presstheupor
downbuttonrepeatedlyuntil"F5"appears.)
2)Pressthe"SET"buttontodisplaythecurrentsetting(default:"°F").Presstheupordown
buttontoswitchto°C.Pressthe"SET"buttontosavethesetting.
3)Pressandholdboththe"SET"buttonandthe"SERVICEUSEONLY"button
for 5 seconds. The cabinet temperature will be displayed using the newly saved
temperature scale.
4)Affixthe"°C"labelsuppliedwiththeunittothedisplaypanel,covering"°F"butnotthe
display window.
D. Defrost
1. Cabinet Defrost
This unit is preset at the factory to defrost every 6 hours for general conditions, with the
rst defrost occurring 6 hours after the unit is turned on. Note that the defrost is a heated
defrost, and therefore will have a tendency to raise the cabinet temperature. Cabinet
temperatureisnotdisplayedduringdefrost;"dF"isdisplayedinitsplace.Afterdefrost,
there is a 5 minute delay before the compressor will start. Defrost may be initiated
manuallybyholdingdownthe"MANUALDEFROST"buttonfor5seconds.
2. Rail Defrost
Defrost the rail once a week or more often if needed,
depending on conditions. To defrost the rail, rst
remove all pans from the rail and store the contents
properly in a refrigerator or freezer. Move the rail
coolingswitchtothe"OFF"positionandallowthe
rail to defrost at room temperature. Do not pour or
spray water into the rail area or try to heat the rail.
Once the frost has melted, wipe the interior of the rail
with a clean, damp sponge or cloth. Empty the rail
condensate pan, then replace it in its proper position.
See Fig. 10. When reinstalling the pan, make sure to
slide it back until it contacts the rear stops.
Rail Condensate Pan
Fig. 10

15
Set empty pans in place in the rail. Pans must cover the entire rail or the rail will not cool
properly. Movetherailcoolingswitchtothe"NORMAL"positionandallowtherailtocool
down prior to loading it with ingredients. Close the rail cover while waiting for the rail to
cool down.
E. Food Storage
1. Cabinet
•Thisunitisdesignedonlyfortemporarystorageoffood.Employsanitarymethods.Use
for any other purposes (for example, storage of chemicals or medical supplies such as
vaccine and serum) could cause deterioration of stored items.
•Donotblockthecabinetairinletoroutlet,otherwisecoolingperformancemaybe
reduced.
•Donottightlypackthecabinetwithfood.Allowsomespacebetweenitems/containers
toensuregoodairow.Alsoallowspacebetweenfoodandinteriorsurfaces.
•Donotputwarmorhotfoodinthecabinet.Letitcoolrst,oritwillraisethecabinet
temperature and could deteriorate other food in the cabinet or overload the unit.
•Allfoodshouldbewrappedinplasticlmorpackedinacontainer.Otherwisefood
may dry up, pass its smell onto other food, cause frost to develop, result in poor unit
performance, or increase the likelihood of cross-contamination. Certain dressings and
food ingredients, if not stored in containers, may accelerate corrosion of the evaporator,
resulting in failure.
2. Rail
•Whenoperatingtherail,theentirerailmustbecoveredbyraildividersandpans.
Otherwise, the rail will not cool properly.
•Usepanswithadepthofupto6"(15cm).Donotusedamagedpans.
•Onlyloadingredientsthathavebeenpre-chilledto37°F(3°C)orless.
•Therailisforcoolingingredientswhilepreparingfood.Whennotactivelypreparing
food,therailcovercanbeclosedandtherailcoolingswitchmovedtothe"LOW"
position. If not actively preparing food for a long period such as overnight, seal pans
with plastic wrap in addition to closing the rail cover and moving the rail cooling switch
tothe"LOW"position.Alternatively,sealingredientsandstoretheminarefrigeratoror
freezer.

16
F. Safety Devices
1. High Pressure Switch
If pressure on the high-side of the unit exceeds Hoshizaki specications, a high pressure
switch activates and interrupts power to the compressor relay. This shuts down the
compressor until the pressure returns to an acceptable level.
2. Compressor Short Cycle Timer
There is a 2-minute minimum off-time for the compressor.
3. Compressor Protector
If combined temperature/amperage value is above the limit specied by the compressor
manufacturer, the compressor protector operates independently to turn off the
compressor. The compressor protector shuts down the compressor until the temperature/
amperage value returns to an acceptable level.
4. Defrost Protection
a) Cabinet
Primary defrost termination is controlled by the defrost thermistor. However, two
additional safeties are also present:
•DefrostTimeTermination-1hour40minutemaximum
•DefrostBackupTemperatureTermination-Controlled by a thermostat that is in-line
with the heater and independent of the control board.
b) Rail
Forraildefrostinformation,see"II.D.2.RailDefrost."

17
G. Alarm Codes
WARNING
1. This unit should be disassembled or repaired only by a qualied service
technician to reduce the risk of injury, electric shock, or re.
2. In case of insufficient refrigeration performance, move food into another unit
to prevent its deterioration.
If an error occurs, the alarm code and cabinet temperature are displayed in 1-second
intervals. When an error occurs, check the alarm code and follow the instructions below.
Alarm Code Problem Reset Options
E1
High Temperature Alarm (cabinet only)
Cabinet temperature has exceeded
the setpoint temperature by 18°F
(10°C) for more than x hours. The
defaultvalueofxis"2".
When the temperature returns to the setpoint range,
alarmcode"E1"clears.
If the temperature does not return to the proper range,
and obvious corrections such as closing doors/drawers
and cleaning the air lter and/or condenser do not
bring the temperature back in range, call a qualied
service technician.
E2
Low Temperature Alarm (cabinet only)
Cabinet temperature has remained
below the setpoint by 9°F (5°C) for
more than y hours. The default value
ofyis"1".
When the temperature returns to the setpoint range,
alarmcode"E2"clears.
If the temperature does not return to the proper range,
and obvious corrections do not bring the temperature
back in range, call a qualied service technician.
E3
Defrost Alarm (cabinet only)
Cabinet defrost has taken longer than
1 hour 40 minutes. The control board
has terminated defrost.
Call a qualied service technician.
NotethatE3mayalternatewith"dF"insteadofthe
temperature.
E7
Clogged Filter Alarm
(high condenser temperature)
Condenser temperature is outside
of normal operating range. The
condenser air lter and/or condenser
require cleaning.
Clean the air lter and/or condenser. Allow time for
the sensor to reset, then move the power switch to the
"OFF"positionandthenbackto"ON"againtoclear
the alarm.
If this alarm occurs frequently, call a qualied service
technician. Failure to take action when this alarm
activates could result in damage to the compressor.
E8
Defrost Temperature Sensor
Malfunction Alarm (defrost thermistor)
Defrost temperature sensor has failed.
Call a qualied service technician.
E9
Clogged Filter Sensor Malfunction
Alarm
(condenser thermistor)
Clogged lter sensor has failed.
Call a qualied service technician.
EA
EEPROM Write Alarm
Control board has failed.
Call a qualied service technician.
ED
EEPROMVericationorReadAlarm
Control board has failed.
Call a qualied service technician.

18
H. Cooling Performance
Be sure the unit is properly installed and located for optimum cooling performance. If
cooling performance is not at its optimum level, check the following items:
1. Cabinet
•Door(s)/drawer(s)openedtoooften.
•Door(s)/drawer(s)leftopen.Close.
•Tootightlypackedwithfoodorcabinetairinlet/outletblocked.Allowsomespace
betweenitems/containerstoensuregoodairow.
•Warmorhotfoodinside.Takeitoutuntilitcoolsdownmore.
•Ambienttemperaturetoohigh.Avoidinstallationnearhighheatproducingequipmentor
exposure to direct sunlight.
•Cabinettemperaturesettingtoohigh.Readjusttoalowertemperature.See"II.C.
CabinetandRailTemperature."
•Unitindefrostcycle.Thecabinettemperaturemayrisetemporarilyduringdefrostcycle,
but this will not affect the food inside.
2. Rail
•Pansandraildividersnotinplace.Pansmustcovertheentirerailortherailwillnotcool
properly.
•Warmorhotingredientsinside.Onlyloadingredientsthathavebeenpre-chilledto37°F
(3°C) or less.
•Ambienttemperaturetoohigh.Avoidinstallationnearhighheatproducingequipmentor
exposure to direct sunlight.
•Railtemperaturesettingtoohigh.Readjusttoalowertemperature.See"II.C.Cabinet
andRailTemperature."
•Railcoveropenwhennotactivelypreparingfood.Whennotactivelypreparingfood,
close the rail cover.
I. Condensation
In the event condensation develops on the unit exterior, check the following items:
•Door(s)/drawer(s)leftopen.Close.
•Ambienthumiditytoohigh.Wipeoffoccasionally.

19
III. Cleaning and Maintenance Instructions
A. Cleaning
WARNING
1.Beforecleaningtheunit,movethepowerswitchtothe"OFF"positionand
unplug the unit to prevent electric shock by unexpected entrance of water into
the unit or injury by moving parts.
2. Before cleaning the unit, move all food into another clean refrigerator or
freezer.
3. Do not splash water directly onto the unit. This might cause short circuit,
electric shock, corrosion, or failure.
4. Do not pour or spray water into the rail area. The rail drain is for condensate
only. Excessive liquid in the rail area could result in electric shock. Be sure to
keep the fans dry.
5. Metal edges can cause cuts. Use care and wear protective gloves when
cleaning.
6. Keep hands clear of fan shrouds when the unit is operating. The rotating fans
might cause injury.
7. Before using a sanitizer such as inert soap and sodium hypochlorite (chlorine
bleach), thoroughly read the manufacturer’s instructions on its proper usage.
IMPORTANT
1. To prevent damage to the painted or plastic surfaces, do not use the following:
thinner, benzine, alcohol, petroleum, soap powder, polishing powder, alkaline
cleaner, acid, scouring pad, and especially those strong cleaners for use on
a ventilating fan or a cooking range. Also, to prevent corrosion, do not use a
chlorine bleach such as sodium hypochlorite on the stainless steel surfaces.
2. Use a clean cloth for cleaning.
1. Work Surface
Clean the cutting board as often as necessary to
maintain a clean, sanitary work surface. Also clean the
worktop space underneath the cutting board as often
as necessary to maintain a clean, sanitary surface.
After cleaning, be sure to properly secure the cutting
board with the brackets on the ends of the worktop.
See Fig. 11. Slide the brackets down onto the cutting
board and tighten the screws.
WARNING
Make sure the cutting board is secure. Otherwise, the cutting board could
come off and cause injury.
Fig. 11
Cutting Board Bracket
Screws

20
2. Rail and Rail Cover
Spills and splashes should be wiped up promptly to avoid unpleasant odors. Wipe the
interior of the rail and the rail cover occasionally with a clean, damp sponge or cloth
containing a neutral cleaner. Do not pour or spray water into the rail area.
WARNING
1. Be sure to support the rail cover when cleaning. Otherwise, the rail cover
could close suddenly and cause injury.
2. Metal edges can cause cuts. Use care and wear protective gloves when
cleaning.
3. Exterior
Wipe the exterior occasionally with a clean, soft cloth. Use a damp cloth containing a
neutral cleaner to wipe off oil or dirt build up.
4. Cabinet Interior
Spills and splashes should be wiped up promptly to avoid unpleasant odors. The cabinet
interior should be cleaned periodically with a mild soap or detergent and warm water.
5. Door/Drawer Gaskets
Door/drawer gaskets should be cleaned regularly with mild soap and warm water to
remove dirt and grease.
6. Shelves (if applicable)
Remove and clean regularly.
7. Drawers (if applicable)
The drawers can be removed for cleaning either individually or as an entire assembly.
•Toremoveanindividualdrawer,rstremoveallfoodfromthedrawer.Pullthedrawer
out to its fully extended position and lift up on the handle to disengage the drawer.
Before removing the drawer, carefully support the rear and front of the drawer and then
slowly remove it from the cabinet.
•Toremovethedrawerframeassembly,rstremovethedrawersandthenremove
the fasteners in the thermal break and in the rear of the cabinet. Carefully slide the
frame out of the cabinet, making sure not to damage the thermal break. Reinstall in the
reverse order, making sure not to overtighten the screws in the thermal break.
•Toremovethedrawerslide(centerslidecontainingrollers)forcleaning,rotatethe
top of the slide away from the frame while the slide is completely inside the cabinet.
Drawer slides do not require lubrication, but slides should be kept clean and free of
food.
Note: Drawer slides are dishwasher safe.
