Hoshizaki HR15A-G User manual

Number: MAN-321-R
ISSUED: 07-21-2018
REVISED: 11-04-2019
Refrigerator
Model
HR15A
Instruction Manual
hoshizakiamerica.com

2
Only qualied service technicians should install and service the
appliance. To obtain the name and phone number of your local
Hoshizaki Certied Service Representative, visit www.hoshizaki.
com. No installation or service should be undertaken until the
technician has thoroughly read this Instruction Manual. Likewise,
the owner/manager should not proceed to operate the appliance
until the installer has instructed them on its proper operation.Failure
to install, operate, and maintain the appliance in accordance with
this manual may adversely affect safety, performance, component
life, and warranty coverage.Proper installation is the responsibility
of the installer.Product failure or property damage due to improper
installation is not covered under warranty.
Hoshizaki provides this manual primarily to assist qualified service
technicians in the installation, maintenance, and service of the appliance.
Should the reader have any questions or concerns which have not been
satisfactorily addressed, please call, send an e-mail message, or write to
the Hoshizaki Technical Support Department for assistance.
Phone: [phone]
Fax: [phone]
E-mail: techsuppor[email protected]
618 Highway 74 South
Peachtree City, GA 30269
Attn: Hoshizaki Technical Support Department
Web Site: www.hoshizaki.com
NOTE: To expedite assistance, all correspondence/communication MUST
include the following information:
• Model Number ____________________________
• Serial Number _____________________________
• Complete and detailed explanation of the problem.
WARNING

3
This manual should be read carefully before the appliance
is installed and operated. Read the warnings and guidelines
contained in this manual carefully as they provide essential
information for the continued safe use and maintenance of the
appliance. Retain this manual for any further reference that may
be necessary.
IMPORTANT
Contents
INTRODUCTION ....................................................................................4
Important Safety Information ..................................................................4
GENERAL SAFETY ...............................................................................7

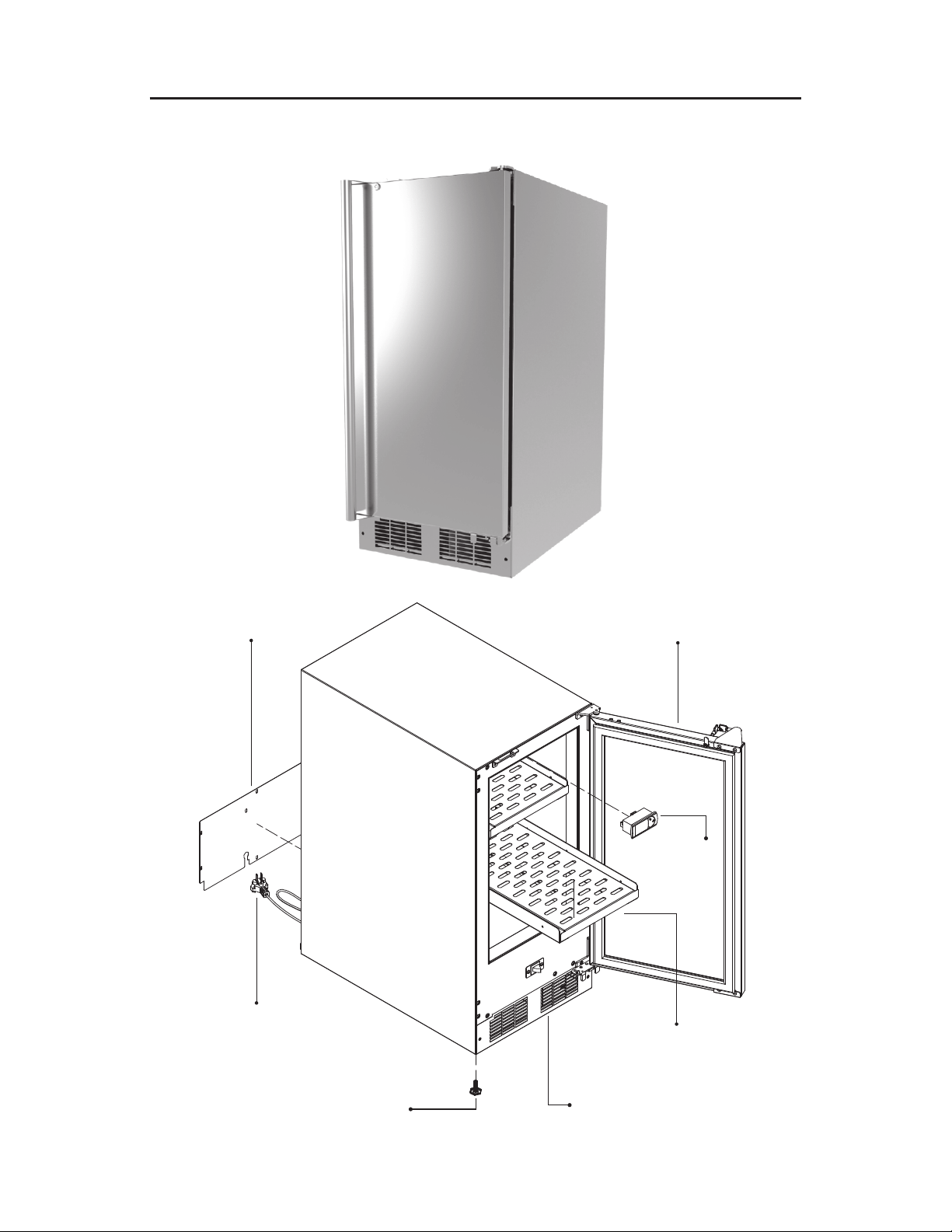

KNOW YOUR EQUIPMENT ...................................................................8
CHECK FOR SHIPPING DAMAGE........................................................9
HANDLING THE CABINET ..................................................................10
LOCATION............................................................................................10
REMOVE THE CRATE AND SKID........................................................11
LEVEL THE CABINET..........................................................................11
ELECTRICAL INSTALLATION..............................................................12
INSTALLING THE SHELVES................................................................13
START UP THE COOLER ....................................................................13

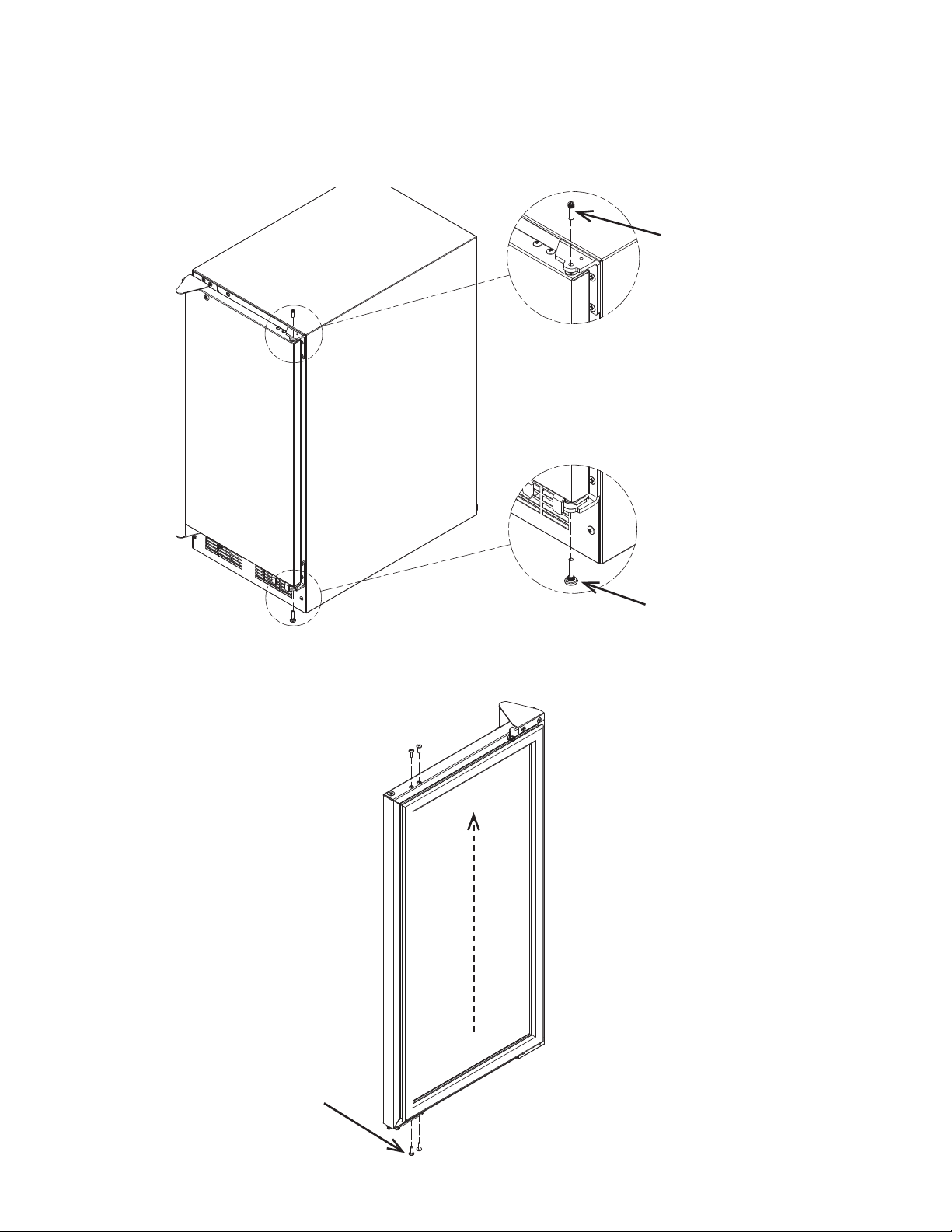

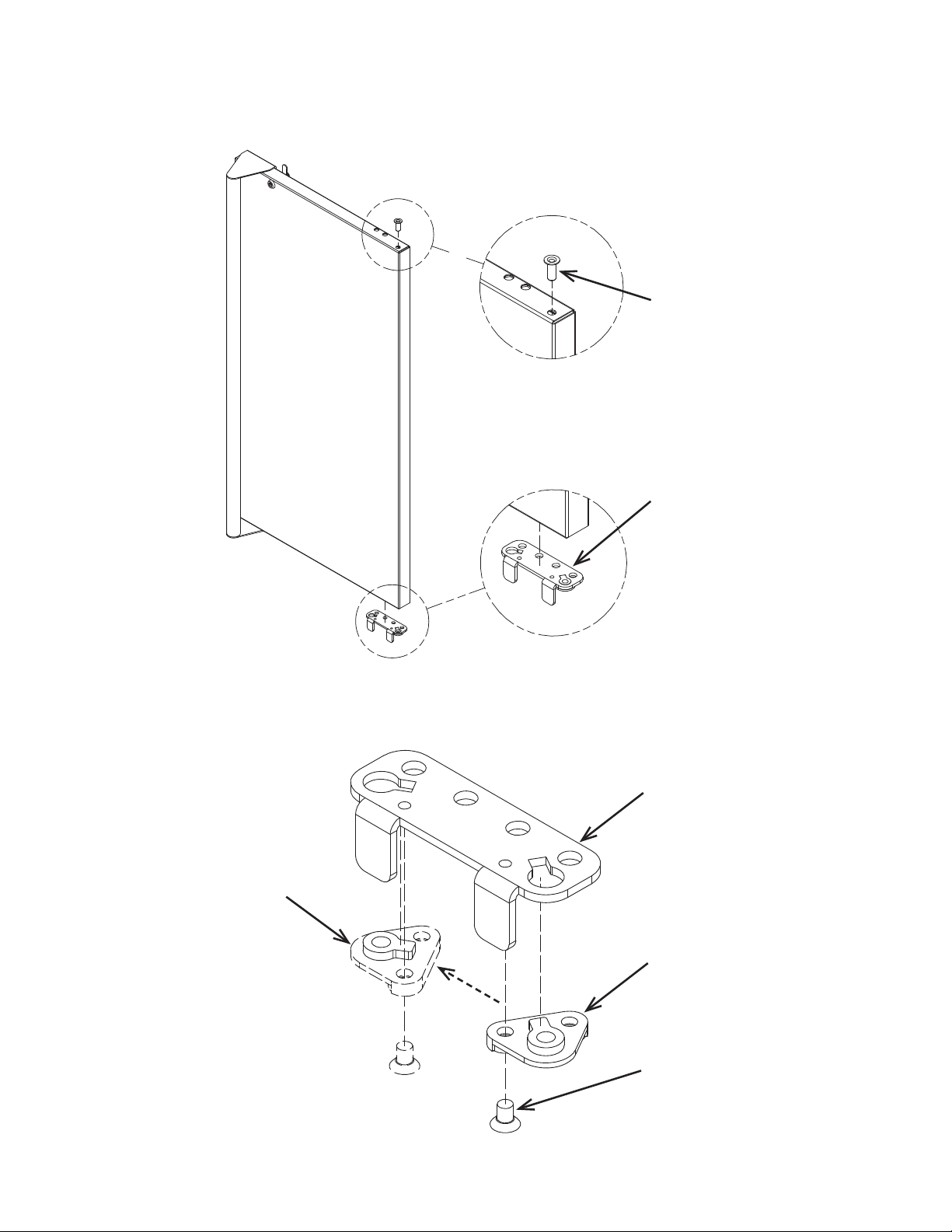

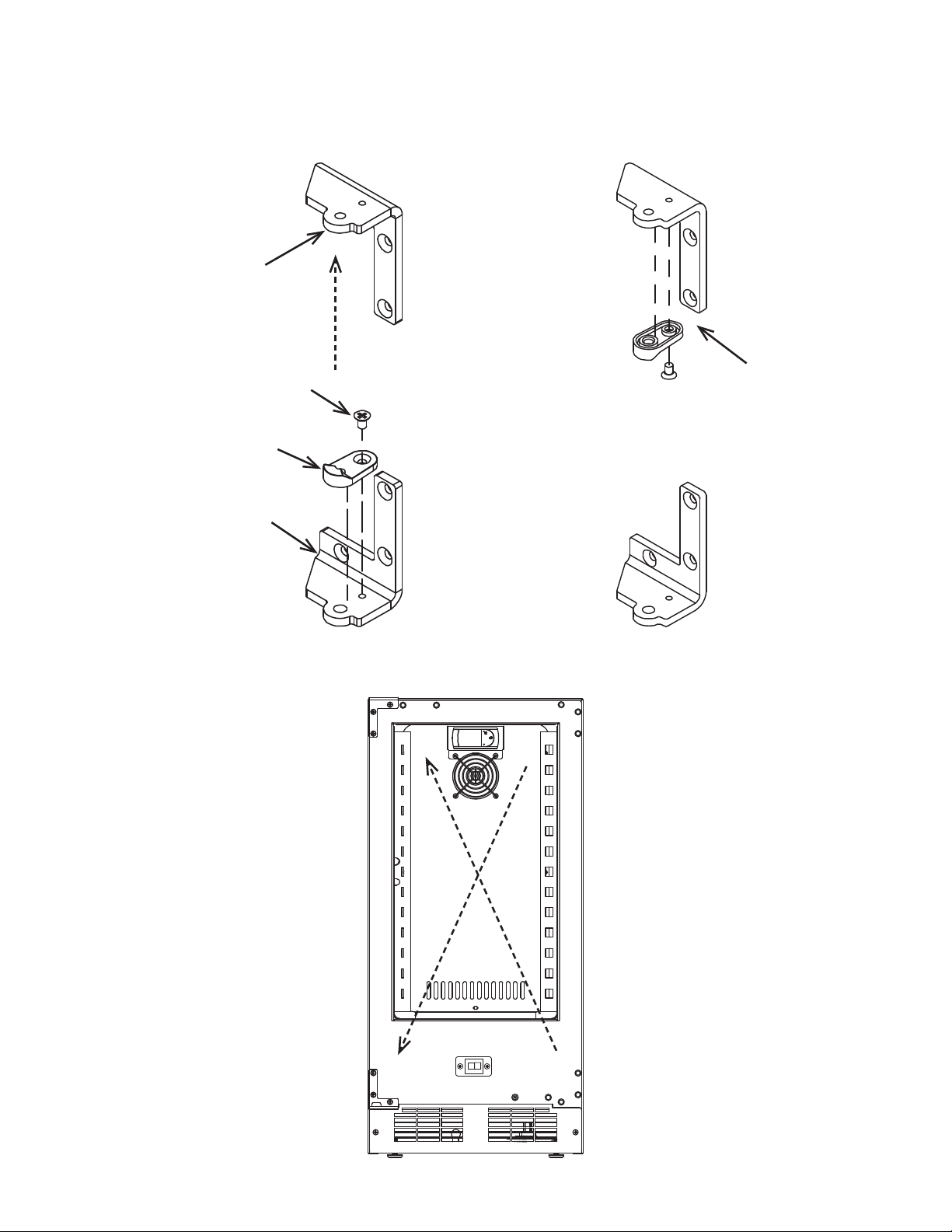

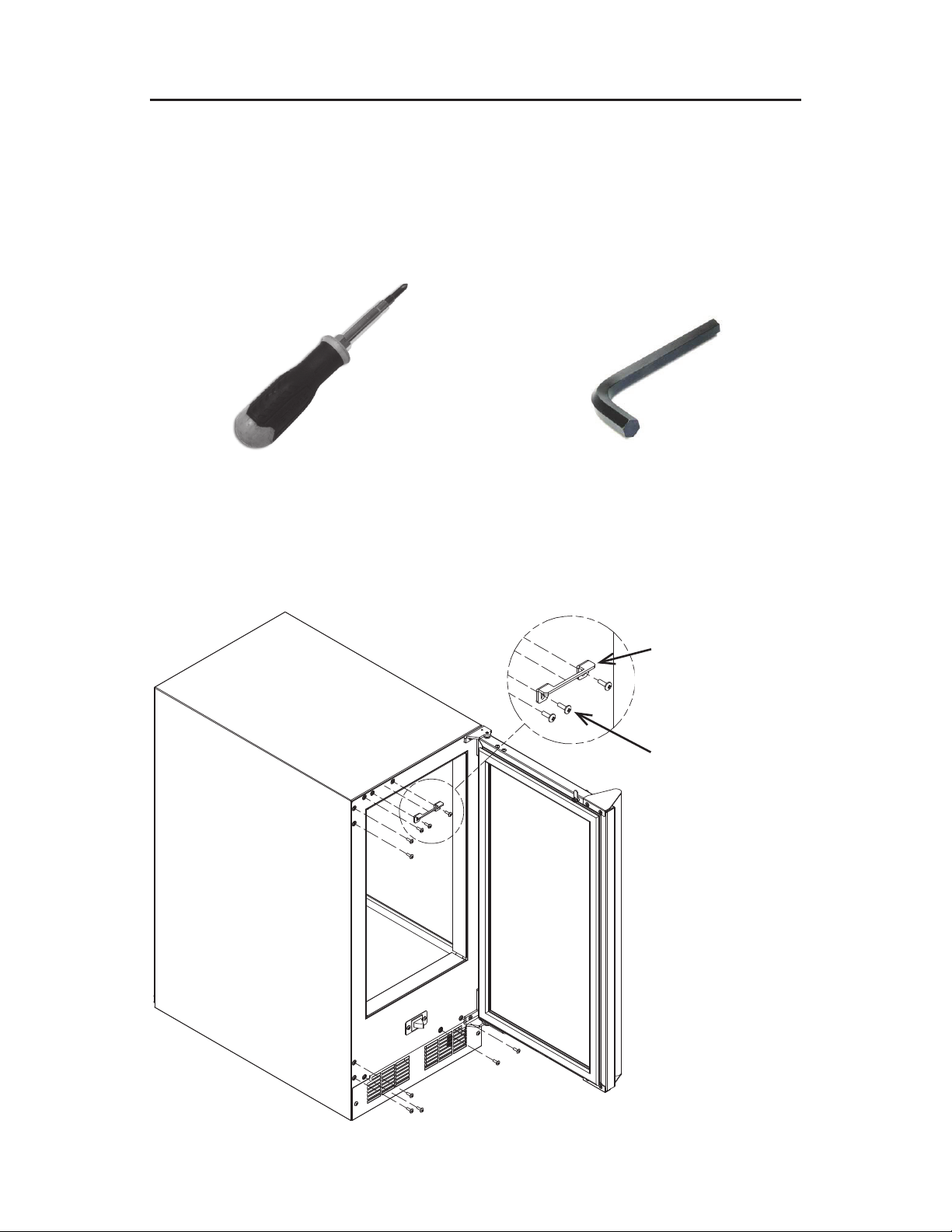

DOOR REVERSAL...............................................................................14
CONTROLS AND ADJUSTMENTS......................................................20
STEPS TO CHANGE SETPOINT.........................................................20
ALARM SAFETIES...............................................................................20
ALARM INDICATORS...........................................................................21
FINAL CHECKLIST ..............................................................................22
CLEANING AND MAINTENANCE INSTRUCTIONS............................23
IMPORTANT NOTES ABOUT USAGE.................................................24
PREPARING THE APPLIANCE FOR PERIODS OF NON-USE ..........26
DISPOSAL............................................................................................27

4
Throughout this manual, notices appear to bring your attention to
situations which could result in death, serious injury, damage to the
appliance, or damage to property.
INTRODUCTION
This manual contains instructions for installation, operation and
general maintenance of your unit.
Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
WARNING
NOTICE
IMPORTANT
DANGER Indicates a hazardous situation that, if not avoided,
will result in death or serious injury.
Indicates important information about the use and
care of the appliance.
Indicates a situation that, if not avoided, could result
in damage to the appliance or property.
DANGER
Risk of Fire or Explosion
Flammable Refrigerant Used
• Follow handling instructions carefully
in compliance with U.S. government
regulations.
• Do not use mechanical devices to
defrost.
• Do not puncture refrigerant tubing.
Risk of re or explosion due to
puncture of refrigerant tubing; follow
handling instructions carefully.
• Component parts shall be replaced
with like components.
• Servicing shall be done by factory
authorized service personnel to
minimize the risk of possible ignition
due to incorrect parts or improper
service.
• Consult instruction manual/ service
manual before attempting to install
or service this product. All safety
precautions must be followed.
• Dispose of properly in accordance
with federal or local regulations.
• Do not place any potential ignition
sources in or near the appliance.
Risque De Feu Ou D'Explosion
Le Frigorigène Est Inammable
• Suivre attentivement les instructions
de manipulation conformément à la
réglementation gouvernementale.
• Ne pas utiliser d'appareils mécaniques
pour dégivrer le réfrigérateur.
• Ne pas perforer la tubulure contenant le
frigorigène. Risque de feu ou d'explosion
si la tubulure contenant le frigorigène
est perforée; suivre les instructions de
manutention avec soin.
• Les pièces des composants doivent
être remplacées par des pièces et
accessoires équivalents.
• L’entretien doit être effectué par le
personnel de service autorisé par le
fabricant an de minimiser les risques
d’inammation attribuables à l’installation
d’une pièce inadéquate ou à la mauvaise
exécution du service.
• Consulter le manuel du propriétaire/
guide de réparation avant de tenter
une réparation. Toutes les mesures de
sécurité doivent être respectées.
• Éliminer conformément aux règlements
fédéraux ou locaux.
• Ne placez aucune source d’inammation
potentielle dans ou près de l’appareil.
Important Safety Information

5
WARNING
This appliance should be destined only to the use for which it has been
expressly conceived. Any other use should be considered improper and
therefore dangerous. The manufacturer cannot be held responsible for injury
or damage resulting from improper, incorrect, and unreasonable use. Failure to
install, operate, and maintain the appliance in accordance with this manual will
adversely affect safety, performance, component life, and warranty coverage.
To reduce the risk of death, electric shock, serious injury, or re, follow
basic precautions including the following:
• Only qualied service technicians should install and service this appliance.
• Wear appropriate personal protective equipment (PPE) when servicing the
appliance.
• This appliance must be installed in accordance with applicable national,
state, and local codes and regulations.
• To reduce the risk of electric shock, do not touch the plug with damp hands.
• This appliance requires an independent power supply of proper capacity.
See the nameplate for electrical specications.Failure to use an independent
power supply of proper capacity can result in a tripped breaker, blown fuse,
damage to existing wiring, or component failure. This could lead to heat
generation or re.
• THIS APPLIANCE MUST BE GROUNDED: This appliance is equipped
with a NEMA 5-15 three-prong grounding plug to reduce the risk of
potential shock hazards. It must be plugged into a properly grounded,
independent 3-prong wall outlet. If the outlet is a 2-prong outlet, it is your
personal responsibility to have a qualied electrician replace it with a
properly grounded, independent 3-prong wall outlet. Do not remove the
ground prong from the plug and do not use an adapter plug. Failure to follow
these instructions may result in death, electric shock, or re.
• Do not use an extension cord.
• Do not use an appliance with a damaged power cord. The power cord
should not be altered, jerked, bundled, weighed down, pinched, or tangled.
Such actions could result in electric shock or re. To unplug the appliance,
be sure to pull the plug, not the cord, and do not jerk the cord.
• The GREEN ground wire in the factory-installed power cord is connected
to the appliance. If it becomes necessary to remove or replace the power
cord, be sure to connect the power cord's ground wire.
• Do not splash, pour, or spray water directly onto or into the appliance. This
might cause short circuit, electric shock, corrosion, or failure.
• Do not make any alterations to the appliance. Alterations could result in
electric shock, injury, re, or damage to the appliance.

6
WARNING, continued
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory, or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
• Children should be properly supervised around this appliance.
• Do not climb, stand, or hang on the appliance or door or allow children
or animals to do so. Do not climb into the appliance or allow children or
animals to do so. Death or serious injury could occur or the appliance could
be damaged.
• Be careful not to pinch ngers when opening and closing the doors. Be
careful when opening and closing the doors when children are in the area.
• Open and close the doors with care. Doors opened too quickly or forcefully
may cause injury or damage to the appliance or surrounding equipment.
• Do not use combustible spray or place volatile or ammable substances in
or near the appliance. They might catch re.
• Keep the area around the appliance clean. Dirt, dust, or insects in the
appliance could cause harm to individuals or damage to the equipment.
• Do not throw anything onto the shelves or load any single shelf with more
than 36 lb. (16.5 kg) of product. They might fall off and cause injury.
• This appliance is designed only for storage of package food. Employ
sanitary methods. Use for any other purposes (for example, storage of
chemicals or medical supplies such as vaccine and serum) could cause
deterioration of stored items.
• Do not block the cabinet air inlet or outlet, otherwise cooling performance
may be reduced.
• Do not tightly pack the cabinet. Allow some space between items to ensure
good air ow. Also allow space between items and interior surfaces.
• Do not place any product on the oor of the cabinet. All product must be
placed on properly installed shelves.
• Do not put warm or hot foods in the cabinet. Let them cool rst, or they
will raise the cabinet temperature and could deteriorate other foods in the
cabinet or overload the appliance.
• All foods should be wrapped in plastic lm or stored in sealed containers.
Otherwise foods may dry up, pass their smells onto other foods, cause
frost to develop, result in poor appliance performance, or increase the
likelihood of cross-contamination. Certain dressings and food ingredients, if
not stored in sealed containers, may accelerate corrosion of the evaporator,
resulting in failure.
• Do not store items near the air outlet. They might freeze up and crack or
break causing a risk of injury or contamination of other food.
• This unit must be installed and located appropriately, following the
installation instructions before its use.

7
NOTICE
• Protect the oor when moving the appliance to prevent damage to the oor.
• Keep ventilation openings, in the appliance enclosure or in the built in
structure, clear of obstruction.Do not place anything on top of the appliance.
Blockage of airow could negatively affect performance and damage the
appliance.
• To prevent deformation or cracks, do not spray insecticide onto the plastic
parts or let them come into contact with oil.
• To avoid damage to the gasket, use only the door handle when opening
and closing.
- Avoid prolonged exposure of the appliance to direct sunlight.
- Only genuine spare parts should be used to service this refrigerator.
GENERAL SAFETY
WARNING, continued
• Do not allow children to climb, step or hang onto the shelves inside the
cooler. That could damage the unit and cause serious injuries to them.
• Do not touch the cold surfaces of the cooler with your hands wet or moist.
The skin can stick to these cold surfaces.
• Do not store gasoline or other ammable liquids or gases, near this or other
electrical equipment.
• Keep your ngers away from the spaces between doors and cabinet are
small, so be careful when closing doors when children are around.
• Unplug the cooler before cleaning or performing any repair.

8
KNOW YOUR EQUIPMENT
CONTROL
MODULE
DOOR
LEVELING LEG
POWER CORD
ACCESS COVER
SLIDE OUT SHELF
FRONT GRILLE
FIG. 1

9
CHECK FOR SHIPPING DAMAGE
Prior to leaving the factory, each cabinet is throughly inspected and
performance tested to assure proper operating temperatures.
Check the crate thoroughly for signs of shipping damage. If external
damage exists, internal damage is also probable. Uncrating should be done
while the carrier´s representative is present. Otherwise, the equipment
should be uncrated as soon as possible, preferably within ve (5) days.
The manufacturer is not responsible for in-transit damage and the consignee
must le any required damage claims directly with the carrier.
If the damage is severe and obvious, write a brief description of the evidence
on the carrier’s delivery receipt, and above the carrier representative’s
signature. Call the distributor or dealer immediately, indicating that the
cabinet was damaged.
DANGER: Risk of Fire or Explosion due to Flammable Refrigerant Used.
Follow Handling Instructions Carefully in Compliance with U.S.Government
Regulations.
If no obvious crate damage is present, within two hours of receiving the
cabinet from the carrier, remove the packaging to inspect for concealed
damage.
1. If concealed damage is found, call the carrier immediately, save all
crating materials, and le the necessary freight claim with the carrier.
Check for accesories: Check that the shelves are inside the refrigerator,
including the four clips or supports for each shelf.
WARNING
• This appliance must be installed in accordance with all applicable
national, state, and local regulations.
• Appliance is heavy. Use care when lifting or positioning. Work in
pairs when needed to prevent injury or damage.
• Do not tilt the appliance more than 45°.
Installation instructions

10
1. Always move the unit in an upright position. Do not set it on its side
or upside down as you may damage the cabinet and cause the oil to
migrate from the compressor.
2. If lifting the unit, hold it from its base. It is recommended to use a dolly.
3. Do not let the unit fall abruptly.
4. Appliance is heavy. Use care when lifting or positioning. Work in pairs
when needed to prevent injury or damage.
5. Do not lift using the doors.
LOCATION
Select location
This appliance is approved for indoor or outdoor use. The proper
location will ensure peak performance of your appliance. We
recommend a location where the unit will be out of direct sunlight
and away from heat sources. To ensure your product performs to
specications, the recommended installation location temperature
range is from 55°F to 115°F (13°C to 46°C).
Cabinet clearance
Ventilation is required from the bottom front of the appliance. Keep
this area open and clear of any obstructions. Adjacent cabinets and
counter top can be installed around the appliance as long as the
front grille remains unobstructed.
Front Grille
Do not obstruct the front grille. The openings within the front grille
allow air to ow through the condenser heat exchanger. Restrictions
to this air ow will result in increased energy usage and loss of
cooling capacity. For this reason it is important this area not be
obstructed and the grille openings kept clean. It is not recommend
the use of a custom made grille as air ow may be restricted.
HANDLING THE CABINET

11
The base of the refrigerator has heavy duty leveling legs underneath so the
cabinet may be leveled appropriately and to allow room to clean beneath
the cabinet.
Level the cabinet front to back and side to side with a level by using the
adjustable portion of the leveling legs.
LEVEL THE CABINET
To lower, turn
clockwise
Leveling leg
To raise, turn
counterclockwise
Cut the plastic straps.
REMOVE THE CRATE AND SKID
FIG. 2

12
ELECTRICAL INSTALLATION
WARNING
• Electrical connection must meet national, state, and local electrical code
requirements. Failure to meet these code requirements could result in
death, electric shock, serious injury, re, or severe damage to equipment.
• This appliance requires an independent power supply of proper capacity.
See the nameplate for electrical specications.Failure to use an independent
power supply of proper capacity can result in a tripped breaker, blown fuse,
damage to existing wiring, or component failure. This could lead to heat
generation or re.
• THIS APPLIANCE MUST BE GROUNDED: This appliance is equipped
with a NEMA 5-15 three-prong grounding plug to reduce the risk of
potential shock hazards. It must be plugged into a properly grounded,
independent 3-prong wall outlet. If the outlet is a 2-prong outlet, it is your
personal responsibility to have a qualied electrician replace it with a
properly grounded, independent 3-prong wall outlet. Do not remove the
ground prong from the plug and do not use an adapter plug. Failure to follow
these instructions may result in death, electric shock, or re.
• To reduce the risk of electric shock, do not touch the plug with damp hands.
• Do not use an extension cord.
• Do not use an appliance with a damaged power cord. The power cord
should not be altered, jerked, bundled, weighed down, pinched, or tangled.
Such actions could result in electric shock or re. To unplug the appliance,
be sure to pull the plug, not the cord, and do not jerk the cord.
• The GREEN ground wire in the factory-installed power cord is connected
to the appliance. If it becomes necessary to remove or replace the power
cord, be sure to connect the power cord’s ground wire.
Electrical Connection
• Usually an electrical permit and services of a licensed electrician are
required.
• The maximun allowable voltage variation is ± 10 percent of the
nameplate rating.
ATTENTION
After an interruption of the electrical power supply,
the compressor will take approximately 3 minutes to
start working.

13
1. Plug in the electrical cord of the unit to a wall outlet, following the
recommendations about electrical installation in this manual.
2. Allow the appliance to cool down to setpoint before loading with
product.
3. When placing products in the cooler, you should leave small
gaps between one and the other to assure free circulation of air
inside the cabinet.
4. Do not leave the door open for extended periods of time, to
avoid increased temperature of the products.
The temperature of a cooler should be between 34°F to 40°F.
START UP THE COOLER
INSTALLING THE SHELVES
WARNING
Never try to move a loaded shelf, remove everything from the shelf
before moving. Use both hands when moving the shelf.
To add or remove a shelf
Remove stored product from the shelf. Do not try to remove a
loaded shelf from the appliance. Grasp the shelf front with both
hands, rotate the front upward and lift out. To install a shelf insert
the shelf in the appliance and insert the top hooks into the shelf
support slots and drop the shelf down so the hooks drop over the
bottom of the slots.
Loading tips and suggestions
Your appliance is equipped with a cantilever shelf system, composed
of two perforated stainless steel slide out shelves, which provides
maximum adjustability.

14
DOOR REVERSAL
Step 1. Remove the SC-48-SS screws and the lock bracket. See
gure 3.
TOOLS
1/8” ALLEN WRENCH
PHILLIPS # 2 SCREWDRIVER
Lock Bracket
SC-48-SS screw
(use screwdriver)
INSTRUCTIONS
FIG. 3
If you would like to reverse the door swing, follow the steps below.
Otherwise, skip to section “Controls and adjustments”.

15
Step 2.While maintaining a hold on the door, remove the SC-541-SS
upper screw and the SC-542-SS lower screw and remove the door.
See gure 4.
Step 3. Remove the SC-48-SS screws. See gure 5.
SC-48-SS screw
(use screwdriver)
SC-541-SS
Upper screw
(use Allen
wrench)
SC-542-SS
Lower screw
(use screwdriver)
FIG. 4
FIG. 5

16
Step 4. Remove the Bushing and the Door Bracket from the door.
See gure 6.
Step 5. Remove the SC-543-SS screw and the Plastic Cam B from
the Door Bracket, then attach them to the opposite side. See gure 7.
Bushing
Door Bracket
Plastic Cam B
Door Bracket
SC-543-SS
Screw
(use screwdriver)
New
position
FIG. 6
FIG. 7

17
Step 6. Next move the Bushing to the lower part of the door, and the
Door Bracket to the upper part of the door. See gure 8.
Bushing
Door Bracket
New
position
Step 7. Remove the SC-50-SS screws and the hinges from the
cabinet. See the illustration below. See gure 9.
SC-50-SS screw
(use screwdriver)
Upper Hinge
SC-50-SS screw
(use screwdriver)
Lower Hinge
FIG. 8
FIG. 9

18
Step 9. Attach the Upper Right Hinge to the lower left corner, then
attach the Lower Right Hinge to the upper left corner. See gure 11.
Step 8. Remove the SC-543-SS screw and the Plastic Cam A from
the Lower Hinge.Then place them on the Upper Hinge.See gure 10.
New
position
Upper Hinge
Lower Hinge
SC-543-SS screw
(use screwdriver)
Plastic Cam A
FIG. 10
FIG. 11

19
Step 10. Rotate the door 180° and attach it to the cabinet using the
SC-541-SS upper screw and the SC-542-SS lower screw. See gure
12.
Step 11. Finally attach the Lock Bracket to the lower right corner using
the SC-48-SS screws, removed in Step 1. See gure 13.
Lock
Bracket
SC-48-SS screw
(use screwdriver)
SC-541-SS
Upper screw
(use Allen
wrench)
SC-542-SS
Lower screw
(use
screwdriver)
FIG. 12
FIG. 13

20
CONTROLS AND ADJUSTMENTS
DEFROST
SELECTOR
STEPS TO CHANGE SETPOINT
1. To access the menu press the “Set” button until the value “0” is
displayed on the screen.
2. Release the “Set” button.
3. Press the “Up” button repeatedly until the value 22 is displayed
on the screen. This is the password.
4. Push the “Set” button once to access the menu.
5. When you access the menu the display shows the letters “PS”.
6. Press the “Up” button repeatedly until “St” appears in the display,
then press the “Set” button.
7. The display shows the value of the current setpoint.
8. Change the value of the Set Point using the “Up” or “Down”
button.
9. To save the new Set Point, press the “Set” button until the display
shows the current temperature.
NOTES:
- THE DEFAULT SET POINT IS 34°F.
- THE SET POINT RANGE IS FROM 28°F TO 40°F.
ALARM SAFETIES
Alarm signals are designed to protect the appliance and items inside.These
alarms give information or warnings in the event the appliance is operating
out of acceptable parameters. Should one of the alarms accur, follow the
instructions below to address the alarm. The alarm icon appears on the
display and the alarm code alternates with the cabinet temperature. For
high temperature, low temperature, and door alarms, the appliance beeps
in addition to displaying the alarm icon and alarm code.
