Hoshizaki Temp Guard RFH2-SSB-HD User manual

Cabinet Construction
•Stainless steel interior and exterior for long life, durability
and easy maintenance
•Ducted air distribution system achieves a uniform box
temperature eliminating “hot” spots even when full;
An electronic control senses cabinet air temperature and
adjusts the refrigeration system to maintain desired
temperature
•(3) heavy duty epoxy shelves per section are standard;
Mounted on stainless steel pilasters shelves are adjustable
in 1” increments
•Cabinet door perimeter heater provides condensation
control in high humidity environments and is equipped with
a back-up heater should the primary heater fail; Manual
power switch allows for energy savings in low humidity
conditions
•Cabinet and doors are 2 3/8” thick, insulated with R-134A,
CFC free foamed in place polyurethane
•Interior light automatically activated when doors are opened
•Die cast legs and stainless steel feet offer increased durability
Door Construction
•Doors are constructed of high grade 300 Series stainless
steel inside and out (HD - Two half doors per section)
•Flush mount door handles maximize aisle space by
eliminating protruding parts
•Door hinges are all metal with tension spring closure and will not
wear out like traditional cam-lift hinges; Doors stay open at 105˚
and are self-closing at 75˚; Door hinge spring tension is adjustable
•Step door design protects door gasket when product is removed
from the box; Snap-in magnetic door gaskets are durable and
easily removed
•Door hinging is field reversible
Refrigeration System
•High efficiency refrigeration system is designed with a large capacity
condenser and evaporator resulting in lower overall power consumption
•TempGuard’s®EverCheck®controls monitor high and low temperatures, high pressure, high and low
voltage, clean filter and cabinet temperature functions and provides audio and visual alarms to alert
operator to possible problems
•Refrigeration system is mounted on a fully insulated rotocast platform and is easily removable from
the main unit
•Evaporator coil is coated for extended life
•Refrigeration system is equipped with solid state digital controls
•A separate sensor monitors evaporator temperature and triggers a defrost cycle when necessary to
prevent ice formation and maintain optimum cabinet temperatures
•Removable, cleanable air filter protects condenser and reduces cleaning requirements
•Hot gas condensate evaporator is standard with a condensate overflow tube to direct excess water
away from top of cabinet under extreme conditions
•Refrigerant: R-404A with expansion valve control
Hoshizaki
©HOSHIZAKI AMERICA, INC.
618 Hwy. 74 S., Pe chtree City, GA 30269 TEL [phone] FAX [phone] www.hoshiz ki.com
RRFFHH22--BB--((HHDD)) DDIIMMEENNIIOONN
W x D x H
RFH2-3- B-(HD)
5/08
Item # 13141

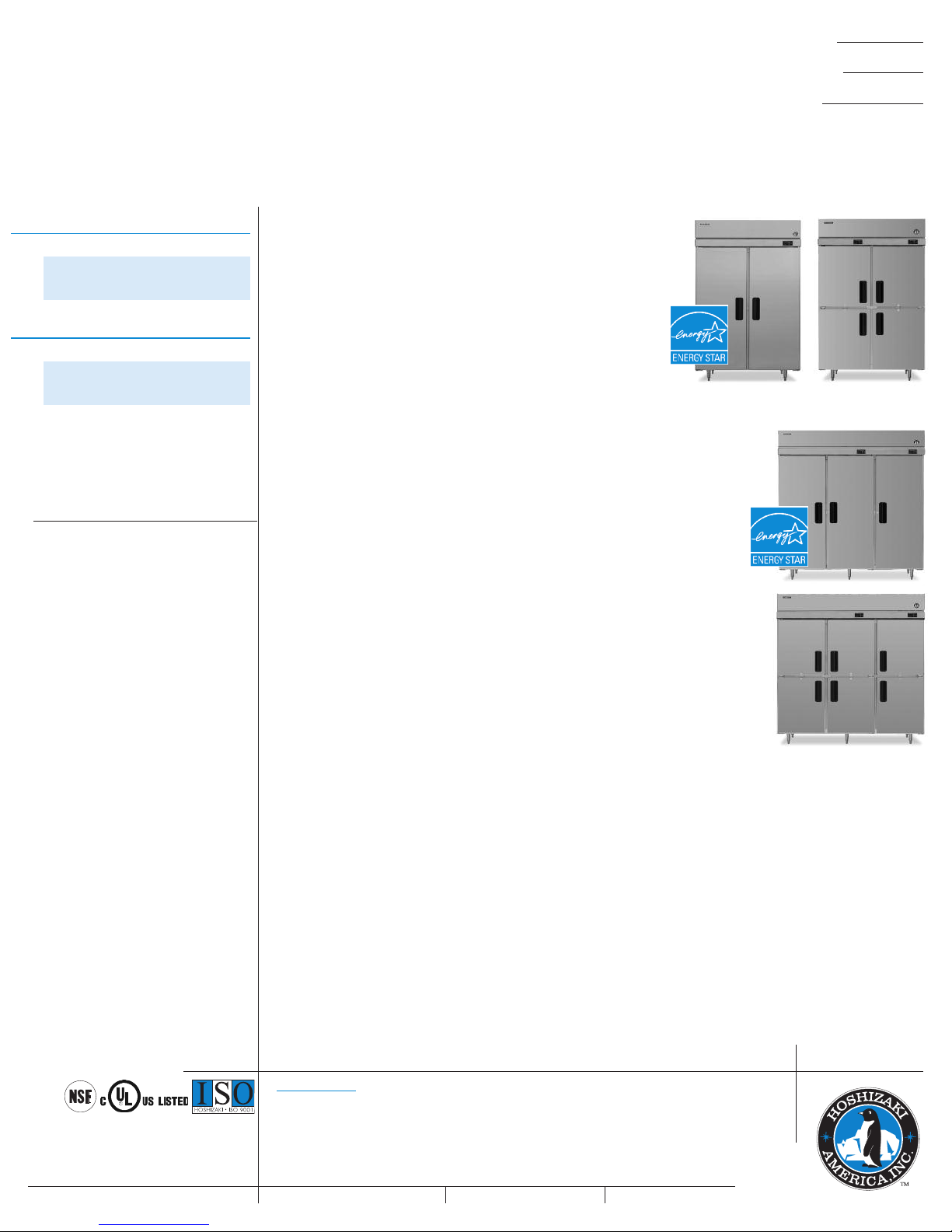

TEMPGUARD®REACH-IN DUAL TEMP
Warranty
Valid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in
other countries.
T o Year - Parts & abor on entire machine.
Five Year - Parts on: Compressor.
RFH2-3-SSB-(HD)
Item #
Project:
Qty:
Hoshizaki reserves the right to change specifications without notice.
55 x 33.6 x 84.5*
*with 6" adj. legs
TEMPGUARD®elf-Contained Reach-In Dual Temps with EverCheck®Audio Alert
RFH3-SSB-(HD)
*AutoCad available on KC
RRFFHH33--BB--((HHDD)) DDIIMMEENNIIOONN
W x D x H
82.5 x 33.6 x 84.5*
*with 6" adj. legs
*
*
* The RFH2-SSB, nd RFH3-SSB refriger tor/freezers re ENERGY STAR certified.
RFH2-SSB-(HD)

R F
Hoshizaki
DDIIMMEENNIIOONN
W x D x H
RFH2-SSB-(HD)
55 x 33.6 x 84.5*
* with 6" adj. legs
RFH3-SSB-(HD)
82.5 x 33.6 x 84.5*
* with 6" adj. legs
©HOSHIZAKI AMERICA, INC.
618 Hwy. 74 S., Pe chtree City, GA 30269 TEL [phone] FAX [phone] www.hoshiz ki.com Printed in U.S.A.
RFH2-3- B-(HD)
REACH-IN DUAL TEMP
• 2 section reach-in refrigerator/freezer
• 3 section reach-in refrigerator/freezer
O P T I O N
• Hea y duty 4" casters • Door re ersal kit
• Additional epoxy shel es • Stainless steel shel es
• Patented foot pedal door • Patented combination
opener tray/pan slides
• Door padlock hasp
DIM EN IO N /C APAC IT Y
Model #
Interior Storage Capacity (CF)
Overall Width
Overall Depth
Height (including 6" adj. legs)
Depth with Door open at 90°
Door Opening Width
Door Opening Height
Adjustable Shelves
Center Shelves
Shel Dimensions (W x D)
Crated Shipping Weight
Crated Height
Crated Width
Crated Depth
ELECTRICAL & REFRIGERATION DATA
Model #
Voltage
Amperage
HACR Breaker
Electrical Connection(NEMA)
*Energy Consumption(kwh/day)
*Heat Rejection(BTU/Hr.)
Approximate Nominal
Compressor BTU/Hr.(HP)
Voltage Range
Ambient Temp. Range
Control Setpoint Range
*Re rigerant
22.3 ft3ea. sec.
55"
33.6"
84.5"
58.5"
21.75" ea.
59.25"
6 (3 ea.)
-
21.25" x 26"
750 lbs
85"
59"
38"
* Based on 100°F ambient cycling at setpoint
** For reference only
22.3 ft3ea. sec.
55"
33.6"
84.5"
58.5"
21.75" ea.
26.75"
6 (3 ea.)
-
21.25" x 26"
750 lbs
85"
59"
38"
48.3 ft3 22.3 ft3
82.5"
33.6"
84.5"
58.5"
21.75" ea.
59.25"
6 3
3 -
21.25" x 26"
950 lbs
85"
87"
38"
48.3 ft3 22.3 ft3
82.5"
33.6"
84.5"
58.5"
21.75" ea.
26.75"
6 3
3 -
21.25" x 26"
950 lbs
85"
87"
38"
Two Section Three Section
RFH2-SSB RFH2-SSB-HD RFH3-SSB RFH3-SSB-HD
R F R F R F
R F
115/60/1
18.4**
30.0
Hard -
Wired
19.2
2740
1490 2450
(1/5hp) (2/3hp)
104 - 126
45˚-100˚F
36˚-50˚F -10˚-25˚F
R-404A
115/60/1
18.4**
30.0
Hard -
Wired
19.2
2740
1490 2450
(1/5hp) (2/3hp)
104 - 126
45˚-100˚F
36˚-50˚F -10˚-25˚F
R-404A
115/60/1
21.6**
30.0
Hard -
Wired
22.9
3260
1490 2450
(1/5hp) (2/3hp)
104 - 126
45˚-100˚F
36˚-50˚F -10˚-25˚F
R-404A
115/60/1
21.6**
30.0
Hard -
Wired
22.9
3260
1490 2450
(1/5hp) (2/3hp)
104 - 126
45˚-100˚F
36˚-50˚F -10˚-25˚F
R-404A
Two Section Three Section
RFH2-SSB RFH2-SSB-HD RFH3-SSB RFH3-SSB-HD
R F R F R F
DOOR WING (ALL UNIT )
58.5”
IDE VIEW (ALL UNIT )
33.6”
65.0”
84.5”
78.5”
6”
26.75”
PLAN VIEW
55.0”
33.6”
84.5”
RFH2- B
84.5”
RFH2- B-HD
PLAN VIEW
33.6”
82.5”
84.5”
RFH3- B
84.5”
RFH3- B-HD
