Hotpoint Ariston CM 5038 IX H User manual

Instructions for use

2
IMPORTANT TO BE READ
AND OBSERVED
Before using the appliance, read
these safety instructions. Keep
them nearby for future reference.
These instructions are also
available on www.hotpoint.eu
These instructions and the
appliance itself provide
important safety warnings, to be
observed at all times. The
manufacturer declines any
liability for failure to observe
these safety instructions, for
inappropriate use of the
appliance or incorrect setting of
controls.
SAFETY WARNINGS
Very young children (0-3years)
should be kept away from the
appliance. Young children
(3-8years) should be kept away
from the appliance unless
continuously supervised.
Children from 8 years old and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge can use this
appliance only if they are
supervised or have been given
instructions on safe use and
understand the hazards involved.
Children must not play with the
appliance. Cleaning and user
maintenance must not be carried
out by children without
supervision.
WARNING: Accessible parts may
become hot during use, young
children should be kept away.
The appliance produce hot
water. Take care to avoid contact
with splashes - Risk of burns.
If the appliance is damage or not
working properly, do not
attempt to carry out any repairs.
Switch the appliance o, unplug
from power supply and contact
After-sales Service.
SAFETY INSTRUCTIONS

3
PERMITTED USE
CAUTION: the appliance is not
intended to be operated by
means of an external timer or
separate remote controlled
system.
This appliance is intended to be
used only in household
application.
This appliance is Not intended to
be used in similar application
such as: sta kitchen areas in
shops, oces and other working
environments; farm houses; by
clients in hotels, motels, bed &
breakfast and other residential
environments.
This appliance is not for
professional use. Do not use the
appliance outdoors.
Do not store explosive or
ammable substances (e.g.
gasoline or aerosol cans) inside
or near the appliance - risk of re.
INSTALLATION
The appliance must be handled
and installed by two or more
persons - risk of injury. Use
protective gloves to unpack and
install - risk of cuts.
Installation, including water
supply (if any) and electrical
connections, and repairs must be
carried out by a qualied
technician. Do not repair or
replace any part of the appliance
unless specically stated in the
user manual. Keep children away
from the installation site. After
unpacking the appliance, make
sure that it has not been
damaged during transport. In the
event of problems, contact the
dealer or your nearest After-sales
Service. Once installed, packaging
waste (plastic, styrofoam parts
etc.) must be stored out of reach
of children - risk of suocation.
The appliance must be
disconnected from the power
supply before any installation
operation - risk of electrical shock.
During installation, make sure the
appliance does not damage the
power cable - risk of re or
electrical shock. Only activate the
appliance when the installation
has been completed.
The appliance can be installed
above a built-in oven only if the
latter is equipped with a cooling
fan system.

4
ELECTRICAL WARNINGS
Prior to connect the appliance
verify that the voltage on the
rating plate corresponds to the
voltage in your home.
It must be possible to disconnect
the appliance from the power
supply by unplugging it if plug is
accessible, or by a multi-pole
switch installed upstream of the
socket and the appliance must
be earthed, in conformity with
national electrical safety
standards.
Do not use extension leads,
multiple sockets or adapters. The
electrical components must not
be accessible to the user after
installation. Do not use the
appliance when you are wet or
barefoot. Do not operate this
appliance if it has a damaged
power cable or plug, if it is not
working properly, or if it has been
damaged or dropped. If the
power cable is damaged, it must
be replaced with an identical one
- risk of electrical shock.
CLEANING AND MAINTENANCE
WARNING: Ensure that the
appliance is switched o and
disconnected from the power
supply before performing
anycleaning or maintenance
operation - risk of electrical
shock. Never use steam cleaning
equipment.
Never immerse the appliance in
water.
Empty regularly the drip tray to
avoid overow - Risk of injury.
Always clean tubes inside milk
container after use - Risk of
poisoning.
During rinsing, hot water is
spilled from the coee spouts.
Avoid contact with splasches of
water - Risk of burns.

5
SAFEGUARDING THE ENVIRONMENT
DISPOSAL OF PACKAGING
MATERIALS
The packaging material is 100% recyclable and
is marked with the recycle symbol ( ). The
various parts of the packaging must therefore
be disposed of responsibility and in full
compliance with local authority regulations
governing waste disposal.
SCRAPPING OF HOUSEHOLD
APPLIANCES
This appliance is manufactured with recyclable
or reusable materials. Dispose of it in
accordance with local waste disposal
regulations. For further information on the
treatment, recovery and recycling of household
electrical appliances, contact your local
authority, the collection service for household
waste or the store where you purchased the
appliance.This appliance is marked in
compliance with European Directive
2012/19/EU, Waste Electrical and Electronic
Equipment (WEEE). By ensuring this product is
disposed of correctly, you will help prevent
negative consequences for the environment
and human health.
The ( ) symbol on the product or on the
accompanying documentation indicates that it
should not be treated as domestic waste but
must be taken to an appropriate collection
center for the recycling of electrical and
electronic equipment.
MOUNTING THE APPLIANCE
Follow the supplied
separete mounting
instructions when installing the appliance.

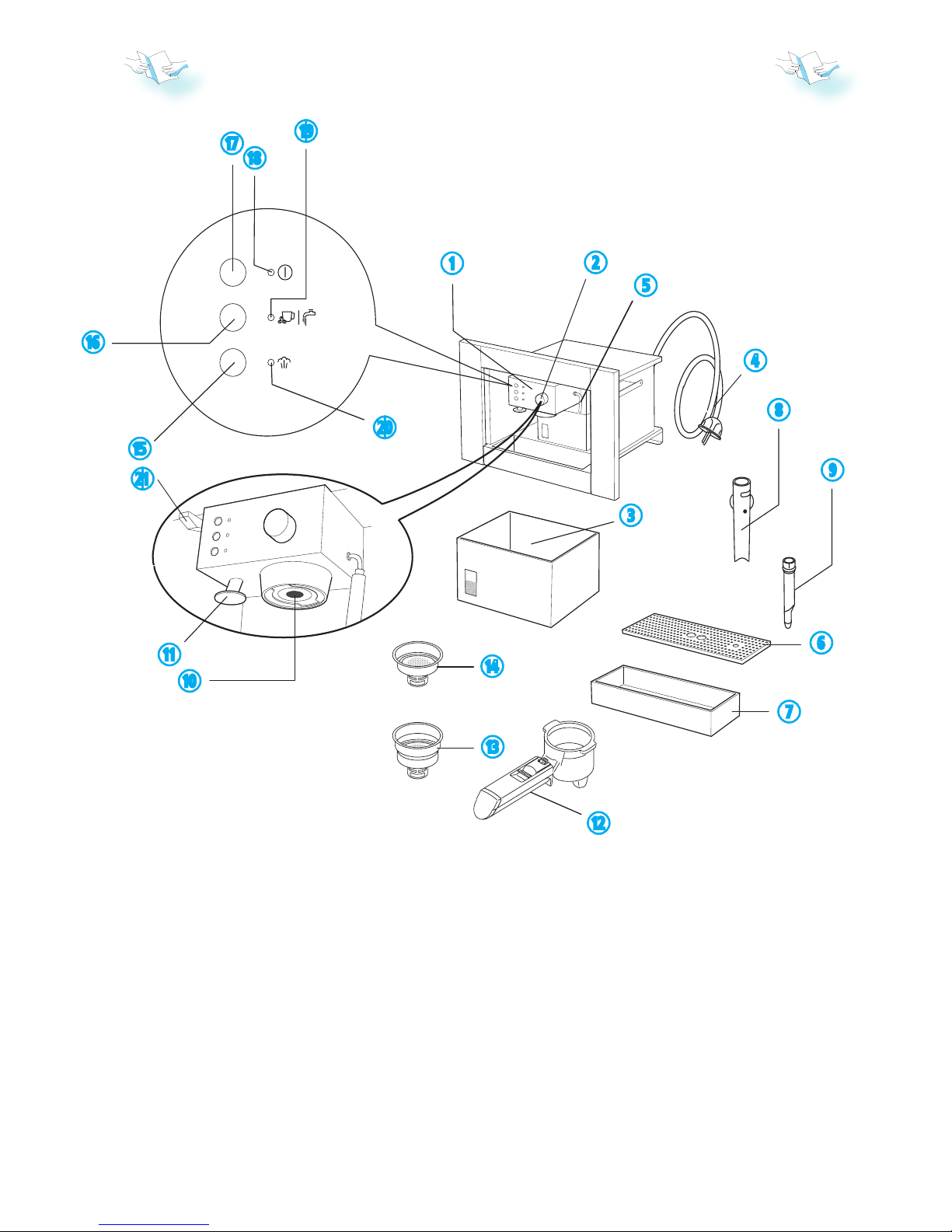

6
q
Control panel
w
steam knob
e
water tank
r
power Cable
t
steam/hot water tube
y
drip mesh
u
drip tray
i
CappuCCino maker
o
nozzle
a
boiler outlet
s
presser
d
Filter holder
f
large two-Cup Filter
g
small one-Cup or pod Filter
h
steam seleCtor button
j
CoFFee/hot water button
k
on/oFF button
l
on light
1(
temperature ok light
(CoFFee or hot water)
2)
steam indiCator light
2!
light switCh
ACCESSORIES & PARTS
g
1(
l
k
j
2!
h2)
w
q
t
r
i
o
y
e
u
d
f
a
s

7

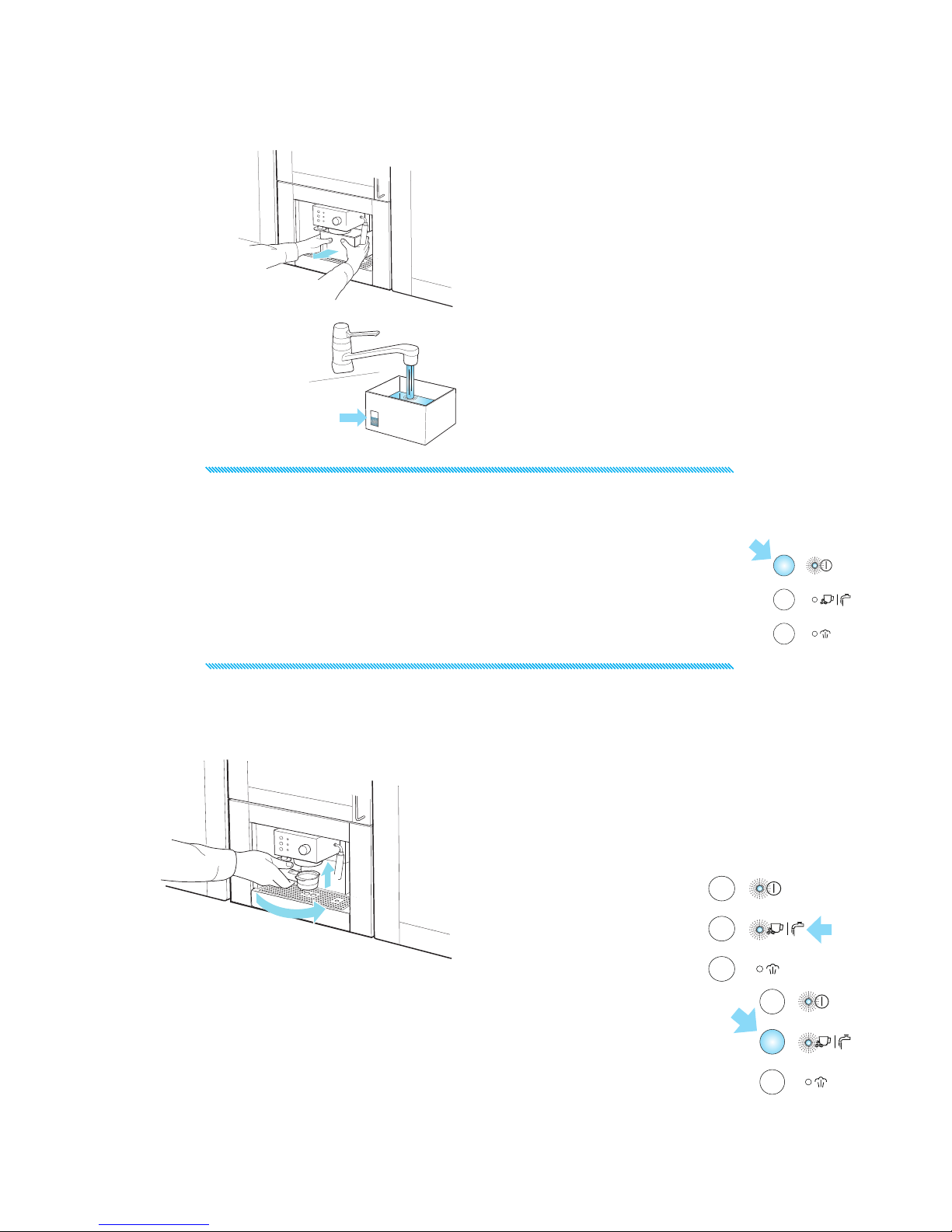

q
remove the watertank
by pulling it out
(towards the front).
w
Fill the tank
with fresh
clean water taking care
not to exceed the MAX
level. Ret the tank.
never use the applianCe without water in the tank
and always remember to top up when the level
drops to a couple of centimetres from the
bottom.
For energy saving purposes,
the appliance has an
automatic switch-o function (the power light
goes o), if it is not used for a long period of
time.
toturn the applianCe on,
press the
ON/OFF switch.
PREHEATING THE COFFEE UNIT
toattaCh the Filter holder,
position it under the
boiler outlet
with the
handle
towards
the left,
push it
upwards and
at the same time rotate
the handle rmly towards the right.
1. turn the applianCe
on by pressing the ON/OFF
button and attach the lter holder to the
appliance without adding ground coee.
2. plaCe aCup under the Filter holder.
Use the
same cup as will be used to prepare the coee in
order to preheat it.
3. wait For the ok indiCator
light
to come on, then
immediately press the coee
knob. Run the water o until
the OK indicator light goes
out, then interrupt delivery by
pressing the coee button again.
4. empty the Cup.
Wait until the OK
indicator light comes on again
then repeat the same operation. (It is normal for a
small and harmless pu of steam to be given o
when removing the lter holder).
1
2
AUTO OFF
FILLING THE WATER TANK

8
1. aFter preheating
the appliance as described
above, place the ground
coee lter in the lter
holder, making sure the
projection is correctly
inserted in the slot. Use the
smaller lter to make one
coee or the larger lter to make two coees.
2. tomake asingle CoFFee only,
place one level
measure (about 7 g) of ground coee
in the lter. To prepare two coees,
place two loosely lled
measures (about 6+6 g) of
ground coee in the lter.
Fill the lter a little at a time to prevent
the ground coee from overowing.
note:
for correct operation, before adding the
ground coee to the lter holder, clean the lter
from residues of ground coee from the
previous infusion.
3. distribute the ground CoFFee
evenly and press
lightly with the
presser.
note:
Correct
pressing of the
ground
coee is
essential
to obtain a good espresso. If
pressing is excessive, coee delivery will
be slow and the froth will be dark. If pressing is
too light, coee delivery will be too rapid and
the froth will be skimpy and light coloured.
4. remove any
exCess CoFFee
from the rim
of the lter
holder
and
attach
the lter holder
to the appliance. Rotate
rmly to avoid leaks of water.
5. plaCe the Cup
or cups under the lter holder
spouts.
You are
recommended
to heat the
cups before
making the
coee by
rinsing them
with a little hot water.
6. make sure the ok light is on
(if o, wait until it comes on),
then press the coee button.
When the required quantity
of coee has been run o,
press the same button again.
(You should not run o coee
for more than 45 seconds at a
time).
7. toremove the Filter holder,
rotate the handle from right to left.
note:
to avoid splashes, never remove the lter
holder while the appliance is delivering coee.
8. toeliminate the used CoFFee grounds,
block the
lter in place using the lever
incorporated in the handle and
empty the coee by turning
the lter holder upside down
and tapping.
9. toturn the CoFFee maChine
oFF,
press the ON/OFF button.
note:
the rst time the appliance is
used, all accessories and the
internal circuits must be washed
through by making at least ve
coees without using ground coee.
1
2
HOW TO PREPARE ESPRESSO COFFEE
USING THE FILTER HOLDER FOR GROUND

9
1. preheat the applianCe
as described in the
section“PREHEATING THE COFFEE UNIT”,
making sure the lter holder is attached.This
obtains a hotter coee.
note:
Use pods conforming to the
ESE standard indicated on the
pack with the following logo:
the ese standard
is a system
accepted by leading pod
producers and enables espresso
coee to be prepared simply and cleanly.
2. plaCe the small Filter
(1 cup or pods)
in the lter holder, making sure the
projection is correctly inserted in
the slot.
3. insert apod,
centring it as far as possible
on the lter. Always follow the instructions
on the pod pack to position the pod on
the lter correctly.
4. attaCh the
Filter holder
to
the appliance.
Always rotate
as far as
it will go.
5. proCeed as
in points 5, 6 and 7 in the previous
paragraph.
1
2
HOW TO PREPARE ESPRESSO COFFEE USING PODS

10
1. prepare the espresso CoFFees
as described in the
previous paragraphs, using suciently large
cups.
2. press the steam button
and
wait for the OK light to come on.
This indicates that the boiler has
reached the ideal temperature
for steam production.
3. inthe meantime,
ll a recipient
with about 100 grams of milk
for each cappuccino to be
prepared. The milk must be at
refrigerator temperature (not
hot!). In choosing the size of the
recipient, bear in mind that the milk doubles or
triples in volume.
note:
you are recommended to use
semiskimmed milk at refrigerator
temperature.
4. plaCe the reCipient
containing the milk
under the cappuccino maker.
5. dip the CappuCCino maker
into the
milk for about 5 mm and turn
the steam knob anticlockwise,
taking care not to immerse the
raised line on the cappuccino
maker (indicated by the arrow).
Turn the steam knob at least a half turn
anticlockwise. Steam is discharged from the
cappuccino maker, giving the milk a creamy
frothy appearance. To obtain a creamier froth,
dip the cappuccino maker into the milk and
rotate the container with slow movements from
the bottom upwards.
6. when the required temperature
is reaChed
(60°C is ideal),
interrupt steam delivery by
rotating the steam knob
clockwise and at the same time
pressing the steam
button.
7. pour the Frothed milk
into the cups containing
the espresso coee prepared previously. The
cappuccino is ready. Sweeten to taste and, if
desired, sprinkle the froth with a little cocoa
powder.
note:
To prepare more than one cappuccino,
rst make all the coees then at the end prepare
the frothed milk for all the cappuccinos.
note:
to make coee again after the milk has
been frothed, cool down the boiler rst or the
coee will be burnt. To cool it, place a container
under the boiler outlet, press the steam button
and run o water until the OK light goes out.
Make the coee as described in the previous
paragraphs.
HOW TO MAKE CAPPUCCINO COFFEE

11
note:
always clean the cappuccino maker after
use. Proceed as follows:
1. disCharge alittle steam
for a few seconds by
rotating
the steam
knob.
This
empties
any milk
left inside
the steam
spout.
note:
to ensure hygiene, you are
recommended to follow this procedure each
time you make cappuccino to avoid milk
stagnating in the milk circuit.

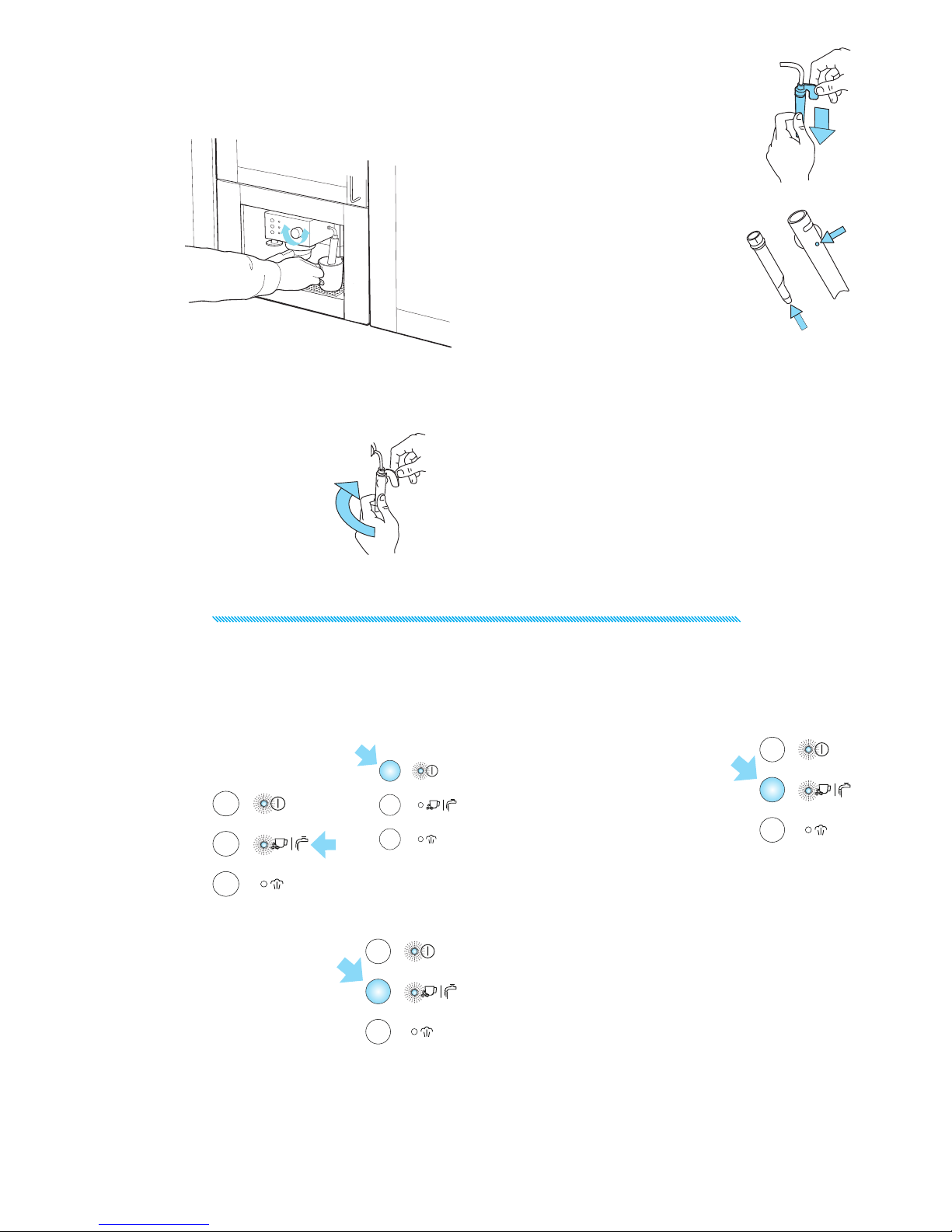

2. with one hand, hold the
CappuCCino tube Firmly
and with
the other unscrew the
cappuccino maker itself by
rotating clockwise and
extracting downwards.
3. remove the nozzle
from the steam
tube by pulling it downwards.
4. wash the CappuCCino maker
and
steam nozzle thoroughly with warm
water.
5. make sure
the two holes shown in
are not blocked. If necessary, clean
with a pin.
6. replaCe the steam nozzle
by
inserting it onto the steam tube
and rotating rmly towards the
top of the tube.
7. replaCe the CappuCCino maker
by inserting it and
rotating anticlockwise.
HOT WATER PRODUCTION
1. turn the applianCe on
by pressing the ON/OFF
button. Wait until the OK indicator
light comes on.
2. plaCe areCipient
under the cappuccino maker.
3. press the CoFFee button
and at
the same time turn the steam
knob anticlockwise. Water
comes out of the cappuccino
maker.
4. tointerrupt delivery oF hot water,
close the
steam knob by rotating
clockwise and press the coee
button again. (You should not
run o hot water for more than
45 seconds at a time).

12

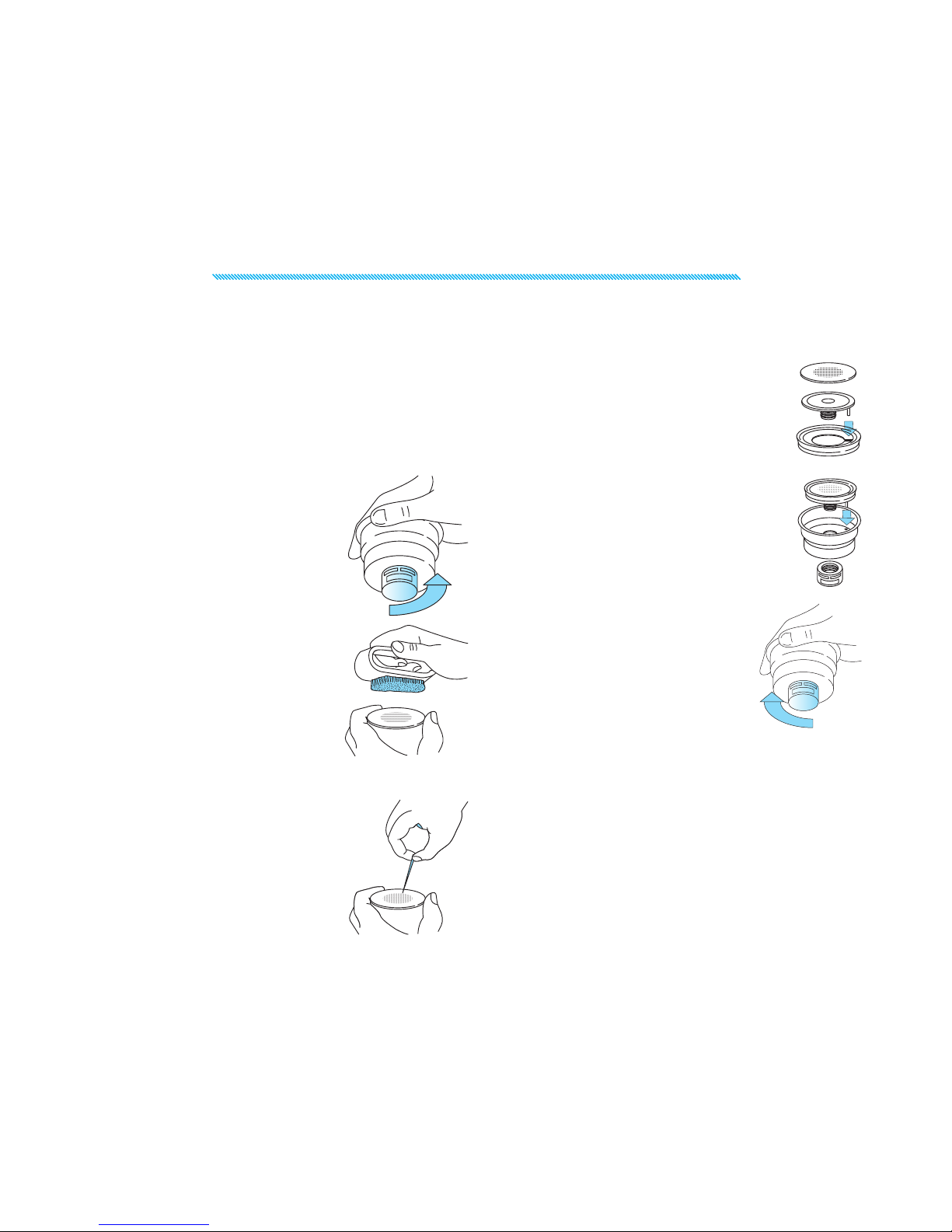

about every 200 CoFFees,
clean the lter holder
for ground coee as follows:
ɳRemove the filter with frother.
ɳClean the inside of the filter holder. Never
wash in a dishwasher.
ɳUnscrew the cap of the frother
by turning anticlockwise.
ɳRemove the frother from
the container by pushing it
from the cap end.
ɳRemove the gasket.
rinse all Components
and clean
the metal lter thoroughly in
hot water using a brush.
make sure
the holes in the metal lter are not
blocked. If necessary, clean with a
pin.
ɳReplace the filter and gasket on
the plastic disk. Make sure to insert
the pin on the plastic disk into the
hole in the gasket indicated by the
arrow.
ɳReplace the assembly in the steel
filter container, making sure the
pin is inserted in the hole in the
support.
ɳFinally, screw on the cap by
turning clockwise. Failure
to clean as described above
invalidates the guarantee.
CLEANING AND MAINTENANCE
CLEANING THE FILTER HOLDER
1. beFore perForming any Cleaning
operations,
leave the appliance to cool down and unplug
from the mains socket.
2. donot use solvents or abrasive
cleaning
products to clean the appliance. A soft, damp
cloth is sucient.
3. empty and wash
the drip tray and drip mesh
frequently.
4. Clean the water tank
regularly.

13
you are reCommended to desCale
the coee
machine about every 200 coees or a maximum
of every two months.
you should use aCommerCially available produCt
speCiFiCally For desCaling espresso CoFFee maChines.
iFsuCh aproduCt is not available,
proceed as
follows.
1. Fill the tank
with half a litre of water.
2. dissolve
2 spoonfuls (about 30 grams) of citric
acid (obtainable from chemist’s or drug stores)
3. press the on/oFF button
and wait for the OK
indicator light to come on.
4. make sure
the lter holder is not attached and
position a recipient under the boiler outlet.
5. press the CoFFee button,
half empty the tank by
turning the steam knob every now and then to
run o a little solution. Stop run-o by pressing
the button again.
6. turn the applianCe oFF.
7. leave the solution to work
for 15 minutes then
turn the appliance on again.
8. press the CoFFee button
to empty the tank
completely.
9. toeliminate residues
of solution and scale, rinse
the tank well, ll with clean water (without citric
acid) and replace in position.
10. press the CoFFee button
and run the water o
until the tank is completely empty
11. interrupt
water run-o and repeat
operations 9, 10 and 11 again. Repair of damage
to the coee machine caused by scale is not
covered by the guarantee unless descaling is
performed regularly as described above.

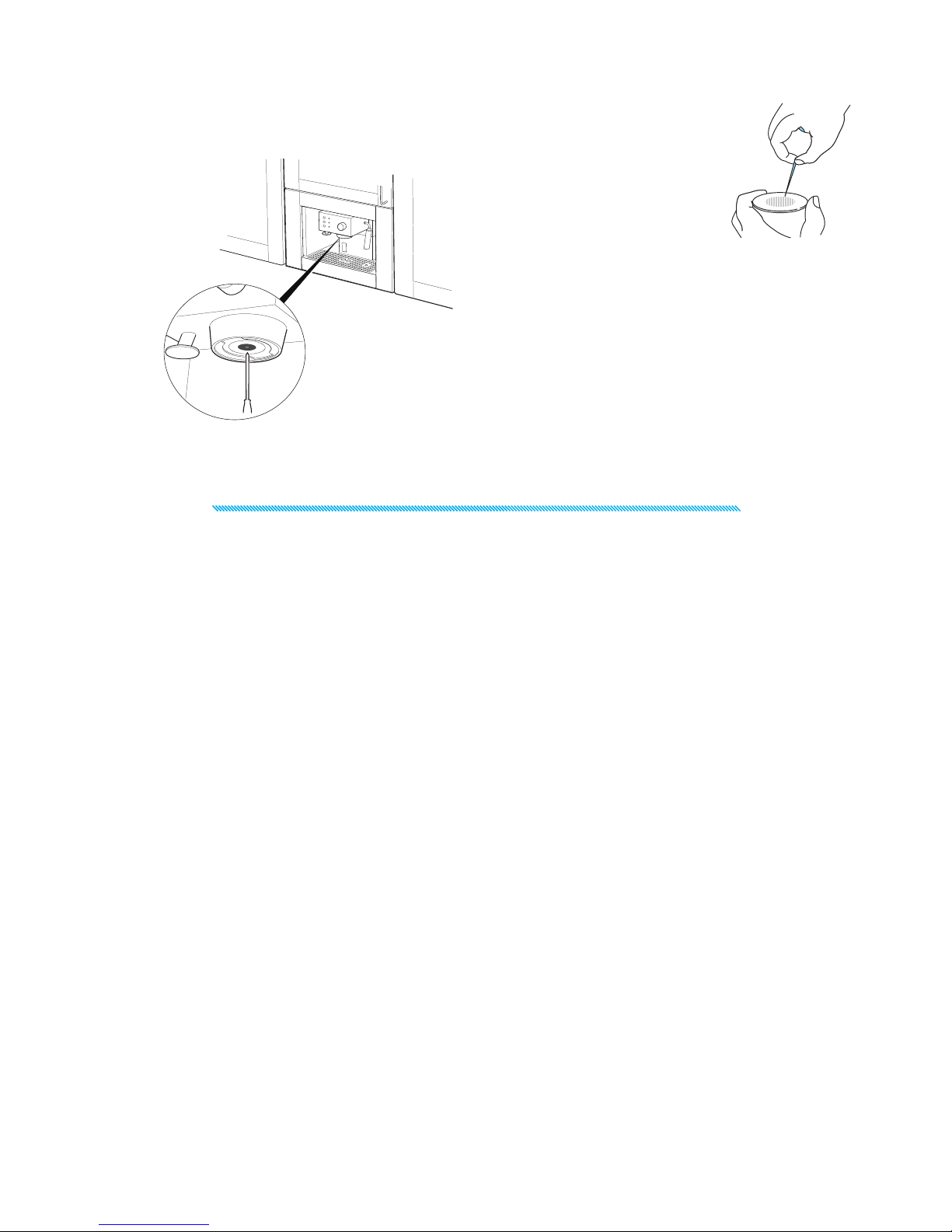

CLEANING THE BOILER OUTLET
about every 300 CoFFees,
the espresso boiler
outlet must be cleaned as follows:
1. make sure
the
appliance is not hot
and that it is
unplugged from the
mains.
2. using asCrewdriver,
unscrew the screw xing
the espresso boiler outlet lter.
3. Clean the boiler
with a damp cloth.
4. Clean the outlet
thoroughly in hot
water using a brush. Make sure the
holes are not blocked. If necessary,
clean with a pin.
5. rinse under running water,
rubbing all the time.
6. sCrew the boiler outlet baCk on.
Failure to clean
as described above invalidates the guarantee.
DESCALING

14
Problem Possible cause Solution
noespresso CoFFee is delivered
ɳNo water in the tank.
ɳThe holes in the filter
holder spouts are
blocked.
ɳThe espresso boiler
outlet is blocked.
ɳThe filter is blocked.
ɳThe tank is incorrectly
inserted.
ɳFill the tank with water.
ɳClean the spout holes.
ɳClean as described in the
chapter “Cleaning the
boiler outlet”.
ɳClean as described in the
section “cleaning the filter
holder”.
ɳInsert tank correctly.
the espresso CoFFee drips
from
the edges of the lter holder
rather than the holes.
ɳThe filter holder is
inserted incorrectly.
ɳThe espresso boiler
gasket has lost elasticity.
ɳThe holes in the filter
holder spouts.
ɳAttach the filter holder
correctly and rotate firmly
as far as it will go.
ɳHave the espresso boiler
gasket elasticity replaced
at a service centre.
ɳClean the spout holes.
the espresso CoFFee is Cold
ɳThe espresso OK
indicator light was not
on when the coffe switch
was pressed.
ɳNo preheating
performed.
ɳThe cups were not
preheated.
ɳWait until the OK light
comes on not on when the
coffee switch was pressed.
ɳPreheat as described in
the paragraph “Preheating
the appliance”.
ɳPreheat the cups by
rinsing them in hot water.
the pump is exCessively noisy
ɳThe water tank is empty.
ɳThe tank is incorrectly
inserted.
ɳFill tank.
ɳInsert tank correctly.

15
Problem Possible cause Solution
the CoFFee Froth is too light
(delivered from the spout
too fast)
ɳThe ground coffee is
not pressed down firmly
enough.
ɳThere is not enough
ground coffee.
ɳThe ground coffee is too
coarse.
ɳIncorrect type of ground
coffee.
ɳPress the ground coffee
down more firmly).
ɳIncrease the quantity of
ground coffee.
ɳUse ground coffee for
espresso coffee machines
only.
ɳChange the type of
ground coffee.
the CoFFee Froth is too dark
(delivered from the spout
too slowly)
ɳThe ground coffee is
pressed down too firmly.
ɳThere is too much
ground coffee.
ɳThe espresso boiler
outlet is blocked.
ɳThe filter is blocked.
ɳThe ground coffee is too
fine.
ɳThe coffee is damp or
ground too fine.
ɳIncorrect type of ground
coffee.
ɳPress the coffee down less
firmly.
ɳReduce the quantity of
ground coffee.
ɳClean as described in the
chapter “Cleaning the
boiler outlet”.
ɳClean as described in the
section “cleaning the filter
holder”.
ɳUse ground coffee for
espresso coffee machines
only.
ɳUse only ground coffee for
espresso coffee machines.
Make sure it is not damp.
ɳChange the type of
ground coffee.
nomilk Froth is Formed when
making CappuCCino
ɳMilk not cold enough.
ɳCappuccino maker dirty.
ɳAlways use semi-skimmed
milk at refrigerator
temperature.
ɳThoroughly clean the
holes in the
cappuccino
maker in
particular
those
indicated by
the arrows.

16
400010879906
EN
Whirlpool is a registered trademark of Whirlpool, USA.
ɳWWW
download the use and Care guide
from our website www.hotpoint.eu
(youcan use this QRCode),
specifying the product’s
commercial code.
ɳ
alternatively,
contact our
Client After-sales Service.
HOW TO OBTAIN THE USE AND CARE GUIDE
You can nd our contact details in the warranty
manual. When contacting our Client After-sales
Service, please state the codes provided on your
product’s identication plate.
CONTACTING OUR AFTERSALES SERVICE
supply voltage 220 - 230 v/50 hz
rated power input
1100 w
Fuse
10 a (uk 13 a)
outer dimensions (hxwxd) 382 x595 x305
