Hotpoint TB 060 UK User manual

Indesit Company UK Ltd
Morley Way,
Peterborough PE2 9JB
www.indesitcompany.com EN Operating Instructions
TB 060 UK 02/2013 - ver.1.1
TB 060 UK
3
1
5
3a
2
1a
7b
7c
7d
7e
8
6
6a
6b
7a
4
7

Indesit Company UK Ltd
Morley Way,
Peterborough PE2 9JB
www.indesitcompany.com EN Operating Instructions
TB 060 UK 02/2013 - ver.1.1
TB 060 UK
3
1
5
3a
2
1a
7b
7c
7d
7e
8
6
6a
6b
7a
4
7

5
en
PARTS AND FEATURES
1. Motor base
1a. Motor base handles
2. Control knob
3. Display
3a. +/- button
4. On/Off button
5. Start/Stop button
6. Water tank
6a. Water tank lid
6b. Water tank handle
7. Glass jar assembly
7a. Blade unit
7b. Jar
7c. Basket (only on some models)
7d. Lid
7e. Measuring cup
8. Scrubbing brush
INTRODUCTION
Thank you for purchasing our product. In doing so, you have opted for an effective, high performing
appliance.
If the instructions for correct use of this appliance are not observed, the manufacturer’s liability for any
resulting damage will be excluded. Operating instructions may describe different models, any difference
is clearly identied.

6
en
• This appliance is not intended for use by per-
sons (including children) with reduced physi-
cal, sensory or mental capabilities, or lack
of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
• Children should always be supervised to en-
sure that they do not play with this product.
• To protect against re, electric shock or per-
sonal injury, do not immerse cord, plug or
unit in water or other liquids.
• Do not leave the cable hanging over the
edge of a kitchen table or worktop. Avoid
contact between the cable and hot surfaces.
• For indoor use only.
• This appliance is intended for household use
only, not for commercial or industrial use.
Use for anything other than intended will
void the warranty.
• Make sure motor and steam generator have
stopped completely before removing the lid.
• Do not operate this appliance in the presen-
ce of explosive and/or ammable fumes.
• To reduce the risk of electric shock, do not at-
tempt to open the motor base. There are no
user serviceable parts inside. Repair should
be done only by authorized personnel.
• Be sure the Base is on a at, dry and clean
surface before you begin processing.
• This appliance should be used only for pre-
paration of drinks/food as described within
the instructions for use that accompany it.
• Always ensure that your hands are dry befo-
re removing the plug from the mains socket.
Never pull the plug out of the mains socket
by its lead.
• To avoid injury or possible re, do not cover
the appliance when in use.
• Do not connect this appliance to an external
timer or remote control system.
• To move the appliance, use only the motor
base handles. Never lift the appliance by the
water tank handle.
• Periodically check all parts before reassem-
bly. If any part is damaged or jar is chipped
or cracked, do not use the Steam blender.
• Never submerge the motor base in water or
other liquid, or place in a dishwasher.
• Never wrap the cord around the outside of
IMPORTANT INFORMATION
FOR YOUR SAFETY
When using electrical appliances, basic safety
prevent should always be followed, including the
following.
• This appliance must be used only as descri-
bed within this instruction book.
• Connect and operate the appliance only in
accordance with the specications on the
rating plate.
• Read all instructions. Keep these instruc-
tions for future use.
• Do not leave the appliance unattended when
blending.
• Ensure all packaging materials and any pro-
motional labels or stickers are removed from
the Steam blender before rst use.
• Always inspect the appliance before use for
noticeable signs of damage. Do not operate
any appliance with a damaged cord or plug
or after the appliance malfunc¬tions or has
been damaged in any manner. Return the
appliance to an authorized service facility for
examination, repair, or electrical or mechani-
cal adjustment.
• To prevent injury, repairs such as replacing a
damaged cord should only be carried out by
our customer service.
• The use of attachments not recommended
or sold by the appliance manufacturer may
cause re, electric shock, or injury.
• Whilst in use the surfaces will become extre-
mely hot. Do not touch hot surfaces. Always
use handles.
• Unplug from the mains when not in use and
before cleaning. Allow to cool before clea-
ning the appliance. To disconnect, press On/
Off button and then remove the plug from the
mains.
• Keep hands and utensils away from moving
blades or Discs while processing food to pre-
vent the possibility of severe personal injury
or damage to the food processor. A scraper
may be used but must be used only when
the food processor is not running.
• Blades are sharp. Handle the blade unit ca-
refully.

7
en
protrusion on the lid).
3. Place the water tank by sliding along the rail
on the motor base until it engages.
Place the water tank lid to protect the
water from dust, insects and other fo-
reign matter.
Disassembling
1. Switch the Steam blender off and unplug
from the mains socket. Lift the Glass Jar up
and away from the motor base.
Holding the handle only. Do not twist the
jar.
The heating element is hot when the Ste-
am blender is in heat mode, do not touch
the underside of the collar.
2. To remove the lid from the glass jar, grip the
handle of the lid rmly with one hand and lift
upwards.
3. To remove the measuring cup from the lid, lift
up and away. To position the measuring cup
over the lid, aligning with the corresponding
grooves in the lid.
Steam will escape around the measuring
cup when the Steam blender is in heat
mode, this is normal, but handle with care –
steam can burn.
Always ensure the lid and measuring cup
are positioned before blending.
Making Soup
Always cook food before blending.
1. Place the base on a level and sturdy surface.
2. Put the food into the glass jar.
Cut ingredients into small pieces (max
2-3 cm).
3. Close the glass jar lid.
4. Place the glass jar on the base and plug the
unit into an appropriate mains socket.
5. Fill the water in the water tank, then ensure
the Steam blender.
• Never immerse the plug, lead or housing in
water or any other liquid.
• Never immerse the glass jar in water straight
after heating; allow it to cool down rst.
BEFORE THE FIRST USE
When unpacking the product and remo-
ving packing material, handle the blades
carefully; they are very sharp.
Wash all parts except the motor base in hot,
soapy water. Rinse them dry. Do not immerse the
supply cord part of this appliance in water or any
other liquids. Clean the glass jar thoroughly. Be
sure to read this manual, paying special attention
to the sections on “Use your steam blender” and
“Care and Cleaning” to learn the correct methods
for taking the unit apart and cleaning.
USE YOUR STEAM BLENDER
Blades are very sharp, handle with care.
In case of power failure, when the power returns
the product goes into standby mode.
To use the blender function it is necessary to turn
the control knob to “0”, press the ‘on / off’ but-
ton and then turn the control knob to the desired
speed.

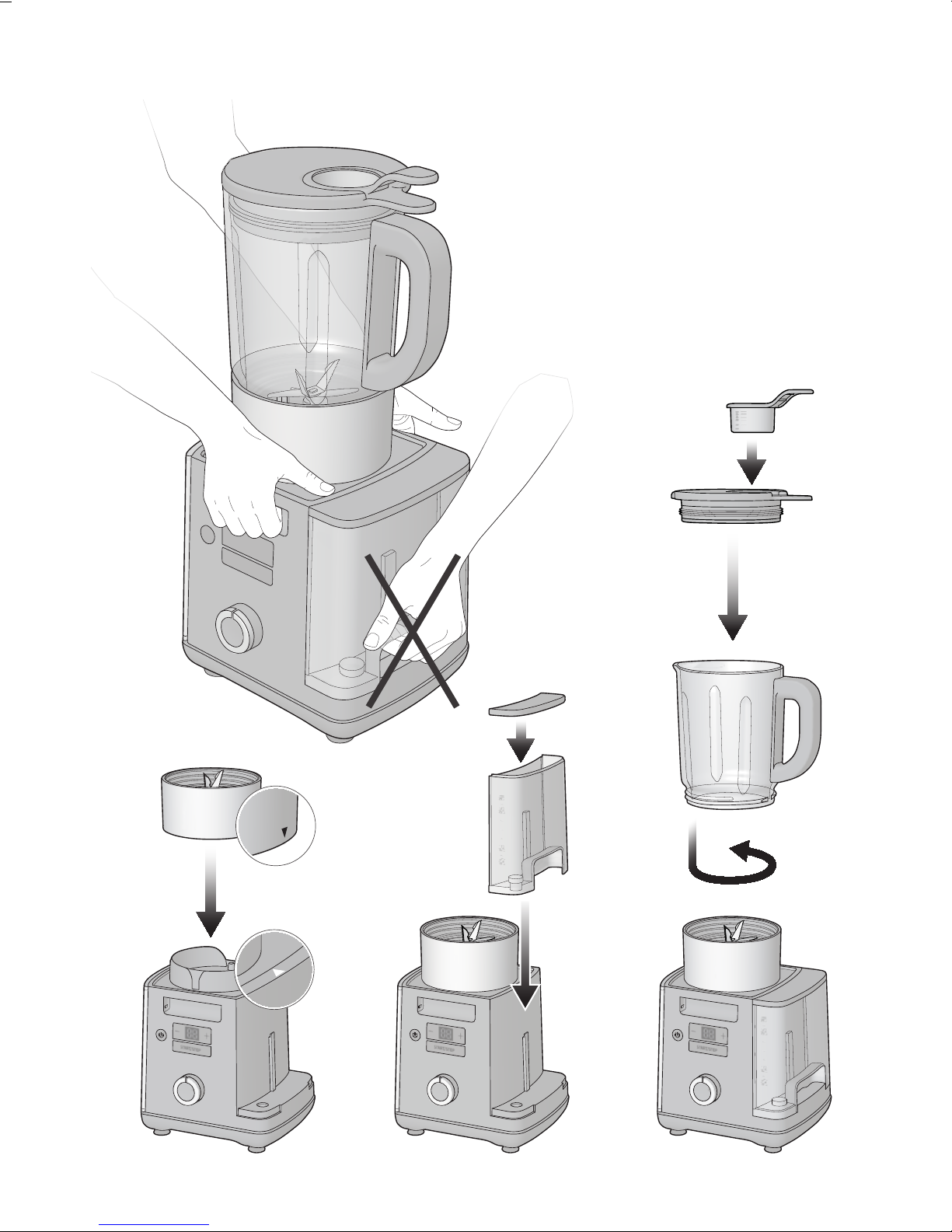

Assembling (A)
1. To t the Glass Jar Assembly to the base of
the Steam blender, position jar unit on the
motor base so that the arrow on the jar collar
is aligned to the arrow on the base. Push the
jar down into place.
Take care when placing the glass jar on
the motor base as incorrect positions
may damage the interlock switch and could
prevent the unit from running.
2. When you have added the required ingre-
dients to the jar, place the lid on jar before
heating or blending. Simply position the lid
over the jar and press down rmly (ensure
the pouring spout on the jar is covered by the

8
en
5. Unplug the appliance immediately after use.
Do not store food or liquid in the glass
jar.
Empty and clean thoroughly after use.
Do not overload the Steam blender. If the
motor stalls, turn the Steam blender off
immediately, unplug the unit and carefully re-
move a portion of the food, then continue.
CARE AND CLEANING
Blade is very sharp Handle with care.
1. Always unplug the appliance from the mains
socket before cleaning.
2. Before rst use and after every use, clean
each part thoroughly.
3. To clean the anti-stick base we recommend
the use of the scrubbing brush which makes
it easy to clean underneath the blades.
4. To clean the glass jar lid and measuring cup,
wash in hot soapy water.
5. Wipe the motor base clean with a damp cloth
to remove any residue, and dry thoroughly.
6. Do not use abrasive cleaners on the housing
base. Apply any cleaning agent on the cloth,
not directly the base.
7. Make sure all the parts are clean and dry
before storing.
For a better cleaning of the valve is re-
commended, after use, the use of the
residual water in the tank for a rapid cycle of
about 3 minutes of steaming. Adding about 25
cl of citric acid or of vinegar, this operation
will also be useful to prevent the accumulation
of limescale.
DESCALING
Please follow these instructions every 15 cycles
of steam cooking:
1. Put 500ml of a solution of water and anti-
scale (proportions according to what is spe-
cied on anti-scale product’s packaging) into
the water tank.
Standard anti-scale products (e.g. for
coffee machines) are suitable.
the water tank lid is closed.
6. Press the ‘on/off’ button to put the unit into
‘stand-by’ mode.
7. Set the cooking time, by pushing + or - but-
tons. The cooking time can be changed at
any time during the cycle.
8. Press the Start/Stop button to start cooking.
9. When the cooking time has elapsed, the unit
will beep.
10. Turn control knob to blend the soup.
Due to unavoidable condensation, and
to natural amount of water contained in
any ingredients, in some situations to dischar-
ge a certain amount of liquid before blending
is recommended.
If you want to steam without the foods
come in contact with the condensation
water, you can use the basket (available on
certain models only).
The maximum ll for hot ingredients is
1400 ml.
When cooking or blending hot liquid it is
essential the glass jar lid and measuring
cup are left on the blender to prevent harm.
Blending Cold Ingredients
The blender can also be used as a regular blen-
der to blend cold ingredients and crush ice.
1. Place the motor base onto a at, sturdy sur-
face.
2. Position the Glass jar assembly on the base
and plug into a suitable mains socket.
3. Add all necessary ingredients into the glass
jar and put the lid. You may add more ingre-
dients during blending by removing the mea-
suring cup and dropping ingredients through
the opening in the lid. If adding more liquid,
we recommend pausing blending, adding
the liquid and replacing the measuring cup
to prevent liquid escaping.
The maximum ll for cold ingredients is
1750 ml.
4. Turn the control knob to your desired speed
or use the pulse function. Turn the control
knob to ‘Off’ when the desired consistency
is reached.

9
en
3. Rinse the water circuit with another 20 minu-
tes cycle by using 500ml of pure water.
2. Run a 20 minutes cycle of steam cooking wi-
thout any food into the jar.
TROUBLESHOOTING
The product is designed in order to give the user a clear feedback about any problem or usage mistake.
Please refer to this table to discover the meaning of error messages on the display.
Error description
The glass jar is incorrectly
assembled on the blade
unit.
The power is off.
Water amount into the tank
is lower than minimum
quantity.
The water tank is not in wor-
king position.
The valve is
clogged.
Error
message
E1
E1
E2
E2
E1
Solutions
Check that the jar is correctly assembled; it must
be screwed till lock position; the jar handle must
be on the right, aligned over the water tank
Reactivate power; push on/off button to get the
product start working. Set time for steam cooking
and press start. When blending, come back to off
position and then re-set desired speed.
Add water into the tank.
Control that water tank is in position.
Follow descaling procedure described below;
control that no piece of food is completely clogging
the steam ow.
In case of E1 message, please disconnect and reconnect the power cord. If the problem
persists, please call the service.

10
en
FOOD QUANTITY COOKING TIME BLENDING SPEED
POTATOES 500gr 15' 2
MIXED FRUIT
(bananas, ap-
ples, pears)
800gr 15-20’ PULSE, 1
CHICKEN
BREASTS 400gr 20-25’ PULSE
BEEF 400gr 20-25’ 1-2
MIXED
LEGUMES 300gr 20-25’ 4
MIXED
VEGETABLES
(potatoes,
courgette,
carrots)
1kg 20' 4
FOOD PREPARATION GUIDE

11
en
RECIPE BOOK
Soup “in pieces”
SOUP WITH PESTO
Time: 40 minutes
Ingredients for 4 people
150 g rice, 2 potatoes, 2 courgettes, 2 leeks, 2 carrots, 1 stick celery, 1 onion, 100 g tomatoes, 100
g endives, 100 g borage, 150 g precooked cannellini beans, grated Grana cheese, Genoa pesto,
vegetable stock, extra-virgin olive oil, salt and pepper.
Make a cut in the shape of a cross at the bottom of the tomatoes, boil them for 3 minutes in hot water
and then place in a bowl lled with ice and water. Peel and dice. Wash and dice the potatoes and
courgettes. Wash and cut the leeks, carrots, celery and onion into discs. Wash and cut the endives
and borage into sticks. Put all the vegetables into the cup, add the rice, season with salt and pepper
to taste and steam cook for 20 minutes. Pour the mixture into a soup tureen, add the cannellini beans
and 2 spoonfuls of pesto and cover with boiling stock. Serve the soup with a drizzle of oil and with
grated Grana and sheep’s cheese.
GUACAMOLE
Time: 15 minutes
Ingredients for 4 people
3 ripe avocados, 1 lemon, 2 tomatoes, 1 small onion, 1 fresh hot chilli pepper, 1 spring of coriander
leaves
Halves the avocado, remove the stone, take the pulp out and place it in the cup, immediately adding
the lemon juice to prevent it from going black. Boil the tomatoes, peel them, remove the pips and
add to the avocado. Add the diced fresh chilli pepper and onion and a sprig of coriander leaves. Salt
to taste. Liquidise until it becomes a dense, irregular cream; it should not be as smooth as a purée.
GAZPACHO
Time: 25 minutes
Ingredients for 4 people
800 g tomatoes, 200 g bread, 4 cloves of garlic, 1 cucumber, 1 green pepper, cider vinegar, extra-
virgin olive oil, salt and pepper.
Make a cut in the shape of a cross at the bottom of the tomatoes, boil them for 3 minutes in hot
water and then place in a bowl lled with ice and water. Peel and dice. Place half the cubes into the
cup. Break the bread into pieces. Place 150 g into the cup with the tomato and add olive oil. Peel
and crush the garlic and mix all together. Dust with a large pinch of dried cumin. Peel the cucumber.
