Hotpoint HXC6 8ATI Series User manual

HXC6.8ATI
HXC9.8ATI
English
Operating Instructions
COOKER HOOD Contents
Operating Instructions,1
Warnings,8
Installation,10
CHIMNEY-LUCE controls,11
Maintenance and care,13
Troubleshooting,14
After Sales Service,15
Guarantee,16
Please phone us on
08448 24 24 24
to activate your
guarantee

2
2x
1x
ø 150-125mm ø 150mm
1x
2345
6x
Ø 8 x 40 6x Ø 5 x 45
4x
Ø 3,5 x 9,5
1x
1x

3
32 cm
min.
1A
Ø150mm
1B
Ø150mm
Ø120mm
Ø120
Ø150
Ø120mm
Ø120
Ø150
Ø150mm

4
4
6
3
7
5
2
==
==
650 mm
550 mm
x6
Ø 8mm
x6 x6
x2
5 mm

5
1110
8 9
12
1
2
3
x2
x2
ø 120 ø 150

6
13
14
1615
ø 150
ø 3,5 x 9,5
x2

7
17 18
A

8
Warnings
!Keep this manual for reference. If you
sell, transfer or move the unit to another
location, make sure to keep the manual
with the product.
!Read the instructions carefully - they
contain important installation, user and
safety information.
!Do not tamper with the electrical or
mechanical equipment of the product or
its exhaust ducts.
General safety information
• The distance between the cookware
support surface on top of the cooking
appliance and the lowest part of the
cooker hood must be at least:
65cm ifthehoodisinstalledoveragas
cooktop
55 cm if the hood is installed over an
electric cooktop.
If the installation instruction manual for
the gas cooking appliance specifies a
greater distance, this measurement
should be taken into account.
• The cooker hood comes with anchor
plugs which are suitable for use with
most walls/ceilings.
However, you must contact a qualified
techniciantocheckthesuitabilityofthe
materials in relation to the type of wall/
ceiling, which must be strong enough
to support the weight of the unit.
• Caution! Do not hook the unit up to
its electrical power supply until the
installation has been completed.
• Before cleaning or servicing the unit,
disconnect it from the mains by pulling
the power plug or disconnecting the
main circuit breaker.
• Alwayswearworkgloveswheninstalling
and servicing the unit.
• It is not intended for use by children
or persons with sensory or mental
disability and lack of experience or
familiarity,exceptunderthesupervision
or instruction of a person responsible
for their safety.
• Make sure childrendo notplay with the
unit.
• Never operate the unit without its
grease filter installed!
• NEVER use the hood as a support,
unless expressly instructed to do so.
• Theroommustbeadequatelyventilated
ifthehoodisusedatthesametimewith
other equipment burning gas or other
fuels.
• Extractedairmustnotbeconveyedinto
a duct used for exhausting combustion
fumes from gas or other fuel-fired
equipment.
• Observeallregulationsinrelationtoair
extraction.
• NEVER cook food with an open flame
under the hood; open flames will
damagethefiltersandmaycausefires.
Never do this.
• Always supervise frying to make sure
the heated oil does not catch fire.

9
• Strictly observe all local regulations
in relation to the technical and safety
measures to be employed in fumes
extraction.
• Clean the product frequently, inside
and out (AT LEAST ONCE A MONTH,
and in observance of the maintenance
instruction given in this manual).
• Failuretoobservethehoodcleaningand
filtercleaning/replacement instructions
can result in fires.
• Never use the hood without its bulbs
properlyinstalled-electrocutionhazard.
• The manufacturer is not liable for any
inconvenience, damage or fire caused
by the unit as a result of failure to
observe the instructions given in this
manual.
• Caution!Theunit'saccessiblepartscan
get very hot when used with cooking
equipment.
• Thisappliancecanbeusedbychildren
aged from 8 years and above and
personswithreducedphysical,sensory
or mental capabilities or lack of
experienceandknowledge iftheyhave
been given supervision or instruction
concerning use of the appliance in a
safe way and understand the hazards
involved. Children shall not play with
the appliance. Cleaning and user
maintenance shall not be made by
children without supervision.

10
GB
Installation
The installation procedure is illustrated in the first pages
of this manual.
The installation must be done by a qualified technician.
Electrical hook up
The mains voltage must match that given on the ratings
label inside the hood itself. If the hood has a power plug,
connect the hood to an easily accessible regulatory power
socket. If it does not (direct connection to the mains), or the
socketisnoteasilyaccessible,installatwo-poleregulatory
switch to enable total disconnection from the mains in case
of category III overvoltage, as required by the installation
regulations.
Caution! Always check that the mains cable is hooked
up properly and check that it operates correctly before
reconnecting the hood to the mains.
Air exhaust (for ducted units)
Connect the hood to a duct and wall exhaust hole of a
diameterequaltothatof theairoutlet flange.Usingasmaller
diameter tube and exhaust hole reduces the extraction
capacity of the hood and also increases its running noise.
The manufacturer is not liable for any consequences of
doing so.
!Use the shortest duct required to achieve the purpose.
!Use a duct with as few bends as possible
!Avoid suddenly changing the diameter of the duct.
!The duct must have as smooth an inner surface as
possible.
!The duct must be made of regulatory material.
!Do not connect the hood to flues carrying combustion
fumes from other equipment (boilers, CHIMNEY-LUCEs,
stoves, etc.).
!Observe the instructions of the competent authorities in
relationtotheairexhaust.The airbeingexhaustedmaynot
beexhaustedintoawall cavity unless the cavity in question
is specifically intended for this purpose.
!Equipthe roomwithair intakestoprevent thehoodcreating
suction pressure in the interior (this must not exceed 0.04
mbar).
!The manufacturer is not liable for any consequences of
failure to observe these instructions.
! The appliance may produce a slightly unpleasant odour
when used for the first time, due to the burning away of
protective substances used during the manufacturing
process.
Filter or ducted?
!Your hood is supplied as a ducted unit.
Ifyouwish touseitas a filterunit,you mustinstalltheproper
ACCESSORY KIT.
Note: If supplied with the hood, the accessory active
charcoal filter unit may already be installed.
Instructionsfortransforming the hoodfromtheducted to the
filter version are given in this manual (see “Filter version”).
Ducted version
The hood purifies the air and expels it outdoors via an
exhaust duct (dia. 150mm) connected to its outlet flange.
The diameter of the exhaust tube must be equal to that of
the outlet flange.
Caution! The exhaust duct is not supplied and must be
purchased separately.
When routed horizontally, the tube must be angled slightly
upwards (around 10°) to enable the air to be conveyed
outdoors more easily. If the hood is fitted with charcoal
filters, they must first be removed.
Filter version
The hood purifies the air and returns it to the room. This
version of the hood requires installation of an accessory
active charcoal filter unit.
This version requires an air deflector, a reduction adapter
and the charcoal filter/s. The top tube must have its air
outlet slots uppermost.
Technical data
Model Height
(cm) Width (cm) Depth (cm)
dia. of
exhaust tube
(cm)
CHIMNEY-LUCE
60cm 61-82 59.8 50 15/12
CHIMNEY-LUCE
90cm 61-82 89.9 50 15/12
Pleasechecktheplateinorderto verify the total absorption
and the light absorption
Power Voltage Cap Dimensions
Halogen 25 W 2 x 25 W 230 V G9 L40xØ14
Halogen 20 W 2 x 20 W 12 V G4 L30xØ10
LED * Risk Group 1 according to Standard EN 62471
Il modello è conforme alle seguenti leggi
comunitarie:The hoods are conforming to the
following EC Directives:
•“Lowvoltage” Directive 2006/95/EC(12-12-2006)
• “EMC” Directive 2004/108/EC (15-12-2004)
Regolamento(EU)No66/2014cheintegralaDirettiva
2009/125/EC.
*Only available in certain models
Standard di riferimento:
•EN 60704-2-13:2011; EN 60704-3:2006
•EN 61591:1997; EN 61591:1997/A1:2006; EN 61591:1997/
A2:2011; EN 61591:1997/A11:2014
•EN 50564:2011
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

GB
11
CHIMNEY-LUCE controls
Models with Touch control glass (basic)
HXC6.8ATI- HXC9.8ATI
T1 motor ON/OFF
Whenthebutton is pressed withthehoodoff,thefirstspeed
is set. When the button is pressed during operation, the
hood switches OFF.
T2 Speed 1
When the button is pressed the hood switches from the
previous status to speed 1.
T3 Speed 2
When the button is pressed the hood switches from the
previous status to speed 2.
T4 Speed 3
When the button is pressed the hood switches from the
previous status to speed 3.
T5 Booster
When the button is pressed the hood switches from the
previous status to intense speed. The setting is limited by
time;when thetime elapsesthehoodgoesback tothe speed
set previously; when a speed button is pressed (T2, T3 or
T4),theselectedspeed isset asyou leavetheboostermode.
T6 Timer
By pressing T6 once, a timer setting can be associated to
each speed [V](V1 – 30 min, V2 – 20 min, V3 – 10 min),
after which the hood turns OFF automatically. The timer
can be set for manual speeds only and not for the booster.
T7 Antigrease and odour filter signal
The antigrease (A) and odour (B) filters need cleaning/
replacing after a certain number of hours of use (the latter
for filtering hoods only).
The time for cleaning/replacement is signalled by the
flashing of the coloured LED associated to the filter (white
for antigrease filters, red for odour filter).
The LED is turned off by pressing the T7 button after
cleaning/replacing the filters.
T8 lights ON/OFF
It turns the work lights of the hood on and off.
Hood configuration
The configuration menu is accessed with the product off
by pressing T5 and T6 for 6 seconds. T7 turns on at this
point to indicate the type of installation through two colours
of the LED: white for extractor installation (default), red for
filtering installation. The installation type can be changed
by pressing T7 cyclically with the consequent alternation
of the LED colours.
Hood off
The hood can be turned off manually by pressing the T1
button (ON/OFF). If the timer is set, the hood turns off
automatically when the set time runs out.
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
T1 T2 T3 T4 T5 T6 T7 T8

12
GB
Maintenance and care
Caution! Before cleaning or servicing the unit,
disconnect it from the mains by pulling the power plug
or disconnecting the main circuit breaker.
First cleaning
• Remove the protective film
• Clean with a damp sponge and a little neutral soap
• Rinse off with a damp cloth
• Dry with a soft cloth; if the hood is stainless steel, dry
along the metal's grain
Periodic cleaning
The hood must be cleaned frequently (at least as often as
you service the grease filter), inside and out. Use a damp
cloth and a neutral liquid detergent with lukewarm water.
Do not use abrasive or corrosive products.
Warning: Failure to observe the hood cleaning and filter
cleaning/replacementinstructionscanresult in fires. Follow
the instructions carefully. The manufacturer is not liable for
any damage to the motor or fires caused by incorrect care
or failure to follow the above instructions.
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

GB
13
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

14
GB

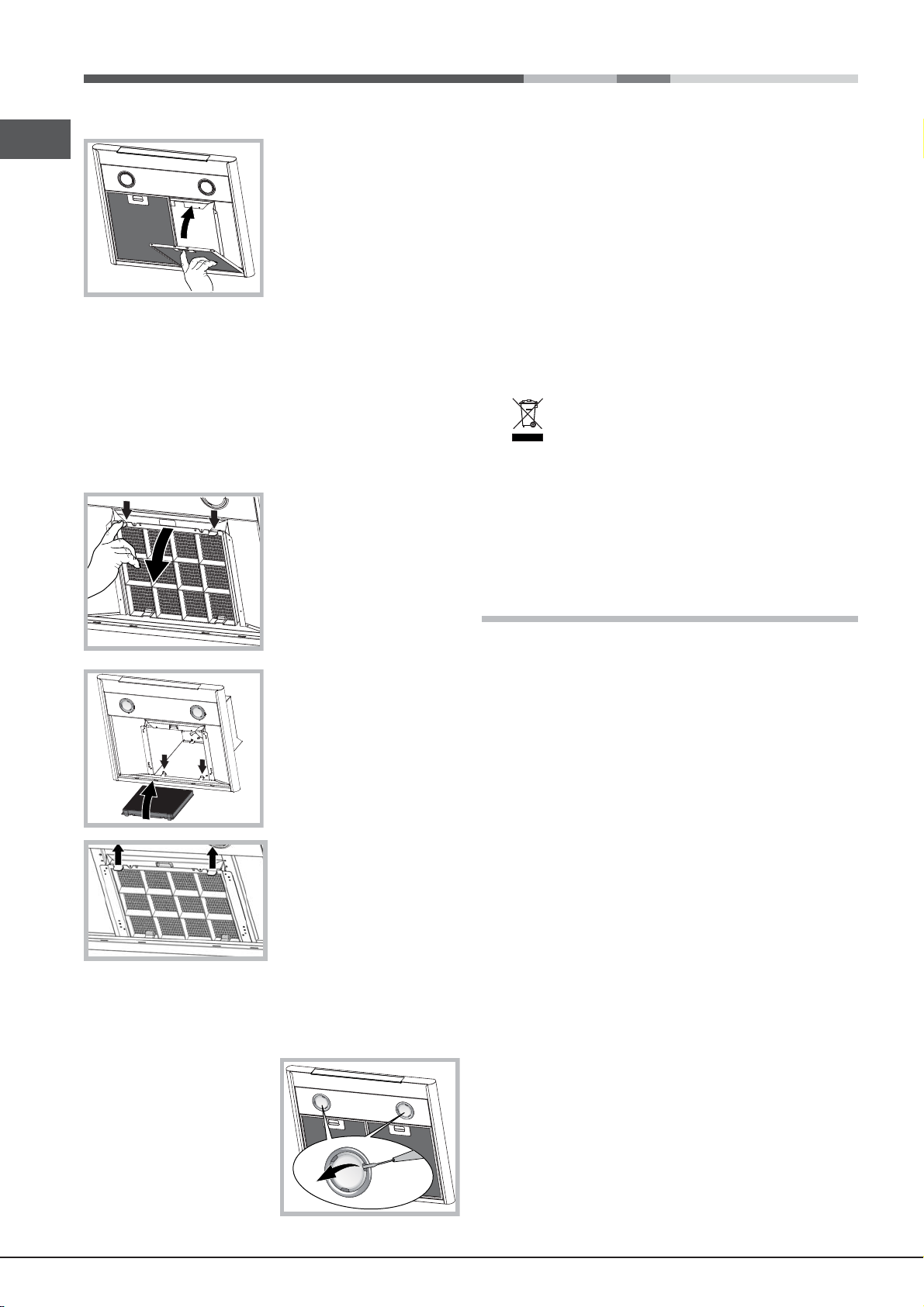

Servicing the grease filter (A)
A
The grease filter retains the
particles of grease produced
during cooking; it must be
cleanedat least onceamonth
with a non-aggressive
detergent, either by hand or
with a low temperature, short
dishwasher cycle.
To extract the grease filter,
pullthespringloadedhandle.
If washed in a dishwasher, the metal filter may change
colour, but this does not affect its performance.
Servicing the charcoal filter (B)
The charcoal filter retains unpleasant cooking odours.
The filter saturates after a variable time, depending on the
type of cooking and how often the grease filter is cleaned.
The cartridge must be replaced at least once every twenty
months.
This filter can NOT be washed or regenerated
B
Disassembly: Remove the
activated-carbon filter by
pressing the two front levers
which secure it to the hood.
B
Assembly: Secure the
activated-carbon filter first in
the back using the hood's
metal tabs and then in the
front by pressing the two
levers.
Replacing the bulbs
Disconnecttheunitfromthemainsandremovethegreasefilter.
Caution!Makesurethe bulbsare coolbefore touchingthem.
1. Extracttheguard byprising
it out with a small flat head
screwdriver or something
similar.
2. Replace the faulty bulb.
Use only bulbs of the
same type (for details,
see the technical data in
the following manual).
3. Refit the guard (push it in).
Replacing the lights LED *
The hood is fitted with a lighting system based on LED
technology. The LEDs ensure optimal lighting, longer life
and lower consumption compared with traditional lights. To
replace them please contact the assistance service.
Electrical cable
If the power cable is damaged, it can be replaced by the
manufacturer or his technical service, to prevent any
attendant risks.
SCRAPPING
The unit is marked for conformity with European Directive
2012/19/EC, Waste Electrical and Electronic Equipment
(WEEE). By ensuring that the unit is scrapped properly,
the user contributes to safeguarding the environment and
public health.
The symbol on the product or on its accompanying
documents indicates that the product may not be treated
as domestic waste but must be handed over to a sorting
centre for electrical and electronic waste. Dispose of it
in accordance with local waste disposal regulations. For
further information on the handling, recovery and recycling
of this product, contact the local authority, domestic waste
disposalserviceorthe reseller from whom you purchasedit
Troubleshooting
If something does not work, make the following simple
checks before contacting Technical Service:
If the hood does not operate:
Check that:
• the unit is powered up.
• a speed has been set.
If the hood is not working effectively:
Check that:
• the selected motor speed is sufficient to handle the
amount of smoke and steam being produced.
• the kitchen is adequately ventilated for the unit to take
air in.
• the charcoal filter is not exhausted (filter version).
If the hood turns off during normal operation:
Check that:
• the unit is powered up.
• the circuit breaker has not tripped.
In case of faulty operation, before contacting Technical
service, first disconnect the machine from the mains for at
least 5 seconds by pulling its plug, then reconnect it. If the
fault persist, contact Technical Service.
Save energy and respect the environment
• Please use the hood by setting the speed in line with the
realextractionneed; please limit the useofthe“intensive
speed” feature, if present. Using the hood in a rational
way allows you to limit energy consumption and to avoid
an useless waste of clean and air-conditioned air.
• Please don’t turn on the hood light unless this is needed
to light the cooking area.
*Only available in certain models
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24

GB
15
After Sales Service
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
No one is better placed to care for your Hotpoint appliance during the course of its working life than us – the
manufacturer.
Essential Contact Information
Hotpoint Service
We are the largest service team in the country offering you access to 400 skilled telephone advisors and 1000
fully qualified engineers on call to ensure you receive fast, reliable, local service.
UK: 08448 224 224
Republic of Ireland: 0818 313 413
www.hotpointservice.co.uk
Please note: Our advisors will require the following information:
Model number:
Serial number:
Parts and Accessories
We supply a full range of genuine replacement parts as well as accessory products that protect and hygienically
clean your appliance to keep it looking good and functioning efficiently throughout its life.
UK: 08448 225 225
Republic of Ireland: 0818 313 413
www.hotpointservice.co.uk
Appliance Registration
We want to give you additional benefits of Hotpoint ownership. To activate your free 5 year parts guarantee you
must register your appliance with us.
UK: 08448 24 24 24
Republic of Ireland: 01 230 0800
www.hotpointservice.co.uk
Indesit Company UK Ltd. Morley Way, Peterborough, PE2 9JB
Indesit Company Unit 49 Airways Industrial Estate, Dublin 17
Recycling and Disposal Information
As part of Hotpoint’s continued commitment to helping the environment, Hotpoint reserves the right to use
quality, recycled components to keep down customer costs and minimise material wastage.
Please dispose of packaging and old appliances carefully. To minimise the risk of injury to children, remove the
door, plug, and cut the mains cable off flush with the appliance. Dispose of these parts separately to ensure that
the appliance can no longer be plugged into mains socket, and the door cannot be locked shut.

16
GB
Guarantee
195128198.00
11/2014 - XEROX LODZ
12 months Parts and Labour Guarantee
Your appliance has the benefit of our manufacturer’s guarantee, which covers the cost of breakdown repairs for
twelve months from the date of purchase.
This gives you the reassurance that if, within that time, your appliance is proven to be defective because of either
workmanship or materials, we will, at our discretion, either repair or replace the appliance at no cost to you.
This guarantee is subject to the following conditions:
- The appliance has been installed and operated correctly and in accordance with our operating and
maintenance instructions.
- The appliance is used only on the electricity or gas supply printed on the rating plate.
- The appliance has been used for normal domestic purposes only.
- The appliance has not been altered, serviced, maintained, dismantled, or otherwise interfered with by
any person not authorised by us.
- Any repair work must be undertaken by us or our appointed agent.
- Any parts removed during repair work or any appliance that is replaced become our property.
- The appliance is used in the United Kingdom or Republic of Ireland.
The guarantee does not cover:
- Damage resulting from transportation, improper use, neglect or interference or as a result of improper
installation
- Replacement of any consumable item or accessory. These included but not limited to: plugs, cables,
batteries, light bulbs, fluorescent tubes and starters, covers and filters.
- Replacement of any removable parts made of glass or plastic.
THIS GUARANTEE WILL NOT APPLY IF THE APPLIANCE HAS BEEN USED IN COMMERCIAL OR NON-
DOMESTIC PREMISES.
5 Year Parts Guarantee
Hotpoint also offers you a free 5 year parts guarantee. This additional guarantee is conditional on you registering
your appliance with us and the parts being fitted by one of our authorised engineers. There will be a charge for
our engineer’s time. To activate the extra parts warranty on your appliance, simply call our registration line on
08448 24 24 24 (Republic of Ireland 01 230 0800)
Extended Guarantees
We offer a selection of protection plans that enable you to fully cover yourself against the expense of repair bills
for the life of your policy. To find the ideal plan for you please call our advice line on 08448 226 226 (Republic of
Ireland 01 230 0233).
Free Helpdesk Service
We have a dedicated team who can provide free advice and assistance with your appliance if you experience
any technical difficulties within the first 90 days of ownership. Simply call our Hotpoint Service Hotline on 08448
224 224 (Republic of Ireland 0818 313 413) for telephone assistance, or, where necessary, to arrange for an
engineer to call.
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
