Housewatch 55-136 User manual

10W Model No’s: 55-136 & 55-137
20W Model No’s: 55-224 & 55-225
10W & 20W SENSOR SPOTLIGHT
INSTRUCTIONS
10 & 20W sensor lights instructions_A6_Layout 1 13/10/2016 11:06 am Page 1

CONTENTS
INTRODUCTION .........................................................................................3
IMPORTANT SAFETY INSTRUCTIONS ......................................................3
INSTALLING THE SPOTLIGHT ...............................................................4-7
OPERATION AND TESTING...................................................................8-10
SETTING UP FOR AUTOMATIC OPERATION.............................................11
MAINTENANCE PROGRAM ......................................................................12
TROUBLESHOOTING................................................................................13
SPECIFICATIONS......................................................................................14
WARRANTY INFORMATION .....................................................................16
2
INTRODUCTION
The Housewatch LED spotlight is a
The LED spotlight is suitable for i
locations including entrances, gard
IMPORTANT SAFETY
Please follow these instructions c
operate this spotlight.
Ensure the voltage marked on
power supply to be used.
DO NOT direct the light into a
intensive light output, which if
WARNING: Risk of fire. Do no
within 1m.
CAUTION: Keep the sensor at l
Must be installed by a lic
AS3000:2007.
10 & 20W sensor lights instructions_A6_Layout 1 13/10/2016 11:06 am Page 2

NTS
...................................................3
...................................................3
................................................4-7
..............................................8-10
ON.............................................11
.................................................12
.................................................13
.................................................14
.................................................16
3
INTRODUCTION
The Housewatch LED spotlight is a low-energy, high powered outdoor fitting.
The LED spotlight is suitable for installation on walls in a range of outdoor
locations including entrances, gardens, staircases, garages and parking areas.
IMPORTANT SAFETY INSTRUCTIONS
Please follow these instructions carefully before attempting to install and
operate this spotlight.
Ensure the voltage marked on the product is the same as the electrical
power supply to be used.
DO NOT direct the light into a person’s eyes. This spotlight has a very
intensive light output, which if incorrectly used could cause eye damage.
WARNING: Risk of fire. Do not aim the fitting at a combustible surface
within 1m.
CAUTION: Keep the sensor at least 51mm away from the lamps.
Must be installed by a licensed electrician in accordance with
AS3000:2007.
10 & 20W sensor lights instructions_A6_Layout 1 13/10/2016 11:06 am Page 3

4
INSTALLING THE SPOTLIGHT
1. REMOVE FRONT COVER
Use a Phillips head screwdriver to unscrew the three screws on the front
cover, then open the back junction box.
INSTALLING THE SPO
2. FIX THE SPOTLIGHT JUNCTIO
Using the screws and screw plugs
to the wall.
10 & 20W sensor lights instructions_A6_Layout 1 13/10/2016 11:06 am Page 4

5
GHT
rew the three screws on the front
INSTALLING THE SPOTLIGHT

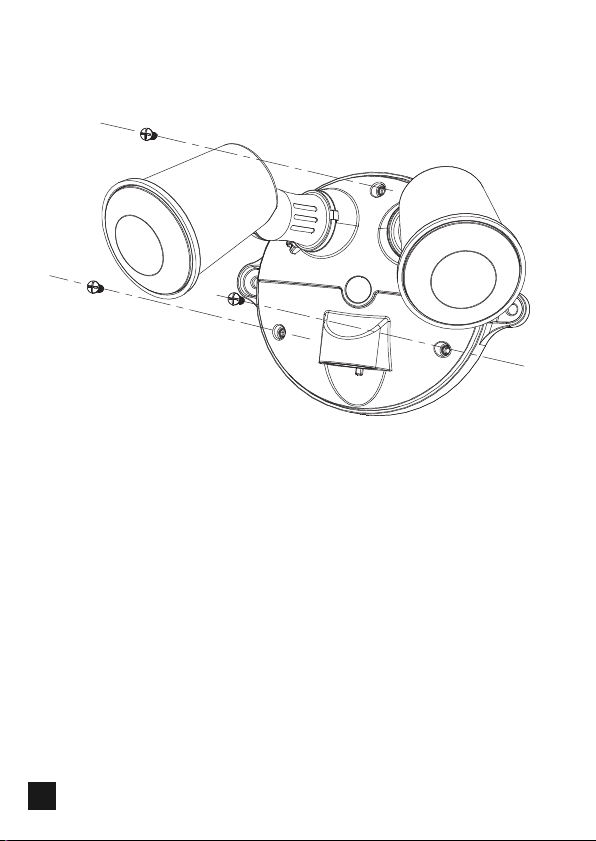

2. FIX THE SPOTLIGHT JUNCTION BOX TO THE WALL
Using the screws and screw plugs provided, secure the spotlight horizontally
to the wall.
10 & 20W sensor lights instructions_A6_Layout 1 13/10/2016 11:06 am Page 5

6
INSTALLING THE SPOTLIGHT
4. REPLACE FRONT COVER
Rescrew the front cover in place with a Phillips head screwdriver.
INSTALLING THE SPO
OUTDOOR WALL INS
TOP
BOTTOM

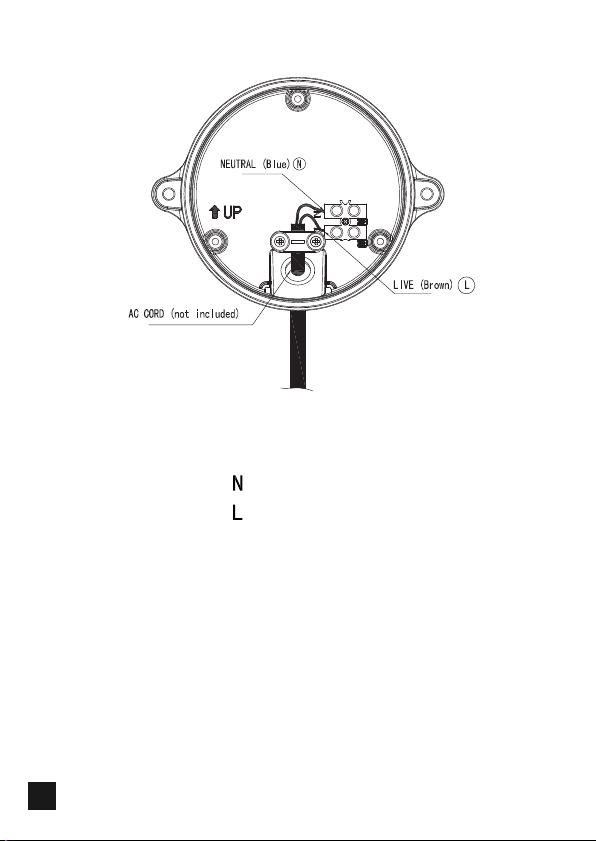

3. CONNECTION
Connect the cable to the terminal block on the wall plate as above.
NEUTRAL (Blue)
LIVE (Brown)
10 & 20W sensor lights instructions_A6_Layout 1 13/10/2016 11:06 am Page 6

7
GHT
hillips head screwdriver.
INSTALLING THE SPOTLIGHT
OUTDOOR WALL INSTALLATION REQUIREMENT
TOP
BOTTOM
n the wall plate as above.
10 & 20W sensor lights instructions_A6_Layout 1 13/10/2016 11:06 am Page 7

8
OPERATION AND TESTING
WALK TESTING PROCEDURE

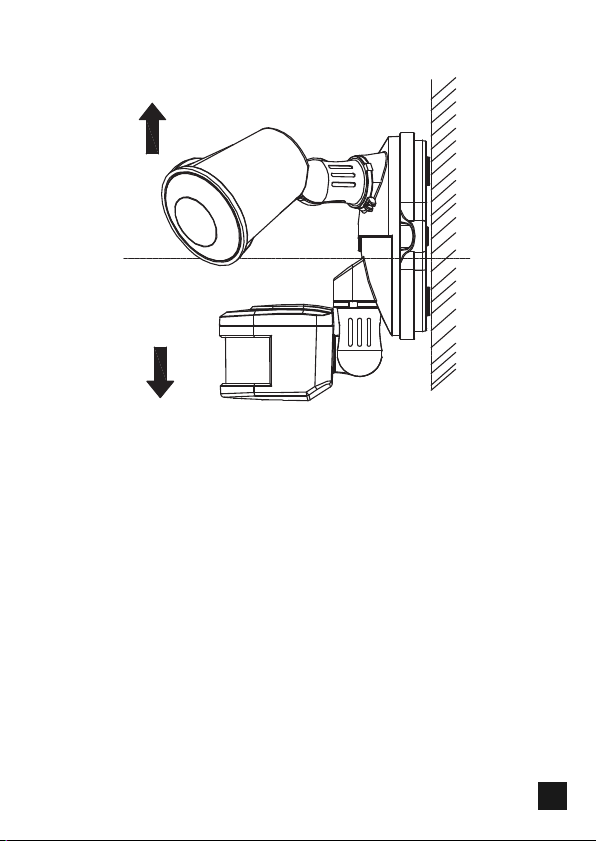

The sensor will rotate from left to right and up to down. Adjust the sensor to
point in the desired direction for the sensor patterns (see Figure 1).
1. Set the two adjustment controls on the bottom of the sensor (see Figure 2)
to the following positions:
TIME - Fully counter-clockwise
LUX - Fully clockwise
The unit will now operate during daytime as well as night, illuminating the
lamp for approximately 5 seconds each time. This allows testing to be carried
out to establish the best position for the sensor.
2. Switch on the mains power. The lamp will immediately illuminate as the
unit goes through its “warm-up” period. After approximately 1 - 2 minutes
the lamp will extinguish. Try to remain outside the detection area during
the warm-up period.
3. Walk across the detection area approximately 5 metres from the unit. As
you cross a detection “zone” the lamp will illuminate. Now stand still until
the lamp extinguishes (this should take approximately 5 seconds).
4. Start moving again. As you cross each “zone” the lamp will illuminate.
5. Repeat the above, walking at various distances and angles to the unit. This
will help you to establish the detection pattern.
Pan
Left & right 90˚, Tilt up 0˚, Down 90˚
Tilt
FI
Less
sensitiv
10 & 20W sensor lights instructions_A6_Layout 1 13/10/2016 11:06 am Page 8

9
G
d up to down. Adjust the sensor to
or patterns (see Figure 1).
bottom of the sensor (see Figure 2)
e as well as night, illuminating the
me. This allows testing to be carried
ensor.
will immediately illuminate as the
. After approximately 1 - 2 minutes
outside the detection area during
mately 5 metres from the unit. As
will illuminate. Now stand still until
approximately 5 seconds).
“zone” the lamp will illuminate.
stances and angles to the unit. This
pattern.
Pan
Left & right 90˚, Tilt up 0˚, Down 90˚
Tilt
Sensor pattern
FIGURE 1
Less
sensitive
More
sensitive
10 & 20W sensor lights instructions_A6_Layout 1 13/10/2016 11:06 am Page 9

10
FIGURE 2
Night Day
5 Sec
5 Min
SETTING UP FOR AUT
Once walk tests are complete, the u
The TIME setting controls how lo
activation and after all motion ce
clockwise) is approx. 5 seconds, w
is approximately 5 minutes. Set th
these limits.
The LUX control determines the lev
operating. The setting is best achie
1. Set the LUX control knob fully c
operating at dusk.
If you require the light to activate
reaches the level of darkness at whi
SLOWLY rotate the control in a cl
where the lamp illuminates. Leave
MANUAL OVERRIDE MODE
1. To switch into manual override t
2. To reset it back to auto mode,
before switching the power back
cycle before resuming normal o
10 & 20W sensor lights instructions_A6_Layout 1 13/10/2016 11:06 am Page 10

11
2
Day
5 Sec
5 Min
SETTING UP FOR AUTOMATIC OPERATION
Once walk tests are complete, the unit can be switched to automatic operation.
The TIME setting controls how long the unit remains illuminated following
activation and after all motion ceases. The minimum time (fully counter-
clockwise) is approx. 5 seconds, whilst the maximum time (fully clockwise)
is approximately 5 minutes. Set the control to the desired setting between
these limits.
The LUX control determines the level of darkness required for the unit to start
operating. The setting is best achieved by the procedure below:
1. Set the LUX control knob fully counter-clockwise. The unit will now start
operating at dusk.
If you require the light to activate earlier, wait until the ambient light level
reaches the level of darkness at which you wish the lamp to become operative.
SLOWLY rotate the control in a clockwise direction until a point is reached
where the lamp illuminates. Leave the control set at this point.
MANUAL OVERRIDE MODE
1. To switch into manual override the power must be switched on/off/on.
2. To reset it back to auto mode, turn off the power and wait 20 seconds
before switching the power back on. The unit will go through its warm up
cycle before resuming normal operation.
10 & 20W sensor lights instructions_A6_Layout 1 13/10/2016 11:06 am Page 11

12
TROUBLESHOOTING
Problem
Lights do not turn on
Lights flickering on/off
Lights do not turn off
Sensor coming on
during daytime
Recomm
1) Check
2) Check
3) Check
you d
towar
senso
heigh
1) Check
of sen
secon
minut
1) Turn t
sign a
2) Turn l
secon
3) Make
some
chang
1) Turn L
senso
MAINTENANCE PROGRAM
1. After a period of time lamp and lantern surfaces can accumulate dust and
debris. This accumulation of dust and debris can directly influence the
performance of lamps and lanterns. A regular cleaning maintenance
program for lamps and lanterns should be run on a 6 monthly cycle.
2. During the regular cleaning maintenance program it is important to check
that all parts are in good condition and any loose screws are tightened. Any
damaged parts including screws should be replaced during the regular 6
monthly maintenance program.
3. During the cleaning process it is important to not use corrosive or volatile
liquids. The use of corrosive or volatile liquids may cause a chemical
reaction and may influence the performance. It is recommended to use a
damp cleaning cloth.
10 & 20W sensor lights instructions_A6_Layout 1 13/10/2016 11:06 am Page 12

13
TROUBLESHOOTING
Problem
Lights do not turn on
Lights flickering on/off
Lights do not turn off
Sensor coming on
during daytime
Recommended Action
1) Check light switch is on
2) Check wiring
3) Check sensor is level and pointed at the area
you desire, and movement is not directly
towards the sensor but across the lens. Check
sensor is mounted at the recommended
height.
1) Check position of time adjustment at bottom
of sensor. Setting the arrow at "-" gives 5
seconds and setting arrow fully at "+" gives 5
minutes. Adjust to desired time.
1) Turn time adjustment closer to "-" negative
sign at the bottom
2) Turn light switch off and then back on after 20
seconds, you are now in sensor mode
3) Make sure the sensor is not aimed at
something that would cause a temperature
change or towards objects which may move.
1) Turn LUX adjustment at the bottom of the
sensor to moon setting
M
surfaces can accumulate dust and
debris can directly influence the
A regular cleaning maintenance
be run on a 6 monthly cycle.
e program it is important to check
ny loose screws are tightened. Any
d be replaced during the regular 6
ant to not use corrosive or volatile
ile liquids may cause a chemical
mance. It is recommended to use a
10 & 20W sensor lights instructions_A6_Layout 1 13/10/2016 11:06 am Page 13

SPECIFICATIONS
Model Description: 10W Sensor Light 20W Sensor Light
55-136 55-224
55-137 55-225
Detection Range: Up to 12 metres
Detection Angle: 140˚
Power Supply: AC 100-240V (50Hz)
Max. Switchable Load: LED 10W LED 2 x 10W
Lamp Type: 10W high power LED
Time On Adjustment: Day or night or night only operation
Environmental Protection: IP54 (suitable for outdoor use)
*Specifications are subject to change without prior notice.
14
NOTES
10 & 20W sensor lights instructions_A6_Layout 1 13/10/2016 11:06 am Page 14

Light 20W Sensor Light
55-224
55-225
res
V (50Hz)
LED 2 x 10W
wer LED
or night only operation
e for outdoor use)
hout prior notice.
15
NOTES
10 & 20W sensor lights instructions_A6_Layout 1 13/10/2016 11:06 am Page 15

MANUFACTURER’S WARRANTY
This Housewatch product is guaranteed for a period of 2 (Two) years from date
of purchase, provided the product has been installed in accordance with this
instruction manual and local electrical wiring regulations and codes of practice.
This guarantee shall become invalid if this product has been incorrectly
installed, misused, tampered with or accidentally damaged.
If the goods are defective, we undertake to repair or replace the goods or any
part of them that is defective; or provide again or rectify any services or part of
them that are defective; or wholly or partly recompense you if they are defective.
This guarantee is in addition to other rights and remedies available to
consumers, all of which are given by us to you if you are a consumer. Our
Goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure
and for compensation for any other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired or replaced if the goods fail to
be of acceptable quality and the failure does not amount to a major failure. If
you wish to make a warranty claim, please return this product to the original
place of purchase together with your purchase receipt, or contact us using the
below details.
Proudly Distributed by Repelec (Aust)
Locked Bag 45
Plumpton NSW 2761
Ph: 1300 555 586 Fax: [phone]
Email: [email protected]
10 & 20W sensor lights instructions_A6_Layout 1 13/10/2016 11:06 am Page 16
