HP E-PC C10 Product manual

technical reference manual
product description - hp e-pc
This technical reference and BIOS document for the HP e-pc contains
summary information only. More detailed information on system hardware is
available in the Technical Reference Manual - HP PC Technology.
HP e-pc

Contents
Francais iii
1systemoverview
hp e-pc components and technical features. . . . . . . . . . . . . . . . . . . . . 2
package features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2systemfeatures
hp e-pc system board layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
architectural view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
main memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
processors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
CMOS/password switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
mass storage devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
graphic interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
network interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
3 serviceability
swapping parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

iv Francais
4BIOSoverview
BIOS summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
power saving and ergonometry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
BIOS addresses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
order in which the POST tests are performed . . . . . . . . . . . . . . . . . 38
beep codes and error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
5 drivers and software
drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
BIOS updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

1
system overview
This chapter introduces the internal and external features, and lists the
specifications of the HP e-pc.

2
1 system overview
hp e-pc components and technical features
hp e-pc components and technical features
Component HP e-pc
Package
Description
No Free access shelves
Width: 8.9cm (3.5 in); Height: 24.0 cm (9.4 in); Depth: 27.2 cm (10.7 in).
Processor Intel Celeron 500/66, 533/66, 633/66, 700/66
Intel Pentium III 600EB/133, 667/133, 800/133, 866/133
System Board:
Chip set Intel® 810E
Integrated I/O On ICH chip. 2 USB connectors, 1 serial port and 1 parallel port, 2 PS/2 (keyboard, mouse), 1 15-pin VGA connector, audio ports (stereo-in,
stereo-out, microphone in)
Integrated IDE On ICH chip. 2 IDE Ports (Ultra ATA 66)
Integrated
Graphics
Intel® 810E integrated graphics with Direct AGP and Dynamic Video Memory Technology.
Integrated Audio CS4299: CrystalClear™ Sound Fusion Audio Codec ‘97
Integrated network
interface
3COM 10/100 Mbps 3C905C-TX Network Interface (RJ-45 Ethernet port (10/100Base-T)
Mass storage
Hard disks: 8.4GB IDE, 10GB IDE, 20GB IDE
CD-ROM drive: 24X Max-speed slim CD-ROM (in selected models)
DVD drive: 8x Max-speed (in selected models)
CD-RW drive: Available as accessory C4505A
USB Floppy drive: Available as accessory D9510A
Main memory One SDRAM socket using: 64MB, 128MB, 256MB
Input devices HP Standard Keyboard
HP Scrolling Mouse
Power supply External 60W Power Supply
BIOS
Type: AmiBIOS
Version: IN.xx.yy
Setup program: English only
BIOS error messages: English only

3
1 system overview
package features
package features
Hard Disk Drive
Activity Light
Front view
Power On/
Off Button
P
ower on
Status Light
(flashes in
sleep mode)
CD-ROM Drive
(some models only)
Hard Disk Drive
compartment
CD-ROM, DVD or CD-RW drive
Front view with
cover removed
Main Memory located
behind RFI filler plate.
Fan
Processor located
below fan

4
1 system overview
package features

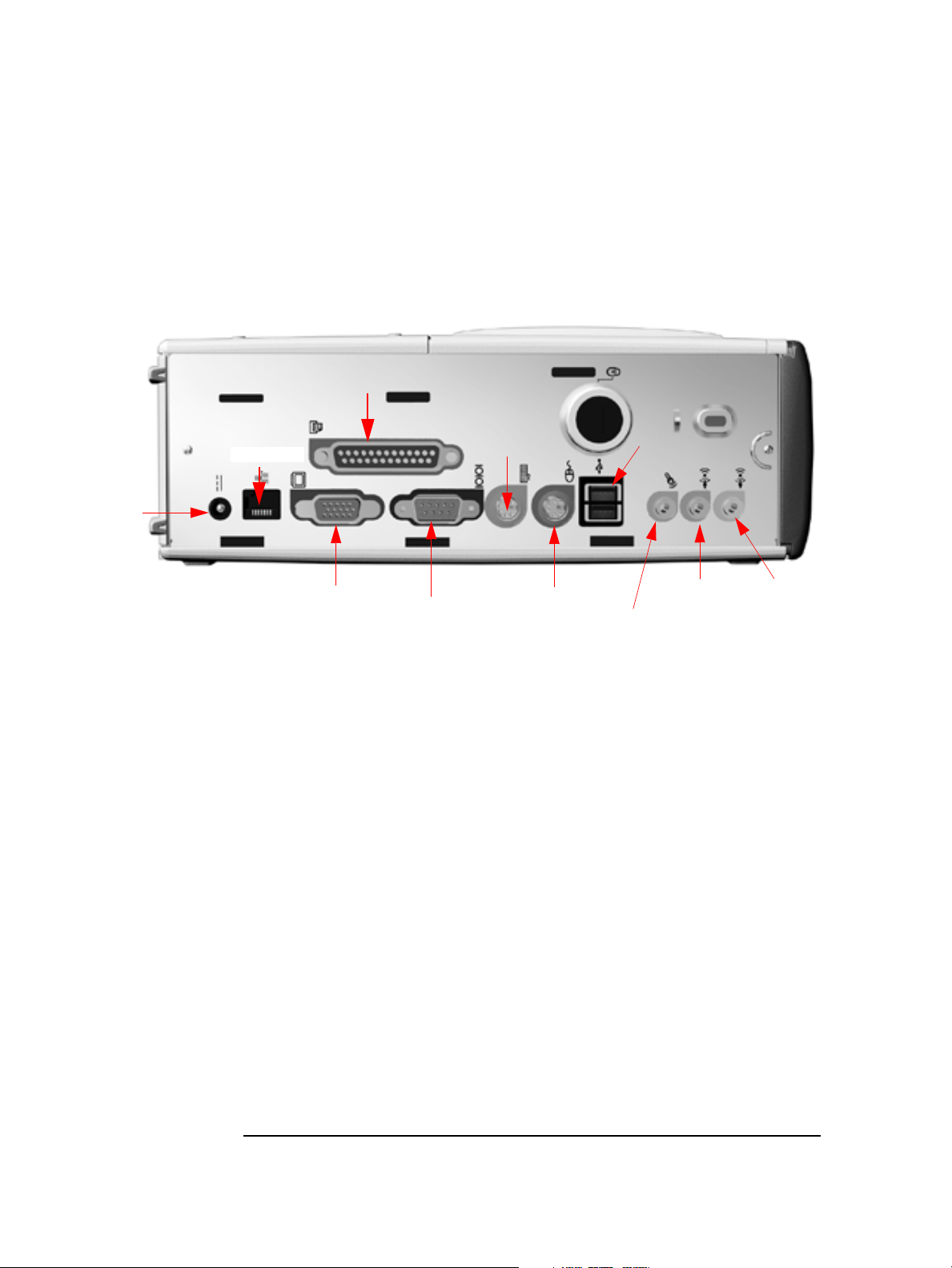

USB
Parallel Port
Keyboard
Serial Ports
Line In
Microphone
Monitor Mouse
LAN Connector
Speaker
Power
Connector
rear connectors

5
1 system overview
specifications
specifications
physical characteristics
Characteristic Description
Weight
(excluding display and keyboard)
3.5 kg (7.7 pounds)
Dimensions Width: 8.9cm (3.5 inches)
Height: 24.0cm (9.4 inches)
Depth: 27.2 cm (10.7 inches)
Footprint Vertical Position1: 0.021 m2 (0.23 ft.2)
Horizontal Position: 0.065 m2 (0.69 ft.2)
1.Dimensions do not include the stand
Power Adapter Input voltage: 100-240 Vac (auto-range)
Input frequency: 50/60 Hz
Output Voltage: 19V
Maximum output power: 60W (max)
Power Consumption (components) Nominal: 30W
Windows 98 Suspend: 15W

6
1 system overview
specifications
both platforms power consumption
As an ENERGY STAR partner, HP has determined that this product meets the
ENERGY STAR guidelines for energy efficiency (standard base models).
These are “typical” values given for the standard base models.
NOTE When the PC is turned off with the power button on the front panel, the power
consumption falls below 5 Watts, but is not zero. The special on/off method
used by this PC extends the lifetime of the power supply. To reach zero power
consumption in “off” mode, unplug the AC adapter from the power outlet or
unplug the AC adapter from the HP e-pc. If the PC is turned off, the time
settings are maintained by the battery indefinitely (until the battery runs out
of power).
acoustic noise emission
The values are given for the standard configuration as shipped and can vary
depending on the actual components used.
Power Consumption
(PC running Windows98)
Operating with input/output: 38W
Operating without input/output: 21W
Suspend: 15W
Automatic Sleep Mode: 4.1W
Off: 2.2W
Acoustic Noise Emission
(ISO 7779)
Sound Power
(Average)
Sound Power
(ISO 9296)
Sound Pressure
(ISO 9296)
Operating (idle) LwA =32.4 dBA LwAd = 33 dBA LpA = 24 dBA
Operating with disk access LwA = 39.1 dBA LwAd = 42 dBA LpA = 34 dBA
Operating with CD-ROM access LwA = 44.7 dBA LwAd = 48 dBA LpA = 37 dBA

7
1 system overview
specifications
environmental specifications
Operating temperature and humidity ranges may vary depending upon the
mass storage devices installed. High humidity levels can cause improper
operation of disk drives. Low humidity levels can aggravate static electricity
problems and cause excessive wear of the disk surface.
Environmental Specifications (System Processing Unit, with Hard Disk)
Operating Temperature 5oC - 35oC
Storage Temperature -40oC to 70oC
Operating Humidity 15% to 80% (relative)
Storage Humidity 8% to 85% (relative), non-condensing at 40°C (104°F)
Acoustic Noise Emission: (as defined ISO 7779)
Sound level (LwA) ≤37 db (operating)
Operating Altitude 10000 ft (3100m) max
Storage Altitude 15000ft (4600m) max

8
1 system overview
specifications

2
system features
This chapter describes core components of the HP e-pc such as processors,
chip set, mass storage devices, graphics controller, audio controller, network
features and input devices.

10
2 system features
hp e-pc system board layout

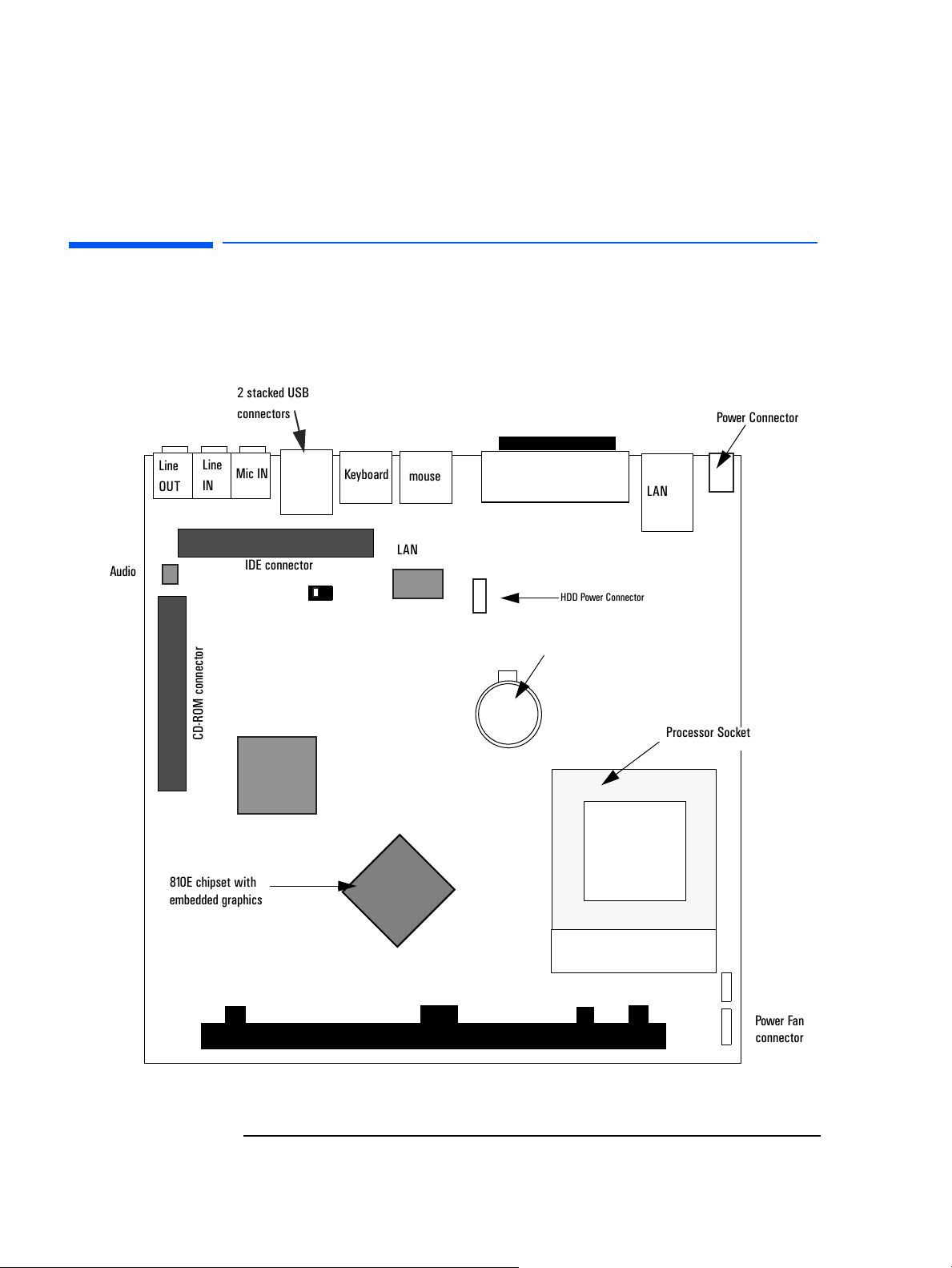

hp e-pc system board layout
All HP e-pc system boards have a Celeron/Pentium III processor slot.
system board
Battery Socket
CMOS/Password
Switch
Memory
slot
Status panel
connector
The parallel port is located
above Serial Port and VGA
connector
 








































































IDE connector
Keyboard mouse
LAN
CD-ROM connector
Power Fan
connector
Mic IN
Line
IN
Line
OUT
2 stacked USB
connectors
Processor Socket
Audio
HDD Power Connector
810E chipset with
embedded graphics
Power Connector
LAN

11
2 system features
hp e-pc system board layout
hp e-pc PCI mapping
HP e-pc PCI Mapping Table
Bus Device PCI Device
00MCHchip
01VGA
0 30 ICH chip: PCI bridge
031ICHchip
0 31 Integrated audio (CoDec)
1 2 Integrated LAN

12
2 system features
architectural view

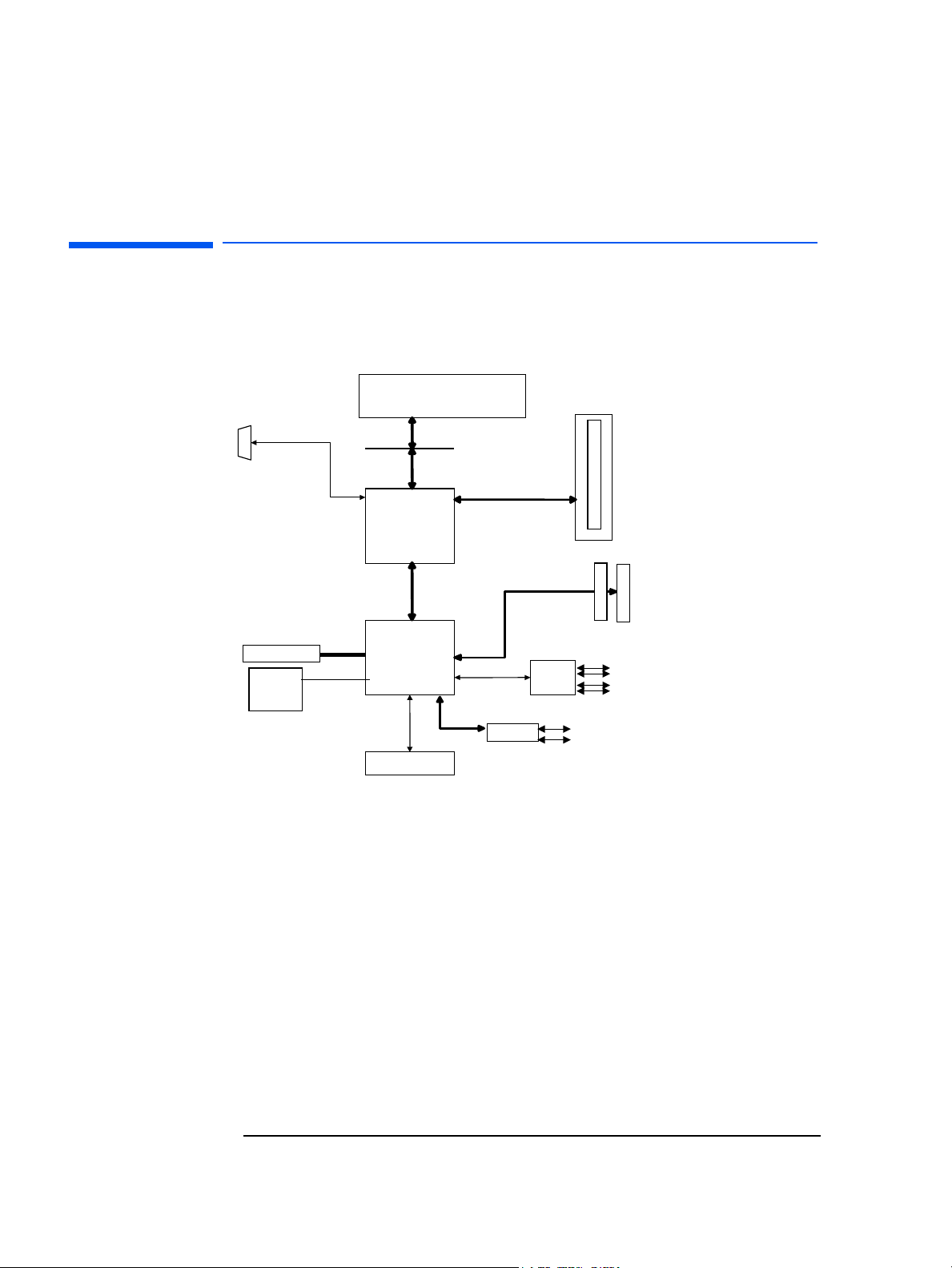

architectural view
GMCH
Intel
82810e
ICH
Intel
82801AA
HDD and CDD
FWH
CS4299 Super
I/O
System Memory
System Bus
(66/133MHz)
64bit
(66/100MHz)
Display
USB
ATA33/66
LPC Bus
PCI 33
INTEL 82802AB(4M)
266 MB/s
AUDIO AC97
Processor
Celeron or Pentium III
LAN PS/2 KB and MS
Serial and //

13
2 system features
main memory
main memory
There is one 168-pin DIMM slot on the system board for installing main
memory. All HP e-pc models are supplied with a memory module of at least
64 MB non-ECC SDRAM. Only HP memory modules are supported. Memory
upgrades are not supported.
processors
The HP e-pc is equipped with either a single Socket 370 Intel Celeron or
socket 370 Intel Pentium III processor. Socket 370 is a conversion of Slot 1
(used previously by Celerons and Pentium Is) to a socket, running at the
same bus protocol as the Pentium II (the GTL+ bus protocol). The processor
is connected to the system board through a Plastic Pin Grid Array (PPGA)
370 Socket. The reduction in size achieved by the Socket 370 Celeron is due
to the integration of the L2 cache on the processor die. Like the Celeron
processor, the Pentium III comes in a 370-pin socket (PGA370) package.
To find out more about Socket 370 Celeron technology, refer to the Tec hn ica l
Reference Manual - HP PC Technology.

14
2 system features
CMOS/password switch
CMOS/password switch
The position of the CMOS/password switch is shown below:
SWITCH BLOCK
Switch Switch function:
CMOS/
Password
OFF = normal (default)
ON = clear CMOS and reload default values in Setup, clear Passwords

15
2 system features
mass storage devices
mass storage devices
hard disk drives
A 3.5-inch hard disk drive is supplied. This hard drive is provided with the
HP e-pc and comes with a hard disk drive tray attached. To see which other
hard disk drives can be purchased as accessories for the HP e-pc, refer to
www.hp.com/go/pcaccessories.
To find out about Ultra-ATA DMA 33/66 hard disk drive technology, refer to
the Technical Reference Manual - HP PC Technology.
8.4GB
Ultra-ATA 66
10 GB
Ultra-ATA 100
20 GB
Ultra-ATA 100
Average Seek Times (ms) 12 8.9 <9
I/O data-transfer rate
(Mbytes/Sec max)
66 66 66
ATA data-transfer modes supported PIO modes 0-4
Multiword DMA modes 0-2
Ultra DMA modes 3-4
Internal Data Rate (Mb/s) 248 330 330
Buffer Size Ultra ATA 512 KM 2 MB 2 MB

16
2 system features
mass storage devices
CD-ROM (CD/CD-ROM, CD-R, CD-RW) and DVD drives
Models may be fitted with a 24✕Max Slim IDE CD-ROM drive or 8 x Max Slim
IDE DVD-ROM drive. These can play standard CD-ROM discs, conforming to
optical and mechanical standards as specified in the Red and Yellow Book. To
find out about CD-ROM and DVD drive technology, refer to Technical
Reference Manual - HP PC Technology.
features of the
slim CD-ROM drive
• CD-DA
• CD-ROM Mode1,Mode 2
• CD-I (Mode 2 Form 1 and 2)
• Photo-CD (single and multisession)
• Enhanced CD
Features of the
slim DVD-ROM Drive
• CD-DA as defined by Red Book
• CD-ROM data in Mode 1 and Mode 2 as defined by Yellow book
• CD-ROM XA data Form 1 and Form 2
• CD-I, CD-I Bridge and CD-I Ready
• Single and Multiple Session discs
•CD-RW
• Video CD
•PhotoCD
• Enhanced Music CD
•DVDDisc
•DVD-RDisc
•DVD-RAMDisc
Description
HP product number
Host Interface IDE (ATAPI)
Disc Diameter 120 mm
Storage Capacity 656 Mbytes
Data Transfer Rate Burst: 33.3 MBs (max)
Sustained: 1545 ~3600KBs
Average Access Time 115msec (average)
Buffer Memory 128 Kbytes
Rotational speed 5136rpm
