HP Kayak XA 05xx PC Workstation—
Setting Up and Using Your HP
Desktop PC Workstation
Asdt-se.fm Page 1 Friday, March 26, 1999 9:21 AM

HP Kayak XA 05xx PC Workstation —Setting Up and Using Your HP Desktop PC Workstation
Connecting the Mouse, Keyboard, Display and Printer
2English
Connecting the Mouse, Keyboard, Display and Printer
Connect the mouse, keyboard, and display to the back of the
PC workstation. The connectors are shaped to go in one way only.
Tighten the display cable attachment screws.
NOTE The Universal Serial Bus (USB) connectors can be used for USB
accessories. Most USB accessories are automatically configured as soon
as they are physically attached to the PC Workstation. USB accessories
are not supported by all operating systems.
Mouse Connector (lower)
2 USB Connectors
(refer to note below)
Serial Port A
Parallel Connector
Display Connector
Keyboard Connector (upper)
Serial Port B
Asdt-se.fm Page 2 Friday, March 26, 1999 9:21 AM

English 3
HP Kayak XA 05xx PC Workstation —Setting Up and Using Your HP Desktop PC Workstation
Connecting to a Network (Selected Models Only)
Connecting to a Network (Selected Models Only)
The LAN adapter supports both 10 Mbit/s and 100 Mbit/s operations
and automatically detects which network type is being used.
1Connect the RJ-45 plug on your network cable to the LAN connector
on your LAN PC Workstation Adapter. Push the plug into the
connector until the plug clicks into place.
2Attach the other end of the LAN cable to a hub (or into a wall socket
that is connected to a hub).
For further instructions on configuring your network connection,
refer to the Upgrade and Configuration Guide available on HP’s
Web site.
Refer also to the online Network Administrator’s Guide
(downloadable from HP’s Web site) for further instructions on
setting up your PC Workstation for a LAN connection.
Asdt-se.fm Page 3 Friday, March 26, 1999 9:21 AM

HP Kayak XA 05xx PC Workstation —Setting Up and Using Your HP Desktop PC Workstation

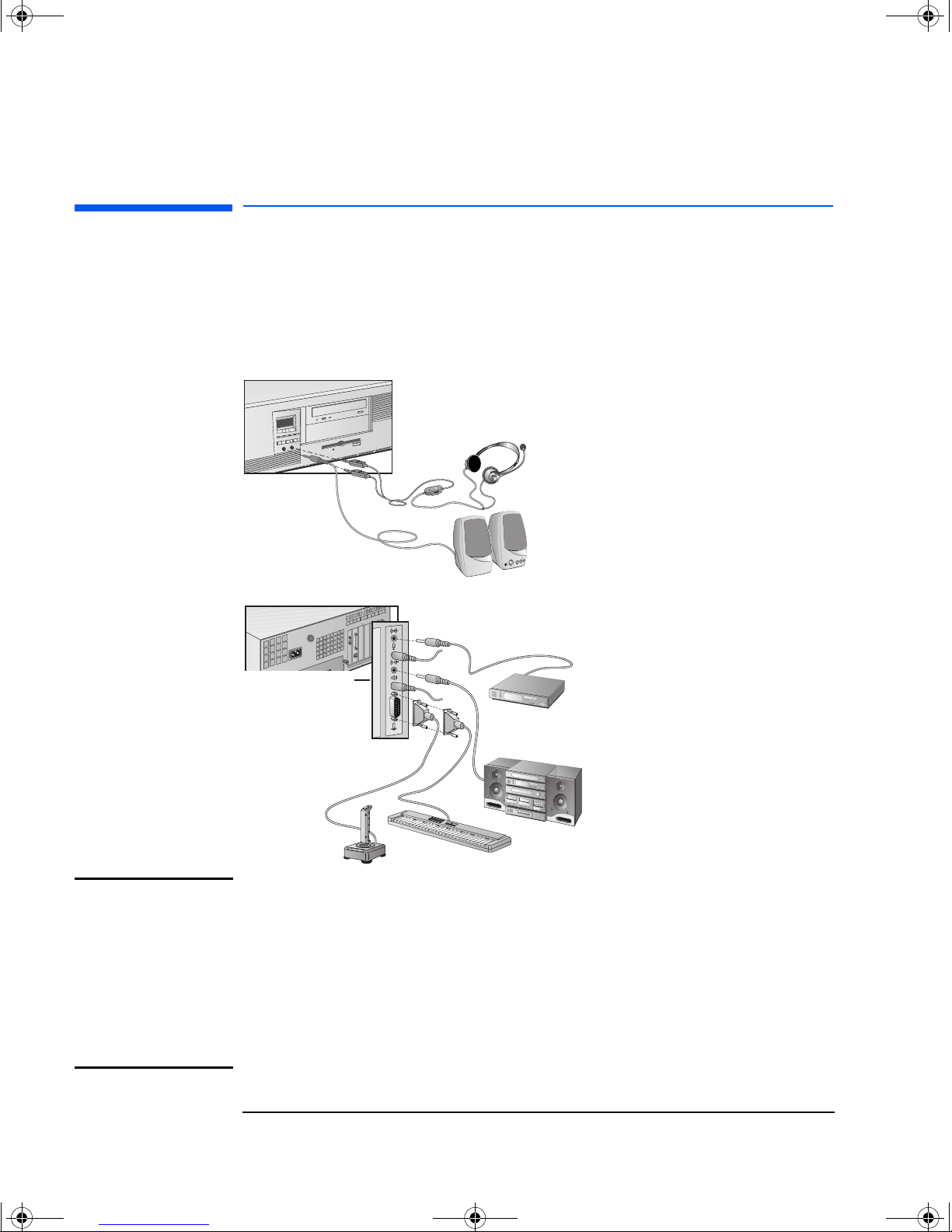

Connecting Audio Accessories
4English
Connecting Audio Accessories
Your PC Workstation has a Headphone Out jack and a Microphone In
jack on the Audio Front Panel. A LINE IN jack, LINE OUT jack, MIC IN
jack, and MIDI/Joystick connector are located on the backplate of the
audio board.
WARNING To avoid discomfort from unexpected noise or static, always turn down the
volume before connecting headphones or speakers.
Listening to loud sounds for prolonged periods may permanently damage your
hearing.
Before putting on headphones, place them around your neck and turn down
the volume. When you put on the headphones, slowly increase the volume
until you find a comfortable listening level, then leave the volume control in
that position.
NOTE
The internal speaker and LINE OUT
jack on the audio board backplate
are deactivated when you use the
Headphones jack on the Audio
Front Panel.
The internal speaker is deactivated
when you use the LINE OUT jack.
External speakers should have a
built-in power supply.
The audio accessories shown
here (microphone, speakers, and
audio system) are not supplied
with your PC Workstation.
Volume can be controlled through
the HP enhanced keyboard or the
software volume control.
Audio board
backplate
Audio Front
Panel
Asdt-se.fm Page 4 Friday, March 26, 1999 9:21 AM

English 5
HP Kayak XA 05xx PC Workstation —Setting Up and Using Your HP Desktop PC Workstation

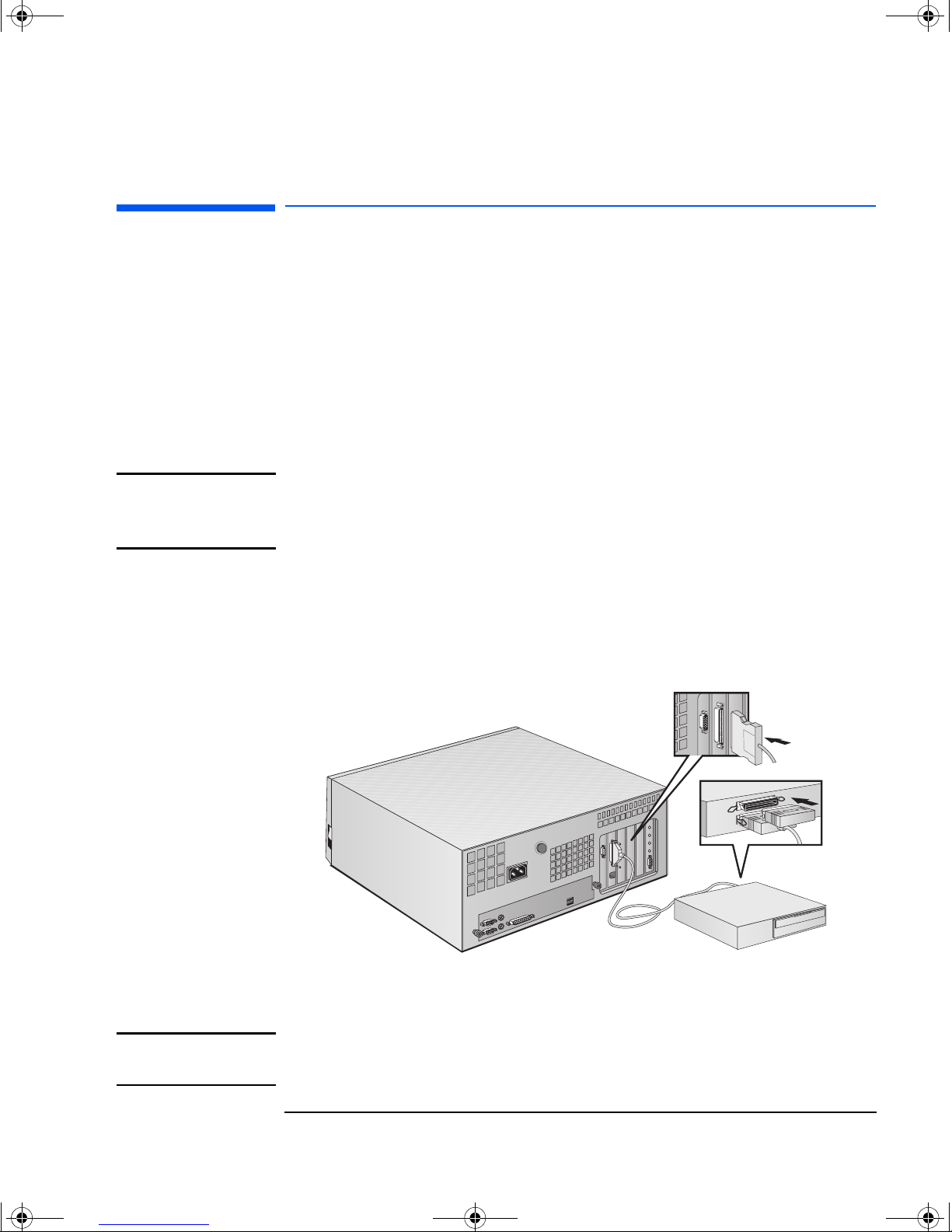

Connecting an External SCSI Accessory (Selected Models Only)
Connecting an External SCSI Accessory
(Selected Models Only)
An external SCSI device is connected as follows:
1You should assign an unused SCSI ID to the accessory. SCSI IDs
range from 0 to 15 for wide 16-bit SCSI. The SCSI ID 0 is reserved for
the first SCSI hard disk drive and SCSI ID 7 is reserved for SCSI
controller (the default for narrow and wide SCSI devices).
Refer to the manual provided with the SCSI accessory for
instructions on selecting a SCSI ID.
NOTE You don’t need to set a SCSI ID for Plug and Play SCSI devices (SCSI
devices which support the SCAM protocol).
Windows 98 does not support SCAM.
2Make sure the SCSI accessory is terminated correctly—either
internally or by a terminating resistor (refer to the manual provided
with the SCSI accessory).
3Connect the SCSI accessory to your PC Workstation’s external 16-bit
SCSI connector with a shielded SCSI cable.
4Refer to the manual provided with the SCSI accessory to learn how
to install any software that may be necessary to use it.
NOTE The total length of the external SCSI cables should not exceed 3 meters
(approximately 10 feet).
Asdt-se.fm Page 5 Friday, March 26, 1999 9:21 AM

HP Kayak XA 05xx PC Workstation —Setting Up and Using Your HP Desktop PC Workstation

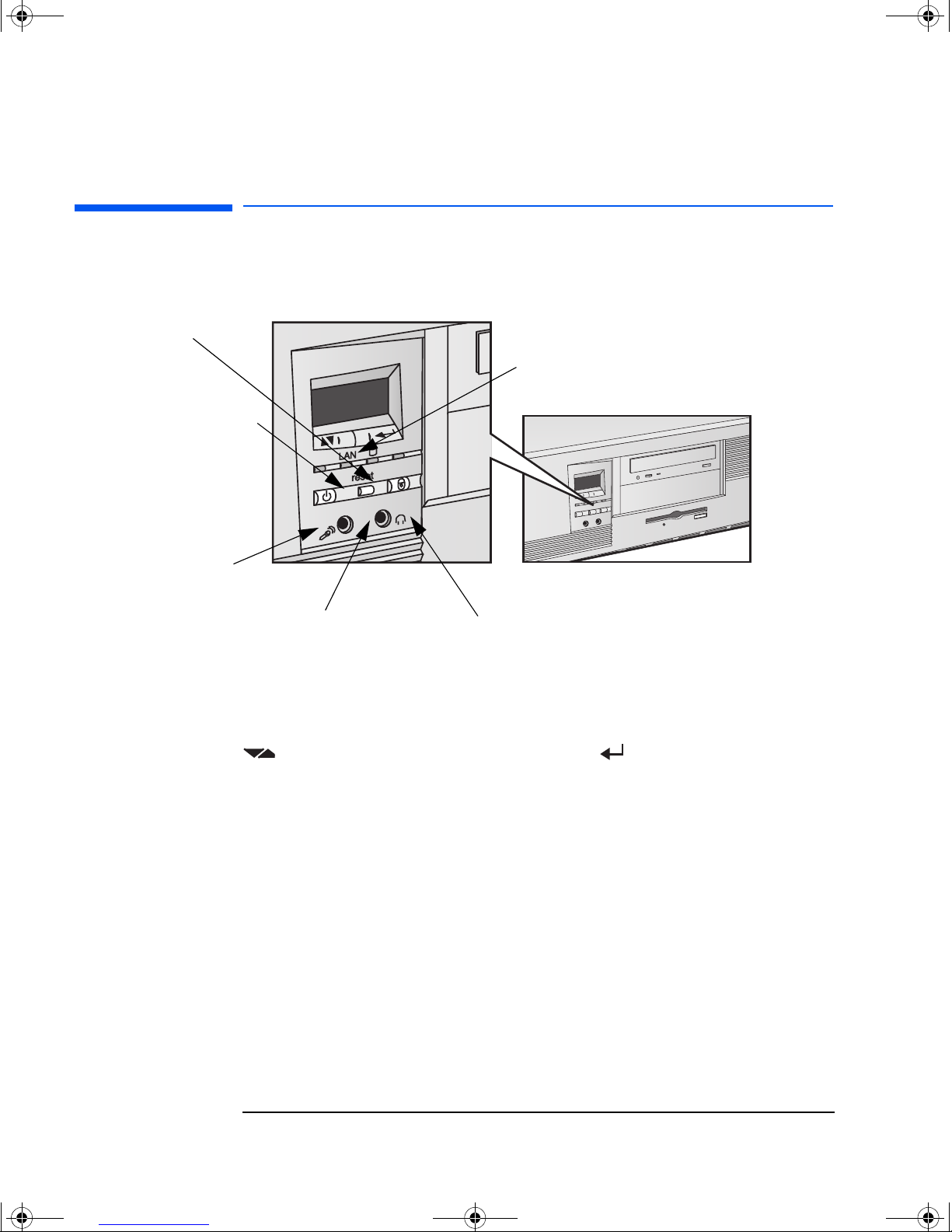

The MaxiLife Control Panel
6English
The MaxiLife Control Panel
The MaxiLife panel is located on the front of your PC Workstation.
HP MaxiLife and its
Liquid Crystal Display
(LCD)
HP MaxiLife and its LCD helps you diagnose problems with your PC
Workstation and provides system information you may need to obtain
support. Press one of the LCD control buttons to display the menu. Use
to scroll through the menu items and to select the item
required.
PC Lock Button With HP Lock installed, you can use this button to prevent
unauthorized access of your PC Workstation during your absence. Your
applications will remain active. To unlock the PC Workstation, enter
the Windows login password (refer to Windows Help in the Start
menu to set or change this password).
Network Activity Light This light glows/flickers when your PC Workstation is accessing
the network.
Hard Disk Activity Light This light glows/flickers when your hard disk drive is being accessed.
Power On/Off
Button and LED
PC Lock Button and LED
Network Activity Light
Hard Disk Activity Light
Reset Button
LCD Control Buttons
Asdt-se.fm Page 6 Friday, March 26, 1999 9:21 AM

English 7
HP Kayak XA 05xx PC Workstation —Setting Up and Using Your HP Desktop PC Workstation

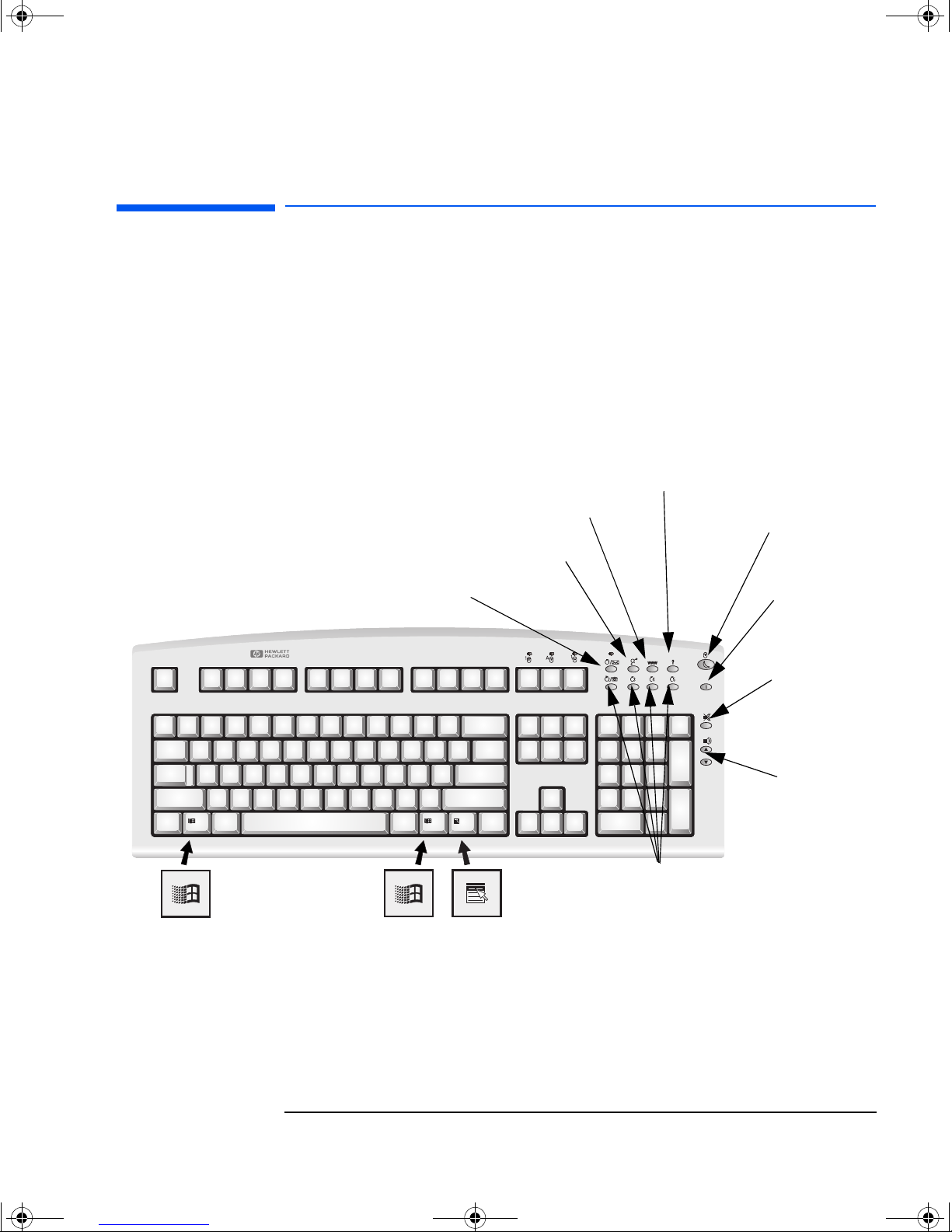

Using Your HP Enhanced Keyboard
Using Your HP Enhanced Keyboard
The HP enhanced keyboard includes soft keys you can use to:
•Display and configure the actions assigned to keys.
•Perform one-touch shortcuts to start applications, open files, or
open sites on the WWW.
•Launch the Internet browser supplied with your system.
•Lock or suspend your PC Workstation.
•Access HP TopTools and customer information.
•Mute or adjust the volume of the audio system.
Menu key
Lock/Suspend key
Internet key
HP TopTools
Shortcut key HP Customer
Information
Volume
control
keys
Shortcut keys
Mute key
Asdt-se.fm Page 7 Friday, March 26, 1999 9:21 AM

HP Kayak XA 05xx PC Workstation —Setting Up and Using Your HP Desktop PC Workstation
Using Your HP Enhanced Keyboard
8English
Menu Key Pressing the Menu soft key displays the soft key section of the HP
enhanced keyboard on your screen. Click any of the keys on the screen
to display the action assigned to an individual key or to change or assign
an action to a key. Shortcut keys are provided specifically for user-
defined actions.
Shortcut Keys The shortcut soft keys can be used to start an application, open a
document, or open a site on the Internet. Actions can be assigned to the
shortcut keys by pressing the Menu key and clicking the key you want
to configure in the keyboard displayed on your screen.
Internet Key This soft key is used to start the Netscape™ Communicator browser
configured on the PC Workstation (default setting). Microsoft®
Internet Explorer is also available.
Lock/Suspend Key The action of the Lock/Suspend key is configured by pressing the Menu
Key, and then clicking on Configure, the Extended Keys tab and the
onscreen Lock button. With HP Lock installed, the actions you can
specify for the Lock/Suspend key are:
•Launch screen saver
•Lock the front panel.
HP TopTools Pressing this soft key opens HP TopTools. This application helps you
manage your PC Workstation, reduce overall ownership costs, and
provides advanced PC management tools. For example, be used for
remote BIOS updates and security management.
NOTE Before using HP TopTools for the first time, you must install it as
follows: From the Start menu, select Programs, then HP DMI, then
Setup. The HP TopTools application is installed automatically.
HP Customer
Information
This soft key accesses HP Customer Information, which includes:
•Information on product features
•Information on how to configure the WWW browser
•Detailed HP support information
•Links to the HP PC and PC Workstation Web site.
Asdt-se.fm Page 8 Friday, March 26, 1999 9:21 AM

English 9
HP Kayak XA 05xx PC Workstation —Setting Up and Using Your HP Desktop PC Workstation
Using Your HP Enhanced Keyboard
Mute and Volume Keys Pressing the Mute key mutes the audio, or restores the audio if it has
been muted. The Volume keys can be used to control the volume level.
For more information on controlling audio on your system, refer to the
Using Sound guide preloaded on your PC Workstation.
Asdt-se.fm Page 9 Friday, March 26, 1999 9:21 AM

HP Kayak XA 05xx PC Workstation —Setting Up and Using Your HP Desktop PC Workstation
Using Your HP Enhanced Mouse
10 English
Using Your HP Enhanced Mouse
Your HP enhanced mouse enables you:
•To scroll down by pushing the mouse wheel forwards and scroll up
by pushing it backwards.
•To zoom in (enlarge) by holding the Ctrl key down and pushing the
mouse wheel forwards or zoom out (reduce) by holding the Ctrl key
down and pushing it backwards.
NOTE The scroll functions only work in Windows NT and Windows 95
applications that support scrolling. The zoom function works only in
Microsoft®Office 97 compatible applications that support zoom.
To change the mouse setup, click the Start button, select Settings—
Control Panel, double-click Mouse, and select the Buttons tab.
Context Menu/Alternate
Select Button
Click/Select Button
Scroll/Zoom Wheel
Asdt-se.fm Page 10 Friday, March 26, 1999 9:21 AM

English 11
HP Kayak XA 05xx PC Workstation —Setting Up and Using Your HP Desktop PC Workstation
The HP Summary Screen and Setup Program
The HP Summary Screen and Setup Program
You can use the Summary Screen and the Setup program to configure
your PC Workstation and solve configuration problems with your PC
Workstation.
Starting the HP Setup Program
1Turn on the display and then the computer. If the PC Workstation is
already turned on, save your data and exit all programs, then restart
the PC Workstation. Consult your operating system documentation
for any special instructions concerning turning off and then
restarting your PC Workstation.
2Press while Setup is displayed at the bottom of the screen.
If you fail to press in time and the start-up process continues,
you will need to restart your PC Workstation to go through the POST
again so you can press .
The opening screen of the PC Workstation’s Setup program is
displayed.
Viewing the HP Summary Screen
Check your PC Workstation’s configuration each time after you install,
remove, or upgrade accessories. To check the configuration:
1Turn on the display and then the PC Workstation. If the PC
Workstation is already turned on, save your data and exit all
programs, then restart the PC Workstation. Consult your operating
system documentation for any special instructions concerning
turning off and then restarting your PC Workstation.
2While the start-up logo appears on your display, press . This
takes you to the HP Summary Screen. (To go immediately into the
Setup program, and bypass the Summary Screen, press instead
of ). The Summary Screen is displayed for only a short time. To
retain the screen (until you decide to leave it), press .
Asdt-se.fm Page 11 Friday, March 26, 1999 9:21 AM

HP Kayak XA 05xx PC Workstation —Setting Up and Using Your HP Desktop PC Workstation
Setting Hardware Passwords
12 English
Setting Hardware Passwords
You can set two passwords, the Administrator (or Supervisor)
password and the User password, to provide two levels of protection
for your PC Workstation. You set both passwords using the Security
menu in the Setup program.
Setting a Password
To set a Hardware Administrator or User password:
1Start the Setup program.
2Select the Security menu.
3Select the Administrator or User password submenu.
4Choose the Set Administrator or User password Setup item. You will be
asked to enter your password twice. Save your changes when you
exit the Setup program by selecting Exit, then Exit Saving Changes.
To remove the password, follow the same procedure as to set a
password. You will be asked to enter the existing password first. Then,
for the new password, leave the password field blank and press
. To confirm your choice, press a second time.
Asdt-se.fm Page 12 Friday, March 26, 1999 9:21 AM

English 13
HP Kayak XA 05xx PC Workstation —Setting Up and Using Your HP Desktop PC Workstation
Configuring Your Network Connection
Configuring Your Network Connection
Use the information in this section if your PC Workstation comes with
an HP-supplied integrated network solution.
You must use the PC Workstation's Setup program to change the
integrated Ethernet interface settings. The following table summarizes
which network options you can set using the Setup program.
Controlling the Network Security Features
The Security Features allow you to enable starting from the network if
you want the PC Workstation to start from a LAN server.
To enable starting from the network:
1With the Setup program running, use the left or right arrow key to
select the Security menu.
Network Setup Items1
1. For full information on setting up your network, refer to the online Network Administrator’s
Guide preloaded onto your PC Workstation.
2. Disabling the LAN card will only disable certain features of the LAN card, such as remote
power-on or remote wakeup, not the card itself.
Where to find in Setup
Enable the integrated network interface.2In the Advanced menu, go to the Integrated
Network Interface submenu.
Enable your PC Workstation to be started (booted
and logged on) from the network.
In the Security menu, go to the Boot Devices
Security submenu (described below).
Enable remote power-on of your PC Workstation. In the Power menu, enable the Integrated
Network item.
From “Suspend Wakeup” mode, enable your PC
Workstation to return to full power when a
command is received by the integrated network
interface.
In the Power menu, enable the Integrated
Network item.
Determine boot device priority. In the Boot menu, select the Boot Device
Priority list item (described on the next page).
Asdt-se.fm Page 13 Friday, March 26, 1999 9:21 AM

HP Kayak XA 05xx PC Workstation —Setting Up and Using Your HP Desktop PC Workstation
Configuring Your Network Connection
14 English
2Press the down arrow key to highlight the line Boot Devices
Security and press Enter to select the submenu.
3Highlight the line Start from Network and press F7 or F8 to
change the option to Enabled.
4You can disable the other boot options to prevent the PC
Workstation from booting if the network or server ever fails:
aPress the down arrow key to go to the Start From Floppy line.
Press F7 or F8 to change the option to Disabled.
bPress the down arrow key to go to the Start From IDE CD-ROM
line. Press F7 or F8 to change the option to Disabled.
cPress the down arrow key to go to the Start From IDE HDD line.
Press F7 or F8 to change the option to Disabled.
5Save your changes and exit.
Selecting the Boot Device Priority
You can determine the order in which your PC Workstation looks for
boot devices, including boot devices on the network. To do this:
1With the Setup program running, use the left or right arrow key to
select the Boot menu.
2Press the down arrow key to highlight the line Boot Device
Priority and press Enter to select the submenu.
3Use the up and down arrow keys to select a boot device, and then
press the plus or minus key to move the device up or down the list.
You can also change the boot device order without entering Setup.
Look for the prompting message when your PC Workstation first starts
up after re-booting.
Asdt-se.fm Page 14 Friday, March 26, 1999 9:21 AM

English 15
HP Kayak XA 05xx PC Workstation —Setting Up and Using Your HP Desktop PC Workstation
Using Power Management
Using Power Management
Power management enables you to reduce your PC Workstation’s
overall power consumption by slowing down the PC Workstation’s
activity when it is idle. To configure power management, refer to the
Power menu in the Setup program.
Refer to your operating system documentation for detailed information
about the capability of your operating system to implement power
management.
Asdt-se.fm Page 15 Friday, March 26, 1999 9:21 AM
