Connecting the Mouse, Keyboard, Display and Printer
2English
Connecting the Mouse, Keyboard, Display and Printer
Connect the mouse, keyboard, display and printer to the back of the
PC workstation. The connectors are shaped to go in one way only.
Tighten the display cable attachment screws.
NOTE The Universal Serial Bus (USB) connectors can be used for USB
accessories. Most USB accessories are automatically configured as soon
as they are physically attached to the PC Workstation. USB accessories
are not supported by all operating systems.
Mouse
Connector
Keyboard
Connector
2 USB Connectors
(see note below)
Serial
Port A Serial
Port B
Parallel
Connector
Monitor
Connector
Cog-sett.fm Page 2 Thursday, February 4, 1999 11:48 AM

English 3
HP Kayak XU PC Workstation — Setting Up and Using Your HP PC Workstation
Connecting to a Network
Connecting to a Network
The LAN adapter supports both 10 Mbit/s and 100 Mbit/s operations
and automatically detects which network type is being used.

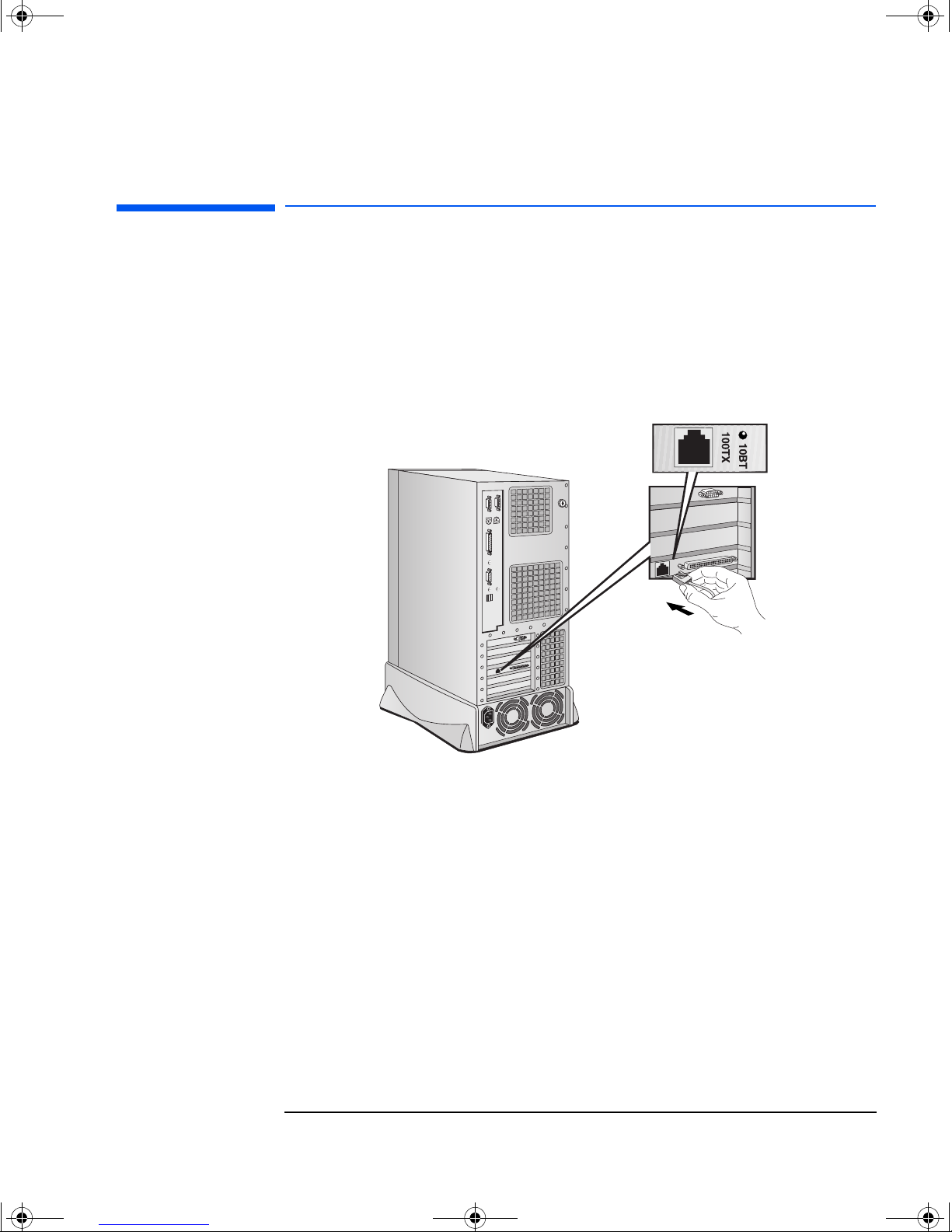

1Connect the RJ-45 plug on your network cable to the LAN connector
on the LAN Adapter. Push the plug into the connector until the plug
clicks into place.
2Attach the other end of the LAN cable to a hub (or into a wall socket
that is connected to a hub).
For further instructions on configuring your network connection,
refer to the Upgrade and Configuration Guide available on HP’s
Web site.
Refer also to the online Network Administrator’s Guide
(provided on an HP CD-ROM) for further instructions on setting up
your PC Workstation for a LAN connection.
The board shown here is
a combined SCSI/LAN
board.
Cog-sett.fm Page 3 Thursday, February 4, 1999 11:48 AM

HP Kayak XU PC Workstation — Setting Up and Using Your HP PC Workstation
Connecting Audio Accessories
4English
Connecting Audio Accessories
WARNING To avoid discomfort from unexpected noise, always turn down the
volume before connecting headphones or speakers.
Listening to loud sounds for prolonged periods may permanently
damage your hearing.
Before putting on headphones, place them around your neck and turn
down the volume. When you put on the headphones, slowly increase
the volume until you find a comfortable listening level, then leave the
volume control in that position.
Dual MIDI/Joystick
connector
LINE IN jack
LINE OUT jack
Audio Front Panel
MIC IN jack
NOTE
The internal speaker and LINE OUT
jack on the rear panel of your
PC Workstation are deactivated
when you use the Headphones jack
on the Audio Front Panel.
The internal speaker is deactivated
when you use the LINE OUT jack.
External speakers you connect
should have a built-in power
supply.
The audio accessories shown here
(microphone, speakers, and audio
system) are not supplied with your
PC Workstation.
Volume can be controlled through
the HP enhanced keyboard, or the
software volume control.
Cog-sett.fm Page 4 Thursday, February 4, 1999 11:48 AM

English 5
HP Kayak XU PC Workstation — Setting Up and Using Your HP PC Workstation
Connecting an External SCSI Accessory
Connecting an External SCSI Accessory
An external SCSI device can be connected as follows:
1You should assign an unused SCSI ID to the device. SCSI IDs range
from 0 to 15 for wide 16-bit SCSI devices. Generally, the SCSI ID 0
is reserved for the first SCSI hard disk drive and SCSI ID 7 is
reserved for the SCSI controller (the default for narrow and wide
SCSI devices).
NOTE Depending on your operating system, you may need to set a SCSI ID for
Plug and Play SCSI devices (SCSI devices that support the SCAM
protocol).
2Make sure the SCSI device is terminated correctly—either
internally or by a terminating resistor (refer to the manual provided
with the SCSI device).
3Connect the SCSI device to your PC Workstation’s external 16-bit
SCSI connector with a shielded SCSI cable.
4Refer to the manual provided with the SCSI device to learn how to
install any software that may be necessary to use it.
NOTE The total length of the external SCSI cables should not exceed 3 meters
(approximately 10 feet).
Step 2: Make sure
the SCSI device is
terminated
Step 3: Connect SCSI
device to your PC
Workstation
Cog-sett.fm Page 5 Thursday, February 4, 1999 11:48 AM

HP Kayak XU PC Workstation — Setting Up and Using Your HP PC Workstation
The MaxiLife Control Panel
6English
The MaxiLife Control Panel
The MaxiLife panel is located on the front of your PC Workstation.
HP MaxiLife and its
Liquid Crystal Display
(LCD)
HP MaxiLife and its LCD screen helps you diagnose problems with your
PC Workstation and provides system information you may need to
obtain support. Press one of the LCD control buttons to display the
menu. Use to scroll through the menu items and to select the
item required.
PC Lock Button With the HP Lock installed, you can use this button to prevent
unauthorized access of your PC Workstation during your absence.
Your applications will remain active. To unlock the PC Workstation,
enter the Window’s login password (refer to Window’s Help in the Start
menu for more information on setting or changing this password).
Network Activity Light This light glows/flickers when your PC Workstation is accessing
the network.
Hard Disk Activity
Light
This light glows/flickers when your hard disk drive is being accessed.
Power On/Off
Button and
LED
Reset Button
PC Lock Button
and LED
Network Activity Light
Hard Disk Activity Light LCD Control Buttons
Cog-sett.fm Page 6 Thursday, February 4, 1999 11:48 AM

English 7
HP Kayak XU PC Workstation — Setting Up and Using Your HP PC Workstation

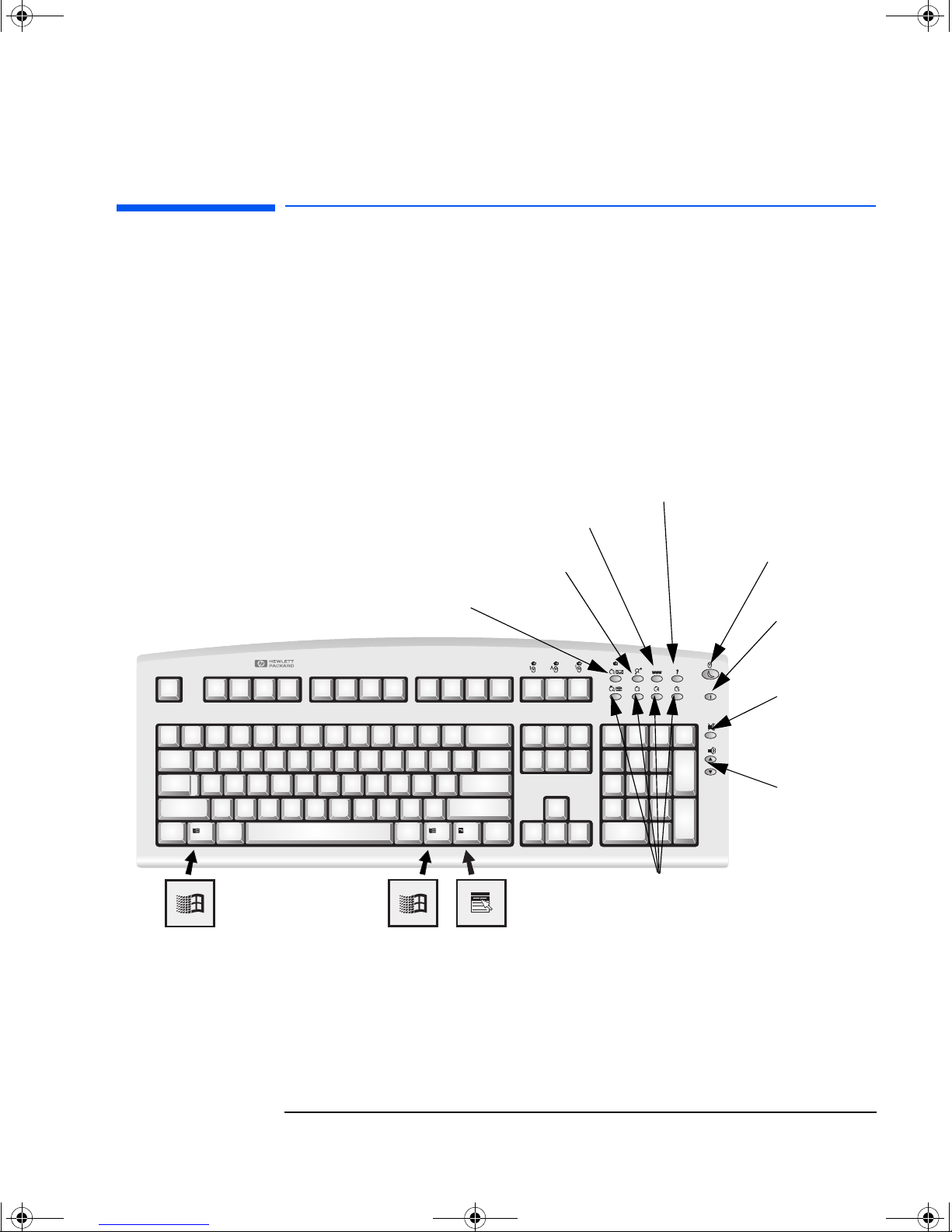

Using Your HP Enhanced Keyboard
Using Your HP Enhanced Keyboard
The HP enhanced keyboard includes soft keys you can use to:
•Display and configure the actions assigned to keys.
•Perform one-touch shortcuts to start applications, open files, or
open sites on the WWW.
•Launch the Internet browser supplied with your system.
•Lock or suspend your PC Workstation.
•Access HP TopTools and customer information.
•Mute or adjust the volume of the audio system.
Menu Key Pressing the “?” Menu soft key displays the soft key section of the HP
enhanced keyboard on your screen. Click any of the keys on the screen
to display the action assigned to an individual key or to change or assign
an action to a key. Shortcut keys are provided specifically for user-
defined actions.
Menu key
Lock/Suspend key
Internet key
HP TopTools
Shortcut key HP Customer
Information
Volume
control
keys
Shortcut keys
Mute key
Cog-sett.fm Page 7 Thursday, February 4, 1999 11:48 AM

HP Kayak XU PC Workstation — Setting Up and Using Your HP PC Workstation
The HP Summary Screen and Setup Program
8English
The HP Summary Screen and Setup Program
You can use the Summary Screen and the Setup program to configure
your PC Workstation and solve configuration problems with your PC
Workstation.
Starting the HP Setup Program
1Turn on the display and then the PC Workstation. If the PC
Workstation is already turned on, save your data and exit all
programs, then restart the PC Workstation. Consult your operating
system documentation for any special instructions concerning
turning off and then restarting your PC Workstation.
2Press while Setup is displayed at the bottom of the screen.
If you fail to press in time and the start-up process continues,
you will need to restart your PC Workstation to go through the
POST again so you can press .
The opening screen of the PC Workstation’s Setup program is
displayed.
Viewing the HP Summary Screen
Check your PC Workstation’s configuration each time after you install,
remove, or upgrade accessories. To check the configuration:
1Turn on the display and then the PC Workstation. If the PC
Workstation is already turned on, save your data and exit all
programs, then restart the PC Workstation. Consult your operating
system documentation for any special instructions concerning
turning off and then restarting your PC Workstation.
2While the start-up logo appears on your display, press . This
takes you to the HP Summary Screen. (To go immediately into the
Setup program, and bypass the Summary Screen, press instead
of ). The Summary Screen is displayed for only a short time. To
retain the screen (until you decide to leave it), press .
Cog-sett.fm Page 8 Thursday, February 4, 1999 11:48 AM

English 9
HP Kayak XU PC Workstation — Setting Up and Using Your HP PC Workstation
Setting Hardware Passwords
Setting Hardware Passwords
You can set two passwords, the Hardware Administrator (or
Supervisor) password and the Hardware User password, to provide
two levels of protection for your PC Workstation. You set both
passwords using the Security menu in the Setup program.
Setting a Password
To set a Hardware Administrator or User password:
1Start the Setup program.
2Select the Security menu.
3Select the Administrator or User password submenu.
4Choose the Set Administrator or User password setup item. You will be
asked to enter your password twice.
5To save your changes and exit the Setup program press or
select Exit Menu, then Exit Saving Changes.
To remove the password, follow the same procedure as to set a
password. You will be asked to enter the existing password first. Then,
for the new password, leave the password field blank and press
. To confirm your choice, press a second time.
Cog-sett.fm Page 9 Thursday, February 4, 1999 11:48 AM

HP Kayak XU PC Workstation — Setting Up and Using Your HP PC Workstation
Configuring Your Network Connection
10 English
Configuring Your Network Connection
Use the information in this section if your PC Workstation comes with
an HP-supplied integrated network solution.
You must use the PC Workstation's Setup program to change the
integrated Ethernet interface settings.
The following table summarizes which network options you can set
using the Setup program.
Network Setup Items1
1. For full information on setting up your network, refer to the online Network Administrator’s
Guide preloaded onto your PC Workstation.
2. Disabling the LAN card will only disable certain features of the LAN card, such as remote
power-on or remote wakeup, not the card itself.
Where to find in Setup
Enable the integrated network interface.2In the Advanced menu, go to the Integrated
Network Interface submenu.
Enable your PC Workstation to be started (booted
and logged on) from the network.
In the Security menu, go to the Boot Devices
Security submenu (described below).
Enable remote power-on of your PC Workstation. In the Power menu, enable the Integrated
Network item.
From “Suspend Wakeup” mode, enable your PC
Workstation to return to full power when a
command is received by the integrated network
interface.
In the Power menu, enable the Integrated
Network item.
Determine boot device priority. In the Boot menu, select the Boot Device
Priority list item (described on the next page).
Cog-sett.fm Page 10 Thursday, February 4, 1999 11:48 AM

English 11
HP Kayak XU PC Workstation — Setting Up and Using Your HP PC Workstation
Configuring Your Network Connection
Controlling the Network Security Features
The Security Features allow you to enable starting from the network if
you want the PC Workstation to start from a LAN server.
To enable starting from the network:
1With the Setup program running, use the or key to select
the Security menu.
2Press to highlight the line Boot Devices Security and press
to select the submenu.
3Highlight the line Start from Network and press or to
change the option to Enabled.
4You can disable the other boot options to prevent the PC
Workstation from booting if the network or server ever fails:
aPress to go to the Start From Floppy line. Press or to
change the option to Disabled.
bPress to go to the Start From IDE CD-ROM line. Press or
to change the option to Disabled.
cPress to go to the Start From IDE HDD line. Press or to
change the option to Disabled.
5Save your changes and exit.
Selecting the Boot Device Priority
You can determine the order in which your PC Workstation looks for
boot devices, including boot devices on the network. To do this:
1With the Setup program running, use the or key to select
the Boot menu.
2Press to highlight the line Boot Device Priority and press
to select the submenu.
3Use the and keys to select a boot device, and then press
the or key to move the device up or down the list.
Cog-sett.fm Page 11 Thursday, February 4, 1999 11:48 AM

HP Kayak XU PC Workstation — Setting Up and Using Your HP PC Workstation
Using Power Management
12 English
Using Power Management
Power management enables you to reduce your PC Workstation’s
overall power consumption by slowing down the PC Workstation’s
activity when it is idle. To configure power management, refer to the
Power menu in the Setup program.
Refer to your operating system documentation for detailed informa-
tion about the capability of your operating system to implement power
management.
Cog-sett.fm Page 12 Thursday, February 4, 1999 11:48 AM
